Description

Illuminate your space with the versatile and durable RAB VAN17-60 canopy light. This sleek, bronze fixture with aluminum housing is designed to withstand the elements while enhancing the aesthetics of any outdoor area. Perfect for both residential and commercial applications, the RAB VAN17-60 combines functionality with style. Its adjustable wattage and color temperature options allow you to create the ideal lighting environment for your specific needs. The durable construction, featuring a plastic reflector and vandal-resistant lens, ensures long-lasting performance in various outdoor settings. Experience the convenience of the built-in photocell, which automatically adjusts the light based on ambient conditions. With its IP65 rating, this canopy light is equipped to handle challenging weather, making it an excellent choice for parking areas, walkways, and building perimeters. Upgrade your outdoor lighting with the RAB VAN17-60 – the smart choice for customizable, durable, and efficient illumination.

Specifications

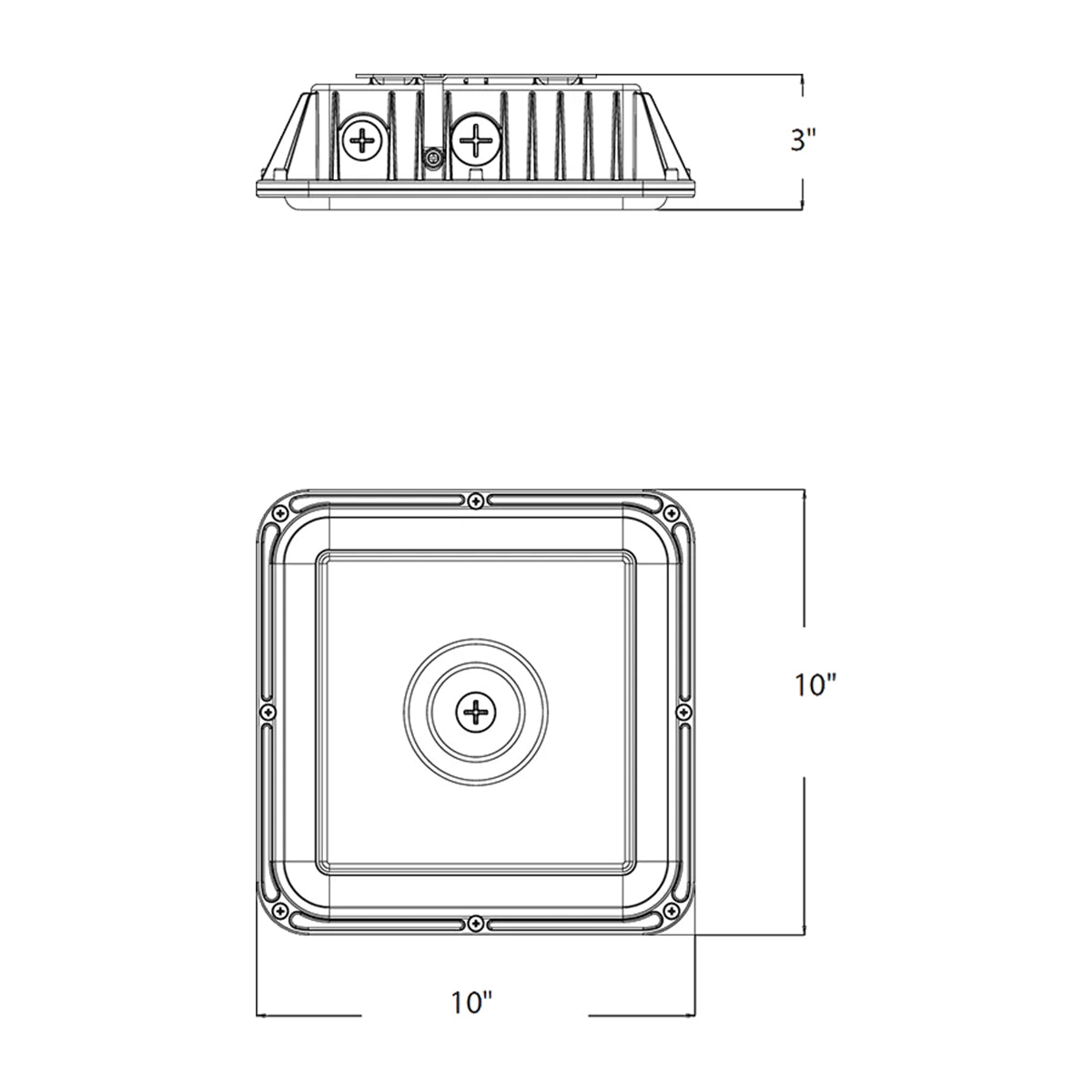

Dimensions

Length/Depth
10 in
Width/Diameter
10 in
Height
3 in
Weight
5.23 lb

Style & Materials

Material
Aluminum
Mounting Type
Ceiling Mount
Shape
Square/Rectangle

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
83 CRI
Delivered Lumens
9000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
60W

Item Details

SKU
VAN17-60
Brand
RAB Lighting
Family
VAN17 3-Way Adjustable Canopy Lighting
UPC
192552033046

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What makes a canopy light different from a regular ceiling light?

LED canopy lights are specifically engineered for outdoor or semi-outdoor use. They feature rugged, weather-resistant housings (usually IP65 rated) that seal out dust, moisture, and bugs. They are also designed with lenses that resist yellowing from UV exposure and vehicle exhaust.

Can I replace my Metal Halide canopy lights one-for-one?

Yes. A 40W to 60W LED fixture typically replaces a 150W to 175W metal halide, while a 100W to 150W LED can replace a 400W metal halide. This switch reduces energy consumption by up to 75% while improving light quality.

What is the difference between a flat lens and a drop lens?

Flat Lens: Provides a sleek, low-profile look and directs light straight down (cutoff). This is often preferred for gas stations to reduce glare from a distance.


Drop Lens: The lens extends below the fixture, allowing some light to spread sideways. This is excellent for parking garage lighting as it illuminates the ceiling and walls, reducing the "cave effect" and making the space feel larger and safer.

How do I install surface mount canopy lights?

Most fixtures feature a quick-mount plate. You attach the mounting plate to the junction box or ceiling surface first, wire the connections, and then slide or lock the fixture housing onto the plate. This makes installation easy for a single person.

Do these lights work with motion sensors?

Yes. Since parking garages and gas stations often have periods of low activity late at night, many of our fixtures are compatible with integrated bi-level motion sensors. These dim the lights (e.g., to 30%) when no motion is detected and return to 100% brightness instantly when a car or person arrives.
