RAB VAN17 3-Way Adjustable Canopy Light 4500 Lumens 30W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 4,500 lumens for bright illumination.
- Wattage: Field adjustable wattage options of 30W, 25W, and 20W.
- Voltage: Operates on a wide range of 120-277V input voltage.
- Color Temperature: Selectable CCT options of 3000K, 4000K, and 5000K.
- Environmental Rating: IP65 rated for protection against dust and water.
We process payments securely and do not store credit card information.
Description
Description

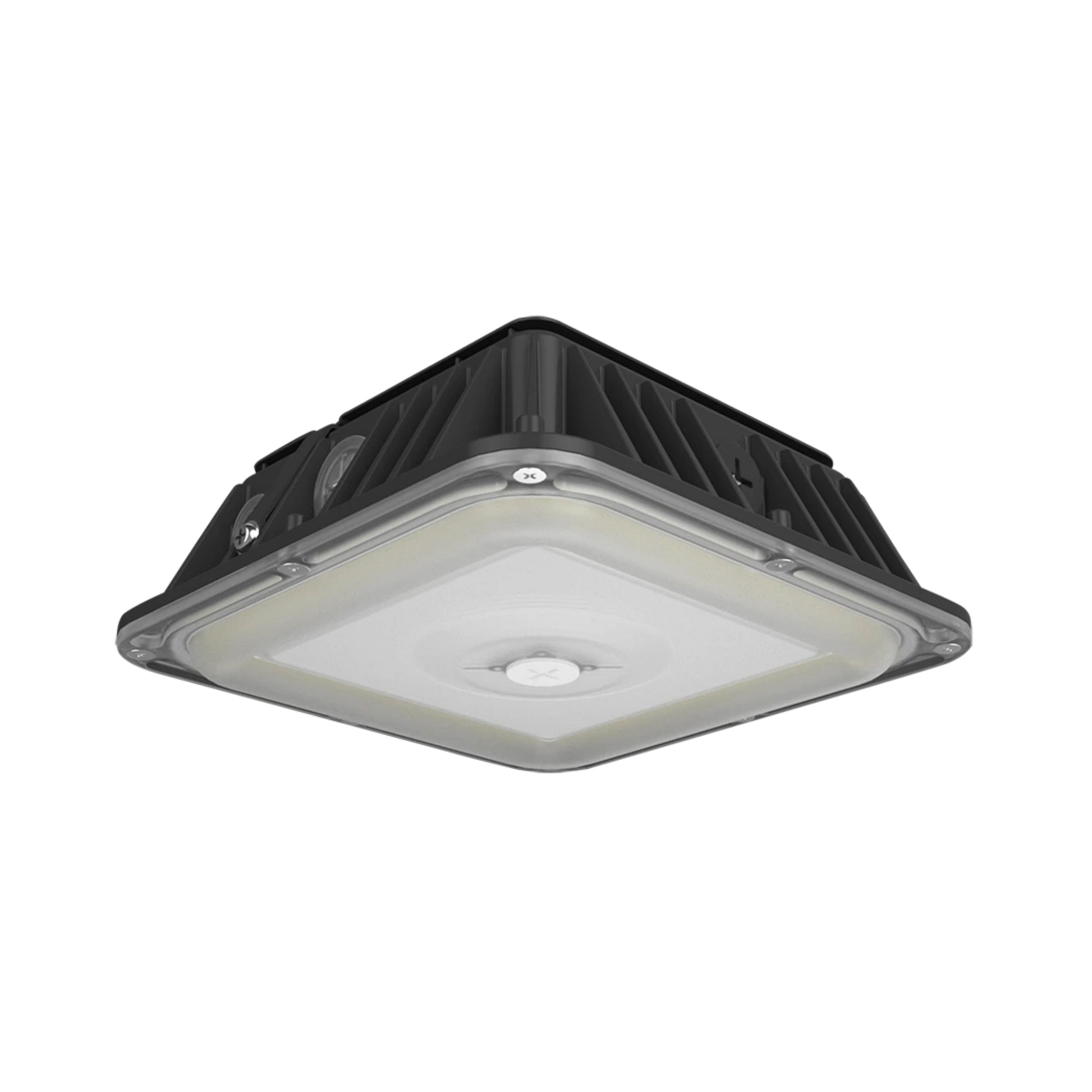

RAB VAN17 3-Way Adjustable Canopy Light - 30W Configuration
The RAB VAN17-30 is a versatile canopy light offering 30W power with a luminous output of 4,500 lumens. It supports a wide input voltage range of 120-277V and features selectable color temperatures of 3000K, 4000K, and 5000K. This fixture is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features
- Field Adjustability: Easily adjust the wattage between 30W, 25W, and 20W to suit different lighting needs.
- Photocell Control: Built-in on/off photocell for automatic dusk-to-dawn operation.
- Dimming Capability: Compatible with 0-10V dimming systems for customizable light levels.
- Durable Construction: Features a precision die-cast aluminum housing for longevity.
- Vandal-Resistant Lens: Polycarbonate lens designed to minimize glare and resist damage.
- Surge Protection: Equipped with 4kV line-neutral and 6kV line/neutral-ground surge protection.
- Long Lifespan: Offers a 100,000-hour LED lifespan based on IES LM-80 results.
- Environmental Compliance: RoHS compliant and free from mercury and UV.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
- Cold Weather Operation: Operates in temperatures as low as -40°F.
Typical Applications
- Parking Garages
- Stairwells
- Passageways
- Commercial Canopies
- Outdoor Walkways
Performance & Light Output
This fixture delivers up to 4,500 lumens with an efficacy of 140.8-153.1 lm/W, ensuring bright and efficient lighting. It features a long LED lifespan of 100,000 hours.
Electrical & Controls
The VAN17-30 operates on 120-277V with a constant current driver. It supports 0-10V dimming and includes a built-in photocell for dusk-to-dawn operation. Surge protection is rated at 4kV line-neutral and 6kV line/neutral-ground.
Construction & Durability
Constructed with a die-cast aluminum housing and a vandal-resistant polycarbonate lens, this fixture is IP65 rated for dust and water protection. It is suitable for ambient temperatures up to 50°C (122°F).
Installation & Mounting
Designed for retrofit ceiling mounting, the fixture includes necessary mounting plates. It is suitable for wet locations.
What's Included
- VAN17-30 Canopy Light Fixture
- Mounting Plates
Specifications
Specifications

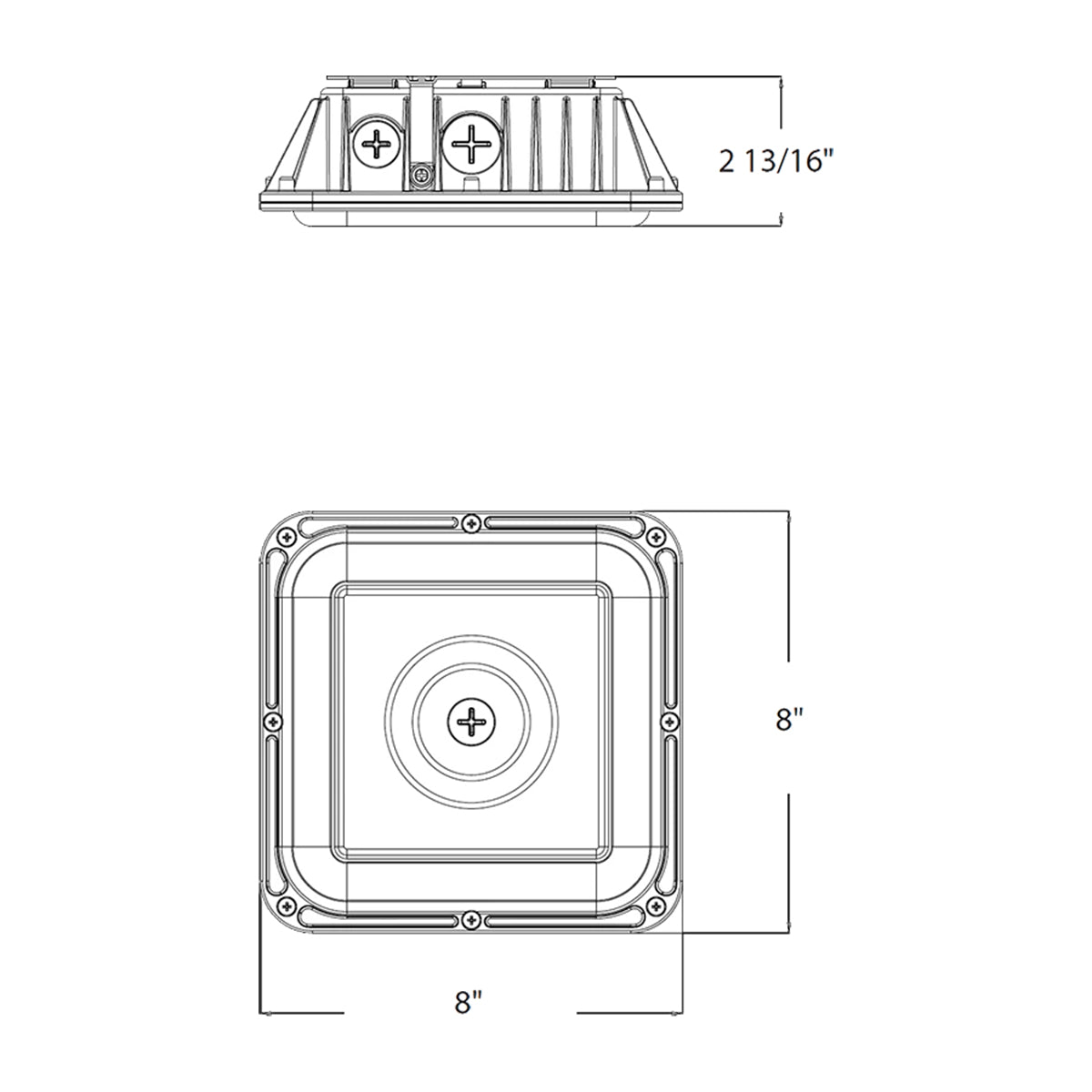

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB VAN17-30 canopy light?
What is the wattage of the RAB VAN17-30 canopy light?
Is the RAB VAN17-30 suitable for outdoor use?
Is the RAB VAN17-30 suitable for outdoor use?
Does the RAB VAN17-30 include a photocell?
Does the RAB VAN17-30 include a photocell?
What color temperatures are available for the RAB VAN17-30?
What color temperatures are available for the RAB VAN17-30?
What is the lifespan of the RAB VAN17-30 LEDs?
What is the lifespan of the RAB VAN17-30 LEDs?
