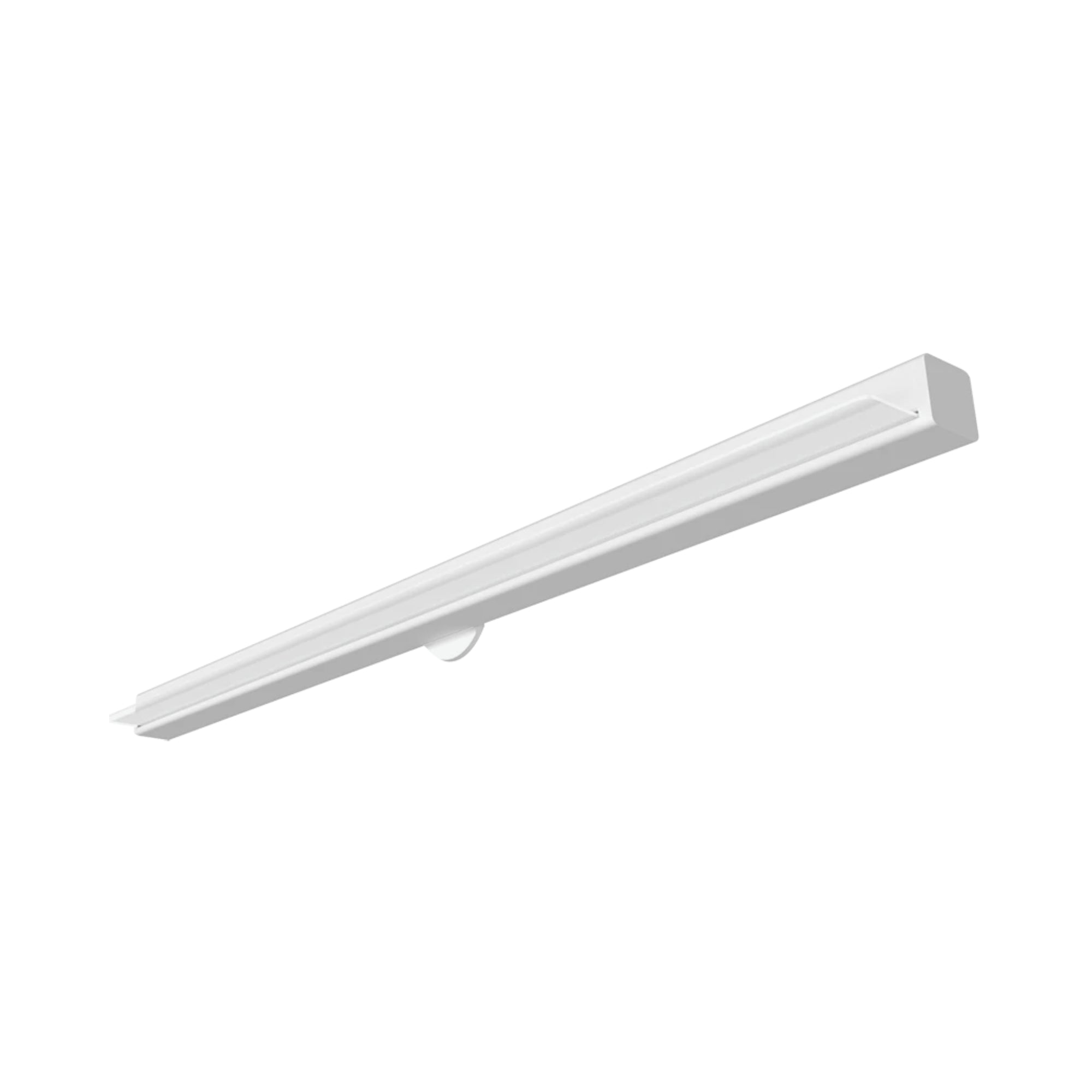

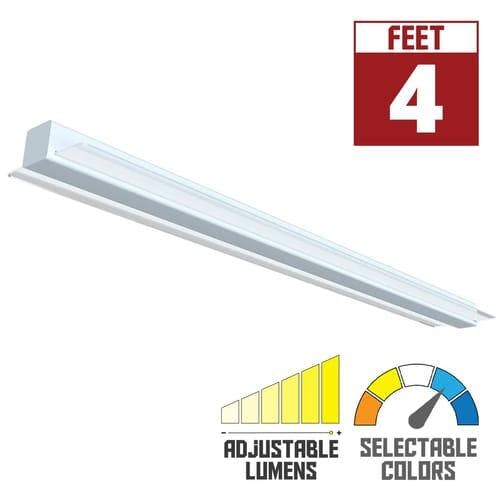

RAB TOMO-4WM Field-Adjustable 4ft Wall Mount Linear Light — 24W/18W/12W Selectable — 3000K/3500K/4000K/5000K — White

The RAB TOMO-4WM is a commercial 4ft Wall Mount Linear Light engineered to deliver up to 3,285 lumens with field-adjustable 24W/18W/12W power settings and switchable 3000K/3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to 5%, this luminaire provides an energy-efficient replacement for legacy up to (1) F32T8 or (3) F17T8 fluorescent fixtures. Built with a UL Listed damp location rating, it is engineered for architectural indoor commercial environments and features direct surface wall-mounting capability with an integrated heavy-duty steel wall mounting bracket.

Key Features

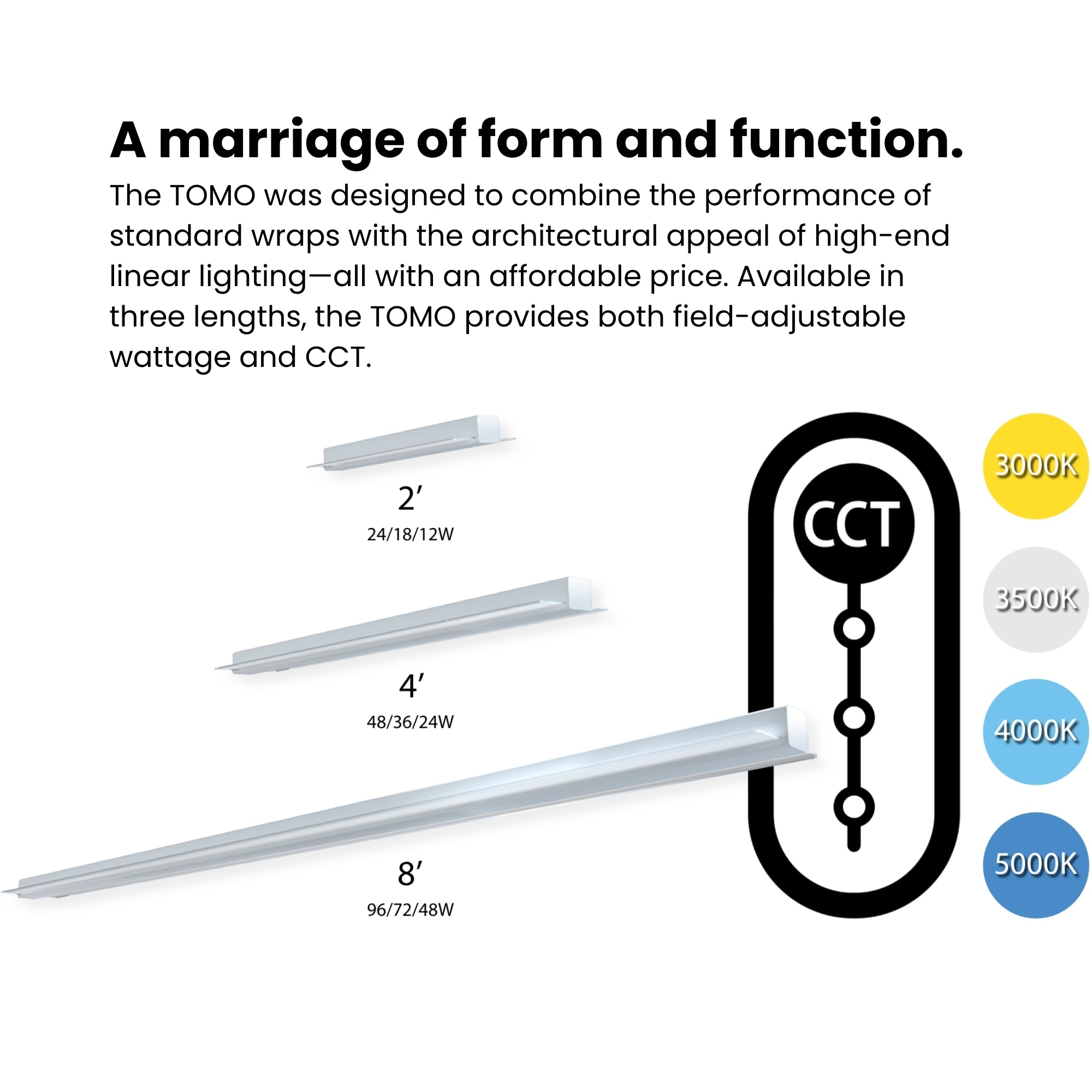

• Selectable Wattage: 24W/18W/12W — field-adjustable via onboard slide switch (factory default: 24W)
• Wattage Equivalency: Replaces legacy up to (1) F32T8 or (3) F17T8 fluorescent fixtures for substantial commercial energy savings
• Maximum Lumen Output: 3,285 lm at 24W setting
• Peak Efficacy: 141.4 lm/W for high-efficiency commercial operation
• CRI: 82 to 84 color rendering index across standard settings
• Selectable CCT: 3000K/3500K/4000K/5000K — field-adjustable via onboard slide switch (factory default: 4000K)
• Lens & Optics: Diffused polymethyl methacrylate (PMMA) lens engineered for uniform, glare-free light distribution
• Dimming: 0–10V continuous dimming standard, dims down to 5%
• Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
• Location Rating: UL Listed for damp locations
• Operating Temperature: -4°F (-20°C) to 131°F (55°C) ambient range
• Certifications: UL Listed for damp locations, RoHS compliant, Mercury and UV free
• Rated Life: 100,000 hours (L70) per IES LM-80 testing and TM-21 calculations
• Warranty: 5-year, no-compromise warranty — RAB
• Color Consistency: 4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance & Light Output

At 24W: 3,016 lm (3000K / 128.9 lm/W), 3,138 lm (3500K / 135.8 lm/W), 3,193 lm (4000K / 139.4 lm/W), 3,285 lm (5000K / 140.4 lm/W).
At 18W: 2,234 lm (3000K / 129.9 lm/W), 2,320 lm (3500K / 135.7 lm/W), 2,363 lm (4000K / 139.0 lm/W), 2,432 lm (5000K / 141.4 lm/W).
At 12W: 1,617 lm (3000K / 128.3 lm/W), 1,672 lm (3500K / 133.8 lm/W), 1,700 lm (4000K / 137.1 lm/W), 1,765 lm (5000K / 140.1 lm/W).

CRI >80 (typical 81–85) across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

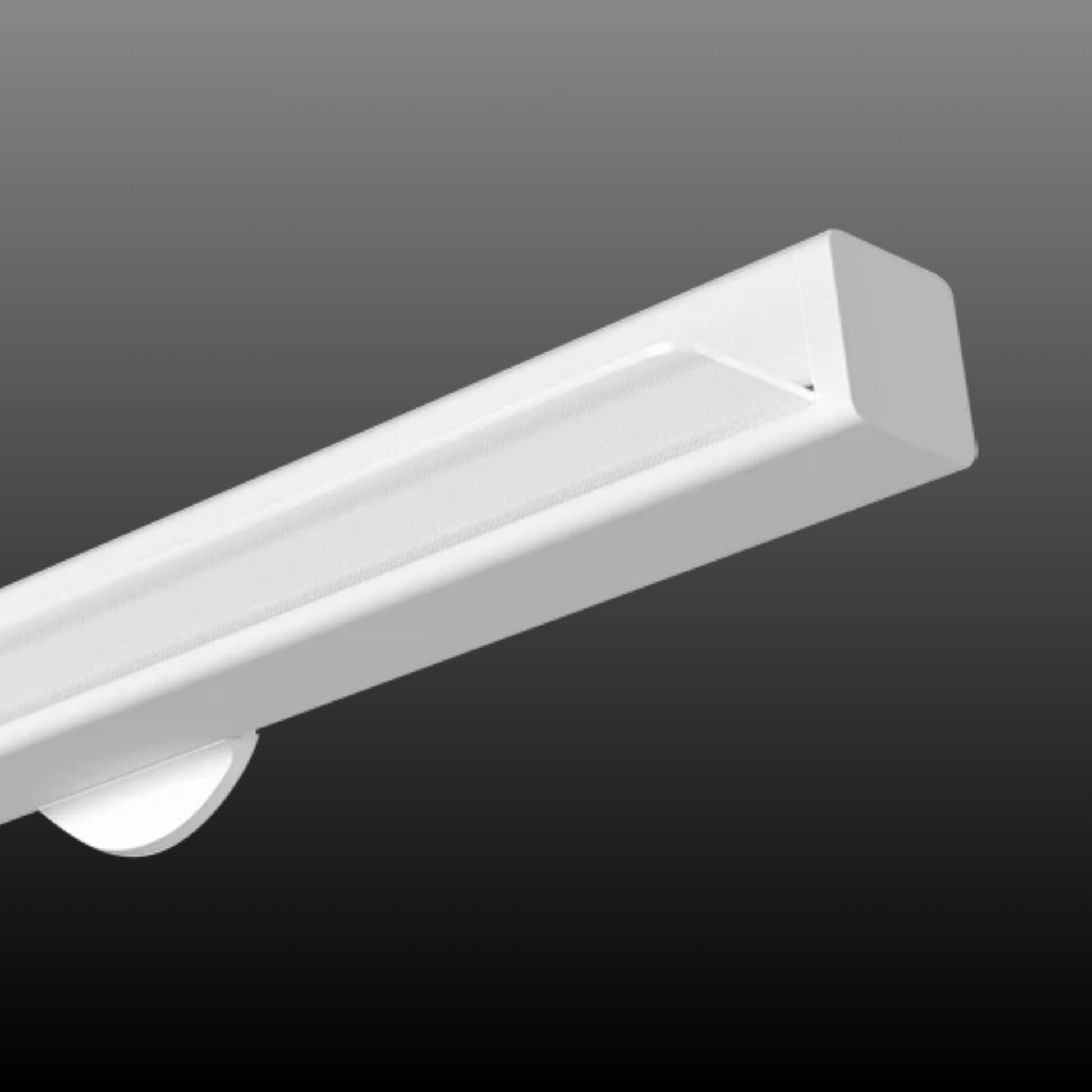

Form Factor & Design Profile

The RAB TOMO-4WM linear fixture is designed specifically for architectural surface wall-mount applications, integrating a dedicated heavy-gauge backplate that secures flush to commercial wall surfaces. Formed from cold rolled carbon steel (SPCC) with an impact-resistant diffused PMMA lens, its compact 4ft geometric housing delivers soft forward-throw and vertical surface illumination for stairwells, corridors, and commercial restroom vanities.

Smart & Control Features

The RAB TOMO-4WM linear luminaire features flexible control integration supporting standalone dimming and modular wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 5% on standard 0–10V low-voltage control circuits. Compatible with commercial architectural dimmers and centralized building automation systems (BAS).
• Lightcloud & Lightcloud Blue Wireless Control (Accessory): Compatible with field-installable Lightcloud and Lightcloud Blue screw-in sensor modules for Bluetooth mesh group control, automated scheduling, daylight harvesting, and motion detection without requiring an external gateway or hub.

Compatible plug-and-play sensors include PIR and microwave motion sensors (max 50 ft mounting height, 50 ft detection diameter) — sold separately. Field adjustments can also be managed using the optional handheld remote control (catalog # TOMO-REMOTE, sold separately).

Electrical

Powered by a Class 2, Class P constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.89 (99.5% at 120V, 94.1% at 277V) and Total Harmonic Distortion (THD) <9.25% at 120V and 17.1% at 277V. Integrated 1kV to 2kV surge protection safeguards internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision formed cold rolled carbon steel (SPCC) housing engineered for passive thermal dissipation and structural rigidity.

Lens & Optics: High-transmission diffused polymethyl methacrylate (PMMA) lens engineered to eliminate diode pixelation and deliver uniform optical distribution.

Finish: Long-lasting white powder-coated finish formulated for high durability, corrosion resistance, and color retention.

Environmental Sealing: UL Listed damp location rating for protection against ambient condensation and airborne moisture. Engineered free of mercury and UV radiation; RoHS compliant. Operating ambient temperature range: -4°F (-20°C) to 131°F (55°C).

Dimensions & Weight: 48.00" L × 2.25" W × 4.62" H (depth from wall: 3.78", mounting plate: 6.00" L × 4.16" W). Fixture weight: 8.2 lbs.

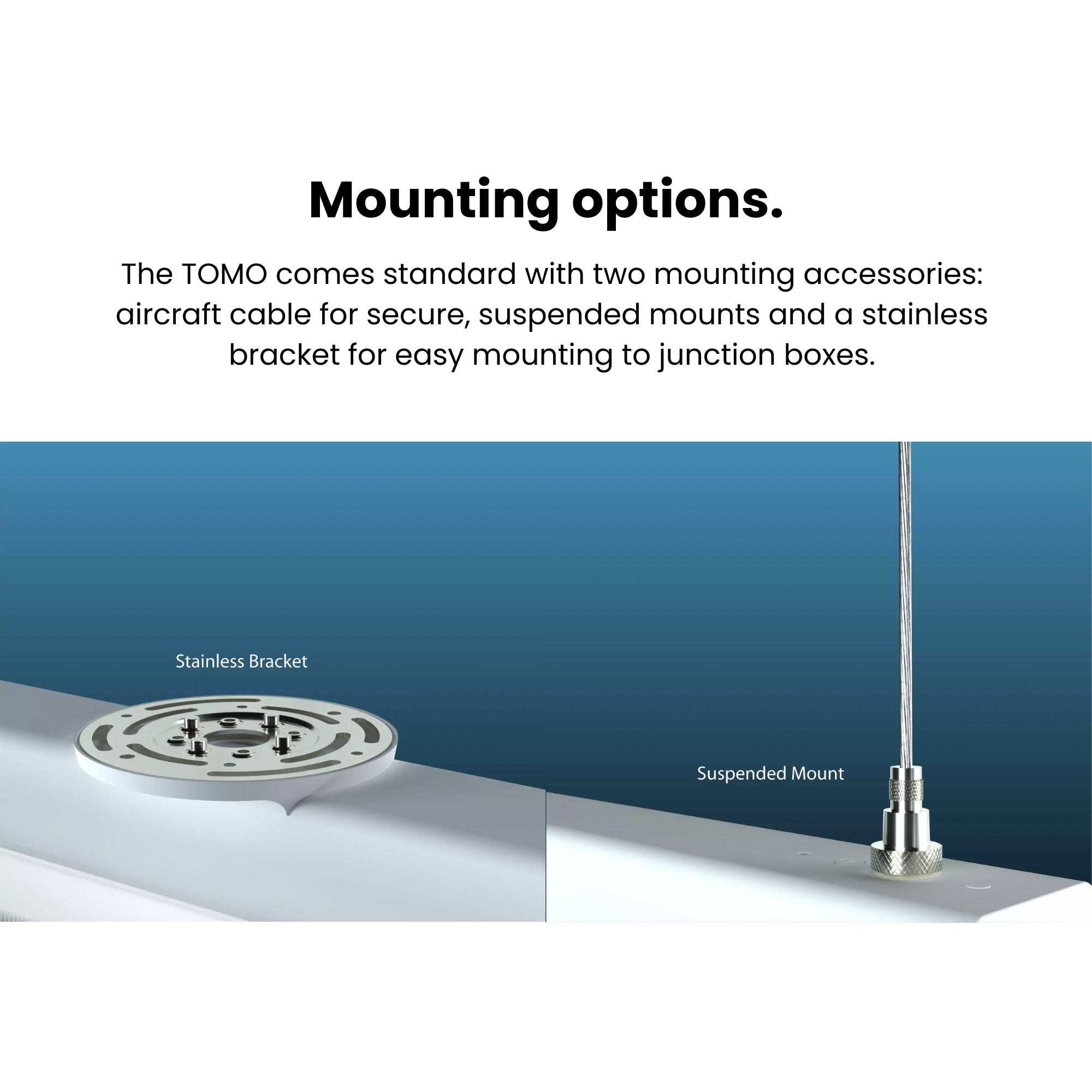

Installation & Mounting

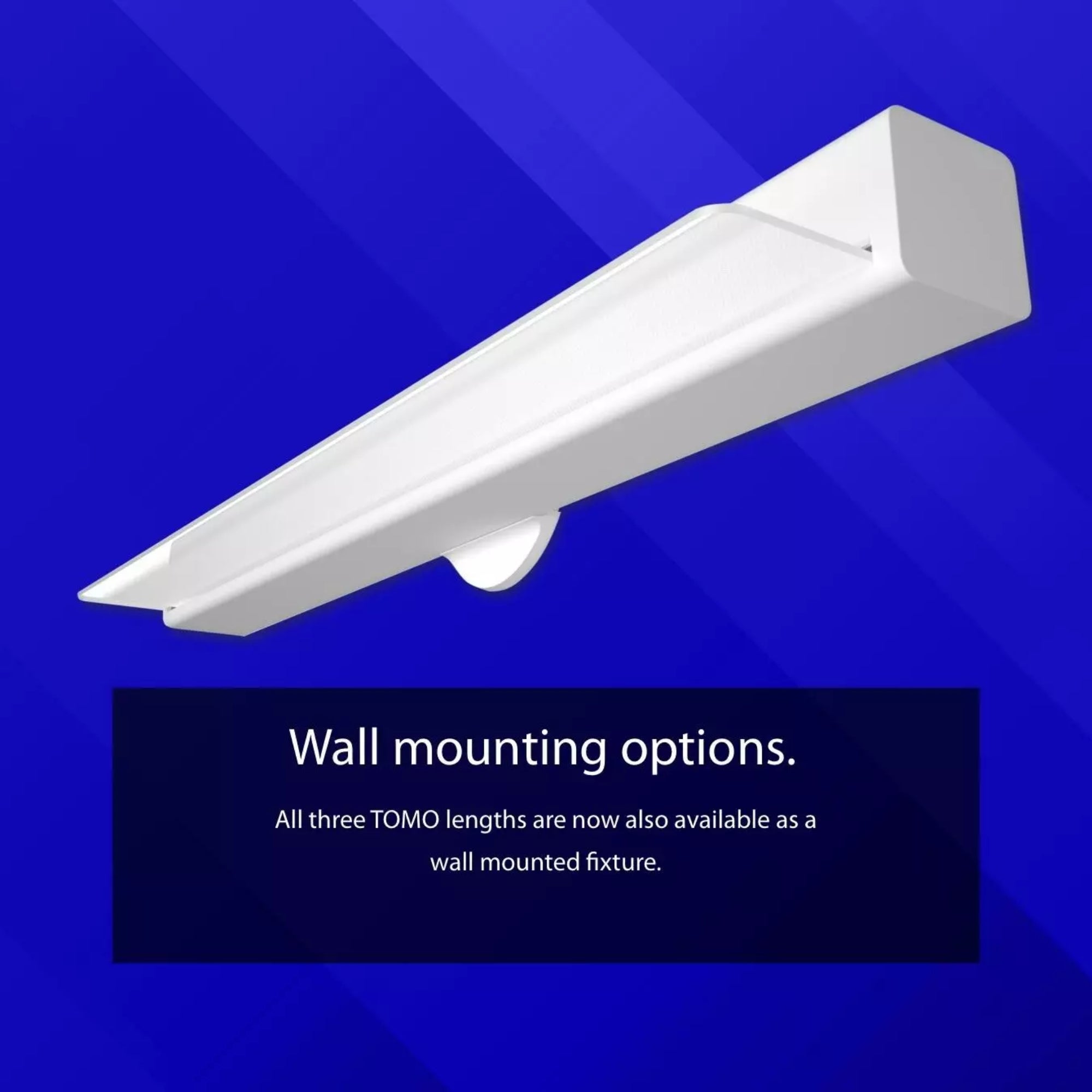

Standard Mounting: Designed specifically for direct surface wall mounting using the integrated heavy-duty steel wall mounting bracket and backplate assembly.

Accessories (Sold Separately):

• Handheld Remote: TOMO-REMOTE (UPC 192552003629) — Remote control for configuring PIR motion and daylight threshold settings
• Sensors & Controls: Lightcloud and Lightcloud Blue PIR and microwave sensor modules (sold separately)

Certifications & Rebates

• UL Listed: Tested and certified to UL 1598 standards for damp locations.
• TAA Compliant: Product of Cambodia ("designated country" end product) complying with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
• RoHS & Green Tech: RoHS compliant components; 100% mercury-free and UV-free solid-state construction.
• IES Testing: Photometric and lumen maintenance performance independently verified in accordance with IESNA LM-79 and LM-80.

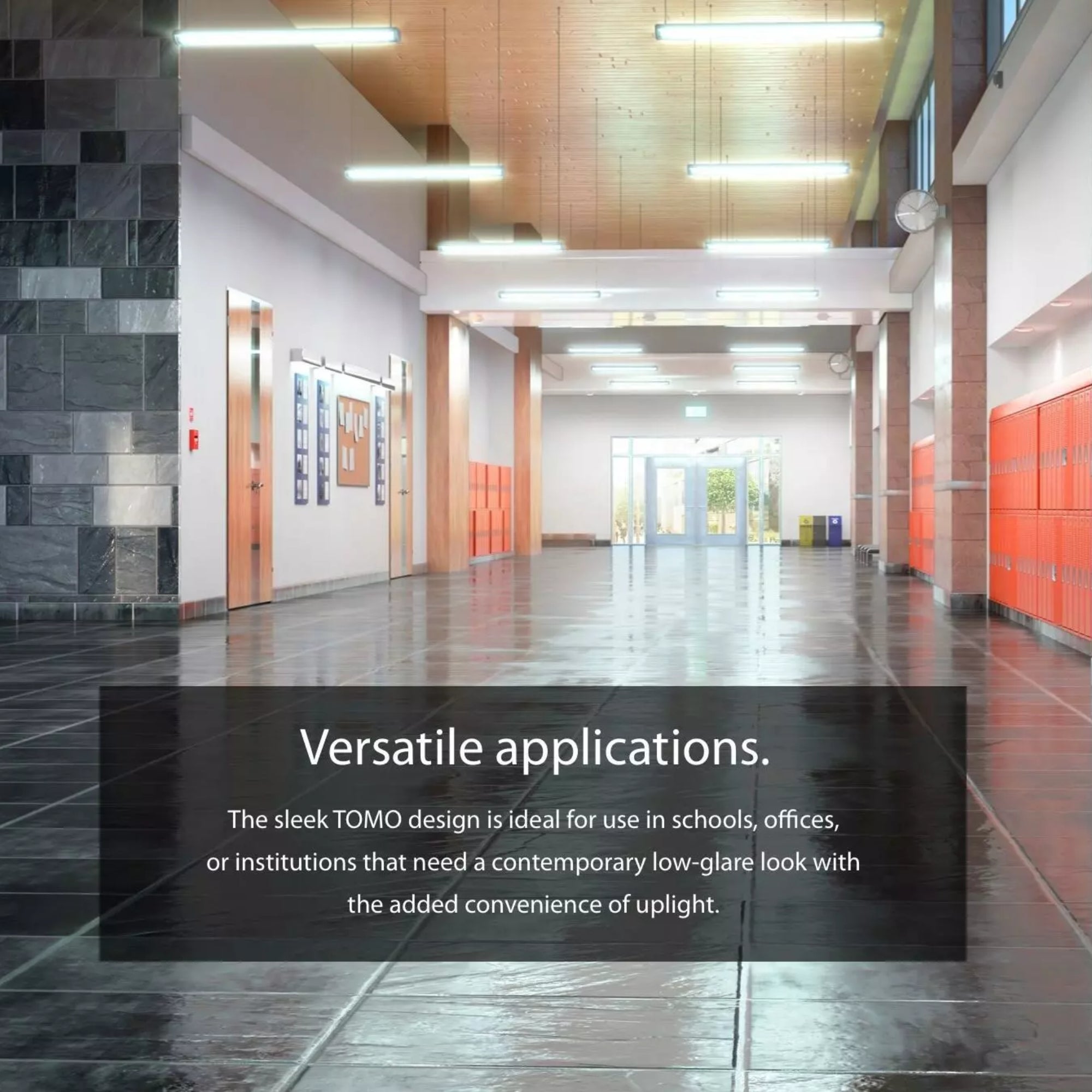

Typical Applications

• Commercial Corridors & Hallways — Low-profile wall mounting delivers comfortable forward and vertical illumination without protruding into circulation paths.
• Stairwells & Multi-Story Egress Routes — Surface wall mounting provides glare-free step illumination for building occupants.
• Restrooms & Vanity Lighting — Damp location listing and diffused optics provide shadow-free task lighting above or beside mirrors.
• Hospitality Guest Rooms & Suites — 4-step CCT switchability and smooth 0–10V dimming allow tailored ambient light levels.
• Multi-Family Residential Common Areas — Clean architectural white steel chassis enhances interior walls in leasing offices and elevator lobbies.

What's Included

• RAB TOMO-4WM Field-Adjustable 4ft Wall Mount Linear Light — White
• Integrated surface wall-mounting bracket assembly and hardware
• Installation and operation instructions
