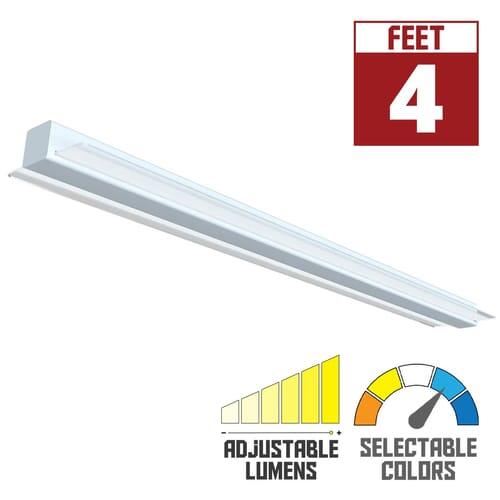

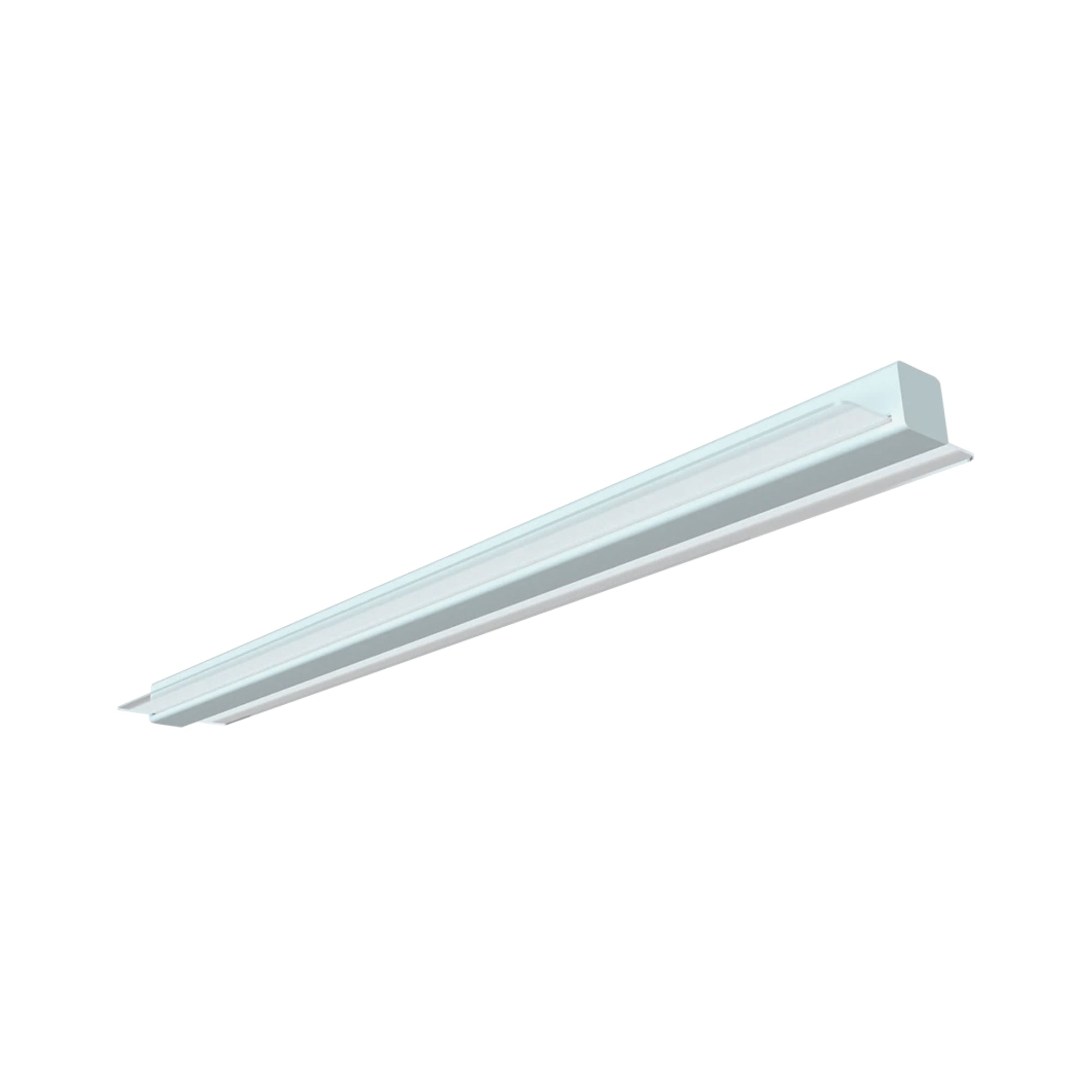

RAB Lighting TOMO Field-Adjustable Linear Light 48 in. 6600 Lumens 48W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 6600 lumens for optimal illumination.
- Wattage: Field adjustable wattage options of 48W, 36W, and 24W.
- Voltage: Operates on a universal voltage range of 120-277V.
- Color Temperature: Selectable CCT options from 3000K to 5000K for versatile lighting needs.
- Dimming: Compatible with 0-10V dimming systems for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description
RAB Lighting TOMO Field-Adjustable Linear Light — 48W Configuration
The RAB Lighting TOMO-4 is a versatile linear light offering a field-adjustable wattage of 48W, delivering up to 6600 lumens. It operates on a 120-277V input voltage and features selectable color temperatures ranging from 3000K to 5000K. This fixture is DLC Listed, ensuring energy efficiency and eligibility for utility rebates.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 48W, 36W, and 24W for tailored light output.

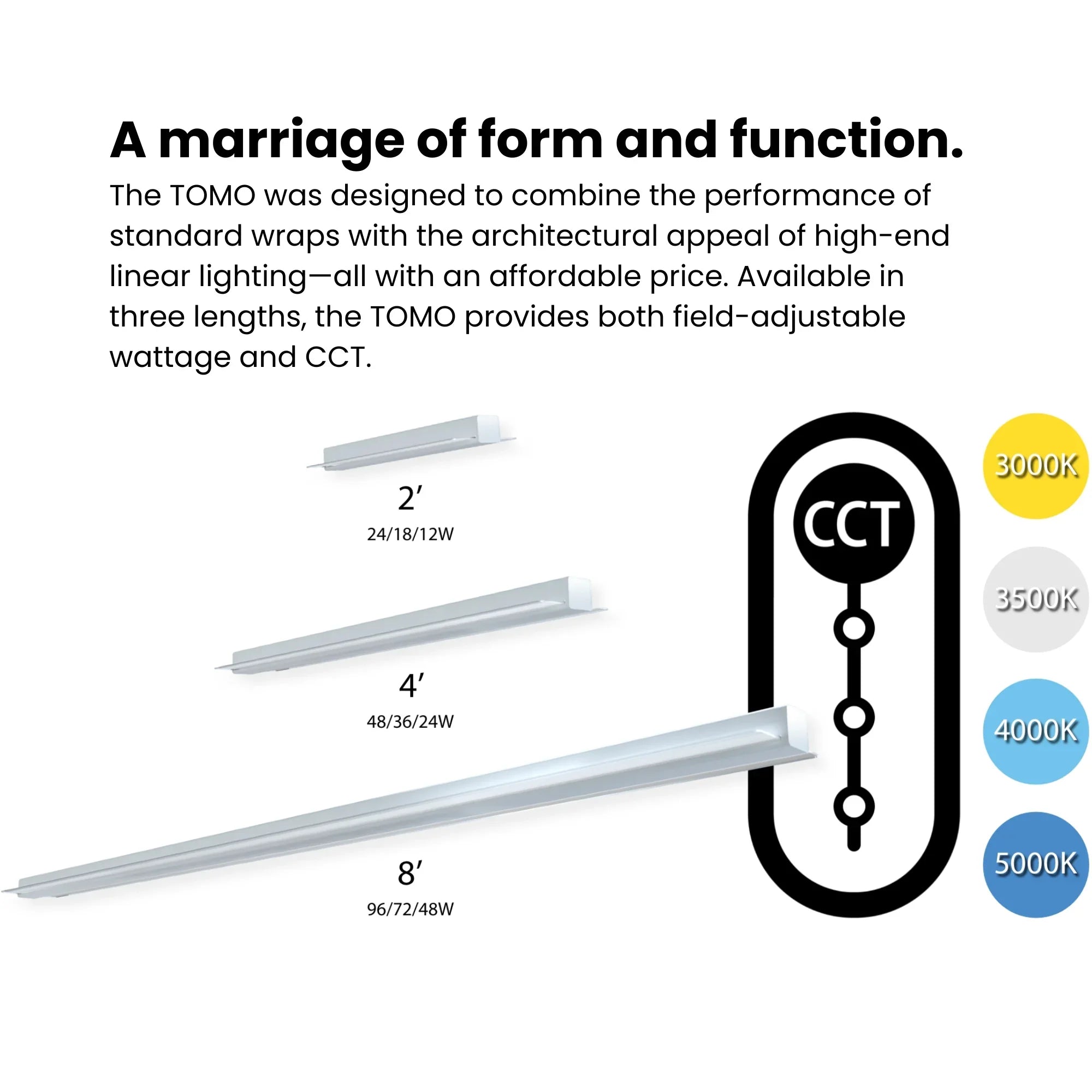

- Selectable CCT: Choose from 3000K, 3500K, 4000K, or 5000K to suit various environments.
- High Efficacy: Achieves an efficacy range of 125.6-135.9 lm/W for efficient performance.
- Long Lifespan: Designed with a 100,000-hour LED lifespan for extended use.
- Dimming Capability: Supports 0-10V dimming down to 5% for customizable lighting.
- Durable Construction: Built with cold rolled carbon steel and a diffused PMMA lens for durability.
- Compliance: UL Listed for damp locations and DLC 5.1 compliant.
- Surge Protection: Includes 1-2kV surge protection for enhanced reliability.
- Power Factor: Maintains a high power factor of 99.6% at 120V.
- Color Consistency: Ensures uniform color with 4-step MacAdam Ellipse binning.

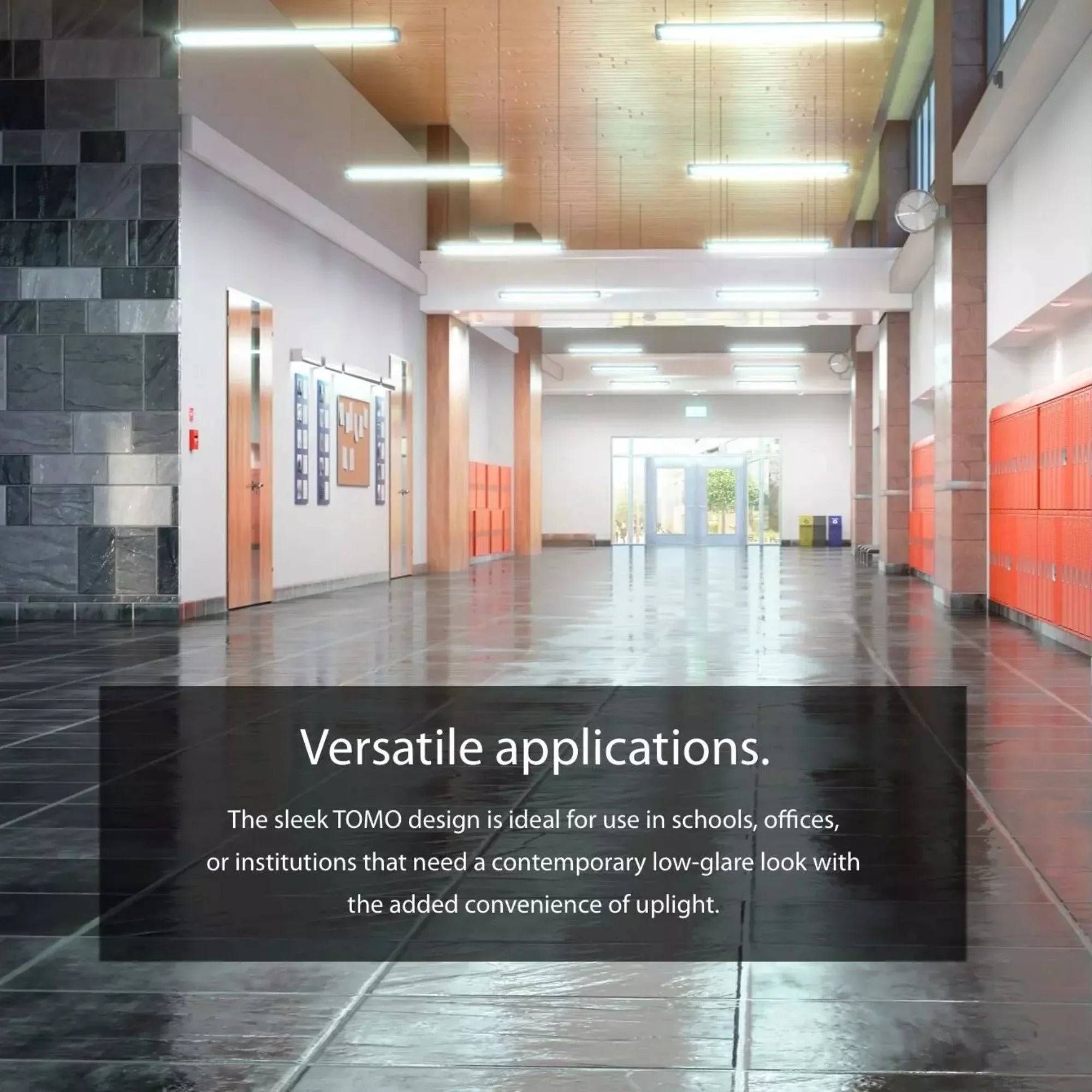

Typical Applications
- Warehouses
- Retail Spaces
- Offices
- Educational Facilities
- Healthcare Facilities
Performance & Light Output
This fixture delivers a light output of up to 6600 lumens with a color rendering index (CRI) of 84, ensuring clear and accurate color representation. The fixture's optics provide a 70% downlight and 30% uplight distribution.
Electrical & Controls
The TOMO-4 operates on a universal voltage range of 120-277V and includes a constant current driver with 0-10V dimming capability. It features a low total harmonic distortion (THD) and a high power factor for efficient operation.
Construction & Durability
Constructed from cold rolled carbon steel with a diffused PMMA lens, this fixture is designed for durability and long-lasting performance. It is suitable for use in environments with temperatures ranging from -20°C to 55°C.

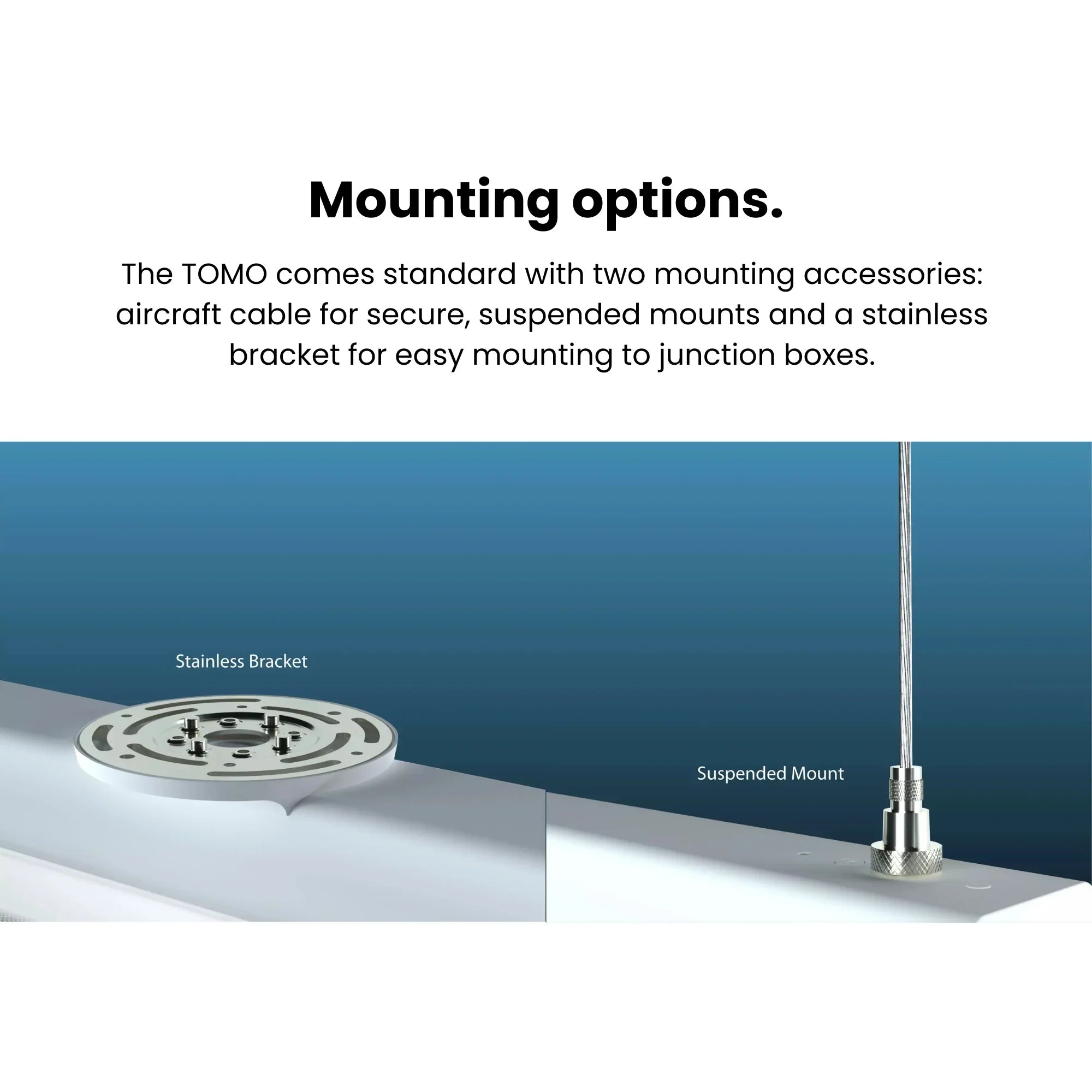

Installation & Mounting
The fixture includes aircraft cable for suspended mounting and a stainless bracket for junction box installation. A power cord and canopy cover are also provided for ease of installation.
What's Included
- Aircraft cable for suspended mounting
- Stainless bracket for junction box mounting
- Power cord
- Canopy cover
