RAB TOMO-2 Field-Adjustable 2ft Linear Light — 24W/18W/12W Selectable — 3000K/3500K/4000K/5000K — White

The RAB TOMO-2 is a commercial 2ft Linear Light engineered to deliver up to 3,332 lumens with field-adjustable 24W/18W/12W power settings and switchable 3000K/3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to 5%, this luminaire provides an energy-efficient replacement for legacy up to (1) F32T8 or (3) F17T8 fluorescent fixtures. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC 5.1 standards and features dual-mounting capability with included aircraft suspension cables and surface J-box mounting brackets.

Key Features

• Selectable Wattage: 24W/18W/12W — field-adjustable via onboard slide switch (factory default: 18W)
• Wattage Equivalency: Replaces legacy up to (1) F32T8 or (3) F17T8 fluorescent fixtures for substantial commercial energy savings
• Maximum Lumen Output: 3,332 lm at 24W setting
• Peak Efficacy: 137.7 lm/W for high-efficiency commercial operation
• CRI: 82 to 84 color rendering index across standard settings
• Selectable CCT: 3000K/3500K/4000K/5000K — field-adjustable via onboard slide switch (factory default: 4000K)
• Lens & Optics: Diffused polymethyl methacrylate (PMMA) lens engineered for uniform, glare-free light distribution
• Dimming: 0–10V continuous dimming standard, dims down to 5%
• Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
• Location Rating: UL Listed for damp locations
• Operating Temperature: -4°F (-20°C) to 131°F (55°C) ambient range
• Certifications: DLC 5.1 Listed, UL Listed for damp locations, RoHS compliant, Mercury and UV free
• Rated Life: 100,000 hours (L70) per IES LM-80 testing and TM-21 calculations
• Warranty: 5-year, no-compromise warranty — RAB
• Color Consistency: 4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance & Light Output

At 24W: 3,016 lm (3000K / 122.6 lm/W), 3,177 lm (3500K / 131.3 lm/W), 3,222 lm (4000K / 133.7 lm/W), 3,332 lm (5000K / 135.4 lm/W).
At 18W: 2,254 lm (3000K / 123.2 lm/W), 2,375 lm (3500K / 131.2 lm/W), 2,398 lm (4000K / 133.2 lm/W), 2,478 lm (5000K / 135.4 lm/W).
At 12W: 1,540 lm (3000K / 122.2 lm/W), 1,617 lm (3500K / 129.4 lm/W), 1,629 lm (4000K / 130.3 lm/W), 3,223 lm (5000K / 137.7 lm/W).

CRI >80 (typical 81–85) across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Form Factor & Design Profile

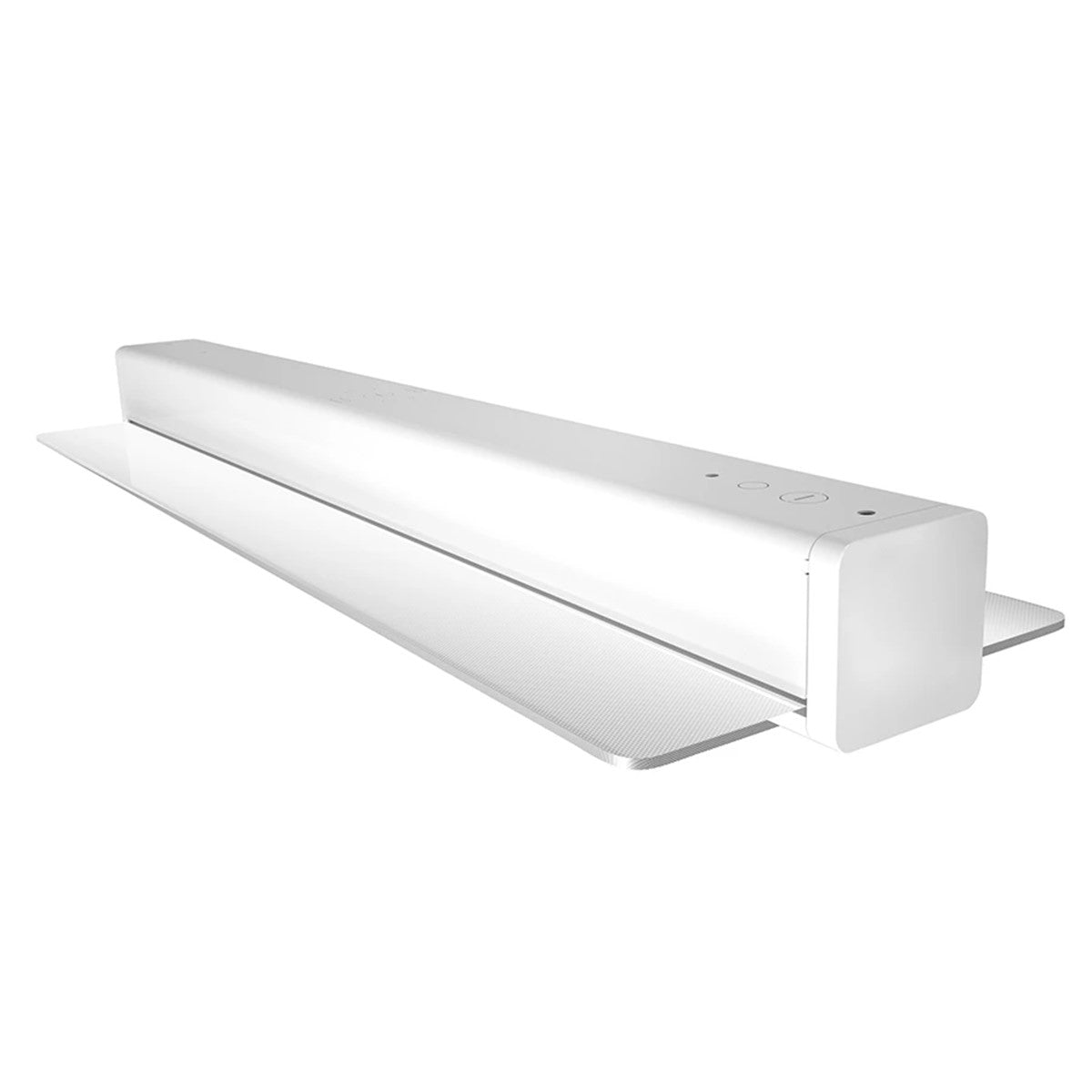

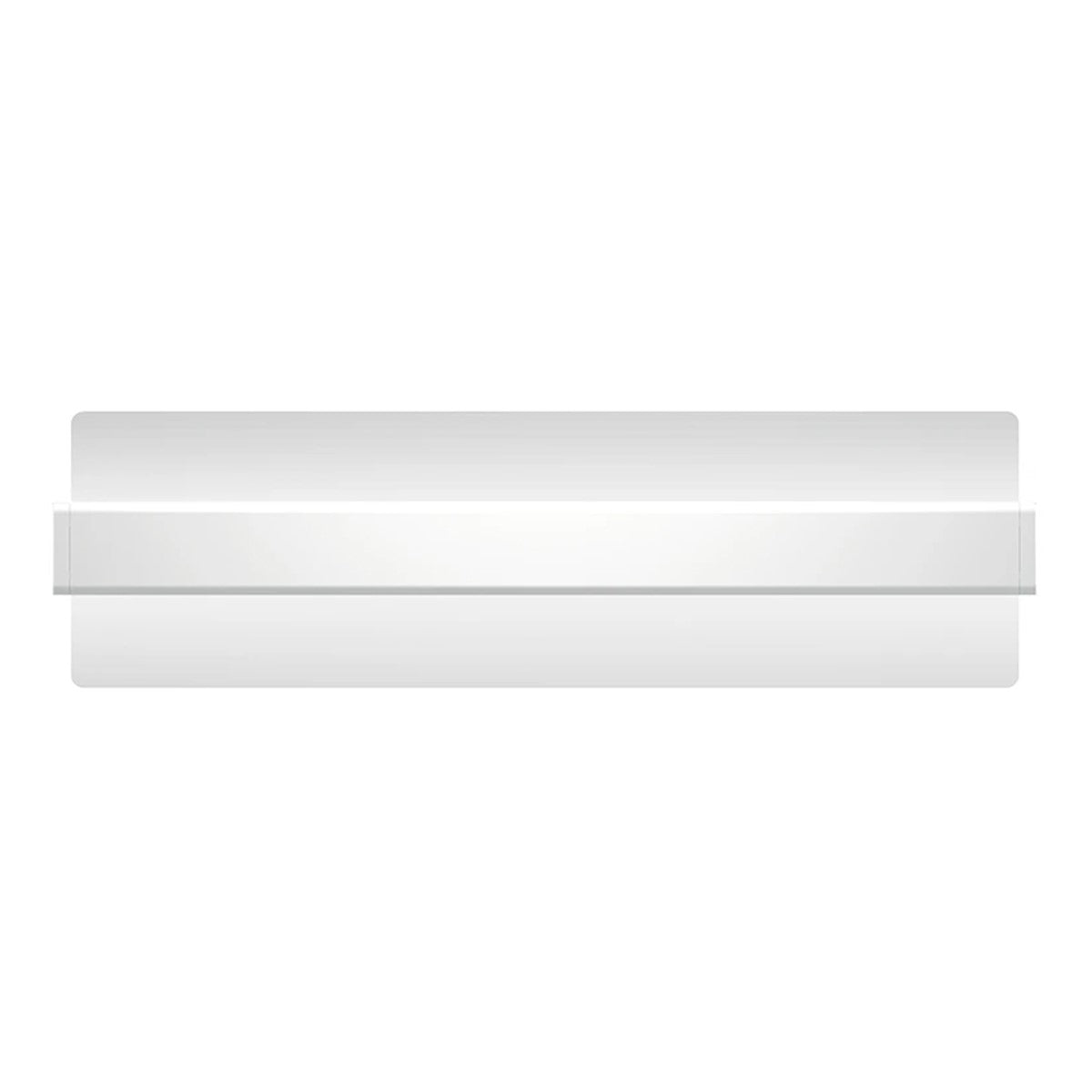

The RAB TOMO-2 linear fixture features a slim, architectural profile fabricated from durable cold rolled carbon steel (SPCC) with an impact-resistant diffused PMMA lens. Engineered for versatile commercial installations, the luminaire includes dual standard hardware for either suspended aircraft cable hanging or direct flush junction box attachment. For extended layout runs, optional end-to-end continuous joiners allow individual fixtures to interconnect cleanly without light leaks or dark spots.

Smart & Control Features

The RAB TOMO-2 linear luminaire features flexible control integration supporting standalone dimming and modular wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 5% on standard 0–10V low-voltage control circuits. Compatible with commercial architectural dimmers and centralized building automation systems (BAS).
• Lightcloud & Lightcloud Blue Wireless Control (Accessory): Compatible with field-installable Lightcloud and Lightcloud Blue screw-in sensor modules for Bluetooth mesh group control, automated scheduling, daylight harvesting, and motion detection without requiring an external gateway or hub.

Compatible plug-and-play sensors include PIR and microwave motion sensors (max 50 ft mounting height, 50 ft detection diameter) — sold separately. Field adjustments can also be managed using the optional handheld remote control (catalog # TOMO-REMOTE, sold separately).

Electrical

Powered by a Class 2, Class P constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.89 (99.6% at 120V, 98.9% at 277V) and Total Harmonic Distortion (THD) <7.4% at 120V and 9.8% at 277V. Integrated 1kV to 2kV surge protection safeguards internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision formed cold rolled carbon steel (SPCC) housing engineered for passive thermal dissipation and structural rigidity.

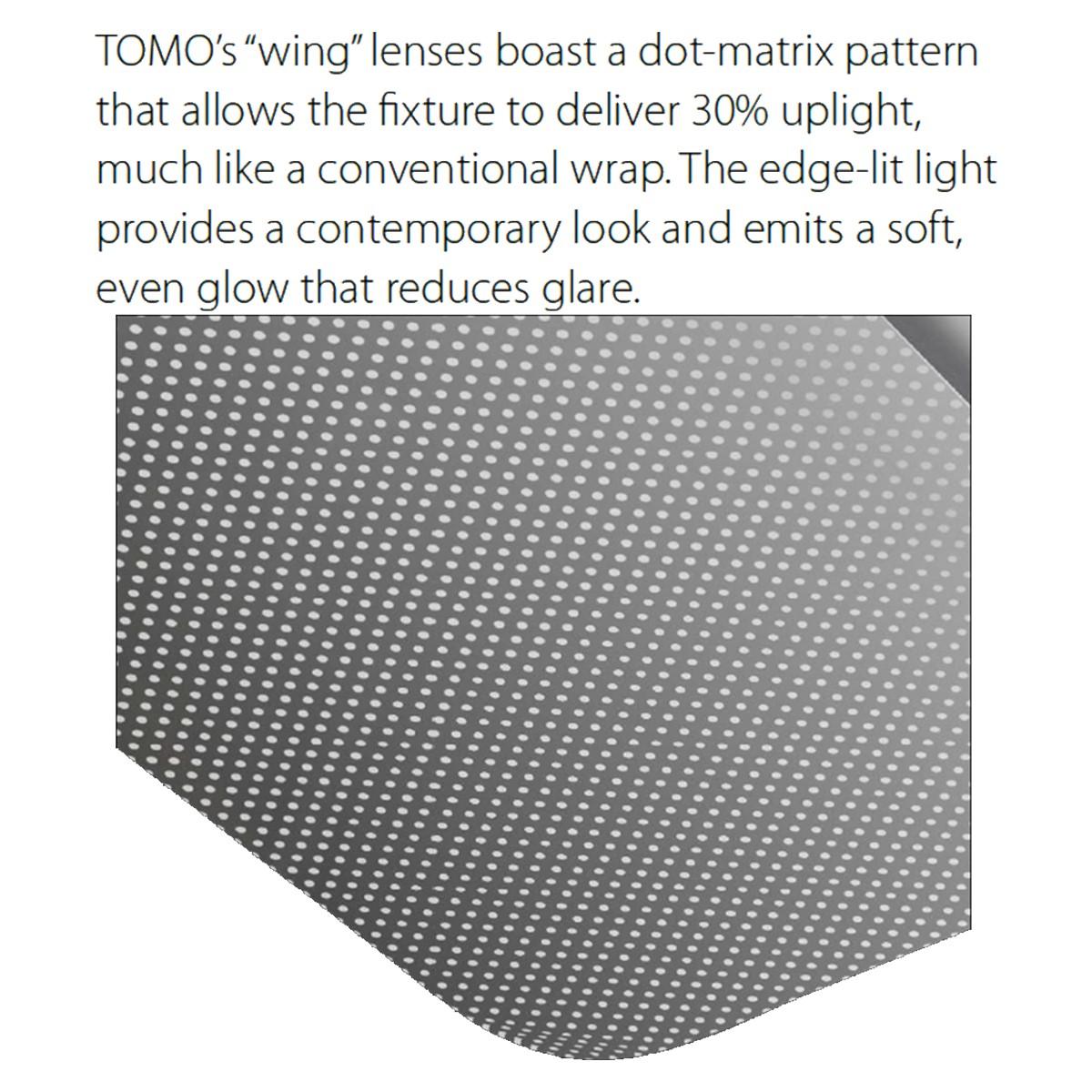

Lens & Optics: High-transmission diffused polymethyl methacrylate (PMMA) lens engineered to eliminate diode pixelation and deliver uniform optical distribution.

Finish: Long-lasting white powder-coated finish formulated for high durability, corrosion resistance, and color retention.

Environmental Sealing: UL Listed damp location rating for protection against ambient condensation and airborne moisture. Engineered free of mercury and UV radiation; RoHS compliant. Operating ambient temperature range: -4°F (-20°C) to 131°F (55°C).

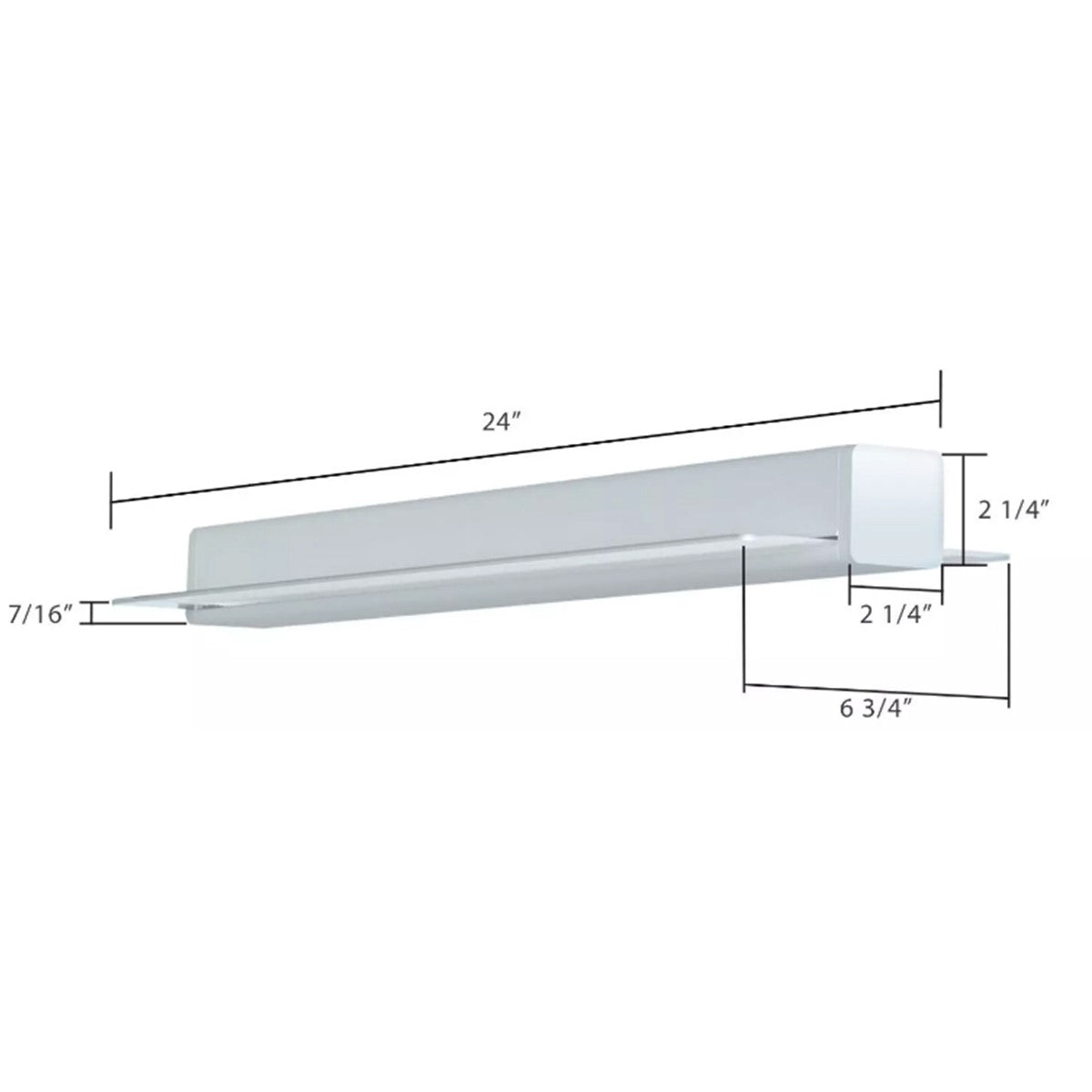

Dimensions & Weight: 24.00" L × 2.25" W × 2.25" H (bracket width: 6.75", bracket height: 2.50"). Fixture weight: 4.96 lbs.

Installation & Mounting

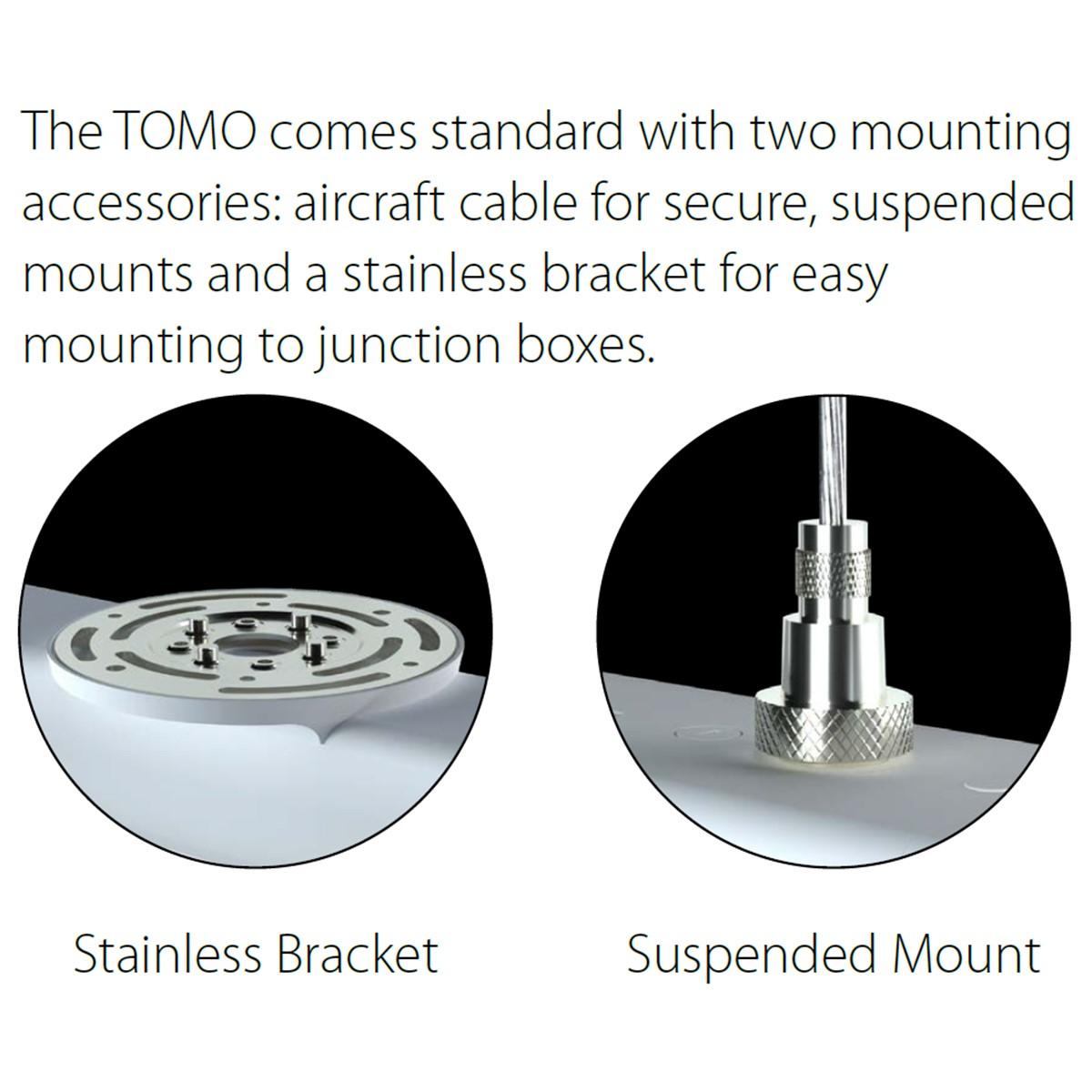

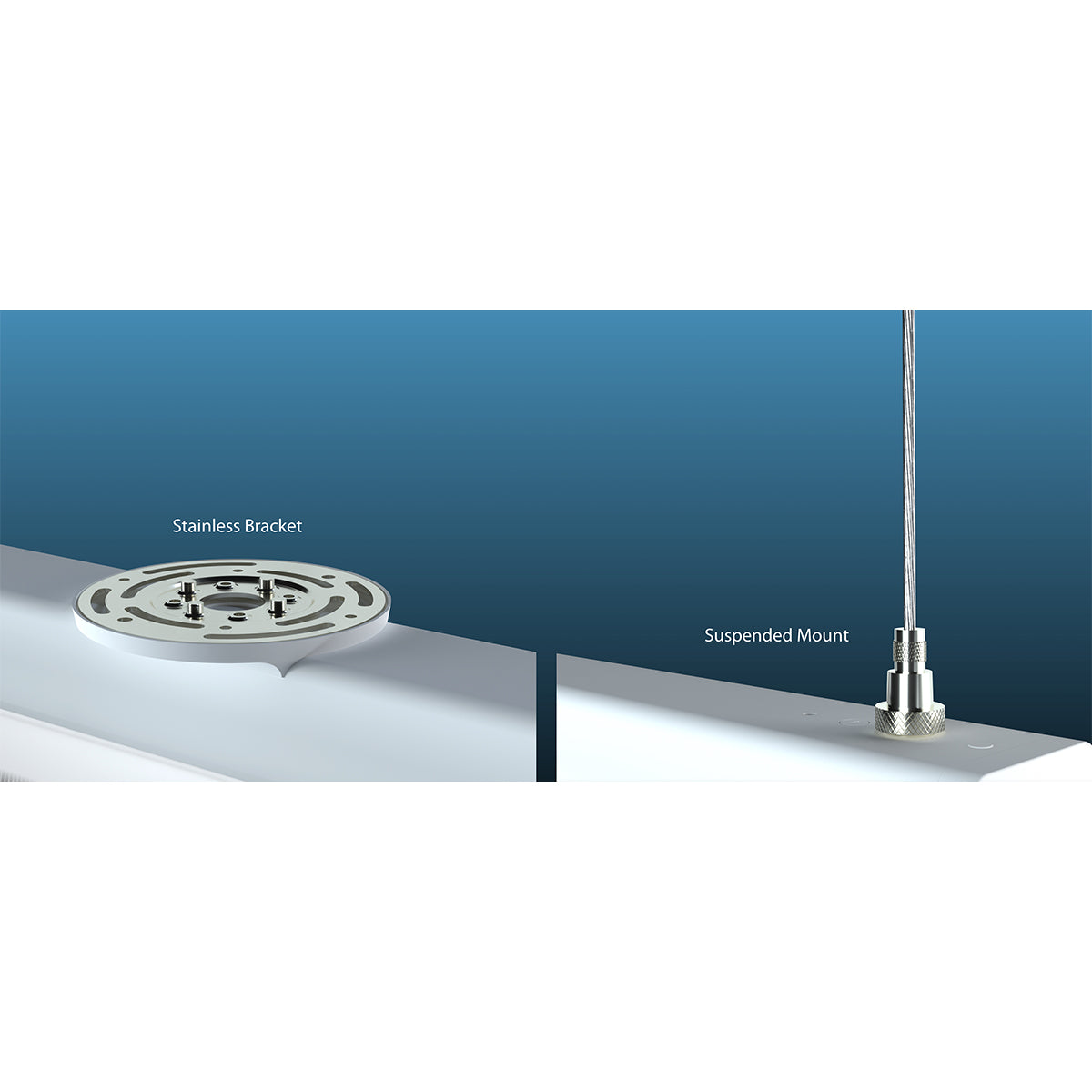

Standard Mounting: Dual-mount capable out of the box. Includes aircraft cables for adjustable suspended hanging and a stainless steel bracket for direct surface junction box mounting.

Continuous Run Mounting: Supports continuous-row installations using the optional end-to-end fixture joiner.

Accessories (Sold Separately):

• Continuous Run Joiner: TOMO CONNECT (UPC 192552003261) — Fixture-to-fixture connector for continuous row mounting
• Handheld Remote: TOMO-REMOTE (UPC 192552003629) — Remote control for configuring PIR motion and daylight threshold settings
• Sensors & Controls: Lightcloud and Lightcloud Blue PIR and microwave sensor modules (sold separately)

Certifications & Rebates

• DLC 5.1 Listed: Listed under DLC Product ID S-241173. Qualifies for commercial utility rebate incentives. Confirm local eligibility at designlights.org.
• UL Listed: Tested and certified to UL 1598 standards for damp locations.
• TAA Compliant: Product of Cambodia ("designated country" end product) complying with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
• RoHS & Green Tech: RoHS compliant components; 100% mercury-free and UV-free solid-state construction.
• IES Testing: Photometric and lumen maintenance performance independently verified in accordance with IESNA LM-79 and LM-80.

Typical Applications

• Commercial Offices & Conference Rooms — Clean architectural profile and diffused optics deliver uniform task illumination without screen glare.

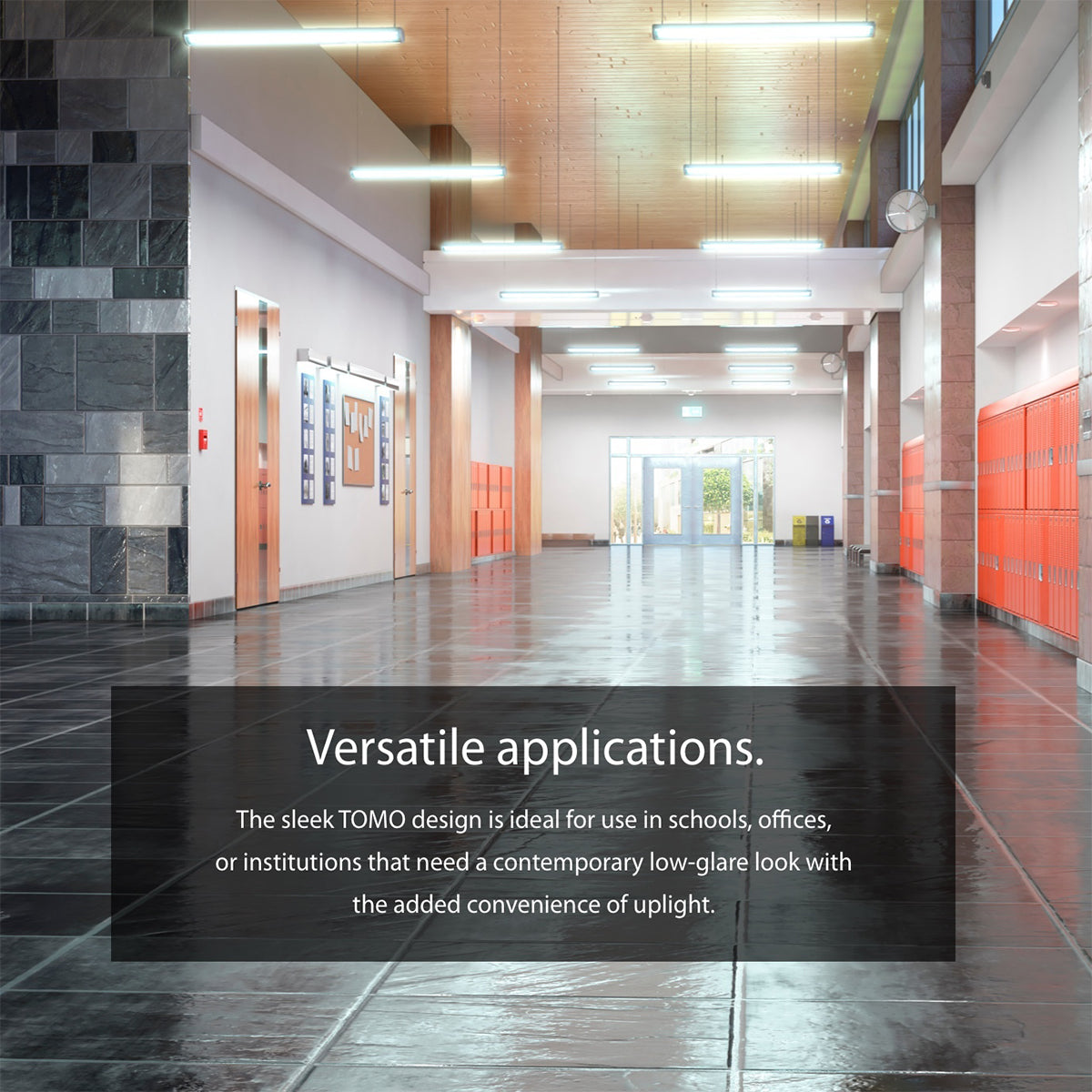

• Educational Facilities & Classrooms — Selectable wattage and 4-way CCT tuning provide adaptable lighting balanced for instructional spaces.
• Retail Aisles & Supermarkets — Continuous-row joiner capability delivers seamless, unbroken lines of light across shopping aisles.
• Corridors & Common Areas — Damp location listing and robust steel chassis ensure long-term reliability in high-traffic circulation zones.
• Utility Rooms & Back-of-House — Dual suspension and surface J-box mounting hardware adapt easily to diverse ceiling conditions.

What's Included

• RAB TOMO-2 Field-Adjustable 2ft Linear Light — White
• Aircraft cable suspension mounting kit
• Stainless steel junction box surface mounting bracket and hardware
• Installation and operation instructions
