RAB Lighting TKP TKPSY Small LED Track Pendant

The RAB Lighting TKPSY brings a slim white pendant profile to H-Type track. Its integrated COB LED delivers 525 lumens at 8W with a fixed 3000K warm white color temperature and 94 CRI. Fixed 36° optics focus light on counters, merchandise and interior accents, while compatible TRIAC/ELV dimming lets you reduce light levels to 10%.

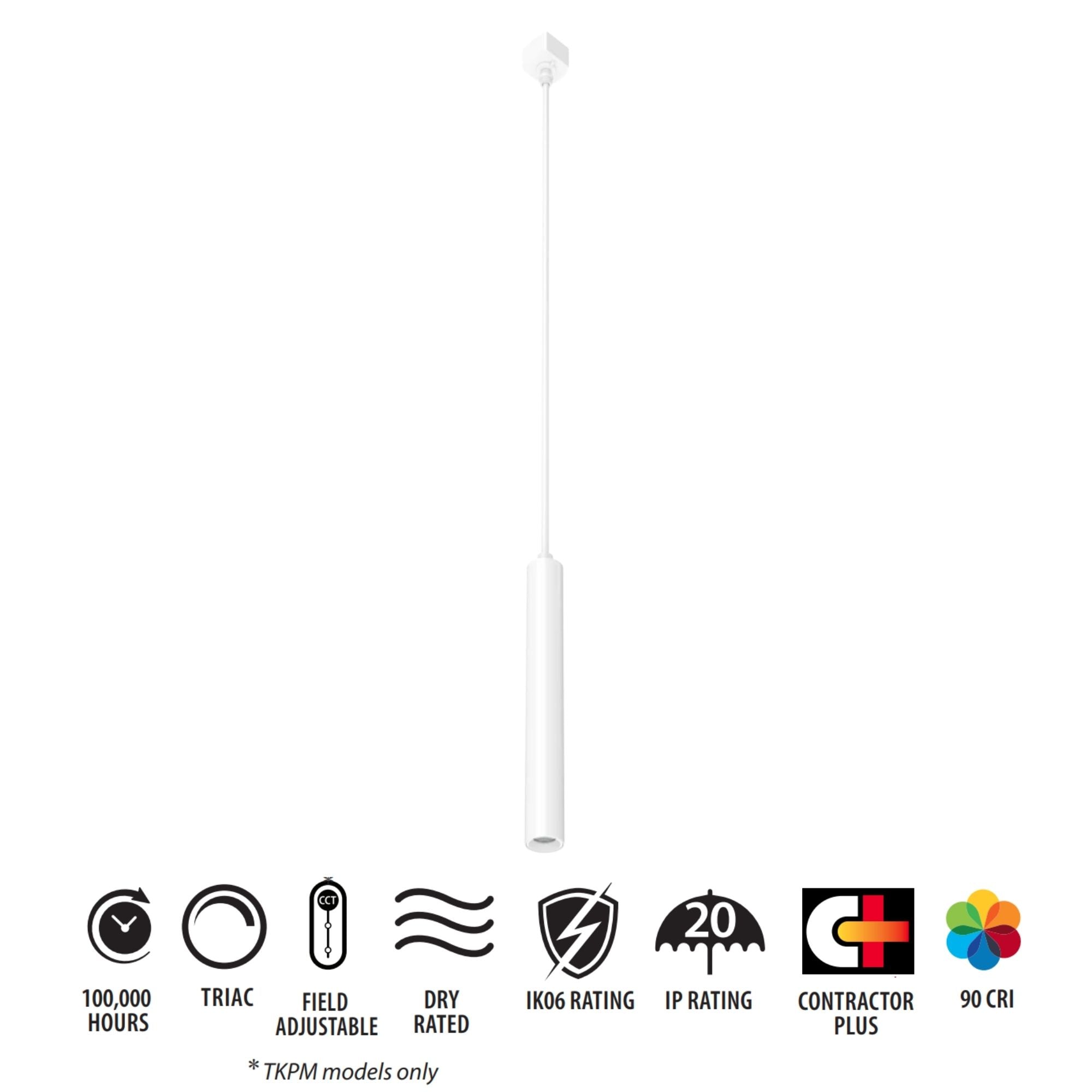

Key Features

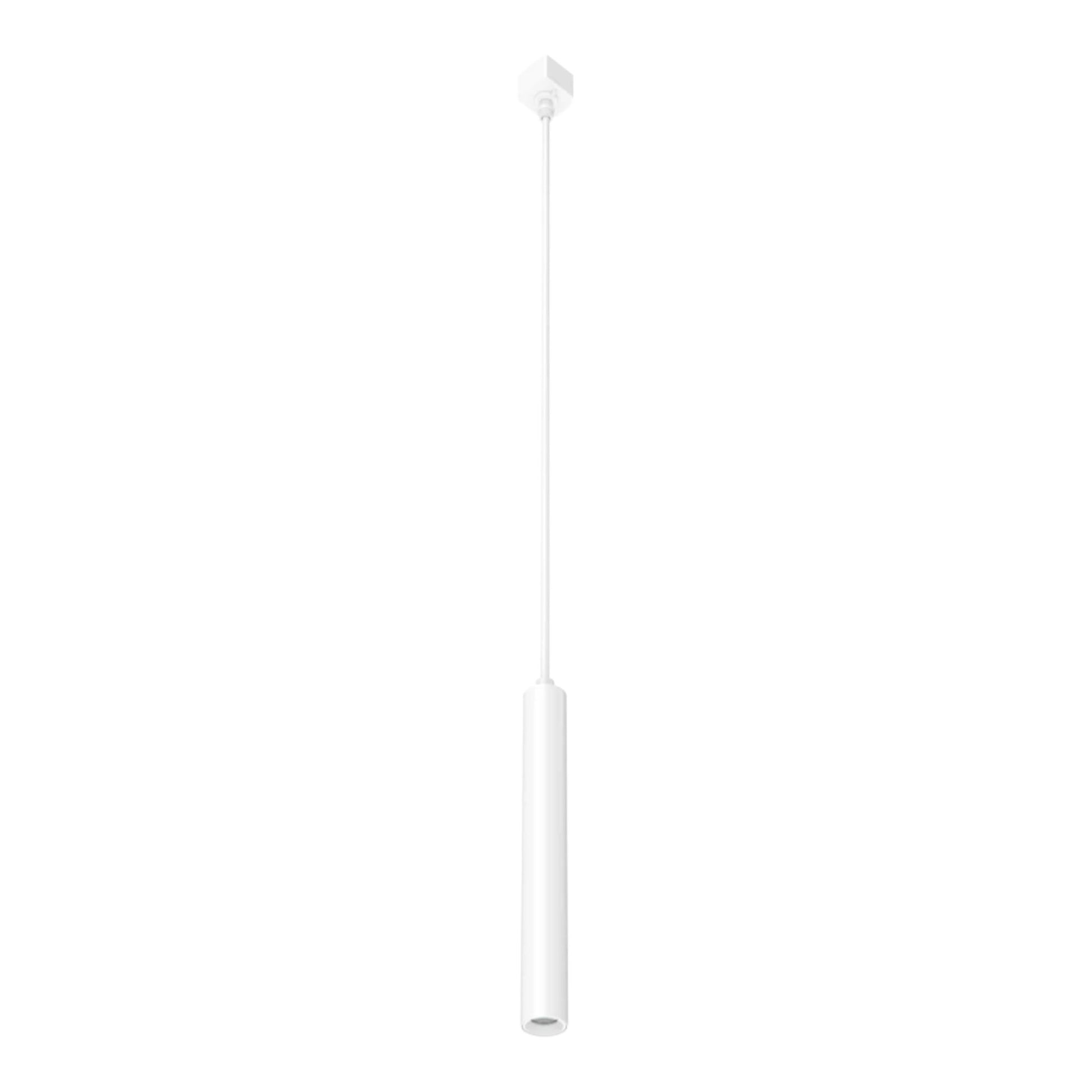

• Fixture Type: Small TKP LED track pendant in white.
• Track Compatibility: H-Type track mount, compatible with RAB Track System components.
• Wattage: Fixed 8W, measured input power 8W.
• Light Output: 525 lumens.
• Color Temperature: Fixed 3000K warm white.
• Color Rendering: 94 CRI.
• Optics: Fixed 36° beam angle.
• Efficacy: Rated 66 lm/W.
• Dimming: Down to 10% on compatible TRIAC/ELV systems.
• Electrical: Constant-current Class 1 driver, 120V AC, 60Hz, 0.09A.
• Construction: Aluminum housing, polycarbonate reflector, IK06 impact rating.
• Location & Life: UL Listed for dry locations, IP20, 100,000-hour LED lifespan.

Construction & Design

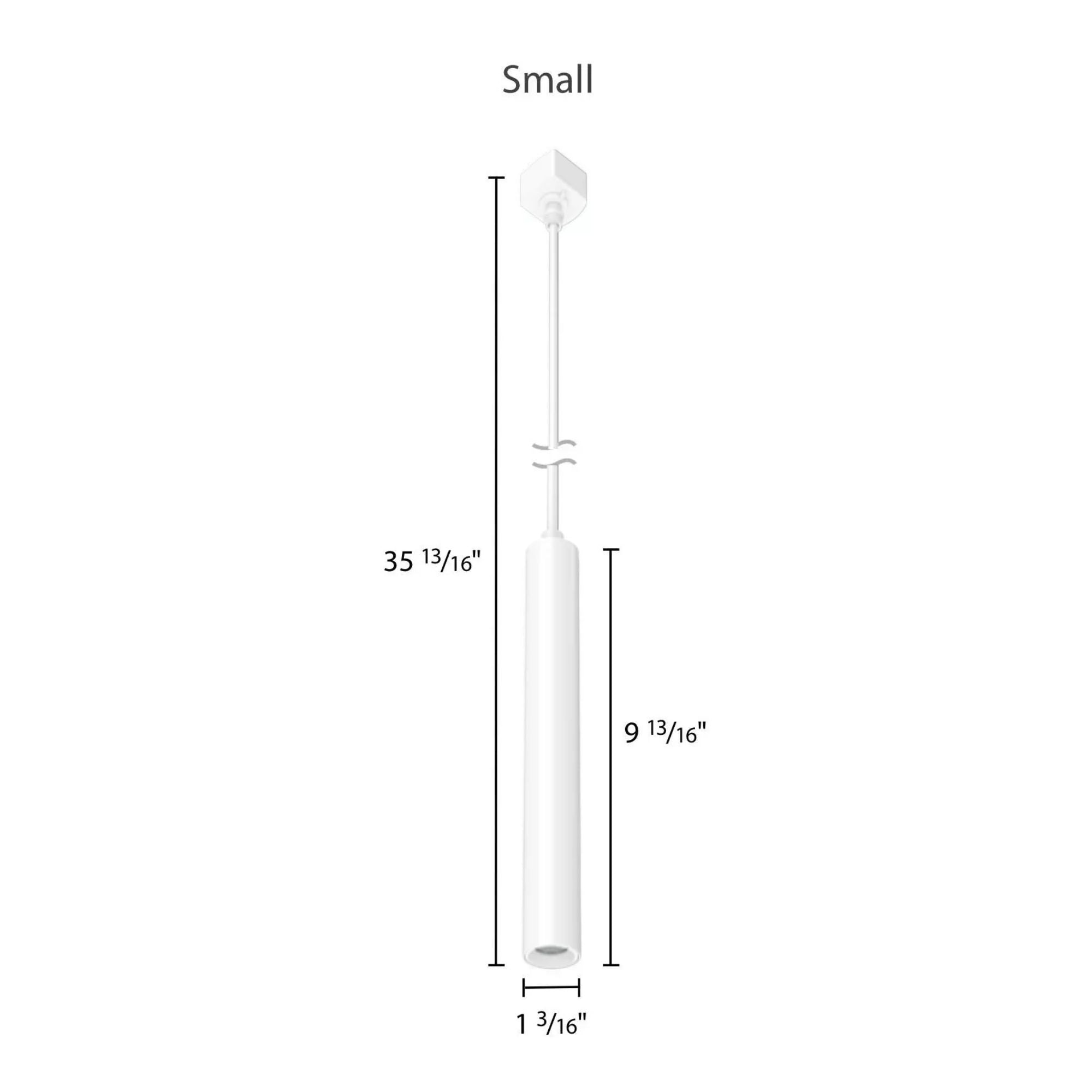

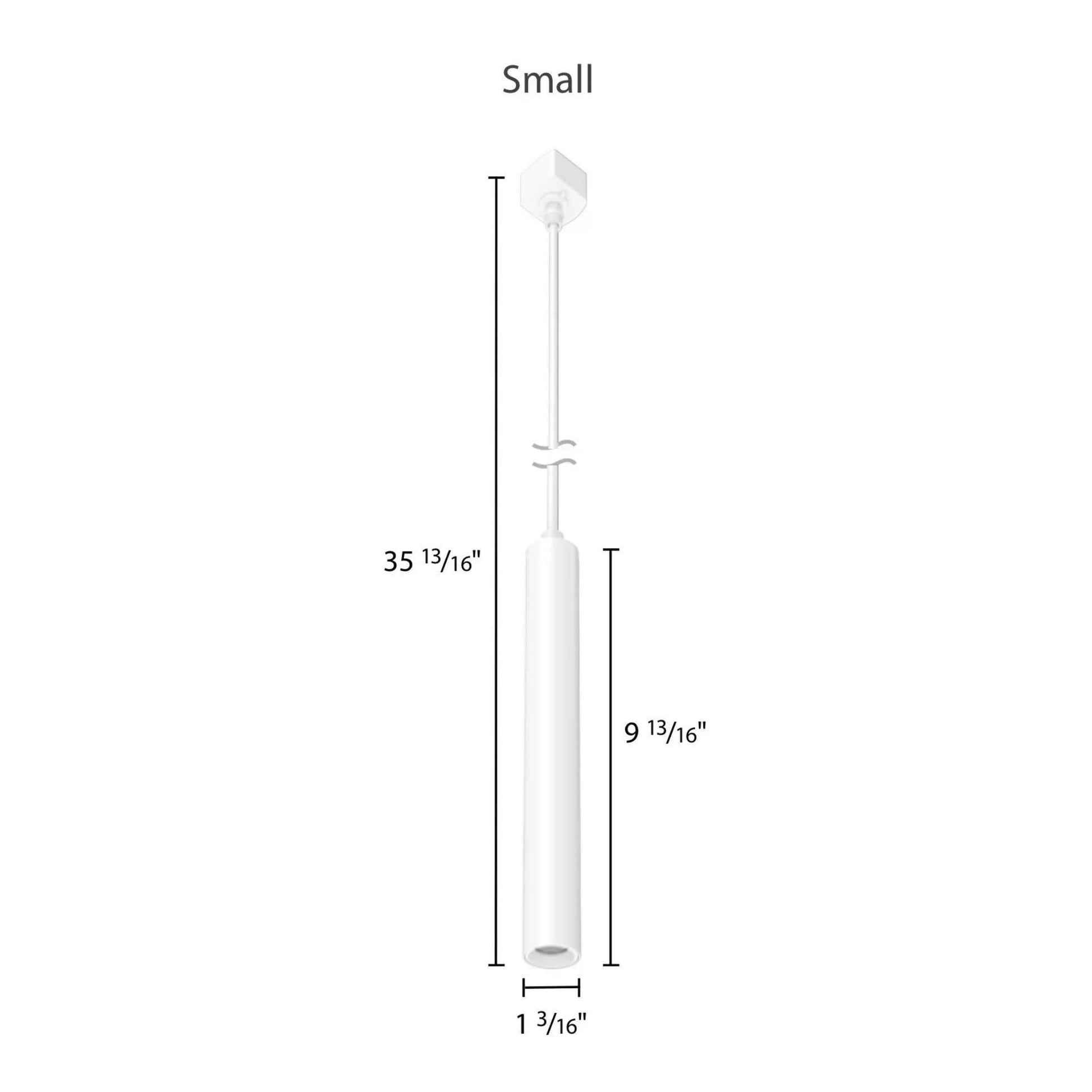

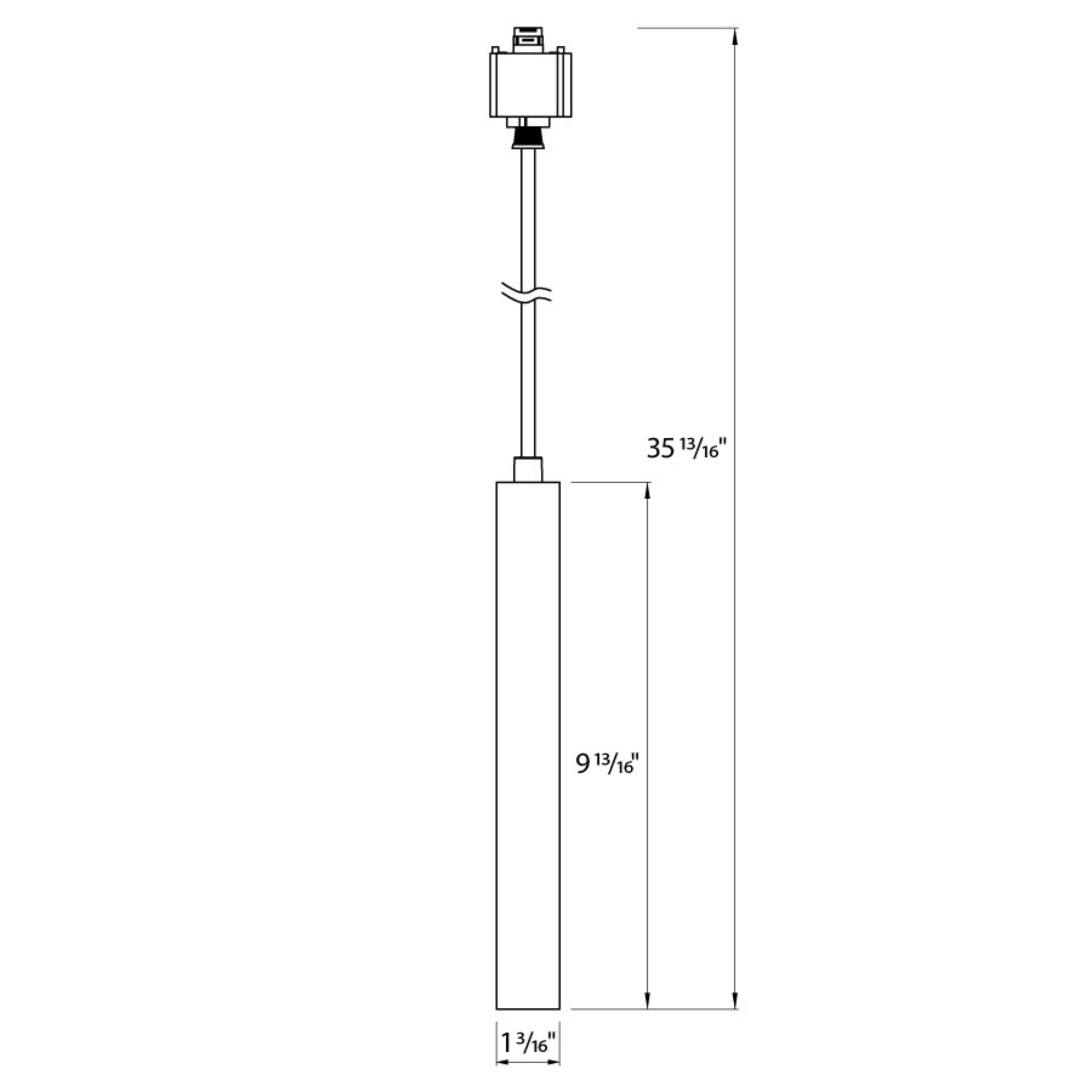

The slender cylindrical aluminum housing has a durable white finish and a polycarbonate reflector. The small pendant body measures 9 13/16 in high and 1 3/16 in wide. The mounting assembly measures 26 in from the top of the track adapter to the pendant body, with 35 13/16 in overall height. IK06 construction provides impact protection for indoor applications.

Light Output & Performance

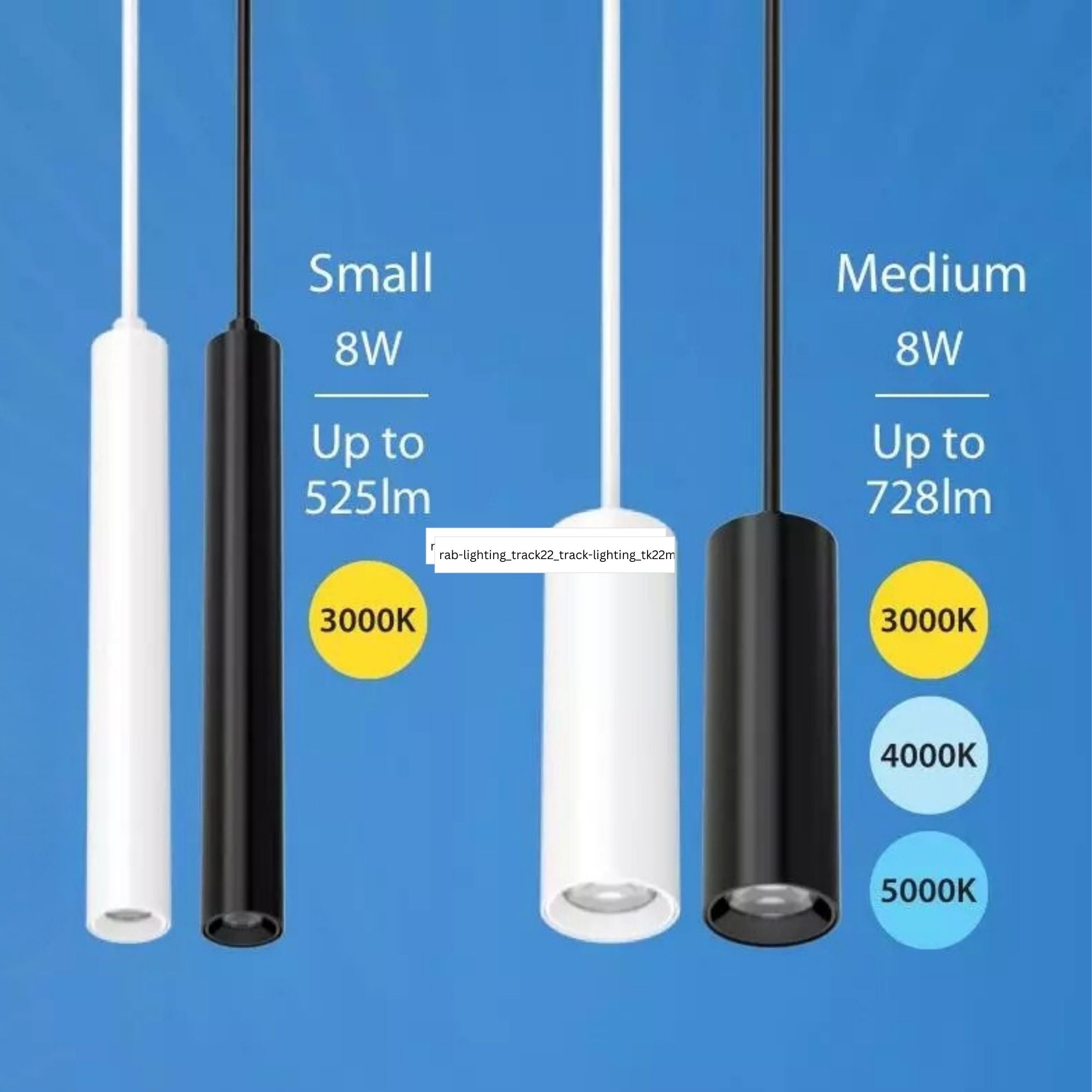

The integrated COB LED produces 525 lumens at 8W, with 3000K color temperature, 94 CRI and rated efficacy of 66 lm/W. Its fixed 36° beam provides focused illumination. The small TKPSY uses static wattage and CCT; selectable color temperature applies to the medium TKP models. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.

Electrical & Installation

The RAB Lighting TKPSY mounts to H-Type track and is compatible with RAB Track System components and accessories. It operates at 120V AC, 60Hz using a constant-current Class 1 driver, with rated current of 0.09A and 1kV line-to-neutral surge protection. Compatible TRIAC/ELV dimming systems support dimming down to 10%. Install in dry indoor locations; minimum starting temperature is -4°F (-20°C), and maximum ambient temperature is 104°F (40°C). The integrated LED does not require a separate lamp. RAB provides a 5-year limited warranty subject to warranty terms.

Compatible Accessories

Matching white RAB track components, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.

Typical Applications

• Kitchen islands and counters.

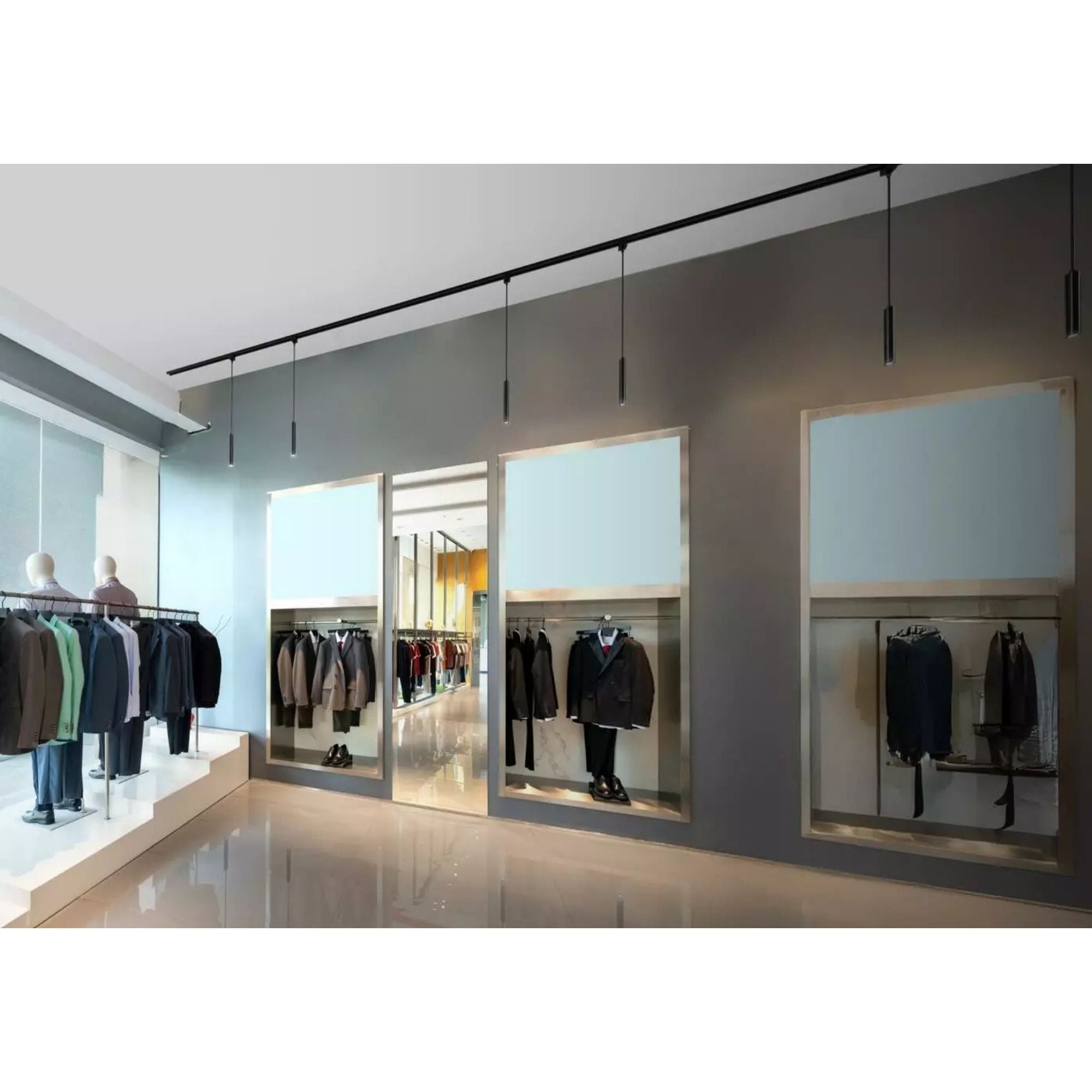

• Retail merchandise displays.
• Hospitality interiors.

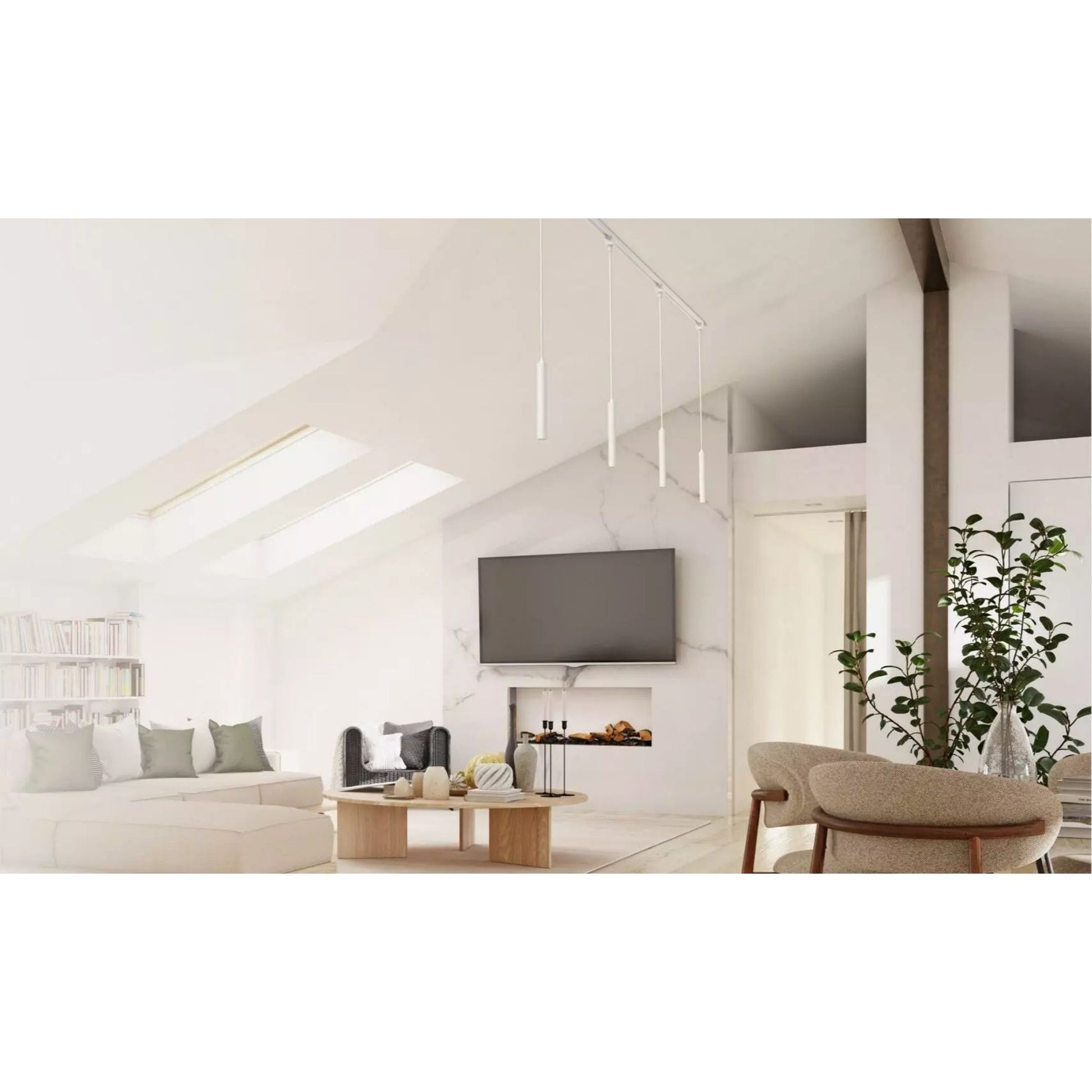

• Residential accent lighting.

What's Included

• RAB Lighting TKPSY small white track pendant with integrated COB LED, Class 1 driver, suspension assembly and H-Type track adapter.
