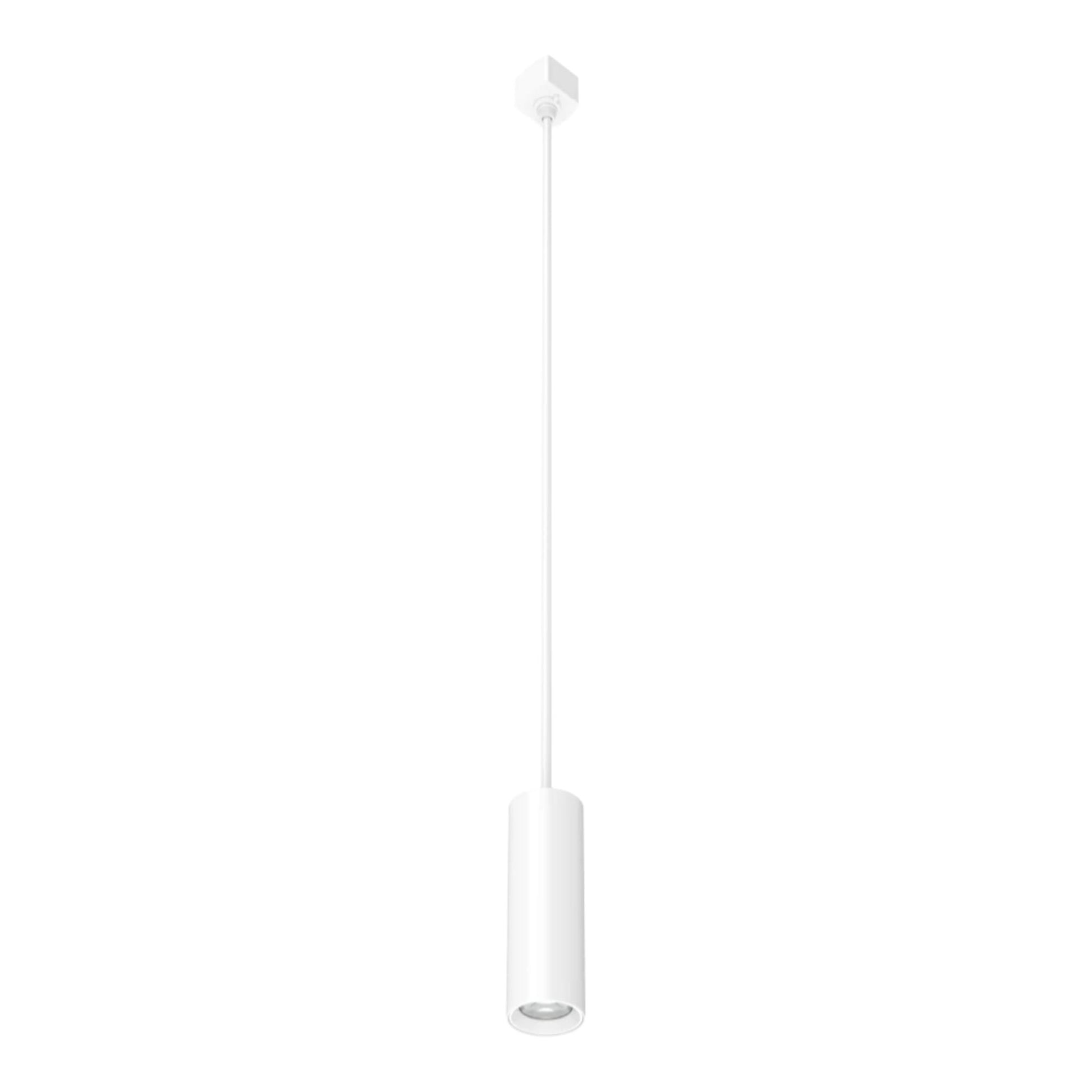

RAB Lighting TKP TKPM Medium LED Track Pendant

The RAB Lighting TKPM brings a cylindrical white pendant profile to H-Type track. Its integrated COB LED uses fixed 8W power with selectable 3000K, 4000K or 5000K color temperature. The factory-default 4000K setting delivers 728 lumens with 94 CRI. Fixed 36° optics focus light on counters, merchandise and interior accents, while compatible TRIAC/ELV dimming lets you reduce light levels to 10%.

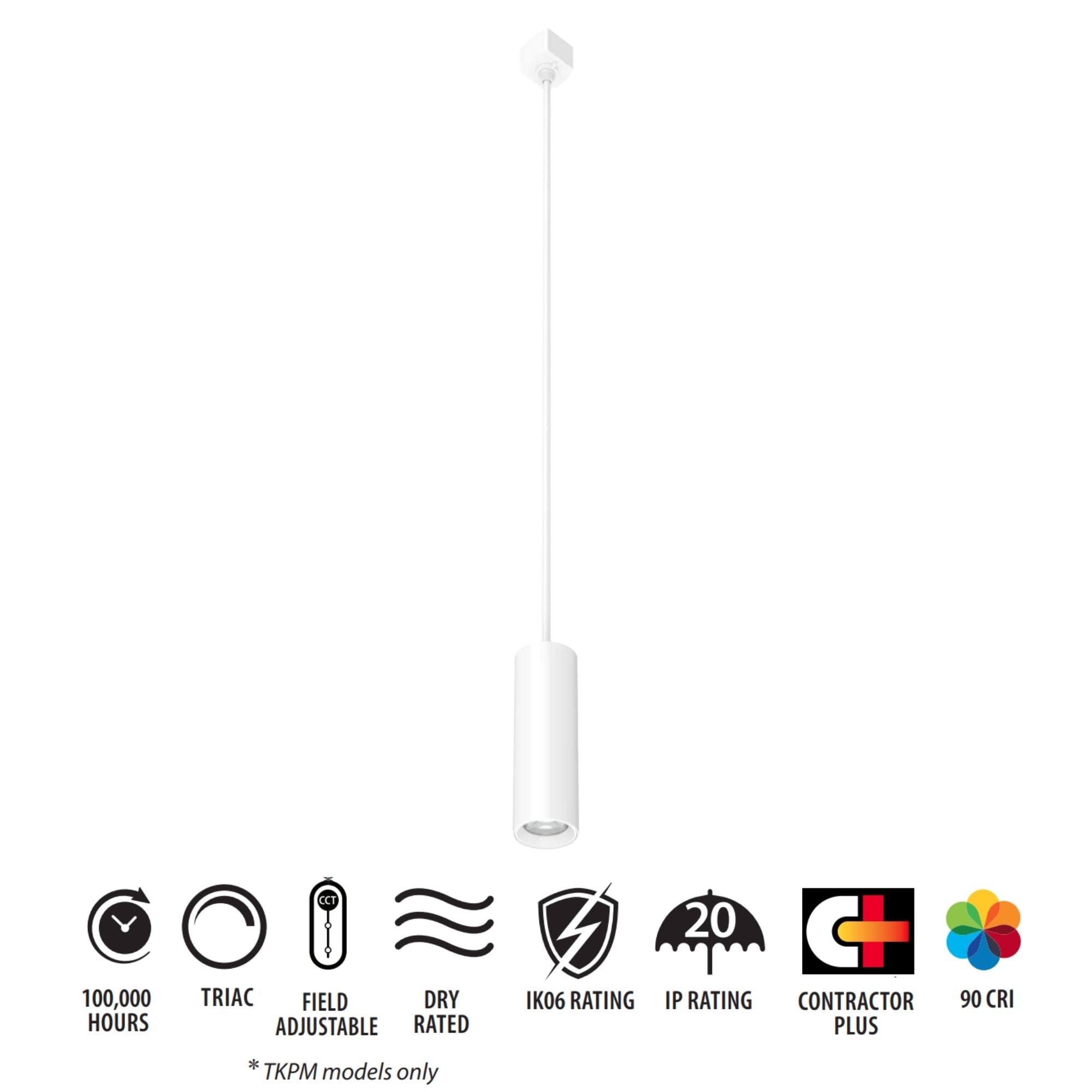

Key Features

• Fixture Type: Medium TKP LED track pendant in white.
• Track Compatibility: H-Type track mount, compatible with RAB Track System components.
• Wattage: Fixed 8W nominal power.
• Selectable CCT: 3000K, 4000K and 5000K, factory default 4000K.

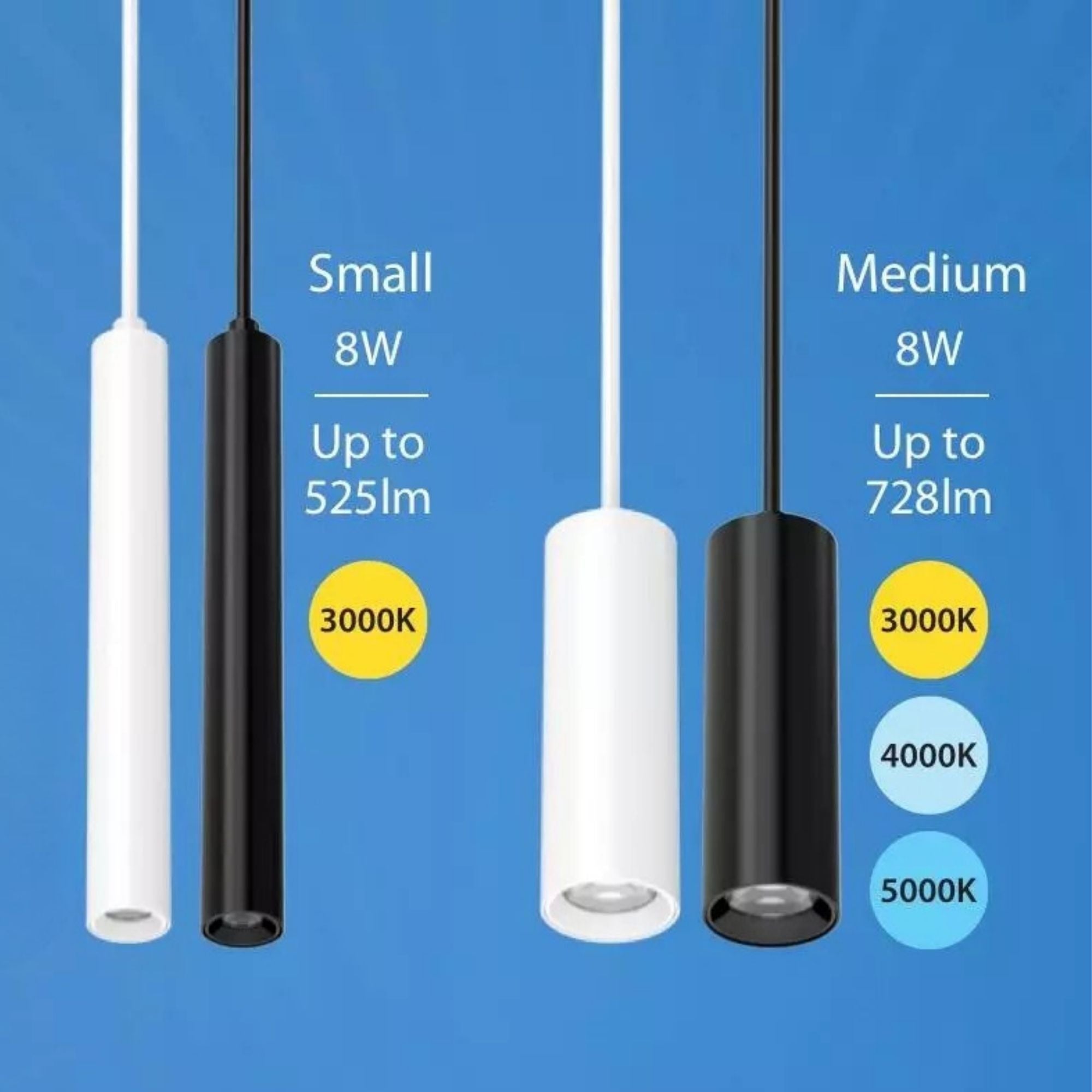

• Light Output: 626 lumens at 3000K, 728 lumens at 4000K and 722 lumens at 5000K.
• Color Rendering: 94 CRI across all three CCT settings.
• Optics: Fixed 36° beam angle.
• Efficacy: 77 to 95.6 lm/W depending on CCT.
• Dimming: Down to 10% on compatible TRIAC/ELV systems.
• Electrical: Constant-current Class 1 driver, 120V AC, 60Hz, 0.09A.
• Construction: Aluminum housing, polycarbonate reflector, IK06 impact rating.
• Location & Life: UL Listed for dry locations, IP20, 100,000-hour LED lifespan.

Construction & Design

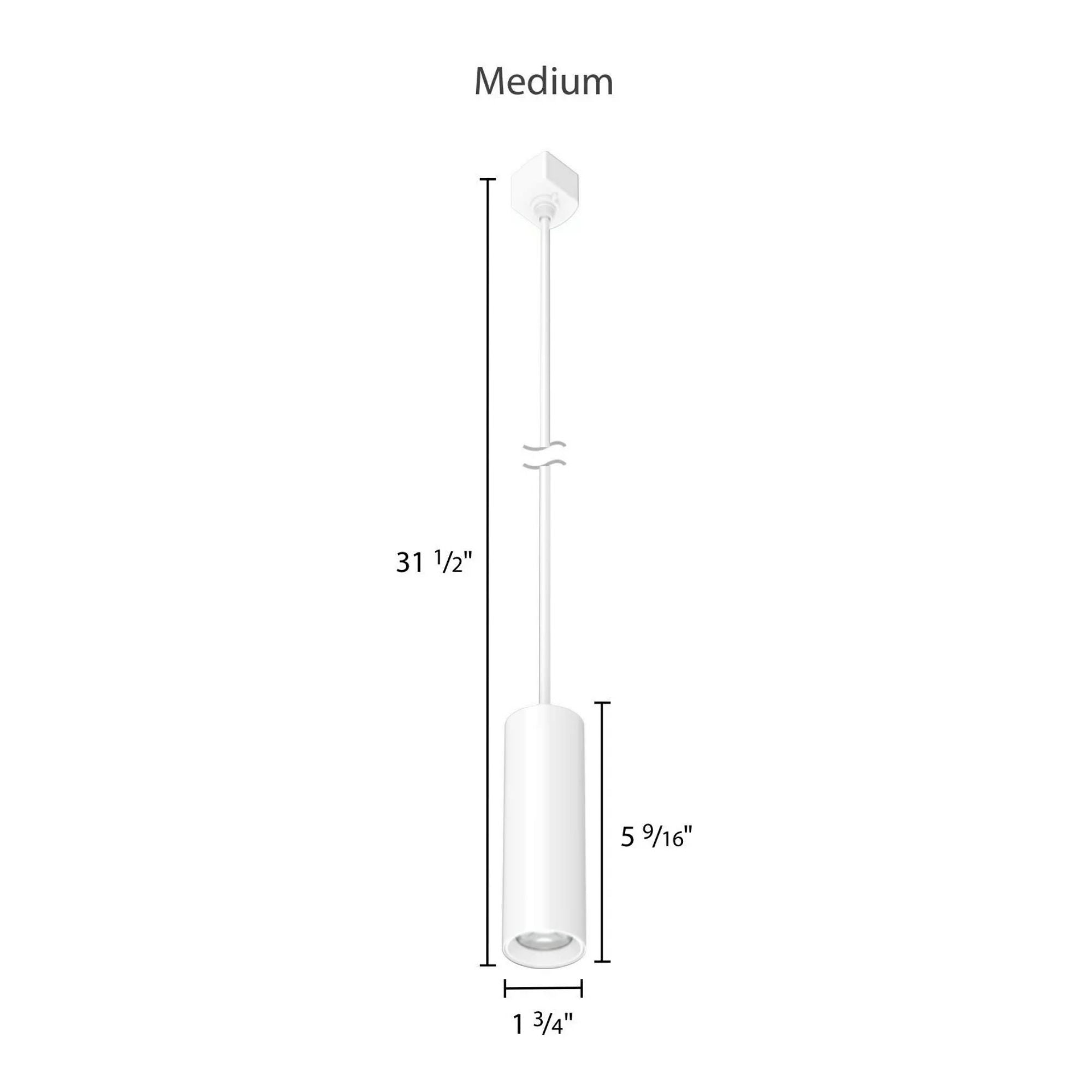

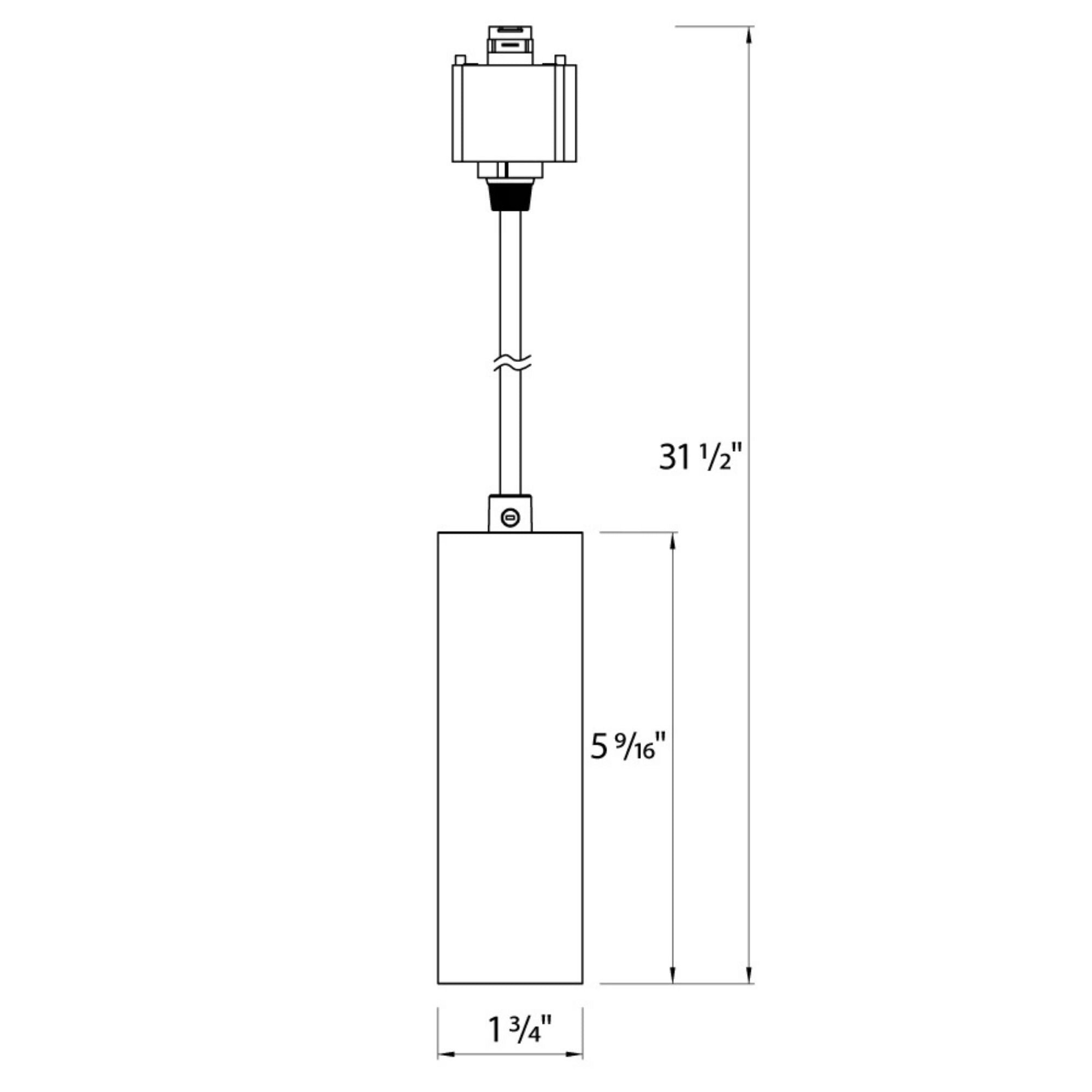

The cylindrical aluminum housing has a durable white finish and a polycarbonate reflector. The medium pendant body measures 5 9/16 in high and 1 3/4 in wide. The mounting assembly measures 26 in from the top of the track adapter to the pendant body, with 31 1/2 in overall height. IK06 construction provides impact protection for indoor applications.

Light Output & Performance

At the fixed 8W nominal setting, the integrated COB LED delivers 626 lumens at 3000K, 728 lumens at 4000K and 722 lumens at 5000K, all with 94 CRI. Measured input power is 8.1W, 7.7W and 8.1W respectively, with listed efficacy of 77, 95.6 and 90.9 lm/W. The 4000K factory default provides the highest listed output. Fixed 36° optics provide focused illumination. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.

Electrical & Installation

The RAB Lighting TKPM mounts to H-Type track and is compatible with RAB Track System components and accessories. It operates at 120V AC, 60Hz using a constant-current Class 1 driver, with rated current of 0.09A and 1kV line-to-neutral surge protection. Compatible TRIAC/ELV dimming systems support dimming down to 10%. Select 3000K, 4000K or 5000K; the factory default is 4000K and wattage remains fixed at 8W nominal. Install in dry indoor locations; minimum starting temperature is -4°F (-20°C), and maximum ambient temperature is 104°F (40°C). The integrated LED does not require a separate lamp. RAB provides a 5-year limited warranty subject to warranty terms.

Compatible Accessories

Matching white RAB track components, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.

Typical Applications

• Kitchen islands and counters.

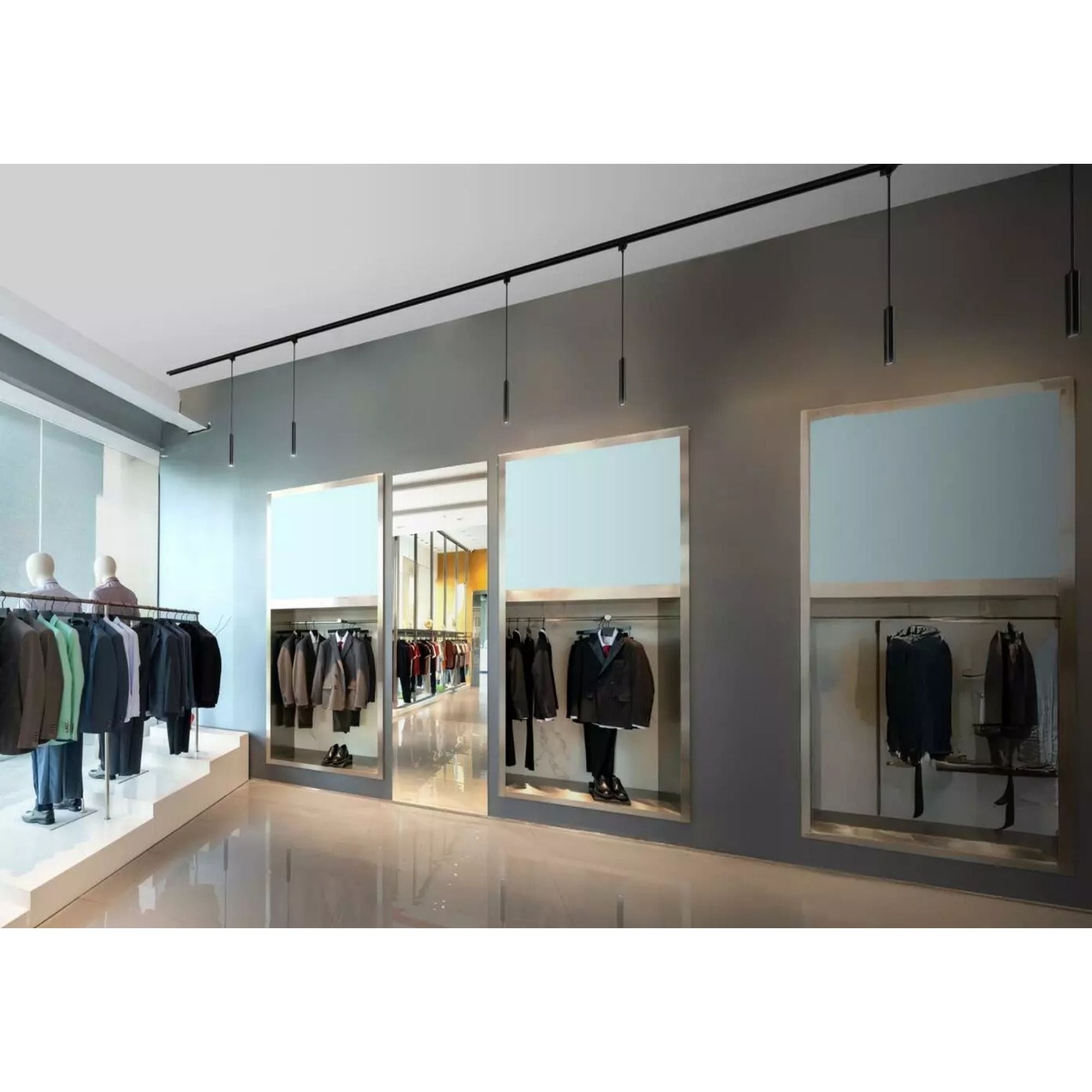

• Retail merchandise displays.
• Hospitality interiors.

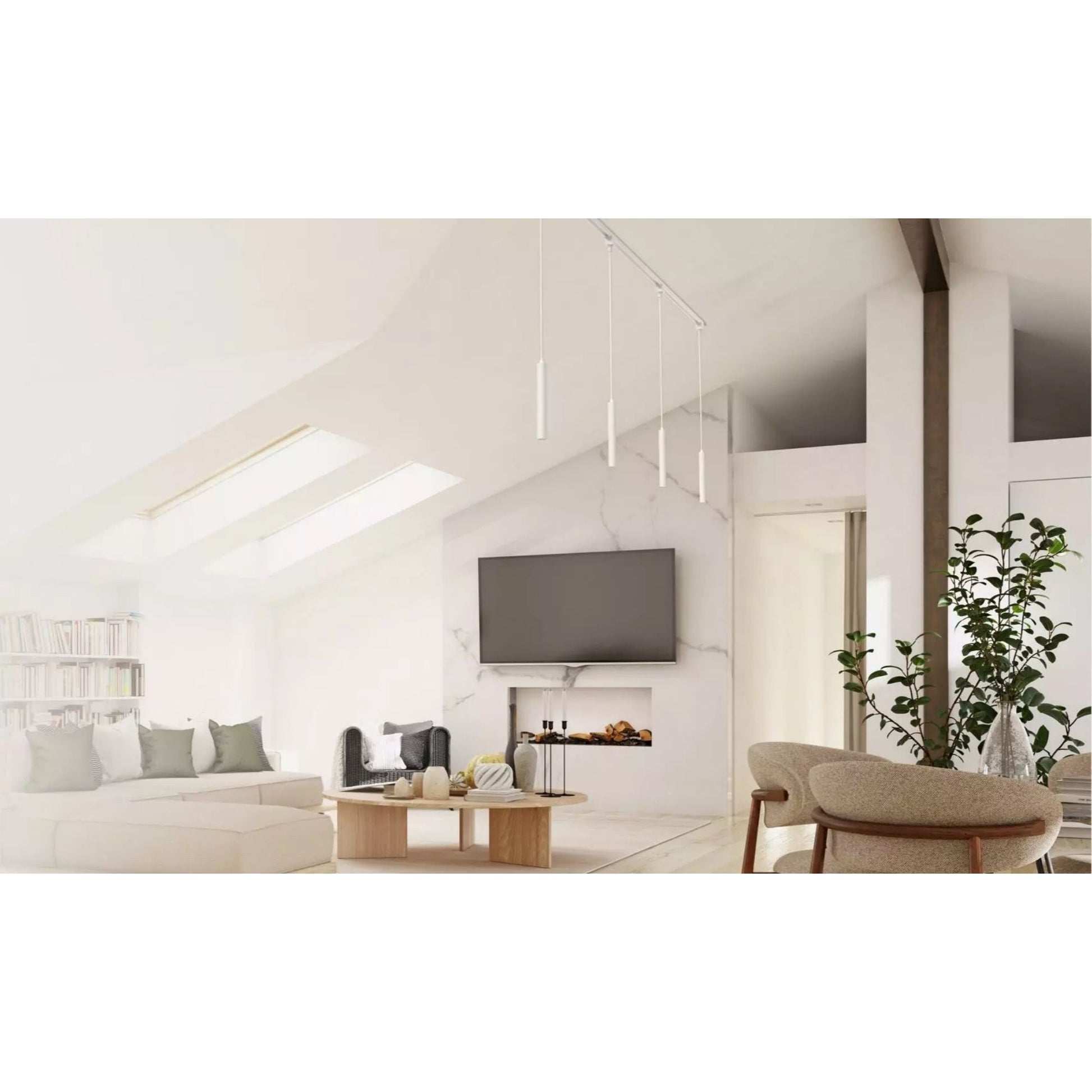

• Residential accent lighting.

What's Included

• RAB Lighting TKPM medium white track pendant with integrated COB LED, Class 1 driver, suspension assembly and H-Type track adapter.
