Description

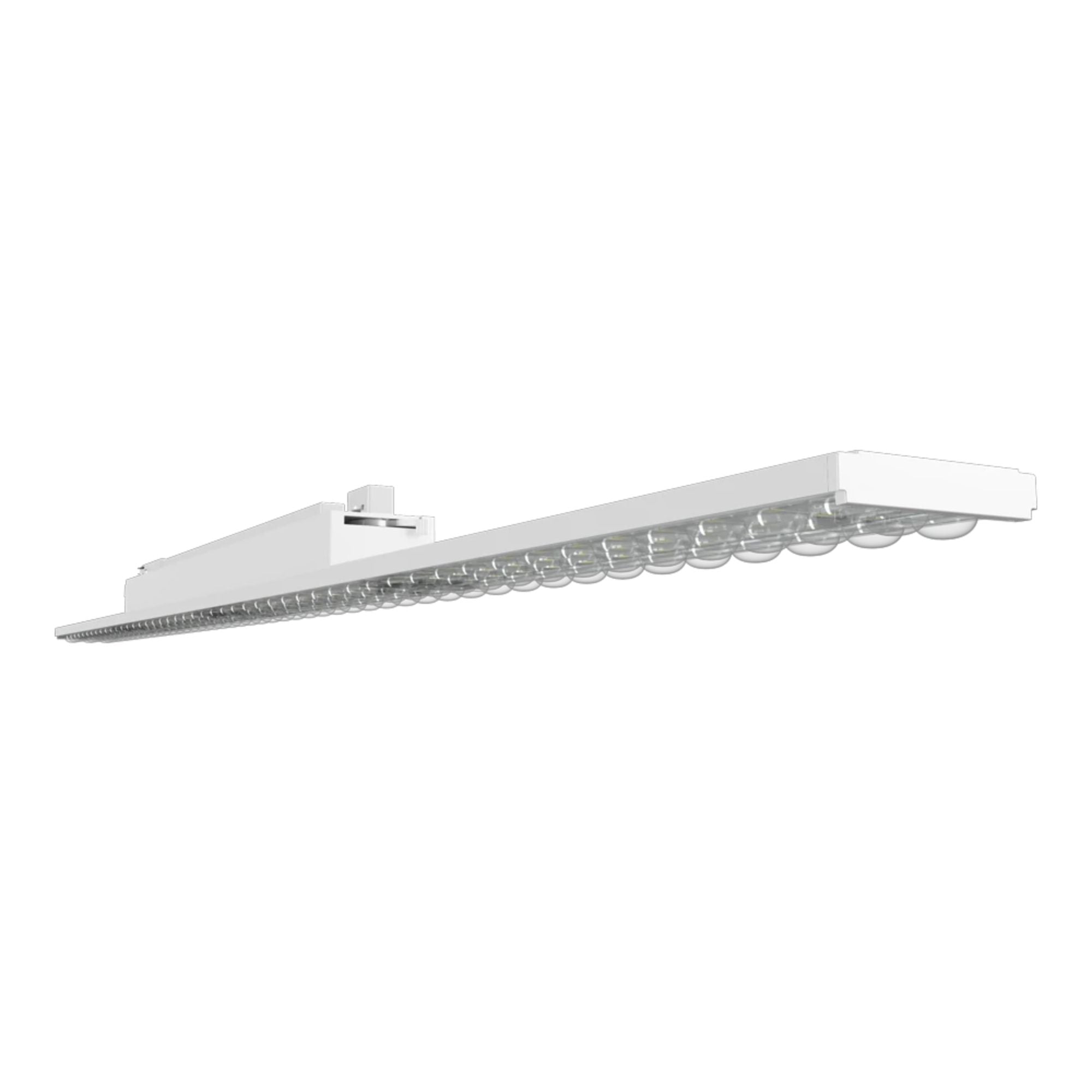

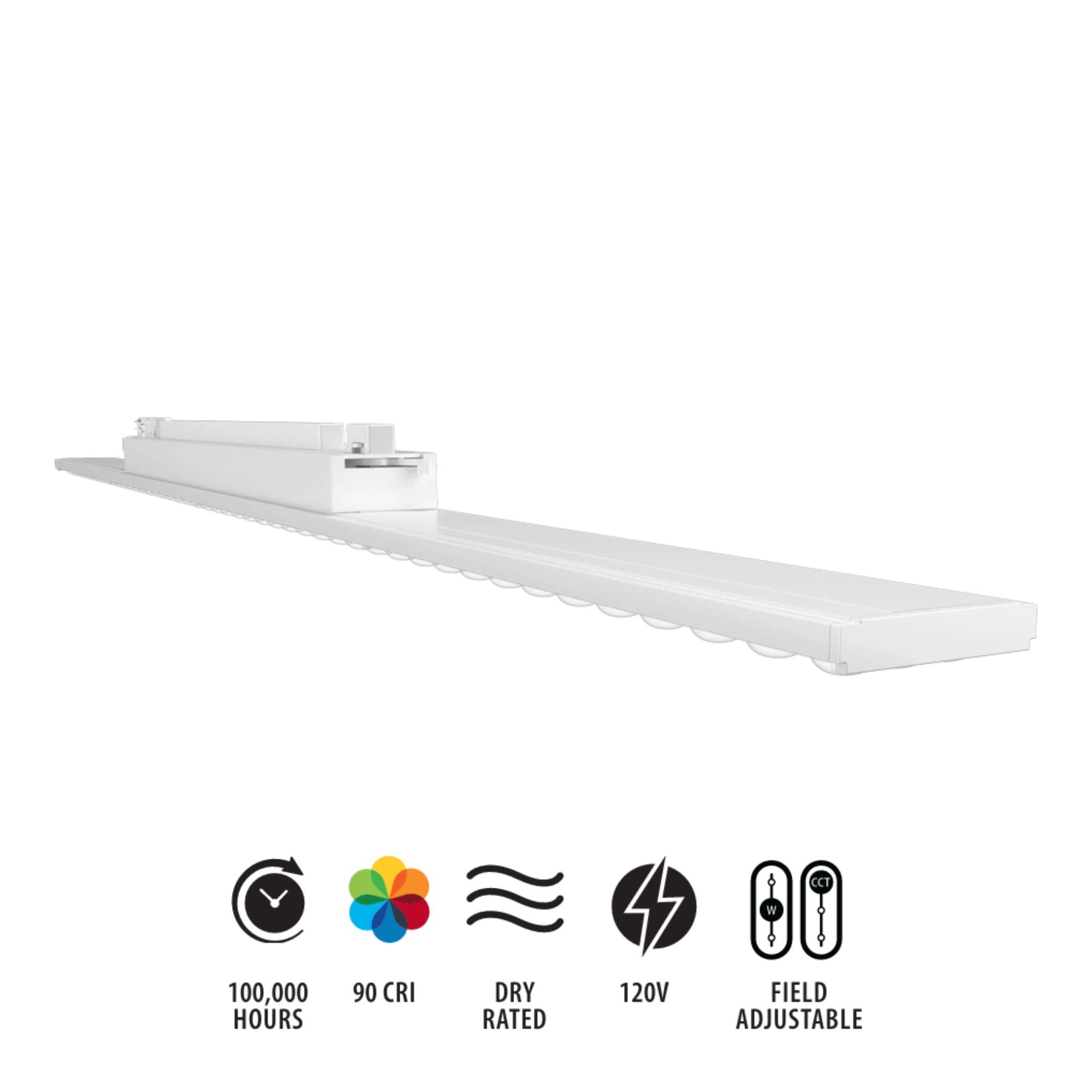

RAB Lighting Beam Linear TKBEAM4 LED Linear Track Light

The RAB Lighting Beam Linear TKBEAM4 is a 4 ft LED linear track light for single-circuit H-Type track. Its white aluminum housing and polycarbonate lens deliver broad 90° light distribution for retail aisles and merchandise displays. Select 60W, 50W or 40W and 2700K, 3000K, 3500K, 4000K or 5000K to suit the space. At the factory-default 60W and 4000K settings, it delivers 8185 lumens with 94 CRI.

Key Features

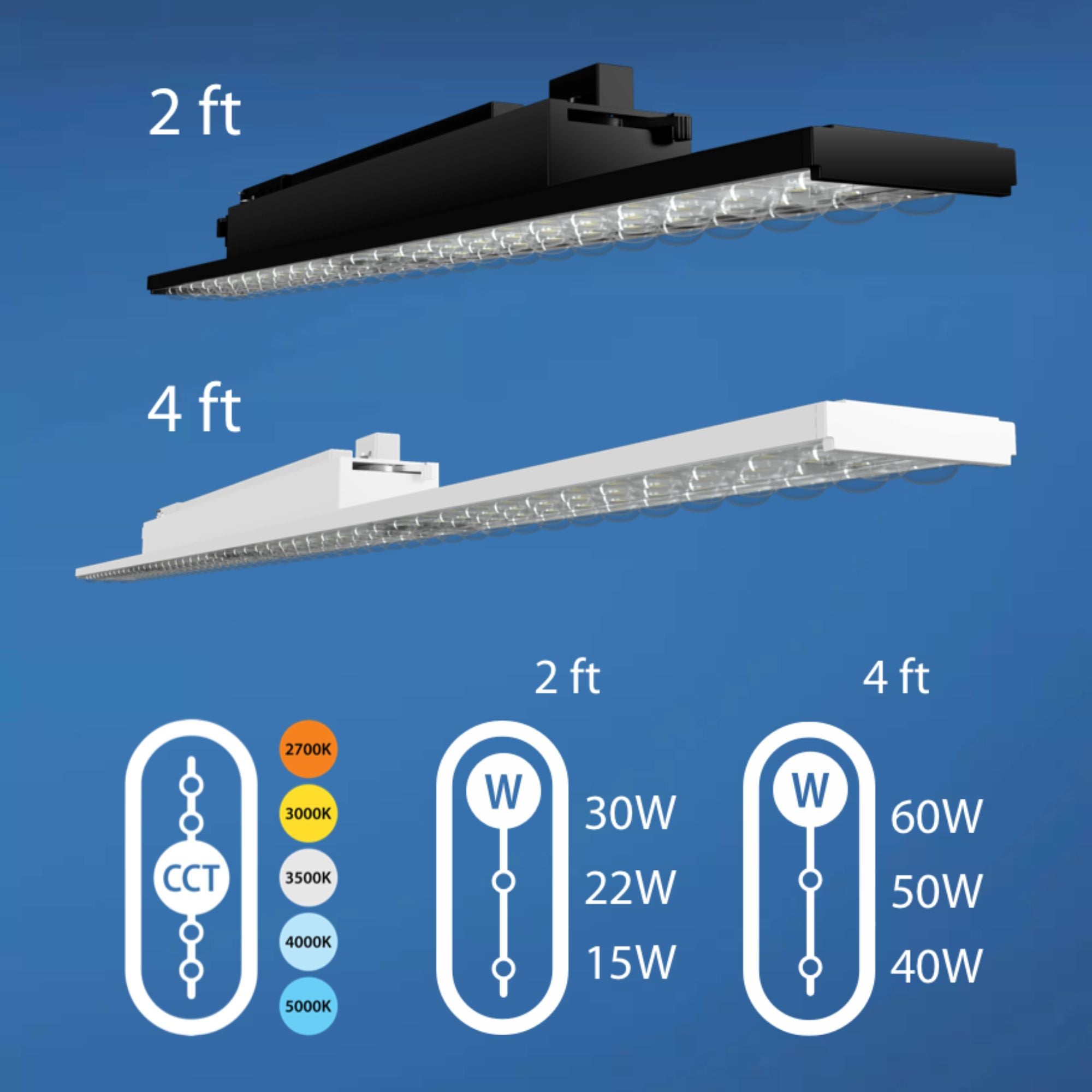

  • Field-Adjustable Power: Select 60W, 50W or 40W; factory default is 60W.
  • Selectable CCT: Five settings of 2700K, 3000K, 3500K, 4000K and 5000K; factory default is 4000K.
  • Track Compatibility: Fits single-circuit H-Type track.
  • Integrated LEDs: Discrete surface-mount LEDs with a constant-current Class 1 driver.
  • Default Light Output: 8185 lumens at the 60W setting and 4000K, with 94 CRI.
  • Wide Distribution: 90° optics provide broad illumination.
  • Electrical Supply: 120V, 60Hz operation.
  • Dimming: Dimmable down to 10% on compatible 120V TRIAC dimming systems.
  • Construction: White aluminum housing and polycarbonate lens.
  • LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
  • Listing: UL Listed for dry locations with an IP20 rating.
  • Warranty: RAB 5-year limited warranty covering light output, driver performance and paint finish, subject to warranty terms.

Construction & Design

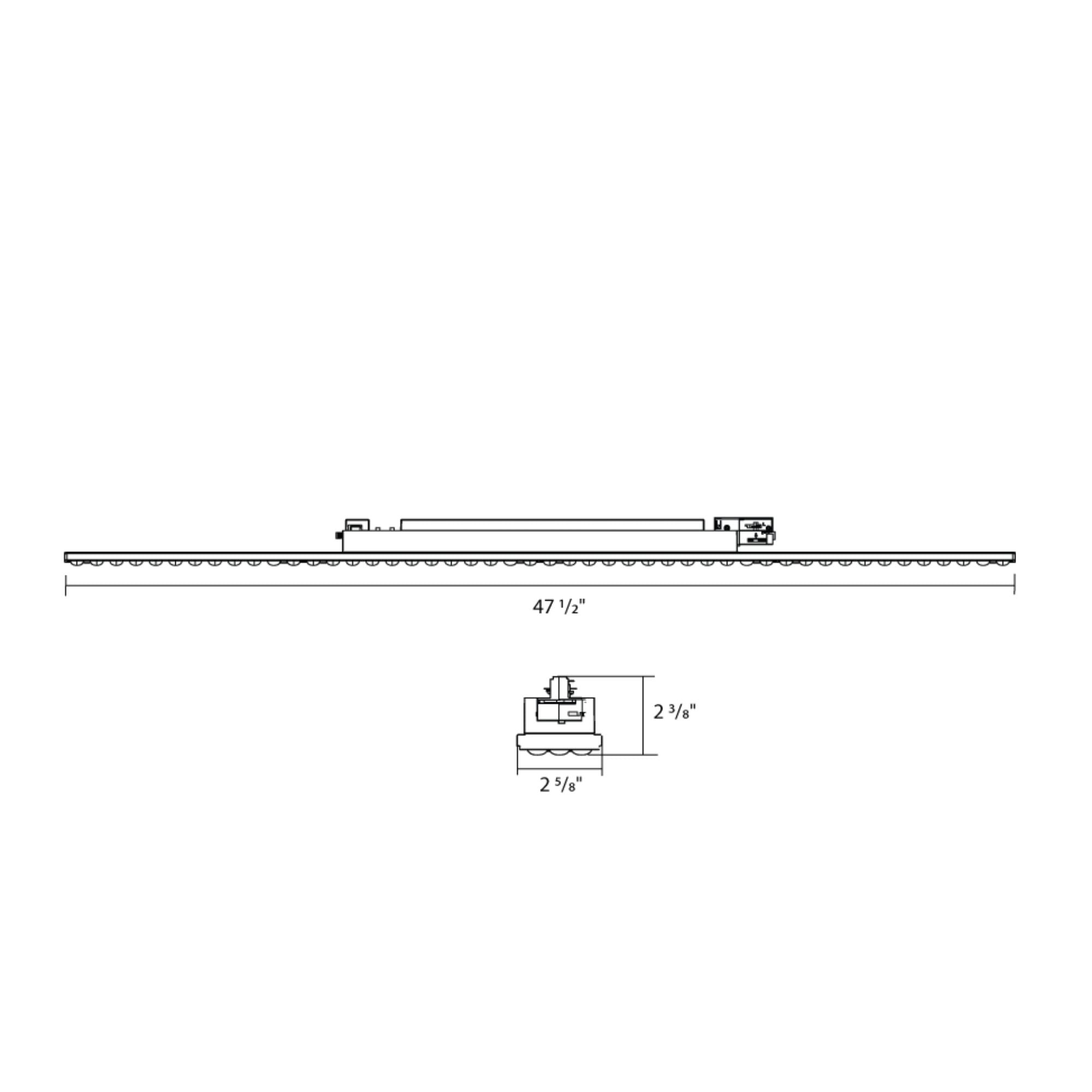

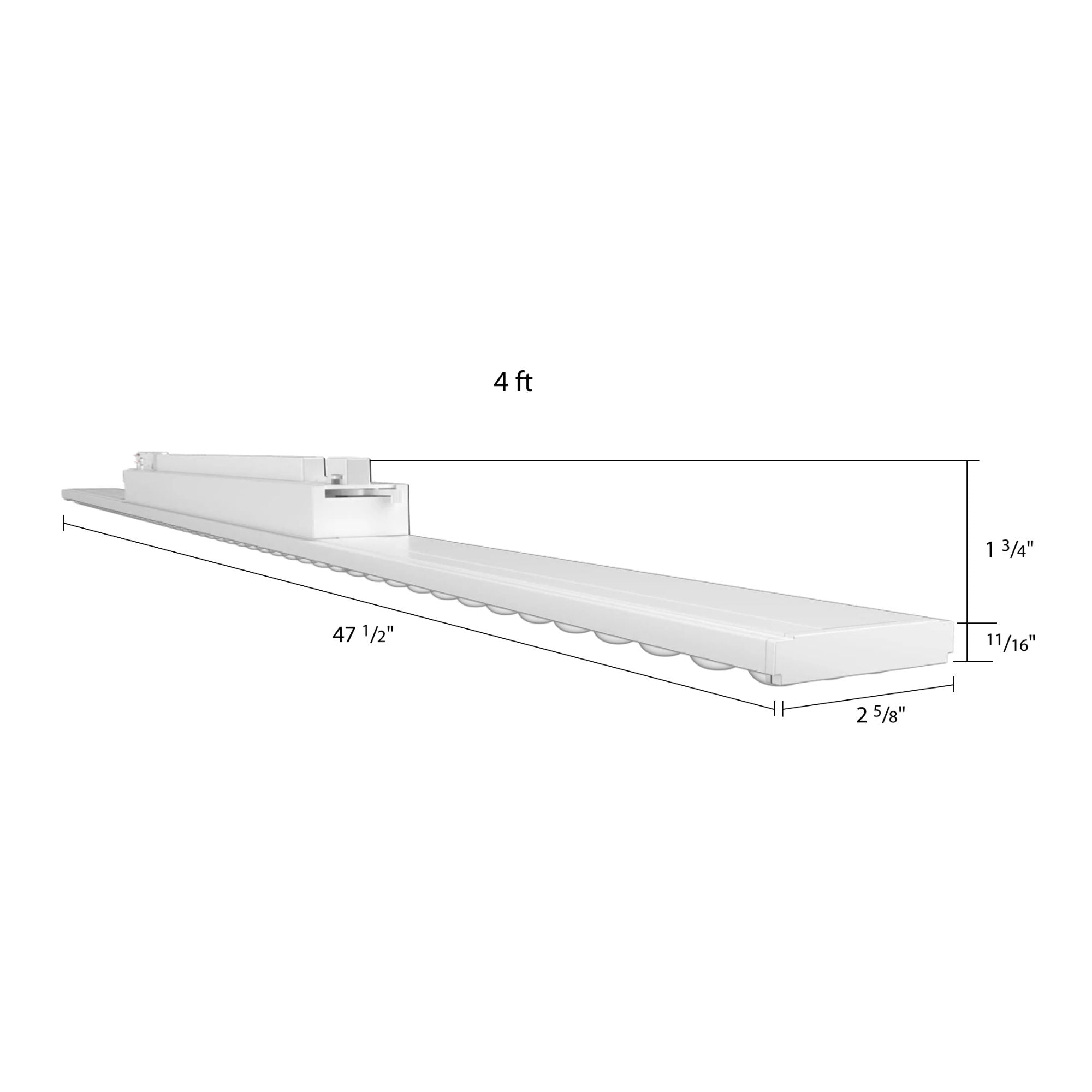

The nominal 4 ft linear fixture measures 47 1/2 in long, 2 5/8 in wide and 2 3/8 in high. Its white aluminum housing supports a polycarbonate lens for broad light distribution along retail aisles and displays.

Light Output & Performance

At 4000K, output is 8185 lumens at the 60W setting, 7113 lumens at the 50W setting and 5943 lumens at the 40W setting, each with 94 CRI. Measured input power at those settings is 58.1W, 48.0W and 38.2W, respectively. Across all power and CCT settings, output ranges from 5715 lumens at 40W and 2700K to 8190 lumens at 60W and 5000K. CRI ranges from 91 to 94 depending on CCT. The 90° optics provide broad coverage, and the integrated LEDs have a 100,000-hour rated lifespan.

Electrical & Installation

RAB Lighting TKBEAM4 mounts to single-circuit H-Type track and operates at 120V, 60Hz. Its constant-current Class 1 driver powers the integrated LEDs, so a separate lamp is not required. Choose the 60W, 50W or 40W power setting and one of five CCT settings; factory defaults are 60W and 4000K. Measured fixture input power varies from 38.0W to 58.2W with the selected power and CCT. Compatible 120V TRIAC dimming systems support dimming down to 10%. Install in dry locations. Minimum starting temperature is -4°F (-20°C), and maximum ambient temperature is 104°F (40°C).

Compatible Accessories

Matching white RAB H-Type track components, sold separately.

  • Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
  • Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
  • Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
  • End Cap: TK-EC finishes exposed track ends.

Typical Applications

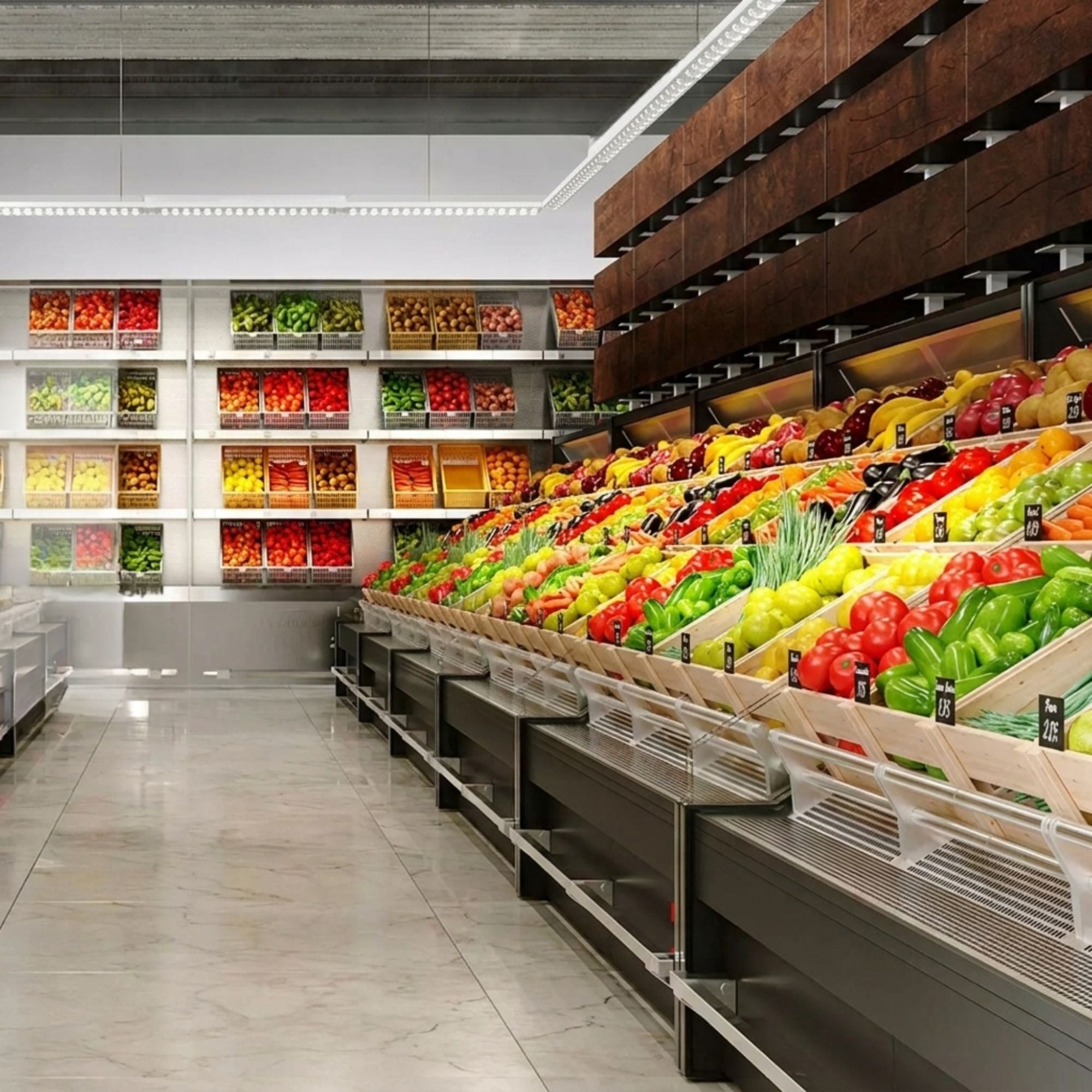

  • Retail aisle lighting.
  • Grocery and produce displays.
  • Apparel and merchandise displays.

What's Included

  • RAB Lighting TKBEAM4 white LED linear track fixture with integrated surface-mount LEDs, polycarbonate lens and constant-current Class 1 driver.

Specifications

Dimensions

Length/Depth
47.5 in
Width/Diameter
2.63 in
Height
2.38 in
Weight
3.7 lb

Style & Materials

Finish
White
Material
Aluminum
Style
Transitional

Characteristics & Features

Lamp Source
LED
Base Type
Integrated
Bulb Included
Yes
Integrated LED
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
94 CRI
Delivered Lumens
8190
Beam Angle
90
Dimmable
Yes

Electrical Information

Voltage
120V
Total Wattage
60W

Item Details

MPN
TKBEAM4
Brand
RAB Lighting
Family
Beam Linear
UPC
192552058377

Warranty & Certifications

Product Warranty
5-Year Limited
Lamp Life
100,000 Hours
Product Rating
Dry
Safety Listing
UL

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Which track system does the RAB Lighting TKBEAM4 use?

The RAB Lighting TKBEAM4 fits single-circuit H-Type track. It operates at 120V, 60Hz.

Is the RAB Lighting TKBEAM4 dimmable?

Yes, the RAB Lighting TKBEAM4 dims down to 10% on compatible 120V TRIAC dimming systems.

Does the RAB Lighting TKBEAM4 require separate lamps?

No, the RAB Lighting TKBEAM4 has integrated surface-mount LEDs and a constant-current Class 1 driver.

Which power and color temperature settings does the RAB Lighting TKBEAM4 offer?

The RAB Lighting TKBEAM4 offers 60W, 50W and 40W power settings and 2700K, 3000K, 3500K, 4000K and 5000K color temperatures. Factory defaults are 60W and 4000K.

What light output and beam angle does the RAB Lighting TKBEAM4 provide?

The RAB Lighting TKBEAM4 delivers 8185 lumens with 94 CRI and a 90° beam at its default 60W and 4000K settings. At 4000K, output is 7113 lumens at the 50W setting and 5943 lumens at the 40W setting.
