RAB TRACK22 Small 8W H-Type LED Track Head 5CCT Black
Available in stock (100)
About this item
About this item
- Selectable Output: 8W, 6W or 4W, 390 to 864 lumens across configurations.
- Five Color Temperatures: 2700K, 3000K, 3500K, 4000K and 5000K, 92 to 97 CRI.
- Adaptable Aiming: 15°, 24°, 30°, 40° and 55° beam settings, default 55°, 350° rotation and 180° swing for accent, spot or wall washing.
- TRIAC Dimming: Compatible 120V TRIAC dimmers, constant-current Class 1 driver.
- Small Black Design: Aluminum housing with PMMA lens, H-Type RAB Track System compatibility, dry-location UL listing.
We process payments securely and do not store credit card information.
Description
Description

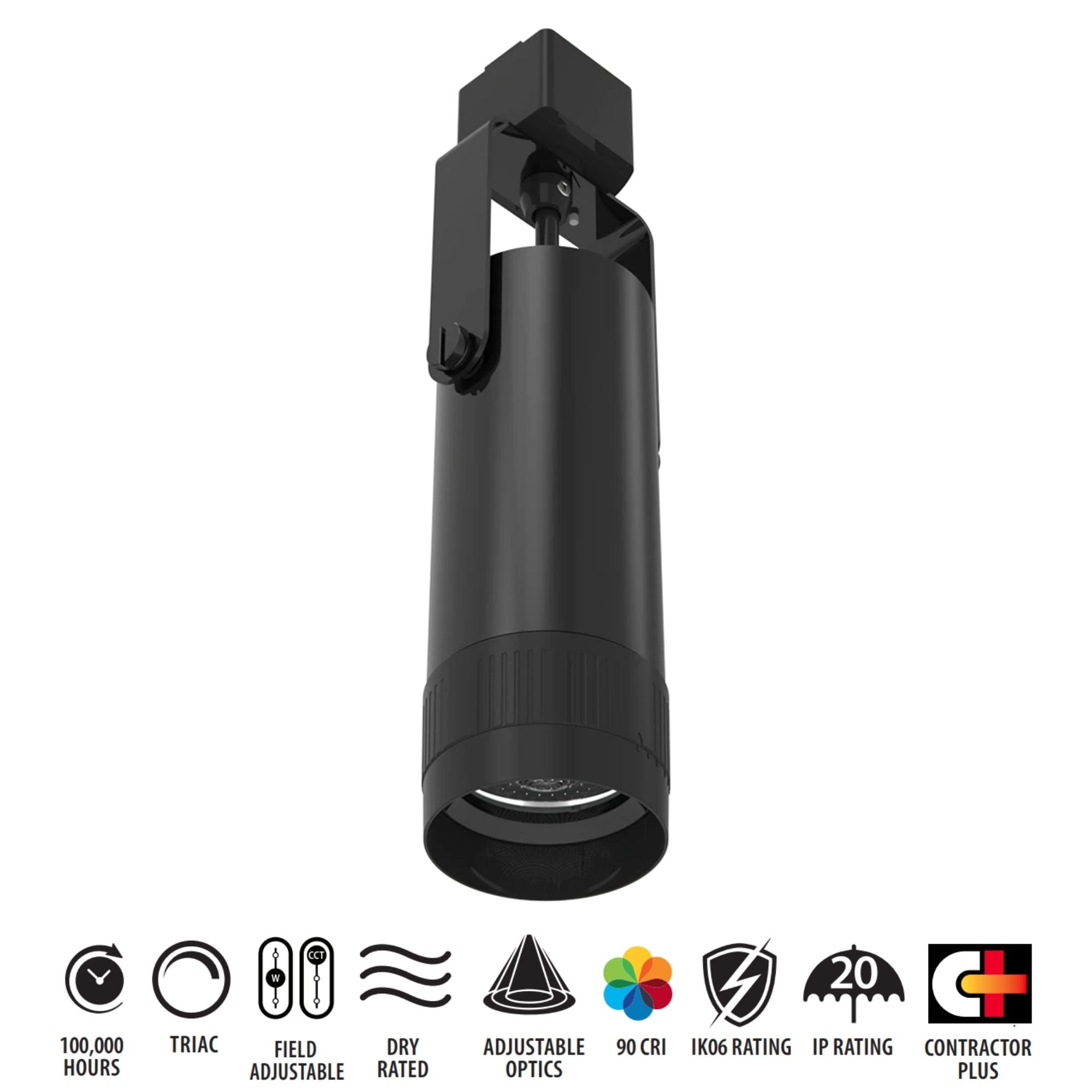

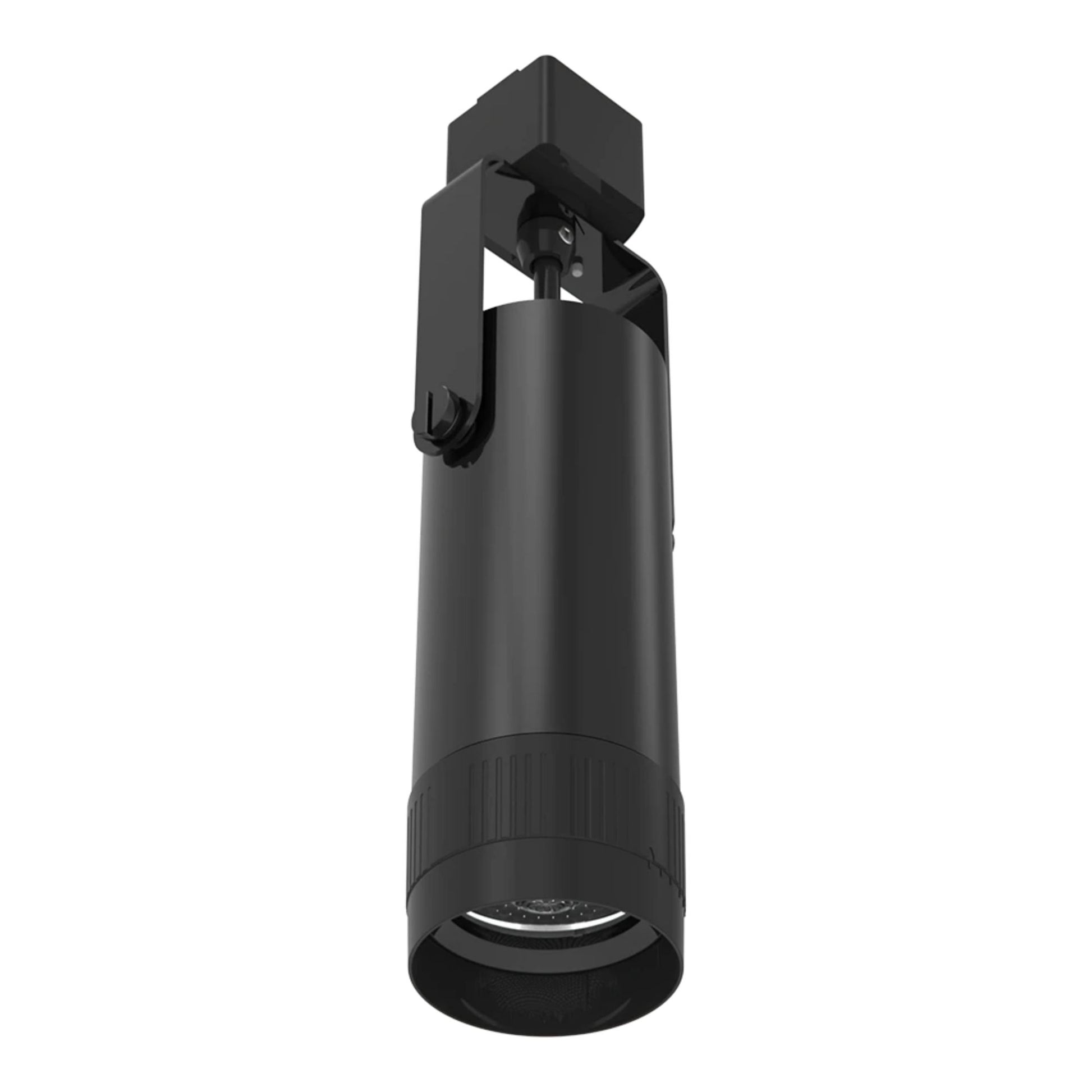

RAB Lighting TRACK22 TK22SB Small LED Track Head
The RAB Lighting TK22SB combines a small black aluminum housing with H-Type track mounting for precise interior accent lighting. Select 8W, 6W or 4W and choose from 2700K, 3000K, 3500K, 4000K and 5000K. Beam settings of 15°, 24°, 30°, 40° and 55° control light spread, while 350° rotation and 180° swing provide adaptable aiming for accent, spot or wall-wash applications. Output ranges from 390 to 864 lumens across configurations, with 92 to 97 CRI.
Key Features
- Size & Finish: Small TRACK22 head, black aluminum housing.
- Track Compatibility: H-Type mount, compatible with RAB Track System and accessories.

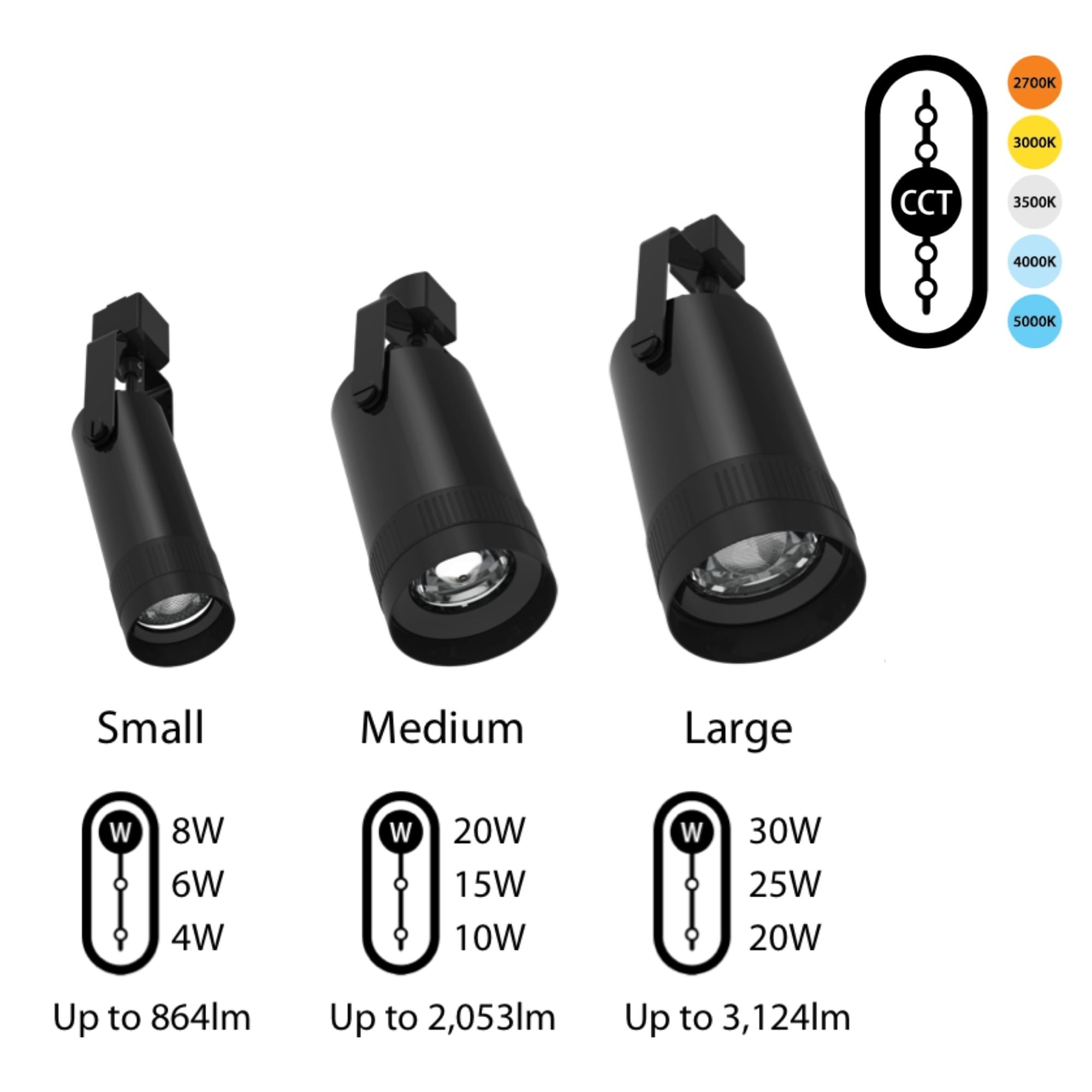

- Selectable Wattage: 8W, 6W and 4W, factory default 8W.
- Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K, factory default 4000K.

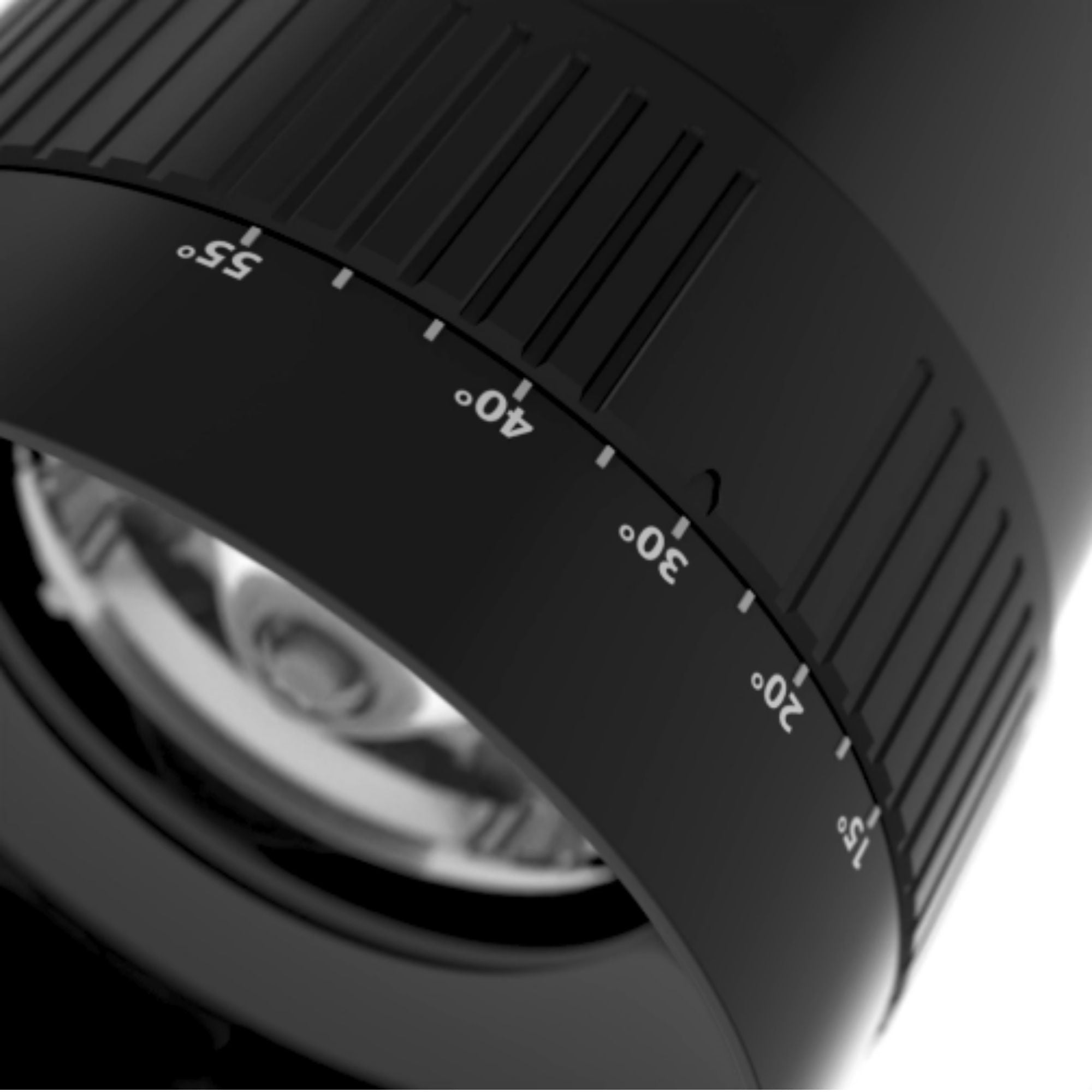

- Adjustable Beam: 15°, 24°, 30°, 40° and 55°, factory default 55°.
- Mechanical Aiming: 350° rotation and 180° swing.
- Output Range: 390 to 864 lumens across configurations.
- Color Rendering: 92 to 97 CRI depending on configuration.
- LED & Optics: Integrated COB LED, PMMA lens.
- Electrical & Dimming: 120V, 60Hz, constant-current Class 1 driver, compatible TRIAC dimmers.
- Location & Protection: UL Listed for dry locations, IP20 and IK06.
- Rated Life: 100,000-hour LED lifespan.
Construction & Design
The small cylindrical head features an aluminum housing, durable black finish and polymethyl methacrylate (PMMA) lens. Adjustable optics provide five beam settings, while 350° rotation and 180° swing independently direct the fixture. Its IK06 rating provides protection against 1 joule of impact.
Light Output & Performance
The integrated COB LED delivers 390 to 864 lumens, with 92 to 97 CRI and listed efficacy of 84.8 to 115 lm/W across configurations. Measured input power ranges from 4.1W to 8.5W. Output varies with wattage, color temperature and beam settings. Factory settings are 8W, 4000K and 55°. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.
Electrical & Installation
The RAB Lighting TK22SB operates at 120V, 60Hz with a constant-current Class 1 driver and supports compatible 120V TRIAC dimmers. Its H-Type track mount is compatible with RAB Track System components and accessories. Field-selectable wattage and CCT settings let you configure illumination for the application. Install in dry indoor locations; minimum starting temperature is -4°F (-20°C) and maximum ambient temperature is 104°F (40°C). Track and system accessories are sold separately.
Compatible Accessories
Matching black RAB track components, sold separately.
- Track Rails: TK2/B (2 ft), TK4/B (4 ft), TK6/B (6 ft) and TK8/B (8 ft).
- Power Feeds: TK-EF/B top-access end feed, TK-JB/B junction-box end feed with cover and TK-FC/B floating canopy feed.
- Joiners: TK-I/B linear, TK-L/B L-shaped, TK-T/B T-shaped and TK-X/B X-shaped.
- End Cap: TK-EC/B finishes exposed track ends.

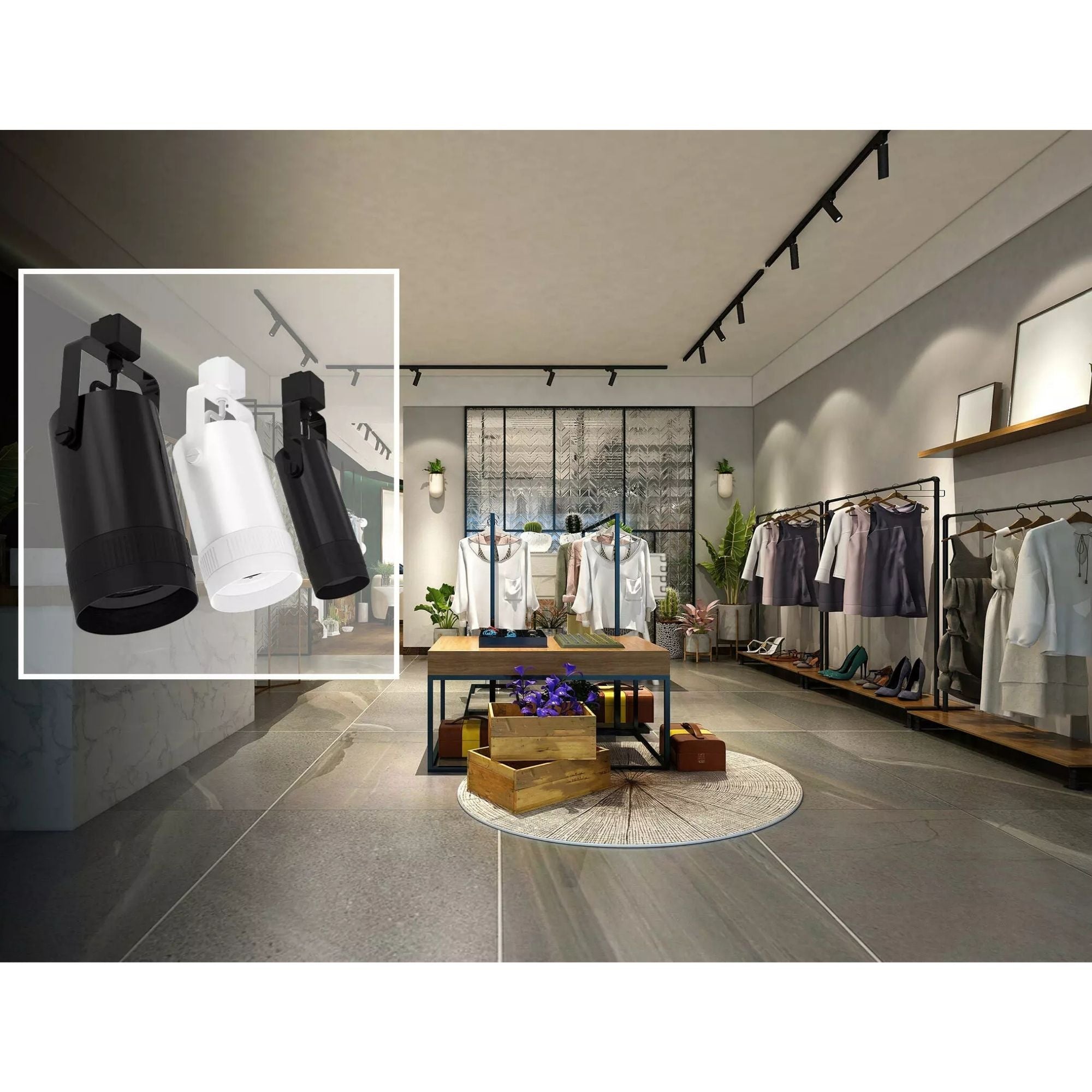

Typical Applications
- Retail merchandise accents.

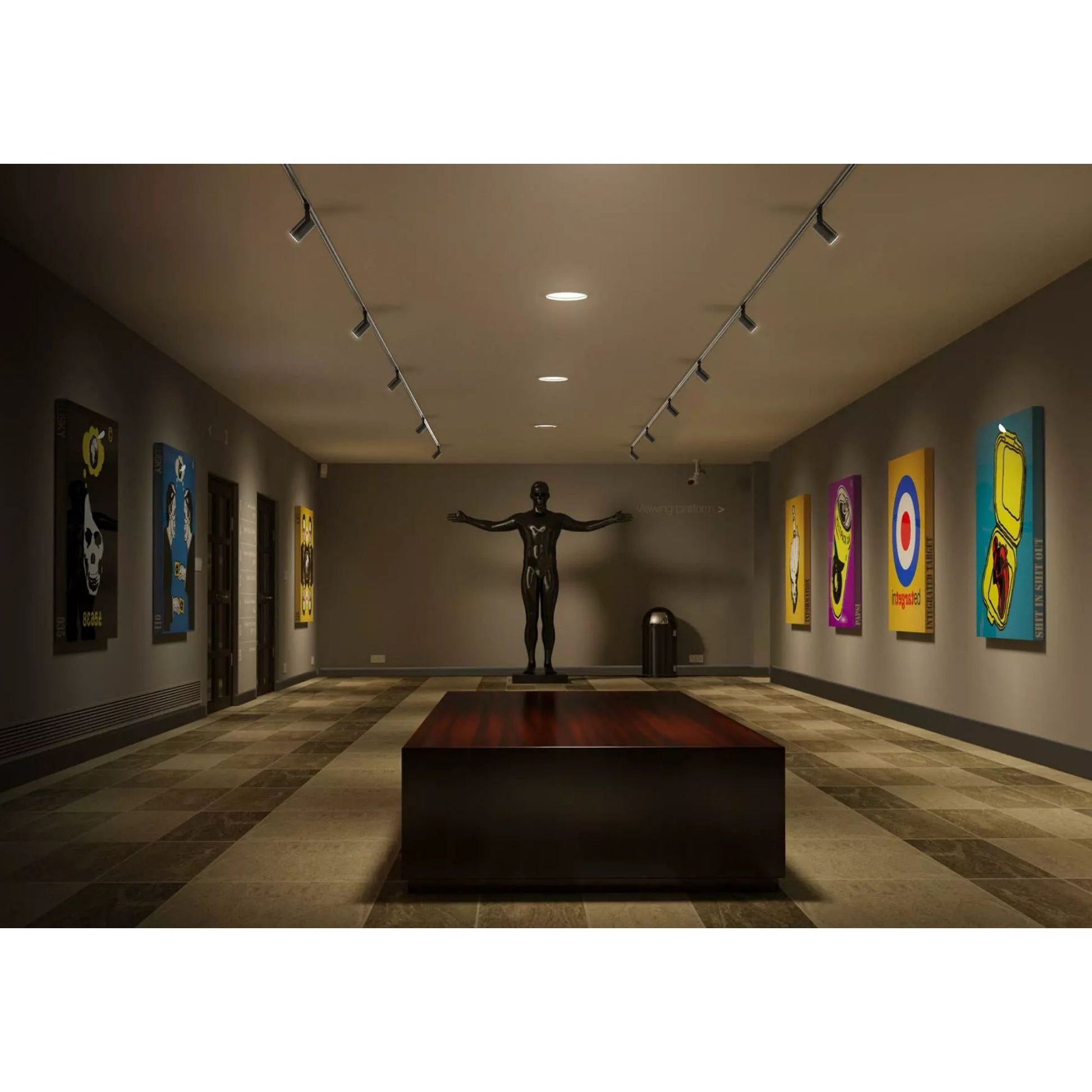

- Artwork and gallery spot lighting.
- Interior wall washing.
- Residential accent lighting.
What's Included
- RAB Lighting TK22SB small black track head with integrated COB LED, driver, PMMA lens and track mount.
