RAB TRACK22 Small 8W H-Type LED Track Head 5CCT White
Available in stock (100)
About this item
About this item
- Selectable Output: 8W, 6W or 4W, 390 to 864 lumens across configurations.
- Five Color Temperatures: 2700K, 3000K, 3500K, 4000K and 5000K, 92 to 97 CRI.
- Adaptable Aiming: 15°, 24°, 30°, 40° and 55° beam settings, default 55°, 350° rotation and 180° swing for accent, spot or wall washing.
- TRIAC Dimming: Compatible 120V TRIAC dimmers for adjustable brightness.
- Small White Design: Aluminum housing with PMMA lens, H-Type track mounting, dry-location UL listing.
Description
Description

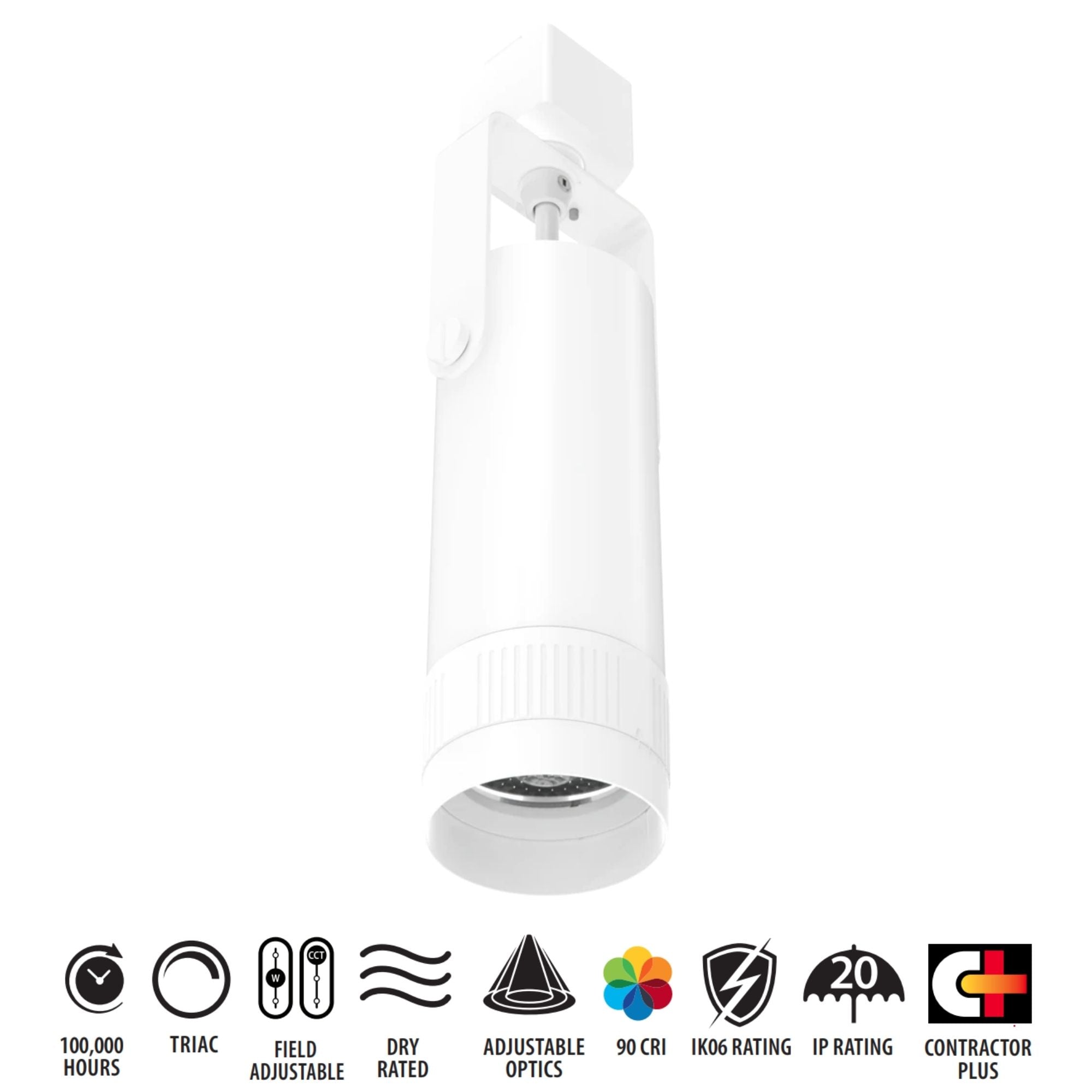

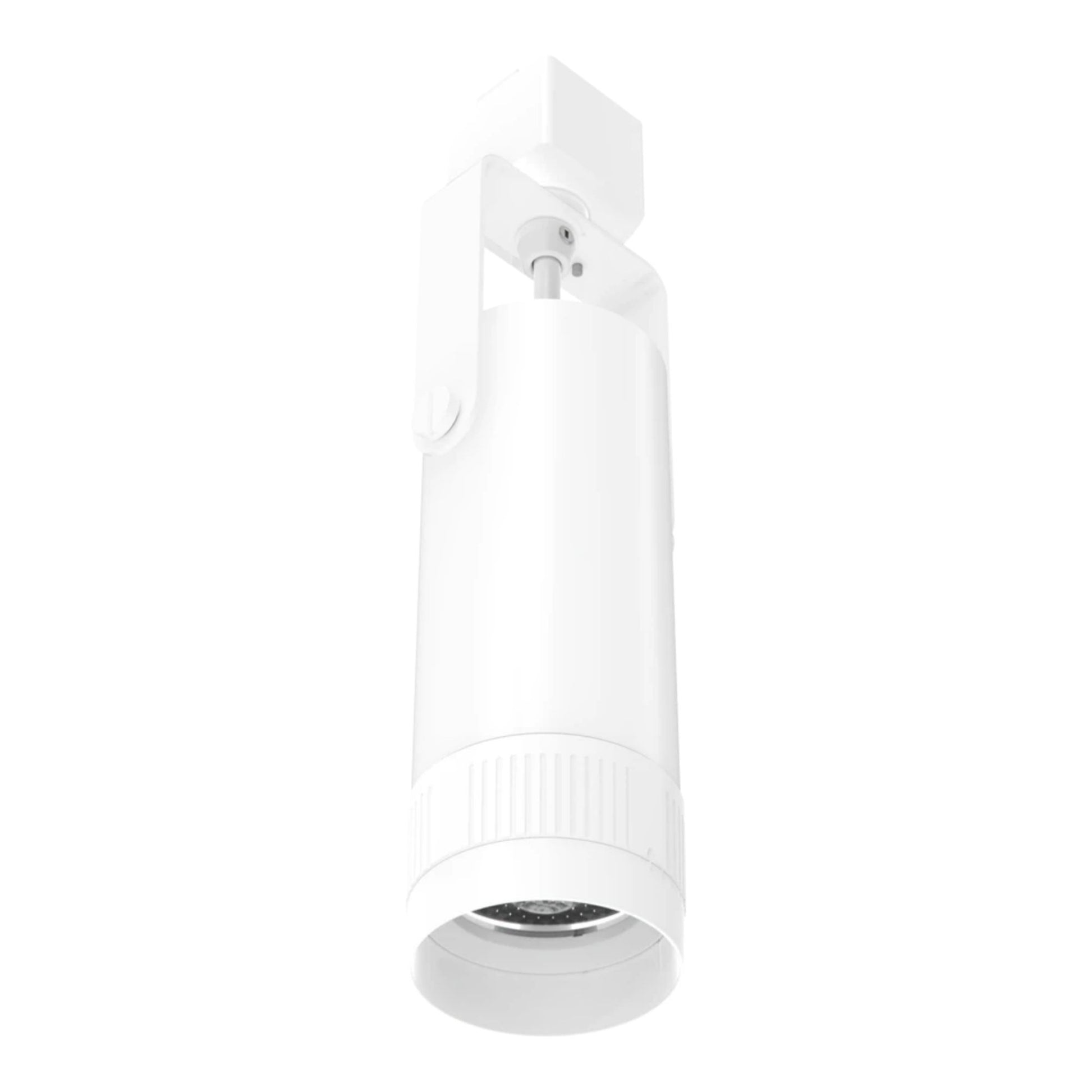

RAB Lighting TRACK22 TK22S Small LED Track Head
The RAB Lighting TK22S combines a small white aluminum housing with H-Type track mounting for precise interior accent lighting. Select 8W, 6W or 4W and choose from 2700K, 3000K, 3500K, 4000K and 5000K. Beam settings of 15°, 24°, 30°, 40° and 55° control light spread, while 350° rotation and 180° swing provide adaptable aiming for accent, spot or wall-wash applications. Output ranges from 390 to 864 lumens across configurations, with 92 to 97 CRI.
Key Features
- Size & Finish: Small TRACK22 head, white aluminum housing.
- Track Compatibility: H-Type track mounting.

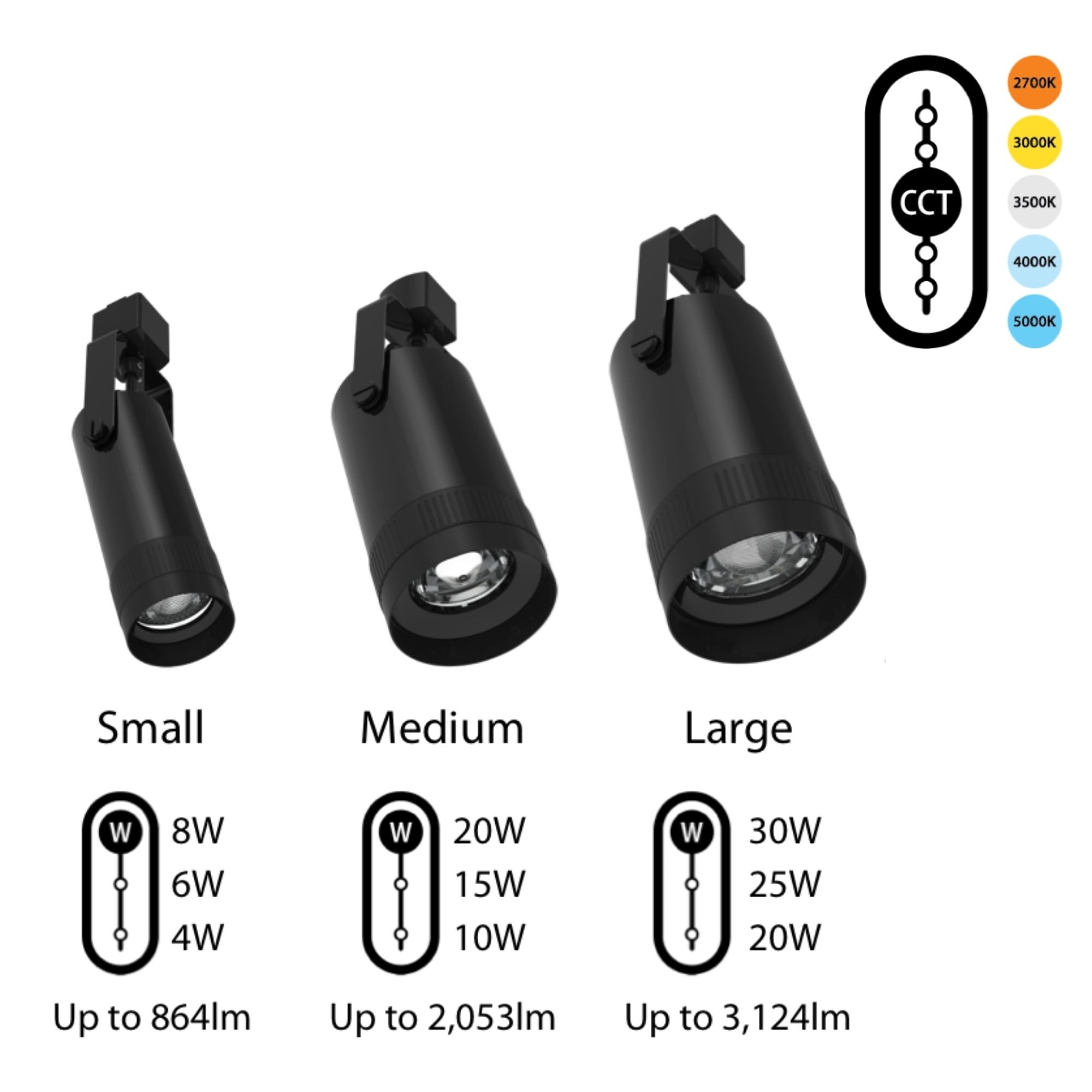

- Selectable Wattage: 8W, 6W and 4W.
- Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K.
- Adjustable Beam: 15°, 24°, 30°, 40° and 55°, default 55°.
- Mechanical Aiming: 350° rotation and 180° swing.
- Output Range: 390 to 864 lumens across configurations.
- Color Rendering: 92 to 97 CRI depending on configuration.
- LED & Optics: Integrated COB LED, PMMA lens.
- Electrical & Dimming: 120V, compatible TRIAC dimmers.
- Location: UL Listed for dry indoor locations.
- Rated Life: 100,000-hour LED lifespan.
Construction & Design
The small track head features an aluminum housing, white finish and polymethyl methacrylate (PMMA) lens. Adjustable optics provide five beam settings, while 350° rotation and 180° swing independently direct the fixture. The white finish coordinates with matching white track components.
Light Output & Performance
The integrated COB LED delivers 390 to 864 lumens, with 92 to 97 CRI and listed efficacy of 84.8 to 115 lm/W across configurations. Output varies with wattage, color temperature and beam settings. Select 8W, 6W or 4W and one of five CCT settings to configure the light for the application. The default beam is 55°, and LED lifespan is rated at 100,000 hours.
Electrical & Installation
The RAB Lighting TK22S operates at 120V and supports compatible TRIAC dimmers. Its H-Type track mount integrates with the track system, while selectable wattage, CCT and beam settings let you configure illumination. Install in dry indoor locations. Track and system accessories are sold separately.
Compatible Accessories
Matching white RAB track components, sold separately.
- Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
- Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
- Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
- End Cap: TK-EC finishes exposed track ends.
Typical Applications

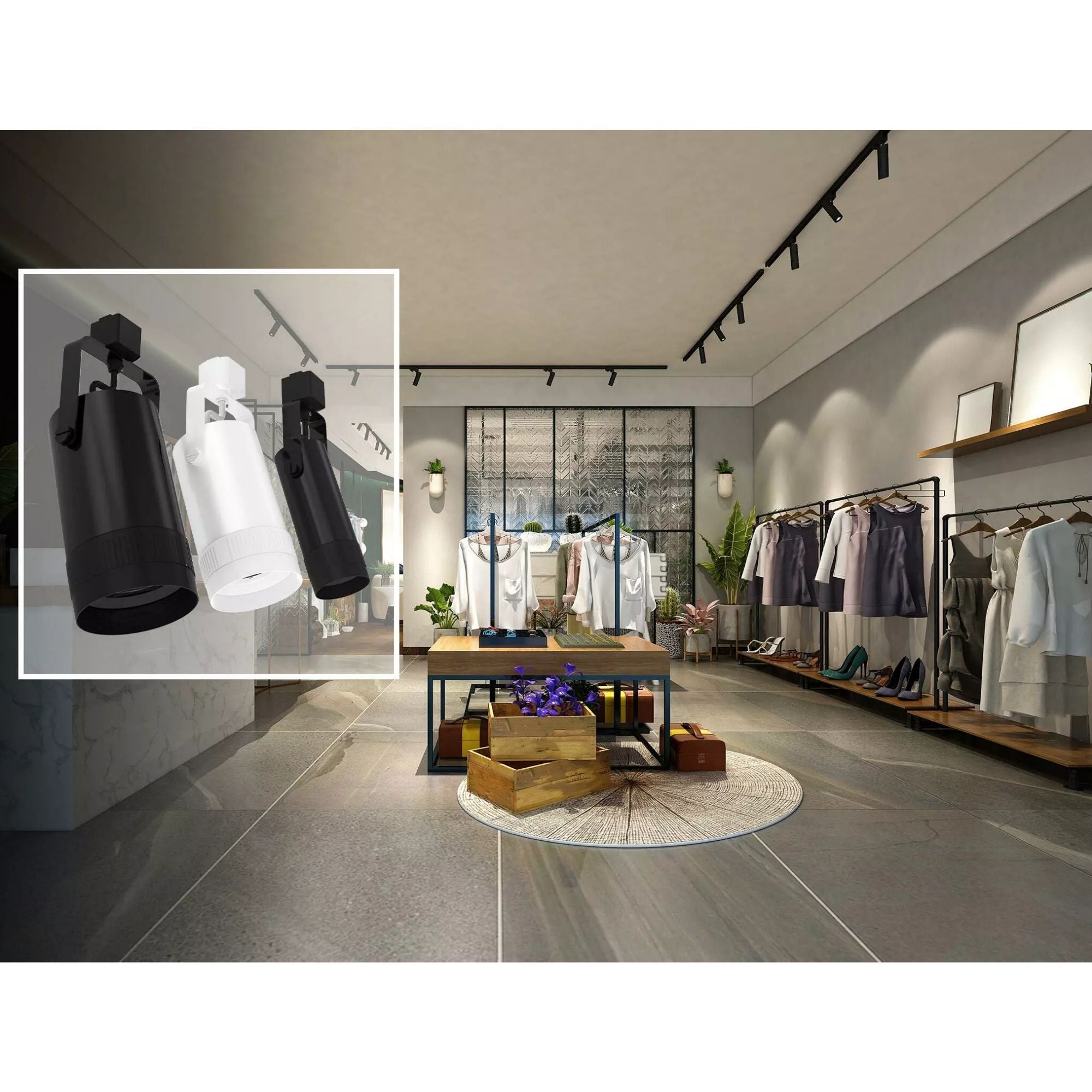

- Retail merchandise accents.

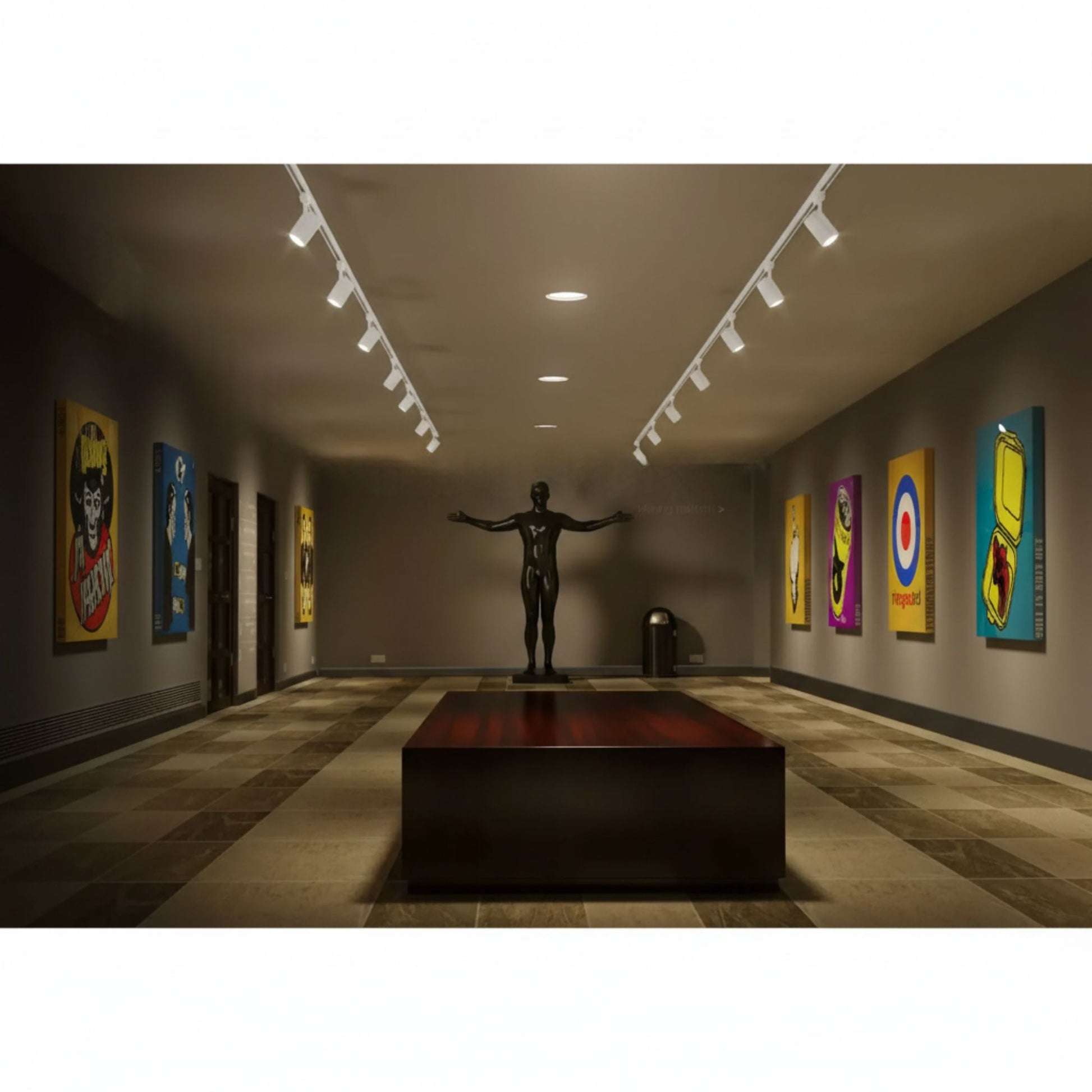

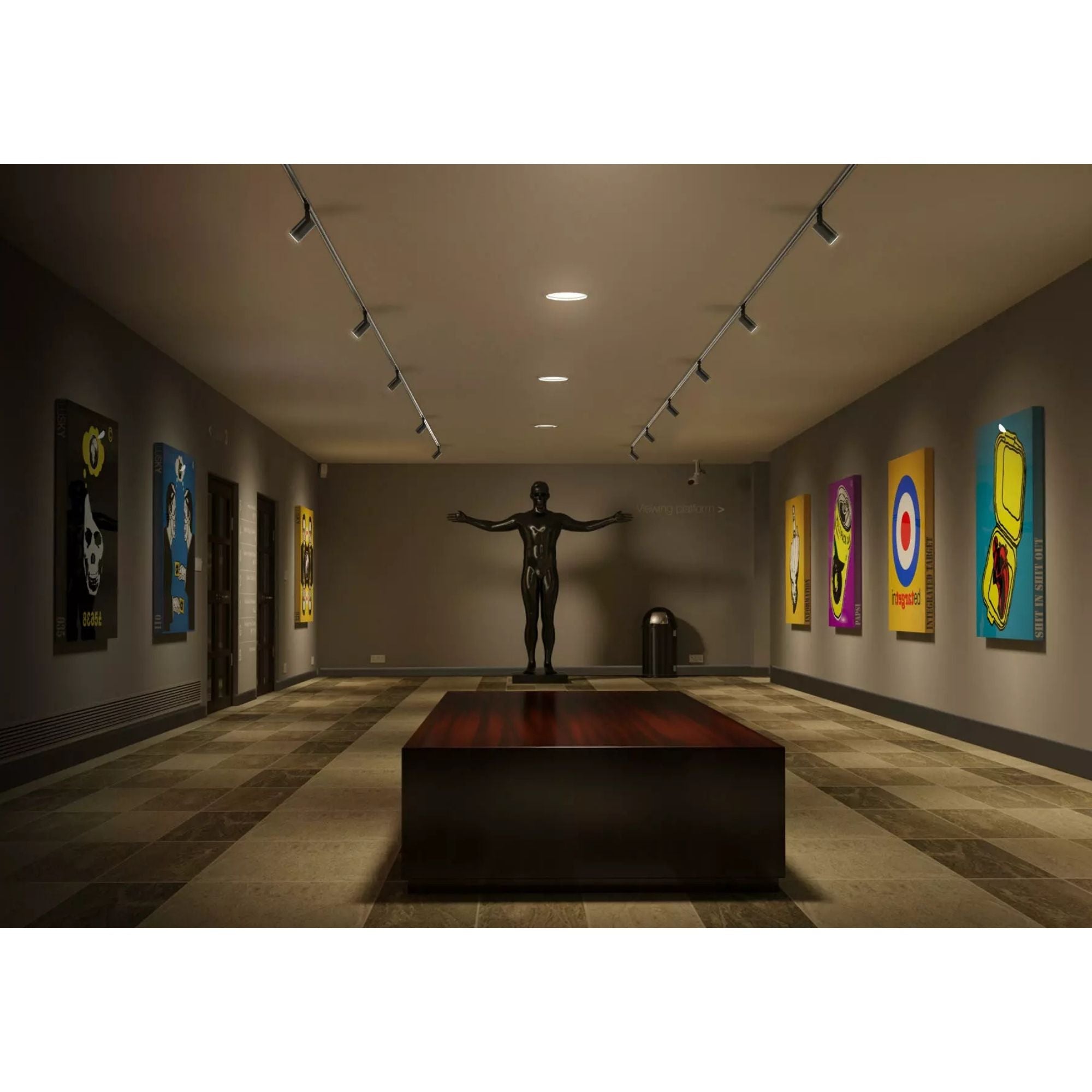

- Artwork and gallery spot lighting.
- Interior wall washing.
- Residential accent lighting.
What's Included
- RAB Lighting TK22S small white track head with integrated COB LED, PMMA lens and track mount.
Specifications
Specifications

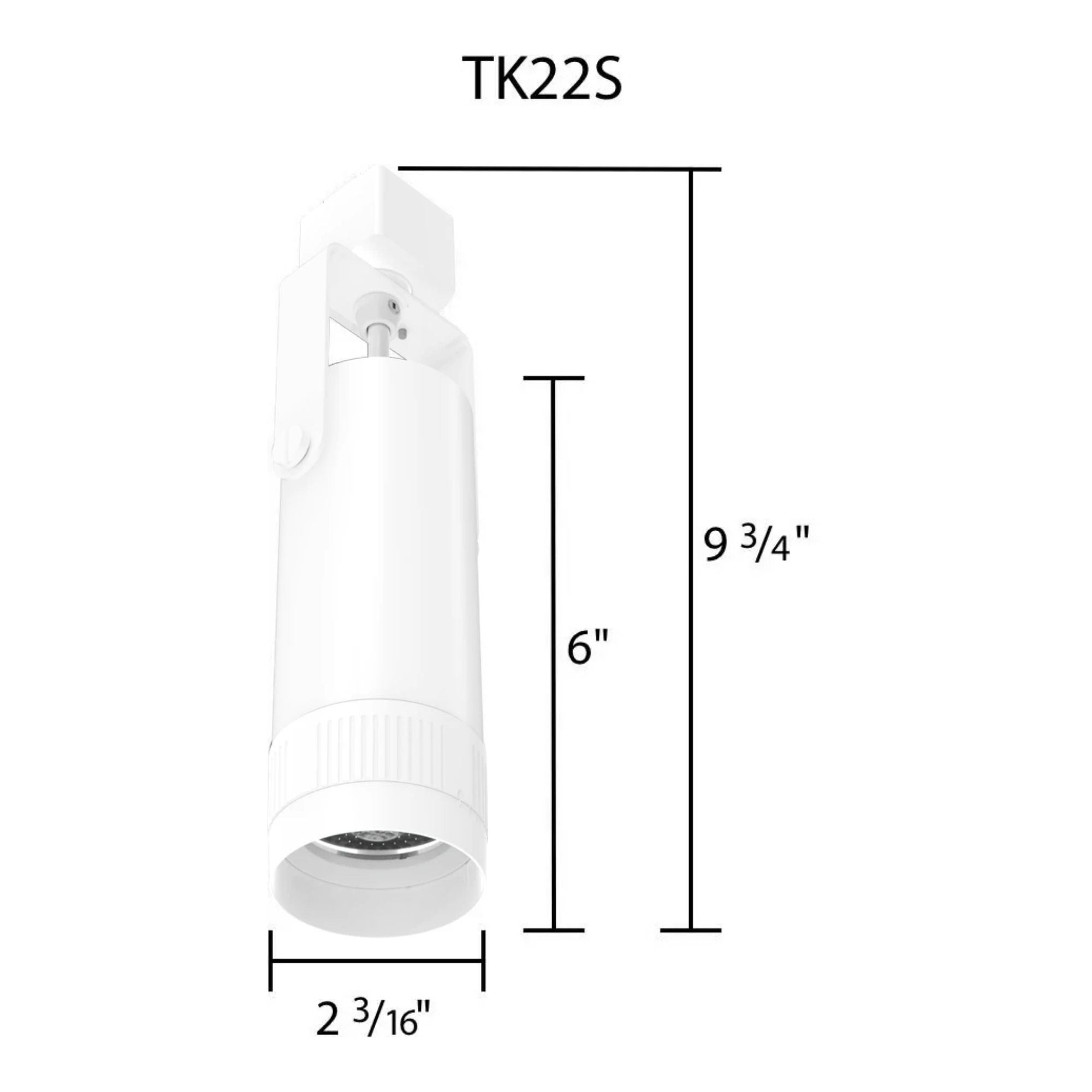

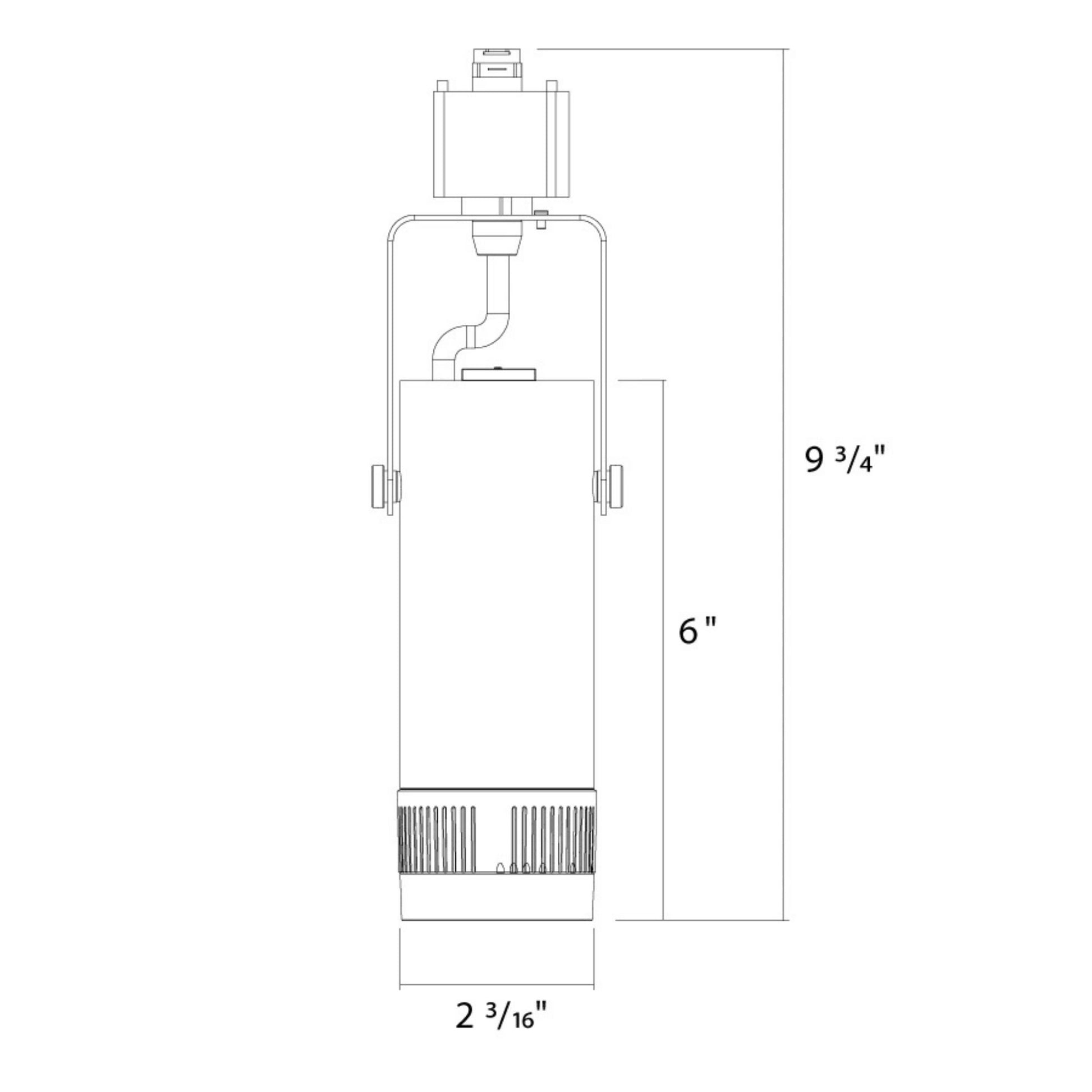

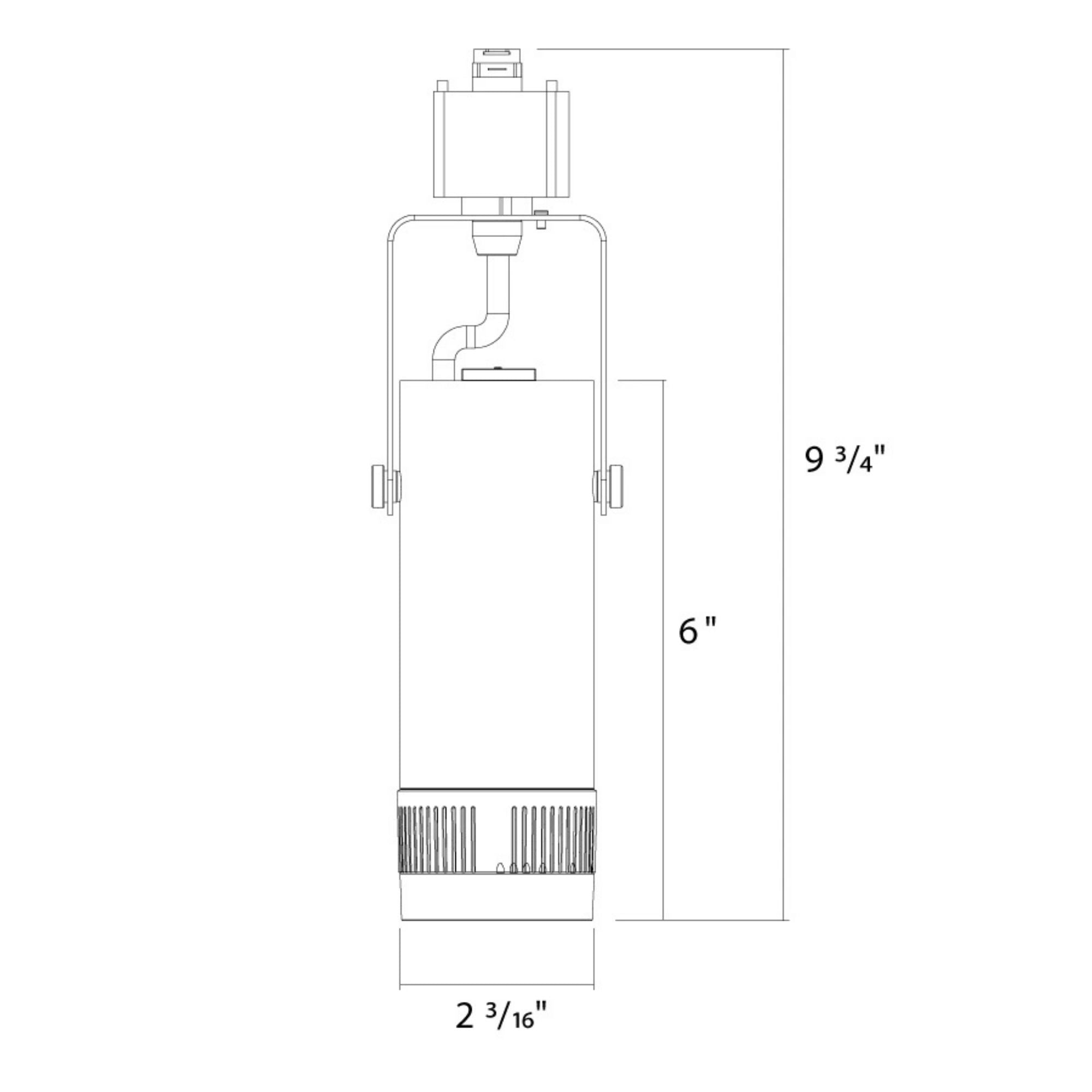

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the RAB Lighting TK22S use?
Which track system does the RAB Lighting TK22S use?
Is the RAB Lighting TK22S dimmable?
Is the RAB Lighting TK22S dimmable?
Which wattage and color temperature settings does the RAB Lighting TK22S offer?
Which wattage and color temperature settings does the RAB Lighting TK22S offer?
Can the beam angle and aiming direction of the RAB Lighting TK22S be adjusted?
Can the beam angle and aiming direction of the RAB Lighting TK22S be adjusted?
What light output does the RAB Lighting TK22S provide?
What light output does the RAB Lighting TK22S provide?
