RAB TRACK22 Medium 20W H-Type LED Track Head 5CCT Black
Available in stock (100)
About this item
About this item
- Selectable Output: 20W, 15W or 10W, 948 to 2053 lumens across configurations.
- Five Color Temperatures: 2700K, 3000K, 3500K, 4000K and 5000K, 92 to 99 CRI.

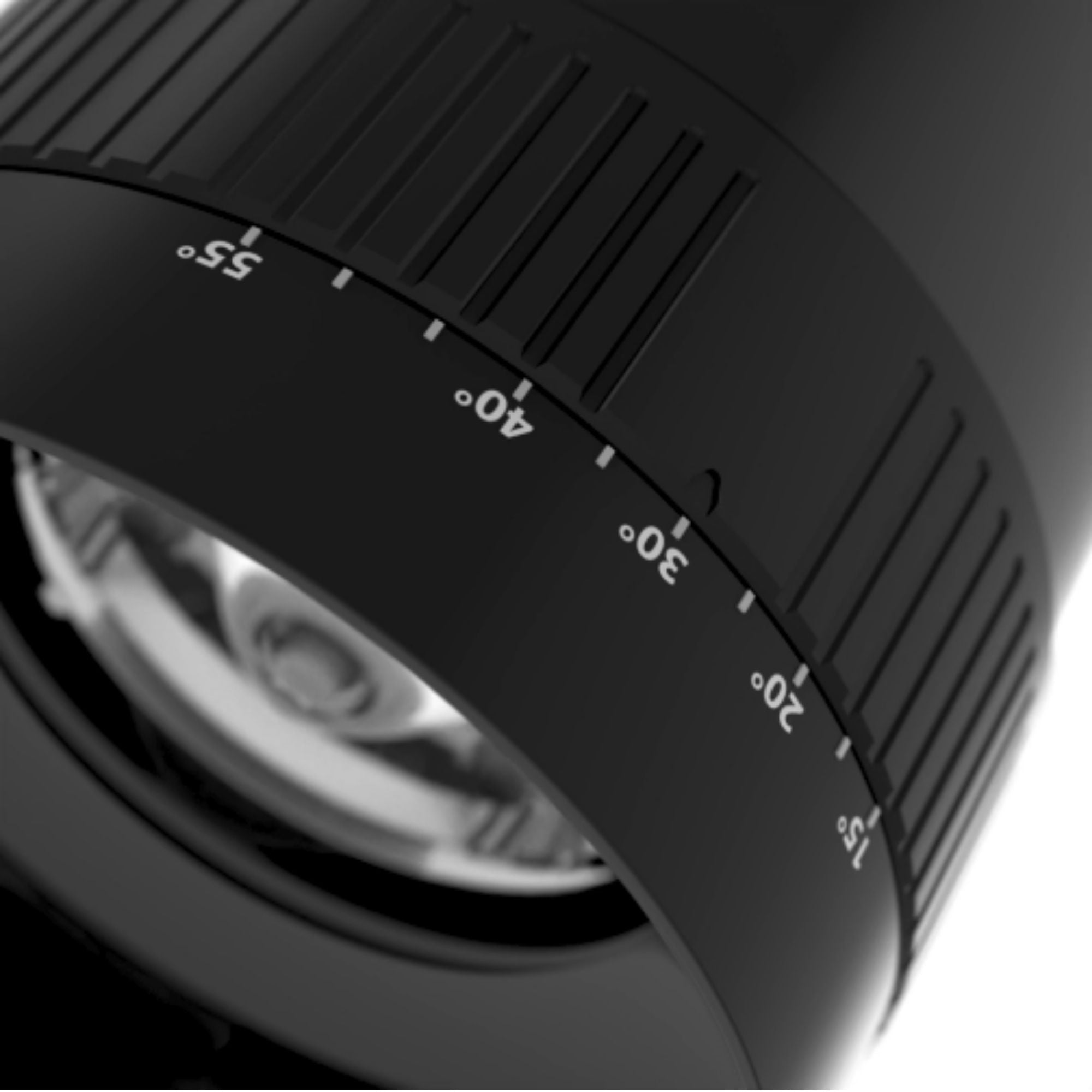

- Adaptable Aiming: 15°, 24°, 30°, 40° and 55° beam settings, default 55°, 350° rotation and 180° swing for accent, spot or wall washing.
- TRIAC Dimming: Compatible 120V TRIAC dimmers, constant-current Class 1 driver.
- Black Track Design: Medium aluminum housing with PMMA lens, H-Type RAB Track System compatibility, dry-location UL listing.
We process payments securely and do not store credit card information.
Description
Description

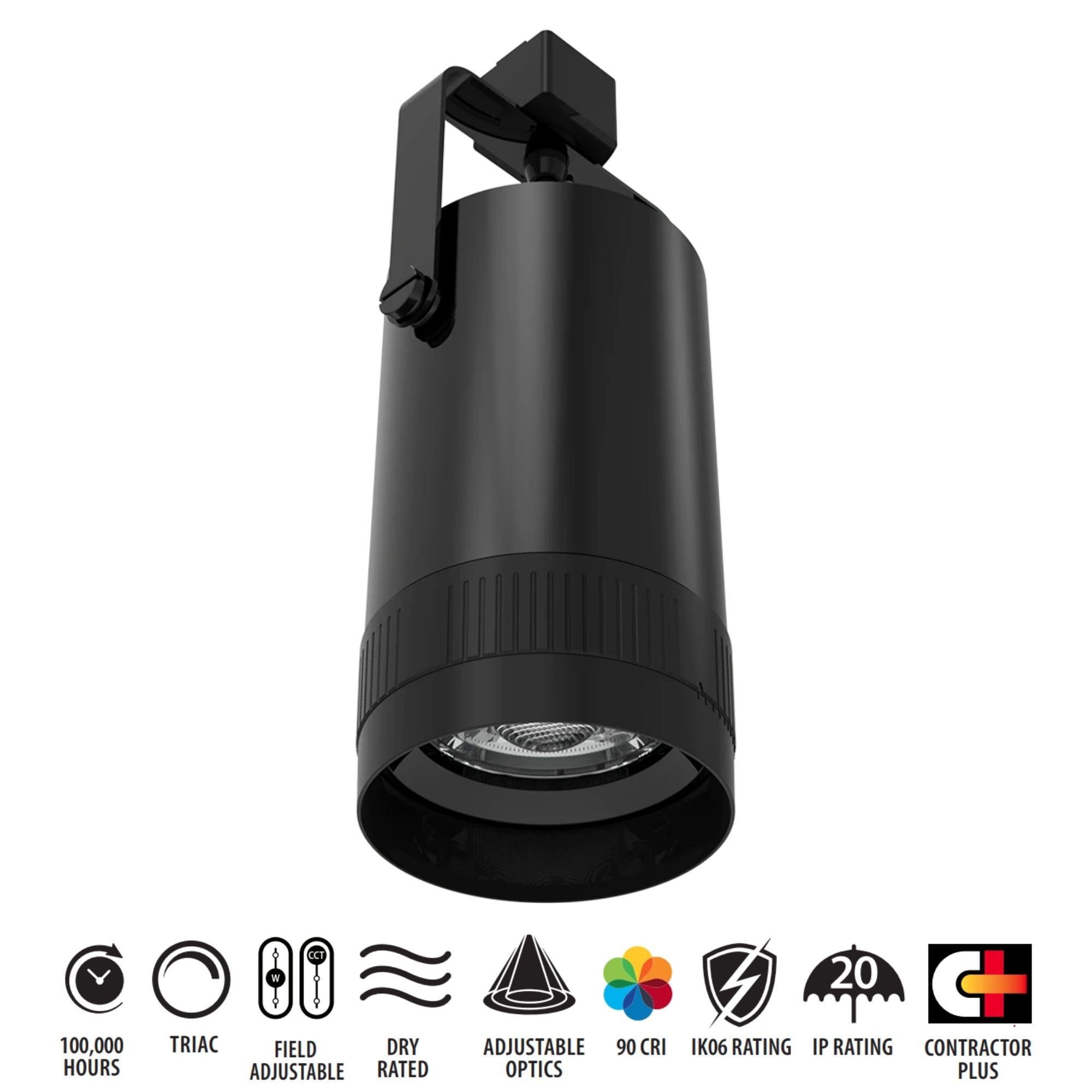

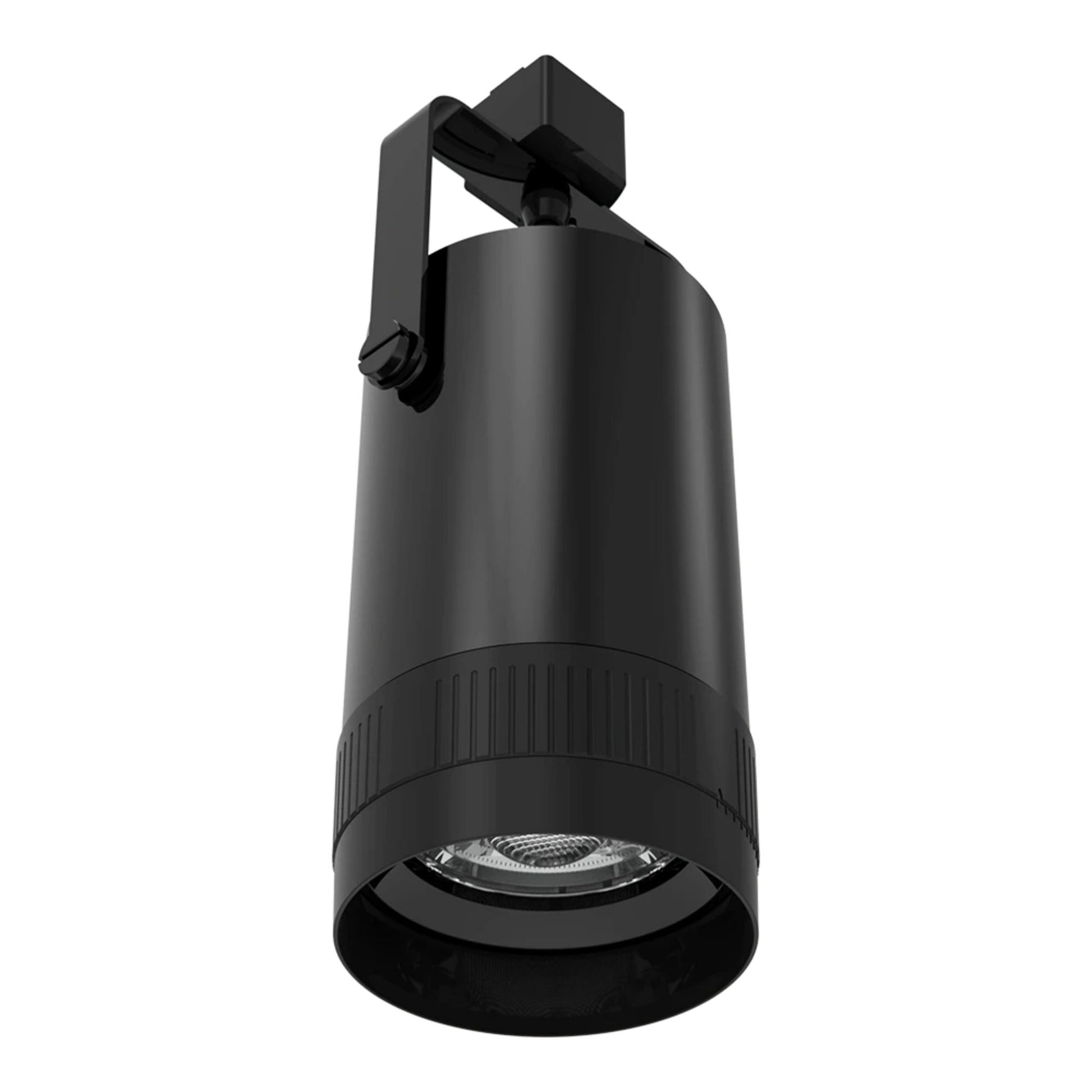

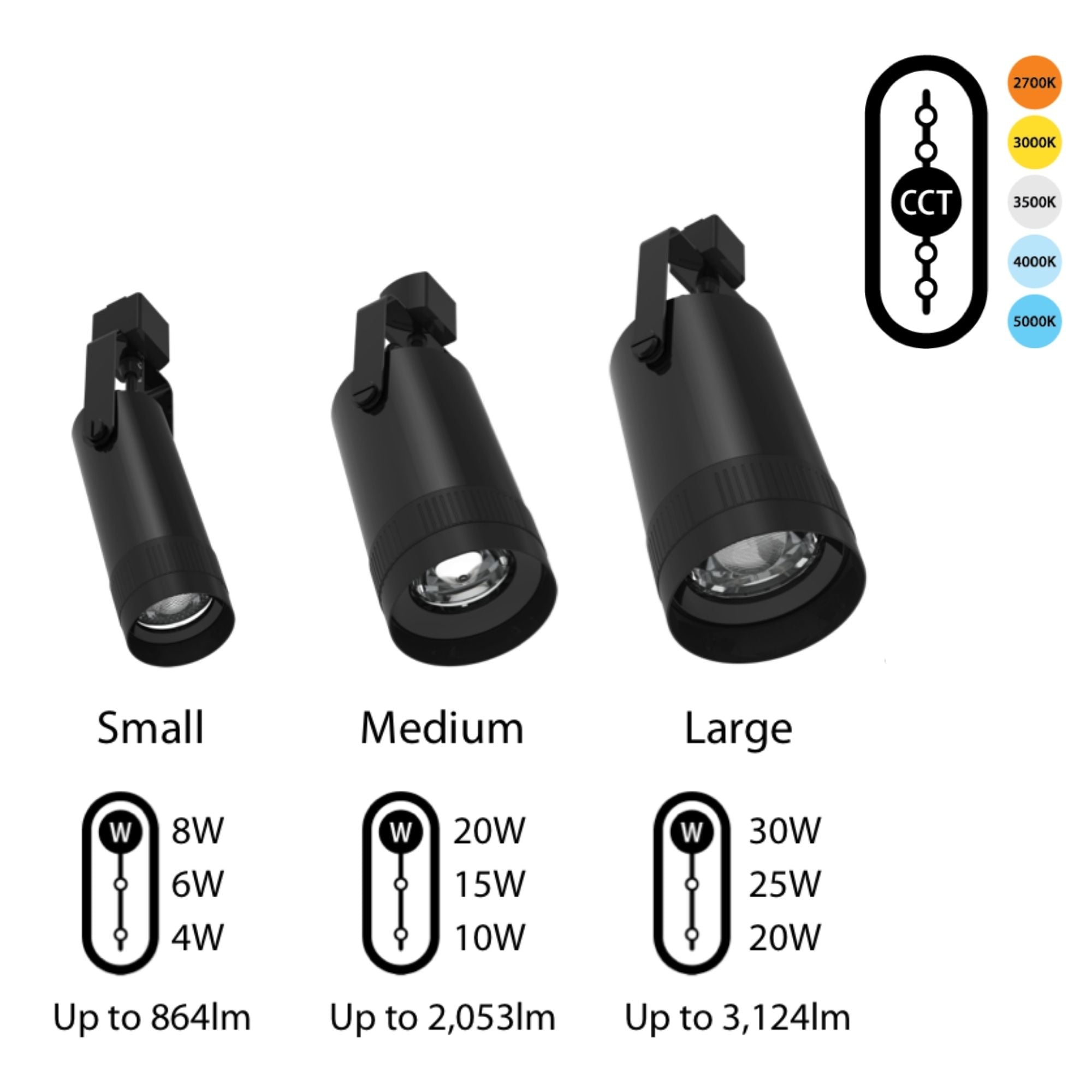

RAB Lighting TRACK22 TK22MB Medium LED Track Head
The RAB Lighting TK22MB pairs a medium black aluminum housing with H-Type track mounting for adaptable interior accent lighting. Select 20W, 15W or 10W and one of five color temperatures from 2700K to 5000K. Adjustable beam settings of 15°, 24°, 30°, 40° and 55°, together with 350° rotation and 180° swing, provide precise aiming for accent, spot or wall-wash applications. Output ranges from 948 to 2053 lumens across configurations, with 92 to 99 CRI.
Key Features
- Size & Finish: Medium TRACK22 head, black aluminum housing.
- Track Mount: H-Type mount, compatible with RAB Track System and accessories.
- Selectable Wattage: 20W, 15W and 10W, factory default 20W.
- Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K, factory default 4000K.
- Adjustable Beam: 15°, 24°, 30°, 40° and 55°, factory default 55°.
- Mechanical Aiming: 350° rotation and 180° swing.
- Output Range: 948 to 2053 lumens across configurations.
- Color Rendering: 92 to 99 CRI depending on configuration.
- LED & Lens: Integrated COB LED with PMMA optics.
- Electrical & Dimming: 120V, 60Hz, constant-current Class 1 driver, compatible TRIAC dimmers.
- Location & Protection: UL Listed for dry locations, IP20 and IK06.
- Rated Life: 100,000-hour LED lifespan.
Construction & Design
The medium cylindrical head combines an aluminum housing, durable black finish and polymethyl methacrylate (PMMA) lens. Beam settings of 15°, 24°, 30°, 40° and 55° adjust light spread, while 350° rotation and 180° swing independently direct the head for accent, spot or wall-wash applications. Its IK06 rating provides protection against 1 joule of impact.
Light Output & Performance
The integrated COB LED delivers 948 to 2053 lumens, with 92 to 99 CRI and listed efficacy of 81.9 to 119.9 lm/W across configurations. Measured input power ranges from 9.3W to 20.6W. Output varies with wattage, CCT and beam settings. Factory settings are 20W, 4000K and 55°. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.
Electrical & Installation
The RAB Lighting TK22MB operates at 120V, 60Hz with a constant-current Class 1 driver and supports compatible 120V TRIAC dimmers. Its H-Type track mount is compatible with RAB Track System components and accessories. Field-selectable wattage and CCT settings let you configure illumination for the application. Install in dry indoor locations; minimum starting temperature is -4°F (-20°C) and maximum ambient temperature is 104°F (40°C). Track and system accessories are sold separately.
Compatible Accessories
Matching black RAB track components, sold separately.
- Track Rails: TK2/B (2 ft), TK4/B (4 ft), TK6/B (6 ft) and TK8/B (8 ft).
- Power Feeds: TK-EF/B top-access end feed, TK-JB/B junction-box end feed with cover and TK-FC/B floating canopy feed.
- Joiners: TK-I/B linear, TK-L/B L-shaped, TK-T/B T-shaped and TK-X/B X-shaped.
- End Cap: TK-EC/B finishes exposed track ends.
Typical Applications

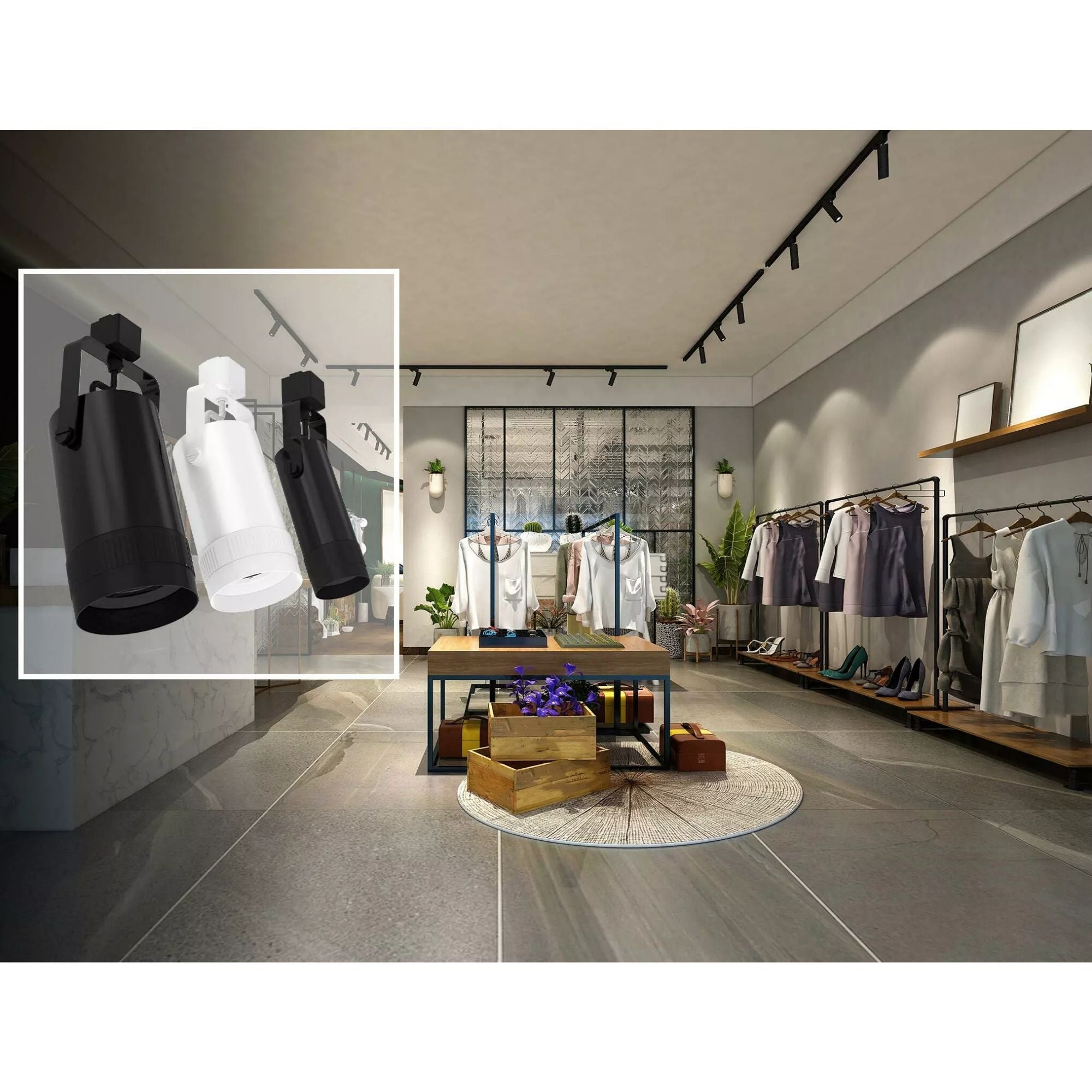

- Retail merchandise accents.

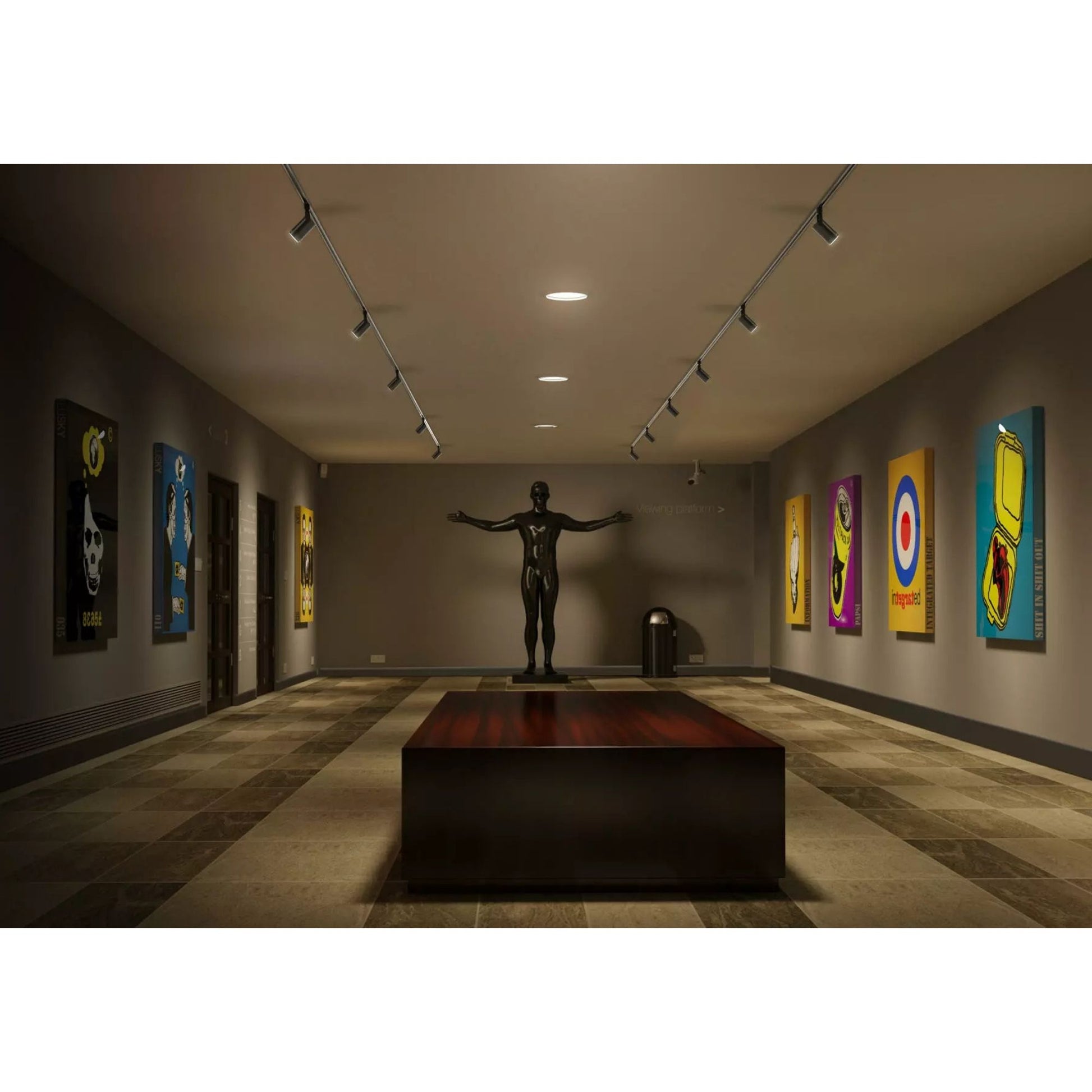

- Artwork and gallery spot lighting.
- Interior wall washing.
- Residential accent lighting.
What's Included
- RAB Lighting TK22MB medium black track head with integrated COB LED, driver, PMMA lens and track mount.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the RAB Lighting TK22MB use?
Which track system does the RAB Lighting TK22MB use?
Is the RAB Lighting TK22MB dimmable?
Is the RAB Lighting TK22MB dimmable?
Which wattage and color temperature settings does the RAB Lighting TK22MB offer?
Which wattage and color temperature settings does the RAB Lighting TK22MB offer?
Can the beam angle and aiming direction of the RAB Lighting TK22MB be adjusted?
Can the beam angle and aiming direction of the RAB Lighting TK22MB be adjusted?
What light output does the RAB Lighting TK22MB provide?
What light output does the RAB Lighting TK22MB provide?
