RAB TRACK22 Medium 20W H-Type LED Track Head 5CCT White
Available in stock (94)
About this item
About this item
- Selectable Output: 20W, 15W or 10W, 948 to 2053 lumens across configurations.
- Five Color Temperatures: 2700K, 3000K, 3500K, 4000K and 5000K, 92 to 99 CRI.
- Adaptable Aiming: 15°, 24°, 30°, 40° and 55° beam settings, default 55°, 350° rotation and 180° swing for accent, spot or wall washing.
- TRIAC Dimming: Compatible 120V TRIAC dimmers, constant-current Class 1 driver.
- White Track Design: Medium aluminum housing with PMMA lens, H-Type RAB Track System compatibility, dry-location UL listing.
Description
Description

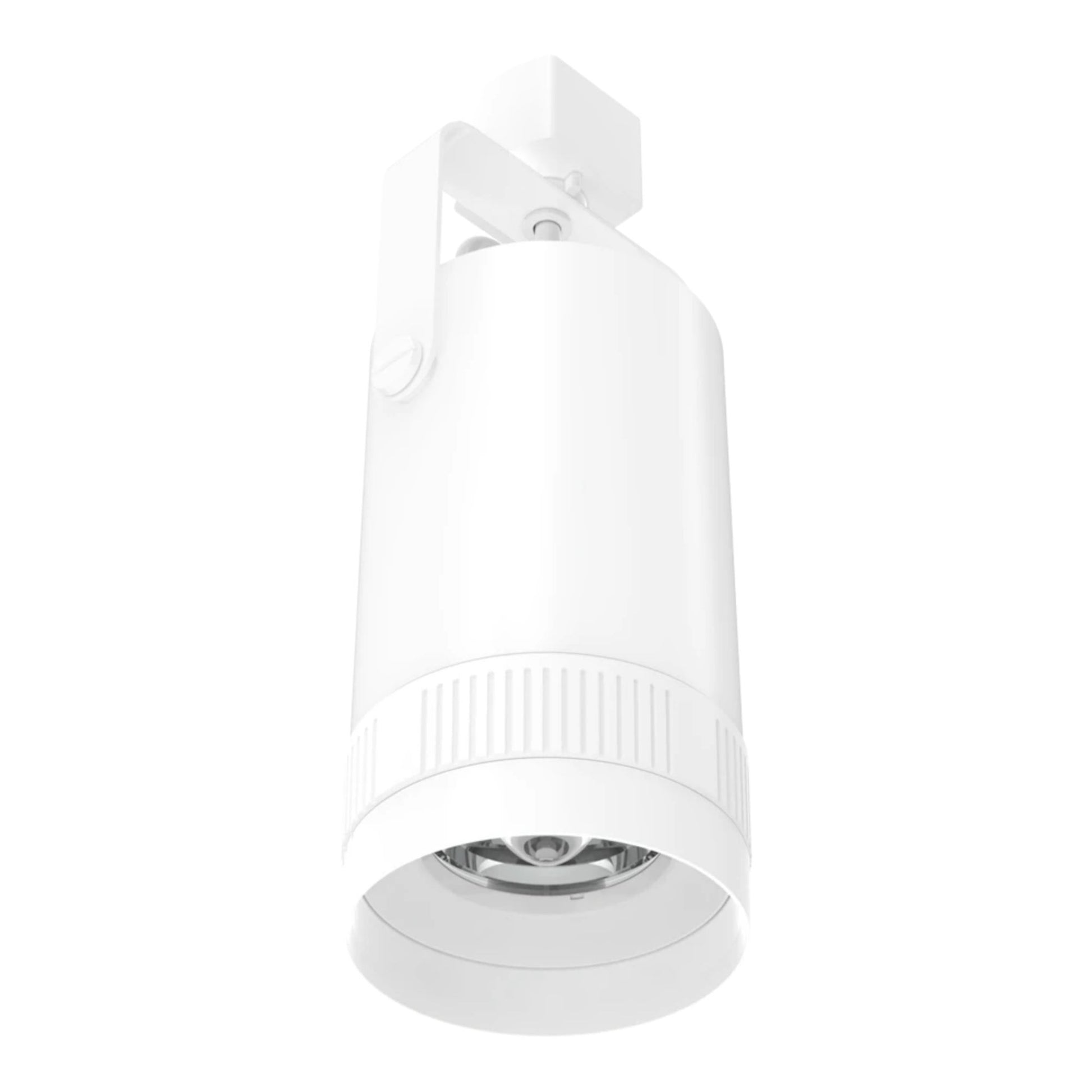

RAB Lighting TRACK22 TK22M Medium LED Track Head

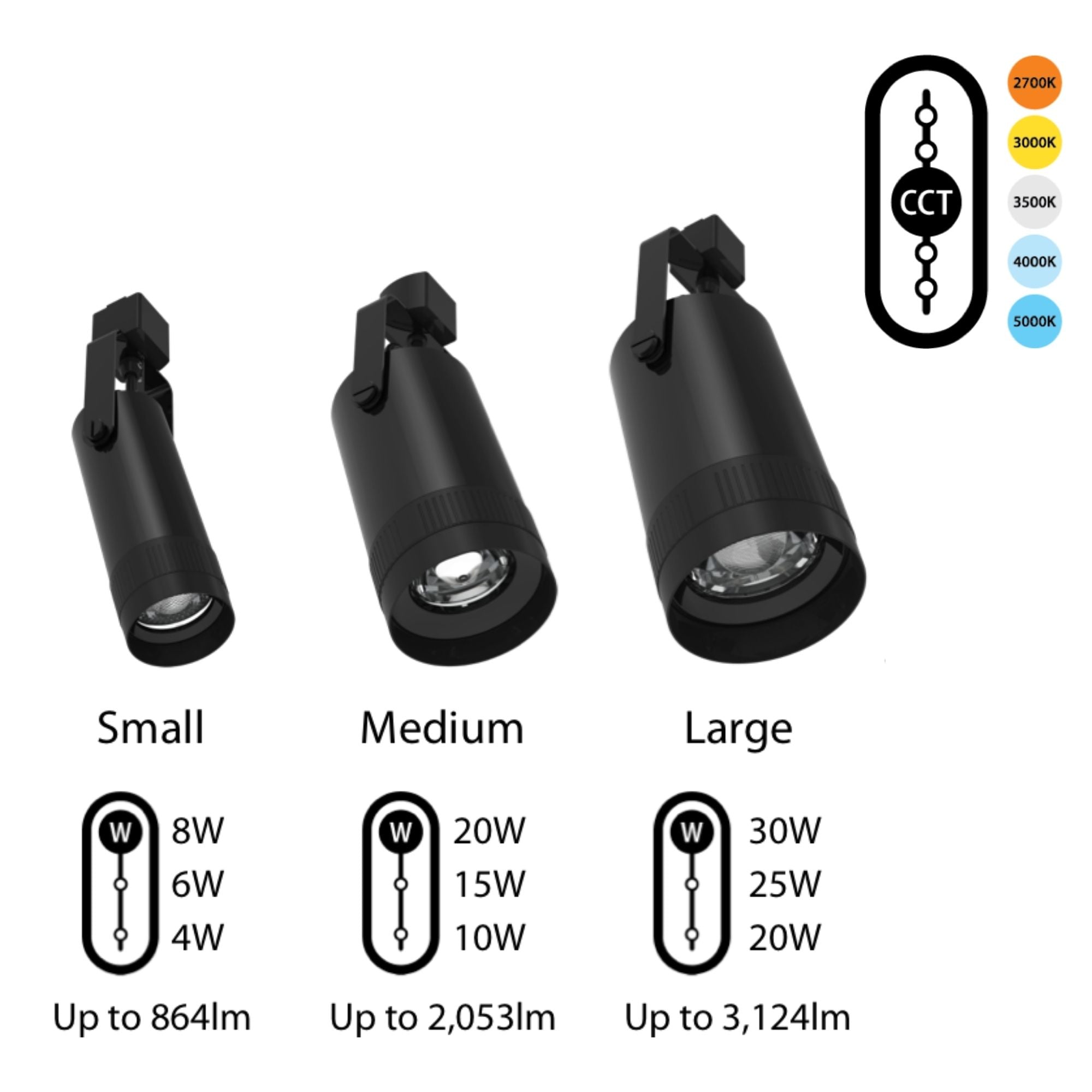

The RAB Lighting TK22M pairs a medium white aluminum housing with H-Type track mounting for adaptable interior accent lighting. Select 20W, 15W or 10W and one of five color temperatures from 2700K to 5000K. Adjustable beam settings of 15°, 24°, 30°, 40° and 55°, together with 350° rotation and 180° swing, provide precise aiming for accent, spot or wall-wash applications. Output ranges from 948 to 2053 lumens across configurations, with 92 to 99 CRI.

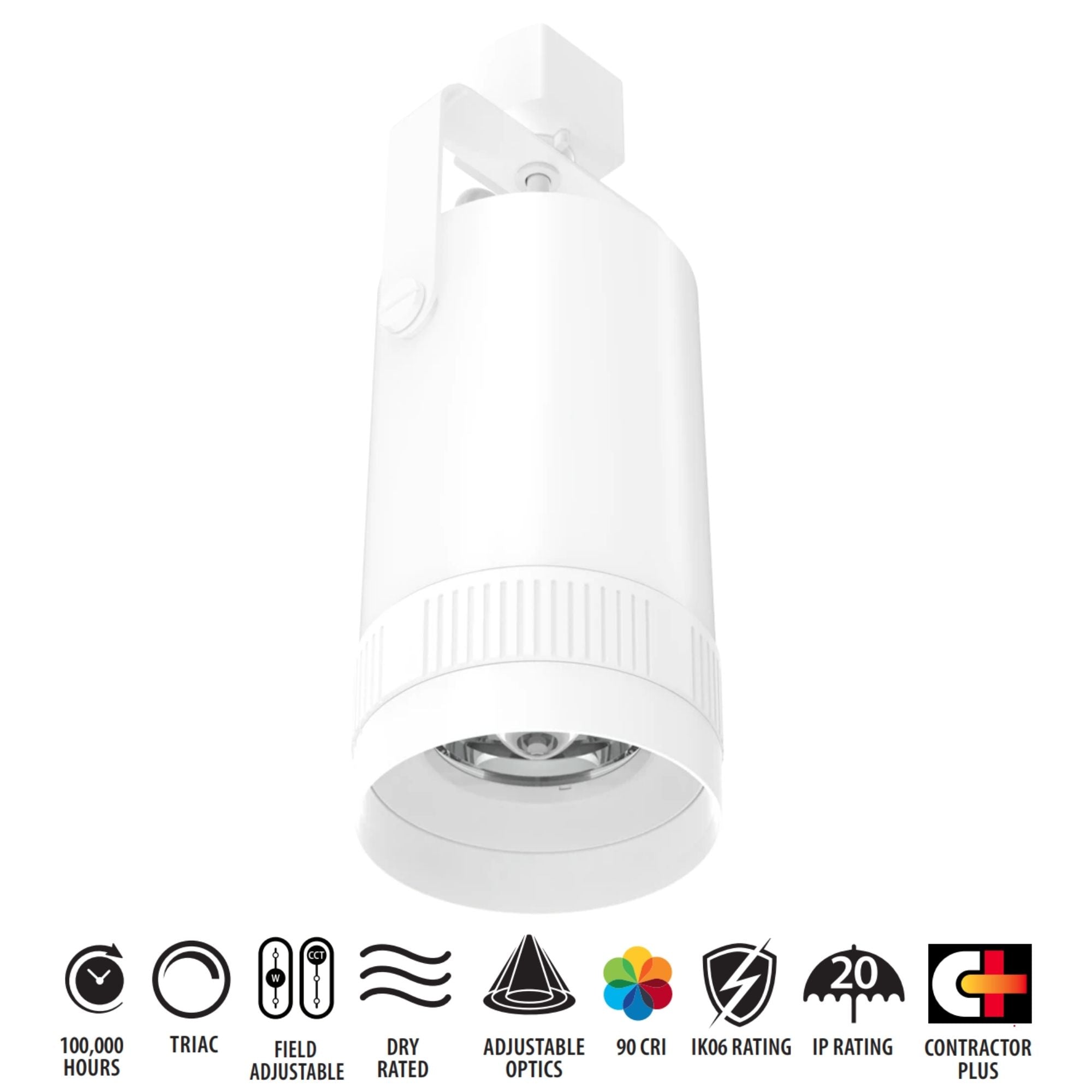

Key Features

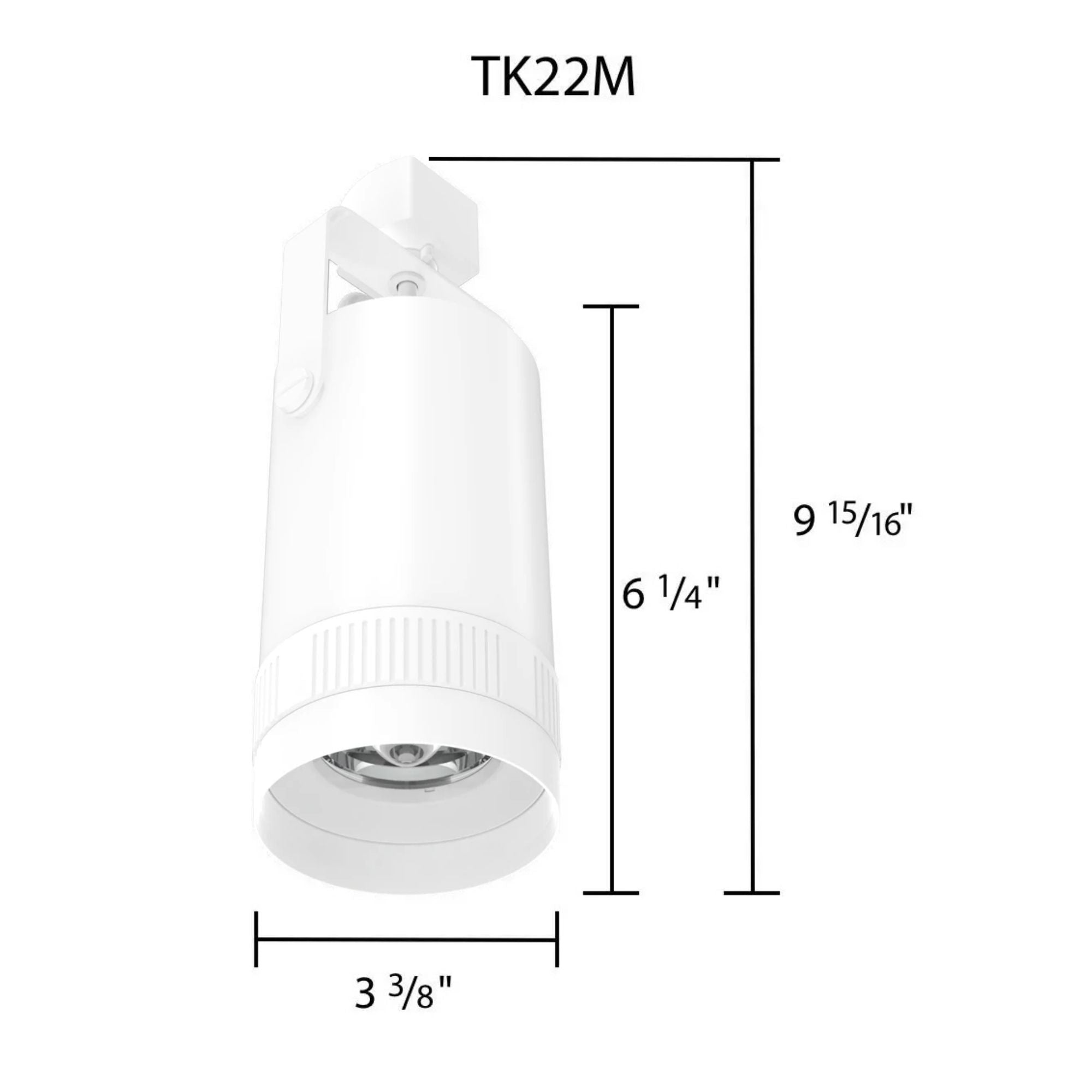

- Size & Finish: Medium TRACK22 head, white aluminum housing.
- Track Mount: H-Type mount, compatible with RAB Track System and accessories.
- Selectable Wattage: 20W, 15W and 10W, factory default 20W.
- Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K, factory default 4000K.
- Adjustable Beam: 15°, 24°, 30°, 40° and 55°, factory default 55°.
- Mechanical Aiming: 350° rotation and 180° swing.
- Output Range: 948 to 2053 lumens across configurations.
- Color Rendering: 92 to 99 CRI depending on configuration.
- LED & Lens: Integrated COB LED with PMMA optics.
- Electrical & Dimming: 120V, 60Hz, constant-current Class 1 driver, compatible TRIAC dimmers.
- Location & Protection: UL Listed for dry locations, IP20 and IK06.
- Rated Life: 100,000-hour LED lifespan.
Construction & Design
The medium cylindrical head combines an aluminum housing, durable white finish and polymethyl methacrylate (PMMA) lens. Beam settings of 15°, 24°, 30°, 40° and 55° adjust light spread, while 350° rotation and 180° swing independently direct the head for accent, spot or wall-wash applications. Its IK06 rating provides protection against 1 joule of impact.
Light Output & Performance
The integrated COB LED delivers 948 to 2053 lumens, with 92 to 99 CRI and listed efficacy of 81.9 to 119.9 lm/W across configurations. Measured input power ranges from 9.3W to 20.6W. Output varies with wattage, CCT and beam settings. Factory settings are 20W, 4000K and 55°. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.
Electrical & Installation
The RAB Lighting TK22M operates at 120V, 60Hz with a constant-current Class 1 driver and supports compatible 120V TRIAC dimmers. Its H-Type track mount is compatible with RAB Track System components and accessories. Field-selectable wattage and CCT settings let you configure illumination for the application. Install in dry indoor locations; minimum starting temperature is -4°F (-20°C) and maximum ambient temperature is 104°F (40°C). Track and system accessories are sold separately.
Compatible Accessories
Matching white RAB track components, sold separately.
- Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
- Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
- Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
- End Cap: TK-EC finishes exposed track ends.
Typical Applications

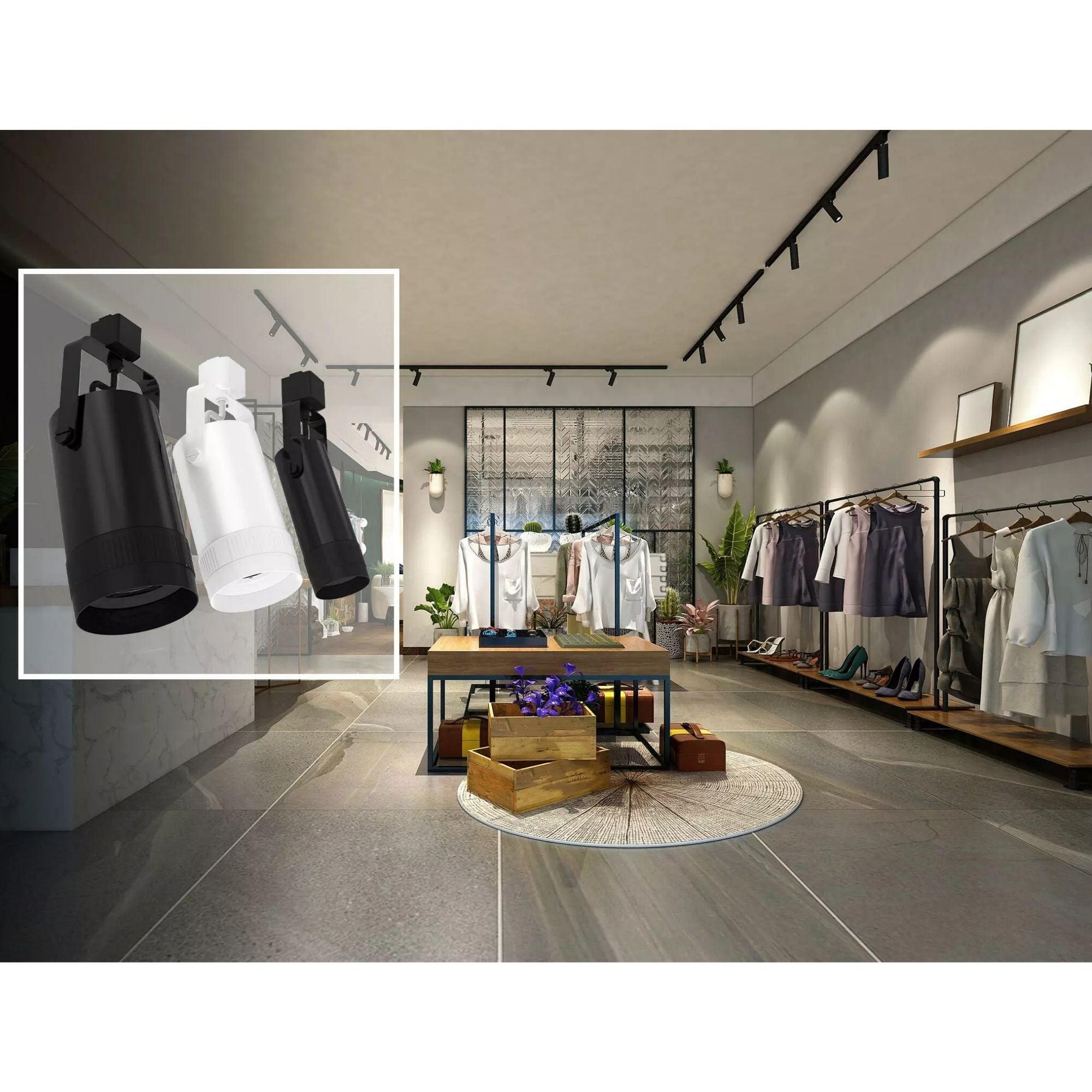

- Retail merchandise accents.

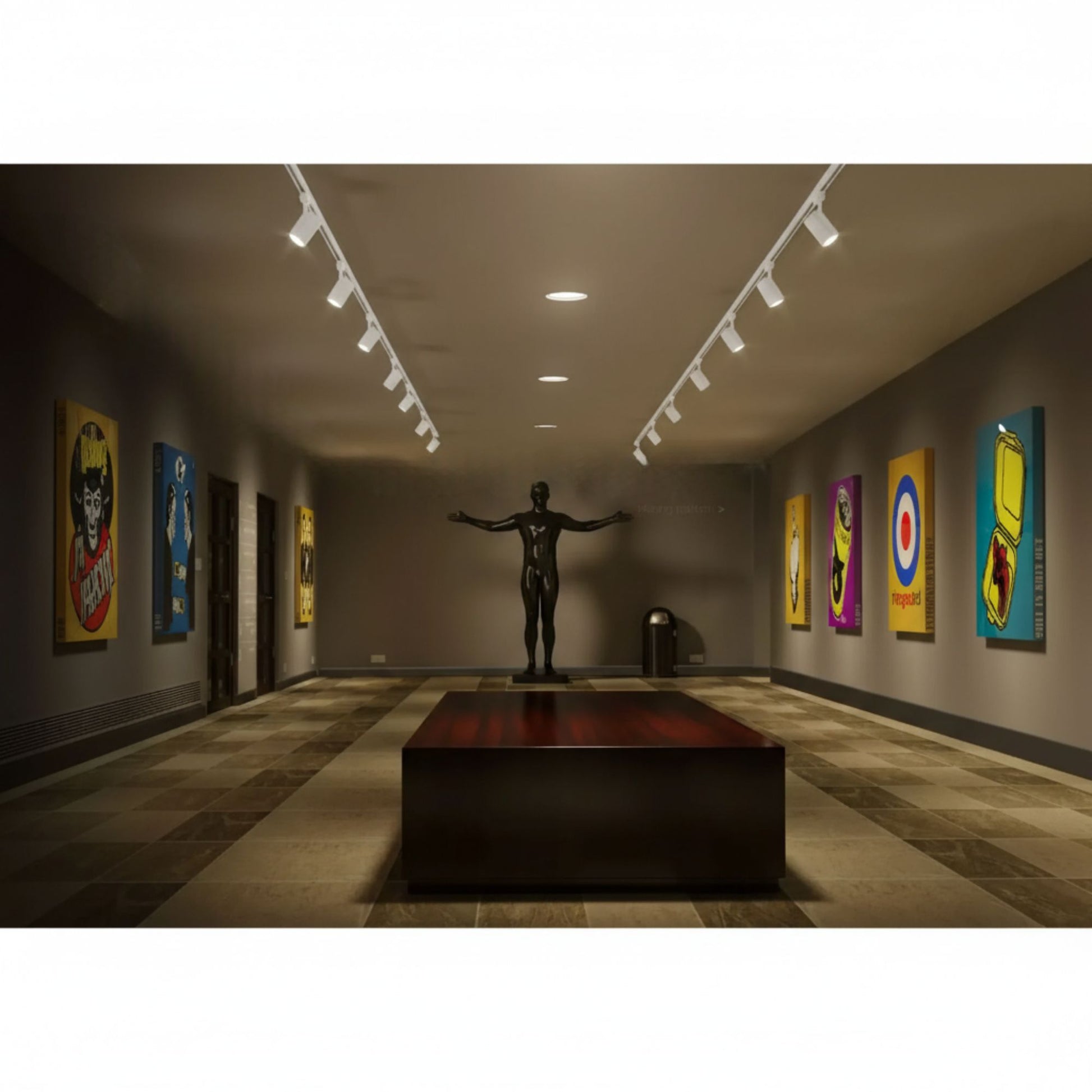

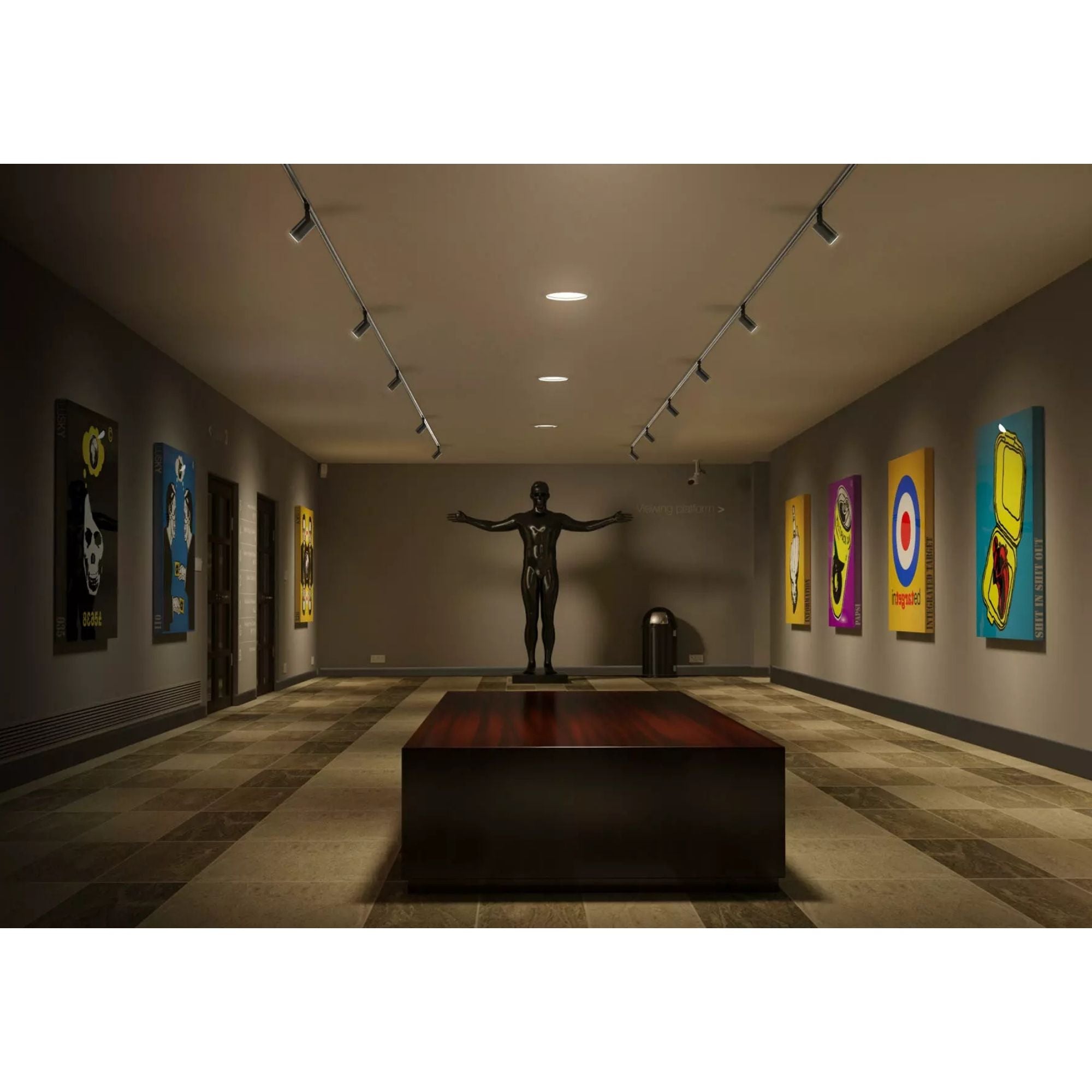

- Artwork and gallery spot lighting.
- Interior wall washing.
- Residential accent lighting.
What's Included
- RAB Lighting TK22M medium white track head with integrated COB LED, driver, PMMA lens and track mount.
