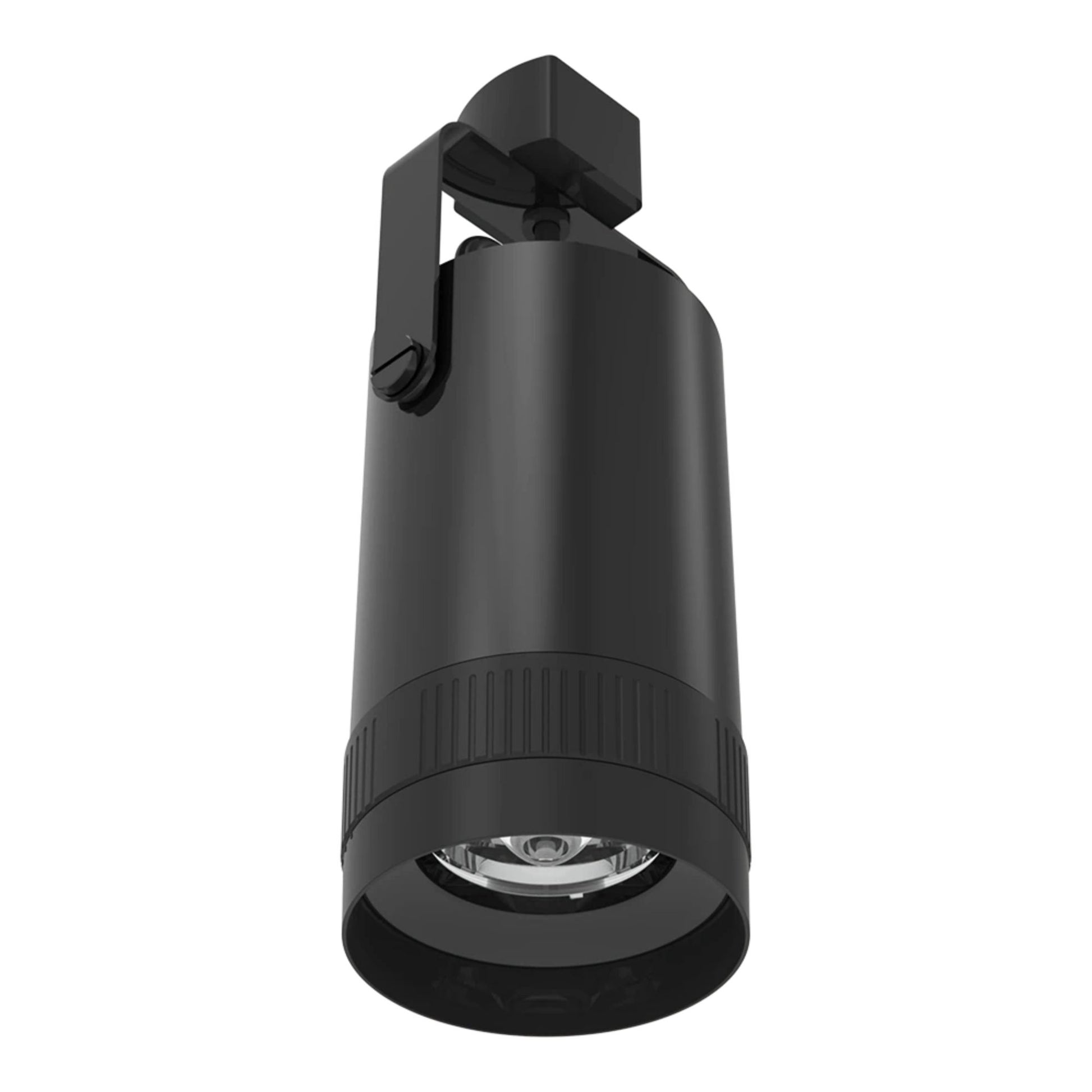

RAB Lighting TRACK22 TK22LB Large LED Track Head

The RAB Lighting TK22LB combines a large black aluminum housing with H-Type track mounting and adjustable optics for focused accents or broader illumination. Select 30W, 25W or 20W, choose from 2700K, 3000K, 3500K, 4000K and 5000K, and choose beam settings of 15°, 24°, 30°, 40° and 55°. At the factory-default 30W, 4000K and 55° settings, it delivers 3034 lumens with 96 CRI. 350° rotation and 180° swing deliver precise, adaptable aiming for accent, spot or wall-wash applications.

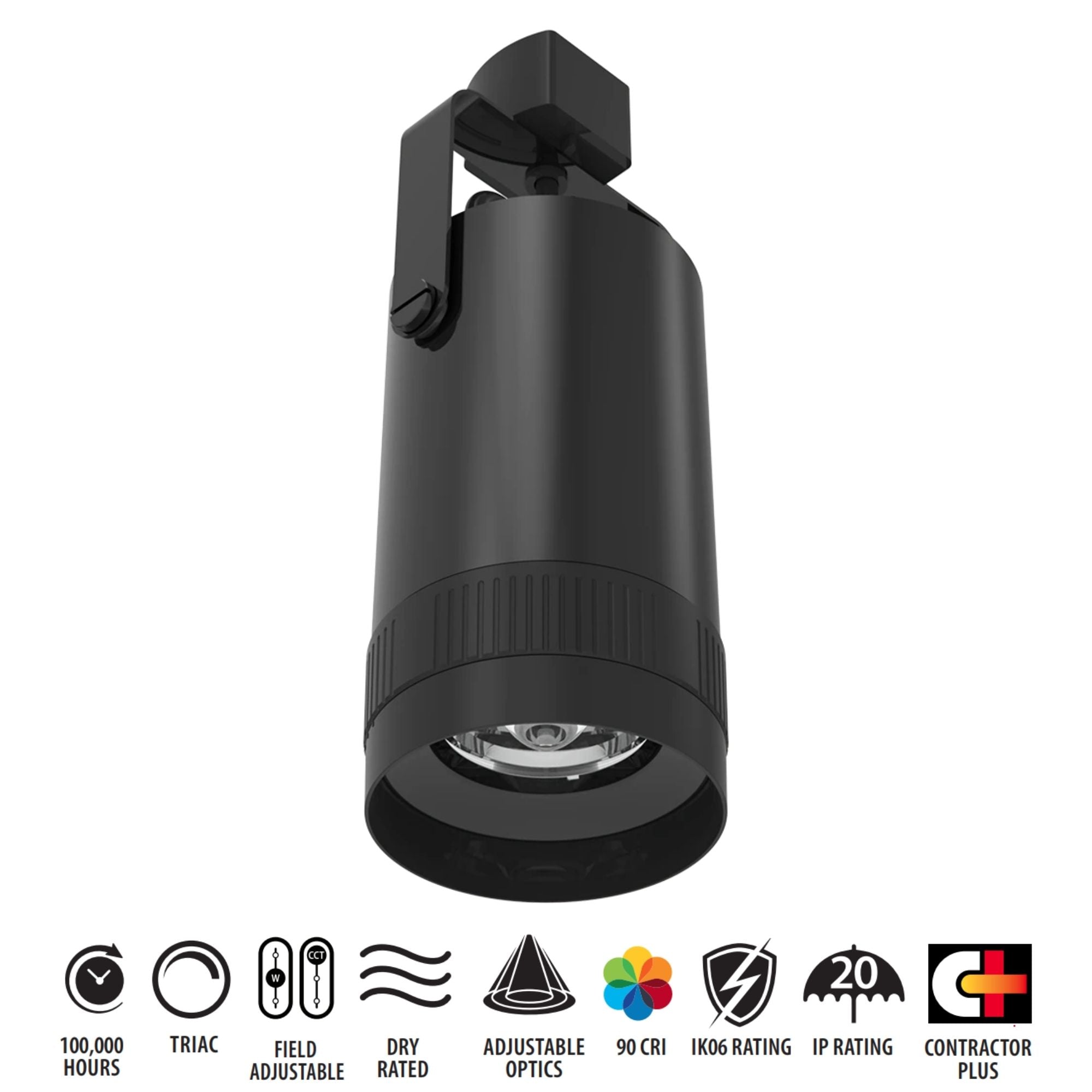

Key Features

• Size & Finish: Large TRACK22 head in black aluminum.
• Track Compatibility: H-Type track mount, compatible with RAB Track System components.

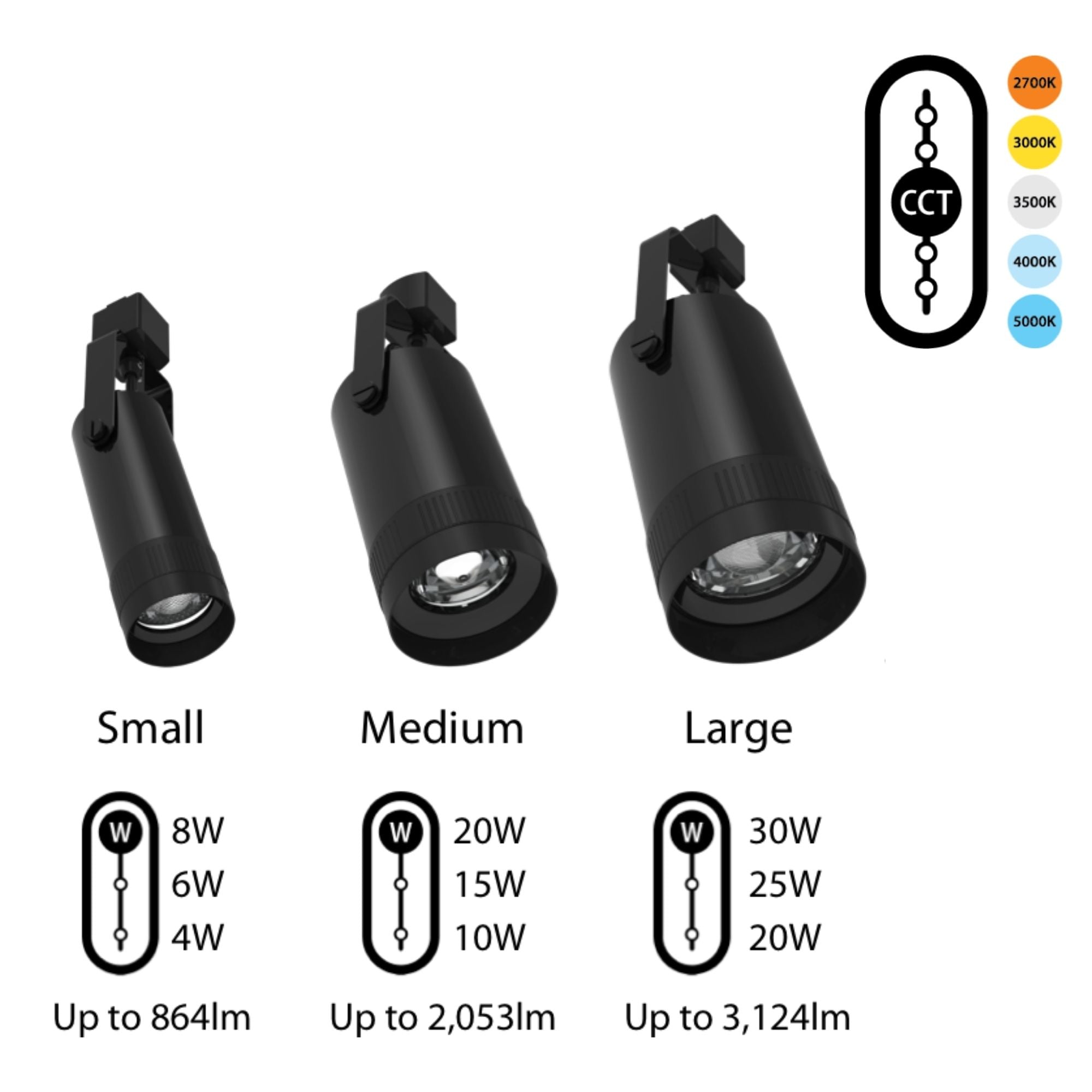

• Selectable Wattage: 30W, 25W and 20W, factory default 30W.
• Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K, factory default 4000K.

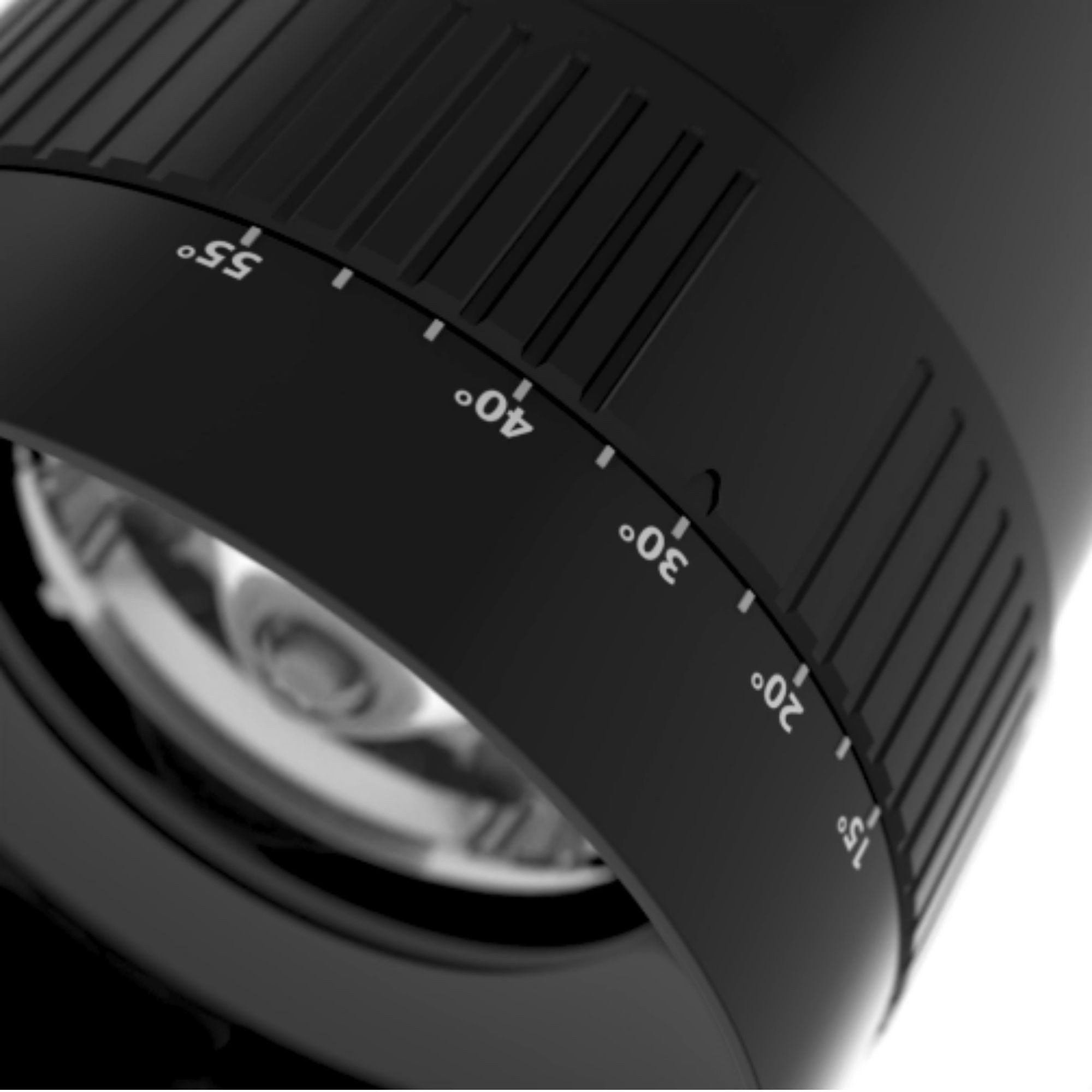

• Adjustable Optics: 15°, 24°, 30°, 40° and 55° beam settings, factory default 55°.
• Mechanical Aiming: 350° rotation and 180° swing.
• Default Output: 3034 lumens, 96 CRI at 30W, 4000K and 55°.
• Output Range: 1840 to 3124 lumens across wattage, CCT and beam settings.
• Color Rendering: 94 to 98 CRI depending on configuration.
• Dimming & Driver: Compatible TRIAC dimming down to 10%, constant-current Class 1 driver, 120V AC, 60Hz.
• Construction: PMMA lens, aluminum housing, IK06 impact rating.
• Location & Life: UL Listed for dry indoor locations, IP20, 100,000-hour LED lifespan.

Construction & Design

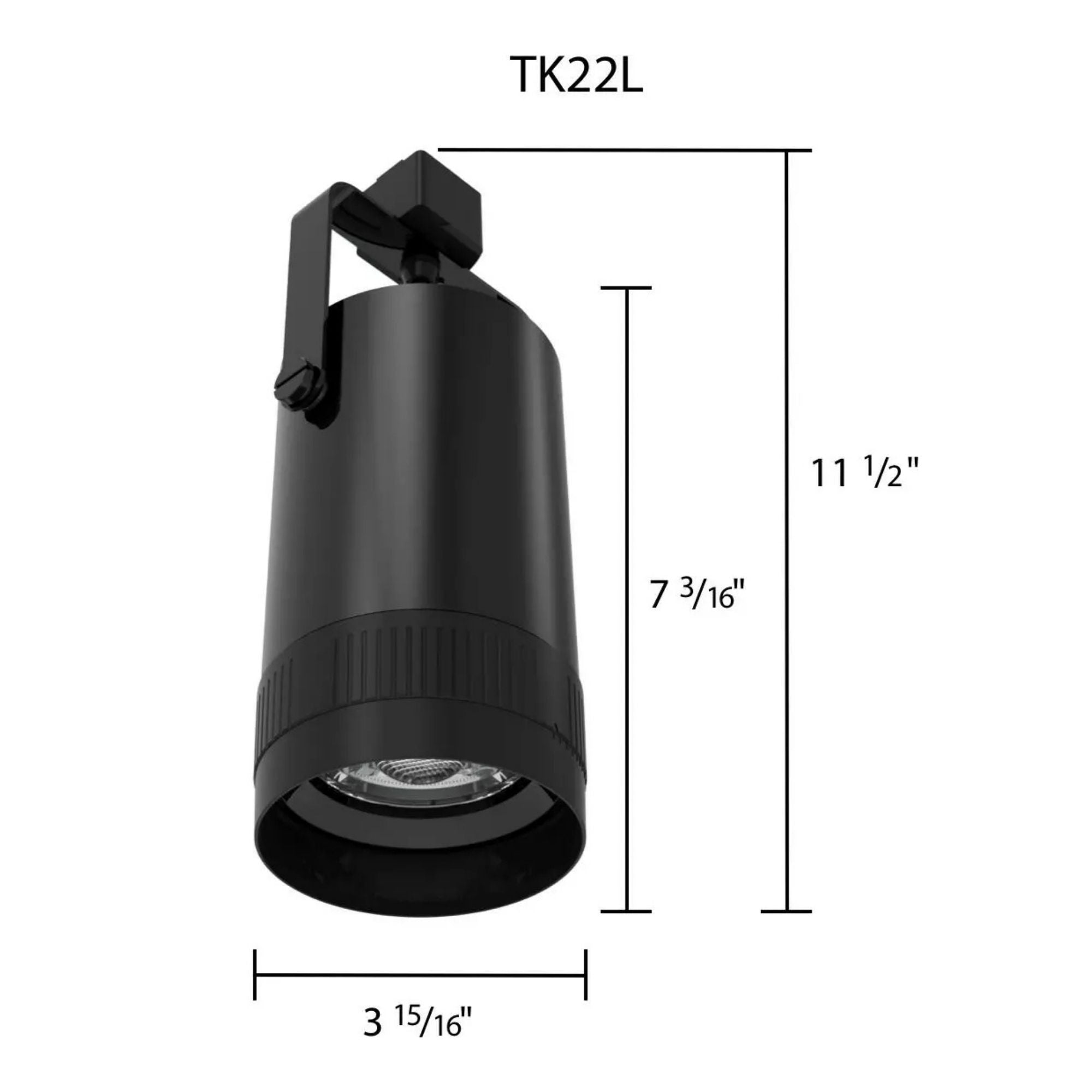

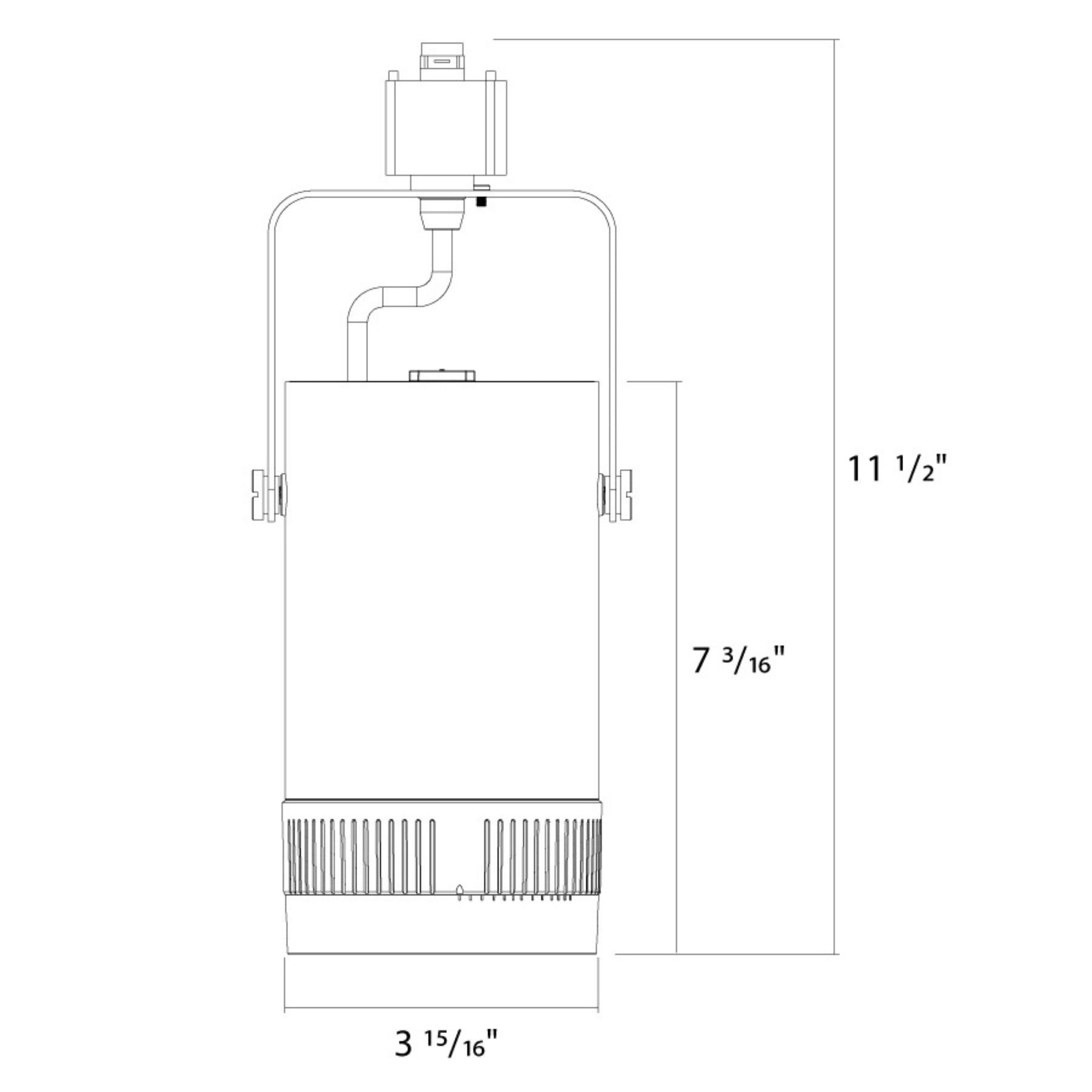

The cylindrical aluminum head has a durable black finish and a polymethyl methacrylate (PMMA) lens. Overall upright height is 11 1/2 in, body height is 7 3/16 in and width is 3 5/16 in. The aiming bracket provides 350° rotation and 180° swing, independently of the adjustable optical beam. IK06 construction provides impact protection for indoor applications.

Light Output & Performance

At 4000K and the default 55° beam, output is 3034 lumens at 30W, 2612 lumens at 25W and 2163 lumens at 20W. Corresponding measured input power is 30.2W, 24.8W and 19.5W, with listed efficacy of 106.4, 111 and 116.5 lm/W. CRI at these configurations is 96, 97 and 95 respectively. Across all configurations, output ranges from 1840 lumens at 20W, 2700K and 15° to 3124 lumens at 30W, 3500K and 55°, with CRI ranging from 94 to 98. Beam settings of 15°, 24°, 30°, 40° and 55° let you change the light spread without replacing the fixture. LED lifespan is rated at 100,000 hours based on LM-80 results and TM-21 calculations.

Electrical & Installation

The RAB Lighting TK22LB uses a twist-and-lock H-Type track mount and operates at 120V AC, 60Hz with a constant-current Class 1 driver. Compatible TRIAC dimmers support dimming down to 10%. Select 30W, 25W or 20W and one of five CCT settings; the factory defaults are 30W, 4000K and a 55° beam. Install in dry indoor locations, with a minimum starting temperature of -4°F (-20°C) and maximum ambient temperature of 104°F (40°C). The integrated LED does not require a separate lamp. Track and system accessories are sold separately. RAB provides a 5-year limited warranty subject to warranty terms.

Compatible Accessories

Matching black RAB track components, sold separately.

• Track Rails: TK2/B (2 ft), TK4/B (4 ft), TK6/B (6 ft) and TK8/B (8 ft).
• Power Feeds: TK-EF/B top-access end feed, TK-JB/B junction-box end feed with cover and TK-FC/B floating canopy feed.
• Joiners: TK-I/B linear, TK-L/B L-shaped, TK-T/B T-shaped and TK-X/B X-shaped.
• End Cap: TK-EC/B finishes exposed track ends.

Typical Applications

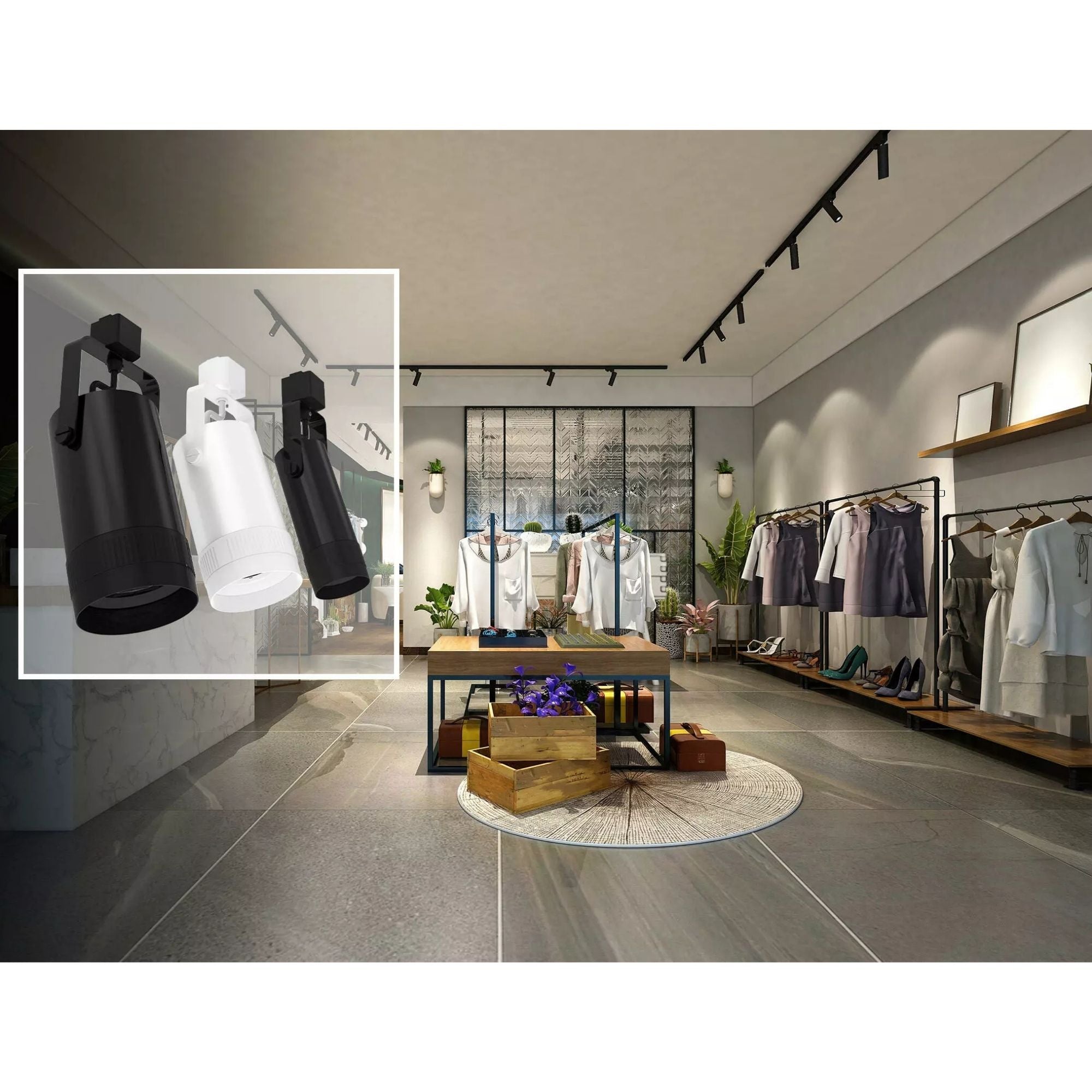

• Retail merchandise displays.

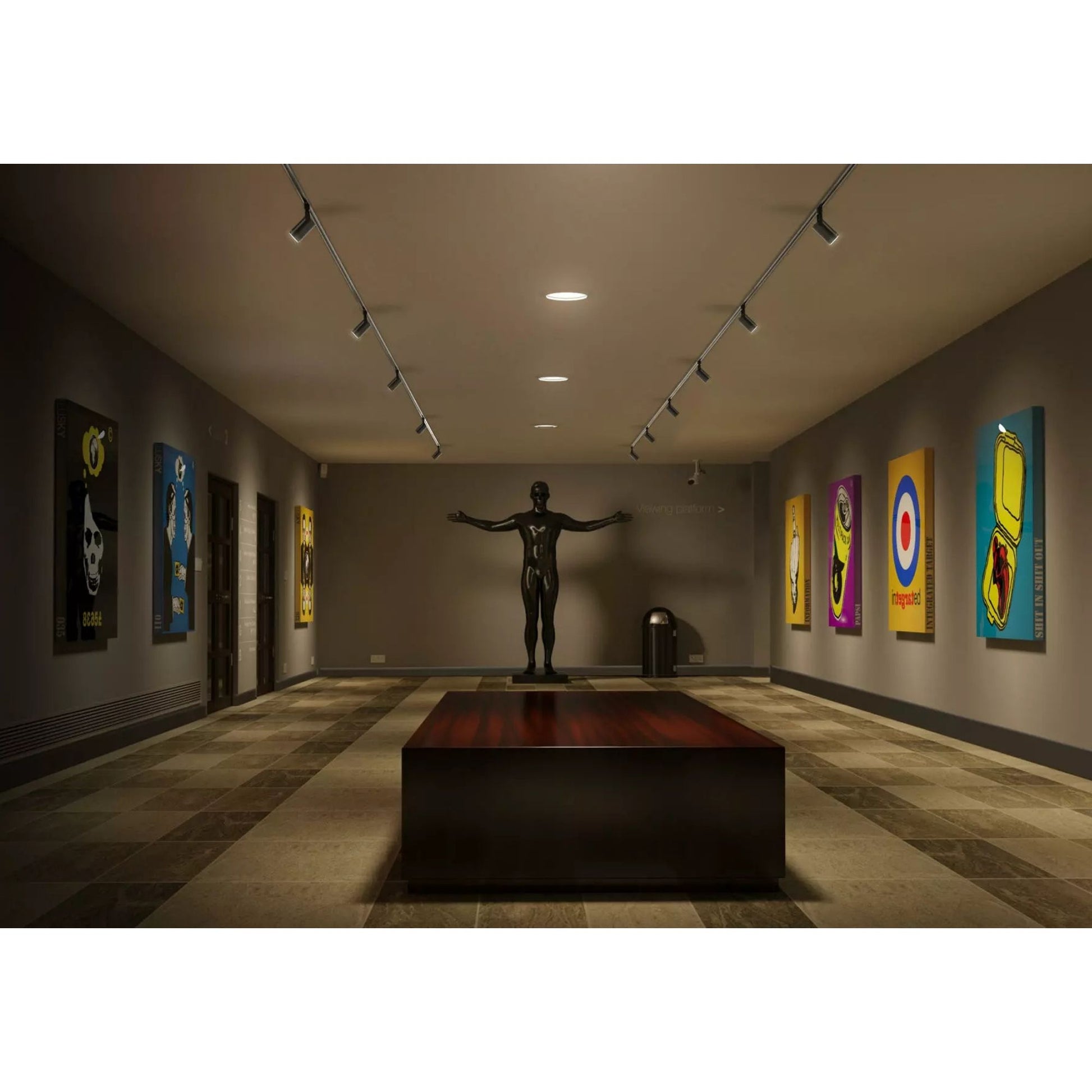

• Artwork and gallery accents.
• Architectural detail lighting.
• Interior spot and wall-wash applications.

What's Included

• RAB Lighting TK22LB large black track head with integrated LED, Class 1 driver, adjustable PMMA optics and H-Type track adapter.
