RAB Lighting H-Type Track X Connector Black

The RAB Lighting TK-X/B is a Black X-joiner that connects four compatible RAB H-Type track sections in an X configuration. It is factory wired for two separate 90° runs and can be field wired for one run, allowing the wiring arrangement to suit the planned track junction.

Key Features

  • Four-section joining: Connects four track sections in an X configuration.
  • Factory wiring: Two separate 90° runs.
  • Field-wiring option: Can be field wired for one run.
  • Track compatibility: For compatible RAB H-Type Halo track.
  • Overall dimensions: 7 in. by 7 in., 3/4 in. side profile.
  • Finish: Black to coordinate with matching rails and accessories.

Compatibility & Function

The TK-X/B is a rail-to-rail connector for a four-way junction, rather than a light-head mounting adapter. The factory-wired arrangement provides two separate 90° runs; a single-run arrangement requires field wiring. Use compatible RAB H-Type Halo rails and select the light heads and power-feed components required for the complete layout separately.

Dimensions & Installation

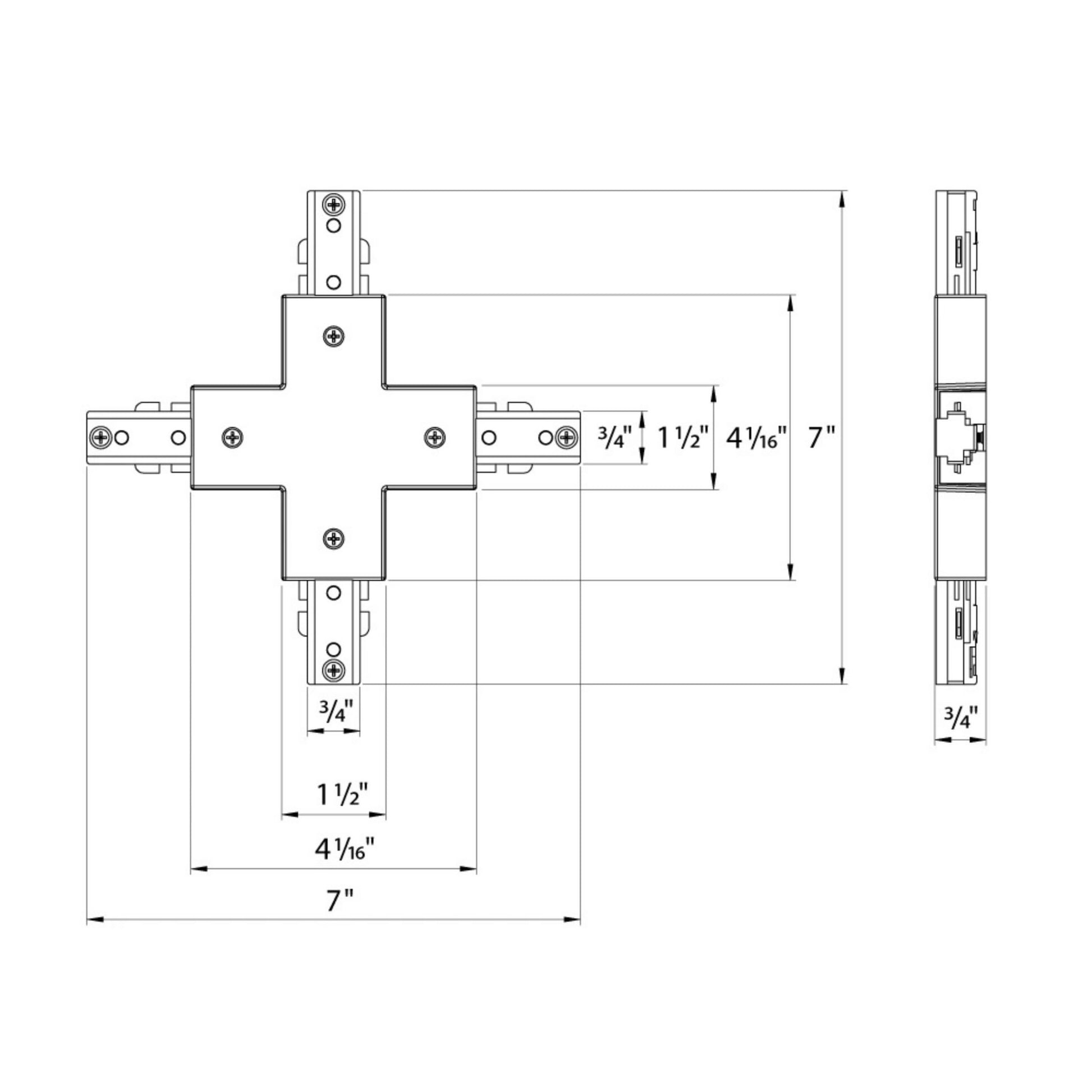

The connector measures 7 in. across in both directions, including the projecting track connections, with a 3/4 in. side profile. The covered cross-shaped body spans 4 1/16 in. in each direction. Each covered arm is 1 1/2 in. wide, while the narrower projecting track connections are 3/4 in. wide. Keep these body and connection measurements separate from the full 7 in. by 7 in. footprint when planning clearance.

Electrical & Installation

Disconnect power before installing or adjusting track components. Retain the factory wiring for two separate 90° runs, or have the connector field wired for one run according to the track-system installation instructions. Maintain the required connection orientation and grounding, and secure all four rail connections before restoring power.

What's Included

  • RAB Lighting TK-X/B Black X connector, factory wired for two separate 90° runs.

Specifications

Dimensions

Length/Depth
7 in
Width/Diameter
7 in
Height
0.75 in
Weight
0.6 lb

Style & Materials

Finish
Black

Item Details

MPN
TK-X/B
Brand
RAB Lighting
Family
RAB Track Light System
UPC
192552048330

Warranty & Certifications

Product Rating
Dry

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What does the RAB Lighting TK-X/B connector do?

The RAB Lighting TK-X/B connects four compatible track sections in an X configuration. It forms a four-way rail junction.

How is the RAB Lighting TK-X/B factory wired?

The RAB Lighting TK-X/B is factory wired for two separate 90° runs. This arrangement is distinct from its field-wired single-run option.

Can the RAB Lighting TK-X/B be wired for one run?

Yes, the RAB Lighting TK-X/B can be field wired for one run. Complete the field wiring according to the track-system installation instructions with power disconnected.

What are the dimensions of the RAB Lighting TK-X/B?

The RAB Lighting TK-X/B measures 7 in. by 7 in. overall with a 3/4 in. side profile. The covered body spans 4 1/16 in. in each direction, with 1 1/2 in. wide arms and 3/4 in. wide projecting track connections.

Which track does the RAB Lighting TK-X/B connect, and what is included?

The RAB Lighting TK-X/B connects compatible RAB H-Type Halo track sections. It includes the Black X connector, factory wired for two separate 90° runs; rails, light heads and required power-feed components are separate.
