Description

RAB Lighting H-Type Track Suspension Wire Cable Kit White

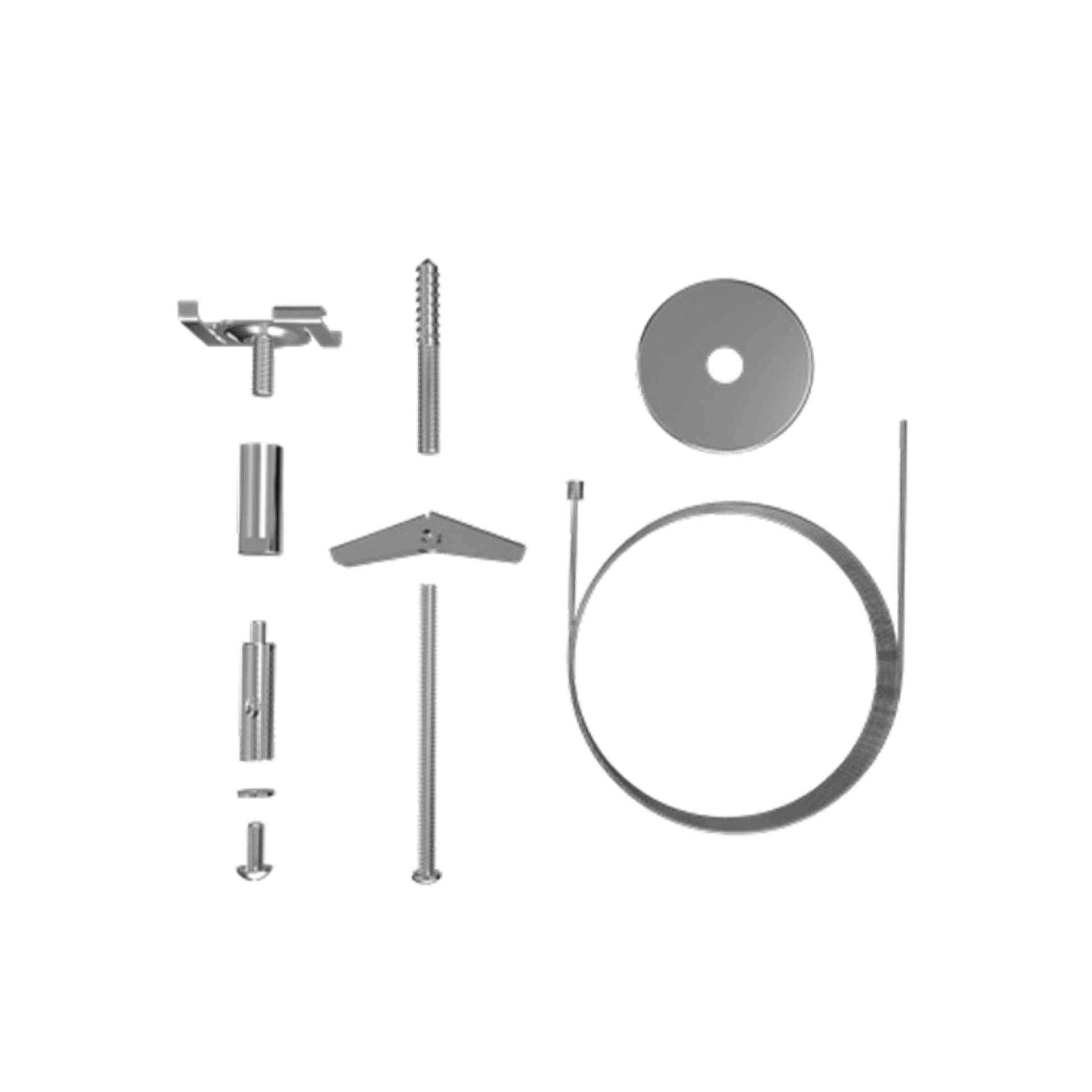

The RAB Lighting TK-WCK is a White cable mounting kit with toggle bolt for suspending compatible RAB track in high-ceiling applications. Its aircraft cable and 1/4-20 threaded coupling provide a cable-based track suspension arrangement, with a T-Bar mounting clip, ceiling plate and couplers included.

Key Features

  • Cable suspension: Suspends compatible track from high ceilings.
  • Threaded connection: 1/4-20 coupling for the suspension assembly.
  • Aircraft cable: 181 1/8 in. cable length with a 1/16 in. diameter.
  • Mounting components: T-Bar mounting clip, ceiling plate, toggle bolt and couplers included.
  • Finish: White to coordinate with matching track components.

Compatibility & Function

The TK-WCK is a mechanical suspension accessory for compatible RAB H-Type track. It supports a cable-mounted arrangement rather than a rigid suspension stem. The kit suspends the track; the electrical feed and lighting components are separate parts of the installation.

Dimensions & Suspension

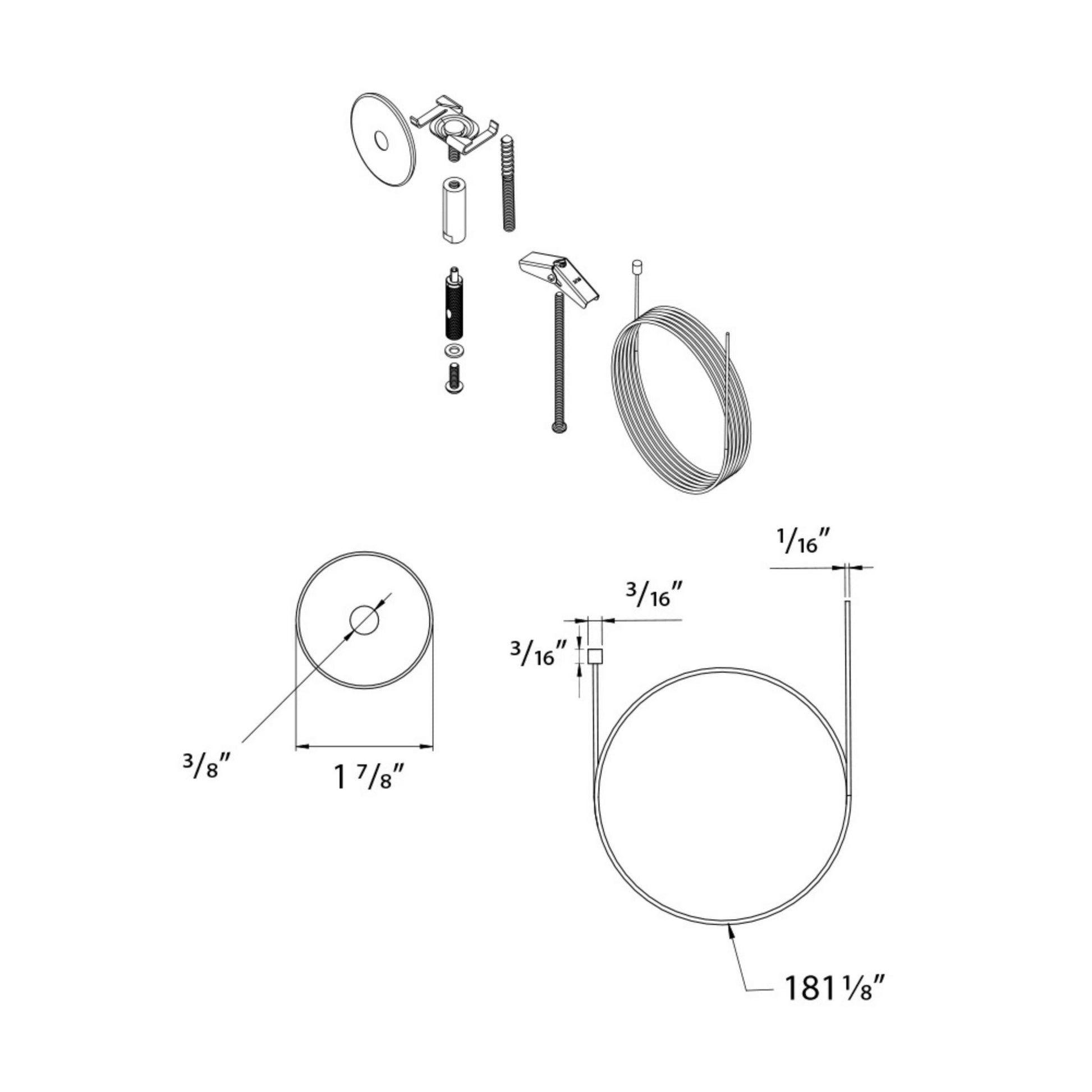

The aircraft cable measures 181 1/8 in. long and 1/16 in. in diameter. The ceiling plate is 1 7/8 in. in diameter, and the toggle bolt is 3 in. long with 1/4-20 threading. Cable length is not the complete installed drop, which also depends on the mounting connections.

Electrical & Installation

Disconnect power before installing or servicing the track system. Assemble the cable, couplers and mounting hardware according to the track-system installation instructions, using a suitable supporting ceiling structure. Provide the required track electrical feed and grounding separately; the suspension cable is a mechanical support component.

What's Included

  • One RAB Lighting TK-WCK White track suspension wire cable kit with T-Bar mounting clip, ceiling plate, aircraft cable, toggle bolt and couplers; track, electrical feed and lighting components sold separately.

Specifications

Dimensions

Length/Depth
1.88 in
Width/Diameter
1.88 in
Height
0.19 in
Weight
0.3 lb
Max Extension
181.0 in

Style & Materials

Finish
White

Item Details

MPN
TK-WCK
Brand
RAB Lighting
Family
RAB Track Light System
UPC
192552057578

Warranty & Certifications

Product Rating
Dry

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the RAB Lighting TK-WCK wire cable kit used for?

The RAB Lighting TK-WCK suspends compatible RAB track in high-ceiling applications using aircraft cable and a 1/4-20 threaded coupling.

How long is the cable supplied with the RAB Lighting TK-WCK?

The RAB Lighting TK-WCK includes aircraft cable measuring 181 1/8 in. long with a 1/16 in. diameter. The complete installed drop also depends on the mounting connections.

What mounting dimensions apply to the RAB Lighting TK-WCK?

The RAB Lighting TK-WCK has a 1 7/8 in. diameter ceiling plate and a 3 in. long toggle bolt with 1/4-20 threading.

Does the RAB Lighting TK-WCK supply electrical power to the track?

No, the RAB Lighting TK-WCK is a mechanical suspension kit. A compatible electrical feed and the required wiring and grounding are separate parts of the track installation.

What is included with the RAB Lighting TK-WCK?

The RAB Lighting TK-WCK includes a White suspension wire cable kit with T-Bar mounting clip, ceiling plate, aircraft cable, toggle bolt and couplers. Track, electrical feed and lighting components are sold separately.
