Description

RAB Lighting H-Type Track Sloped Ceiling Suspension Kit White

The RAB Lighting TK-SCK is a White swivel stem kit for sloped ceilings, designed for suspending compatible RAB track. It includes a junction box, swivel adapter and mounting bracket for the back of the track. Select the suspension drop using a separately sold stem.

Key Features

  • Sloped ceiling mounting: Swivel adapter for a suspended track installation.
  • Track support: Bracket mounts to the back of compatible RAB track.
  • Included components: Junction box, swivel adapter and track mounting bracket.
  • Ceiling assembly: 4 3/4 in. across, with a separate 4 1/2 in. vertical assembly dimension.
  • Stem options: Separate 6, 12, 18, 24 and 36 in. suspension stems.
  • Finish: White for coordination with matching track components.

Compatibility & Function

The TK-SCK supports a compatible RAB H-Type track suspension assembly on a sloped ceiling. The swivel adapter forms the ceiling-side connection, while the mounting bracket attaches to the back of the track. This is a track suspension accessory, not a pendant adapter for hanging a luminaire from the rail. Track, luminaires and suspension stems are separate.

Dimensions & Suspension

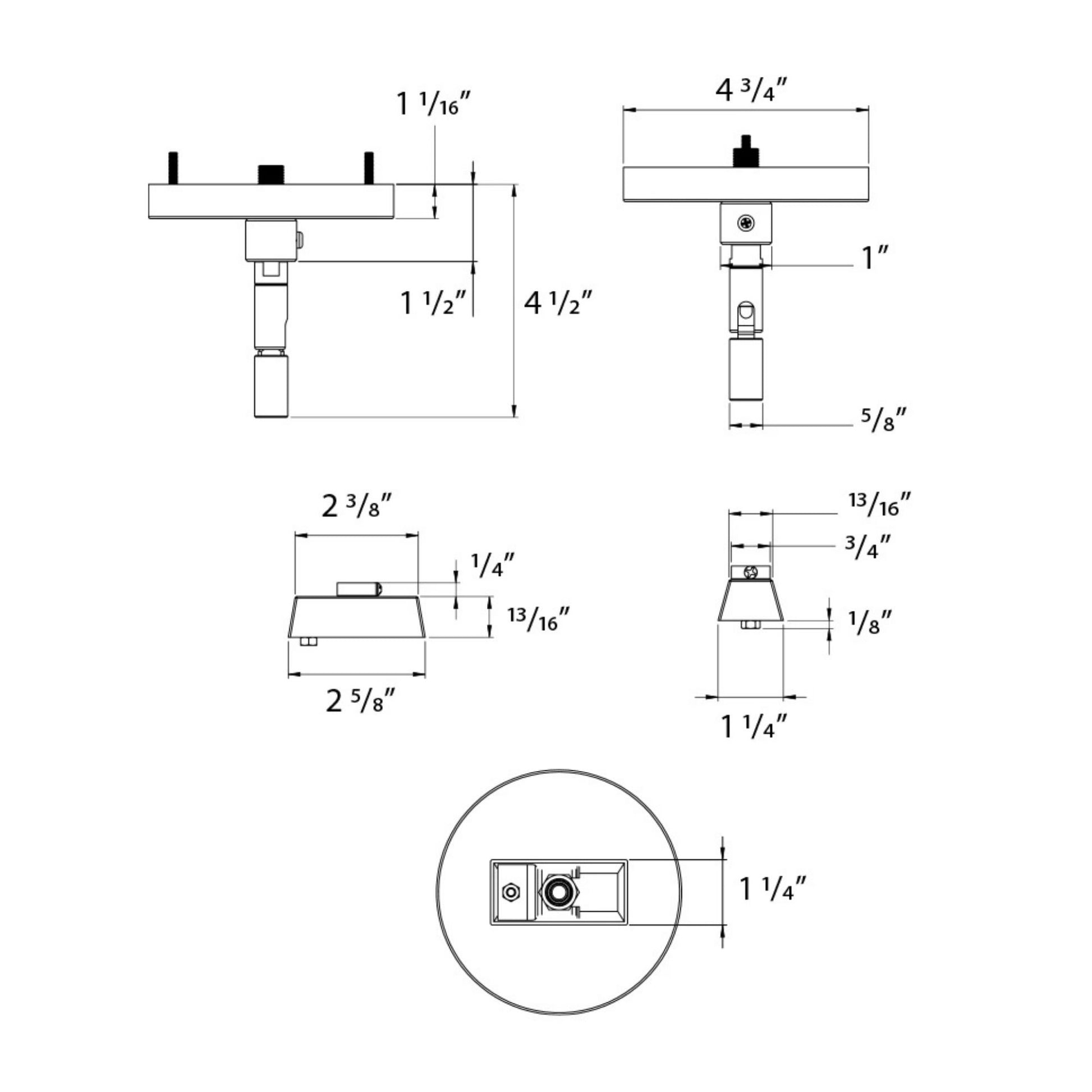

The ceiling-side assembly measures 4 3/4 in. across by 4 1/2 in. high, excluding the separately sold suspension stem. The track bracket measures 2 5/8 in. long by 1 1/4 in. wide. Kit weight is 0.6 lb.

Suspension stems are available separately in 6, 12, 18, 24 and 36 in. lengths. A stem may be extended in combinations using a separately sold suspension stem coupling. Finished drop depends on the selected stem arrangement and mounting components.

Electrical & Installation

Disconnect power before installing or servicing track components. Install the junction box, swivel adapter, separately selected stem and track bracket according to the track-system installation instructions. Provide suitable ceiling support and complete the required electrical feed and grounding for the track configuration before restoring power.

What's Included

  • RAB Lighting TK-SCK White sloped ceiling suspension kit with junction box, swivel adapter and track mounting bracket; suspension stem and coupling sold separately.

Specifications

Dimensions

Length/Depth
4.5 in
Width/Diameter
4.75 in
Height
2.63 in
Weight
0.6 lb

Style & Materials

Finish
White

Item Details

MPN
TK-SCK
Brand
RAB Lighting
Family
RAB Track Light System
UPC
192552057554

Warranty & Certifications

Product Rating
Dry

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What does the RAB Lighting TK-SCK sloped ceiling kit do?

The RAB Lighting TK-SCK provides a swivel stem mounting arrangement for suspending compatible RAB H-Type track from a sloped ceiling, with a bracket that mounts to the back of the track.

What components come with the RAB Lighting TK-SCK?

The RAB Lighting TK-SCK includes the White junction box, swivel adapter and track mounting bracket. The suspension stem, coupling, track and luminaires are separate.

Does the RAB Lighting TK-SCK include a suspension stem?

No, the RAB Lighting TK-SCK uses a separately sold suspension stem. Available stem lengths are 6, 12, 18, 24 and 36 in.; stems may be extended in combinations with a separately sold suspension stem coupling.

What are the component dimensions of the RAB Lighting TK-SCK?

The RAB Lighting TK-SCK ceiling-side assembly measures 4 3/4 in. across by 4 1/2 in. high, excluding the separately sold suspension stem. The track bracket measures 2 5/8 in. long by 1 1/4 in. wide.

What finish and weight does the RAB Lighting TK-SCK have?

The RAB Lighting TK-SCK has a White finish and a kit weight of 0.6 lb.
