Description

RAB Lighting H-Type Track Suspension Canopy Kit Black

The RAB Lighting TK-MCK/B is a Black suspension canopy kit for suspending compatible RAB track from a ceiling or junction box. It includes the canopy and track bracket, with the suspension stem supplied separately so the drop can be selected for the installation.

Key Features

  • Track suspension: Mounting components for compatible RAB H-Type track.
  • Mounting location: Ceiling or junction box.
  • Included components: Canopy and track bracket.
  • Canopy size: 5 in. diameter, 1 in. vertical profile.
  • Stem options: Separate 6, 12, 18, 24 and 36 in. suspension stems.
  • Finish: Black to coordinate with matching track.

Compatibility & Function

The TK-MCK/B provides the canopy and rail-side bracket for a compatible RAB track suspension assembly. It suspends the track itself, rather than hanging a pendant luminaire from the rail. The stem is not included; track and lighting components are separate.

Dimensions & Suspension

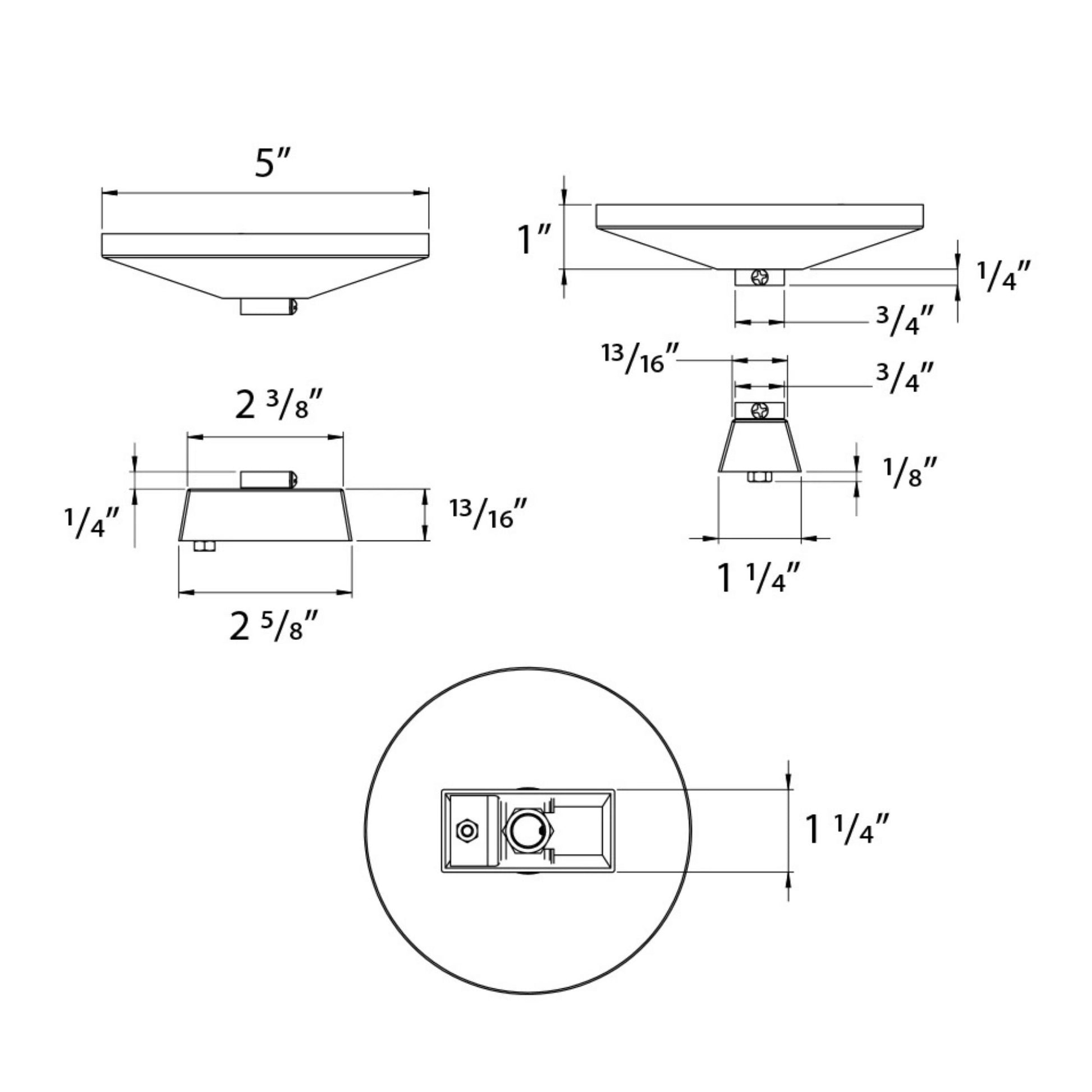

The canopy measures 5 in. across with a 1 in. vertical profile. Its central connection detail measures 3/4 in. across by 1/4 in. The bracket measures 2 5/8 in. along its lower edge, 2 3/8 in. across its upper body and 1 1/4 in. wide, with a 13/16 in. body profile. Additional connection details measure 13/16 in. and 3/4 in. across, with a 1/4 in. upper projection and 1/8 in. lower detail. Kit weight is 0.7 lb.

Suspension stems in 6, 12, 18, 24 and 36 in. lengths are available separately. Stems may be extended in combinations using a suspension stem coupling, also separate. The canopy and bracket measurements are component dimensions, not the finished suspension drop.

Electrical & Installation

Disconnect power before installing or servicing track components. Install the canopy, separately selected stem and track bracket according to the track-system installation instructions, using suitable support at the ceiling or junction box. Complete any required electrical feed and grounding arrangements for the selected track configuration before restoring power.

What's Included

  • RAB Lighting TK-MCK/B Black suspension canopy kit with canopy and track bracket; suspension stem sold separately.

Specifications

Dimensions

Length/Depth
1 in
Width/Diameter
5 in
Height
2.63 in
Weight
0.7 lb

Style & Materials

Finish
Black

Item Details

MPN
TK-MCK/B
Brand
RAB Lighting
Family
RAB Track Light System
UPC
192552057547

Warranty & Certifications

Product Rating
Dry

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What does the RAB Lighting TK-MCK/B suspension canopy kit do?

The RAB Lighting TK-MCK/B provides a canopy and track bracket to suspend compatible RAB H-Type track from a ceiling or junction box using a separately supplied stem.

Does the RAB Lighting TK-MCK/B include a suspension stem?

No, the RAB Lighting TK-MCK/B includes the canopy and track bracket, while the suspension stem is sold separately. Stem lengths are 6, 12, 18, 24 and 36 in.

Can suspension stems used with the RAB Lighting TK-MCK/B be extended?

Yes, suspension stems used with the RAB Lighting TK-MCK/B may be combined using a separately sold suspension stem coupling.

What are the component dimensions of the RAB Lighting TK-MCK/B?

The RAB Lighting TK-MCK/B canopy measures 5 in. across with a 1 in. vertical profile and a 3/4 in. by 1/4 in. central connection detail. The bracket measures 2 5/8 in. along the lower edge, 2 3/8 in. across the upper body and 1 1/4 in. wide, with a 13/16 in. body profile. Connection details measure 13/16 in. and 3/4 in. across, with a 1/4 in. upper projection and 1/8 in. lower detail. These are component dimensions, not the finished drop.

What comes with the RAB Lighting TK-MCK/B and how much does it weigh?

The RAB Lighting TK-MCK/B includes the Black canopy and track bracket and weighs 0.7 lb. The suspension stem, coupling, track and lighting components are separate.
