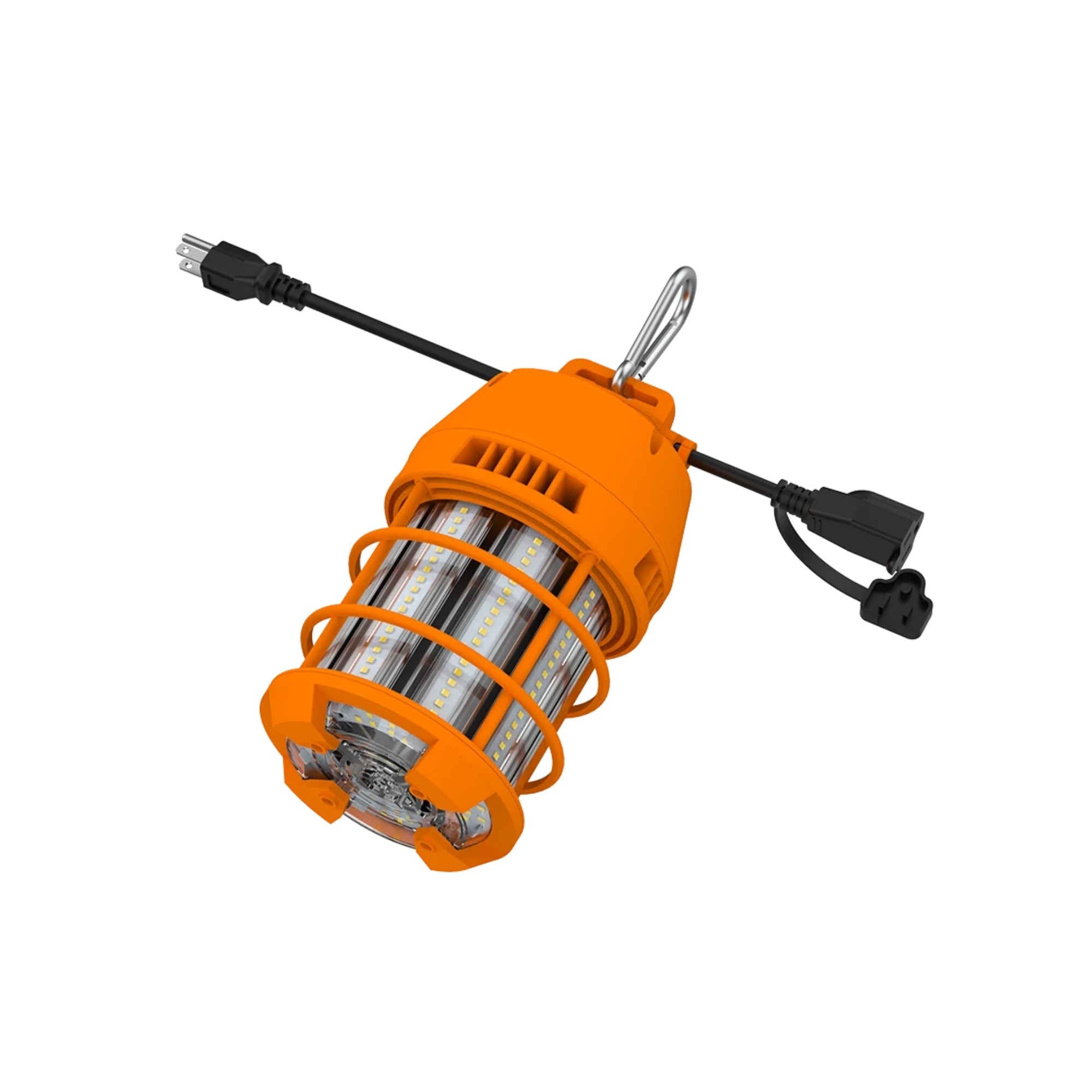

RAB Lighting TEMP17 LED Temporary Work Light — 100W

The TEMP17-100 is an economical yet high-performance LED temporary work light designed to replace traditional 400W metal halide fixtures on demanding job sites. Consuming only 100W of power, this lightweight luminaire produces an intense 12,000 lumens while operating on a standard 120V input. Its highly durable construction and daisy-chain capabilities make it the premier choice for contractors needing reliable, large-scale temporary illumination.

Key Features

• Light Output: Generates 12,000 lumens with an excellent efficacy of 120 LPW.
• Input Voltage: Operates seamlessly on a standard 120V electrical input.
• Color Temperature: Produces a crisp 5000K daylight white illumination.
• Beam Angle: Provides an omnidirectional 360-degree light distribution.

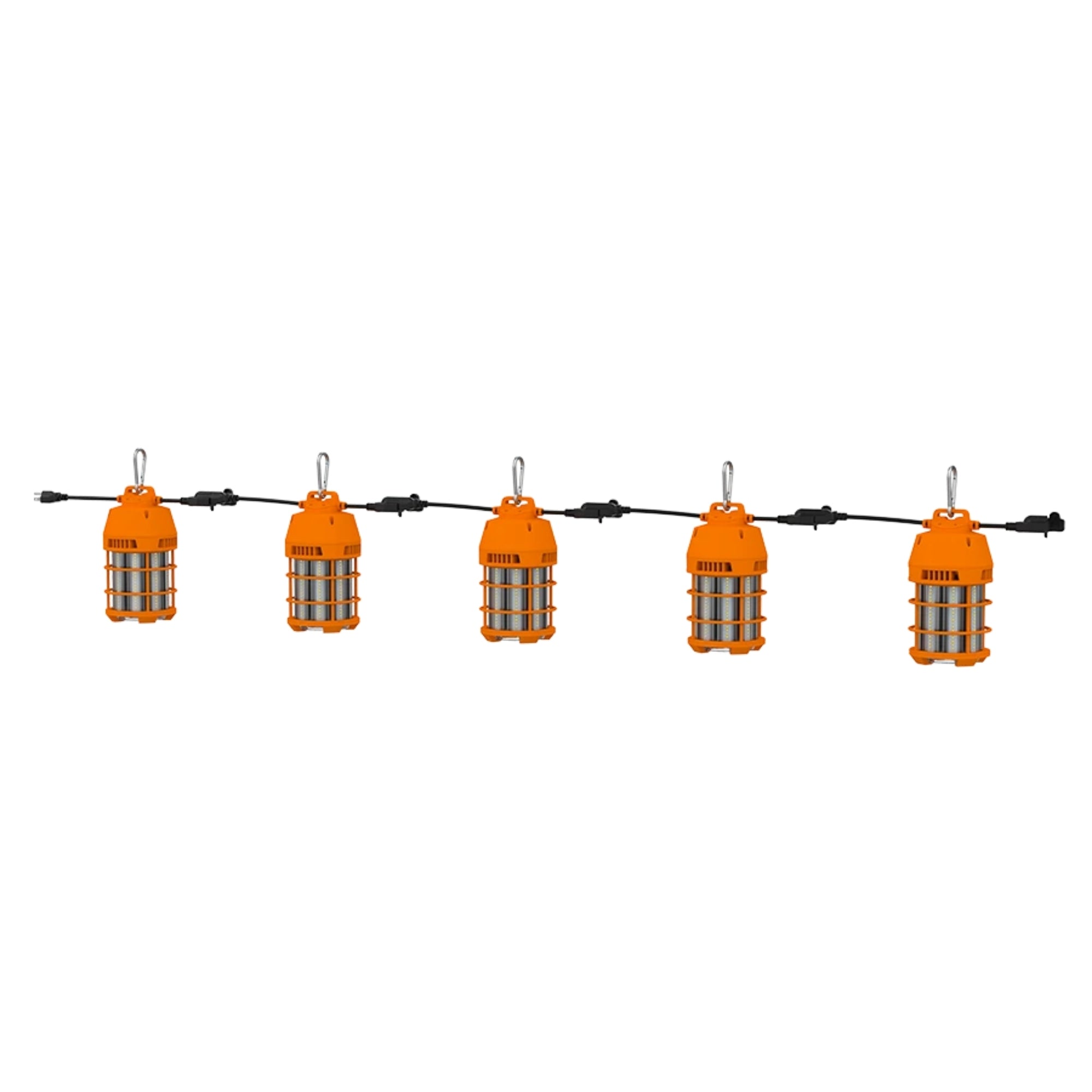

• Linkability: Daisy-chain up to six 100W units for a maximum 600W total run.
• Surge Protection: Built-in 4kV surge protection guards against job site power spikes.
• Durability: Housed in a UV-resistant, impact-resistant polycarbonate enclosure with a protective cage.
• Lifespan: Rated for a 30,000-hour LED life based on IES LM-70 testing.
• CRI: 80 Color Rendering Index for clear, accurate visual clarity.
• Equivalent: Designed to directly replace legacy 400W metal halide site lights.

Typical Applications

• Commercial and residential new construction sites.
• Industrial plant maintenance and factory turnarounds.
• Warehouse and storage facility staging areas.
• Tunnel, bridge, and infrastructure repair zones.
• Emergency response and disaster relief operations.

Performance & Light Output

This high-output fixture generates 12,000 lumens at an efficacy of 120 LPW, ensuring expansive and energy-efficient illumination. It emits a crisp 5000K daylight color temperature with an 80 CRI for clear visibility in hazardous work zones. The omnidirectional 360-degree beam angle provides wide, shadow-free light distribution, while the LEDs maintain reliable output over a 30,000-hour rated lifespan.

Electrical & Controls

Equipped with a dedicated 120V driver, this unit delivers consistent, flicker-reduced illumination tailored for standard US power sources. It features 4kV surge protection to shield internal components from the severe electrical transients commonly experienced on active industrial sites. This non-dimmable light operates reliably without the need for advanced controls or external sensors.

Construction & Durability

Engineered to endure abusive job site environments, the main housing and protective cage are constructed from high-impact, UV-resistant polycarbonate. The lightweight, shatter-resistant design handles drops and impacts while remaining easy to transport. Rated IP64 for wet locations, the fixture effectively blocks dust and water ingress, operating safely in extreme ambient temperatures ranging from -22°F to 140°F.

Installation & Mounting

Deployment is rapid and straightforward using the included heavy-duty steel carabiner, which allows for secure overhead hang mounting from cables, chains, or scaffolding. The plug-and-play setup features a 6-foot 18AWG/3 cord with a standard US NEMA 5-15 120V plug and an integrated receptacle. This design enables contractors to easily daisy-chain multiple fixtures, minimizing the need for extensive extension cord runs.

What's Included

• LED Temporary Work Light with Protective Cage
• 6-Foot Power Cord with 120V Plug
• Heavy-Duty Steel Mounting Carabiner
