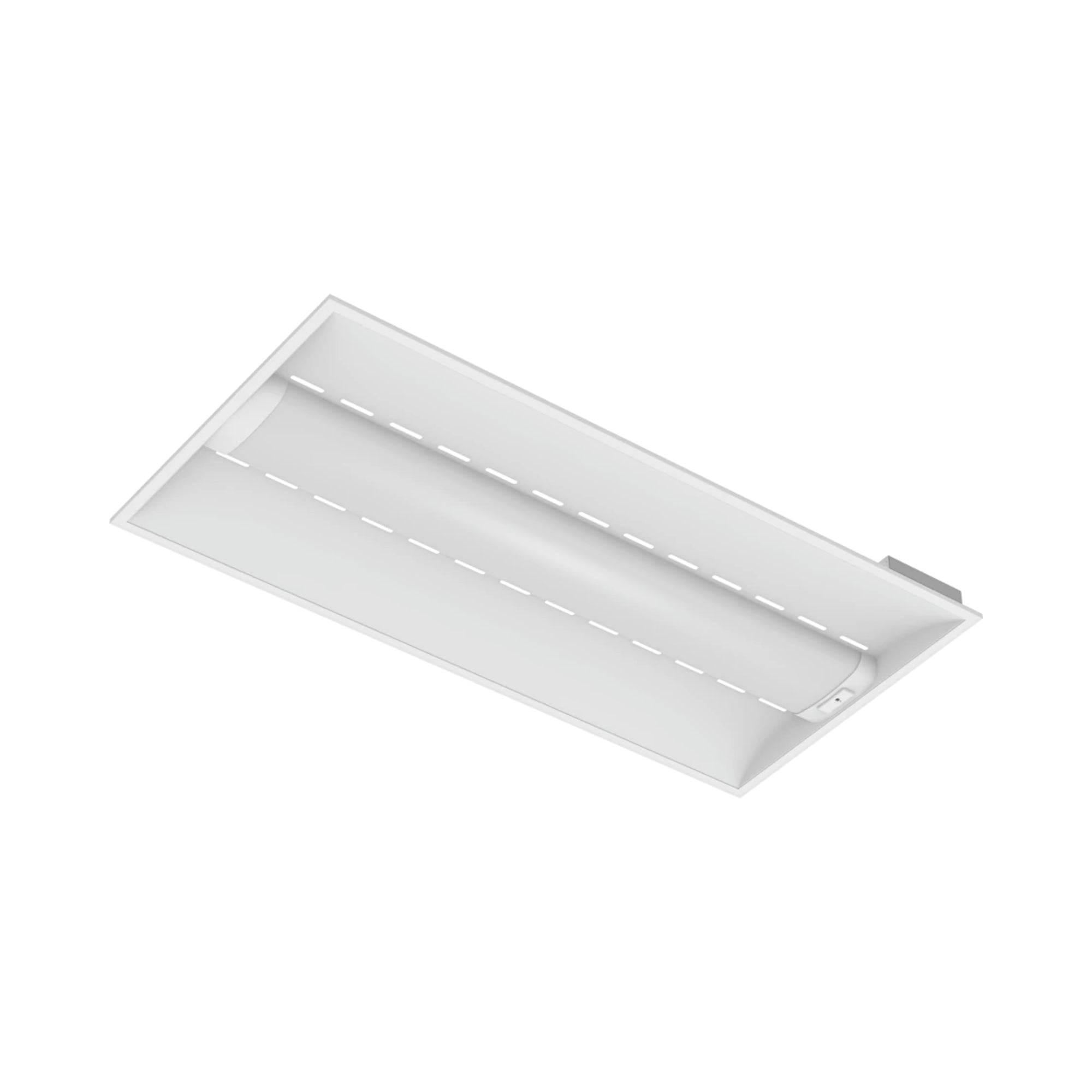

RAB SWISHAIR2X4/MVS SWISH AIR LED Troffer — 44W/35W/26W Selectable — 3500K/4000K/5000K — Microwave Sensor — White

The RAB SWISHAIR2X4/MVS is a 2×4 recessed LED air-return troffer with a factory-installed microwave occupancy sensor, designed for commercial T-grid ceilings requiring integrated HVAC return-air functionality and occupancy-based energy control. Wattage is field-selectable between 44W (factory default), 35W, and 26W, and CCT is field-selectable between 3500K, 4000K (factory default), and 5000K — both via onboard switch, no tools required. At peak output, the fixture delivers 6,048 lumens at 44W / 4000K with a peak efficacy of 150.8 lm/W at 26W / 4000K. The SWISHAIR2X4/MVS operates on 120–277V with a 0–10V dimming driver and is UL Listed for dry and damp locations and DLC 5.1 Listed as Ultra-Efficient Premium. Replaces conventional fluorescent 2×4 troffer fixtures.

Key Features

• Selectable Wattage: 44W / 35W / 26W — field-adjustable via built-in onboard switch, factory default 44W. No tools required.
• Wattage Equivalency: Replaces conventional fluorescent 2×4 troffer fixtures.
• Maximum Lumen Output: 6,048 lm at 44W / 4000K.
• Peak Efficacy: 150.8 lm/W at 26W / 4000K.
• CRI: 82–83 across all wattage and CCT configurations.
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via built-in onboard switch, factory default 4000K. No tools required.
• Air Return Integration: SWISHAIR vented design allows the fixture to serve as a ceiling-integrated HVAC return-air diffuser — eliminates a separate return-air grille in the same 2×4 grid opening.
• Dimming: 0–10V dimming driver — dims to 10% minimum.
• Voltage & Driver: Class 2 constant current, 120–277V, 50/60Hz.
• Location Rating: UL Listed for dry and damp locations.
• Operating Temperature: −4°F (−20°C) minimum · 104°F (40°C) maximum ambient.
• Certifications: UL Listed (dry and damp) · DLC 5.1 Ultra-Efficient Premium.
• Rated Life: 100,000 hours per IES LM-80 / TM-21.
• Warranty: 5-year RAB warranty — covers light output, color stability, driver performance, and fixture finish.
• Microwave Sensor: Factory-installed MVS microwave sensor — detects motion through minor obstructions such as partitions and bathroom stalls · detection range 20 ft diameter at 9 ft mounting height · max mounting height 9–12 ft.

Performance & Light Output

At 44W: 5,859 lm (3500K / 137.8 lm/W), 6,048 lm (4000K / 147.0 lm/W), 5,883 lm (5000K / 138.7 lm/W). At 35W: 4,783 lm (3500K / 141.1 lm/W), 4,903 lm (4000K / 148.9 lm/W), 4,832 lm (5000K / 143.2 lm/W). At 26W: 3,681 lm (3500K / 144.5 lm/W), 3,758 lm (4000K / 150.8 lm/W), 3,720 lm (5000K / 145.9 lm/W).

CRI 82–83 across all wattage and CCT settings. Rated life 100,000 hours (L70) per IES LM-80 / TM-21.

Smart & Control Features

The SWISHAIR2X4/MVS includes a factory-installed microwave occupancy sensor and supports 0–10V dimming. The MVS sensor emits high-frequency microwave signals to detect fine motion through minor obstructions such as partitions and bathroom stalls — ideal for subdivided spaces where PIR line-of-sight is limited. Sensor defaults: Motion Sensitivity High · 100% brightness when triggered · 20-min hold time · 20% standby dim · 1-min standby time · Daylight Disabled. Settings adjustable via MSR1 remote accessory (sold separately).

Electrical

Class 2 constant current driver. Input: 120–277V, 50/60Hz. Power Factor: 99.9% at 120V / 96.3% at 277V. THD: 7.6% at 120V / 13.1% at 277V. Surge protection: 2kV L-L / 2kV L-N-G. Dimming: 0–10V, dims to 10% minimum. Mercury-free, UV-free, RoHS compliant.

Construction

Housing & Thermal: Cold Rolled Carbon Steel Sheets and Strip (SPCC) housing construction.

Lens & Optics: Diffused polystyrene lens panel for uniform, glare-controlled illumination across the full 2×4 grid opening.

Finish: White — formulated for high durability and long-lasting color.

Environmental & Safety: UL Listed for dry and damp locations. Mercury-free, UV-free, RoHS compliant. Operating range: −4°F (−20°C) to 104°F (40°C) maximum ambient.

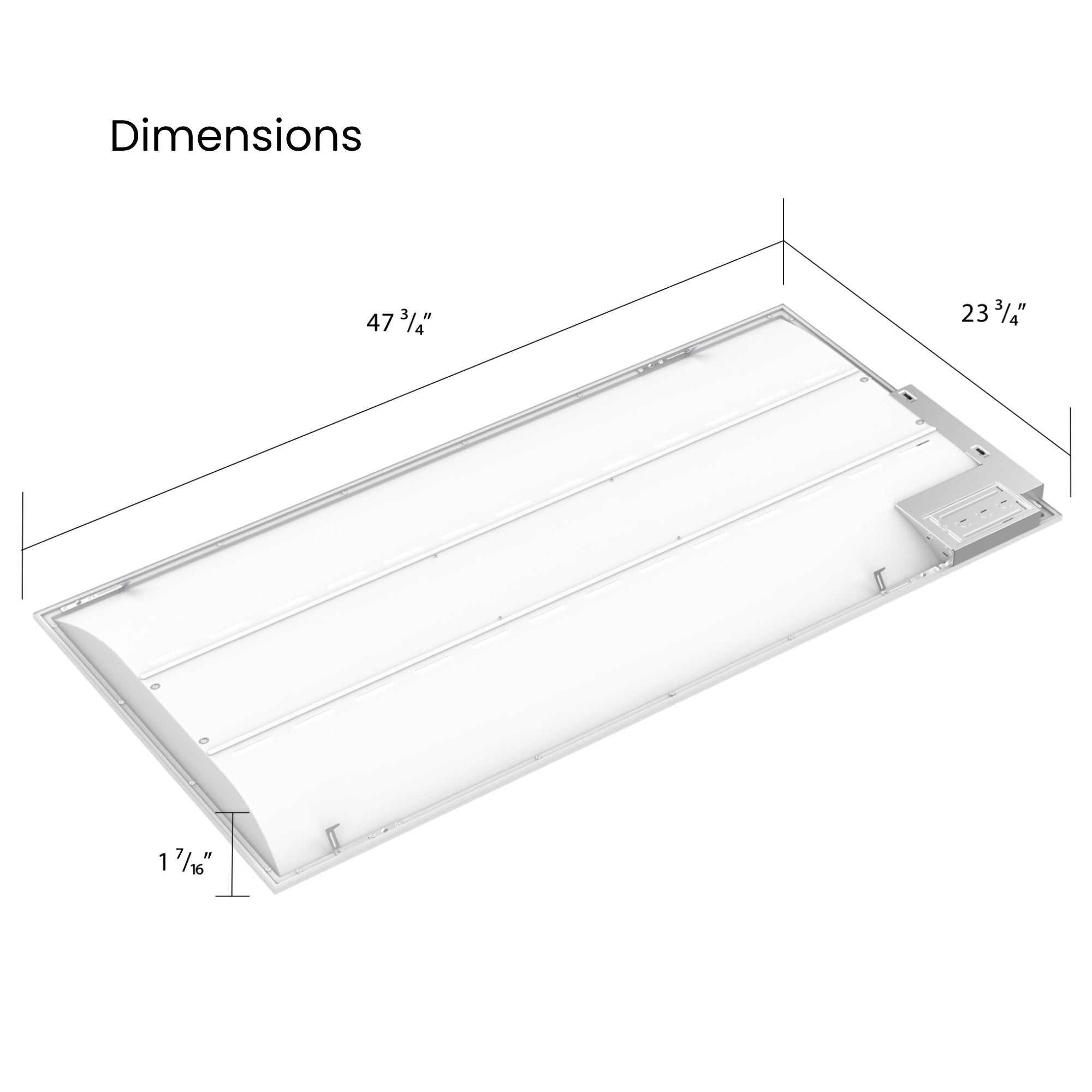

Dimensions & Weight: Ceiling opening: 47¾" × 23¾". Fixture depth: 1⁷⁄₁₆". Weight: 10 lbs.

Installation & Mounting

Standard Hardware: Mounting hardware included for recessed T-grid ceiling installation.

Mounting Options: Recessed into standard 2×4 T-grid ceiling systems. Recommended ceiling height: 8–12 ft. SWISHAIR vented body serves as the return-air diffuser — coordinate with HVAC layout during installation. MVS sensor recommended mounting height: 9–12 ft.

Wiring: Separate 0–10V dimming circuit required. Wattage and CCT selections should be confirmed prior to installation.

Certifications & Rebates

• UL Listed — dry and damp locations
• DLC 5.1 Ultra-Efficient Premium — qualifies for the highest tier of utility rebate programs from DLC Member Utilities. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number S-1Y204R.
• TAA Compliant — eligible for U.S. government and GSA procurement
• RoHS Compliant — mercury-free, UV-free

Typical Applications

• Open-plan commercial offices and partitioned workspaces — MVS sensor detects motion through minor obstructions for reliable occupancy control while air-return integration consolidates HVAC and lighting into a single 2×4 grid opening
• Restrooms and locker rooms — microwave detection through stall partitions ensures lights remain on when spaces are occupied; damp location rating supports moisture-exposed environments
• Healthcare facilities and clinical spaces — 82–83 CRI and MVS sensor support accurate visual assessment and occupancy-responsive energy control
• Educational institutions — selectable wattage and MVS detection suit varied room layouts and occupancy patterns
• Government and institutional buildings — TAA Compliant and DLC 5.1 Ultra-Efficient Premium qualify for GSA procurement and highest-tier utility rebates

What's Included

• RAB SWISHAIR2X4/MVS SWISH AIR LED Troffer — White
• Factory-installed microwave (MVS) occupancy sensor
• Mounting hardware for recessed T-grid installation
