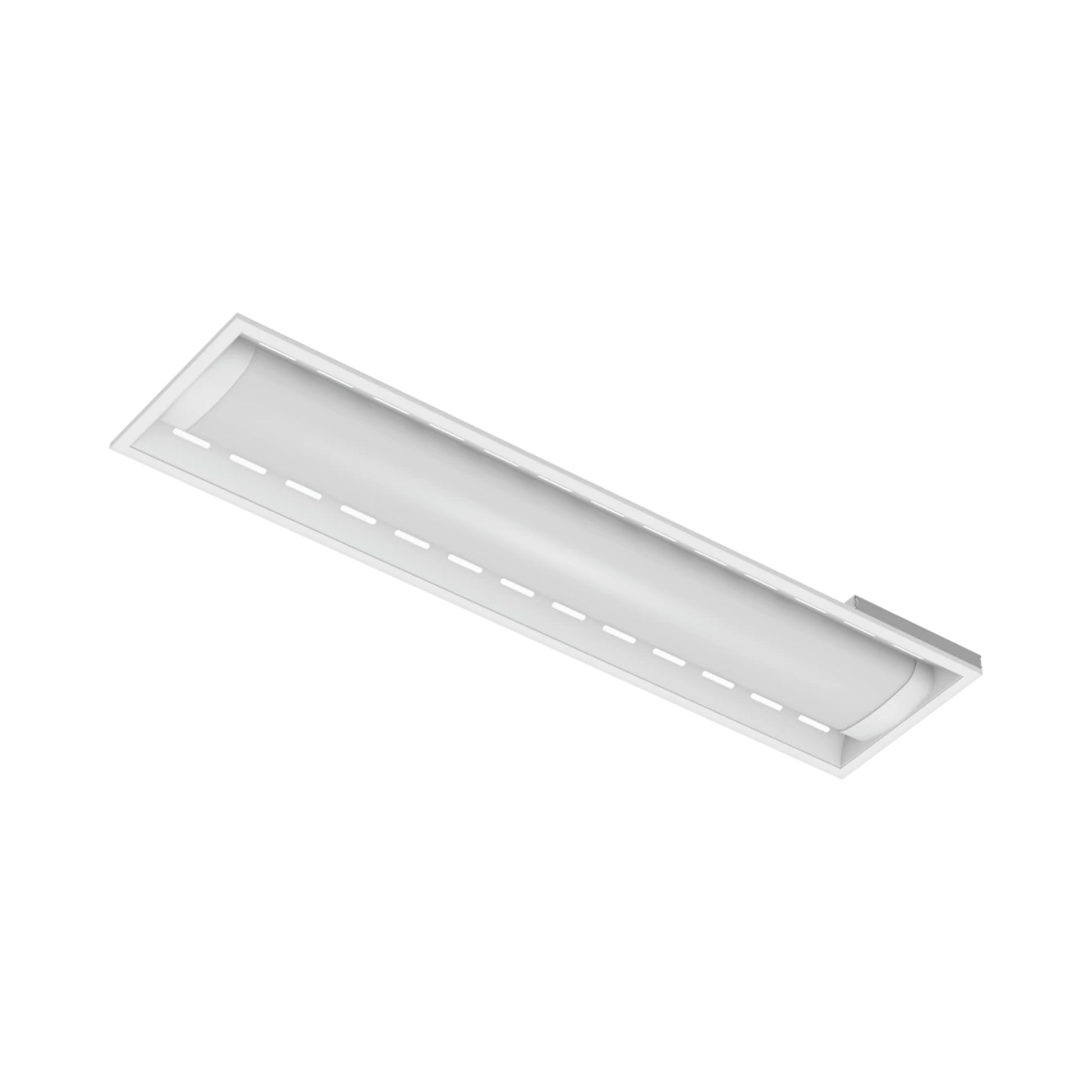

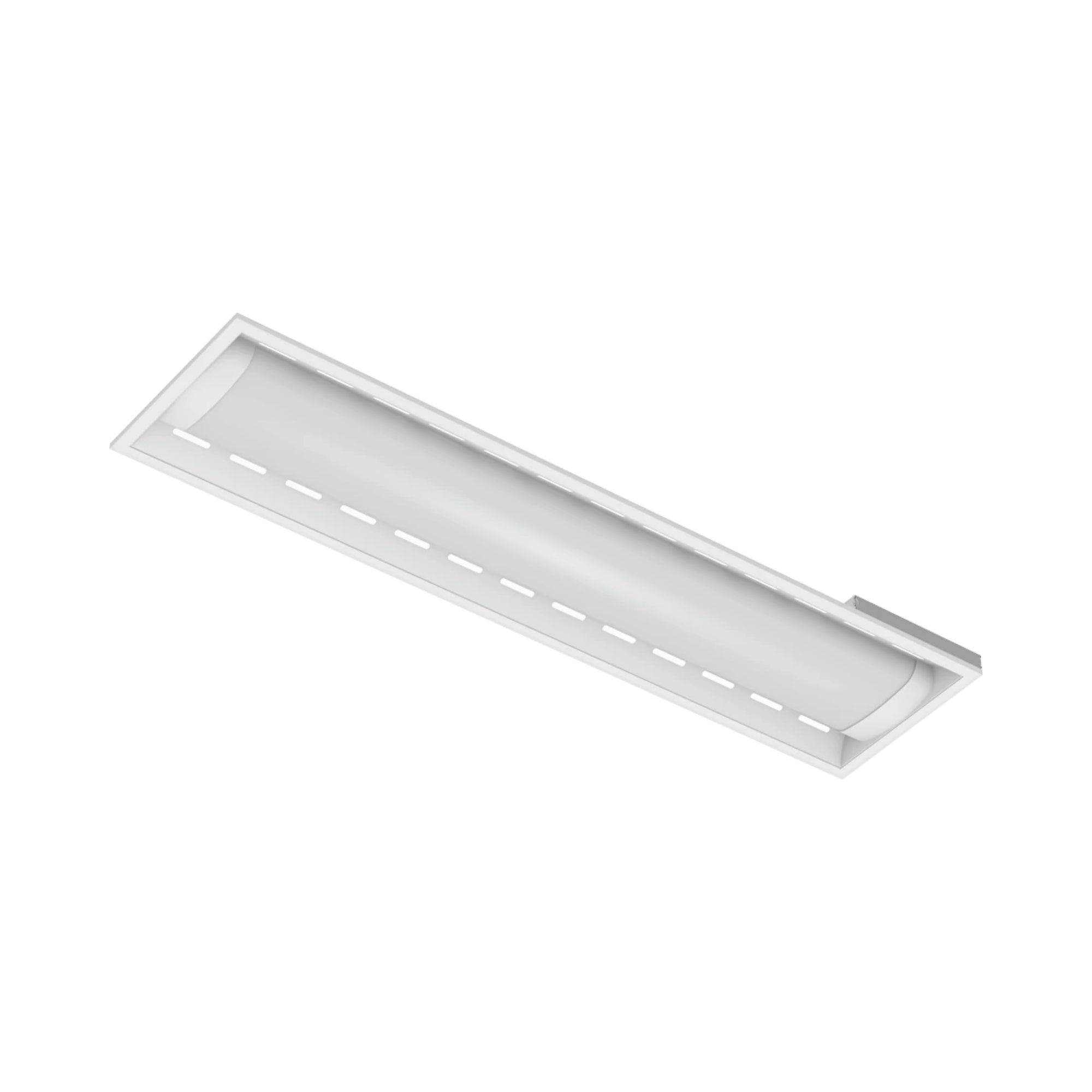

RAB SWISHAIR 1x4 Air Return LED Troffer — 30W Selectable, 120-277V

The RAB SWISHAIR1X4 is a specialized 1x4 air return LED troffer engineered for commercial spaces requiring efficient HVAC integration. Operating at up to 30W on a universal 120-277V input, this fixture features discreet air vents built directly into the frame, allowing room air to cycle back into the ceiling plenum. It also includes field-adjustable wattage and selectable CCT capabilities, providing highly versatile, glare-free illumination for modern offices and healthcare facilities.

Key Features

• HVAC Integration: Vented air return slots
• Power Consumption: 30W Max (Field-adjustable)
• Input Voltage: 120-277V
• Color Temperature: Selectable CCT (3500K/4000K/5000K)
• Dimming: 0-10V
• Lens: Frosted polycarbonate
• Housing: Die-formed sheet metal
• Lifespan: 100,000 hours (L70)

Typical Applications

• Commercial office spaces with return-air plenums
• Healthcare facilities and clean rooms
• Educational institutions
• Retail environments
• Conference rooms

Performance & Light Output

This 1x4 air return troffer delivers high-efficacy illumination at a maximum 30W setting. It is equipped with field-selectable technology, allowing installers to toggle between 3500K, 4000K, and 5000K color temperatures directly on the unit. The frosted polycarbonate lens ensures even, volumetric light distribution that significantly reduces screen glare for improved visual comfort, backed by a robust 100,000-hour LED lifespan.

Electrical & Controls

Powered by an isolated, Class 2 constant current driver, the fixture operates smoothly on 120-277V circuits. It includes 0-10V dimming leads for integration with daylight harvesting or building management systems. The driver features integral surge protection to defend against standard commercial electrical grid fluctuations.

Construction & Durability

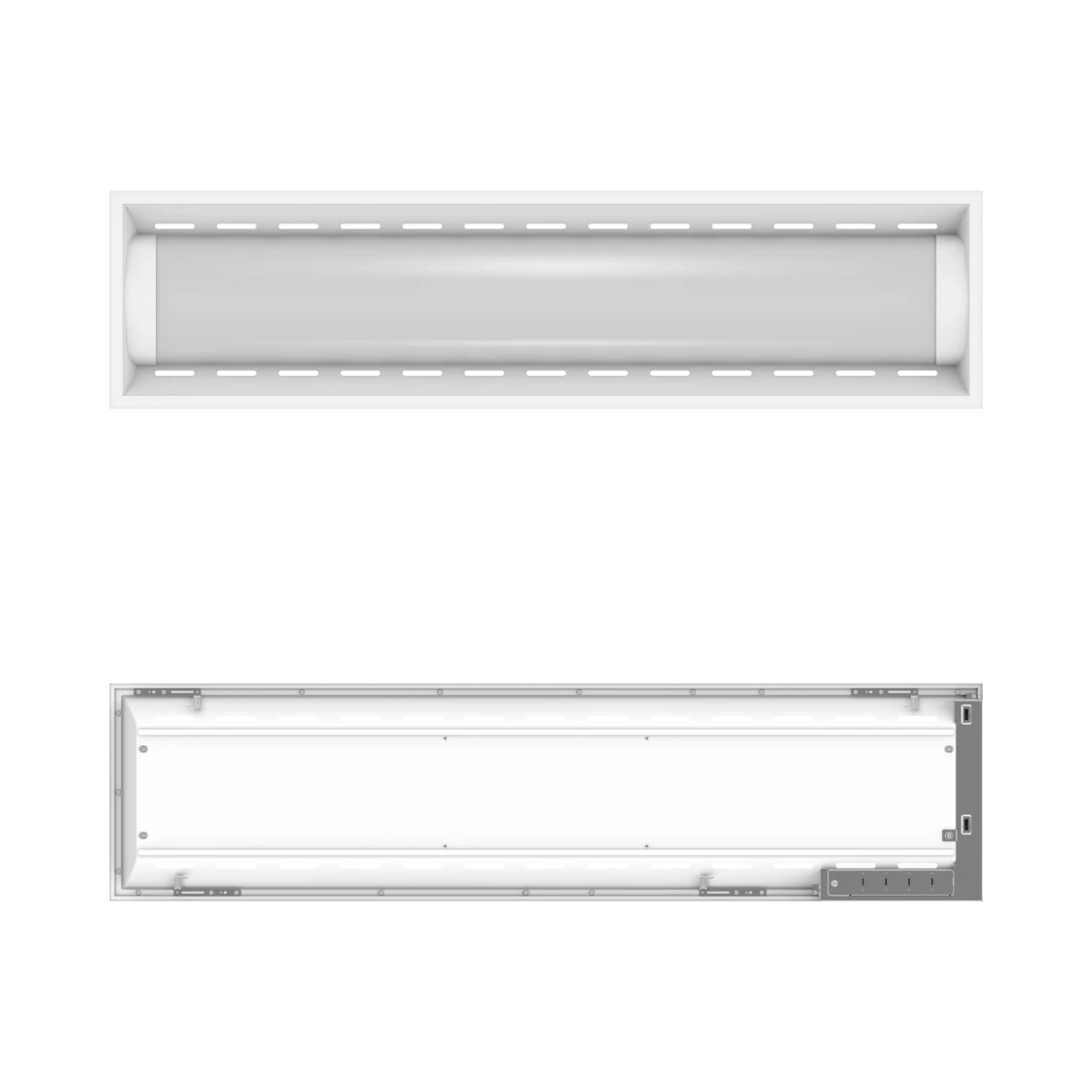

The fixture is constructed from heavy-duty sheet metal, formed into an architectural center-basket profile and finished in a highly durable, high-reflectance white powder coat. The unique frame features engineered slots that allow air to pass through the fixture body into the plenum above, reducing the need for separate return grilles in the ceiling grid. It is UL listed for damp locations.

Installation & Mounting

Designed for rapid retrofitting and new construction, the luminaire fits easily into standard 1x4 T-grid suspended ceilings. It features pre-installed integral grid clips that bend firmly over the T-bar to secure the unit against seismic activity and vibration. Electrical splices are made easily via the top access plate, and support wire holes are provided for anchoring to the structural ceiling per commercial safety codes.

What's Included

• (1) 1x4 Air Return LED Troffer Fixture
• Integral T-Grid Mounting Clips
