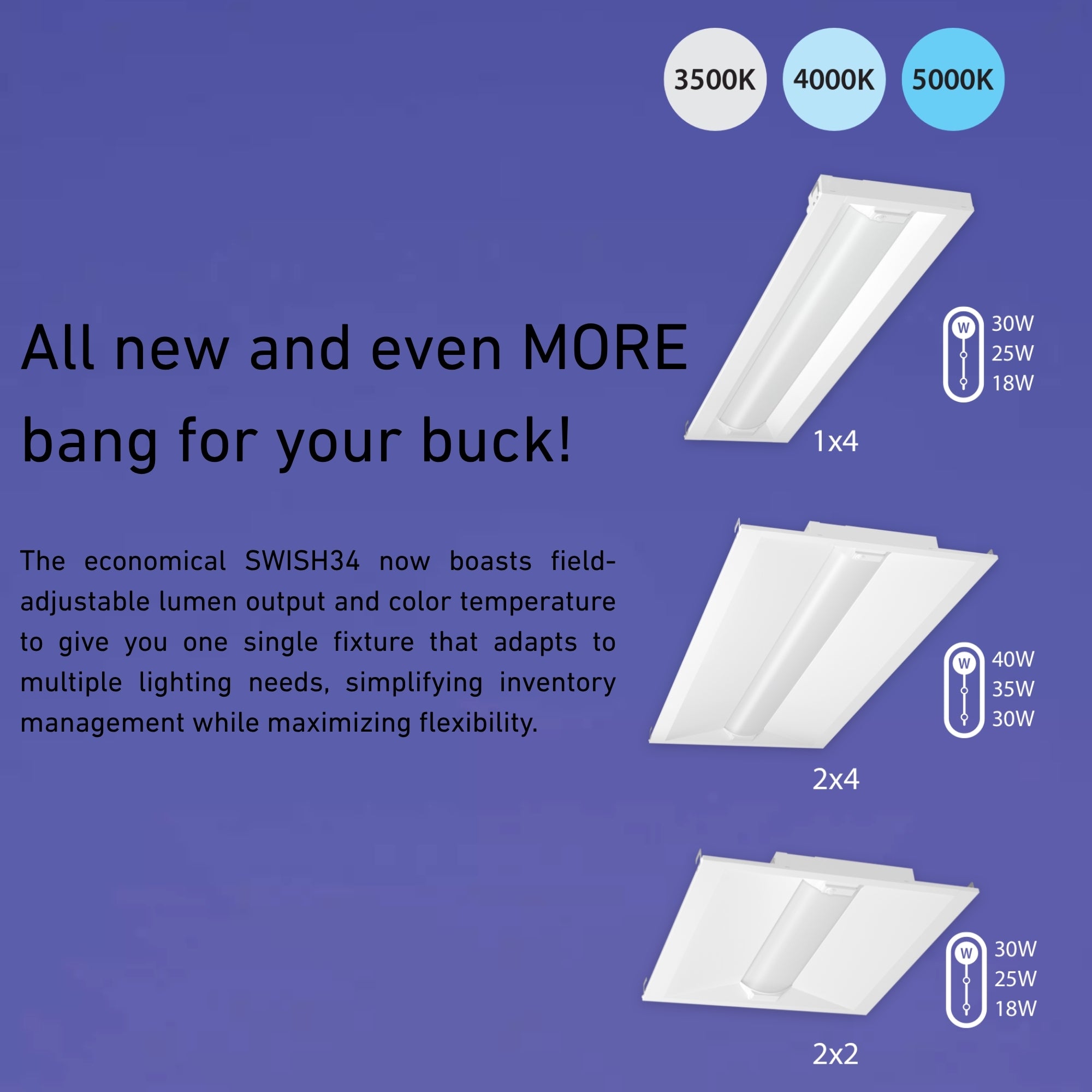

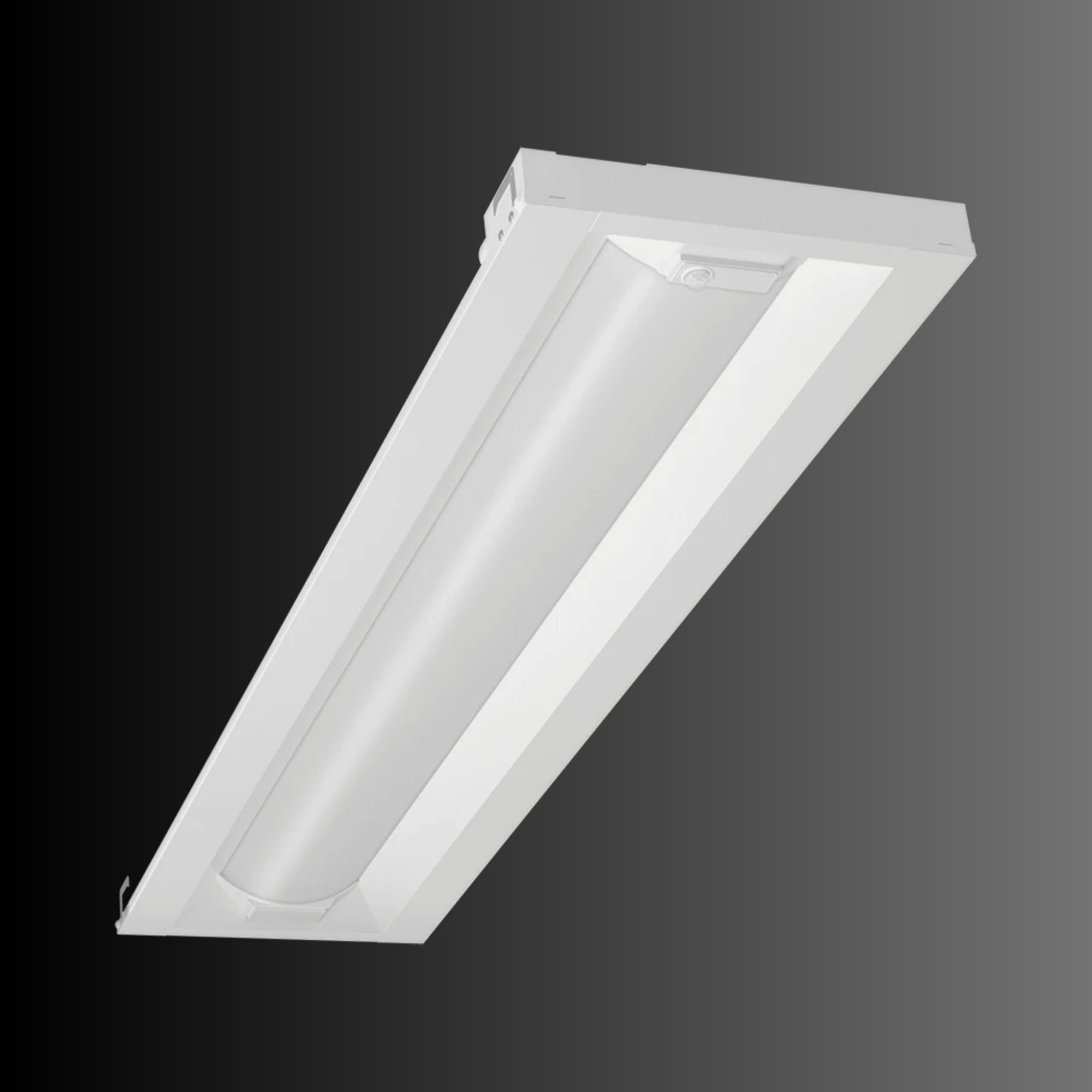

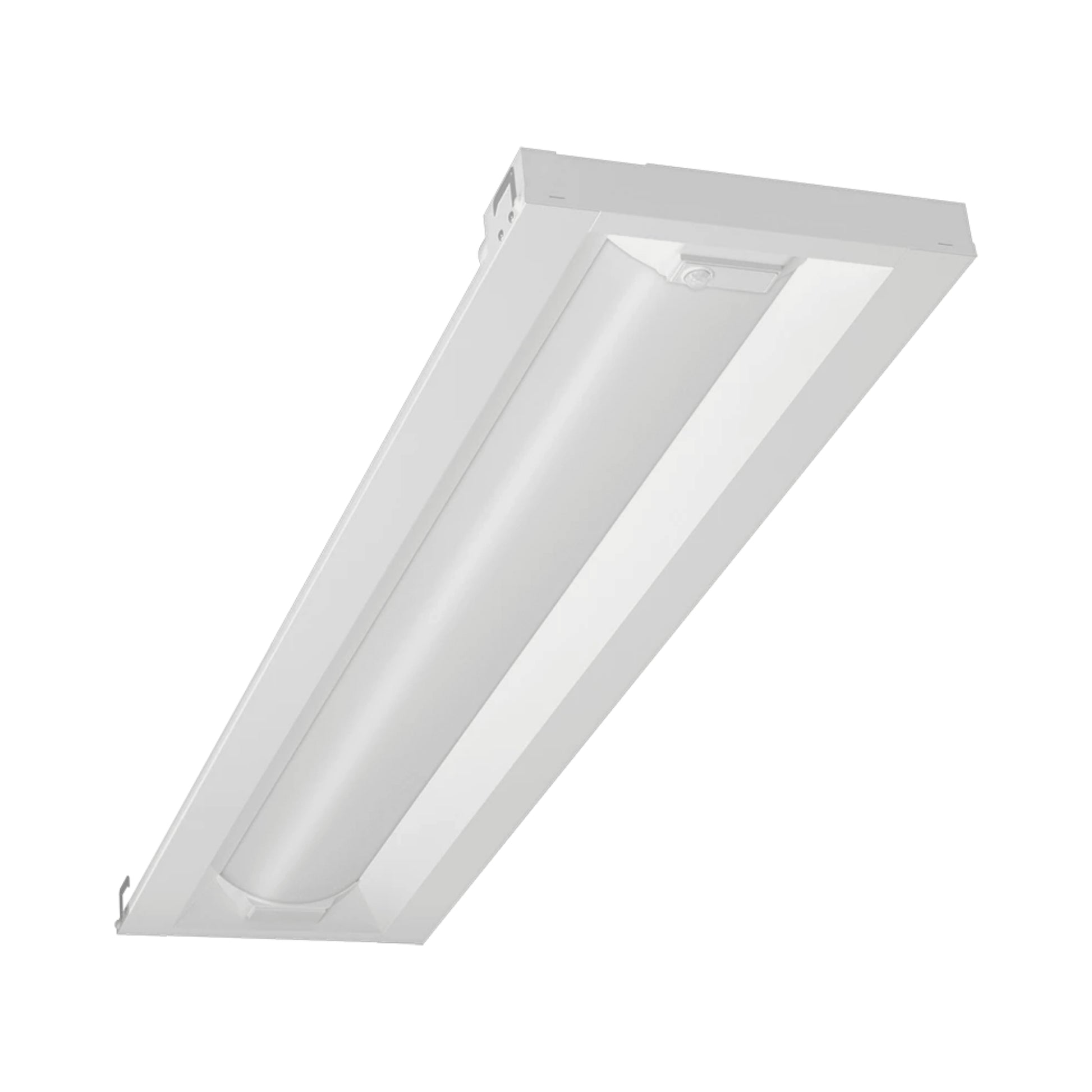

The RAB SWISH34-1X4/PIR is a 1×4 field-adjustable LED troffer with integrated passive infrared (PIR) occupancy sensor, delivering up to 4,109 lumens at 30W and a peak efficacy of 149.2 lm/W at the 18W setting. Wattage is field-selectable at 30W, 25W, or 18W (factory default: 30W); color temperature is field-selectable at 3500K, 4000K, or 5000K (factory default: 4000K). The fixture operates on 120–277V with a constant-current, isolated Class 2 driver and supports 0–10V dimming down to 10%. UL Listed for dry and damp locations. Listed as DLC Premium under DLC 5.1 (DLC ID: S-6GLFQT). Replaces up to 2-lamp T8 fluorescent fixtures. Rated for 100,000 hours (IES LM-80 + TM-21).

Key Features

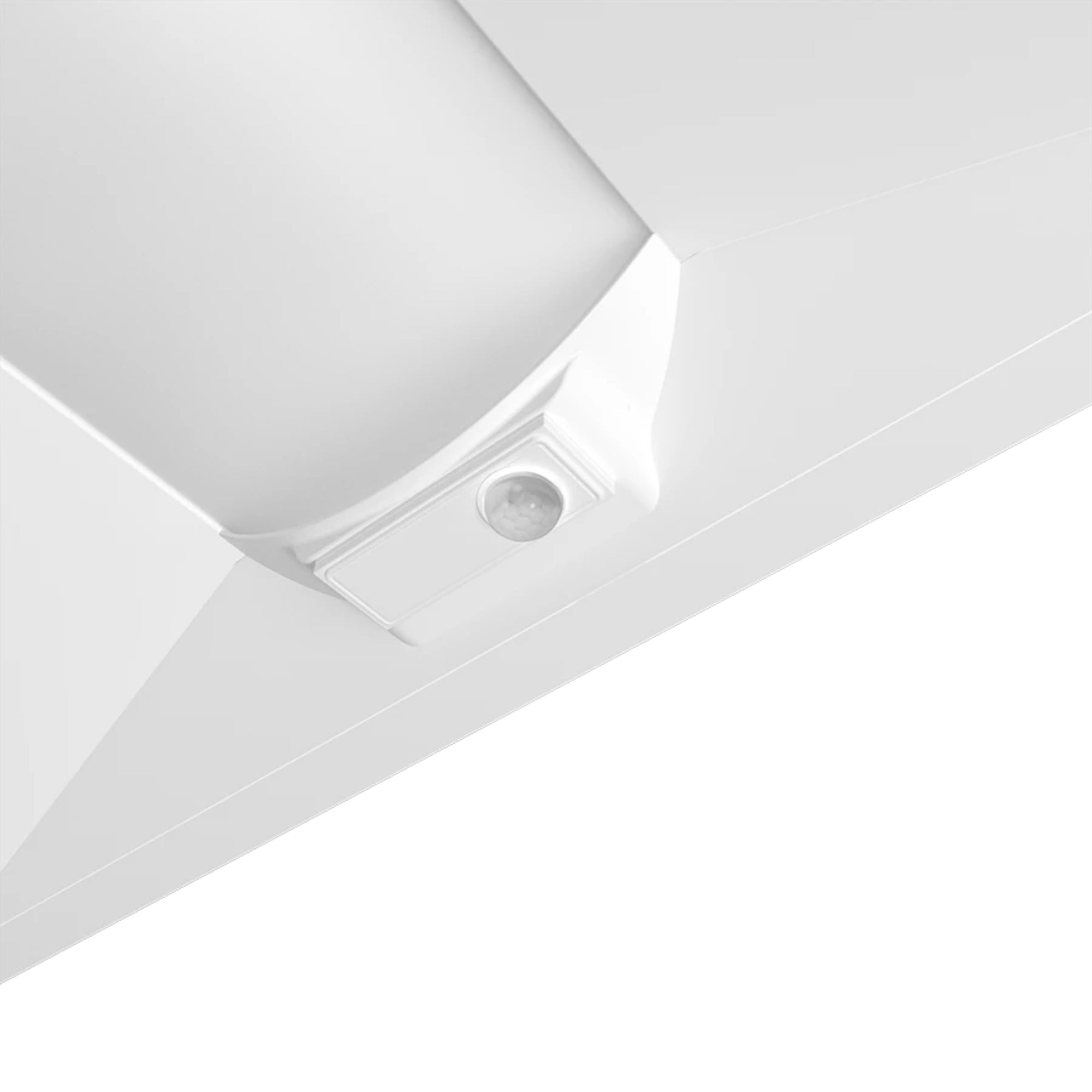

• Integrated PIR Occupancy Sensor (/PIR): Passive infrared sensor detects occupant heat signatures within line of sight; recommended mounting height 9–12 ft; operating range −22°F to 104°F (−30°C to 40°C); 12VDC. Automatically dims or switches off in unoccupied spaces.
• Field-Selectable Wattage: Switch between 30W, 25W, and 18W in the field without tools — factory default is 30W.
• Field-Selectable CCT: Choose 3500K, 4000K, or 5000K at installation (factory default: 4000K); color consistency maintained to ANSI C78.377-2017.
• Maximum Lumen Output: Delivers up to 4,109 lumens at 30W / 5000K.
• Peak Efficacy: Achieves 149.2 lm/W at 18W / 4000K.
• CRI: CRI 85–87 across all wattage and CCT combinations.
• Color Uniformity: Meets ANSI C78.377-2017 for chromaticity of solid-state lighting products.
• 0–10V Dimming: Dims smoothly from 100% down to 10%; compatible with Lightcloud Blue and Lightcloud Enterprise control systems.
• Voltage & Driver: Isolated, Class 2 constant-current driver; 120–277V, 50/60Hz; surge protection L-N 2.5KV / LN-GND 2.5KV.
• Location Rating: UL Listed for dry and damp locations; suitable for direct contact with insulation.
• Cold Weather Start: Rated to −40°C (−40°F) cold weather start.
• Certifications: UL Listed · DLC Premium (S-6GLFQT) · RoHS-compliant · Suitable for direct insulation contact.
• Rated Life & Warranty: 100,000-hour rated life (IES LM-80 + TM-21); RAB 5-year limited warranty.
• Wattage Equivalency: Replaces up to 2-lamp T8 fluorescent fixtures.

Performance & Light Output

The SWISH34-1X4/PIR shares the optical engine of the SWISH34-1X4 and delivers identical verified output:

At 30W: 3,930 lm (3500K / 135.5 lm/W) · 4,104 lm (4000K / 146.3 lm/W) · 4,109 lm (5000K / 140.9 lm/W)
At 25W: 3,447 lm (3500K / 138.1 lm/W) · 3,568 lm (4000K / 147.7 lm/W) · 3,576 lm (5000K / 142.7 lm/W)
At 18W: 2,538 lm (3500K / 141.7 lm/W) · 2,607 lm (4000K / 149.2 lm/W) · 2,639 lm (5000K / 146.6 lm/W)

CRI: 85–87 across all settings. Peak efficacy: 149.2 lm/W at 18W / 4000K. Rated life: 100,000 hours (IES LM-80 + TM-21).

Smart & Control Features

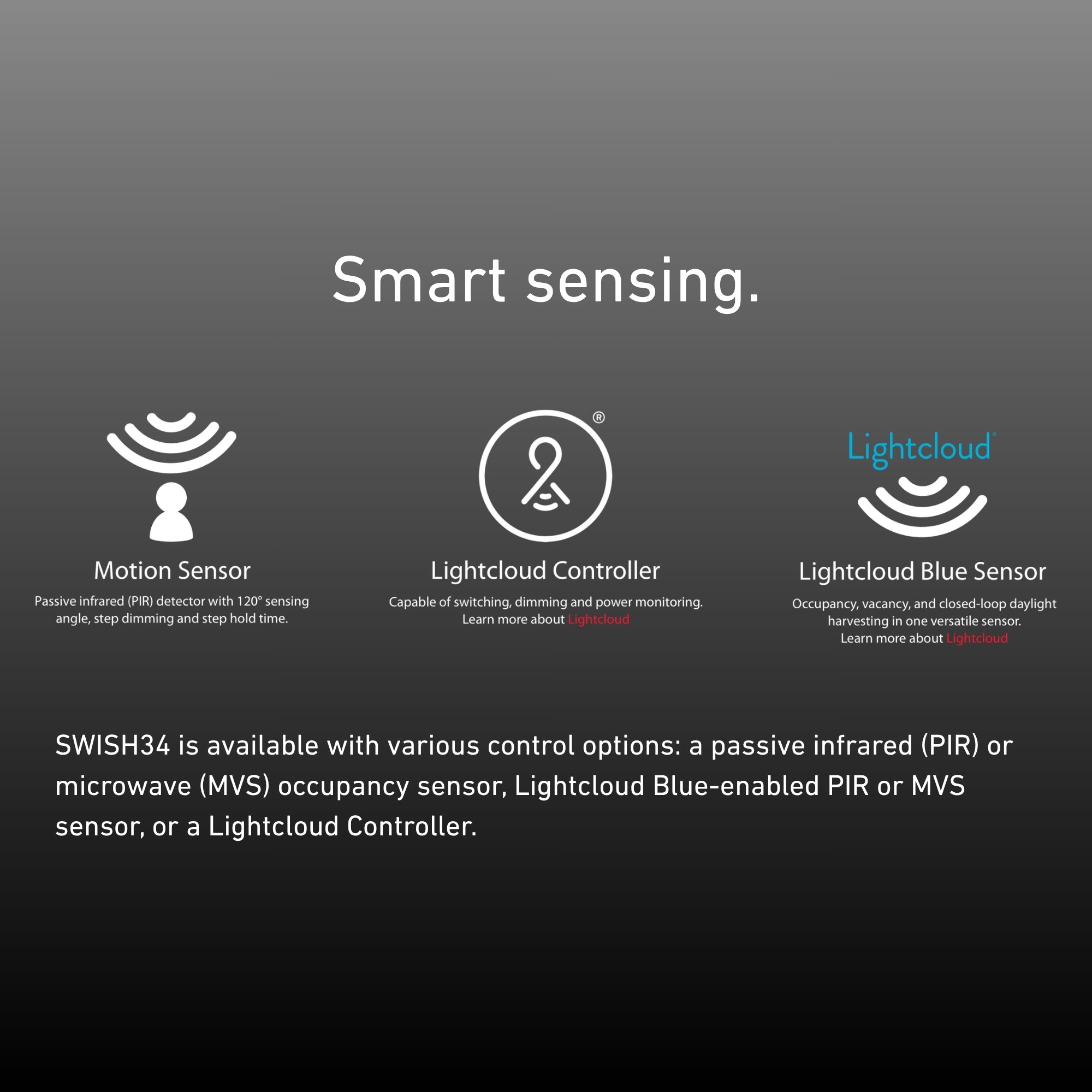

The /PIR sensor is factory-integrated. Additional control configurations available at order:

• PIR Sensor (/PIR): Integrated — this model. Line-of-sight occupancy detection; 9–12 ft mounting height; −22°F to 104°F; 12VDC.
• Lightcloud Blue (/LCBS/PIR): Add Bluetooth mesh control — no gateway required; smartphone or MSR1 remote adjustment.
• Lightcloud Enterprise (/LC/PIR): Zigbee mesh with gateway for building management integration.
• MSR1 Remote (SKU: MSR1): Field adjustment of sensor sensitivity and time-delay settings; IP20.
• For microwave sensor version: See SWISH34-1X4/MVS.
• For emergency backup: See SWISH34-1X4/E.

Electrical

Isolated, Class 2 constant-current driver; 120–277V AC, 50/60Hz. Input watts at 30W setting: 29.00W (3500K) · 28.06W (4000K) · 29.17W (5000K). Surge protection: L-N 2.5KV / LN-GND 2.5KV. Cold weather start: −40°C. Green technology: mercury-free, UV-free, RoHS-compliant.

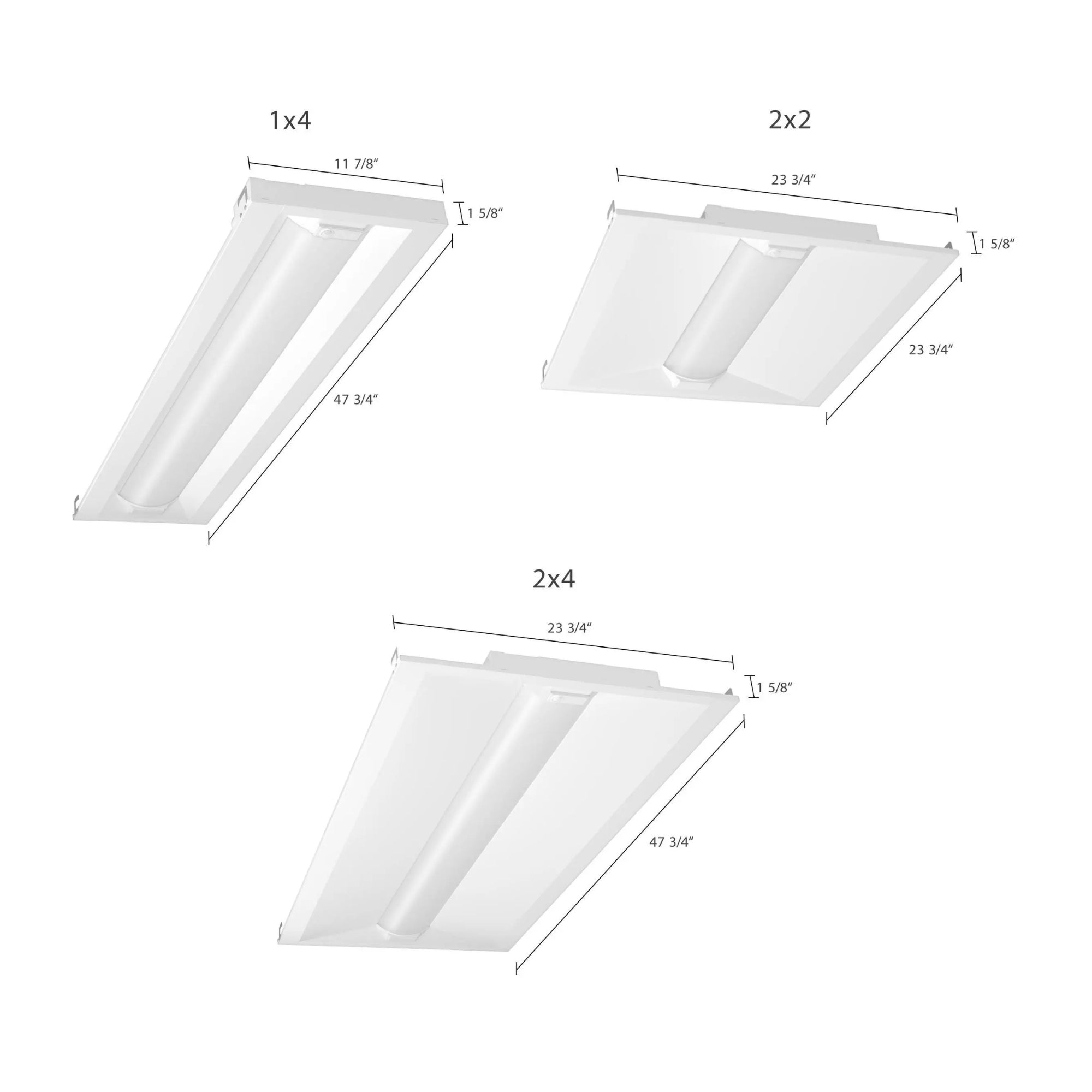

Construction

Sheet metal housing with polycarbonate lens and integrated PIR sensor module. Center basket design for uniform 1×4 light distribution. Suitable for direct contact with insulation. Compatible with standard 1×4 T-grid ceiling openings.

Installation & Mounting

Recesses directly into a standard 1×4 T-grid ceiling. Optional surface mounting kit SMKEZPAN1X4 available separately. MSR1 remote (SKU: MSR1) available for field sensor adjustment.

Certifications & Rebates

UL Listed — Dry and damp locations. Suitable for direct contact with insulation.

DLC Premium — DLC ID: S-6GLFQT. Search S-6GLFQT at designlights.org for participating utilities and rebate verification.

RoHS Compliant — Mercury-free and UV-free.

Typical Applications

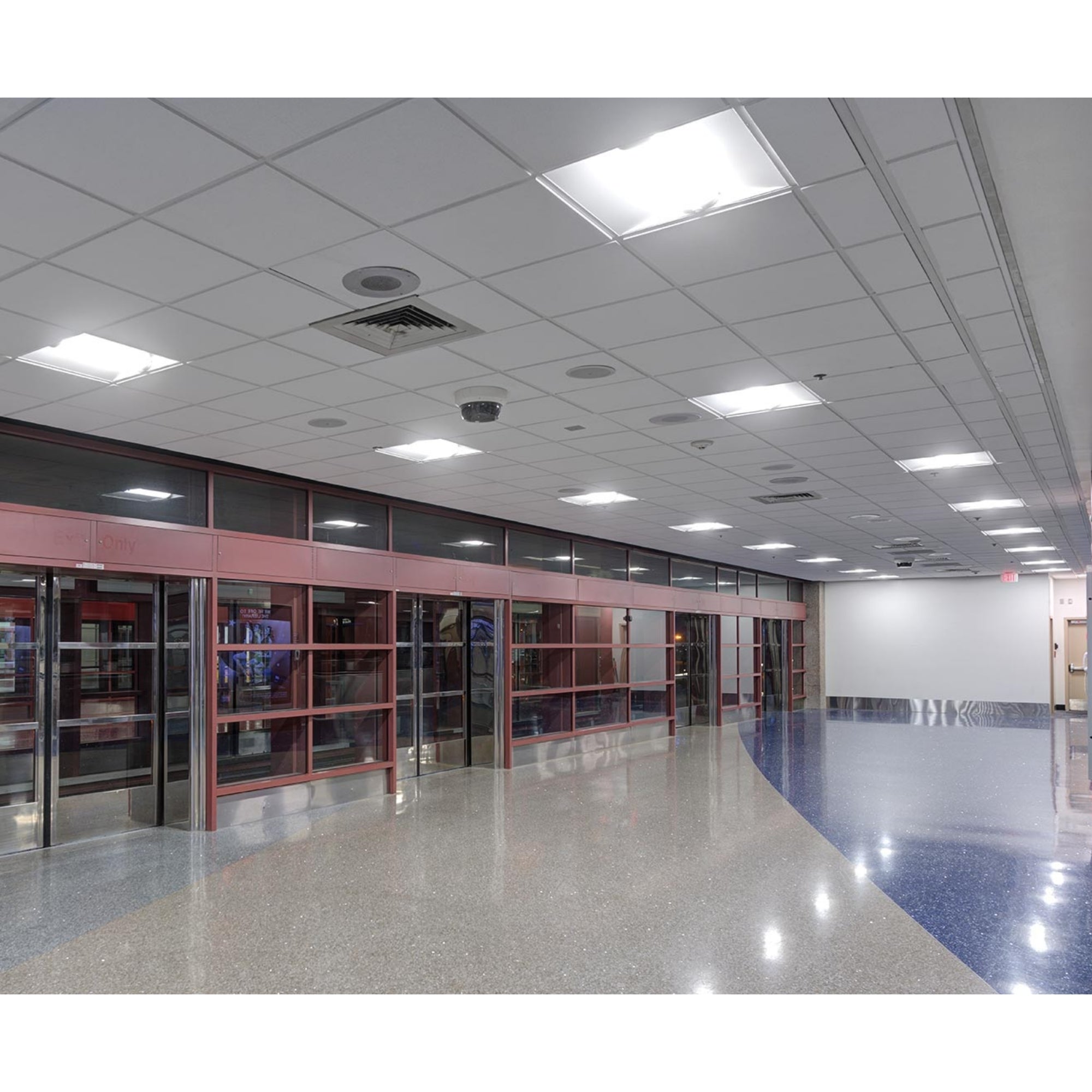

• Open Offices & Conference Rooms: PIR line-of-sight detection is ideal for open-plan layouts with clear sightlines — auto-dims on departure without controller hardware.
• Classrooms: Consistent occupancy detection across desk zones; DLC Premium (S-6GLFQT) rebates support large-scale school retrofits.
• Healthcare Exam Rooms: CRI 85–87 supports clinical accuracy; PIR sensor reduces standby energy between patient visits.
• Private Offices: Single-occupant PIR detection reliably captures desk-level movement in enclosed 1×4 grid spaces.
• Retail Stockrooms & Storage: Automatic shutoff in low-traffic areas reduces energy waste without manual switching.
• Government & Institutional Buildings: DLC Premium certification plus integrated occupancy control satisfies energy code and rebate requirements simultaneously.

What’s Included

• 1× RAB SWISH34-1X4/PIR LED Troffer with Integrated PIR Sensor (White)
• Mounting hardware for recessed T-grid installation
