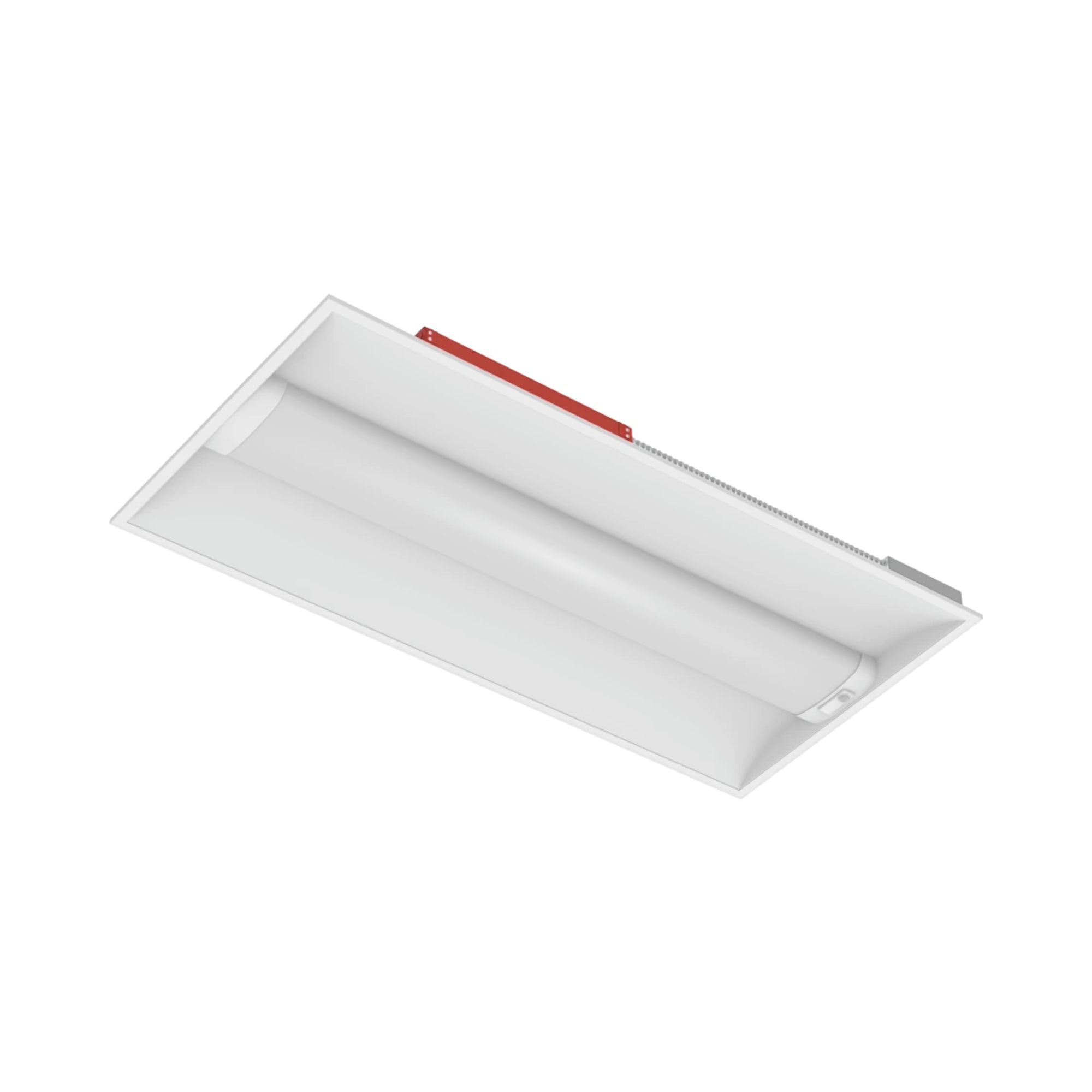

RAB SWISH2X4/PIR/E LED Center Basket Troffer — 44W / 35W / 26W Selectable — PIR Sensor — Battery Backup — White

The RAB SWISH2X4/PIR/E is a 2×4 recessed LED center basket troffer combining a factory-installed Passive Infrared (PIR) occupancy sensor with integrated 90-minute emergency battery backup — designed for commercial interiors requiring both energy-efficient occupancy control and life-safety code compliance. Wattage is field-selectable between 44W (factory default), 35W, and 26W, and CCT is field-selectable between 3500K, 4000K (factory default), and 5000K — no tools required. At peak output, the fixture delivers 6,048 lumens at 44W / 4000K and operates on 120–277V with a 0–10V dimming driver. The SWISH2X4/PIR/E is UL Listed for dry and damp locations and is DLC 5.1 Listed as Ultra-Efficient Premium.

Key Features

• Selectable Wattage: 44W / 35W / 26W — field-adjustable via built-in onboard switch, factory default 44W. No tools required.
• Wattage Equivalency: Replaces conventional fluorescent 2×4 troffer fixtures.
• Maximum Lumen Output: 6,048 lm at 44W / 4000K.
• Peak Efficacy: 150.8 lm/W at 26W / 4000K.
• CRI: 82–83 across all wattage and CCT configurations.
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via built-in onboard switch, factory default 4000K. No tools required.
• Lens & Optics: Diffused polystyrene lens panel for uniform, glare-controlled light distribution across the 2×4 grid opening.
• Dimming: 0–10V dimming driver — dims to 10% minimum.
• Voltage & Driver: Class 2 constant current, 120–277V, 50/60Hz.
• Location Rating: UL Listed for dry and damp locations.
• Operating Temperature: −4°F (−20°C) minimum (standard) · 41°F (5°C) minimum (with battery backup) · 104°F (40°C) maximum ambient.
• Certifications: UL Listed (dry and damp) · DLC 5.1 Ultra-Efficient Premium.
• Rated Life: 100,000 hours per IES LM-80 / TM-21.
• Warranty: 5-year RAB warranty — covers light output, color stability, driver performance, and fixture finish.
• PIR Sensor: Factory-installed Passive Infrared sensor · 12VDC input · 50/60Hz · operating temperature −22°F to 104°F (−30°C to 40°C) · detection range 20 ft diameter at 9 ft mounting height · max mounting height 9–12 ft.
• Battery Backup: 90-minute emergency operation on power failure · wired 120–277V · BLLF: 0.23 · minimum starting temperature 41°F (5°C).

Performance & Light Output

At 44W: 5,859 lm (3500K / 137.8 lm/W), 6,048 lm (4000K / 147.0 lm/W), 5,883 lm (5000K / 138.7 lm/W). At 35W: 4,783 lm (3500K / 141.1 lm/W), 4,903 lm (4000K / 148.9 lm/W), 4,832 lm (5000K / 143.2 lm/W). At 26W: 3,681 lm (3500K / 144.5 lm/W), 3,758 lm (4000K / 150.8 lm/W), 3,720 lm (5000K / 145.9 lm/W).

CRI 82–83 across all wattage and CCT settings. Rated life 100,000 hours (L70) per IES LM-80 / TM-21.

Smart & Control Features

The SWISH2X4/PIR/E includes a factory-installed PIR occupancy sensor and supports 0–10V dimming. Sensor defaults: Motion Sensitivity High · 100% brightness when triggered · 20-min hold time · 20% standby dim · 1-min standby time · Daylight Disabled. Settings adjustable via MSR1 remote accessory (sold separately).

Electrical

Class 2 constant current driver. Input: 120–277V, 50/60Hz. Power Factor: 99.9% at 120V / 96.3% at 277V. THD: 7.6% at 120V / 13.1% at 277V. Surge protection: 2kV L-L / 2kV L-N-G. Dimming: 0–10V, dims to 10% minimum. Battery backup: 90-minute emergency operation · wired 120–277V · BLLF: 0.23 · minimum starting temperature 41°F (5°C) · maximum ambient 104°F (40°C). Mercury-free, UV-free, RoHS compliant.

Construction

Housing & Thermal: Cold Rolled Carbon Steel Sheets and Strip (SPCC) housing construction.

Lens & Optics: Diffused polystyrene lens panel for uniform, glare-controlled illumination across the full 2×4 grid opening.

Finish: White — formulated for high durability and long-lasting color.

Environmental & Safety: UL Listed for dry and damp locations. Mercury-free, UV-free, RoHS compliant. Operating range: −4°F (−20°C) to 104°F (40°C) standard; 41°F (5°C) minimum for battery backup models.

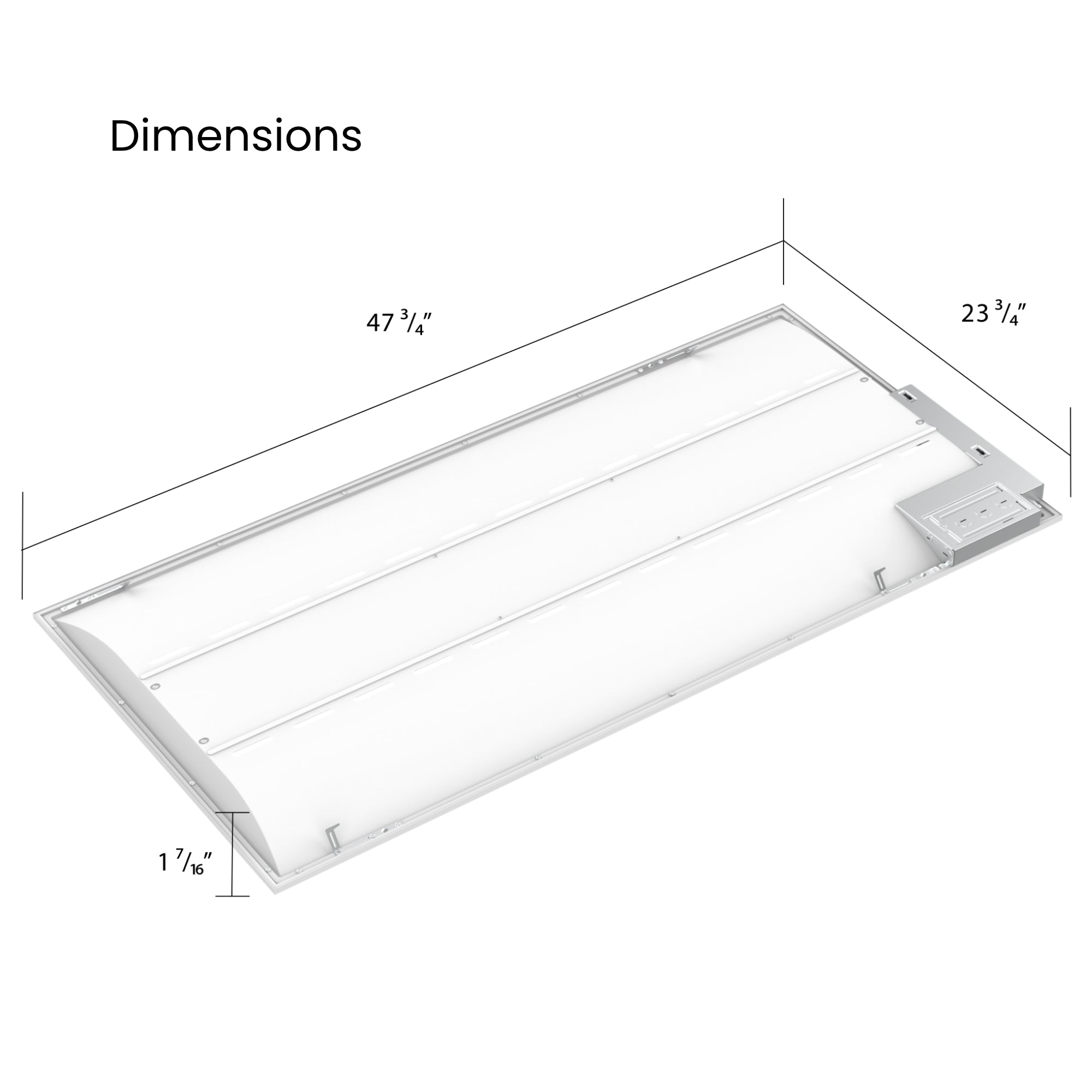

Dimensions & Weight: Ceiling opening: 47¾" × 23¾". Fixture depth: 1⁷⁄₁₆". Weight: 10 lbs.

Installation & Mounting

Standard Hardware: Mounting hardware included for recessed T-grid ceiling installation.

Mounting Options: Recessed into standard 2×4 T-grid ceiling systems. Recommended mounting height for PIR sensor: 9–12 ft.

Wiring: An unswitched hot line must be connected to maintain battery charge. Wattage and CCT selections should be confirmed prior to installation. Minimum starting temperature with battery backup: 41°F (5°C).

Certifications & Rebates

• UL Listed — dry and damp locations
• DLC 5.1 Ultra-Efficient Premium — qualifies for the highest tier of utility rebate programs from DLC Member Utilities. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number S-1Y204R.
• TAA Compliant — eligible for U.S. government and GSA procurement
• RoHS Compliant — mercury-free, UV-free

Typical Applications

• Commercial egress corridors and open-plan offices — PIR sensor and 6,048 lm at 44W deliver high-output coverage with automatic occupancy control and emergency backup
• Healthcare facilities and clinical corridors — damp location rating, PIR occupancy control, and 90-minute battery backup support reliable illumination during power events
• Educational institutions — combined PIR and emergency backup meets both energy code and life-safety code requirements
• Government and institutional buildings — TAA Compliant and DLC 5.1 Ultra-Efficient Premium qualify for GSA procurement and highest-tier utility rebates
• Stairwells and back-of-house spaces — PIR occupancy shutoff plus 90-minute emergency backup covers both daily efficiency and emergency egress requirements

What's Included

• RAB SWISH2X4/PIR/E LED Center Basket Troffer — White
• Factory-installed PIR occupancy sensor
• Integrated 90-minute emergency battery backup unit
• Mounting hardware for recessed T-grid installation
