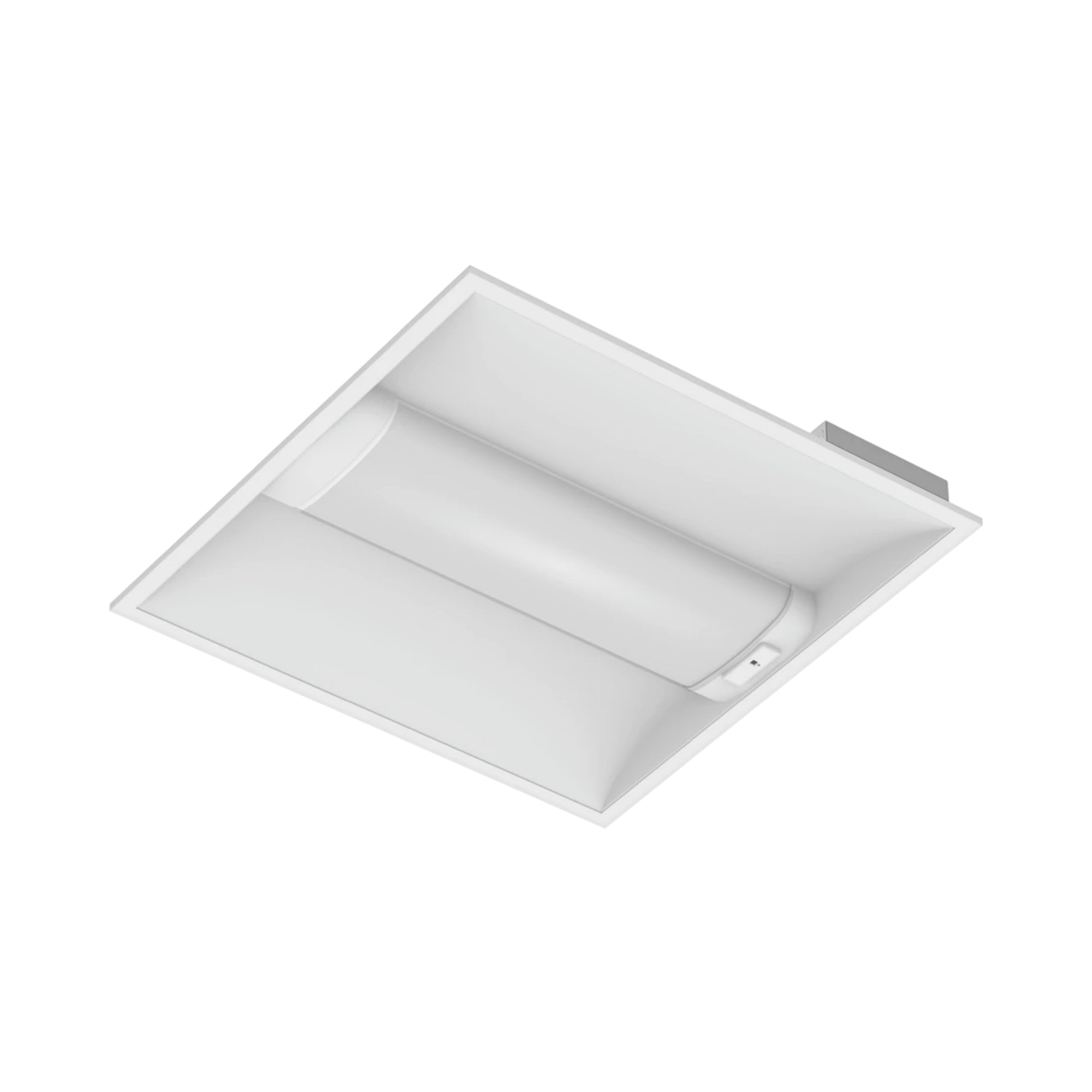

RAB SWISH2X2/MVS LED Center Basket Troffer — 35W / 26W / 18W Selectable — Microwave Sensor — White

The RAB SWISH2X2/MVS is a 2×2 recessed LED center basket troffer with a factory-installed microwave (MVS) occupancy sensor, designed for energy-efficient commercial lighting with automatic occupancy control. Unlike PIR sensors, the microwave sensor detects motion through walls and partitions — well suited for enclosed offices, private rooms, and spaces with intermittent occupancy patterns. Wattage is field-selectable between 35W (factory default), 26W, and 18W, and CCT is field-selectable between 3500K, 4000K (factory default), and 5000K — no tools required. At peak output, the fixture delivers 4,703 lumens at 35W / 4000K and operates on 120–277V with a 0–10V dimming driver. The SWISH2X2/MVS is UL Listed for dry and damp locations and is DLC 5.1 Listed as Ultra-Efficient Premium.

Key Features

• Selectable Wattage: 35W / 26W / 18W — field-adjustable via built-in onboard switch, factory default 35W. No tools required.
• Wattage Equivalency: Replaces conventional fluorescent 2×2 troffer fixtures.
• Maximum Lumen Output: 4,703 lm at 35W / 4000K.
• Peak Efficacy: 146.4 lm/W at 18W / 4000K.
• CRI: 82–84 across all wattage and CCT configurations.
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via built-in onboard switch, factory default 4000K. No tools required.
• Lens & Optics: Diffused polystyrene lens panel for uniform, glare-controlled light distribution across the 2×2 grid opening.
• Dimming: 0–10V dimming driver — dims to 10% minimum.
• Voltage & Driver: Class 2 constant current, 120–277V, 50/60Hz.
• Location Rating: UL Listed for dry and damp locations.
• Operating Temperature: −4°F (−20°C) minimum · 104°F (40°C) maximum ambient.
• Certifications: UL Listed (dry and damp) · DLC 5.1 Ultra-Efficient Premium.
• Rated Life: 100,000 hours per IES LM-80 / TM-21.
• Warranty: 5-year RAB warranty — covers light output, color stability, driver performance, and fixture finish.
• Microwave Sensor: Factory-installed MVS sensor · 12VDC input · 50/60Hz · operating temperature −22°F to 104°F (−30°C to 40°C) · detection range 20 ft diameter at 9 ft mounting height · max mounting height 9–12 ft.

Performance & Light Output

At 35W: 4,424 lm (3500K / 128.5 lm/W), 4,703 lm (4000K / 139.9 lm/W), 4,604 lm (5000K / 132.8 lm/W). At 26W: 3,425 lm (3500K / 135.3 lm/W), 3,620 lm (4000K / 145.9 lm/W), 3,538 lm (5000K / 138.9 lm/W). At 18W: 2,386 lm (3500K / 138.9 lm/W), 2,476 lm (4000K / 146.4 lm/W), 2,483 lm (5000K / 144.0 lm/W).

CRI 82–84 across all wattage and CCT settings. Rated life 100,000 hours (L70) per IES LM-80 / TM-21.

Smart & Control Features

The SWISH2X2/MVS includes a factory-installed microwave occupancy sensor and supports 0–10V dimming. The MVS sensor detects motion via microwave signal — capable of detecting occupancy through walls and partitions where PIR line-of-sight detection is insufficient. Sensor defaults: Motion Sensitivity High · 100% brightness when triggered · 20-min hold time · 20% standby dim · 1-min standby time · Daylight Disabled. Settings adjustable via MSR1 remote accessory (sold separately). For wireless mesh control and app-based adjustment, see the SWISH2X2/LCB-MVS (Lightcloud Blue MVS) variant.

Electrical

Class 2 constant current driver. Input: 120–277V, 50/60Hz. Power Factor: 99.6% at 120V / 95.0% at 277V. THD: 7.03% at 120V / 12.7% at 277V. Surge protection: 2kV L-L / 2kV L-N-G. Dimming: 0–10V, dims to 10% minimum. Mercury-free, UV-free, RoHS compliant.

Construction

Housing & Thermal: Cold Rolled Carbon Steel Sheets and Strip (SPCC) housing construction.

Lens & Optics: Diffused polystyrene lens panel for uniform, glare-controlled illumination across the full 2×2 grid opening.

Finish: White — formulated for high durability and long-lasting color.

Environmental & Safety: UL Listed for dry and damp locations. Mercury-free, UV-free, RoHS compliant. Operating range: −4°F (−20°C) to 104°F (40°C).

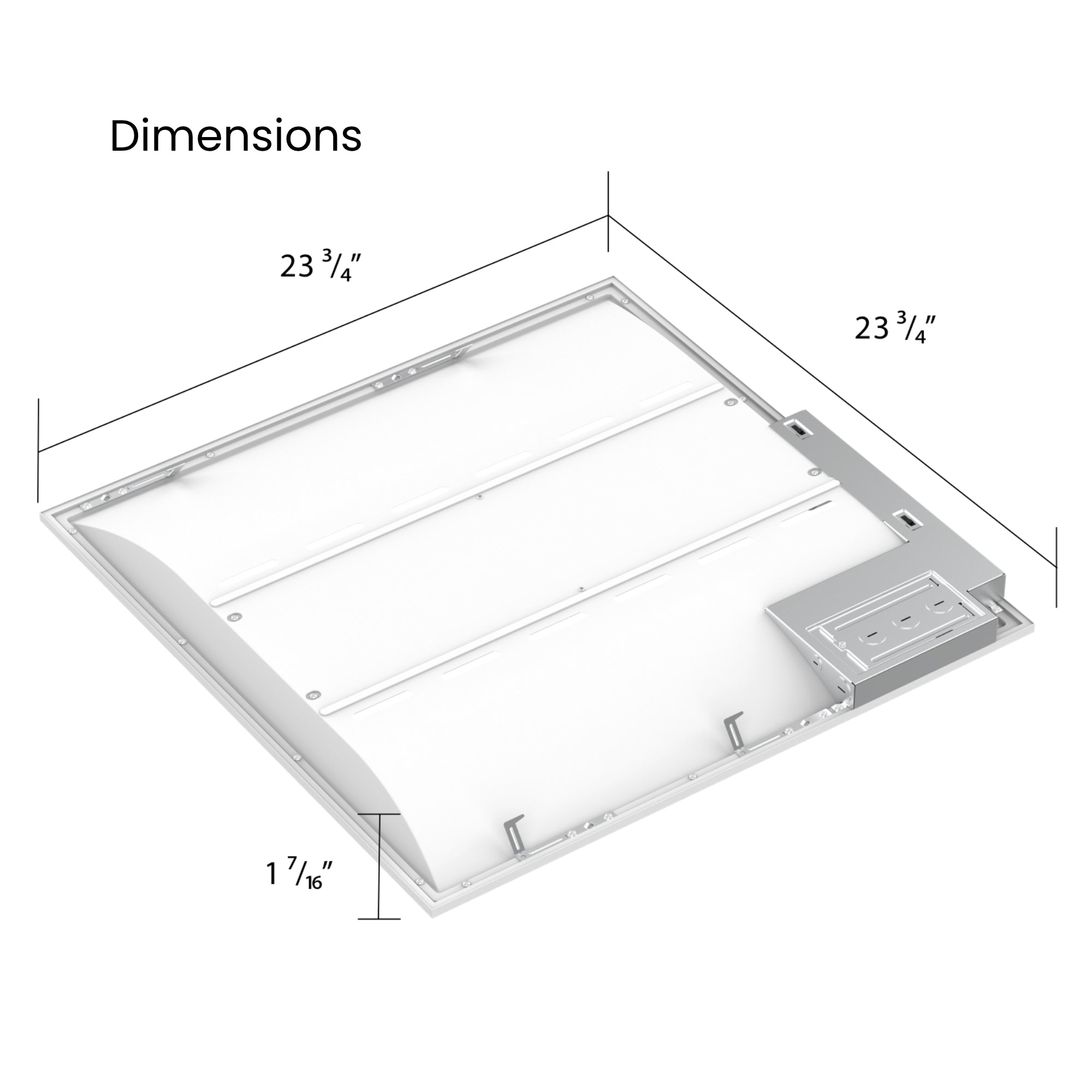

Dimensions & Weight: Ceiling opening: 18¹¹⁄₁₆" × 23¾". Fixture depth: 1⁷⁄₁₆". Weight: 8.8 lbs.

Installation & Mounting

Standard Hardware: Mounting hardware included for recessed T-grid ceiling installation.

Mounting Options: Recessed into standard 2×2 T-grid ceiling systems. Recommended mounting height for MVS sensor: 9–12 ft.

Wiring: Wattage and CCT selections should be confirmed prior to installation.

Certifications & Rebates

• UL Listed — dry and damp locations
• DLC 5.1 Ultra-Efficient Premium — qualifies for the highest tier of utility rebate programs from DLC Member Utilities. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number S-M443P3.
• TAA Compliant — eligible for U.S. government and GSA procurement
• RoHS Compliant — mercury-free, UV-free

Typical Applications

• Private offices and enclosed conference rooms — microwave sensor detects occupancy through walls and partitions where PIR line-of-sight is insufficient
• Healthcare exam rooms and treatment areas — damp location rating and MVS detection support reliable occupancy-based control in enclosed clinical spaces
• Educational classrooms — selectable wattage and microwave sensor meet energy code requirements for occupancy-based lighting control
• Government and institutional buildings — TAA Compliant and DLC 5.1 Ultra-Efficient Premium qualify for GSA procurement and highest-tier utility rebates
• Storage rooms and back-of-house spaces — microwave detection ensures reliable automatic shutoff even with obstructed sightlines

What's Included

• RAB SWISH2X2/MVS LED Center Basket Troffer — White
• Factory-installed microwave (MVS) occupancy sensor
• Mounting hardware for recessed T-grid installation
