RAB SUMOFA – 9" LED Surface Mount White – 16W – 120-277V – Selectable CCT – TRIAC Dimming
Available in stock (100)
About this item
About this item
- Compatible Dimming: TRIAC/ELV dimming to 10% with 120-277V input
- Quality Illumination: 1,300 listed lumens at 16W with greater than 90 CRI for accurate colors
- Selectable CCT: Five DIP-switch settings from 2700K to 5000K
- Flexible Installation: 9 Inch round fixture with surface or recessed mounting, sold separately; broad 110-degree beam
- Lasting Performance: Dry, damp and wet suitability, 50,000-hour L70 life and five-year warranty
Description
Description

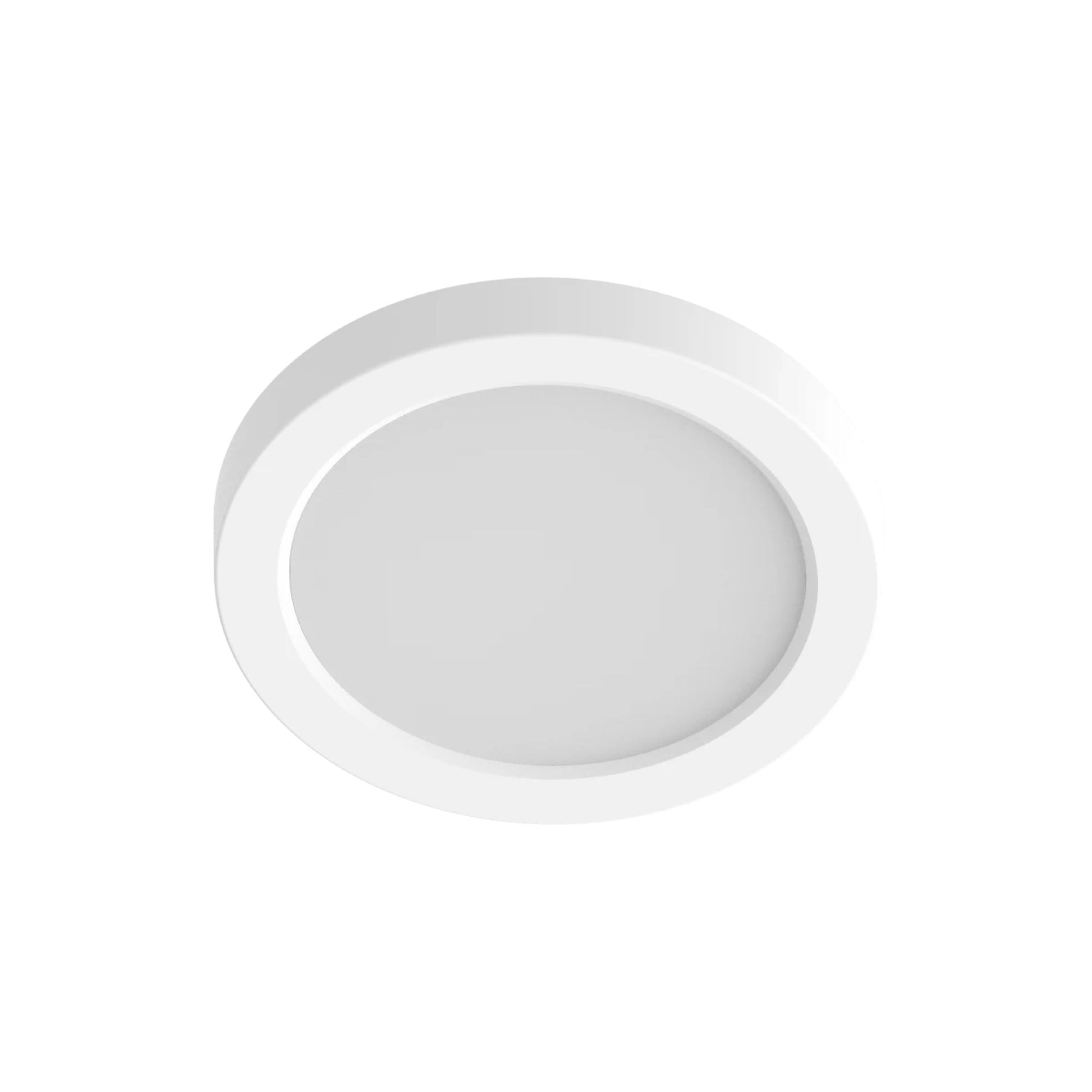

RAB SUMOFA-9R-16-95CCT-UNVT-W – 9 Inch LED Surface Mount White – 16W – Selectable CCT
The RAB SUMOFA combines a low-profile round design with 1,300 listed lumens at 16W for new construction and retrofit spaces. A white metal enclosure and polycarbonate diffuser create a clean ceiling appearance with evenly distributed light. Five selectable color temperatures, 120-277V input and TRIAC/ELV dimming to 10% let you tailor illumination to the space.
Key Features
- Light Output: 1,300 listed lumens at 16W; 100W incandescent equivalency
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
- Color Quality: Greater than 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse consistency
- Beam Angle: 110 degrees with ±10-degree tolerance
- Dimming: Down to 10% on compatible TRIAC/ELV systems
- Driver: Constant-current Class 2 with 120-277V input
- Electrical Performance: THD at most 20%, power factor at least 0.9 and flicker at most 30%
- Mounting: Surface or recessed installation; mounting sold separately

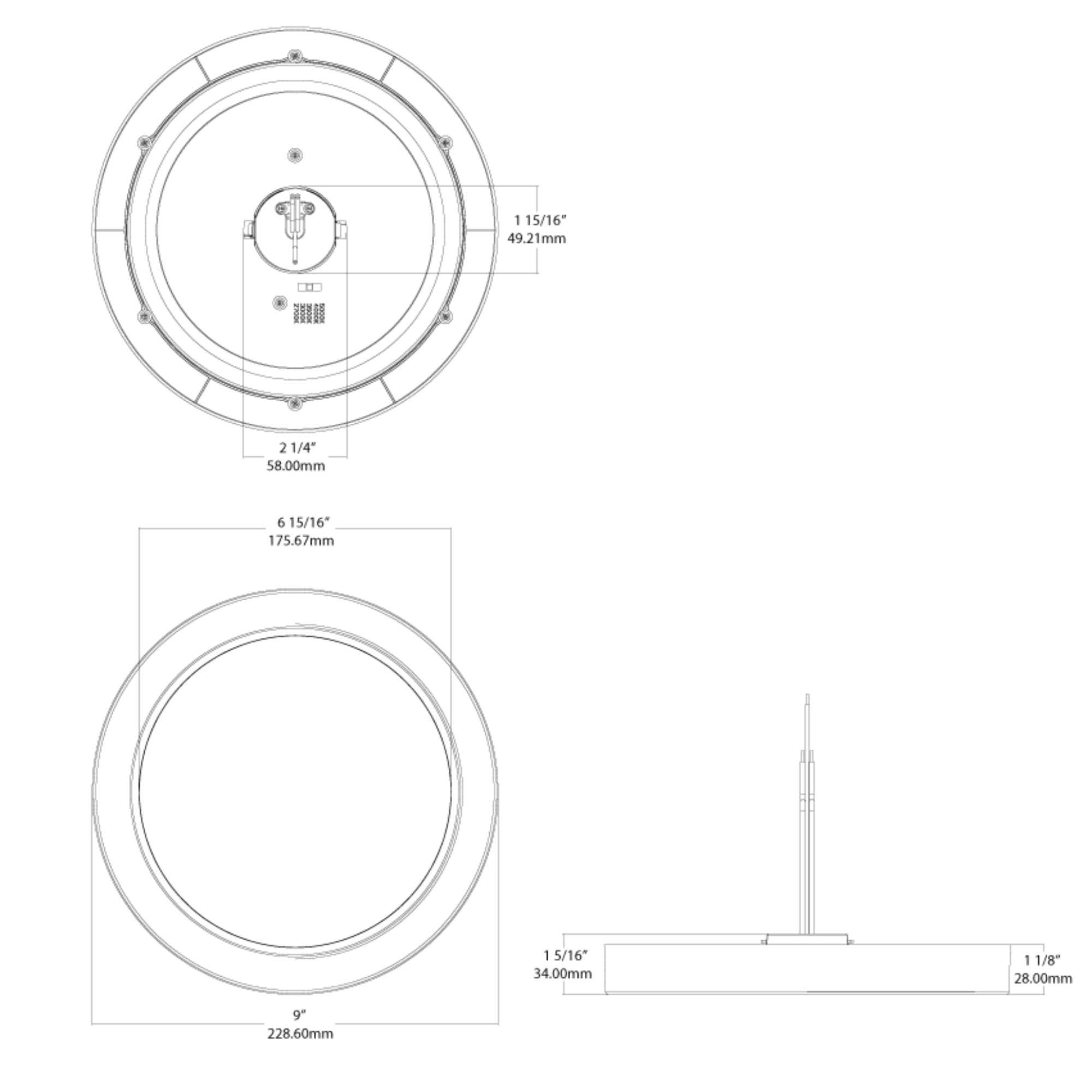

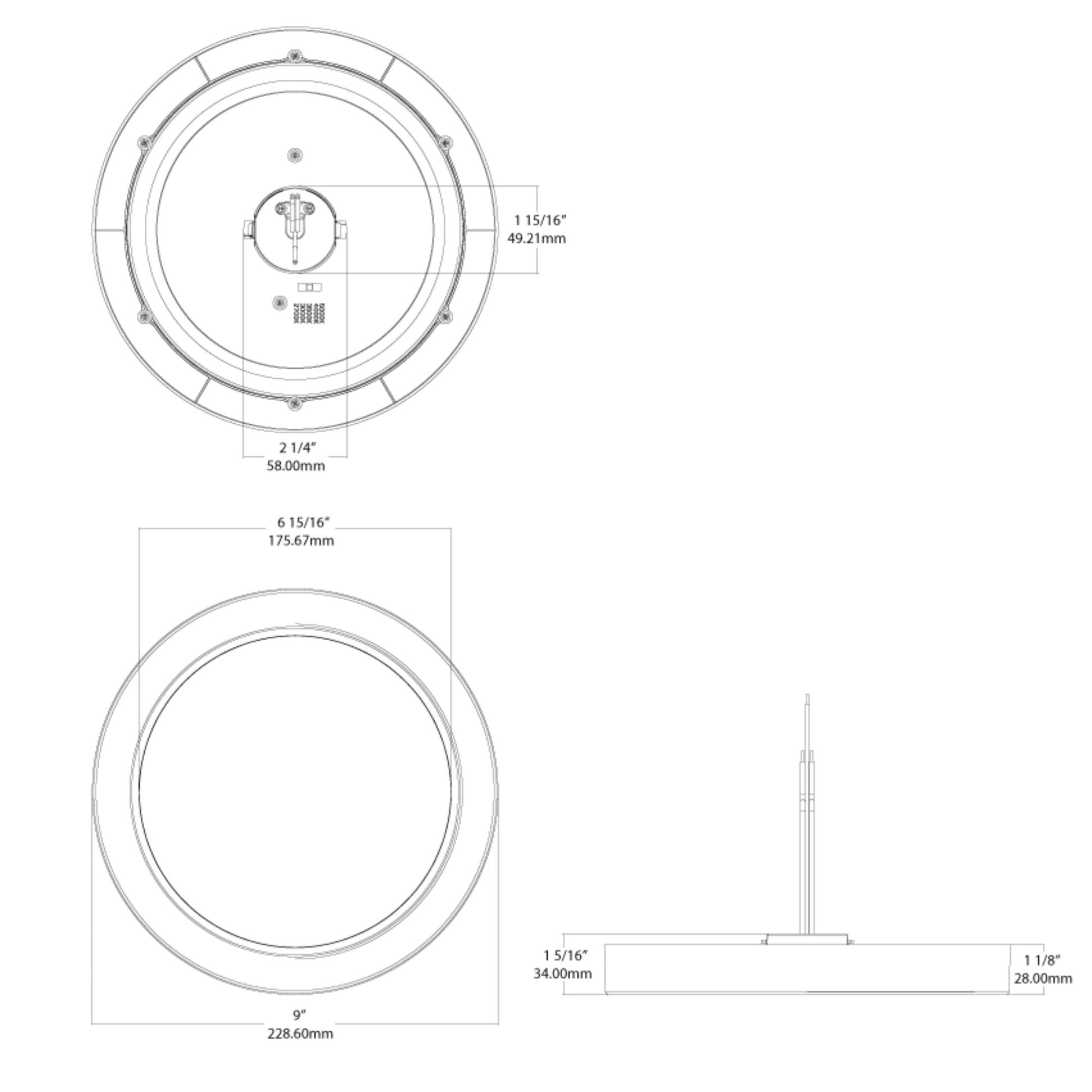

- Construction: 9 Inch round white metal enclosure, smooth trim and polycarbonate diffuser; 1.3 lb fixture weight
- Listings and Compliance: UL listed, RoHS, FCC and TAA compliant; supports Title 24 Part 6 requirements
- Environment: Dry, damp and wet locations; non-IC and non-airtight; -4°F to 104°F operating range
- Life and Warranty: 50,000-hour L70 life and five-year warranty
Construction & Design
The 9 Inch round fixture pairs a white metal enclosure and smooth trim with a polycarbonate diffuser for even general illumination. Its low-profile form provides an understated ceiling finish without the drop of a hanging fixture. Fixture weight is 1.3 lb.
Light Output & Performance
The integrated LED produces 1,300 listed lumens at 16W. Choose 2700K, 3000K, 3500K, 4000K or 5000K to suit the room. Greater than 90 CRI supports accurate color rendering, while a 110-degree beam provides broad illumination. Rated life is 50,000 hours at L70.
Electrical & Installation
The constant-current Class 2 driver accepts 120-277V. This UNVT model dims down to 10% on compatible TRIAC/ELV systems. Surface or recessed installation is supported, with mounting sold separately. Set the color temperature using the DIP switch during installation. The fixture is suitable for dry, damp and wet environments, but is not IC rated or airtight.
Compatible Accessories
- DAISY50: 50 ft extension cord with connectors
- DAISY4 and DAISY4B: Listed 4 Inch daisy wafer accessories
- DAISY6 and DAISY6B: Listed 6 Inch daisy wafer accessories
Accessories are sold separately.
Typical Applications
- Residential hallways and entryways
- Utility and laundry areas
- Bathrooms
- Closets installed in accordance with applicable clearances and installation requirements
What's Included
- One white RAB SUMOFA fixture with integrated LED, driver and polycarbonate diffuser; mounting sold separately
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this SUMOFA fixture be used in wet locations?
Can this SUMOFA fixture be used in wet locations?
Does this model support TRIAC and ELV dimming?
Does this model support TRIAC and ELV dimming?
What are its lumen output and selectable color temperatures?
What are its lumen output and selectable color temperatures?
Does it offer surface and recessed mounting options?
Does it offer surface and recessed mounting options?
Which accessories are listed for this fixture?
Which accessories are listed for this fixture?
