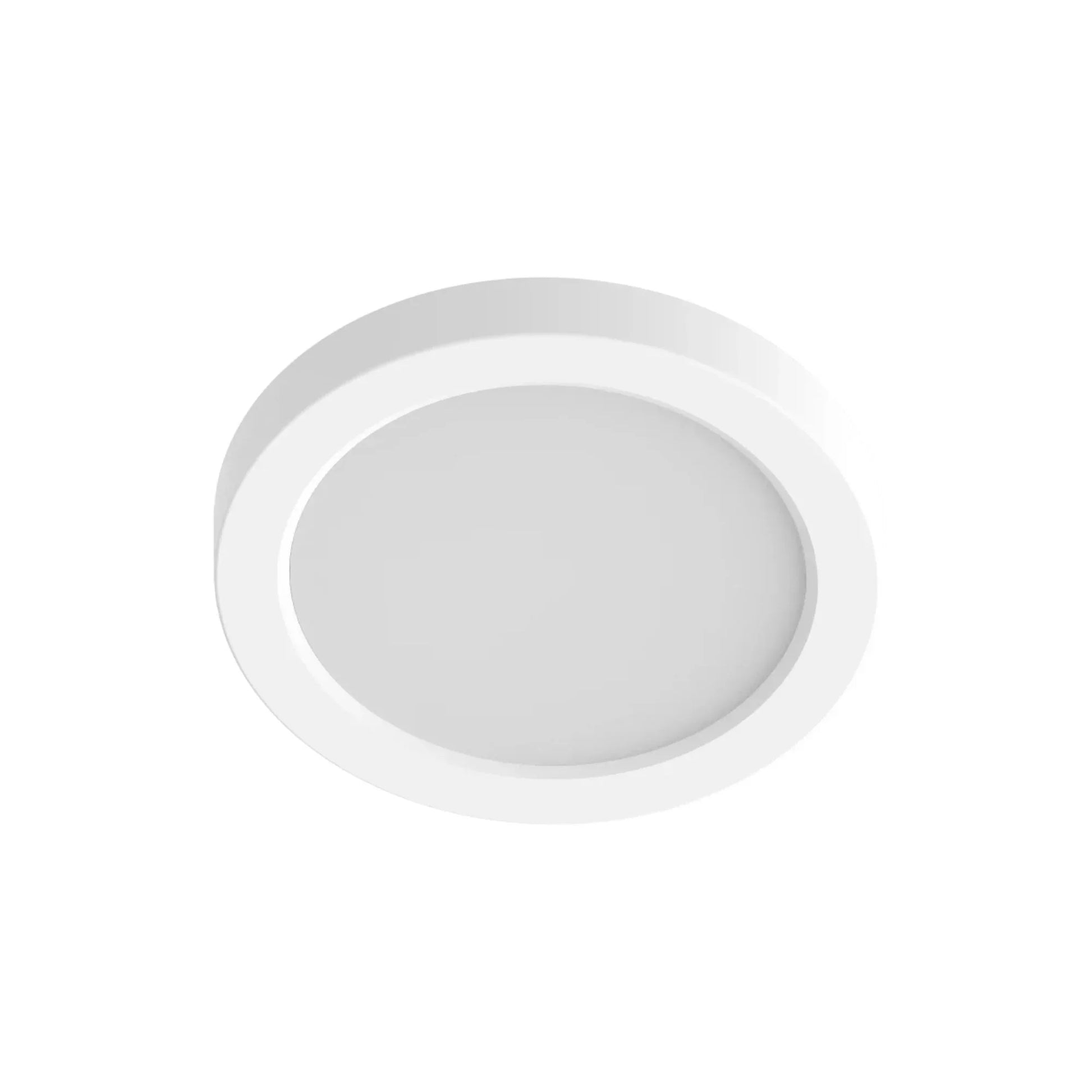

RAB SUMOFA-9R-16-95CCT-UNV-W 9 in LED Flush Mount — White, 16W, Selectable CCT

The RAB SUMOFA-9R-16-95CCT-UNV-W integrated LED flush mount combines a sleek, low-profile design with 0-10V dimming for new construction and retrofit spaces. Choose five field-adjustable CCT settings for 1,300-1,375 lumens at 16W, depending on the selected color temperature. A white metal enclosure and polycarbonate diffuser provide a clean appearance and evenly distributed light, while 120-277V input supports a range of electrical installations.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Setting-Specific Output: 1,300, 1,330, 1,360, 1,375 and 1,345 lumens respectively
• Wattage: 16W integrated LED; 100W incandescent equivalency
• Color Quality: Greater than 90 CRI and R9 at least 50
• Color Consistency: 4-step MacAdam Ellipse binning
• Beam: 110 degrees with ±10-degree tolerance
• Dimming: 0-10V
• Driver: Constant-current Class 2; 120-277V input and 50/60Hz operating frequency
• Electrical Quality: THD at most 20%, power factor at least 0.9 and flicker at most 30%

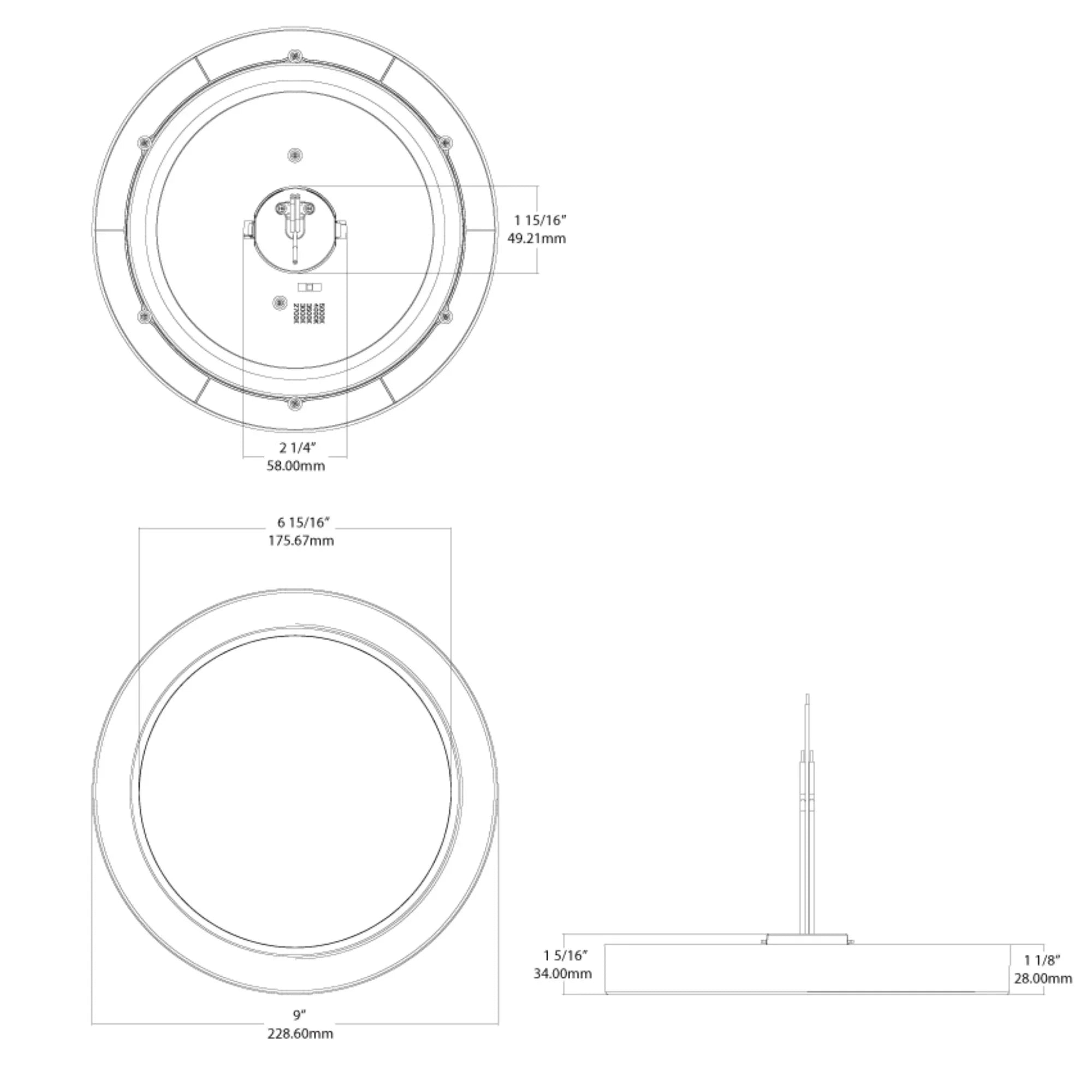

• Construction and Mounting: Round 9 in white metal enclosure, smooth trim and polycarbonate diffuser; 1.3 lb; surface or recessed mounting with mounting hardware sold separately
• Listings and Compliance: UL listed for dry, damp and wet environments; ENERGY STAR Version 2.2 certified; TAA, FCC Part 15 and RoHS compliant; sheet states suitability for conformity with California Title 24 Part 6; not IC rated or airtight
• Life and Warranty: 50,000-hour L70 lifespan; five-year warranty; -4°F to 104°F operating range

Construction & Design

The round 9 in fixture pairs a white metal enclosure with smooth trim and a polycarbonate diffuser that distributes light evenly for general illumination. It weighs 1.3 lb. Its low-profile design keeps the appearance understated without the drop of a hanging fixture.

Light Output & Performance

Output is 1,300 lumens at 2700K, 1,330 at 3000K, 1,360 at 3500K, 1,375 at 4000K and 1,345 at 5000K. Corresponding efficacy is 81, 83, 85, 86 and 84 lm/W. Greater than 90 CRI and R9 at least 50 support accurate color rendering, with a broad 110-degree beam and ±10-degree tolerance. Rated LED life is 50,000 hours at L70; separate bulbs are not required.

Electrical & Installation

The constant-current Class 2 driver accepts 120-277V with a listed operating frequency of 50/60Hz and supports 0-10V dimming. The mounting specification permits surface or recessed installation, with mounting hardware sold separately. Select CCT using the DIP switch during installation. The low-profile form avoids the overhead drop of a pendant. The fixture is UL listed for dry, damp and wet environments and suitable for closet installations under the NEC provisions listed on the sheet. It is neither IC rated nor airtight.

Compatible Accessories

• DAISY50: 50 ft extension cord with connectors
• DAISY4 and DAISY4B: Listed 4 in daisy wafer accessories
• DAISY6 and DAISY6B: Listed 6 in daisy wafer accessories

Typical Applications

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms
• Closets with installation under the listed NEC provisions

What's Included

• RAB SUMOFA-9R-16-95CCT-UNV-W white fixture with integrated LED and polycarbonate diffuser
