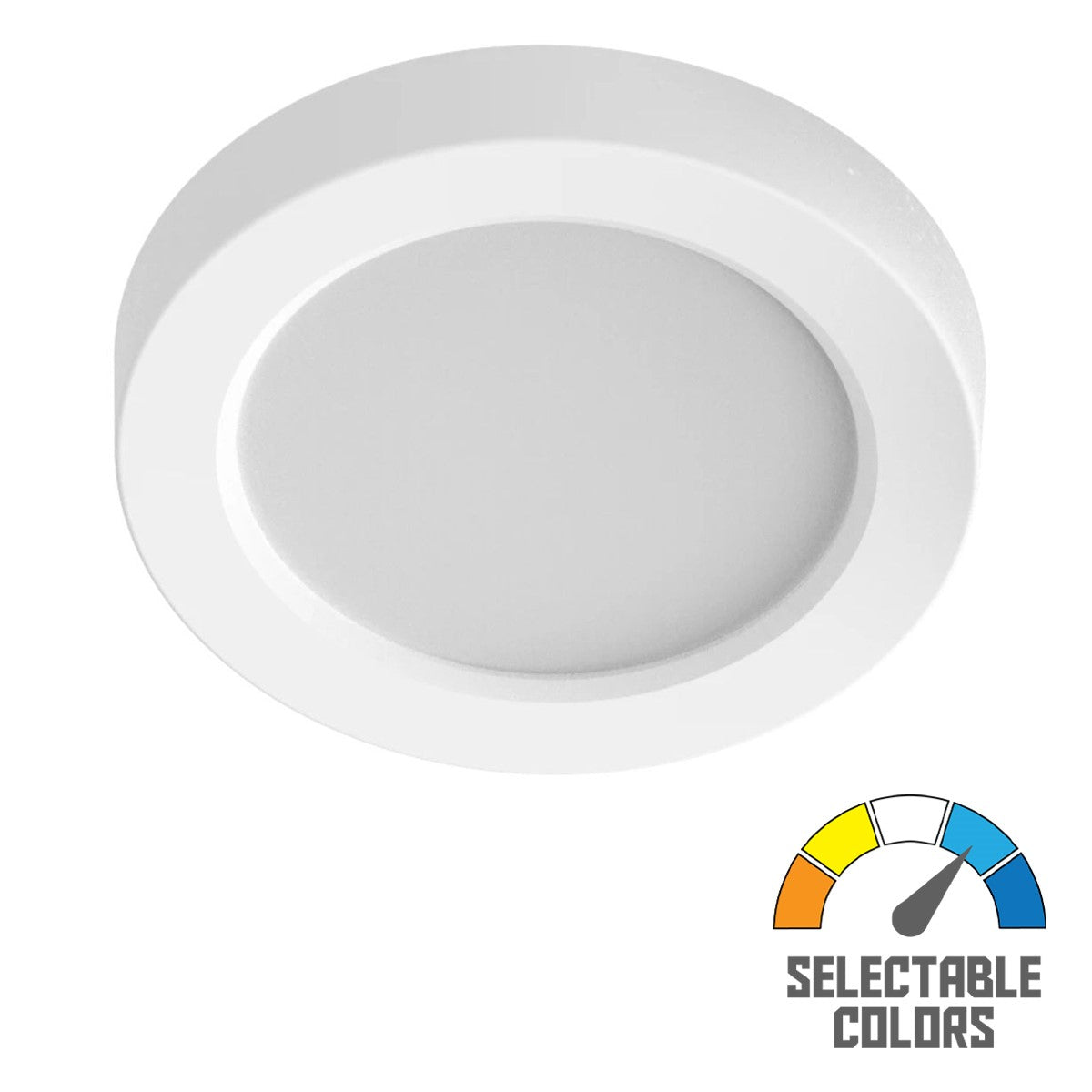

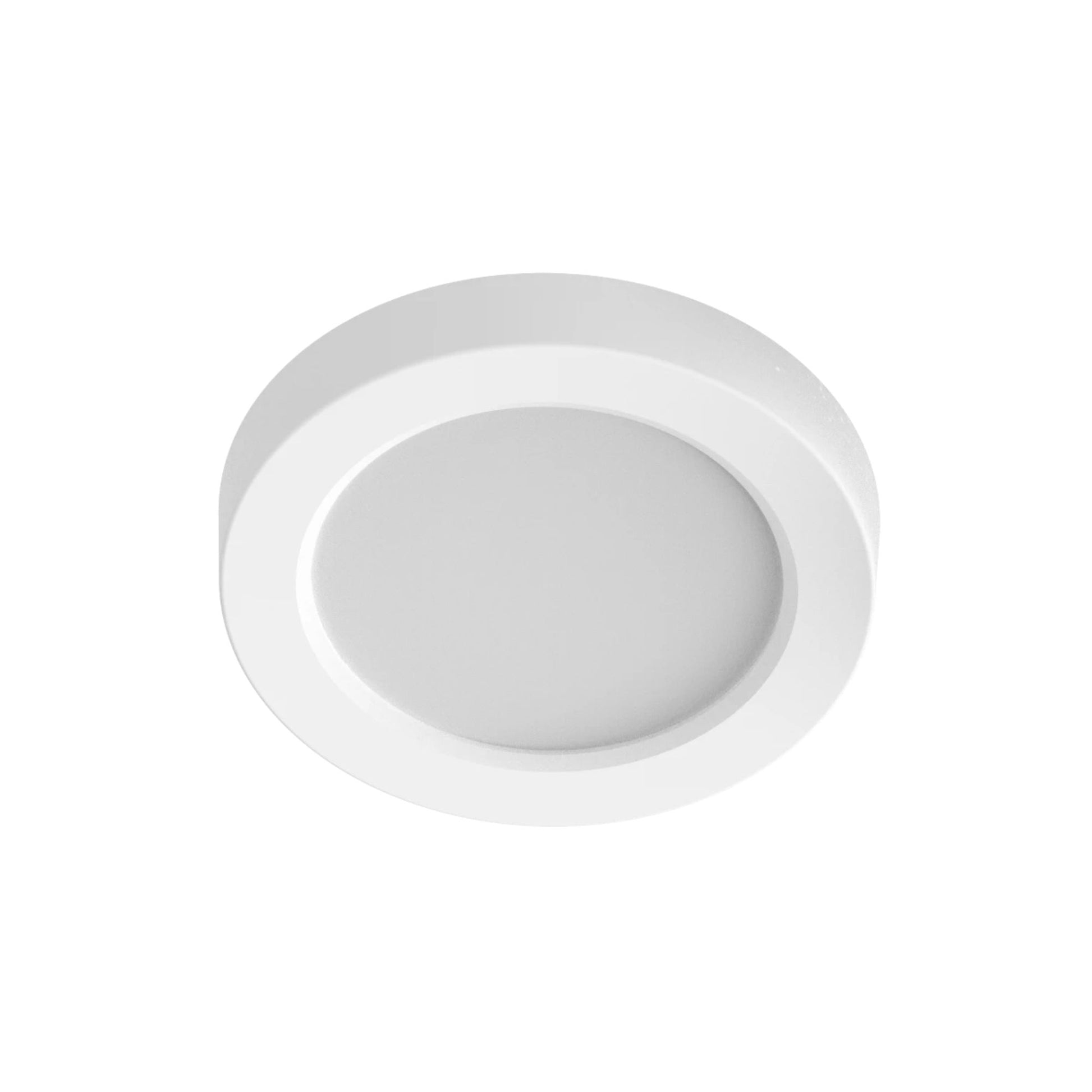

RAB SUMOFA-7R-12-95CCT-UNV-W 7 in LED Flush Mount — White, 12W, Selectable CCT

The RAB SUMOFA-7R-12-95CCT-UNV-W integrated LED flush mount combines a sleek, low-profile design with 0-10V dimming for new construction and retrofit projects. Choose five field-adjustable CCT settings for 950-1,020 lumens at 12W, depending on the selected color temperature. Its white metal enclosure and polycarbonate diffuser create a clean look, while 120-277V input supports a range of electrical installations.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Setting-Specific Output: 950, 970, 1,000, 1,020 and 985 lumens respectively
• Wattage: 12W integrated LED; 60W incandescent equivalency
• Color Quality: Greater than 90 CRI and R9 at least 50
• Color Consistency: 4-step MacAdam Ellipse binning
• Beam: 110 degrees with ±10-degree tolerance
• Dimming: 0-10V
• Driver: Constant-current Class 2; 120-277V input
• Electrical Quality: THD at most 20%, power factor at least 0.9 and flicker at most 30%
• Construction: Round 7 in size, white metal enclosure, smooth trim and polycarbonate diffuser; 0.9 lb
• Listings and Compliance: UL listed for dry, damp and wet environments; ENERGY STAR Version 1.0 certified; TAA, FCC Part 15 and RoHS compliant; sheet states suitability for conformity with California Title 24 Part 6; not IC rated or airtight
• Life and Warranty: 50,000-hour L70 lifespan; five-year warranty; -4°F to 104°F operating range

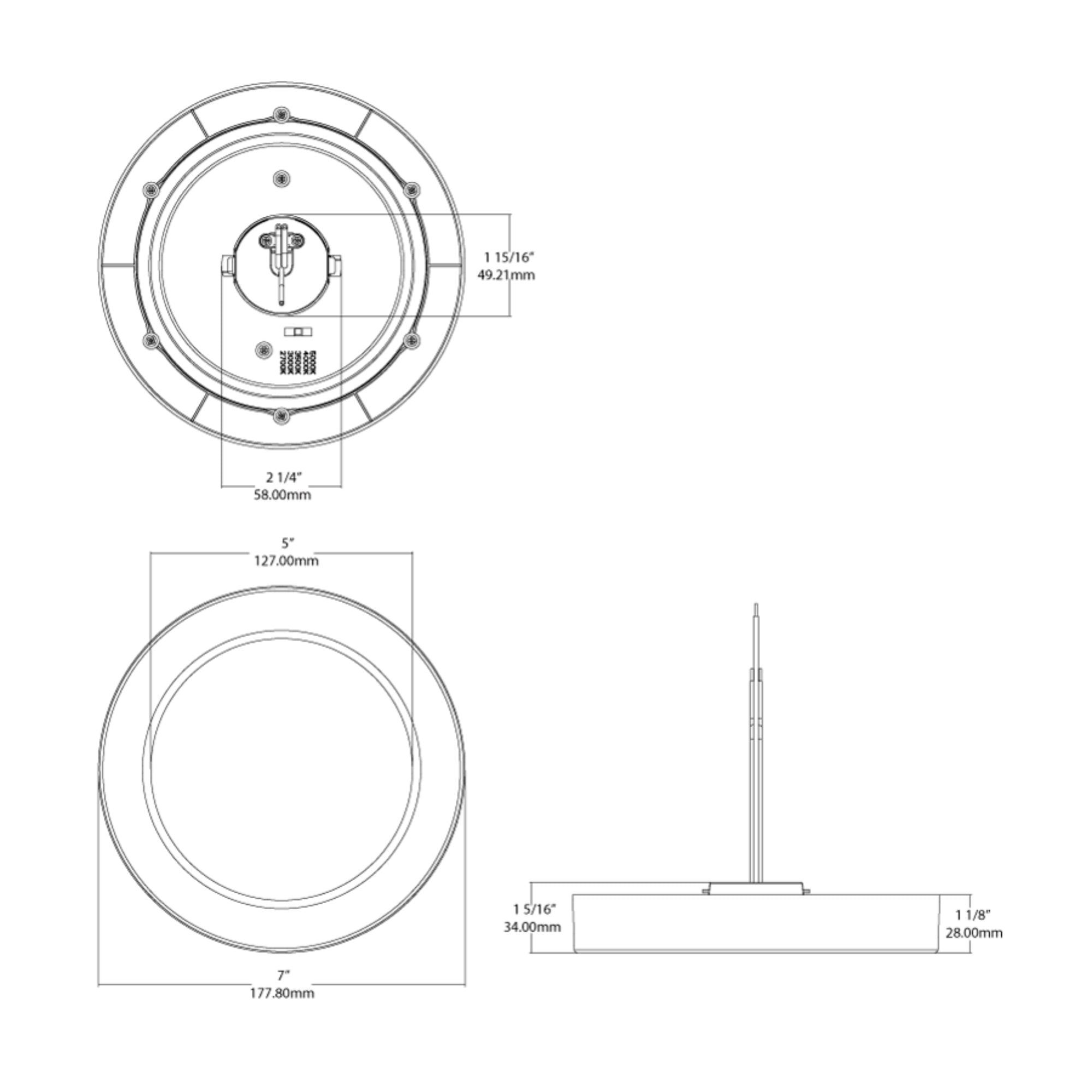

Construction & Design

The round 7 in surface-mount fixture pairs a white metal enclosure with smooth trim and a polycarbonate diffuser that distributes light evenly for general illumination. It weighs 0.9 lb. Its low-profile form suits spaces where a hanging fixture would create an unwanted drop.

Light Output & Performance

Output is 950 lumens at 2700K, 970 at 3000K, 1,000 at 3500K, 1,020 at 4000K and 985 at 5000K. Corresponding efficacy is 79, 81, 83, 85 and 82 lm/W. Greater than 90 CRI and R9 at least 50 support accurate color rendering, with a broad 110-degree beam and ±10-degree tolerance. Rated LED life is 50,000 hours at L70; separate bulbs are not required.

Electrical & Installation

The constant-current Class 2 driver accepts 120-277V and supports 0-10V dimming. This surface-mount model suits new construction and retrofit spaces. Select CCT using the DIP switch during installation. Its low-profile format avoids the overhead drop of a pendant. The fixture is UL listed for dry, damp and wet environments and suitable for closet installations under the NEC provisions listed on the sheet. It is neither IC rated nor airtight.

Compatible Accessories

• DAISY50: 50 ft extension cord with connectors

Typical Applications

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms
• Closets with installation under the listed NEC provisions

What's Included

• RAB SUMOFA-7R-12-95CCT-UNV-W white fixture with integrated LED and polycarbonate diffuser
