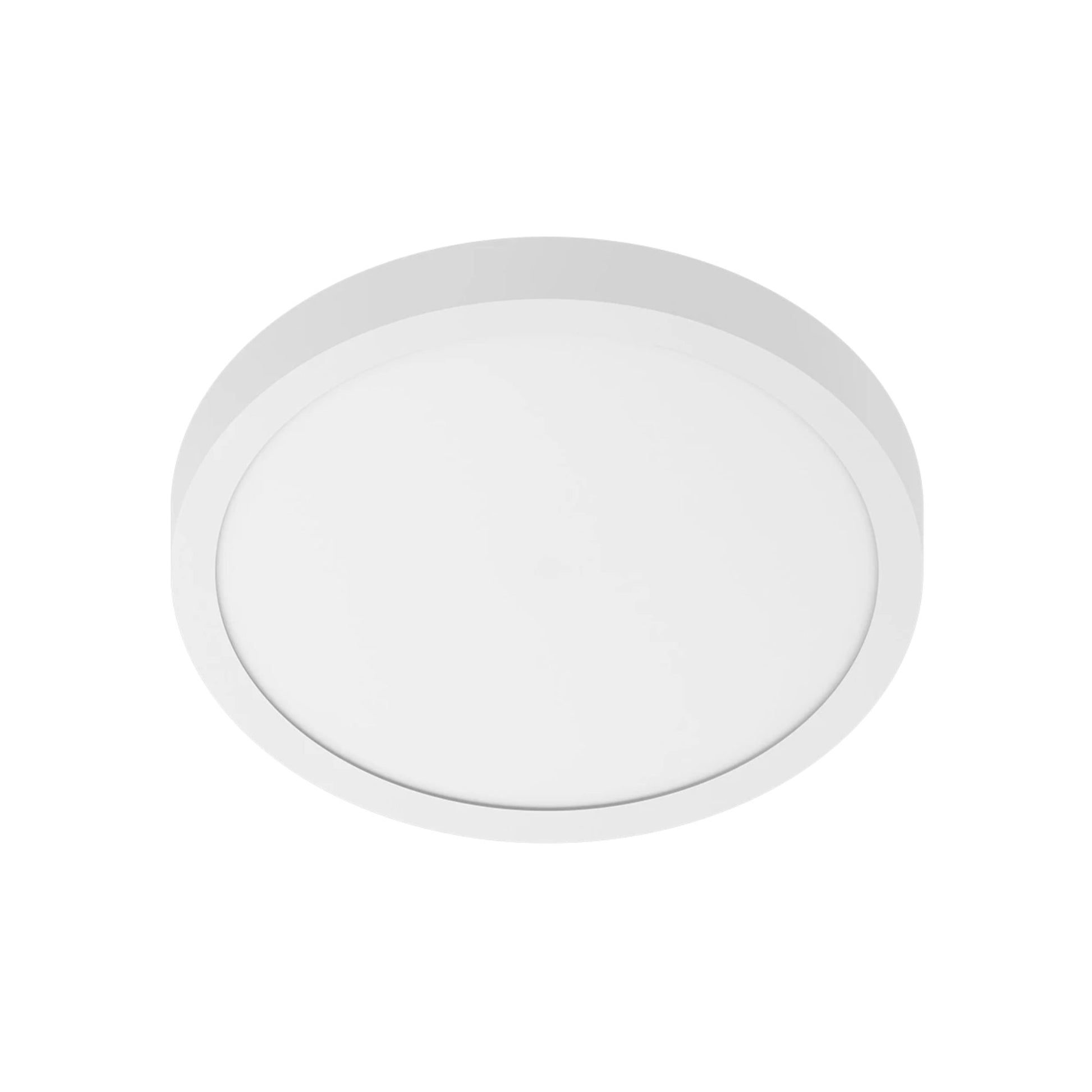

RAB SUMO12/LCB 12 in Smart LED Flush Mount — White, 24W, Tunable White

The RAB SUMO12/LCB integrated LED flush mount pairs an ultra-slim, edge-lit design with Lightcloud Blue Bluetooth Mesh control. Adjust on/off, brightness and tunable-white color temperature from the Lightcloud Blue mobile app, with no gateway or hub required. Its 1,900 lumens at 24W, white metal enclosure and polycarbonate diffuser suit new construction and retrofit spaces, while SmartShift-ready functionality supports lighting that follows local sunrise and sunset.

Key Features

• Wireless Control: Lightcloud Blue app and compatible devices control on/off, dim level and color temperature
• Hub-Free Network: Bluetooth Mesh communication; no gateway or hub required
• Tunable White: 2700K-6500K range stated in the overview and features; default 3000K
• SmartShift Ready: Circadian lighting functionality synchronized with local sunrise and sunset
• App Configuration: Schedules, scenes and lighting settings from a mobile device
• Output: 1,900 lumens at 24W; 79 lm/W efficacy; 120W incandescent equivalency
• Color Quality: Greater than 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse consistency
• Optics: 110-degree beam and polycarbonate diffuser
• Electrical: Constant-current Class 2 driver, 120-277V and 60Hz; THD at most 20%, power factor at least 0.9 and flicker below 5%

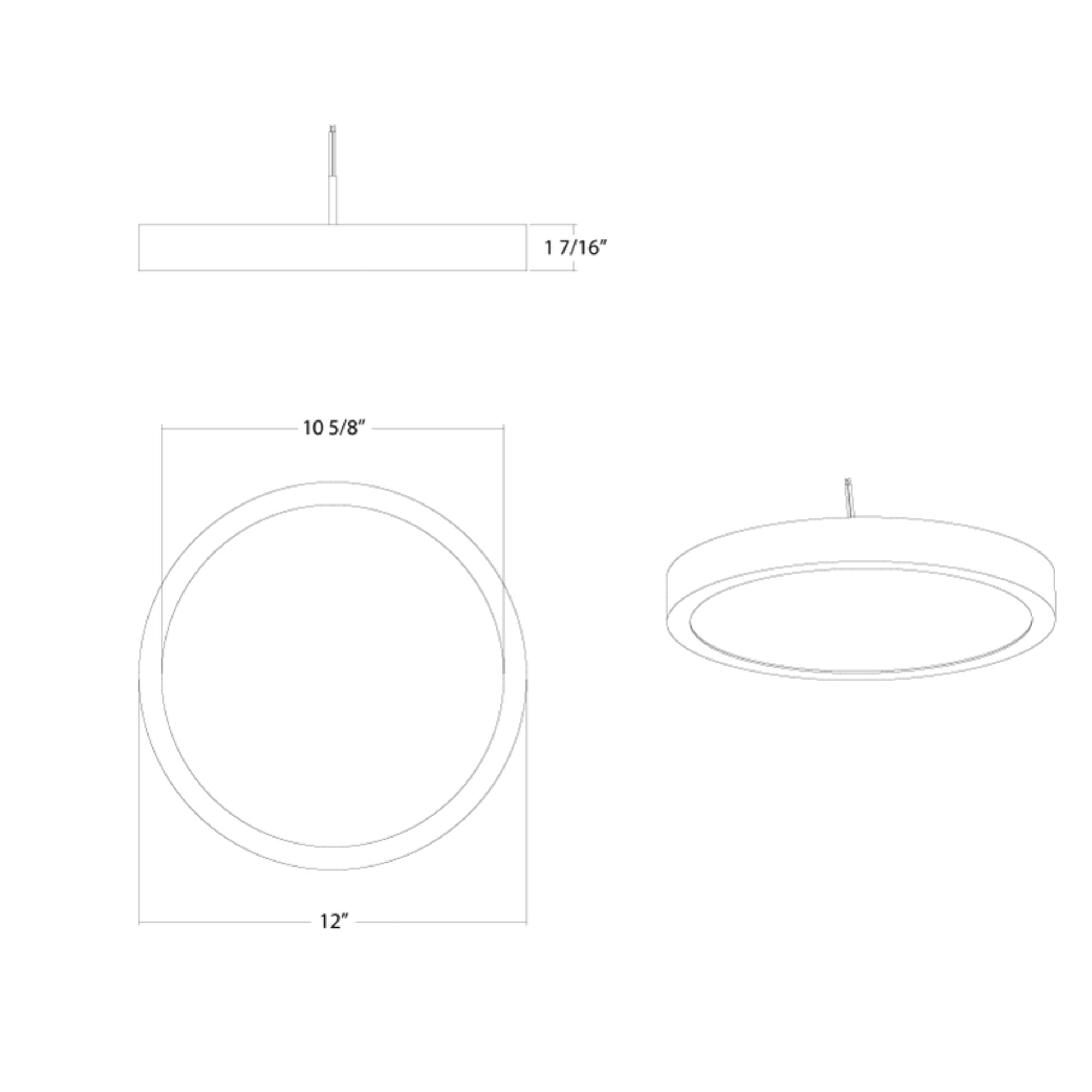

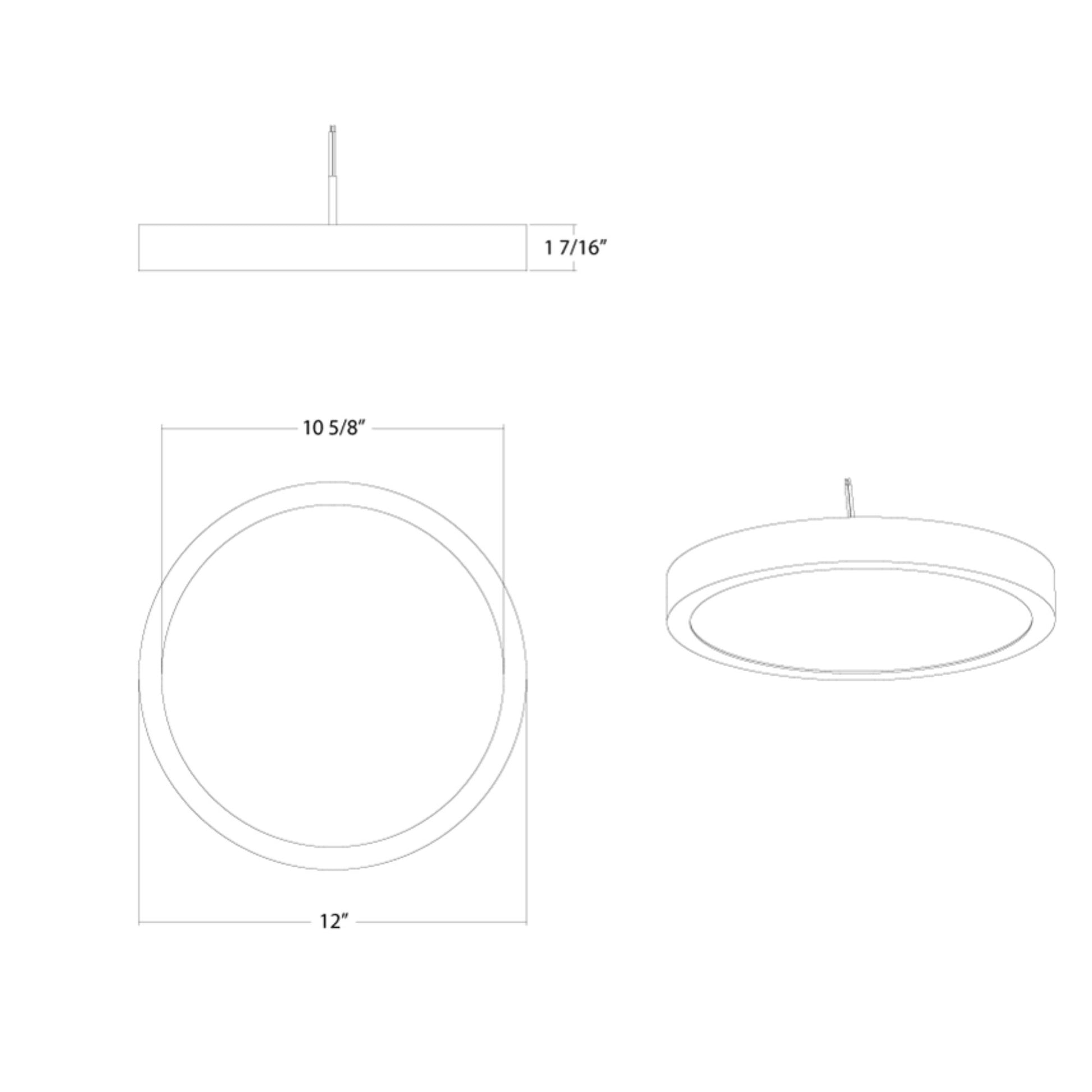

• Construction: Round 12 in white metal enclosure with smooth trim; surface mounting; 2.5 lb
• Listings and Compliance: UL listed for dry, damp and wet environments; ENERGY STAR Version 2.2 certified; RoHS-compliant components and FCC Part 15 compliance; neither IC rated nor airtight
• Life and Warranty: 50,000-hour L70 lifespan; five-year warranty; -4°F to 104°F operating range

Construction & Design

The 12 in round white metal enclosure features smooth trim and a polycarbonate diffuser for evenly distributed general illumination. Its ultra-slim edge-lit design provides a contemporary surface-mounted appearance without a pendant drop. Fixture weight is 2.5 lb.

Light Output & Performance

The integrated LED delivers 1,900 lumens at 24W with 79 lm/W efficacy and a 110-degree beam. Greater than 90 CRI and R9 at least 50 support accurate color rendering. The overview and features specify 2700K-6500K tunable white with smooth transitions; default CCT is 3000K. Rated life is 50,000 hours at L70; separate bulbs are not required.

Electrical & Installation

The constant-current Class 2 driver accepts 120-277V at 60Hz. This fixture is designed for surface mounting, with a low-profile form that avoids a hanging drop. Control dimming through the Lightcloud Blue mobile app and compatible devices; the sheet warns that it will not operate properly when connected to a standard incandescent dimmer or dimming control.

Connect directly to Lightcloud Blue using Bluetooth, without a gateway or hub. Configure on/off, dim level, color temperature, schedules and scenes in the app. SmartShift supports circadian lighting synchronized with local sunrise and sunset. The sheet lists range up to 60 ft through standard building materials or 200 ft clear line of sight; brick, concrete and steel may require additional Lightcloud Blue devices to extend around obstructions. The fixture is UL listed for dry, damp and wet environments and suitable for closet installation under the listed NEC provisions, but is not IC rated or airtight.

Typical Applications

• Residential living spaces with app-controlled lighting
• Hallways and entryways
• Utility and laundry areas
• Commercial circulation areas using Lightcloud Blue networks

What's Included

• RAB SUMO12/LCB white surface-mount fixture with integrated LED, polycarbonate diffuser and Lightcloud Blue functionality
