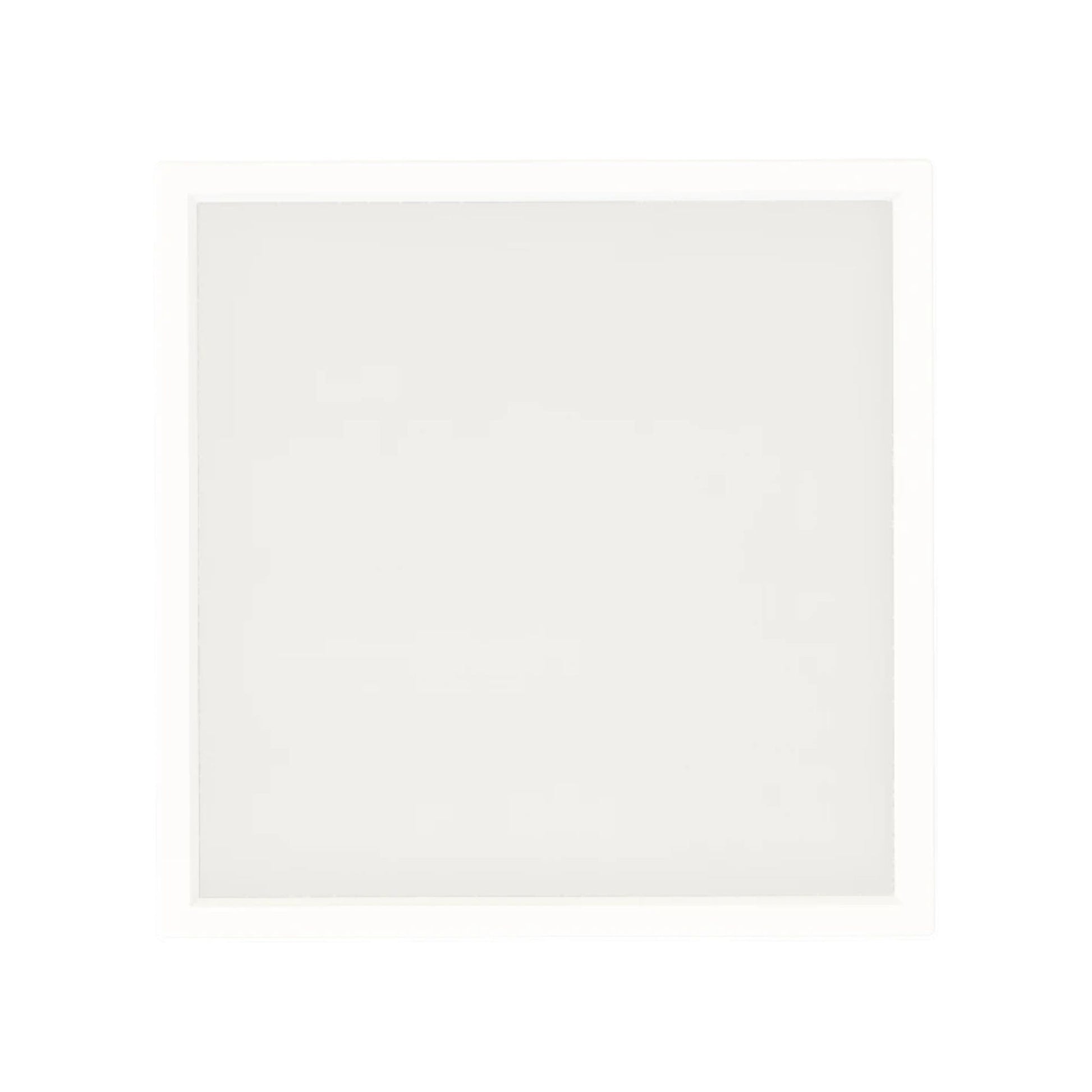

RAB SUMO-S-7 7 in Square LED Surface Mount — White, 14W, Selectable CCT

The RAB SUMO-S-7 integrated LED surface mount brings a crisp square outline to new construction and retrofit spaces. Its 7 in white smooth trim and polycarbonate diffuser provide evenly distributed general illumination. Select the light tone during installation and adjust brightness with compatible TRIAC/ELV dimming to 10% for everyday flexibility.

Key Features

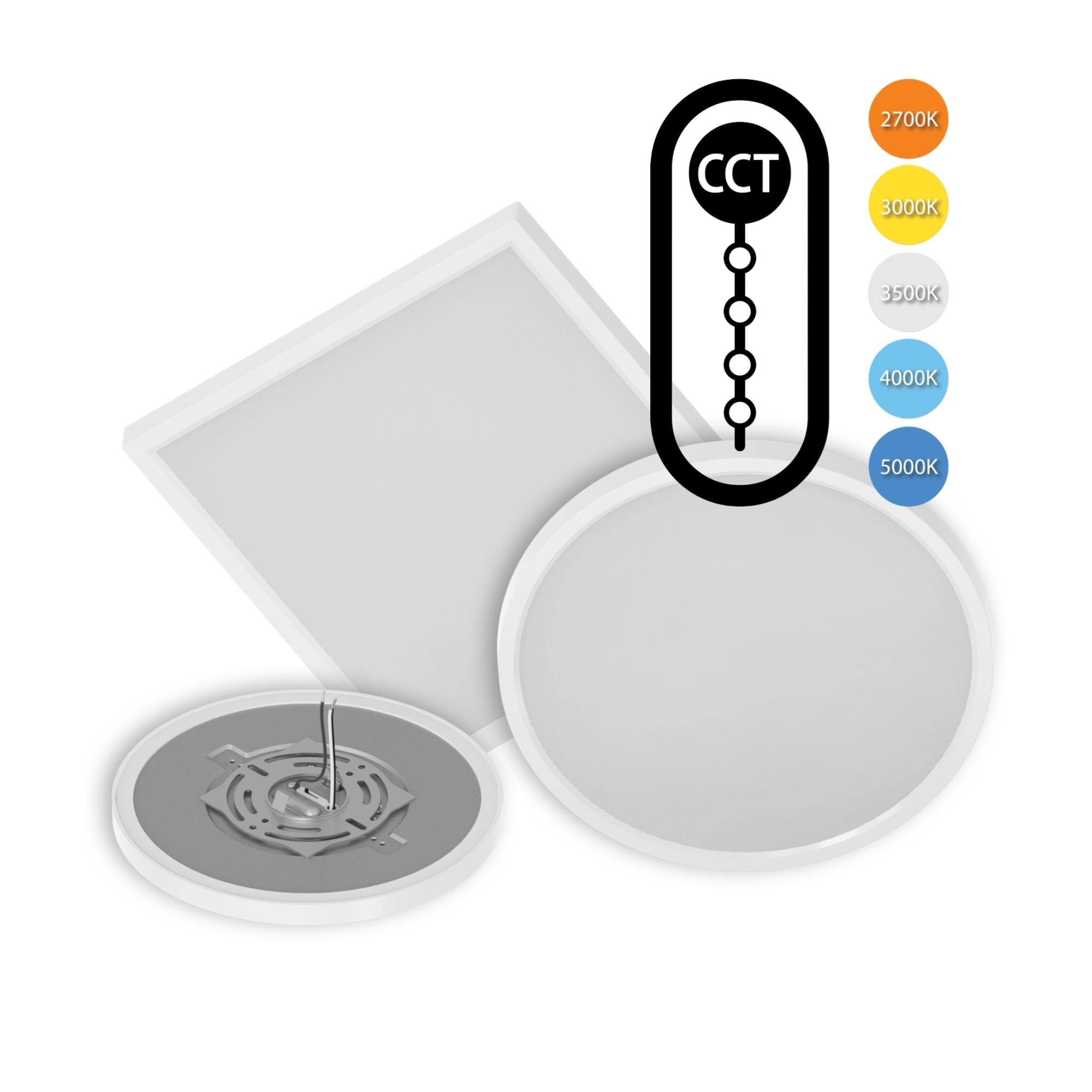

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• LED Input: 14W; manufacturer-listed 60W incandescent equivalency
• CCT-Specific Output: 913 lm at 2700K, 973 lm at 3000K, 1,027 lm at 3500K, 1,042 lm at 4000K and 1,009 lm at 5000K
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse binning
• Beam: 110 degrees ±10 degrees
• Driver: Constant-current Class 2; 120V at 60Hz
• Power Quality: Power factor at least 0.9; flicker at most 30%

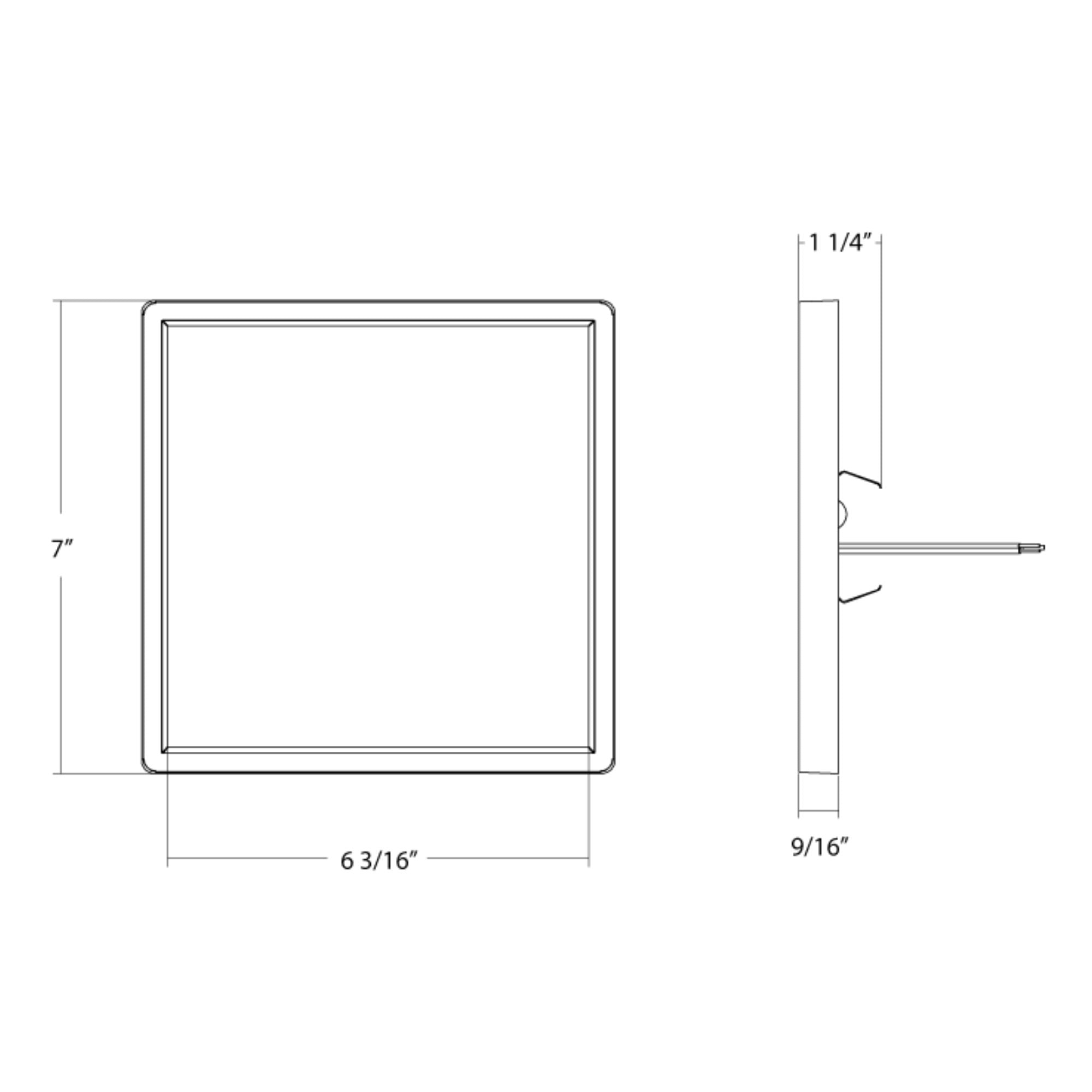

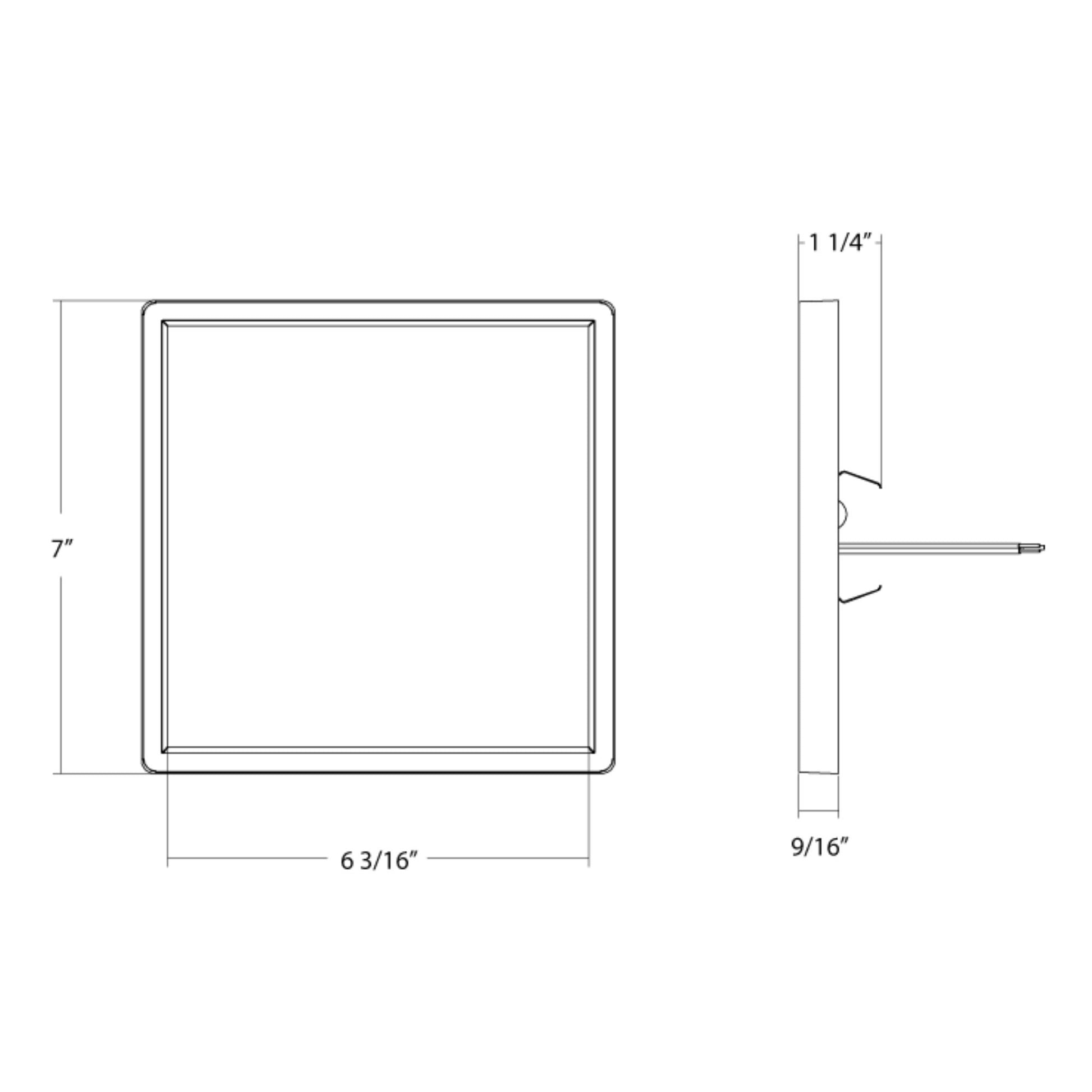

• Construction: 7 in square metal enclosure, smooth white trim and polycarbonate diffuser; 1.3 lb
• Listings: UL listed, ENERGY STAR Version 2.2 certified, FCC Part 15 and RoHS compliant
• Environment: Dry, damp and wet suitability; non-IC and non-airtight
• Life and Warranty: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operating range

Construction & Design

The 7 in square form provides a defined architectural outline without a hanging pendant drop. A metal enclosure and smooth white finish coordinate with understated interiors, while the polycarbonate diffuser spreads light evenly and smoothly. Fixture weight is 1.3 lb.

Light Output & Performance

Detailed output is 913/973/1,027/1,042/1,009 lumens at 2700/3000/3500/4000/5000K, respectively, using 14W. The broad 110-degree ±10-degree beam supports general illumination, and 90 CRI with R9 at least 50 helps render colors clearly. Integrated LEDs provide a rated 50,000-hour L70 lifespan.

Electrical & Installation

Surface-mount installation on compatible junction boxes keeps the fixture close to the ceiling without a pendant-style drop. The constant-current Class 2 driver operates on 120V at 60Hz. Select color temperature using the fixture DIP switch during installation and use compatible TRIAC/ELV controls to dim to 10%. This fixture is not IC rated and not airtight.

The individual sheet lists dry, damp and wet suitability, closet-use compliance with NEC 410.16(A)(1) and 410.16(C)(1), California Title 24 Part 6 conformity capability, and TAA compliance with Cambodia as country of manufacture.

Typical Applications

• Hallways and entryways
• Laundry and utility rooms
• Closets with installation clearances appropriate to the listed use
• Bathrooms and covered outdoor spaces

What's Included

• One white RAB SUMO-S-7 square surface-mount fixture with integrated LED light source and driver
