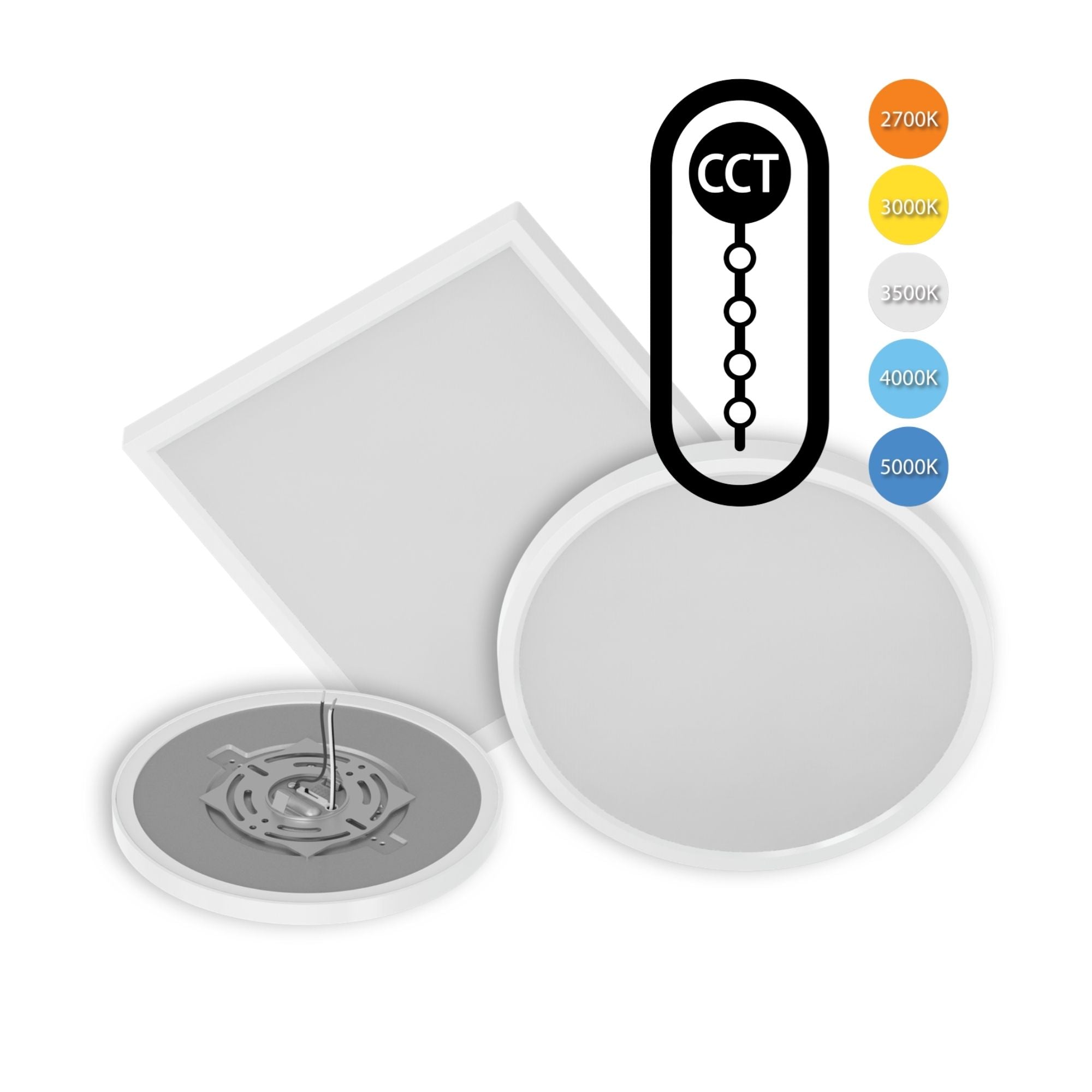

RAB SUMO-R-9 9 in Round LED Surface Mount White 18W Selectable CCT
Available in stock (100)
About this item
About this item
- Flexible Mounting: 9 in round white design supports surface or recessed mounting options
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
- CCT-Specific Output: 1,182–1,305 lumens from 18W, with 90 CRI and a 110-degree ±10-degree beam
- Adjustable Brightness: Compatible 120V TRIAC/ELV systems dim to 10%
- Lasting Reliability: Dry/damp/wet suitability, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty
Description
Description

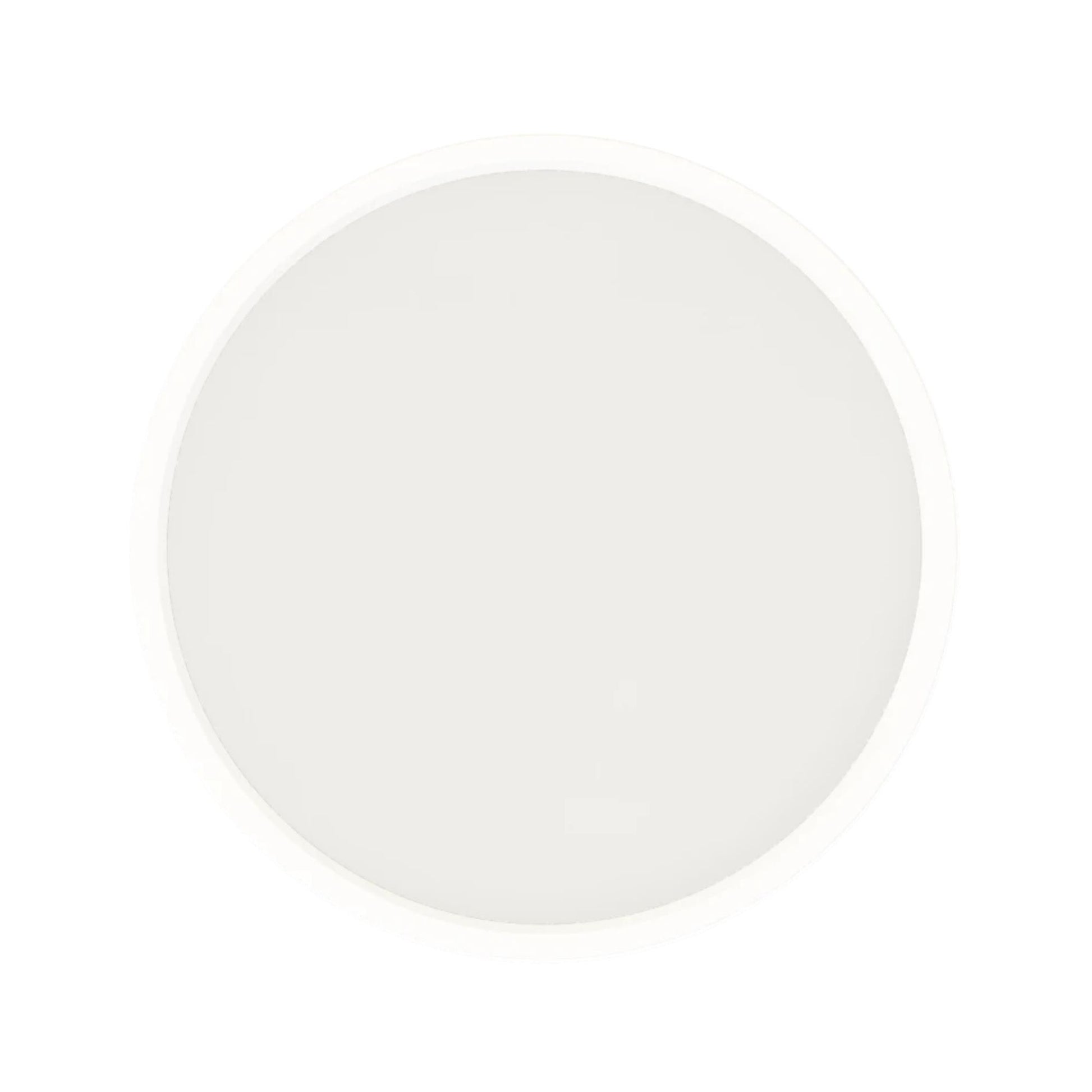

RAB SUMO-R-9 9 in Round LED Surface Mount — White, 18W, Selectable CCT
The RAB SUMO-R-9 integrated LED surface mount brings a clean round profile to new construction and retrofit spaces. Its 9 in smooth white trim and polycarbonate diffuser spread light evenly for everyday general illumination. Select a warm or cool tone during installation and adjust brightness with compatible TRIAC/ELV dimming to 10%.
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
- LED Input: 18W; manufacturer-listed 75W incandescent equivalency
- CCT-Specific Output: 1,182 lm at 2700K, 1,221 lm at 3000K, 1,278 lm at 3500K, 1,305 lm at 4000K and 1,299 lm at 5000K
- Dimming: Compatible TRIAC/ELV systems dim to 10%
- Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse binning
- Beam: 110 degrees ±10 degrees
- Driver: Constant-current Class 2; 120V at 60Hz; detailed input current 167mA
- Power Quality: Power factor at least 0.9; flicker at most 30%
- Construction: Round metal enclosure, smooth white trim and polycarbonate diffuser; 1.5 lb
- Listings: UL listed, ENERGY STAR Version 2.2 certified, FCC Part 15 and RoHS compliant
- Environment: Dry, damp and wet suitability; non-IC and non-airtight
- Life and Warranty: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operation
Construction & Design

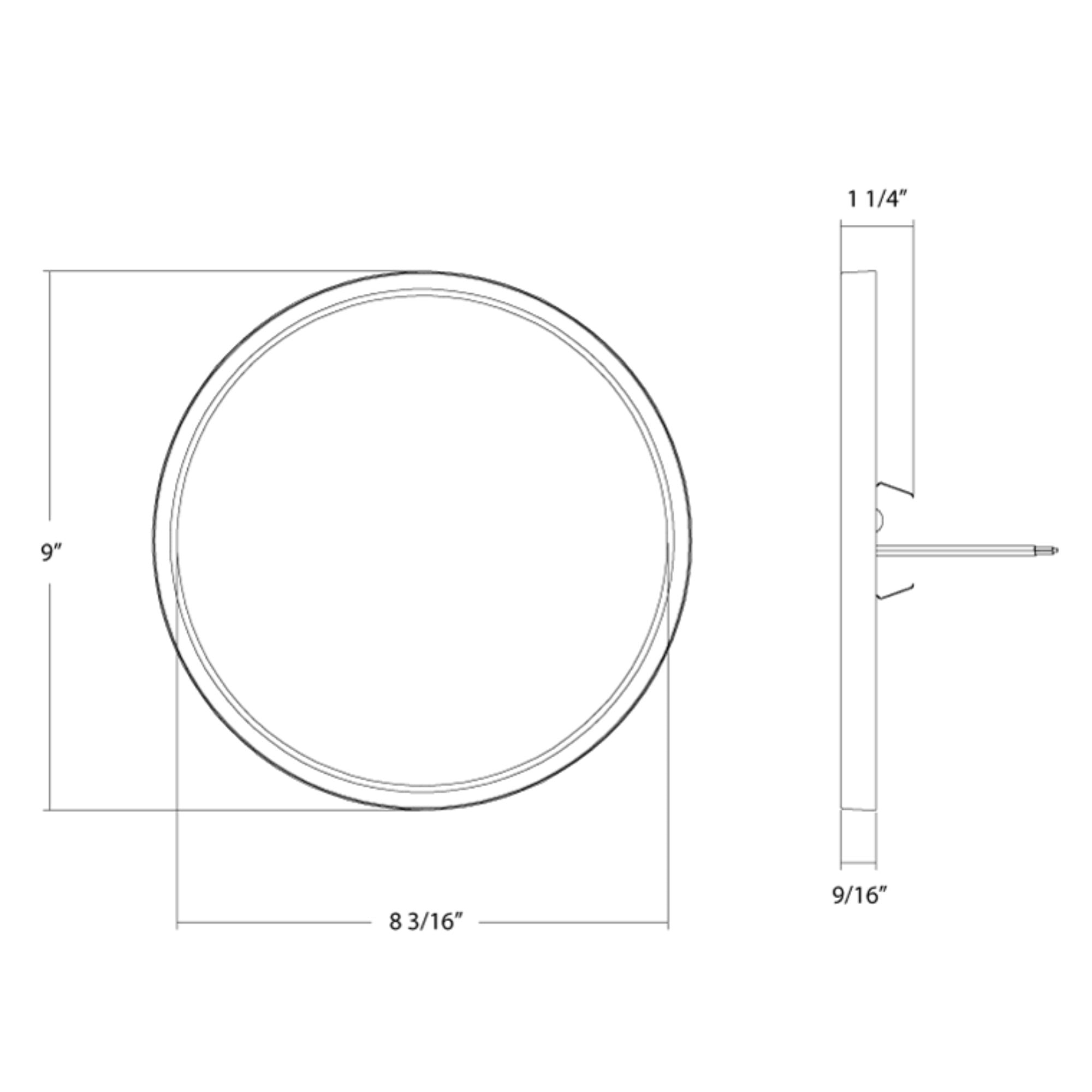

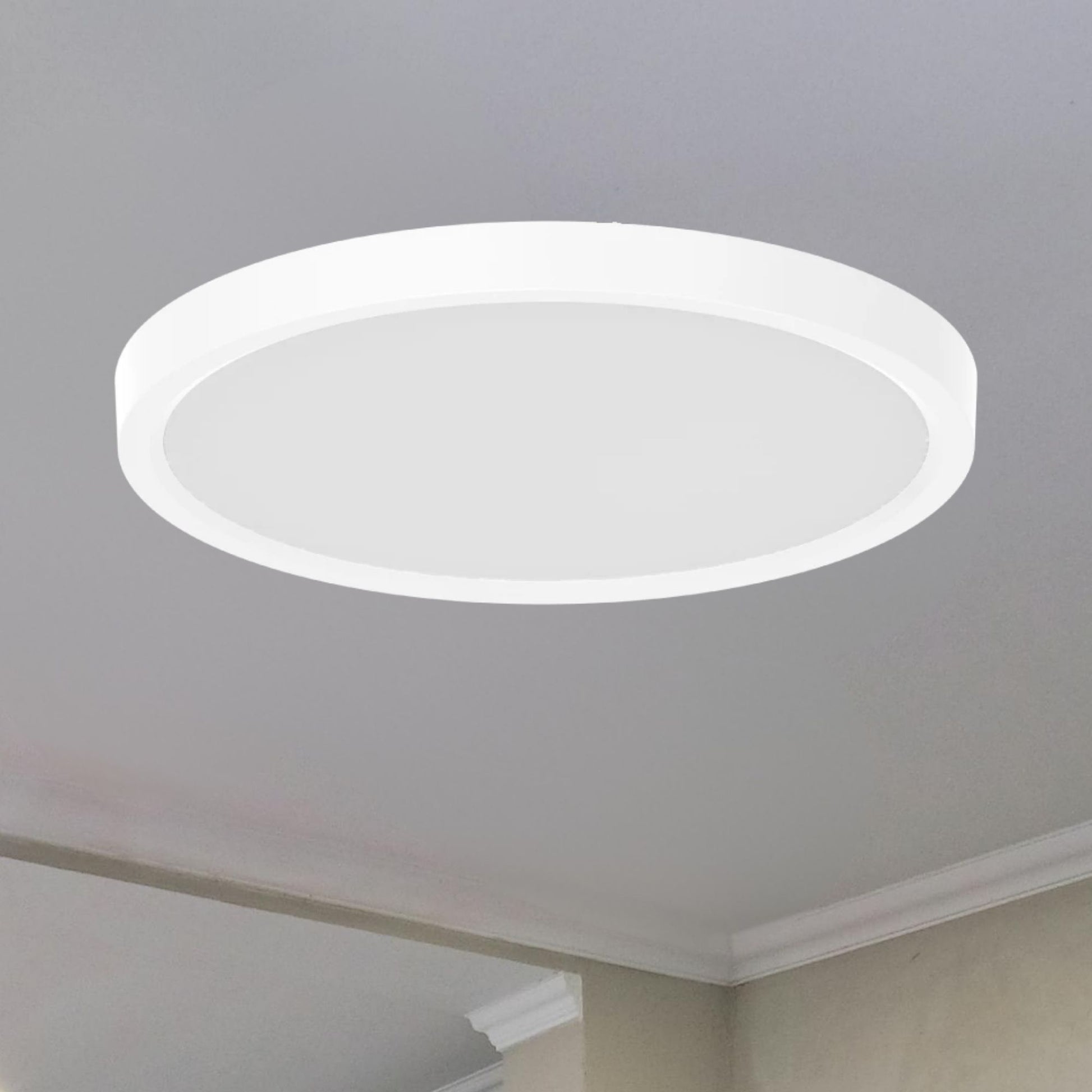

The 9 in diameter provides a clean circular outline without a hanging pendant drop. A metal enclosure and smooth white finish coordinate with understated interiors, while the polycarbonate diffuser distributes light evenly and smoothly. Fixture weight is 1.5 lb.
Light Output & Performance
Detailed output is 1,182/1,221/1,278/1,305/1,299 lumens at 2700/3000/3500/4000/5000K, respectively, using 18W. The broad 110-degree ±10-degree beam supports general illumination, while 90 CRI and R9 at least 50 help render colors clearly. Integrated LEDs provide a rated 50,000-hour L70 lifespan.
Electrical & Installation
The supplied features identify surface or recessed mounting options. Surface installation on compatible junction boxes keeps the fixture close to the ceiling without a pendant-style drop. The constant-current Class 2 driver operates on 120V at 60Hz; the detailed input-current specification is 167mA. Select CCT using the fixture DIP switch during installation and use compatible TRIAC/ELV controls to dim to 10%. This fixture is not IC rated and not airtight.
The individual sheet lists dry, damp and wet suitability, closet-use compliance with NEC 410.16(A)(1) and 410.16(C)(1), California Title 24 Part 6 conformity capability, and TAA compliance with Cambodia as country of manufacture.
Compatible Accessories
- SM-9R-W/EMBB: Field-installed emergency battery backup driver
- SM-9R-CASE: Extender for the 9 in SUMO
Typical Applications
- Hallways and entryways
- Laundry and utility rooms
- Closets with installation clearances appropriate to the listed use

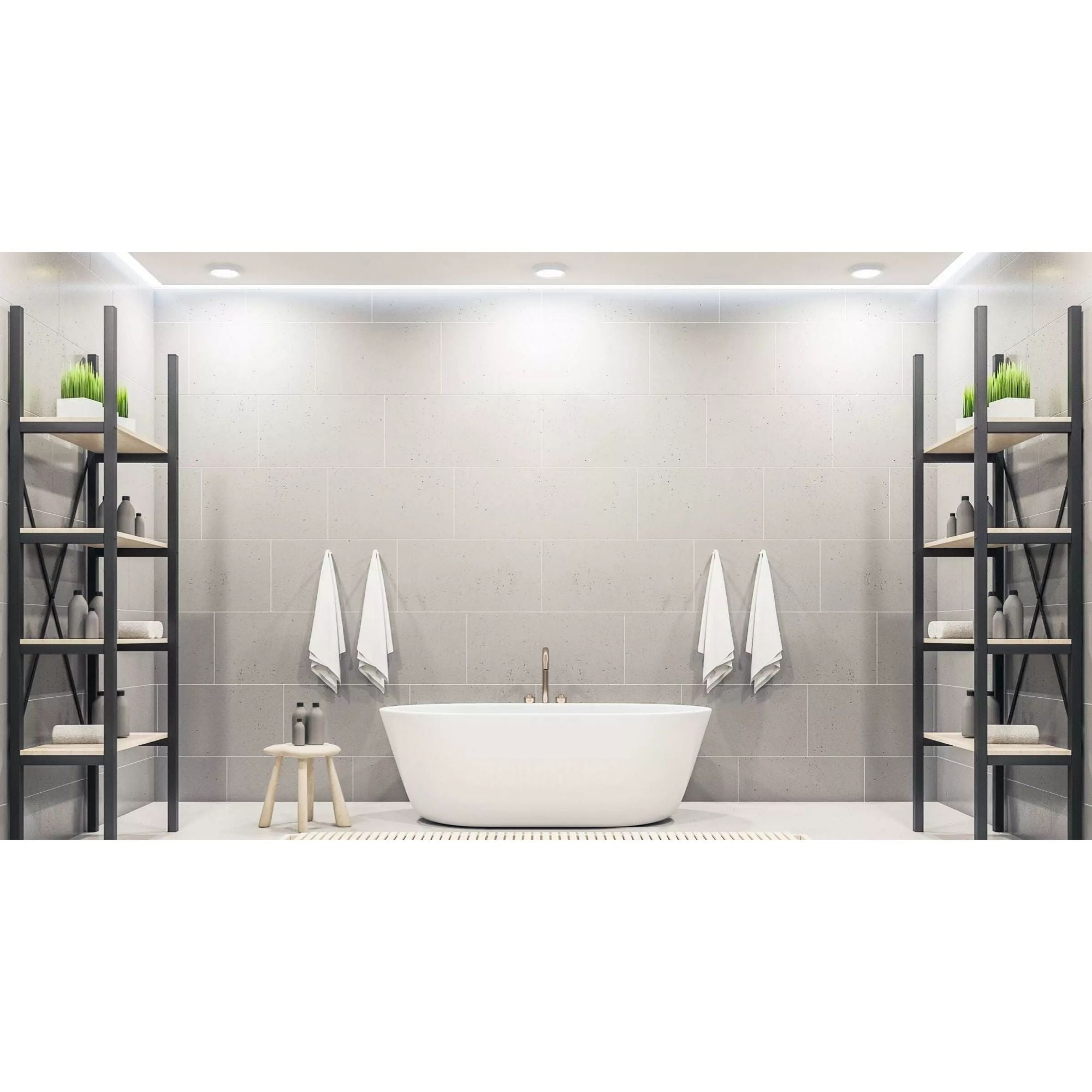

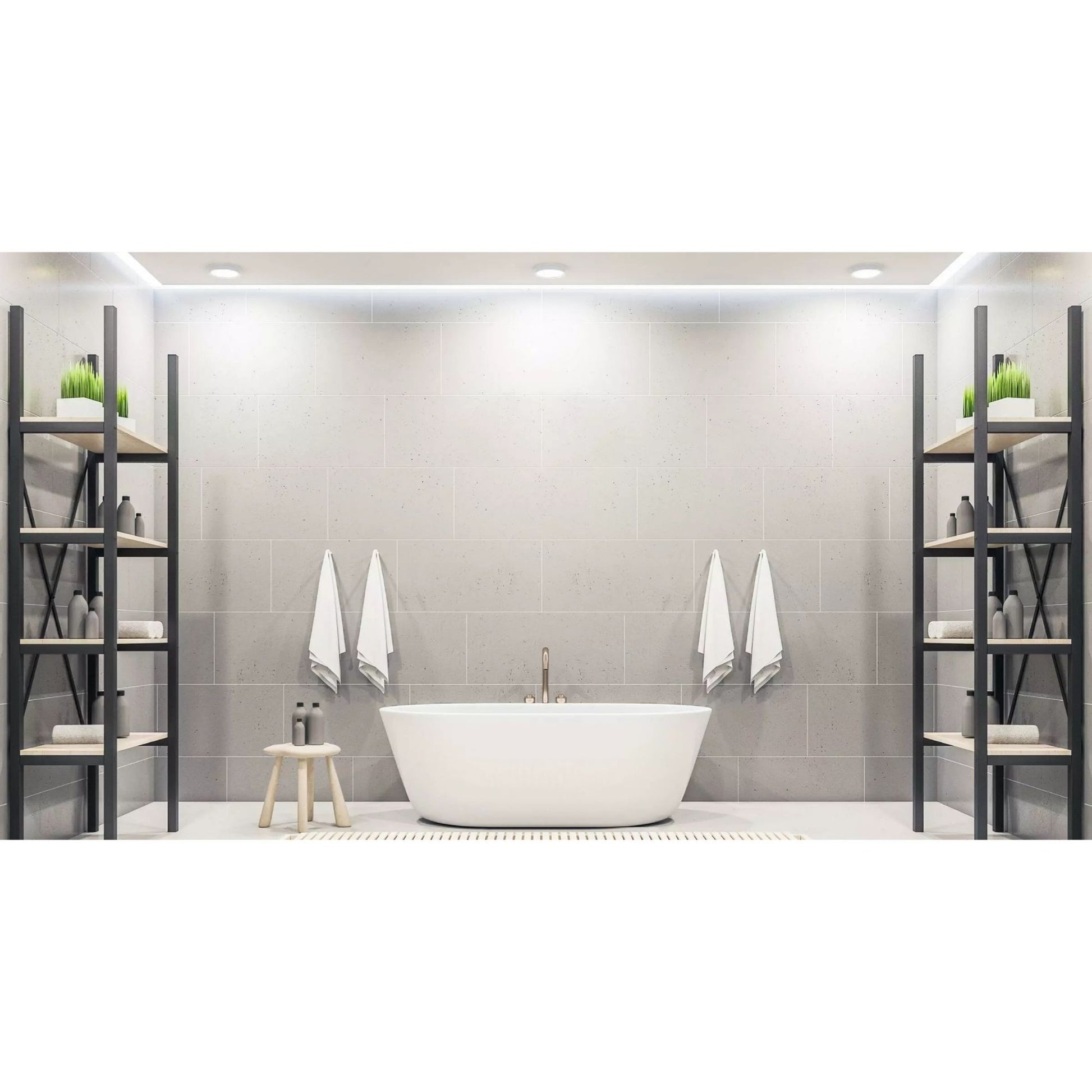

- Bathrooms and covered outdoor spaces
What's Included
- One white RAB SUMO-R-9 round fixture with integrated LED light source and driver
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
