RAB SUMO-R-9/PIR – 9" LED Surface Mount White – 18W – PIR Sensor – Selectable CCT
Available in stock (100)
About this item
About this item
- Built-In Motion Control: PIR sensor and photocell with Auto, Bi-Level and Off modes.
- Adjustable Timing: 30-second, 5-minute or 10-minute hold times; 13 ft detection diameter at 6.5 ft maximum mounting height.
- Selectable Light Tone: Five settings from 2700K to 5000K, with 1,500 nominal lumens at 18W and 90 CRI.
- Compact White Design: 9-Inch round fixture with frosted polycarbonate diffuser, 9/16-Inch panel thickness and 1.1 lb weight.
- Long-Life Indoor Lighting: Dry/damp suitability, 120V non-dimmable operation, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty.
Description
Description
RAB SUMO-R-9/PIR 9-Inch Round LED Surface Mount – White, 18W, Selectable CCT, PIR Sensor
The RAB SUMO-R-9/PIR combines 1,500 nominal lumens from 18W with an integrated PIR motion sensor and photocell. Its white round design provides evenly diffused light, while adjustable motion modes and hold times tailor automatic operation to the space. Choose a warm or cool color temperature during installation for practical, hands-free indoor lighting.
Key Features

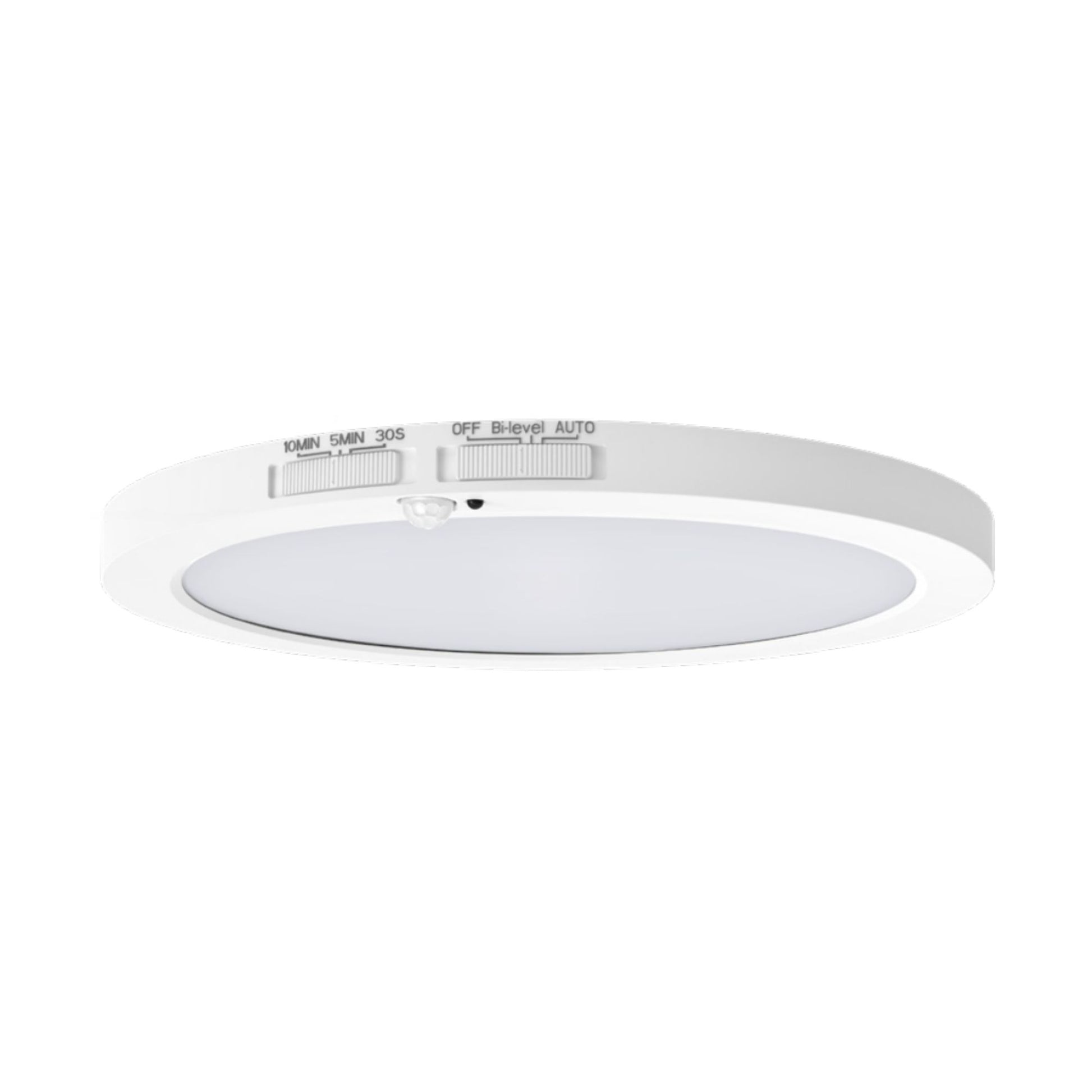

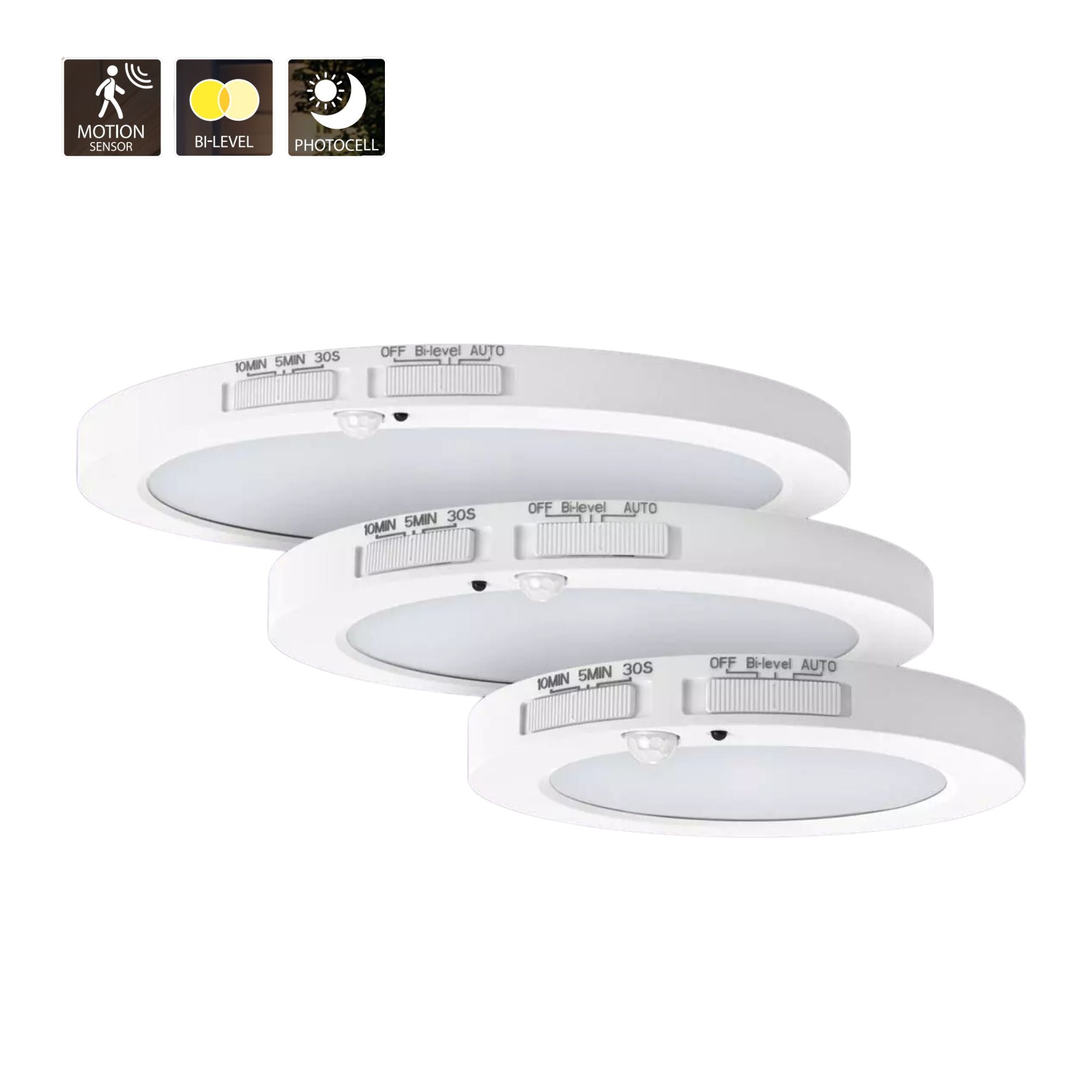

- Integrated Controls: Passive infrared motion sensor and photocell, with DIP-switch adjustment of motion modes and hold times.
- Motion Modes: Auto, Bi-Level and Off; Auto is the default.
- Hold Times: 30 seconds, 5 minutes or 10 minutes; default is 30 seconds.
- Sensor Coverage: 13 ft detection diameter at the specified 6.5 ft maximum mounting height.
- Five Selectable CCTs: 2700K, 3000K, 3500K, 4000K or 5000K; default is 3000K.
- LED Performance: 1,500 nominal lumens at 18W; manufacturer-listed 75W incandescent equivalency.
- Color and Beam: 90 CRI, R9 greater than 50, less than 4-step MacAdam Ellipse binning and 110-degree ±10-degree beam.
- Electrical: Constant-current driver, 120V at 60Hz and 170mA input current; non-dimmable.
- Power Quality: Power factor at least 0.9 and flicker at most 30%.
- Construction: Smooth white plastic enclosure, frosted polycarbonate diffuser and 1.1 lb fixture weight.
- Listings and Compliance: UL listed, ENERGY STAR certified, RoHS, FCC and TAA compliant; supports Title 24 Part 6 requirements.
- Life and Environment: 50,000-hour L70 life, five-year warranty, indoor dry/damp suitability and -4°F to 104°F operation. Not IC rated or airtight.

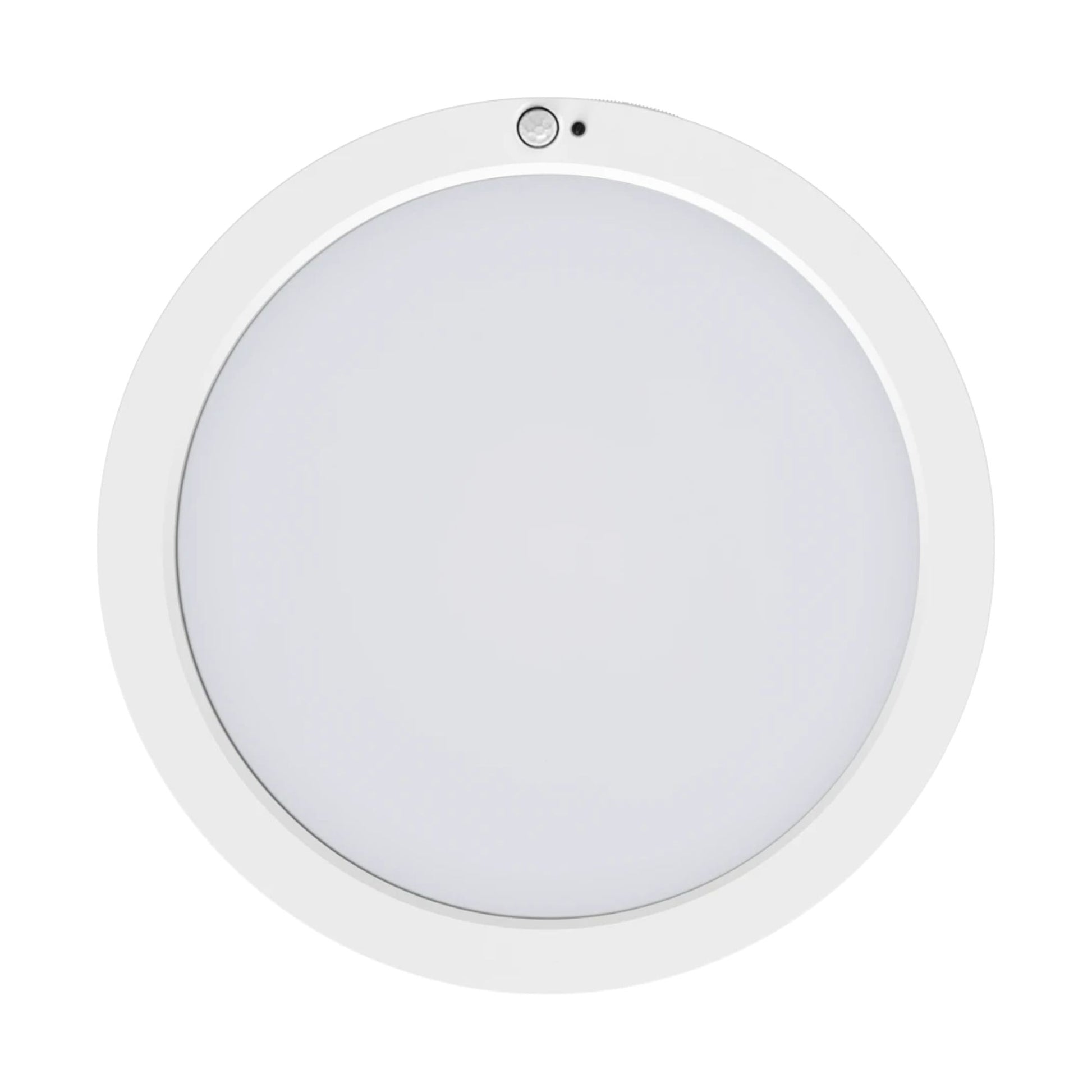

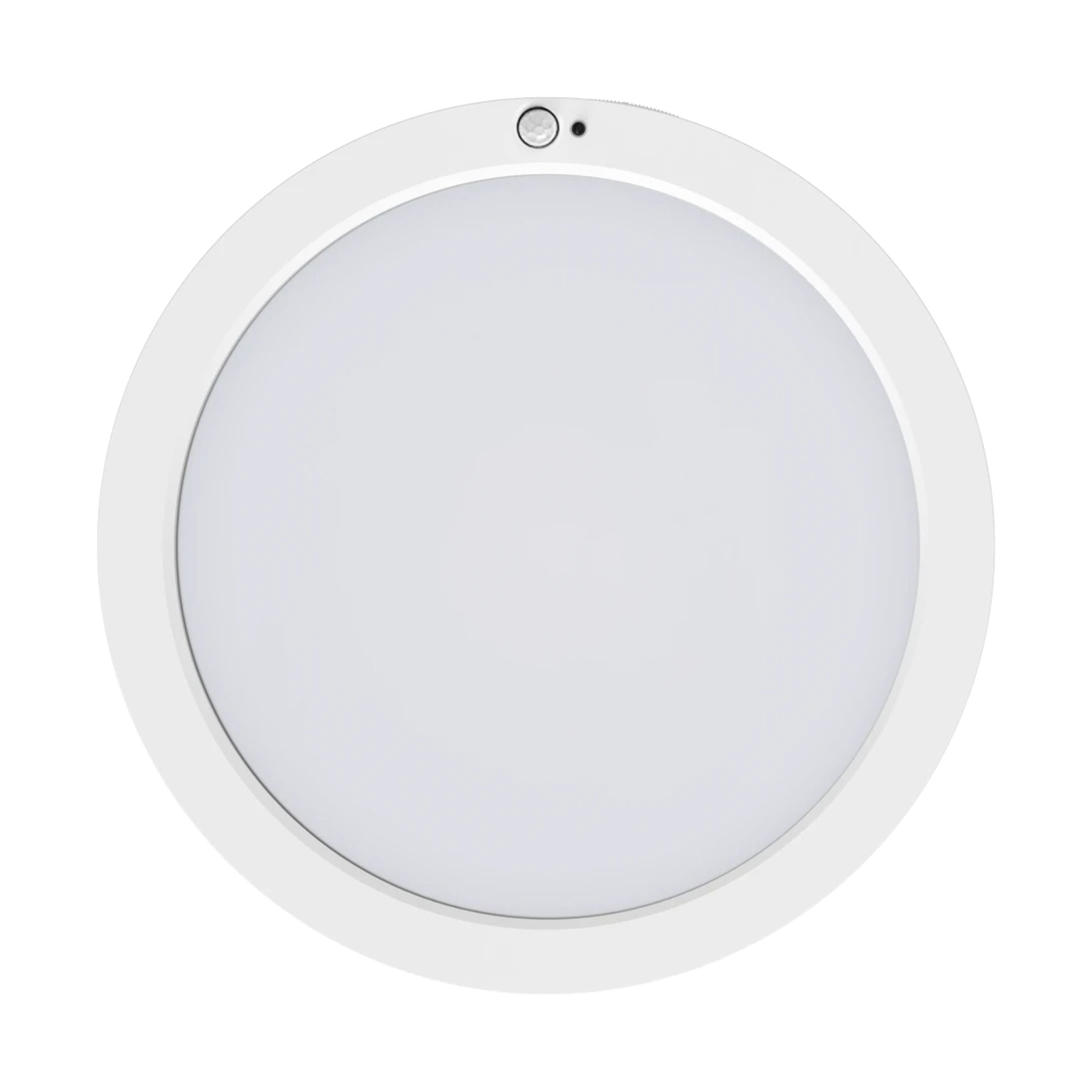

Construction & Design

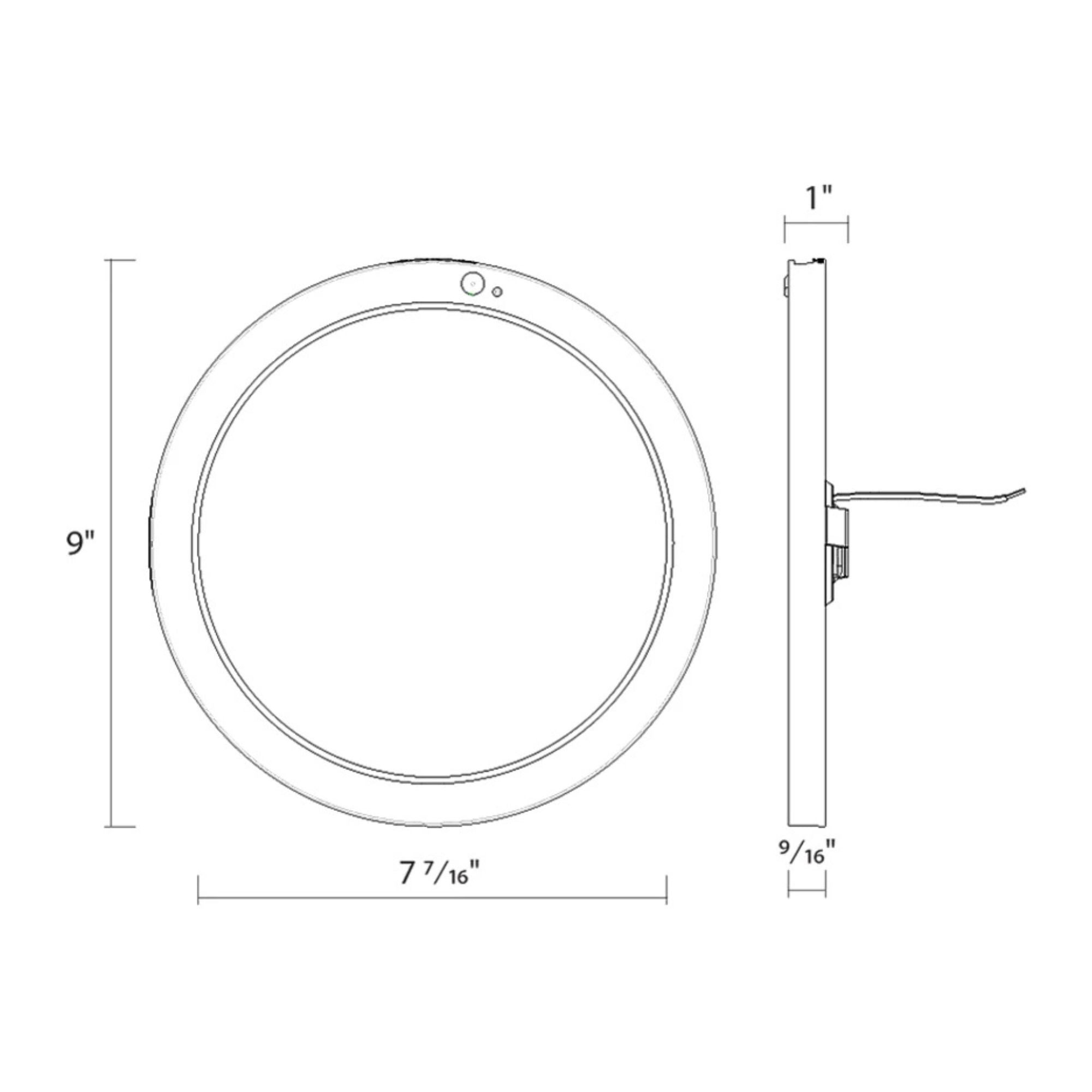

Smooth white trim surrounds a frosted polycarbonate diffuser that spreads light evenly for general illumination. The plastic enclosure measures 9 Inches across and weighs 1.1 lb. The drawing shows a 9/16-Inch panel thickness, 1-Inch overall depth and 7 7/16-Inch inner diameter.
Light Output & Performance
The 18W integrated LED source delivers 1,500 nominal lumens with a 110-degree ±10-degree beam. Select 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch; the default is 3000K. 90 CRI supports accurate colors. Rated LED life is 50,000 hours at L70.
Electrical & Installation
This surface-mount fixture operates on 120V at 60Hz and is non-dimmable. Built-in Bi-Level operation is automatic sensor-controlled brightness adjustment, not compatibility with an external dimmer. Observe the 6.5 ft maximum sensor mounting height; detection diameter is 13 ft at that height. Use in indoor dry or damp environments. The fixture is not IC rated and not airtight.

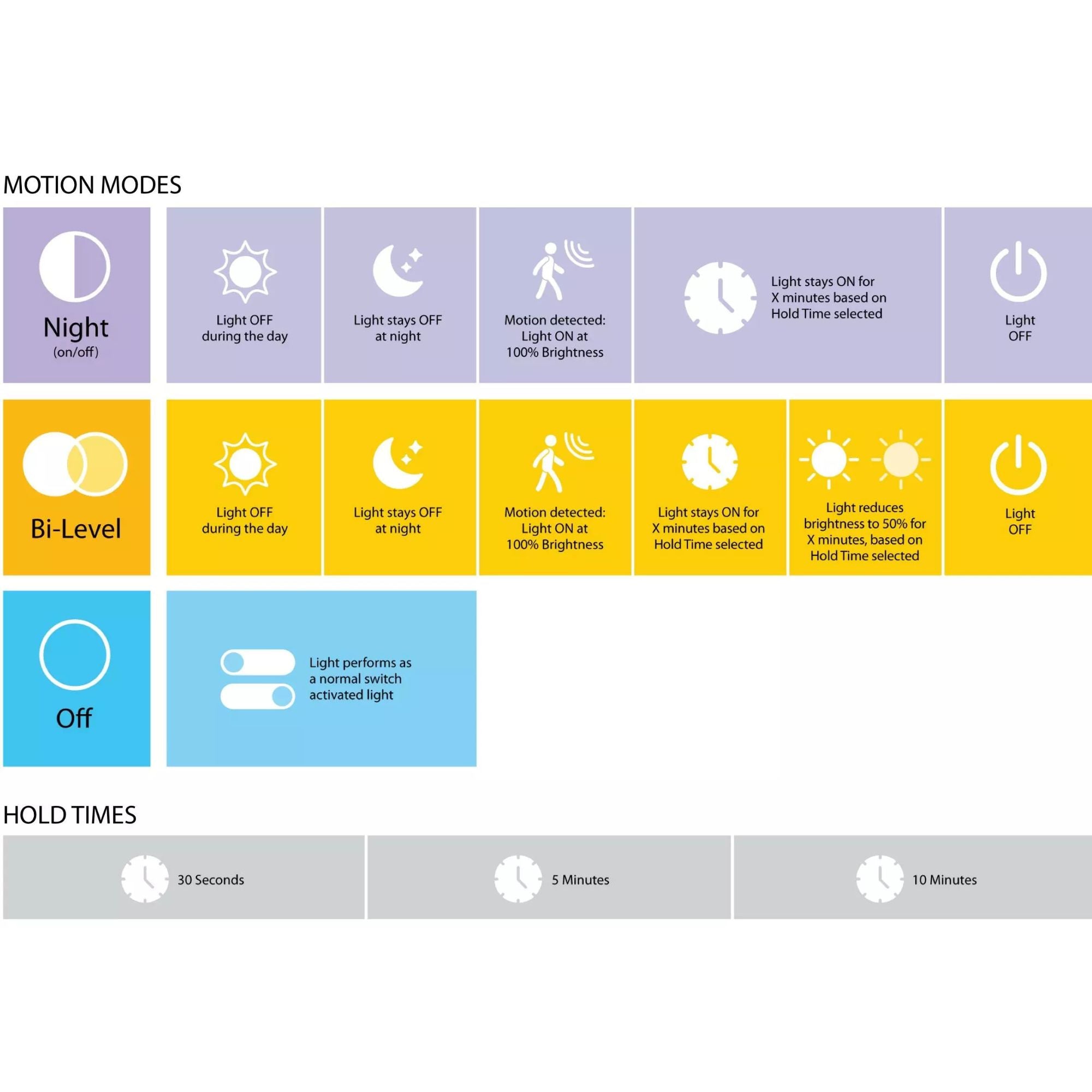

Auto Mode: The light stays off during the day and while no motion is detected at night. Motion activates 100% brightness; the light turns off after the selected hold time expires.
Bi-Level Mode: At night, motion activates 100% brightness. After the selected hold time, light reduces to 50% for another selected hold-time interval before turning off. The light remains off during the day.
Off Mode: Motion detection is disabled. Select a hold time of 30 seconds, 5 minutes or 10 minutes using the integrated switches.
Typical Applications
- Low-ceiling indoor circulation areas within the sensor mounting-height limit
- Indoor utility and laundry spaces
- Indoor storage and service areas
- Damp indoor spaces suited to automatic motion lighting
What's Included
- One white RAB SUMO-R-9/PIR fixture with integrated LEDs, constant-current driver, PIR sensor, photocell and adjustment switches.
