RAB SUMO-R-7 7 in Round LED Surface Mount — White, 14W, Selectable CCT

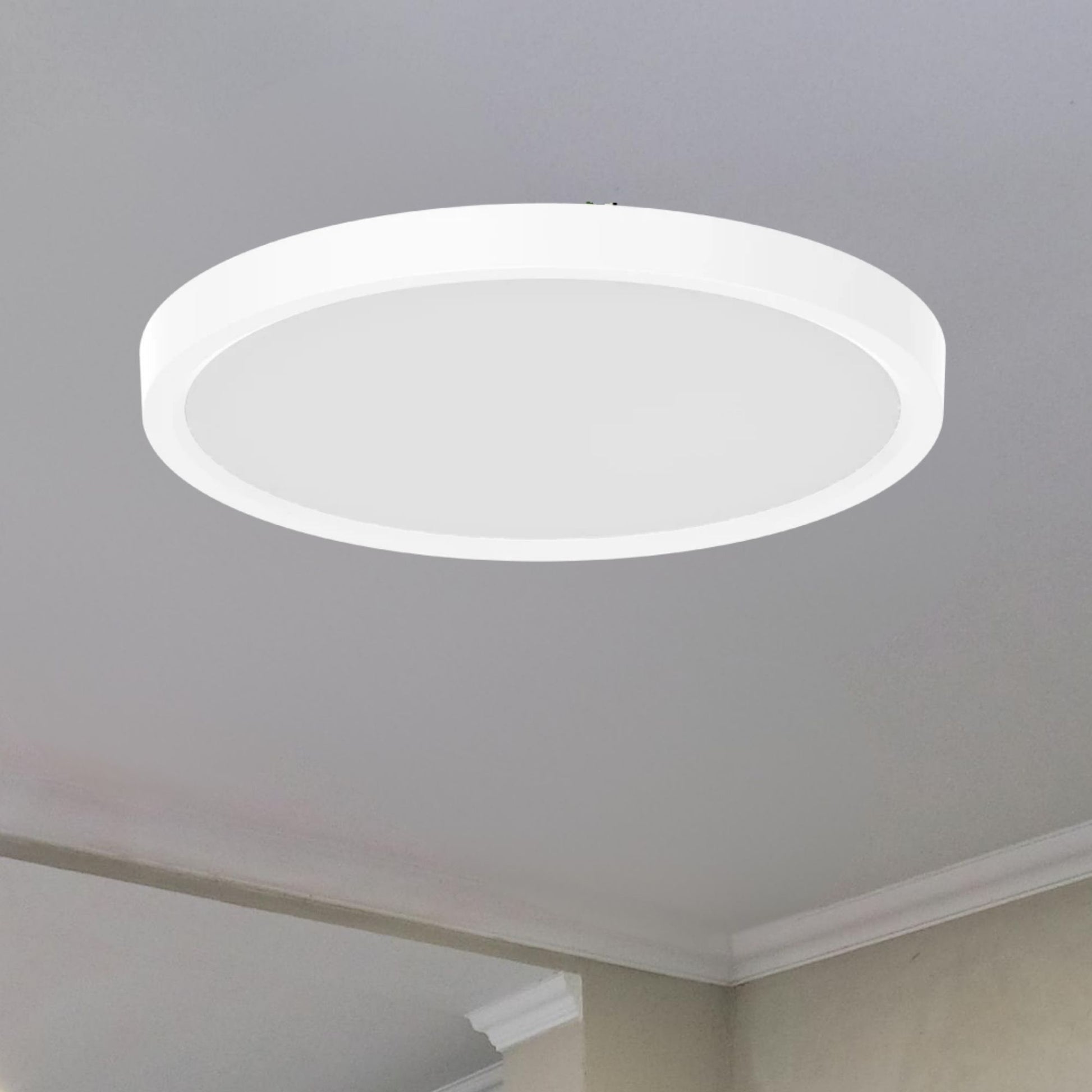

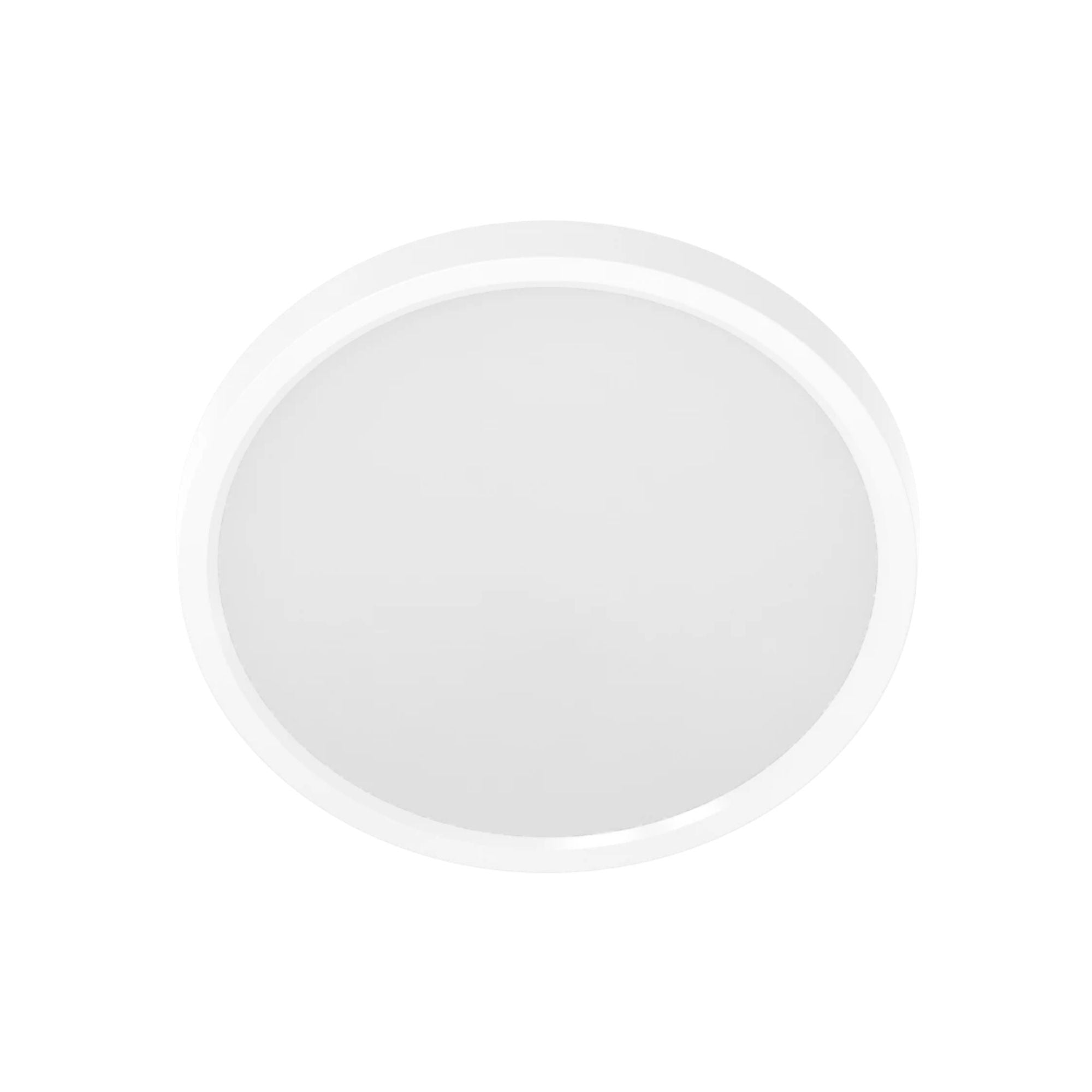

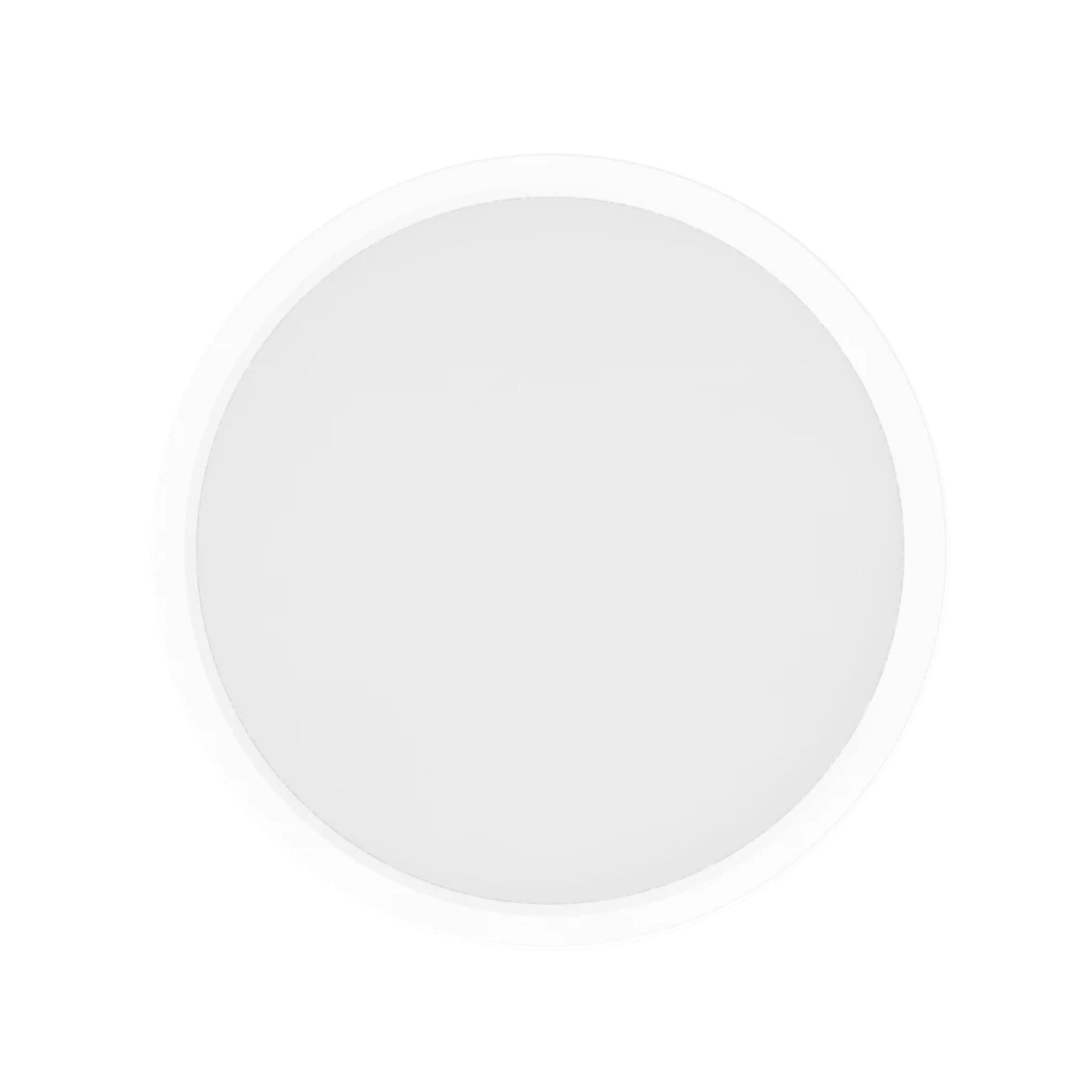

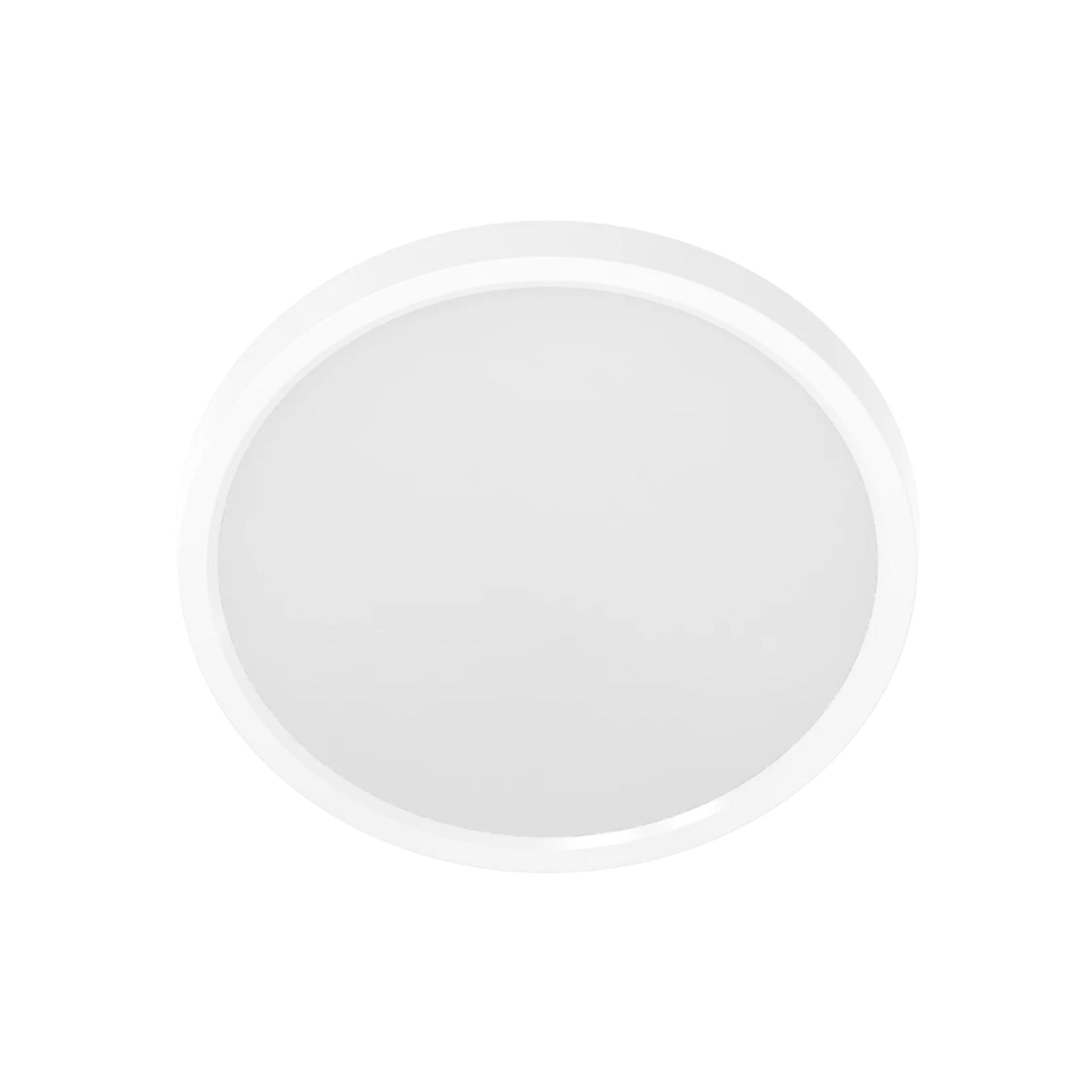

The RAB SUMO-R-7 integrated LED surface mount brings a clean, low-profile look to new construction and retrofit spaces. Its 7 in round white trim and polycarbonate diffuser provide smooth general illumination without a hanging pendant drop. Choose from five color temperatures during installation, then tailor brightness with compatible TRIAC/ELV dimming.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• LED Input: 14W; manufacturer-listed 60W incandescent equivalency
• CCT-Specific Output: 993 lm at 2700K, 1,032 lm at 3000K, 1,072 lm at 3500K, 1,092 lm at 4000K and 1,110 lm at 5000K
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse binning
• Beam: 110 degrees ±10 degrees
• Driver: Constant-current Class 2, 120V at 60Hz; 130mA input current
• Power Quality: Power factor at least 0.9; flicker at most 30%
• Construction: Round metal enclosure, smooth white trim and polycarbonate diffuser; 1.1 lb
• Listings: UL listed, ENERGY STAR Version 2.2 certified, FCC Part 15 and RoHS compliant
• Environment: Dry, damp and wet suitability; non-IC and non-airtight
• Life and Warranty: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operating range

Construction & Design

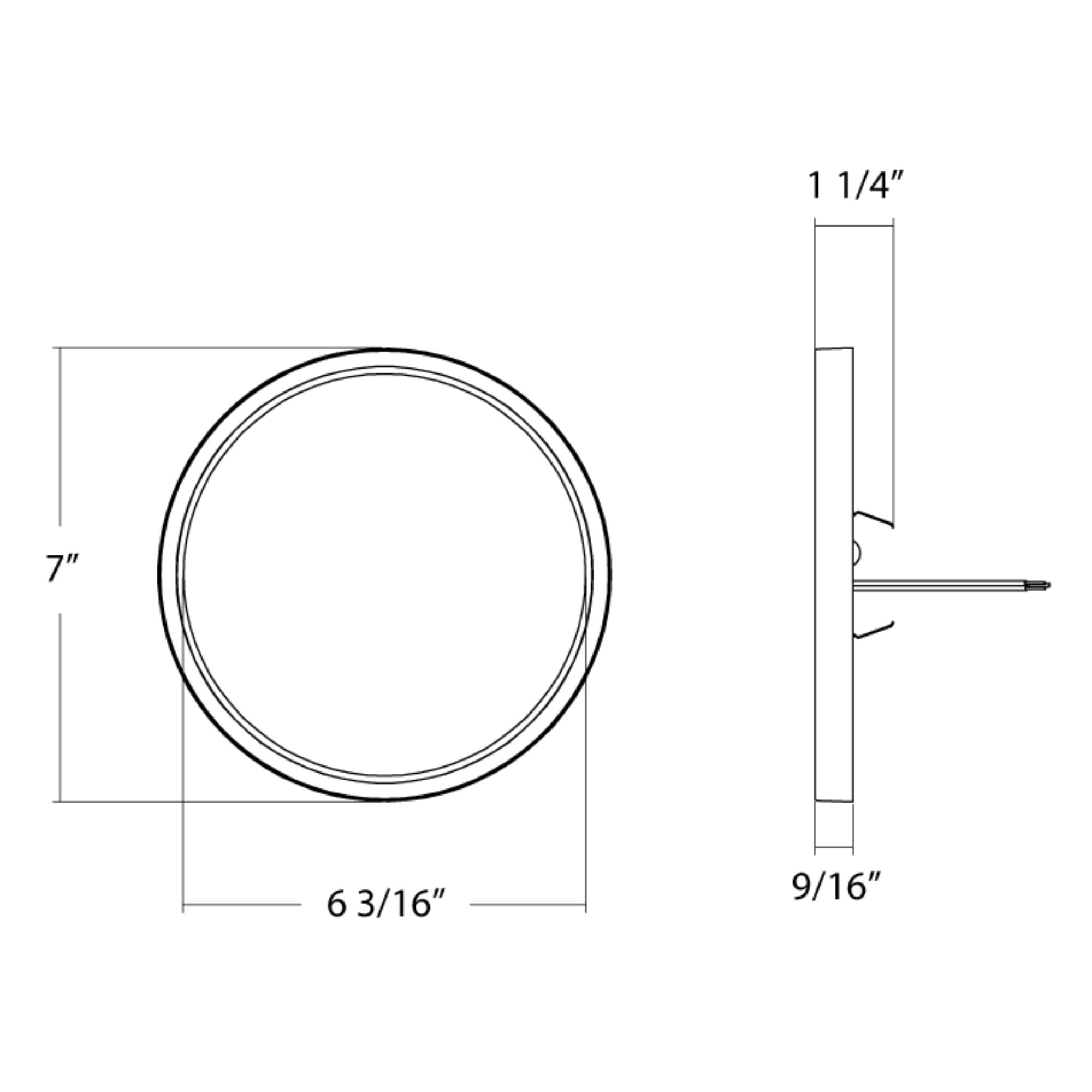

The 7 in diameter and smooth white finish coordinate with light-colored ceilings and understated interiors. A metal enclosure supports durable construction, while the polycarbonate diffuser distributes light evenly and smoothly. Fixture weight is 1.1 lb.

Light Output & Performance

Detailed output is 993/1,032/1,072/1,092/1,110 lumens at 2700/3000/3500/4000/5000K, respectively, using 14W. A broad 110-degree ±10-degree beam supports general illumination, while 90 CRI and R9 at least 50 help render colors clearly. Integrated LEDs provide a rated 50,000-hour L70 lifespan.

Electrical & Installation

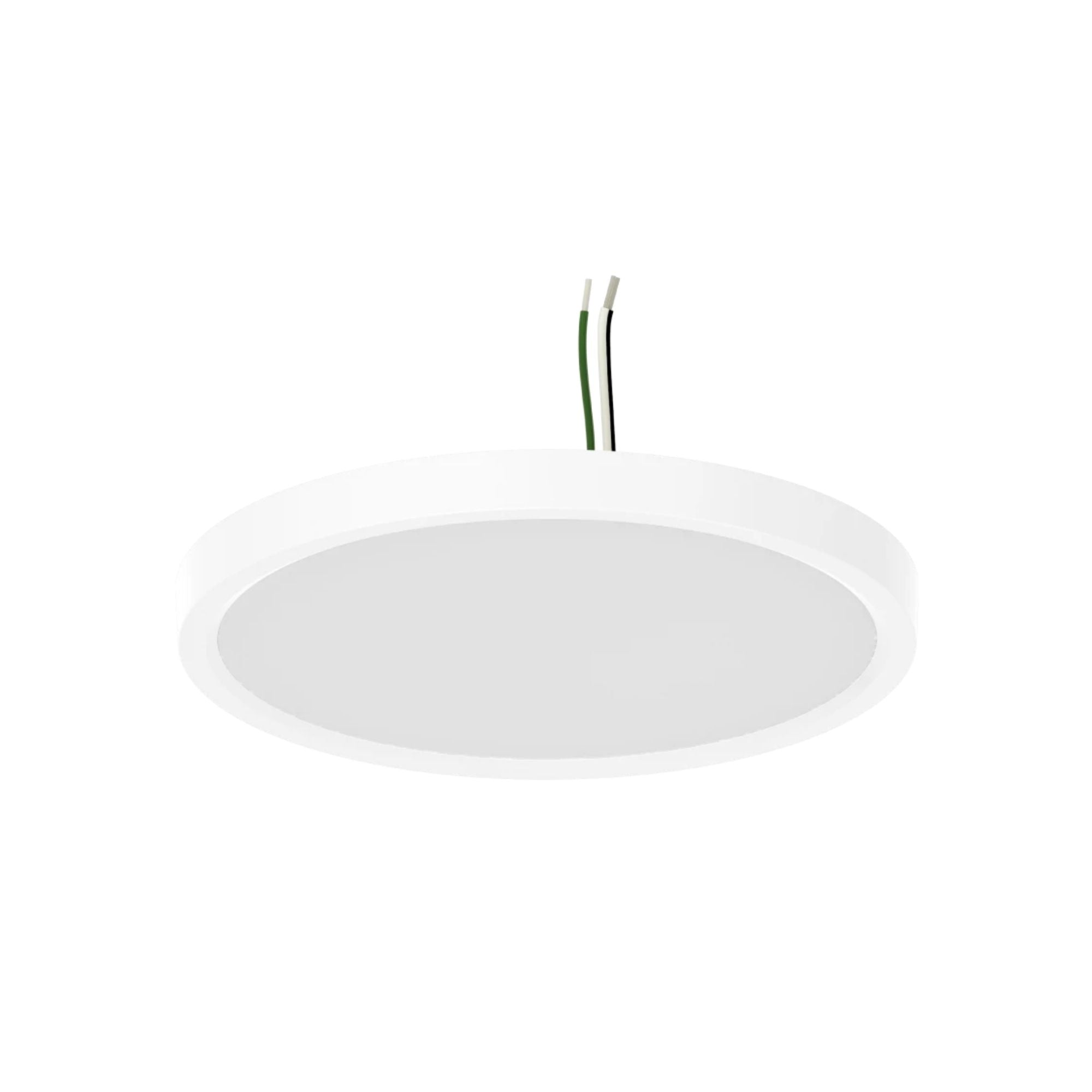

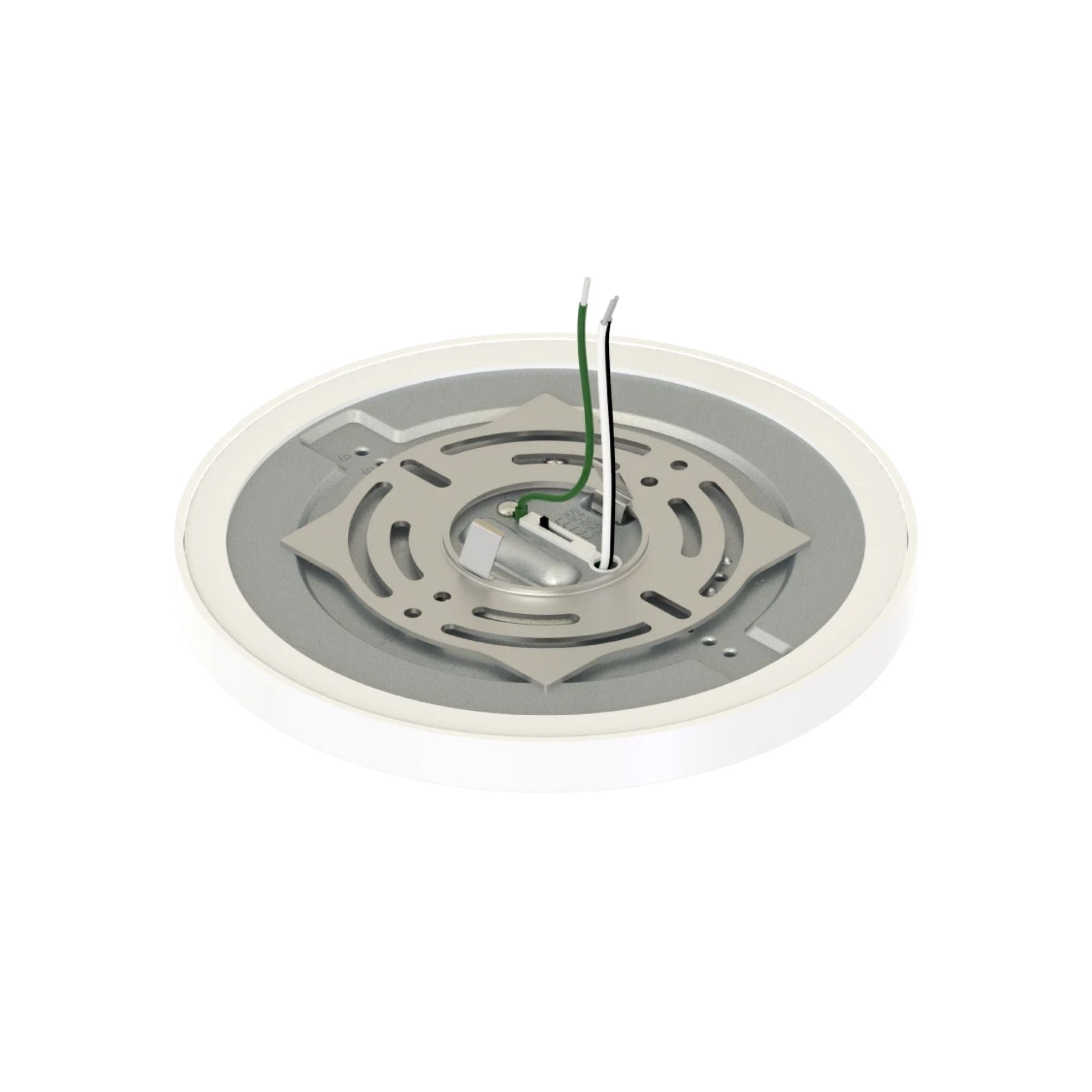

Surface-mount installation on compatible junction boxes keeps the fixture close to the ceiling without a pendant-style drop. The constant-current Class 2 driver operates on 120V at 60Hz with 130mA input current. Select color temperature at the fixture DIP switch during installation and use compatible TRIAC/ELV controls to dim to 10%. The fixture is not IC rated and not airtight.

The individual sheet lists dry, damp and wet suitability, closet-use compliance with NEC 410.16(A)(1) and 410.16(C)(1), California Title 24 Part 6 conformity capability, and TAA compliance with Cambodia as country of manufacture.

Typical Applications

• Hallways and entryways
• Laundry and utility rooms
• Closets with installation clearances appropriate to the listed use
• Bathrooms and covered outdoor spaces

What's Included

• One white RAB SUMO-R-7 round surface-mount fixture with integrated LED light source and driver
