RAB SUMO 7 in LED Surface Mount White 14W Selectable CCT PIR Sensor
Available in stock (100)
About this item
About this item
- Built-In Motion Control: Integrated PIR sensor and photocell with Auto, Bi-Level and Off modes
- Adjustable Timing: 30-second, 5-minute or 10-minute hold times; 13 ft detection diameter at 6.5 ft maximum mounting height
- Selectable Light Tone: Five 2700–5000K CCTs, 1,150 nominal lumens at 14W and 90 CRI
- Clean Round Design: 7 in smooth white trim, plastic enclosure and frosted polycarbonate diffuser; 0.7 lb
- Long-Life Indoor Lighting: Dry/damp suitability, 120V non-dimmable operation, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty
Description
Description

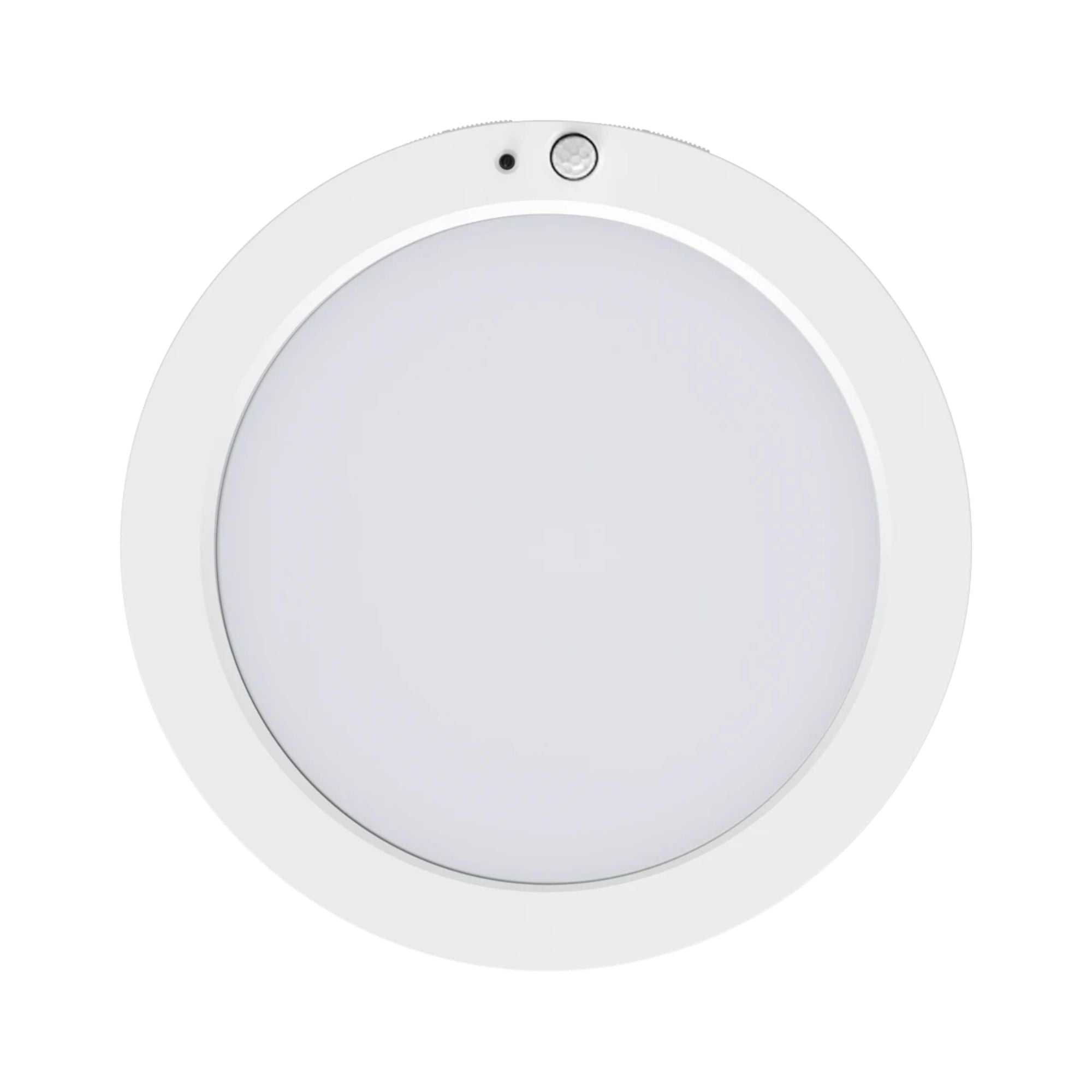

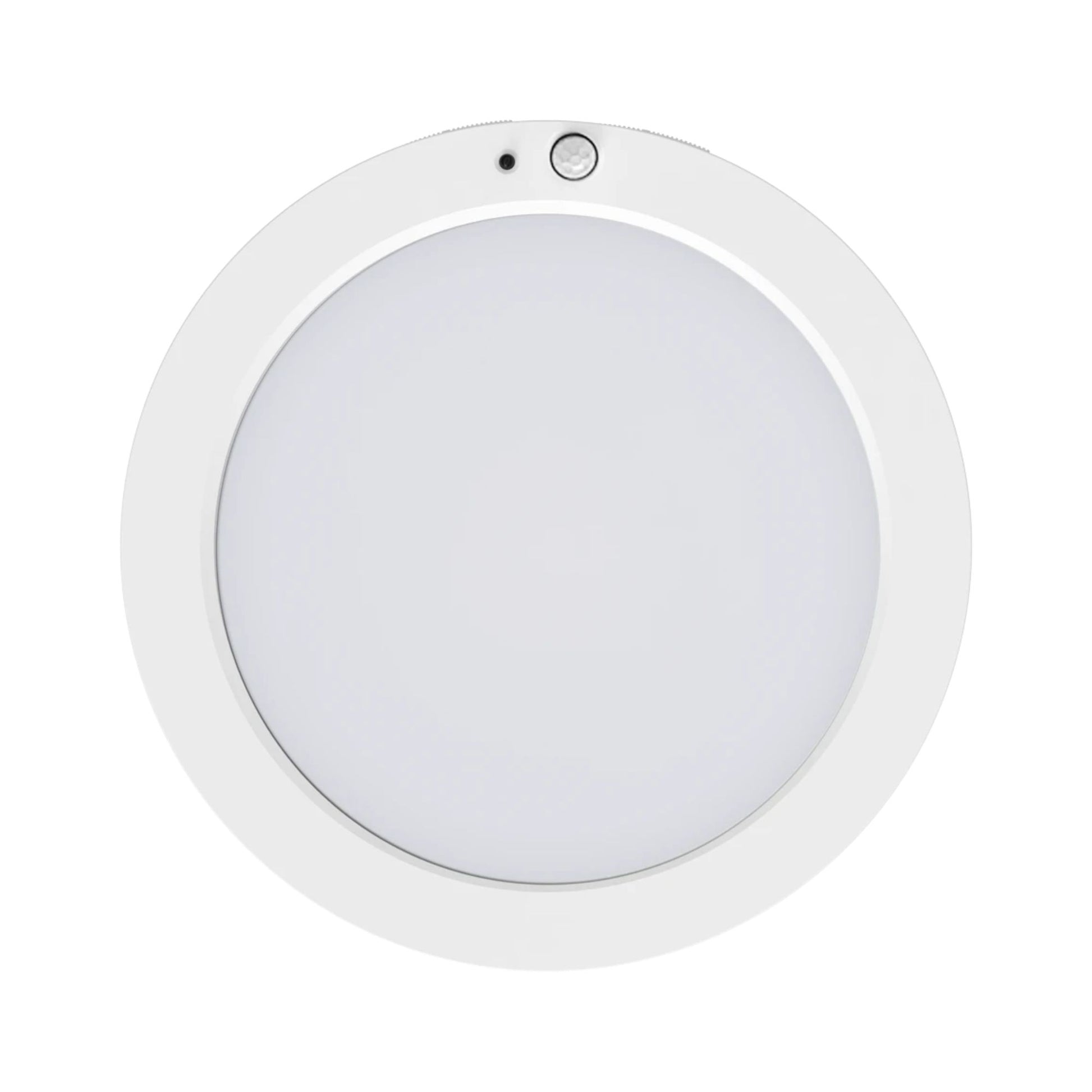

RAB SUMO-R-7/PIR 7 in Round LED Surface Mount — White, 14W, Selectable CCT, Motion Sensor
The RAB SUMO-R-7/PIR integrated LED surface mount combines 7 in round white trim with a built-in PIR motion sensor and photocell. It delivers 1,150 nominal lumens at 14W, with adjustable motion modes and hold times for automatic indoor lighting. Five selectable CCTs let you coordinate light tone during installation.
Key Features

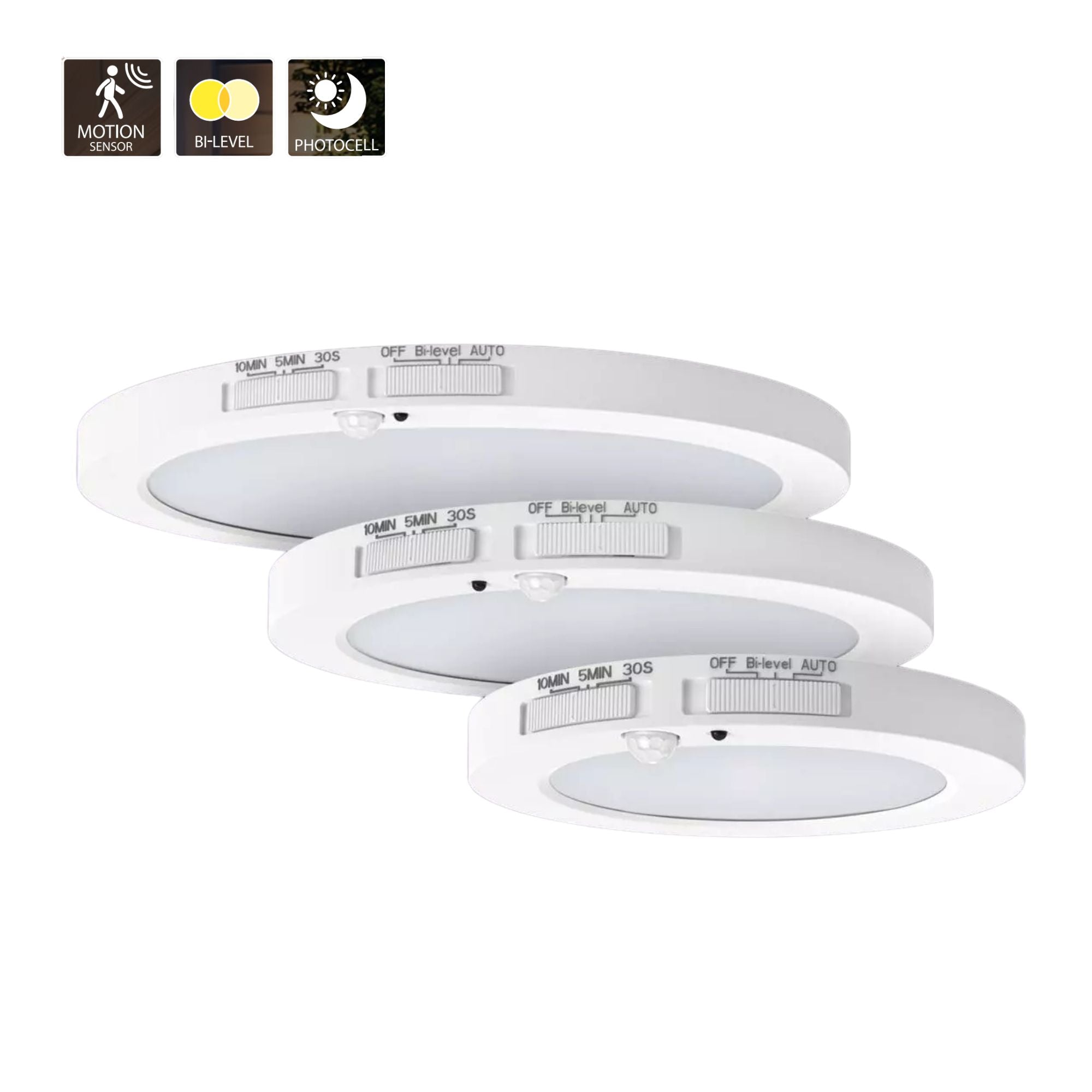

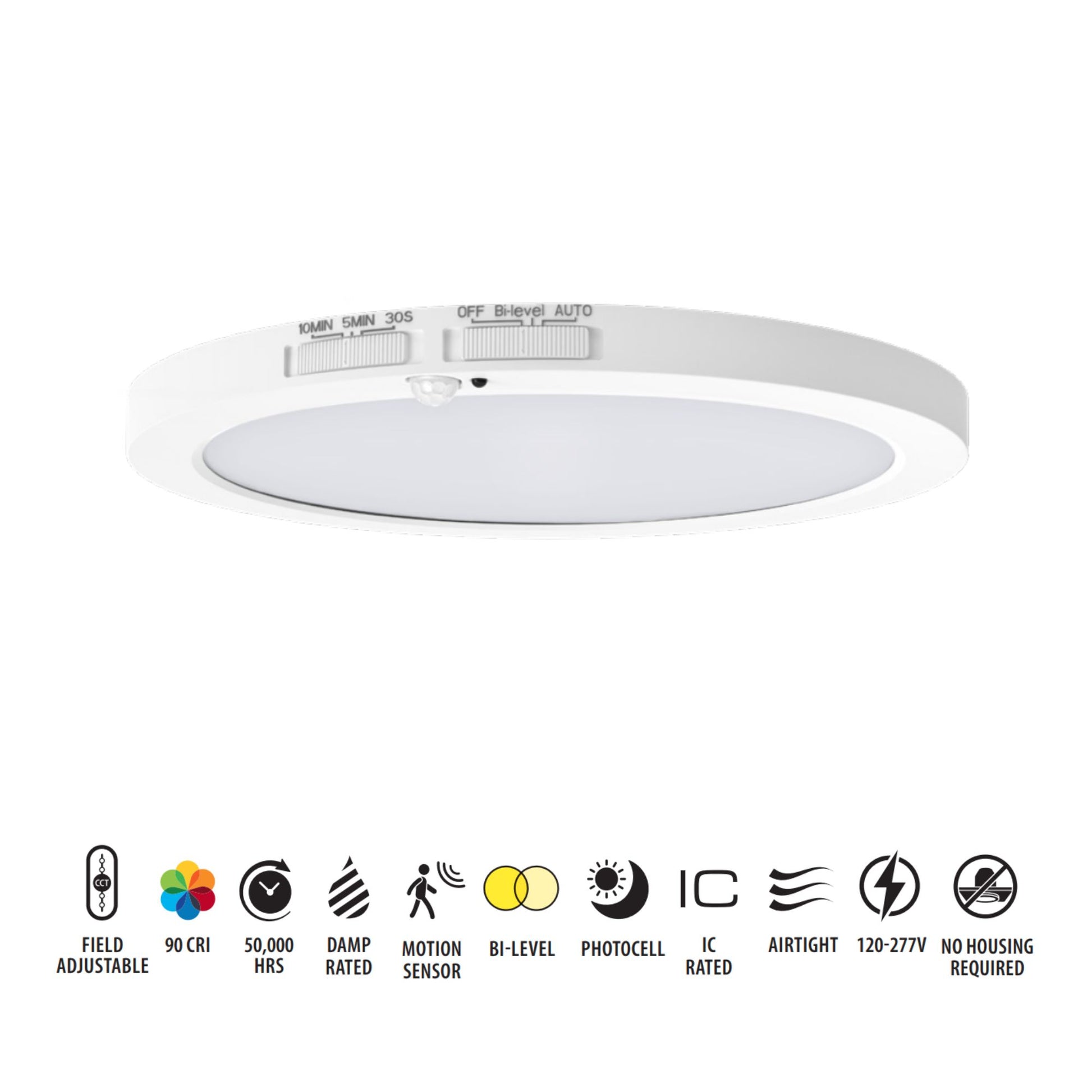

- Integrated Controls: Passive infrared sensor and photocell with adjustable DIP switches
- Motion Modes: Auto, Bi-Level and Off; Auto is the default
- Hold Times: 30 seconds, 5 minutes or 10 minutes; default 30 seconds
- Sensor Coverage: 13 ft detection diameter at the specified 6.5 ft maximum mounting height
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K; default 3000K
- Performance: 1,150 nominal lumens, 14W, 82 lm/W and manufacturer-listed 60W incandescent equivalency
- Color and Beam: 90 CRI, R9 greater than 50, less than 4-step binning and 110-degree ±10-degree beam
- Electrical: Constant-current driver; 120V at 60Hz, 130mA; non-dimmable
- Power Quality: Power factor at least 0.9; flicker at most 30%
- Construction: Smooth white plastic enclosure and frosted polycarbonate diffuser; 0.7 lb
- Listings: UL listed, ENERGY STAR certified, FCC Part 15 and RoHS compliant; indoor dry/damp suitability; non-IC and non-airtight
- Life and Warranty: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operation
Construction & Design

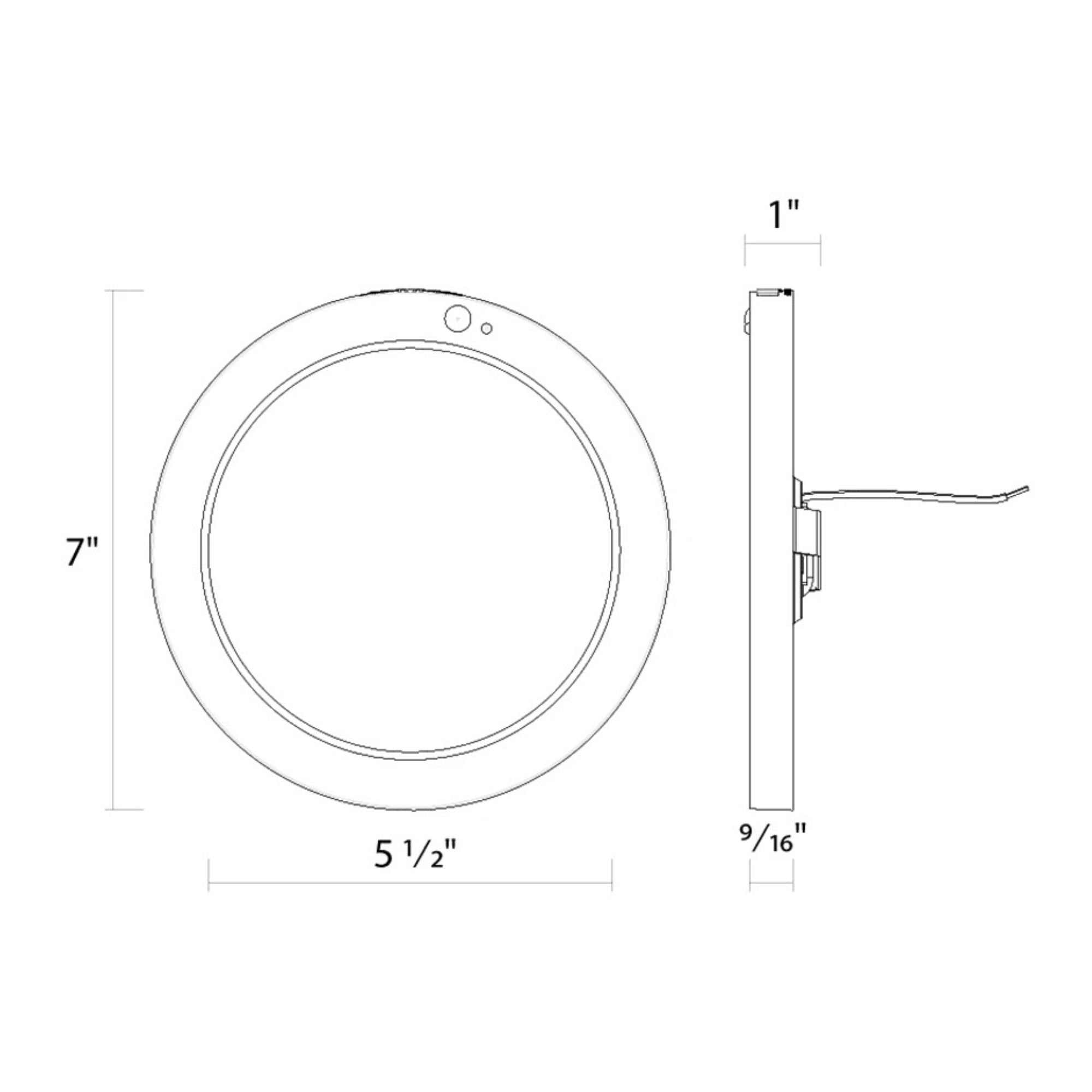

The 7 in round body and smooth white finish provide an understated ceiling appearance without a pendant-style drop. A plastic enclosure surrounds a frosted polycarbonate diffuser that spreads light evenly and smoothly. Listed weight is 0.7 lb.
Light Output & Performance
Integrated LEDs deliver 1,150 nominal lumens at 14W, with 82 lm/W listed efficacy. A 110-degree ±10-degree beam, 90 CRI and R9 greater than 50 support general illumination and clear color rendering. Select 2700K, 3000K, 3500K, 4000K or 5000K using the DIP switch; default CCT is 3000K. Rated life is 50,000 hours at L70.
Electrical & Installation
This fixture is surface mounted on a compatible junction box and operates on 120V at 60Hz with 130mA input current. It is non-dimmable; automatic bi-level operation is not compatibility with an external dimmer. Observe the specified 6.5 ft maximum sensor mounting height, with a 13 ft detection diameter at that height. The fixture is suitable for indoor dry and damp environments and is non-IC and non-airtight.

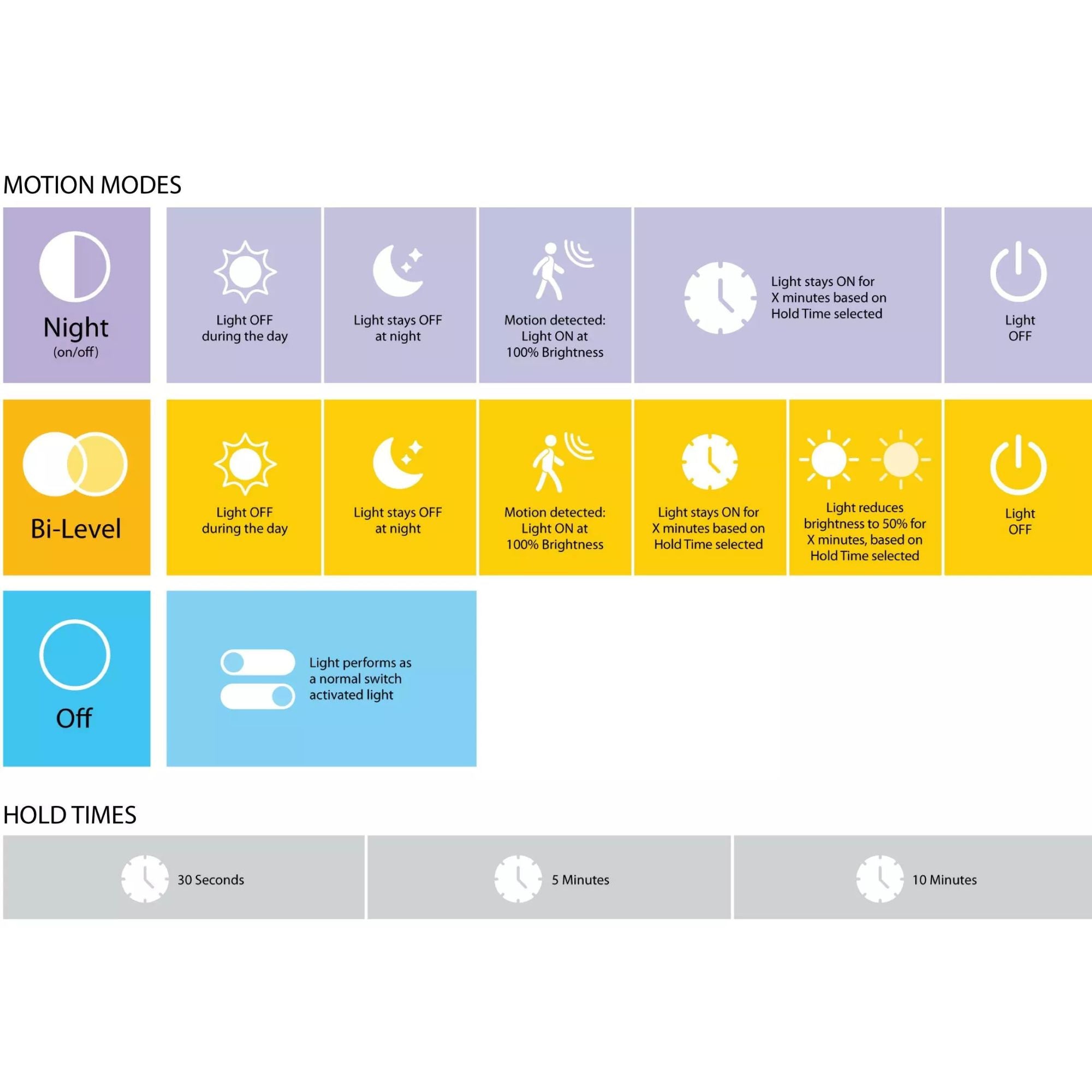

Auto mode: The light stays off during the day and while no motion is detected at night. Motion activates 100% brightness; after the selected hold time expires, the light turns off.
Bi-Level mode: Motion at night activates 100% brightness. After the selected hold time expires, brightness drops to 50% for another selected hold-time interval before turning off. The light remains off during the day.
Off mode: Motion detection is disabled. Hold-time choices are 30 seconds, 5 minutes or 10 minutes.
The individual sheet identifies California Title 24 Part 6 conformity capability and TAA compliance with Cambodia as country of manufacture.
Typical Applications
- Indoor utility and laundry spaces within the sensor mounting-height limit
- Low-ceiling indoor circulation areas
- Indoor storage and service areas
- Damp indoor spaces suited to automatic motion lighting
What's Included
- One white RAB SUMO-R-7/PIR fixture with integrated LEDs, constant-current driver, PIR sensor, photocell and adjustment switches
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is SUMO-R-7/PIR suitable for damp indoor locations?
Is SUMO-R-7/PIR suitable for damp indoor locations?
Can SUMO-R-7/PIR be used with an external dimmer?
Can SUMO-R-7/PIR be used with an external dimmer?
Can I adjust the motion modes and hold times on SUMO-R-7/PIR?
Can I adjust the motion modes and hold times on SUMO-R-7/PIR?
Can I select the color temperature on SUMO-R-7/PIR?
Can I select the color temperature on SUMO-R-7/PIR?
Does SUMO-R-7/PIR have a sensor mounting-height limit?
Does SUMO-R-7/PIR have a sensor mounting-height limit?
