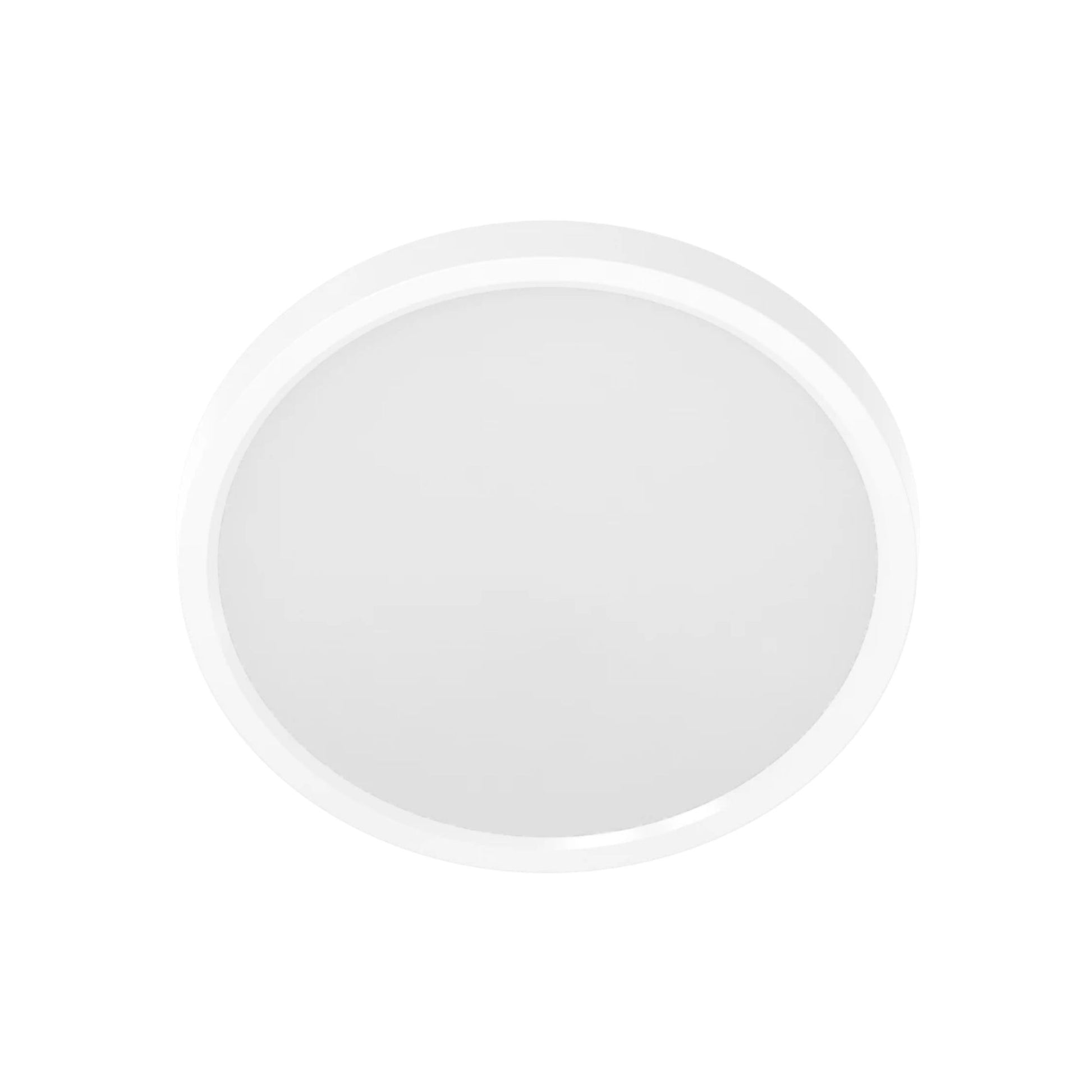

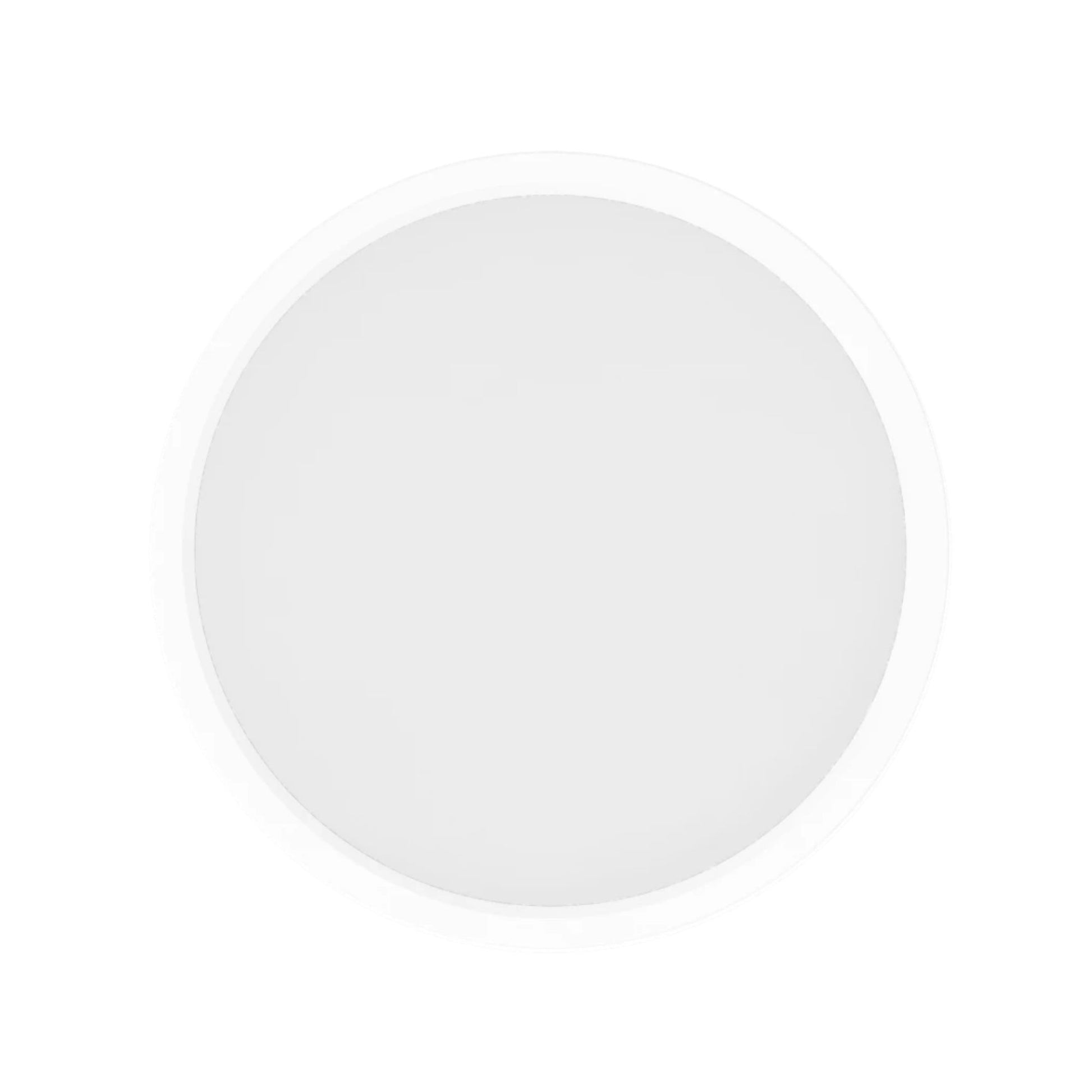

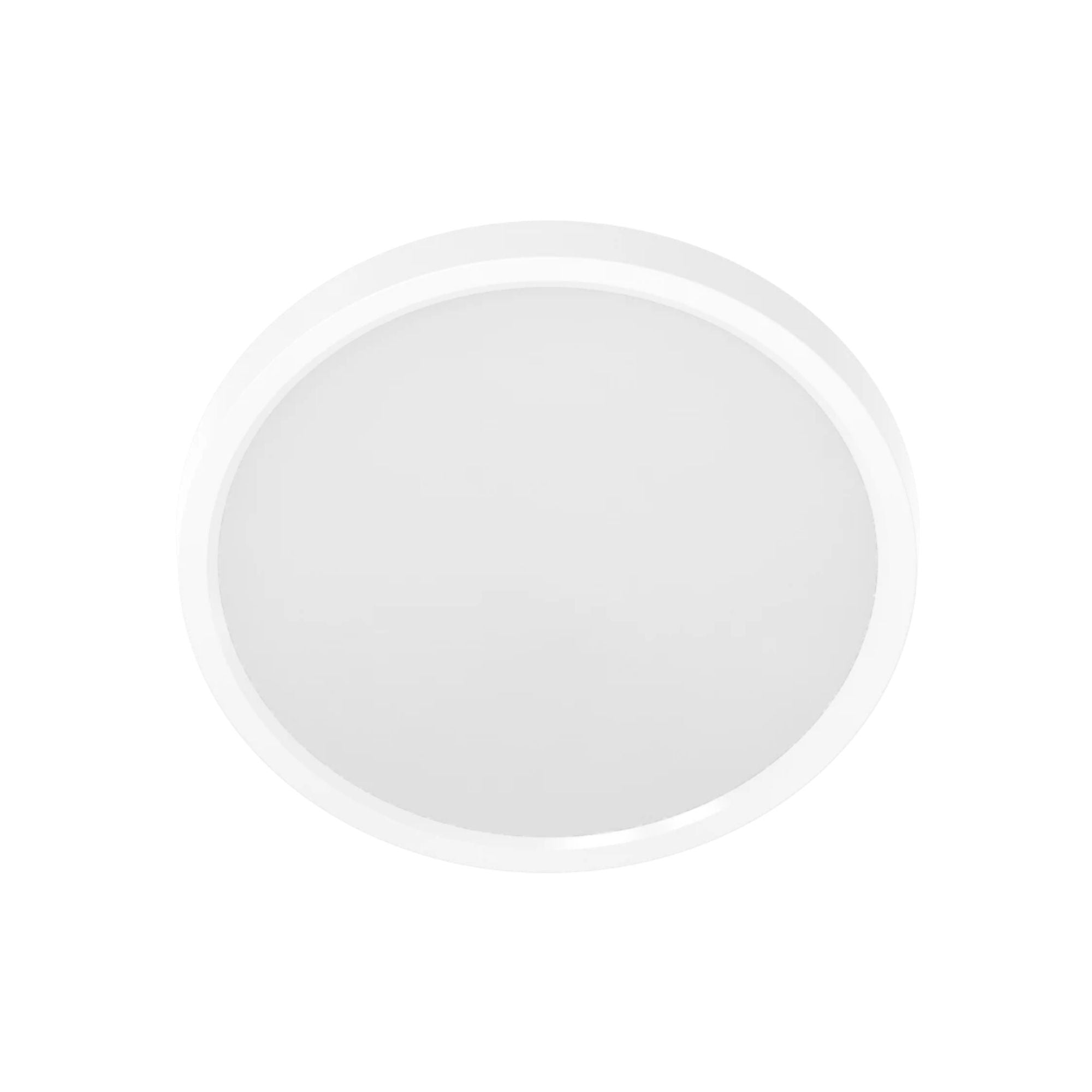

RAB SUMO-R-7/BP 7 in Round LED Surface Mount — White, Bulk Pack, Selectable CCT

The RAB SUMO-R-7/BP bulk-pack model pairs a 7 in round white design with integrated LED surface-mount lighting for coordinated new construction and retrofit projects. Smooth trim and a frosted polycarbonate diffuser distribute light evenly, while five selectable color temperatures let you match the light tone to the space. Each fixture uses a nominal 14W and offers compatible TRIAC/ELV dimming to 10%.

Key Features

• Model: SUMO-R-7/BP bulk-pack version; performance figures are per fixture
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Input Power: Nominal 14W; manufacturer-listed 60W incandescent equivalency
• Measured Output: 993 lm at 2700K, 1,032 lm at 3000K, 1,072 lm at 3500K, 1,092 lm at 4000K and 1,110 lm at 5000K
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Color Quality: 90 CRI, R9 greater than 50 and less than 4-step MacAdam Ellipse binning
• Beam: 110 degrees
• Electrical: Constant-current driver; 120V at 60Hz; power factor greater than 0.9 and flicker below 30%

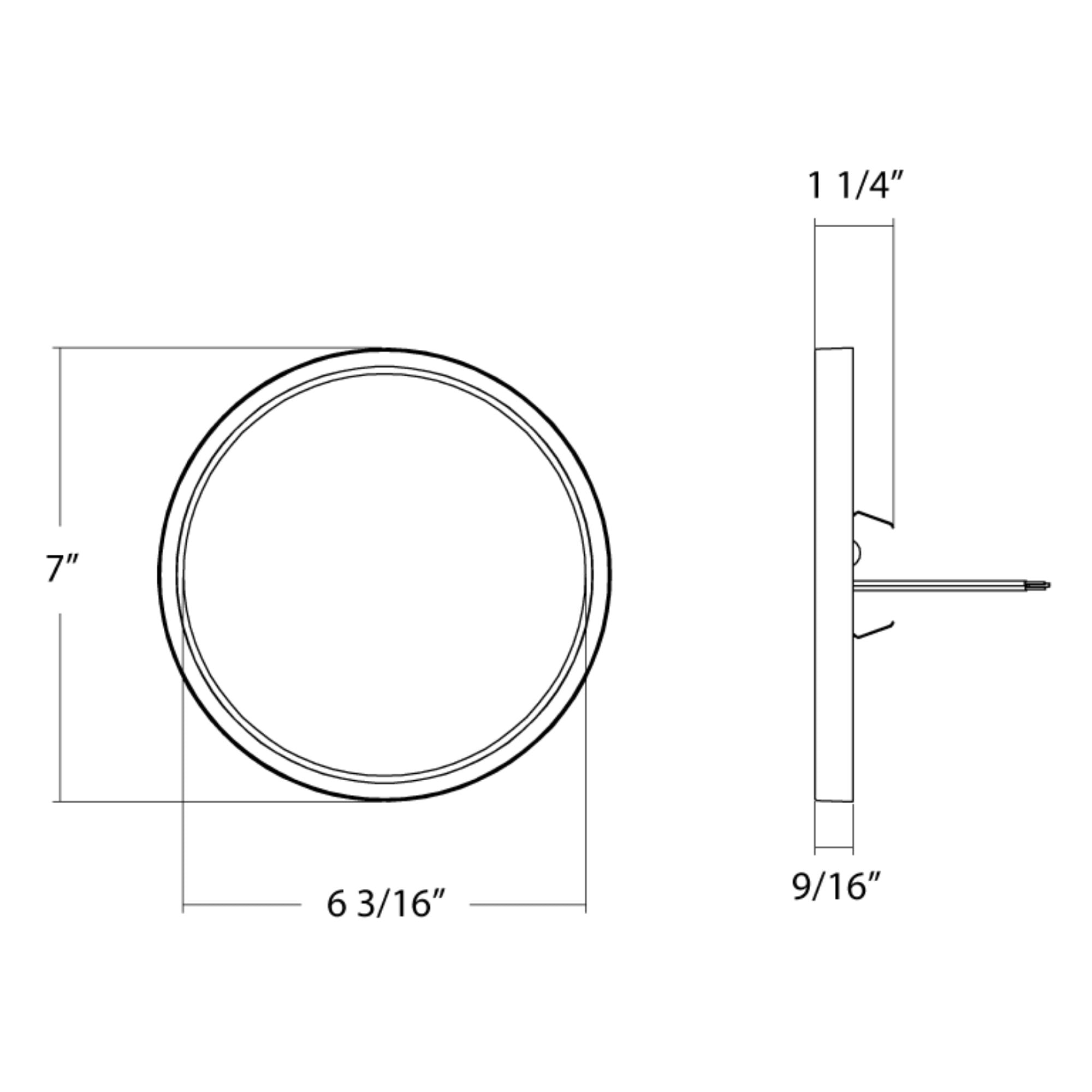

• Construction: 7 in round metal enclosure, smooth white trim and frosted polycarbonate diffuser; 0.8 lb per fixture
• Mounting: Surface mount or recessed housing
• Listings and Environment: UL listed, ENERGY STAR certified, FCC Part 15 and RoHS compliant; indoor/outdoor dry, damp and wet suitability; non-IC and non-airtight
• Life and Warranty: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operating range

Construction & Design

The 7 in round form and smooth white finish provide a clean ceiling appearance without a pendant-style drop. A metal enclosure supports durable construction, and the frosted polycarbonate diffuser distributes light evenly for general illumination. Listed fixture weight is 0.8 lb. Matching black, brushed nickel and bronze trim accessories allow finish customization.

Light Output & Performance

Detailed measured output is 993/1,032/1,072/1,092/1,110 lumens per fixture at 2700/3000/3500/4000/5000K, respectively. The technical section lists 1,150 nominal lumens, distinct from those measured values. A 110-degree beam, 90 CRI and R9 greater than 50 support broad illumination and clear color rendering. Integrated LEDs provide a rated 50,000-hour L70 lifespan.

Electrical & Installation

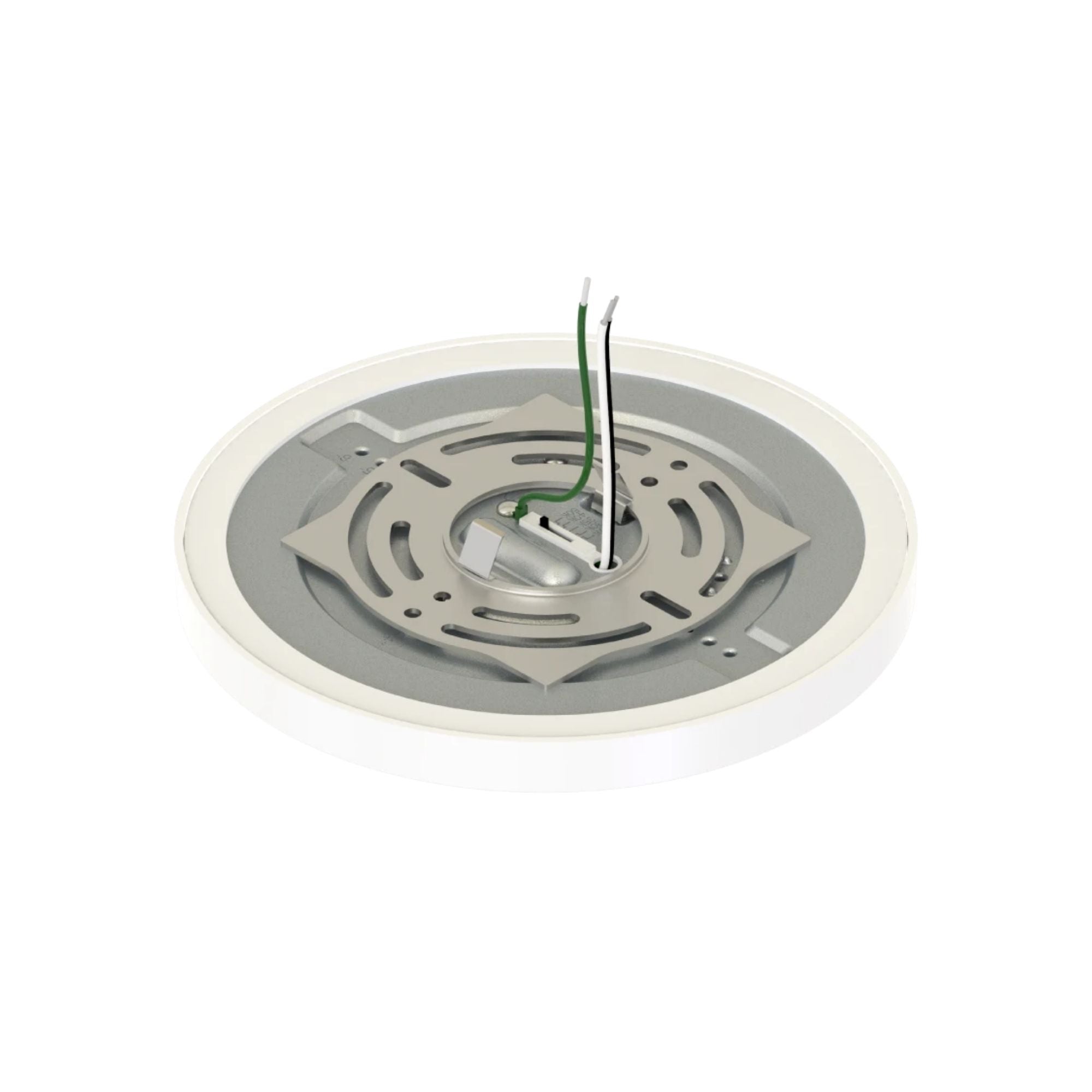

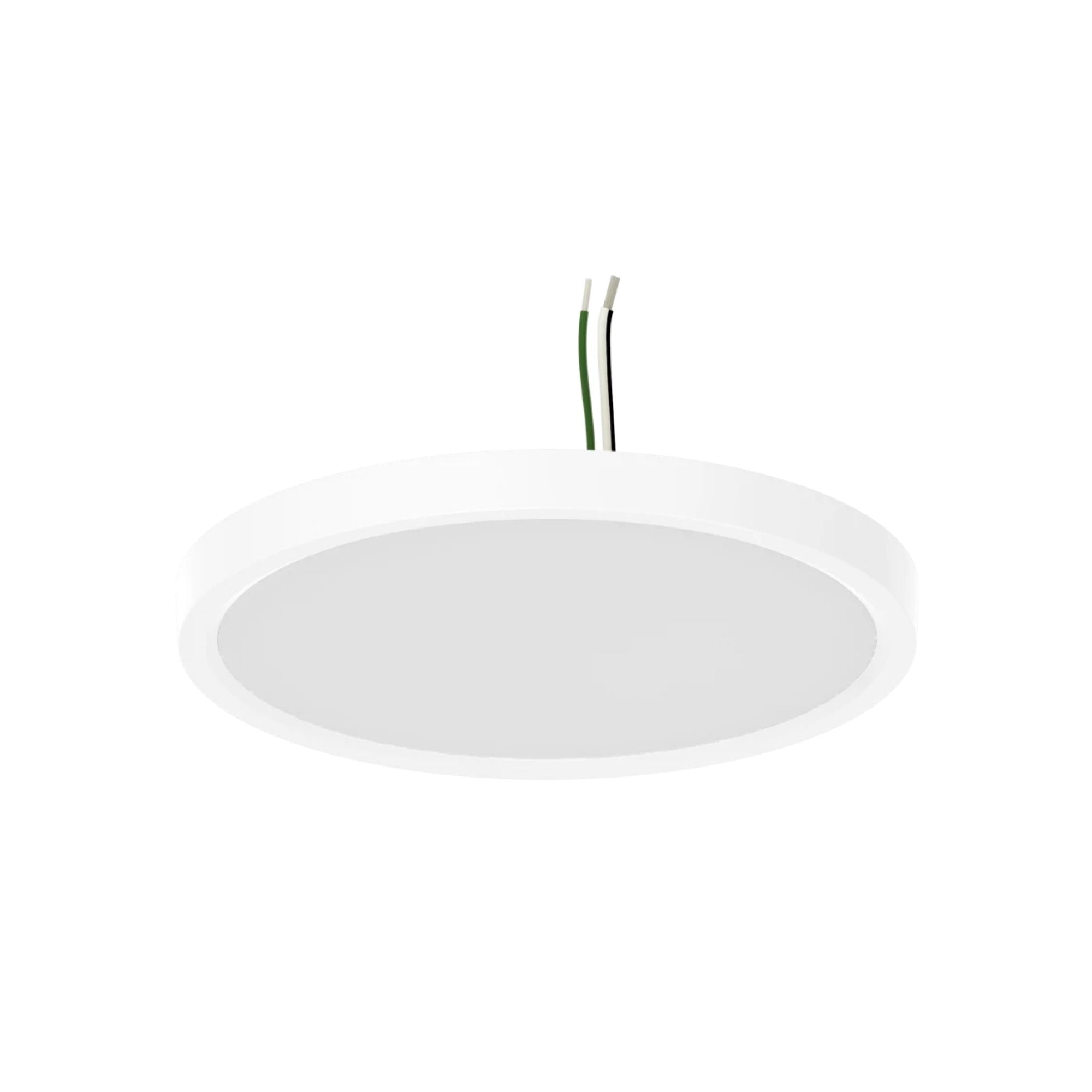

The fixture supports surface mounting or installation in a recessed housing. Surface-mount installation on compatible junction boxes keeps the fixture close to the ceiling without a hanging drop. Operate on 120V at 60Hz, select CCT using the fixture DIP switch during installation, and use compatible TRIAC/ELV controls to dim to 10%. This model is not IC rated and not airtight.

The sheet lists indoor/outdoor dry, damp and wet suitability, closet-use compliance with NEC 410.16(A)(1) and 410.16(C)(1), California Title 24 Part 6 conformity capability, and TAA compliance with Cambodia as country of manufacture.

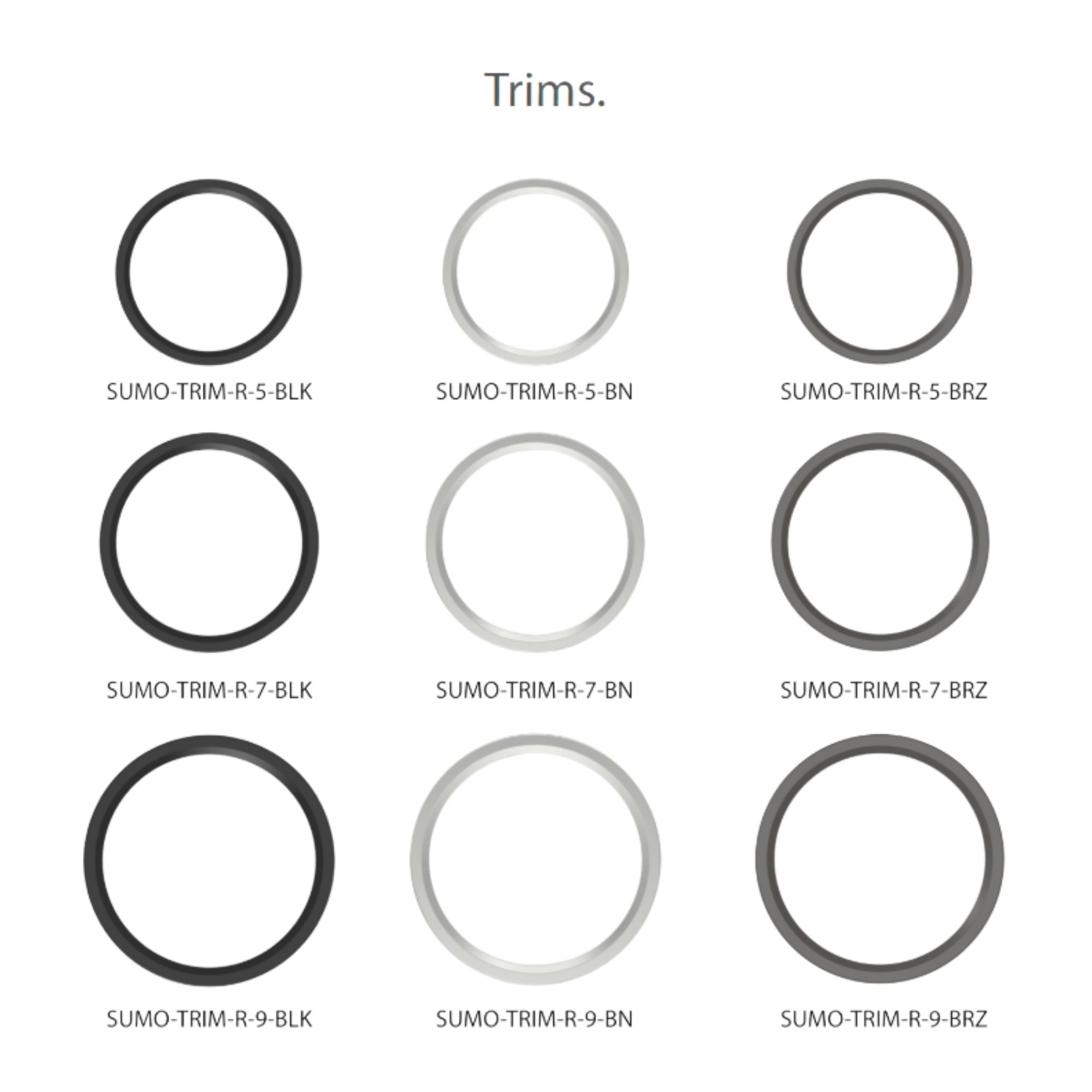

Compatible Accessories

• SUMO-TRIM-R-7-BLK: Black color trim for the 7 in slim SUMO round fixture
• SUMO-TRIM-R-7-BN: Brushed nickel color trim for the 7 in slim SUMO round fixture
• SUMO-TRIM-R-7-BRZ: Bronze color trim for the 7 in slim SUMO round fixture

Typical Applications

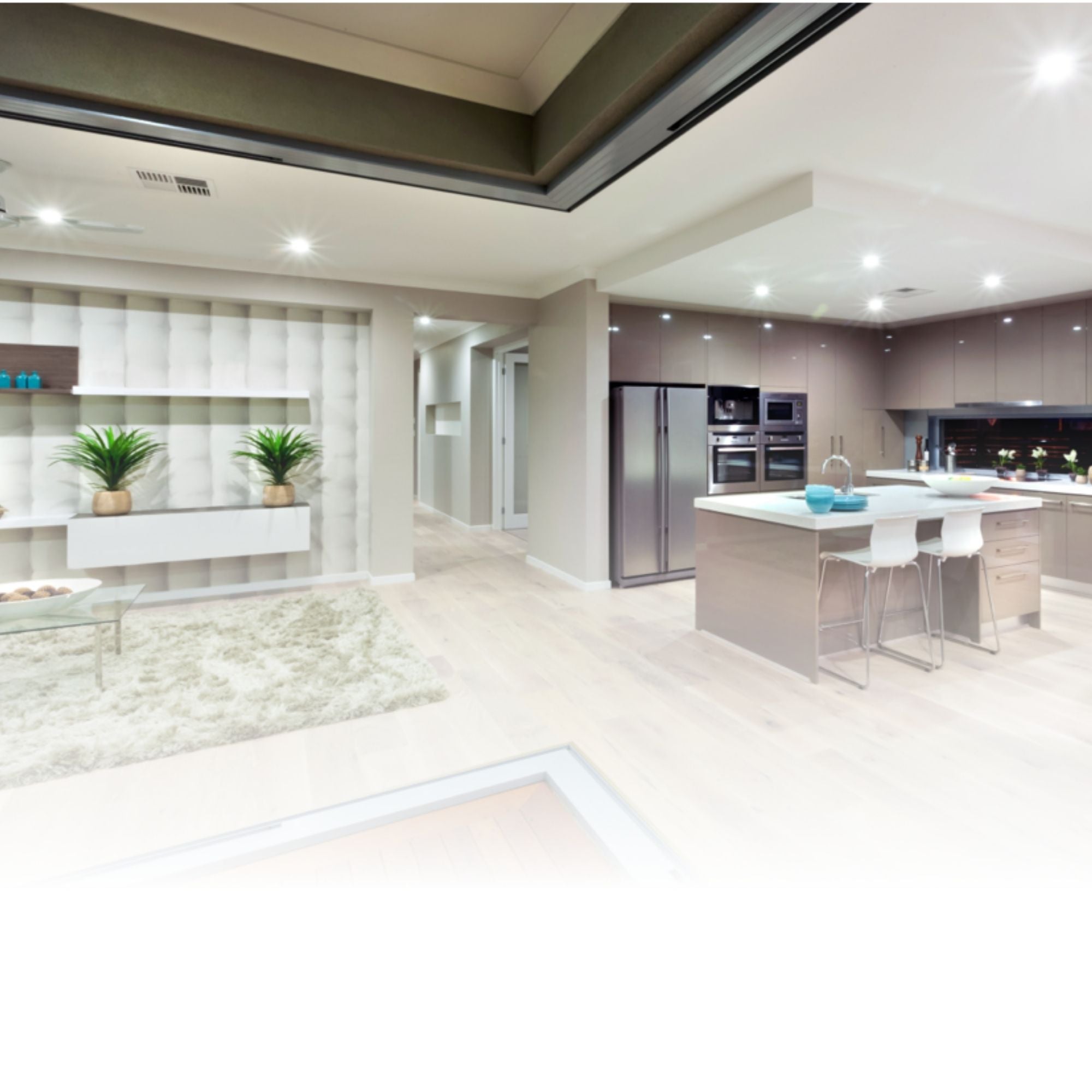

• Coordinated residential new construction and remodel projects
• Hallways and entryways
• Laundry and utility rooms
• Closets with installation clearances appropriate to the listed use

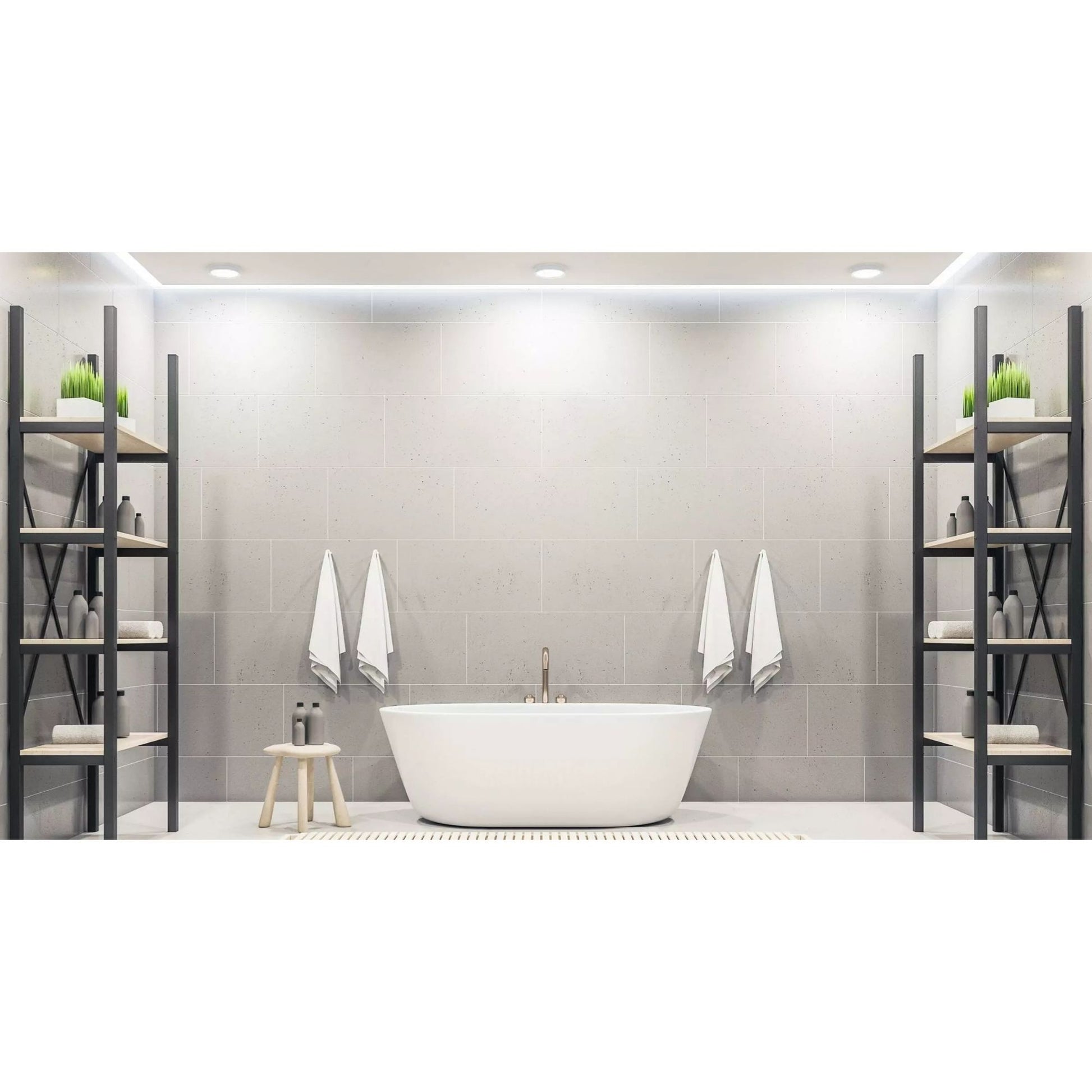

• Bathrooms and covered outdoor spaces

What's Included

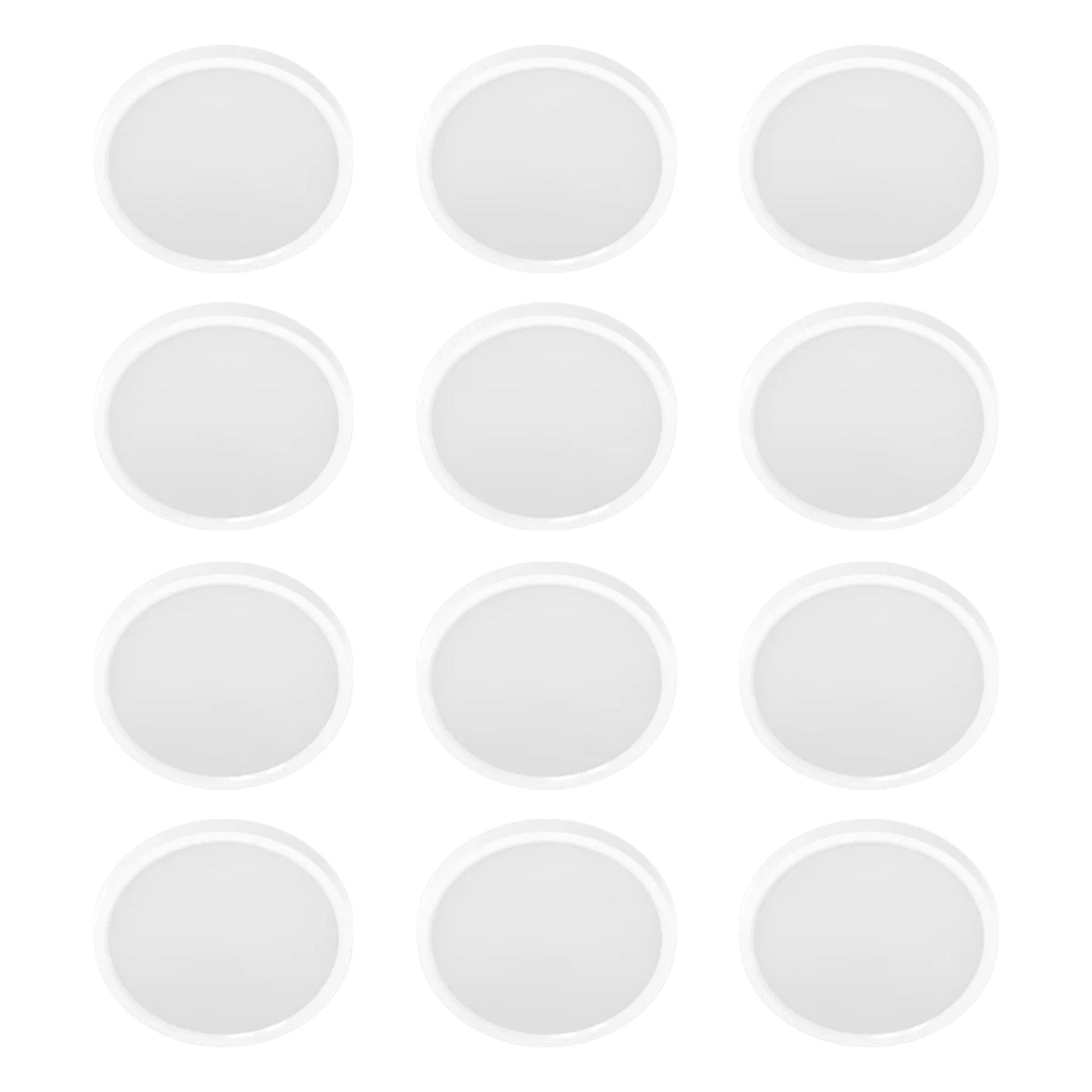

• White RAB SUMO-R-7/BP integrated LED fixtures with constant-current drivers in the bulk-pack configuration
