RAB SUMO-R-5 5.5 in Round LED Surface Mount White 10W Selectable CCT
Available in stock (100)
About this item
About this item
- Compact Round Design: 5.5 in white smooth trim, metal enclosure and polycarbonate diffuser deliver even general illumination

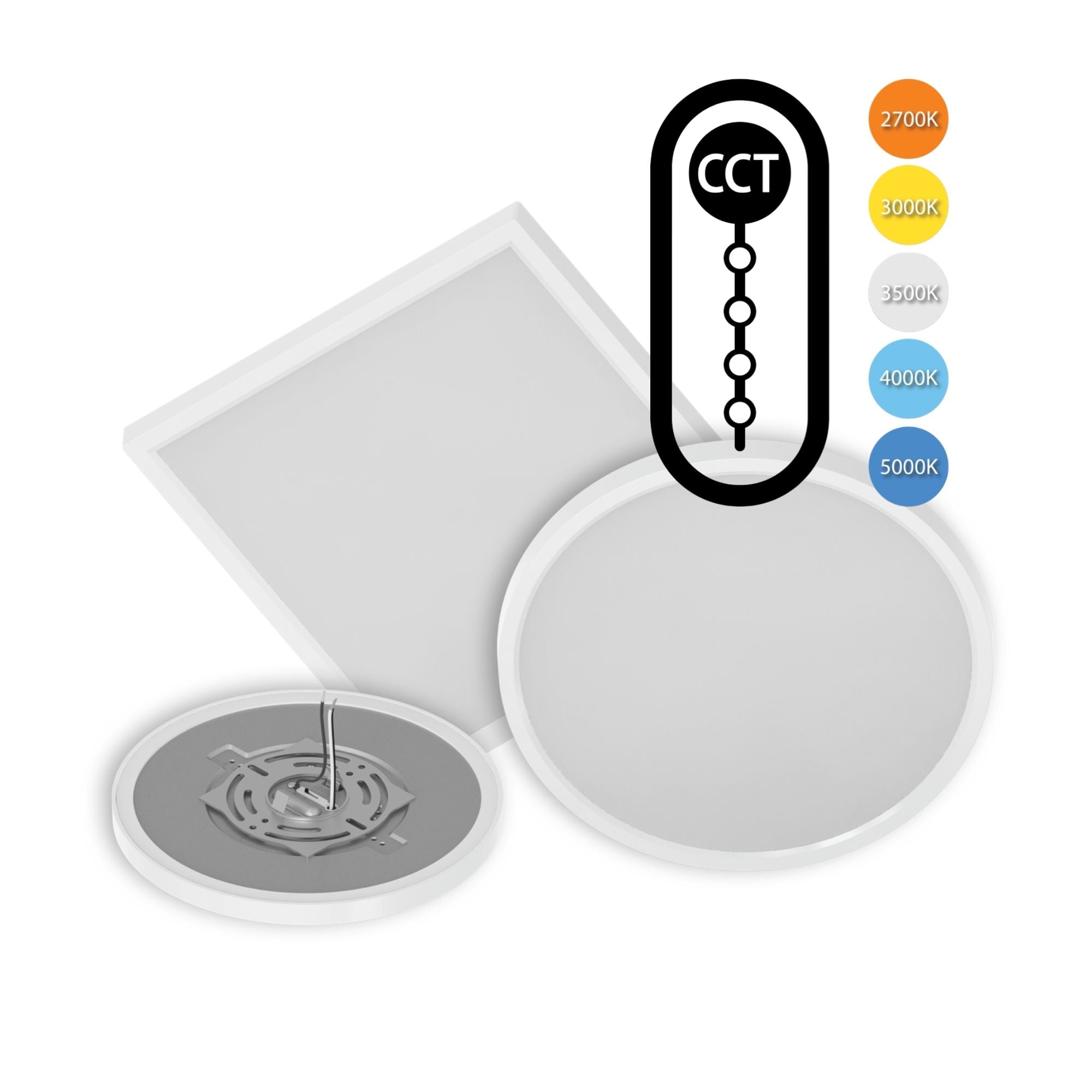

- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
- Detailed Light Output: 754–835 lumens across CCT settings from 10W, with 90 CRI and a 110-degree ±10-degree beam
- Adjustable Brightness: Compatible 120V TRIAC/ELV dimming to 10% for flexible brightness control
- Durable Performance: Dry/damp/wet suitability, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty
Description
Description

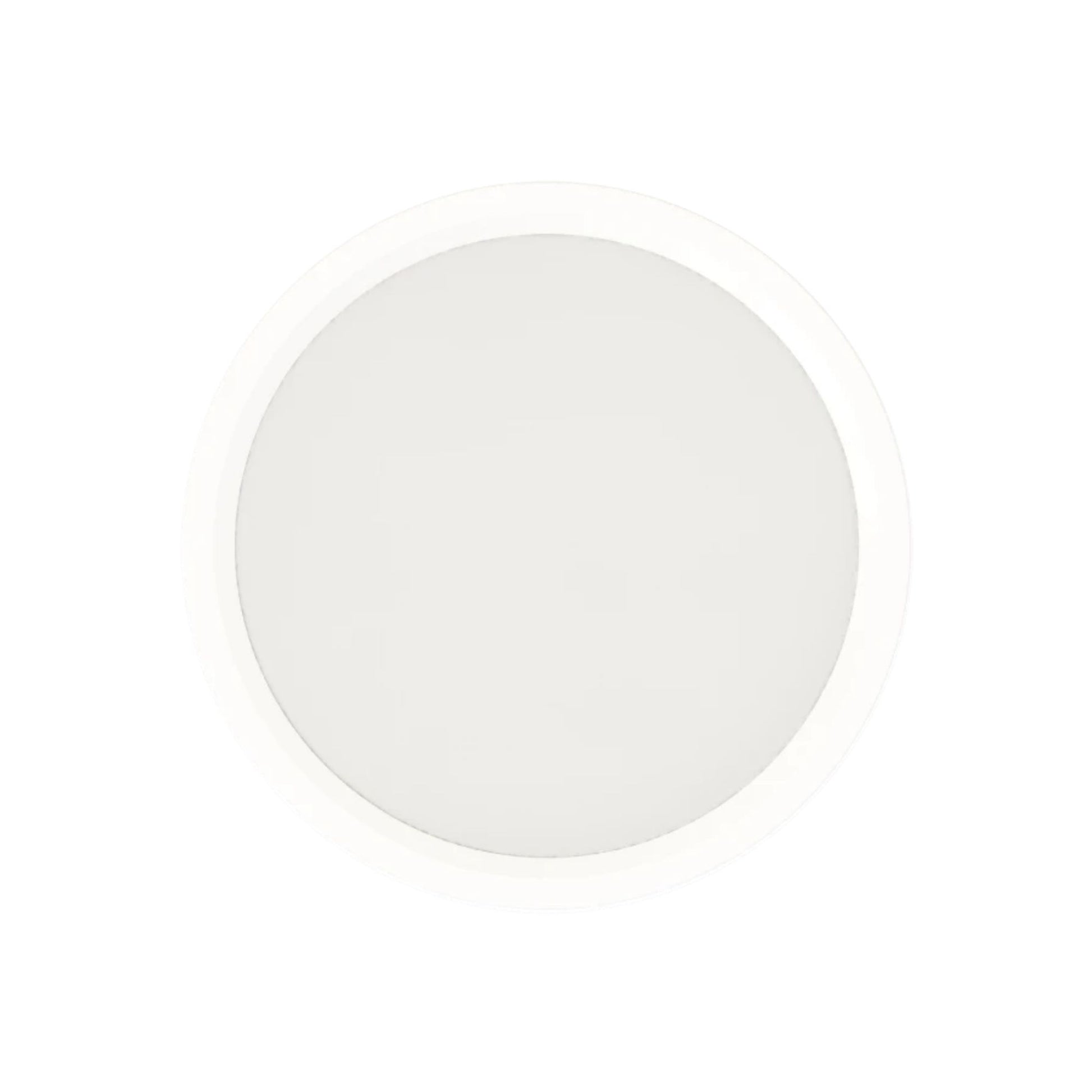

RAB SUMO-R-5 5.5 in Round LED Surface Mount — White, 10W, Selectable CCT
The RAB SUMO-R-5 is an integrated LED surface-mount fixture that brings a clean, compact look to new construction and retrofit spaces. Its 5.5 in round white trim and polycarbonate diffuser blend into the ceiling while spreading light smoothly. Select 2700K to 5000K at installation, then use compatible dimming to adjust the room's brightness.
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
- LED Input: 10W; manufacturer-listed 40W incandescent equivalency
- CCT-Specific Output: 754 lm at 2700K, 792 lm at 3000K, 821 lm at 3500K, 835 lm at 4000K and 825 lm at 5000K
- Dimming: Compatible TRIAC/ELV systems dim to 10%
- Color Rendering: 90 CRI with R9 at least 50 and 4-step MacAdam Ellipse binning
- Beam: 110 degrees ±10 degrees
- Driver: Constant-current Class 2; 120V, 60Hz, detailed input current 93mA
- Power Quality: Power factor at least 0.9; flicker at most 30%
- Construction: White smooth trim, metal enclosure and polycarbonate light diffuser; 0.8 lb
- Listings: UL listed; ENERGY STAR Version 2.2 certified; RoHS and FCC Part 15 compliant
- Environment: Dry, damp and wet locations; non-IC and non-airtight
- Life and Warranty: 50,000-hour L70 life and five-year warranty; -4°F to 104°F operation
Construction & Design

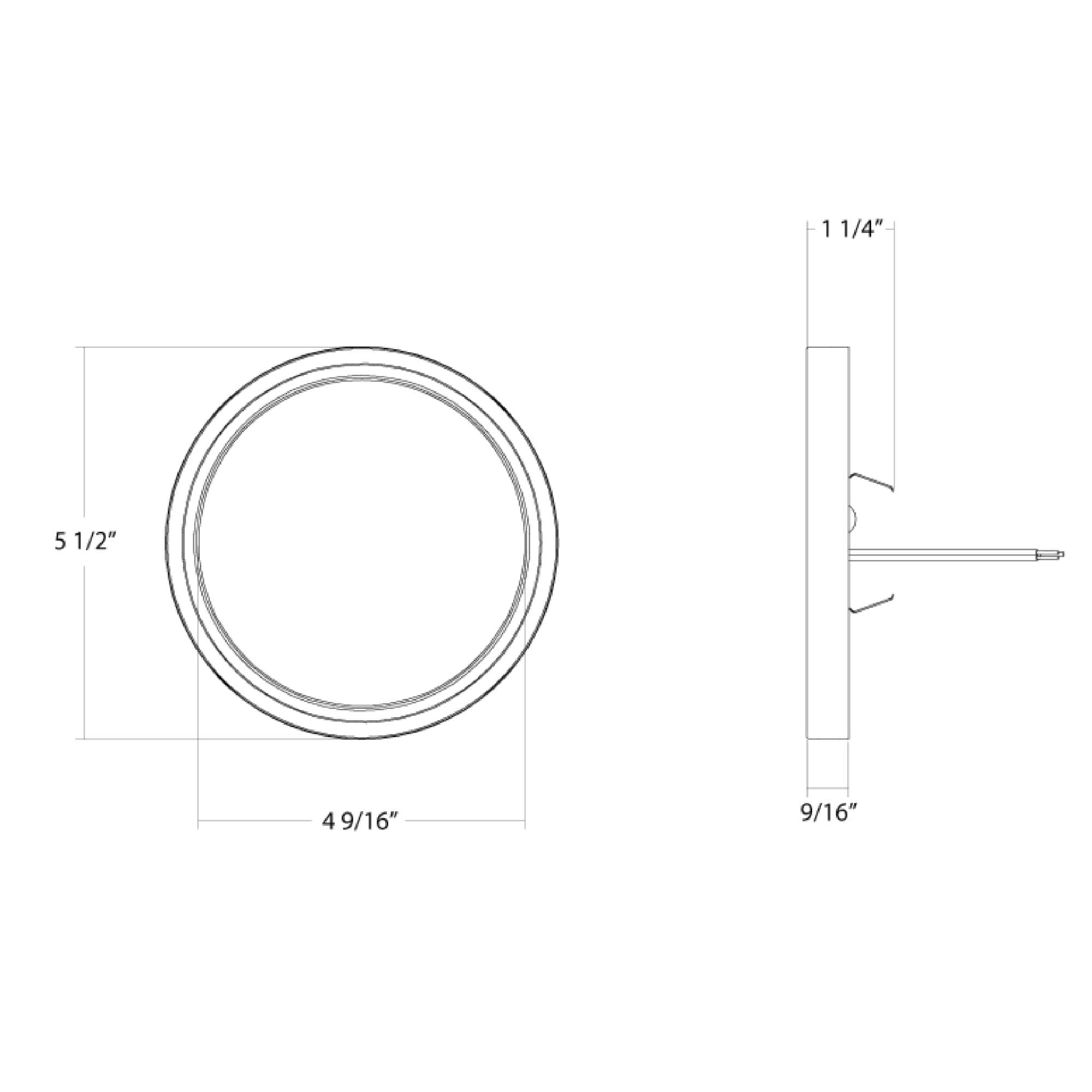

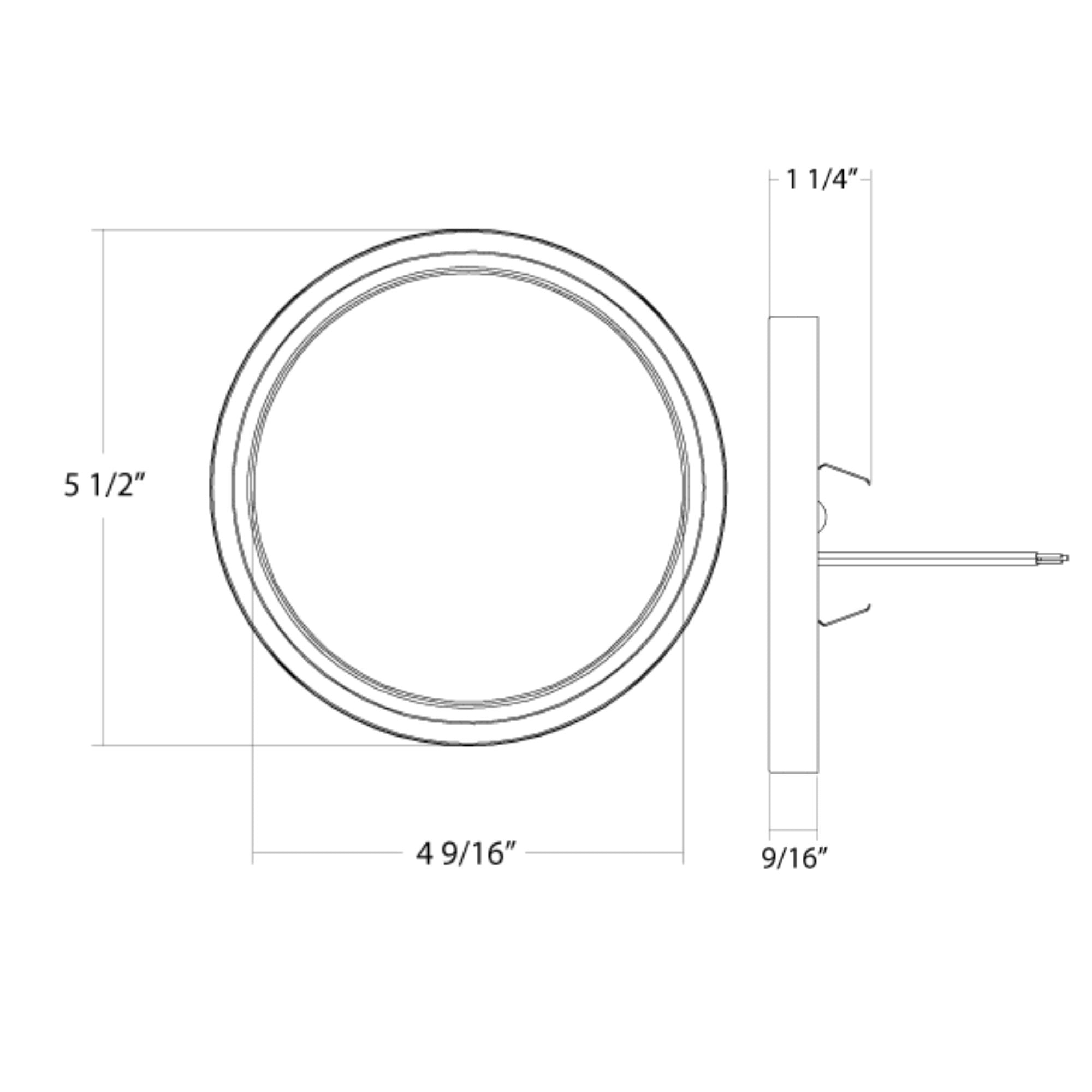

A 5.5 in diameter, smooth white finish and metal enclosure give this fixture a restrained appearance suited to compact spaces. The polycarbonate diffuser distributes light evenly for general illumination. Fixture weight is 0.8 lb.
Light Output & Performance
Detailed photometric values range from 754 to 835 lumens across the five selectable CCTs. Output is 754/792/821/835/825 lumens at 2700/3000/3500/4000/5000K, respectively. Corresponding efficacy is 75/79/82/83/82 lm/W. A broad 110-degree ±10-degree beam and 90 CRI support smooth general illumination with clear color rendering. Rated LED life is 50,000 hours at L70.
Electrical & Installation

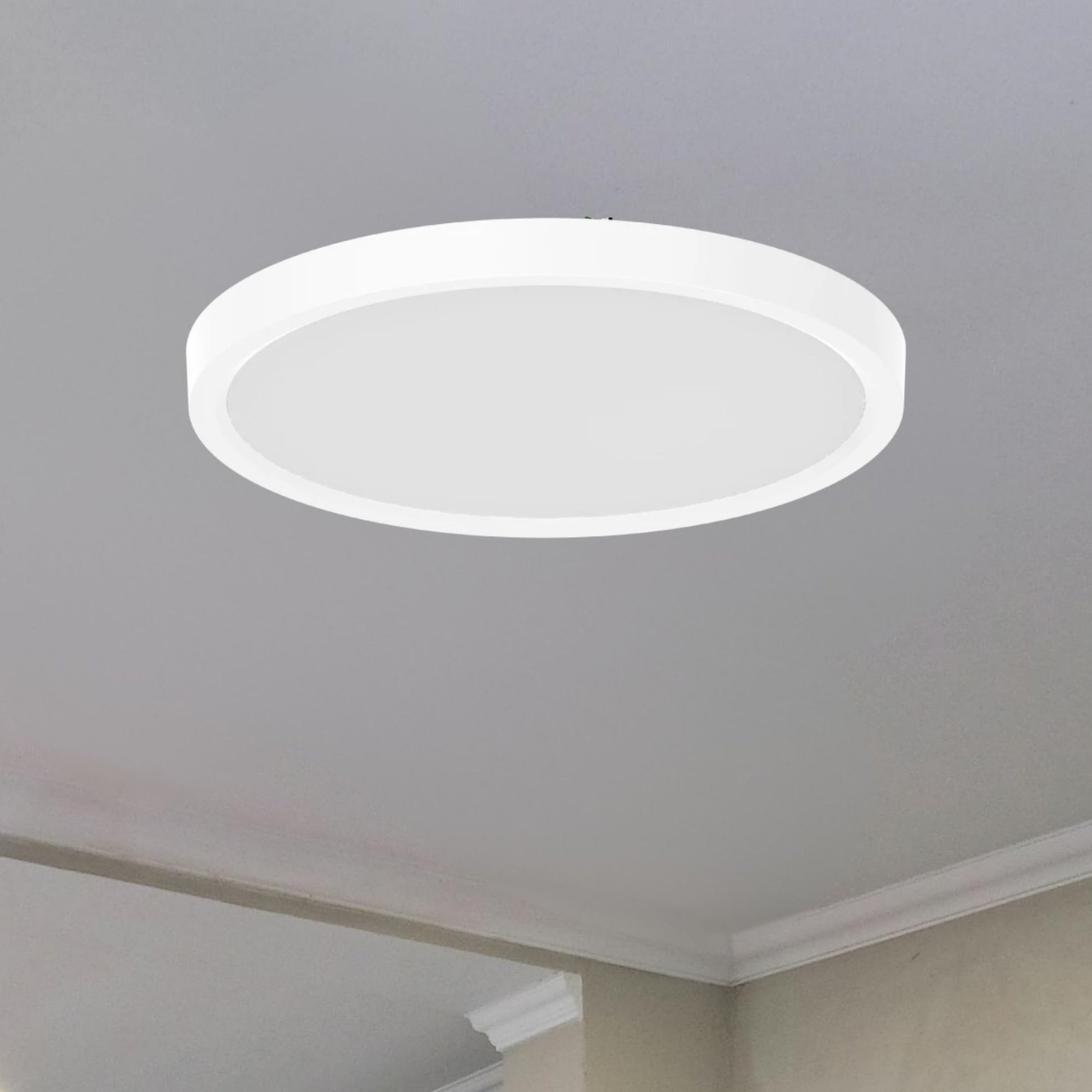

Surface-mount installation on compatible junction boxes keeps the fixture close to the ceiling without a pendant drop. Operate on 120V at 60Hz with a constant-current Class 2 driver; compatible TRIAC/ELV controls dim to 10%. Select color temperature using the fixture DIP switch during installation. This fixture is not IC rated and not airtight.
The individual sheet lists dry, damp and wet suitability, closet-use compliance with NEC 410.16(A)(1) and 410.16(C)(1), California Title 24 Part 6 conformity capability, and TAA compliance with Cambodia as country of manufacture.
Typical Applications
- Hallways and entryways
- Laundry and utility rooms
- Closets with installation clearances appropriate to the listed use

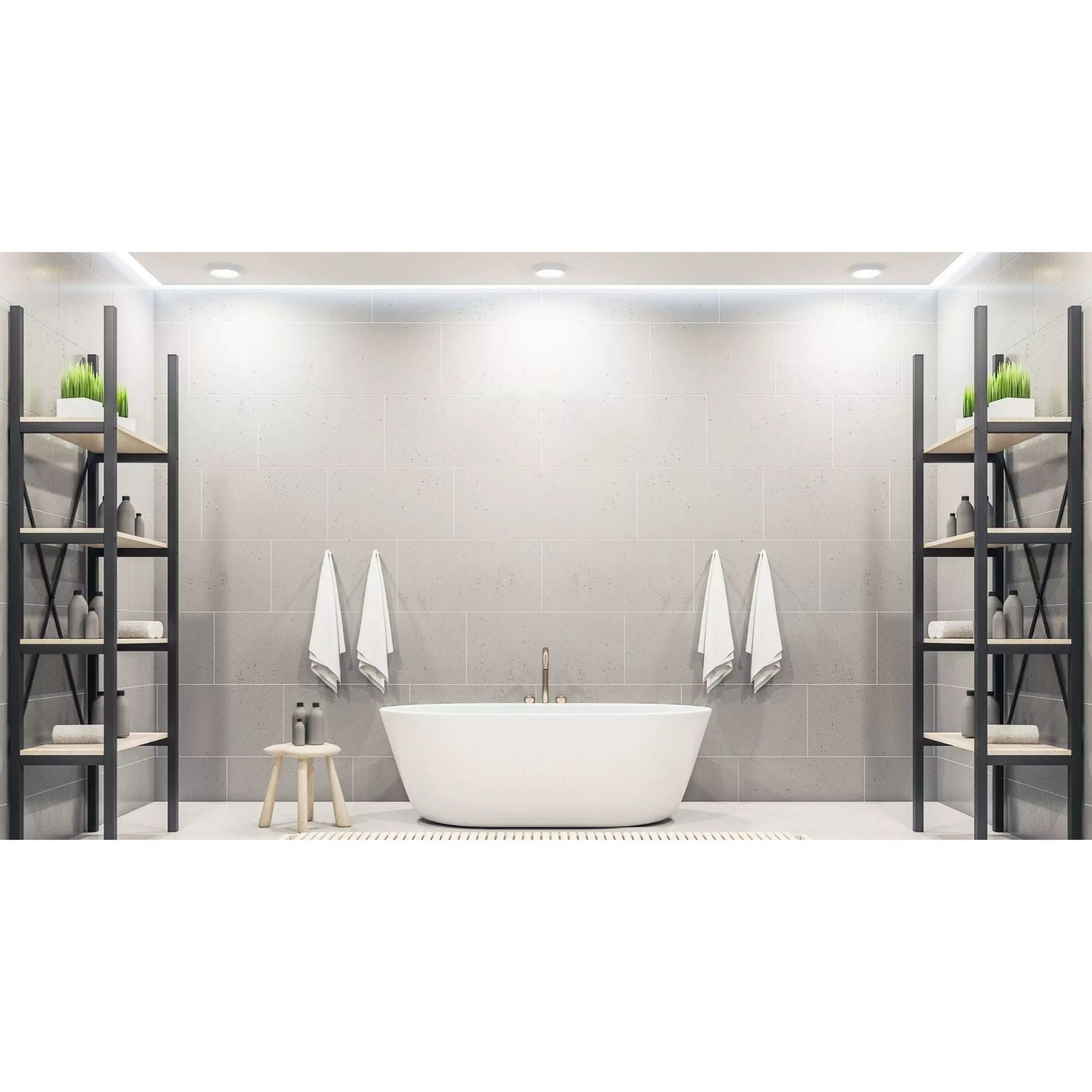

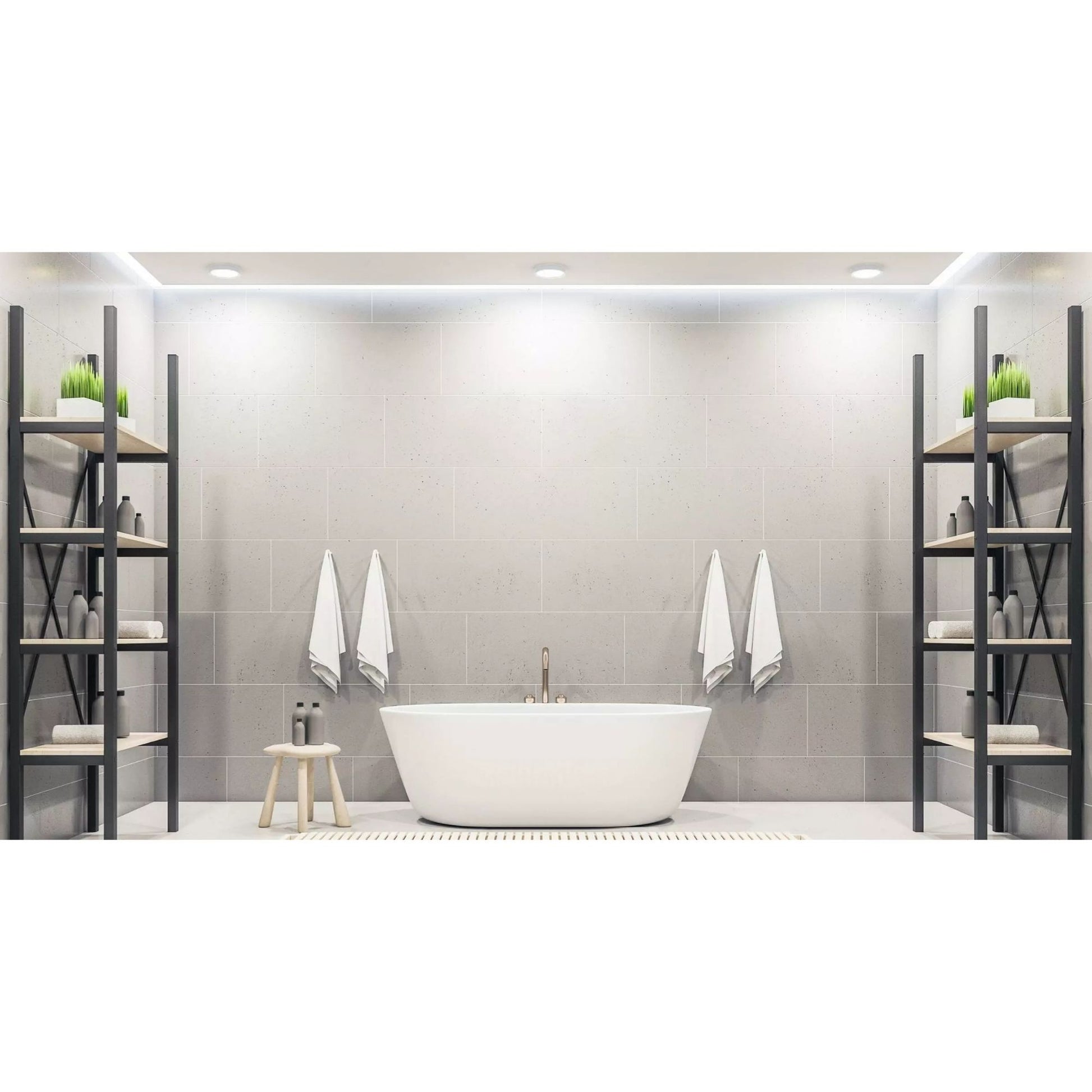

- Bathrooms and covered outdoor spaces
What's Included
- One white RAB SUMO-R-5 surface-mount fixture with integrated LED light source and driver
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is SUMO-R-5 suitable for damp or wet locations?
Is SUMO-R-5 suitable for damp or wet locations?
Can SUMO-R-5 be dimmed?
Can SUMO-R-5 be dimmed?
Does SUMO-R-5 require a separate light bulb?
Does SUMO-R-5 require a separate light bulb?
Can I select the light color on SUMO-R-5?
Can I select the light color on SUMO-R-5?
Is SUMO-R-5 a compact surface-mount fixture?
Is SUMO-R-5 a compact surface-mount fixture?
