RAB SUMO-R-19 19 in LED Surface Mount White 30W Selectable CCT
Out of stock
About this item
About this item
- Low-Profile Edge Lighting: 19 in round white fixture with 1 7/16 in depth and smooth, even diffusion
- Selectable Output: Five 2700–5000K CCTs with 2,250–2,450 lumens at 30W
- Comfortable Dimming: Compatible TRIAC/ELV controls dim to 10% on 120V
- Durable Construction: Metal housing and frosted polycarbonate lens; dry/damp/wet suitability; 4.8 lb
- Long-Life Color Performance: 90 CRI class, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty
Description
Description

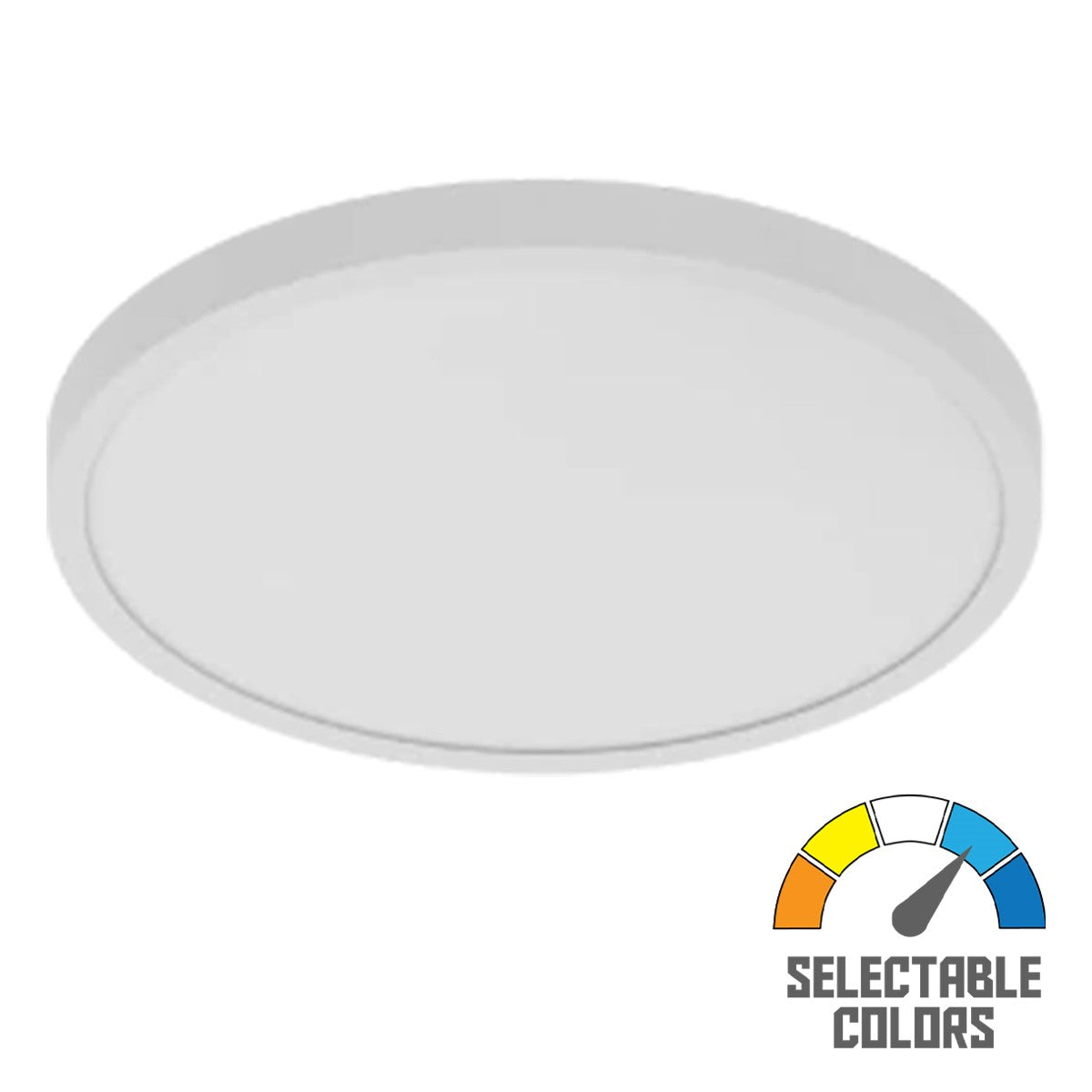

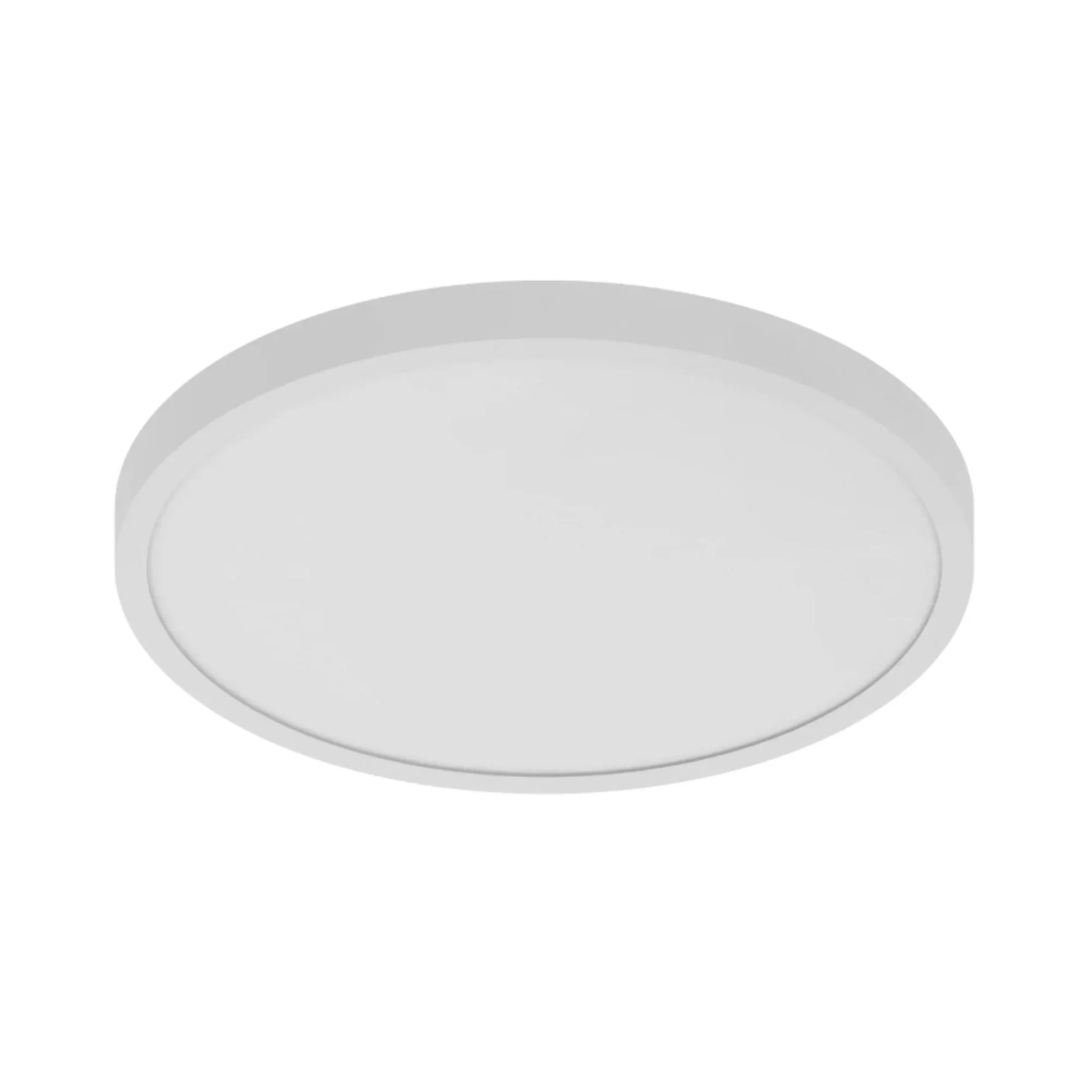

RAB SUMO-R-19 19 in Round LED Surface Mount — White, 30W, Selectable CCT, 120V
The RAB SUMO-R-19 edge-lit integrated LED surface mount combines a 19 in round white design with smooth general illumination. Its 30W LEDs deliver 2,250–2,450 lumens, depending on CCT. Five field-adjustable color temperatures and compatible dimming help coordinate lighting in residential and commercial spaces.
Key Features
- Edge-Lit Design: Frosted polycarbonate lens distributes light evenly and smoothly
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output by CCT: 2,250/2,350/2,450/2,450/2,300 lumens at 2700/3000/3500/4000/5000K
- Power: 30W; manufacturer-listed 150W incandescent equivalency
- Dimming: Compatible TRIAC/ELV controls dim to 10%
- Electrical: Constant-current driver, 120V at 50/60Hz and 0.28A input
- Power Quality: Power factor at least 0.9, THD at most 20% and 2.5kV surge protection
- Color Quality: 90 CRI class, R9 at least 50 and 4-step MacAdam binning
- Dimensions: 19 in diameter, 1 7/16 in depth and 4.8 lb weight
- Construction: Smooth white metal housing and frosted polycarbonate diffuser
- Listings: UL listed, ENERGY STAR certified, FCC Part 15B and RoHS compliant; indoor/outdoor dry/damp/wet suitability; sheet states California Title 24 requirements are met
- Service Life: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operation; TAA compliant, manufactured in Cambodia
Construction & Design

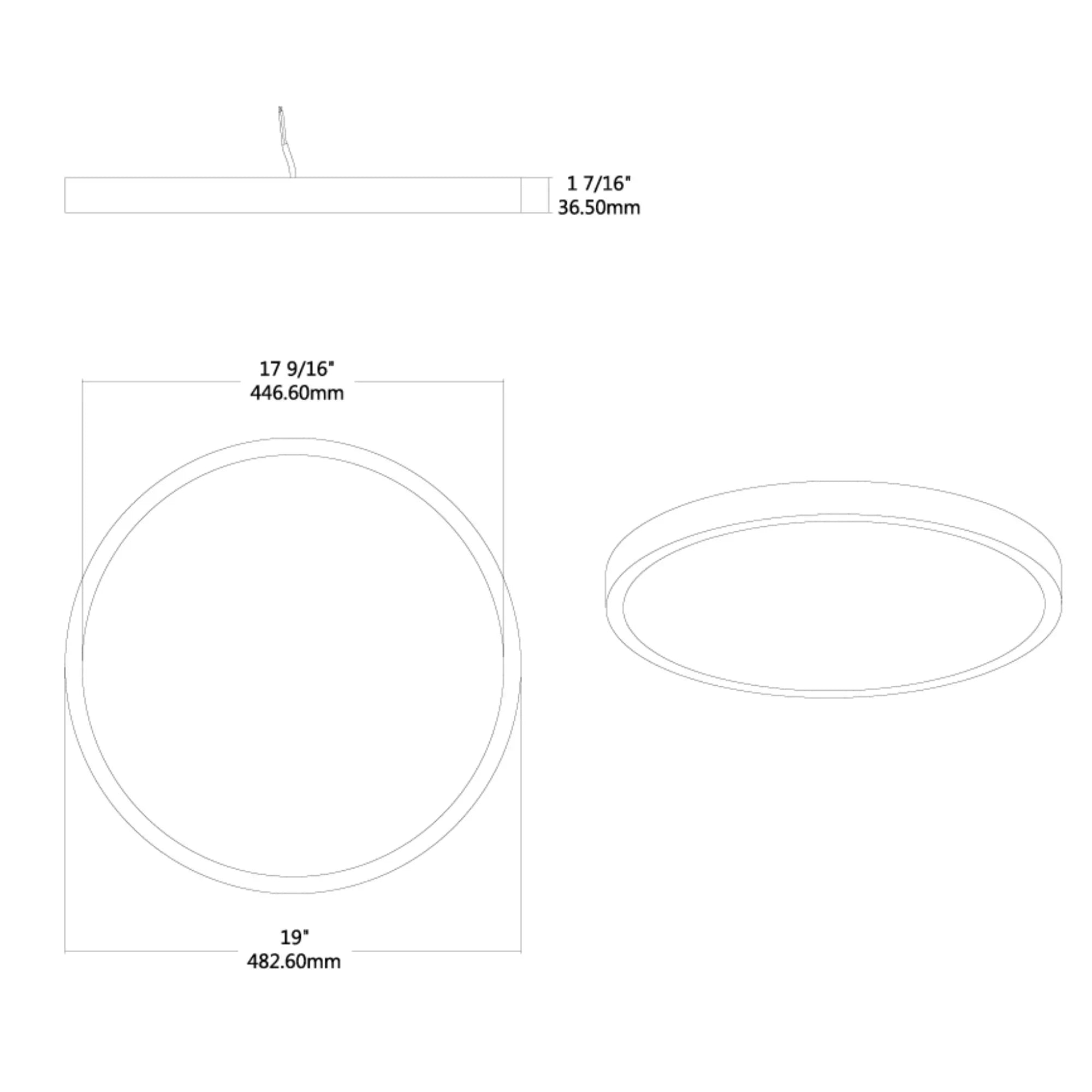

The white metal housing combines smooth trim with a frosted polycarbonate lens. Fade-resistant polyester powder coating supports lasting finish appearance indoors or outdoors. The drawing specifies 19 in diameter and 1 7/16 in depth; sheet-listed weight is 4.8 lb.
Light Output & Performance
At 30W, select 2700K for 2,250 lumens, 3000K for 2,350 lumens, 3500K or 4000K for 2,450 lumens, or 5000K for 2,300 lumens. Corresponding listed efficacy is 75/78/82/82/77 lm/W. The 90 CRI class and R9 at least 50 support accurate color rendering. Rated life is 50,000 hours at L70.
Electrical & Installation
Surface mount to a compatible ceiling or wall junction box for new construction or retrofit applications. The 1 7/16 in depth provides a low-profile ceiling fit without a pendant drop. This model requires 120V at 50/60Hz and supports compatible TRIAC/ELV dimming down to 10%; it is not the universal-voltage 0–10V D10 model. Suitable for indoor/outdoor dry, damp and wet environments. The sheet identifies closet suitability under NEC sections 410.16(A)(1) and 410.16(C3).
Typical Applications
- Residential hallways and utility spaces
- Commercial circulation and service areas
- Closets with suitable installation clearances
- Indoor or outdoor surface-mounted general lighting
What's Included
- One white RAB SUMO-R-19 fixture with integrated LEDs, driver and frosted diffuser
