RAB SUMO-R-15K 15" LED Surface Mount Black Selectable CCT
Available in stock (100)
About this item
About this item
- Thin Edge-Lit Design: 15 in round panel with 9/16 in panel thickness and smooth matte black trim
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K using the fixture DIP switch
- Clear General Lighting: 2,000 lumens from 28W with 90 CRI for accurate color rendering
- Adjustable Brightness: Compatible TRIAC/ELV dimming down to 10%, with 120V input
- Lasting Performance: Indoor/outdoor dry/damp/wet suitability, Title 24 JA8 compliance, 50,000-hour L70 life and five-year warranty
Description
Description
RAB SUMO-R-15K 15 in Round LED Surface Mount — Matte Black, 28W, Selectable CCT
The RAB SUMO-R-15K is a slim, edge-lit LED surface-mount downlight that pairs matte black smooth trim with evenly diffused illumination. Its 15 in diameter provides a clean ceiling presence, while 2,000 lumens from 28W deliver practical general lighting. Five selectable color temperatures and compatible TRIAC/ELV dimming let you set the light tone and brightness for your space.
Key Features
- Light Output: 2,000 lumens from 28W
- Replacement Equivalency: 150W incandescent

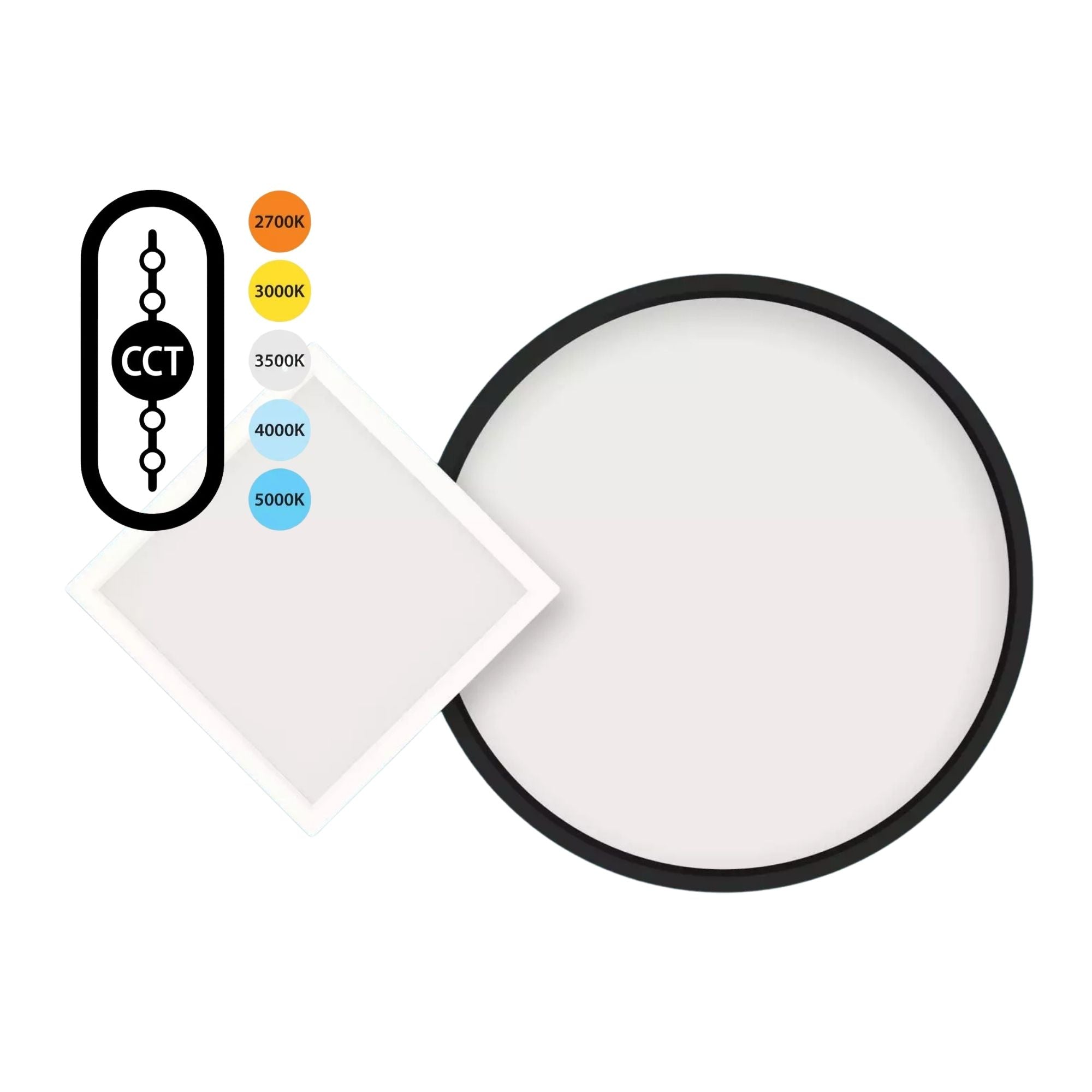

- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via fixture DIP switch
- Color Rendering: 90 CRI and R9 greater than 50
- Color Consistency: Less than 4-step MacAdam Ellipse binning
- Dimming: Compatible TRIAC/ELV dimming down to 10%
- Electrical: Constant-current driver, 120V at 60Hz and 260mA input current
- Power Factor: At least 0.9
- Construction: Steel heatsink, UV-resistant polyester trim ring and frosted acrylic lightguide
- Dimensions and Weight: 15 in diameter, 9/16 in panel thickness and 2.6 lb weight
- Ratings and Compliance: UL listed for indoor/outdoor dry, damp and wet locations; Title 24 JA8 compliant; not IC rated or airtight
- Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range
Construction & Design

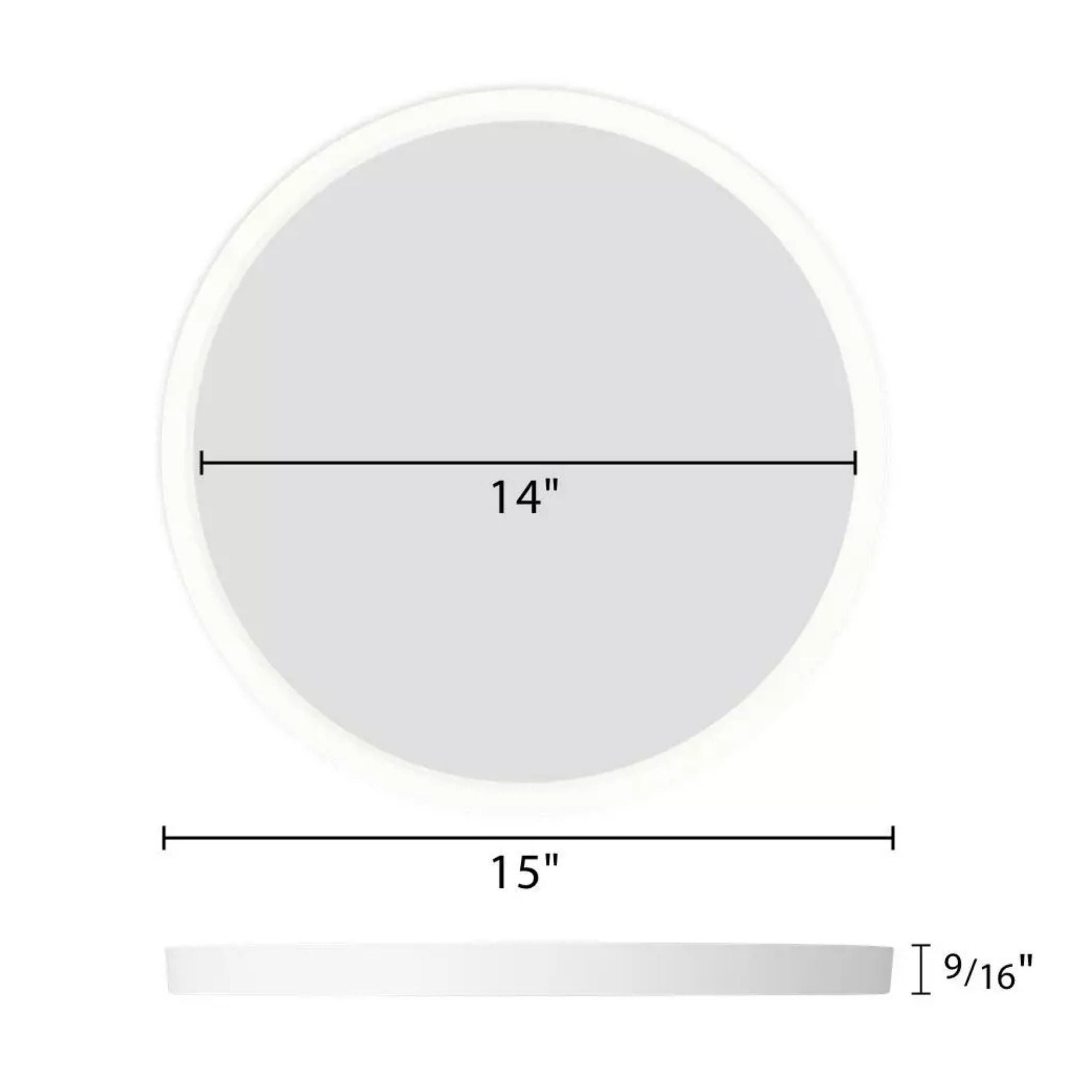

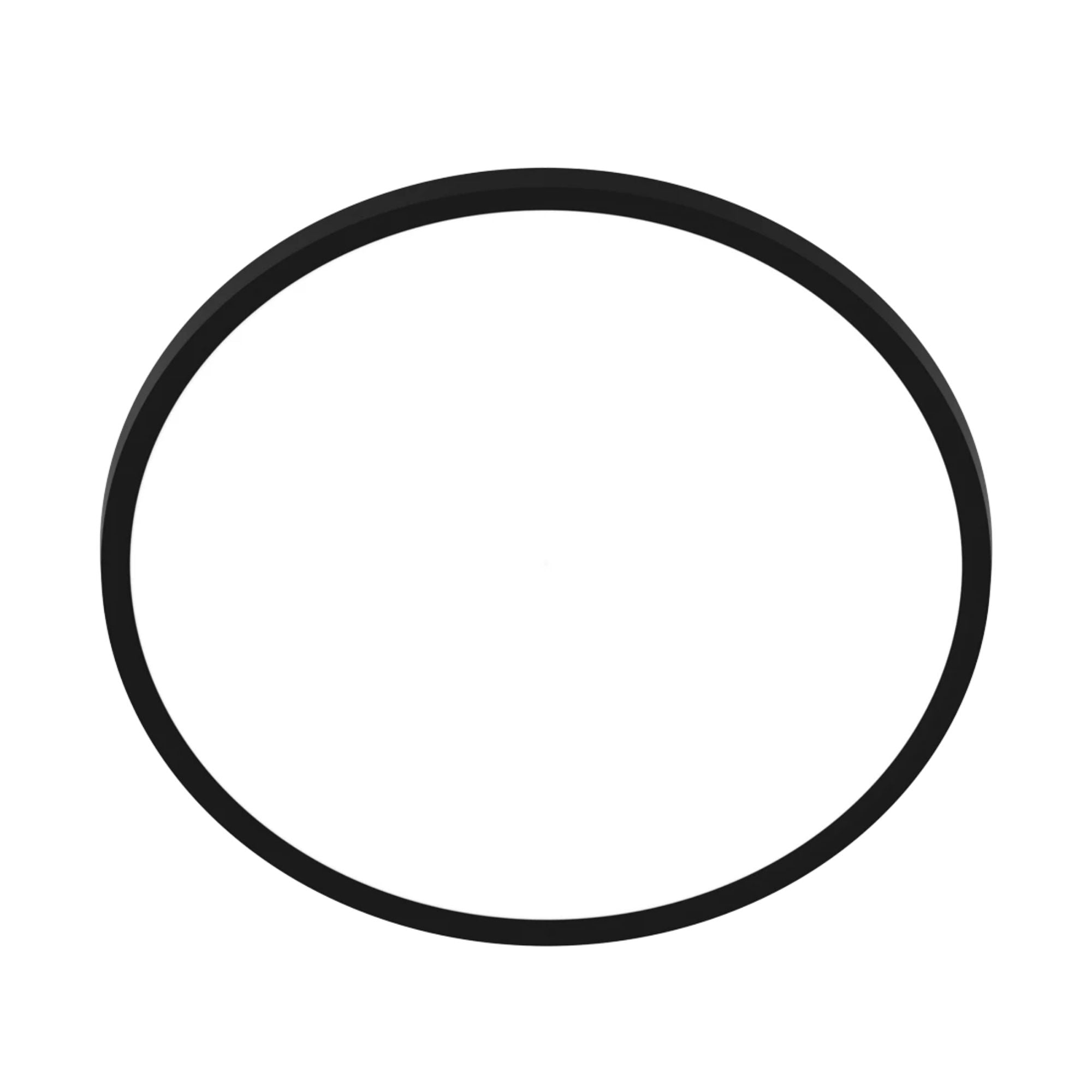

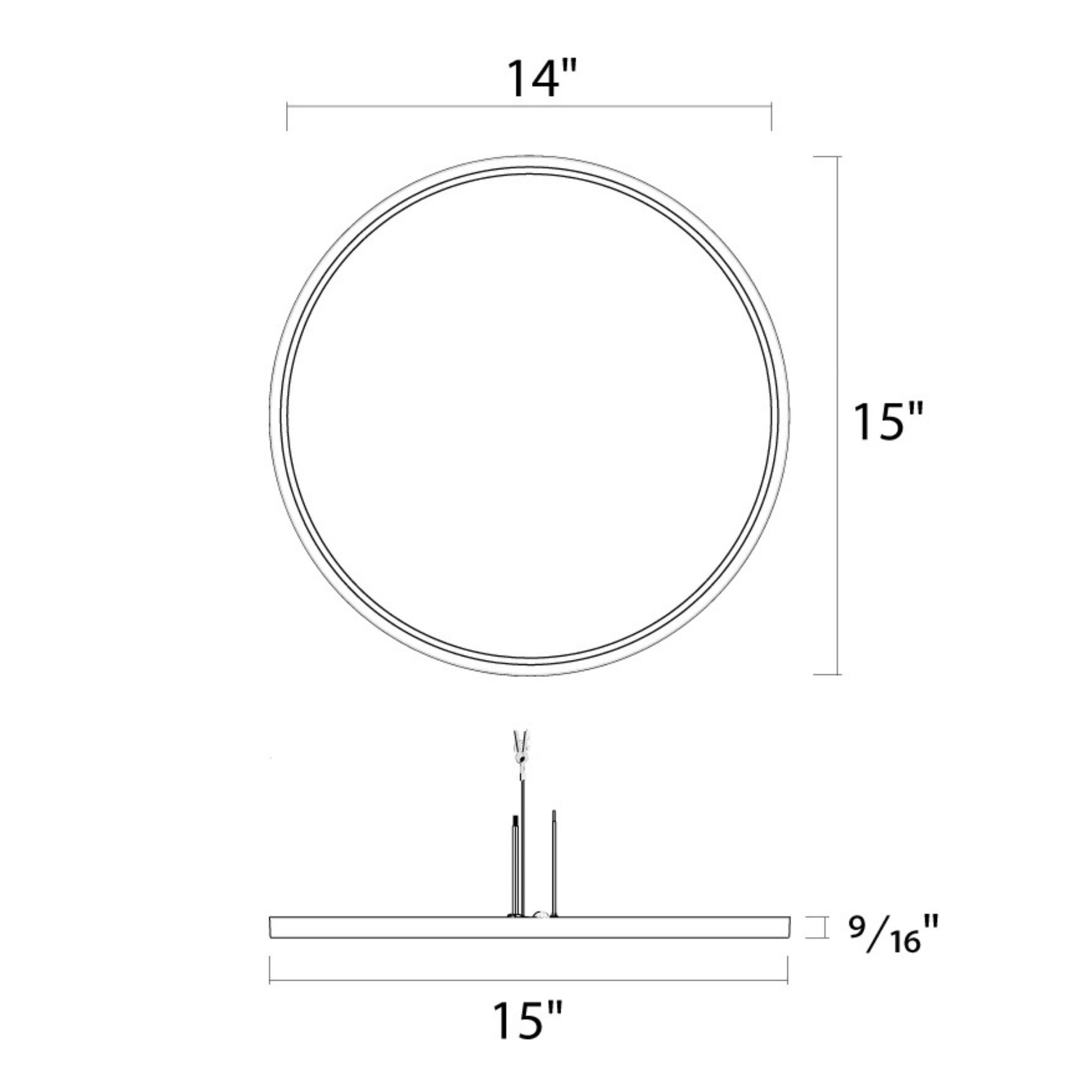

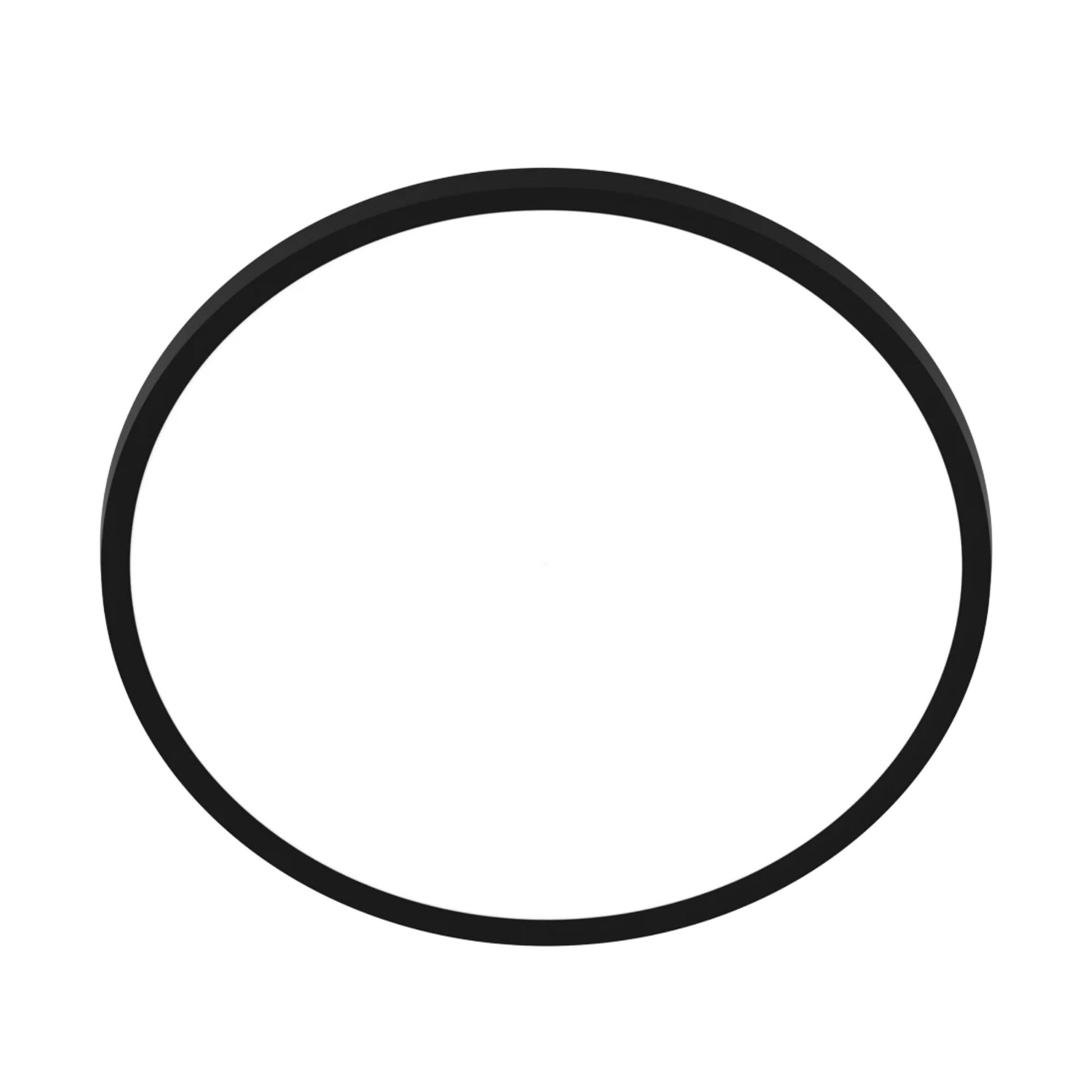

The smooth matte black trim has a fade- and scratch-resistant finish. A steel heatsink supports thermal performance, while the UV-resistant polyester trim ring frames a frosted acrylic lightguide that spreads light evenly without hotspots. The fixture measures 15 in in diameter, with a 9/16 in panel thickness shown in the drawing, and weighs 2.6 lb.
Light Output & Performance
The integrated 28W LED delivers 2,000 lumens, with a listed 150W incandescent replacement equivalency. Choose 2700K, 3000K, 3500K, 4000K or 5000K to suit the room. Its 90 CRI and R9 greater than 50 support accurate color rendering. The rated 50,000-hour L70 lifespan avoids routine bulb replacement.
Electrical & Installation

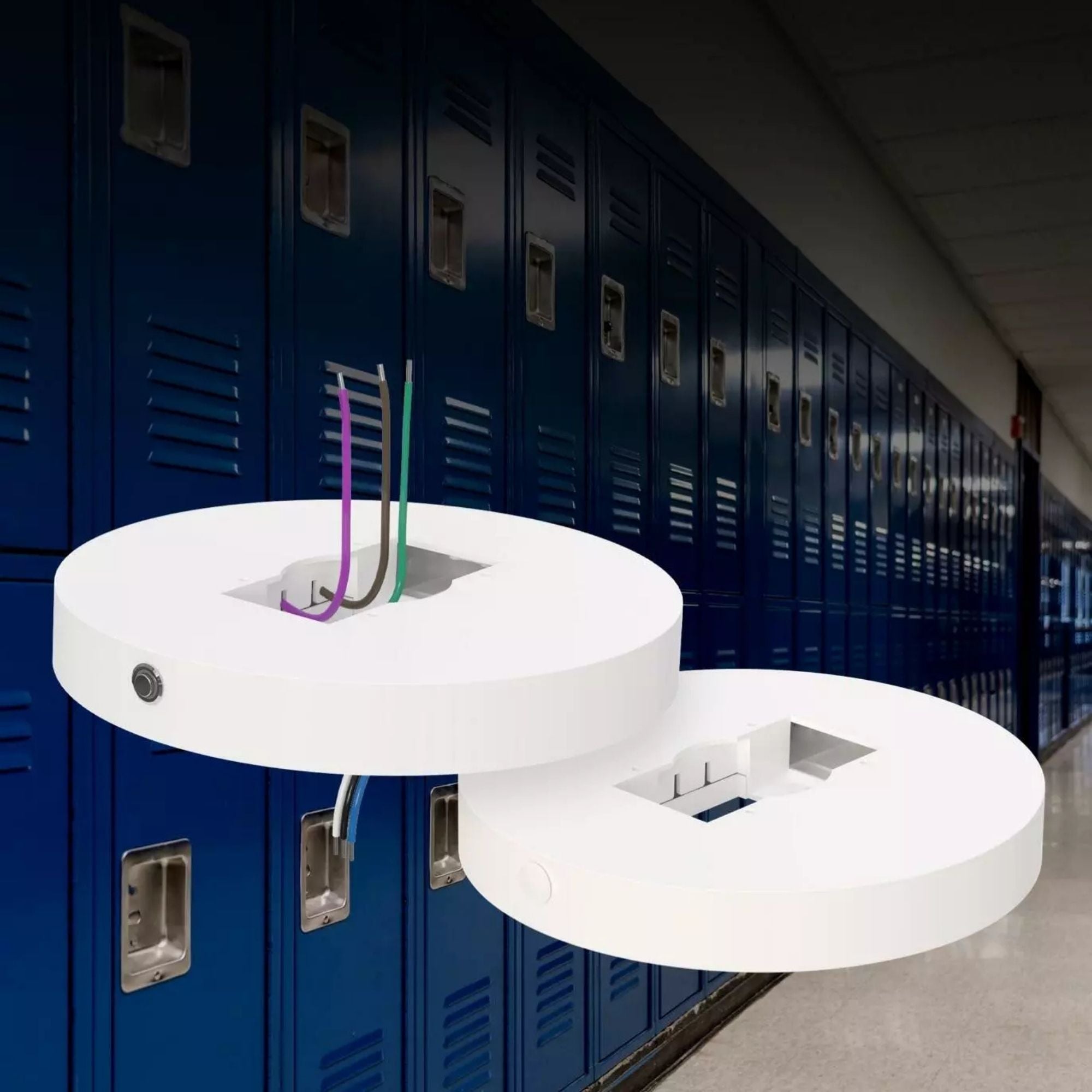

The driver-on-board design avoids a separate rear driver enclosure and allows installation on most common junction boxes. The thin surface-mount panel keeps the visible fixture close to the ceiling without a pendant-style hanging drop. Connect to 120V at 60Hz; input current is 260mA. Compatible TRIAC/ELV dimmers adjust brightness down to 10%.
The fixture is UL listed for indoor or outdoor dry, damp and wet locations and is not IC rated or airtight. Select the desired color temperature using the fixture DIP switch during installation.
Typical Applications
- Residential hallways and entryways
- Bathrooms and laundry rooms
- Indoor utility and commercial general-lighting spaces
- Covered porches and outdoor circulation areas
What's Included
- One RAB SUMO-R-15K matte black round surface-mount fixture with integrated LED and driver-on-board construction
