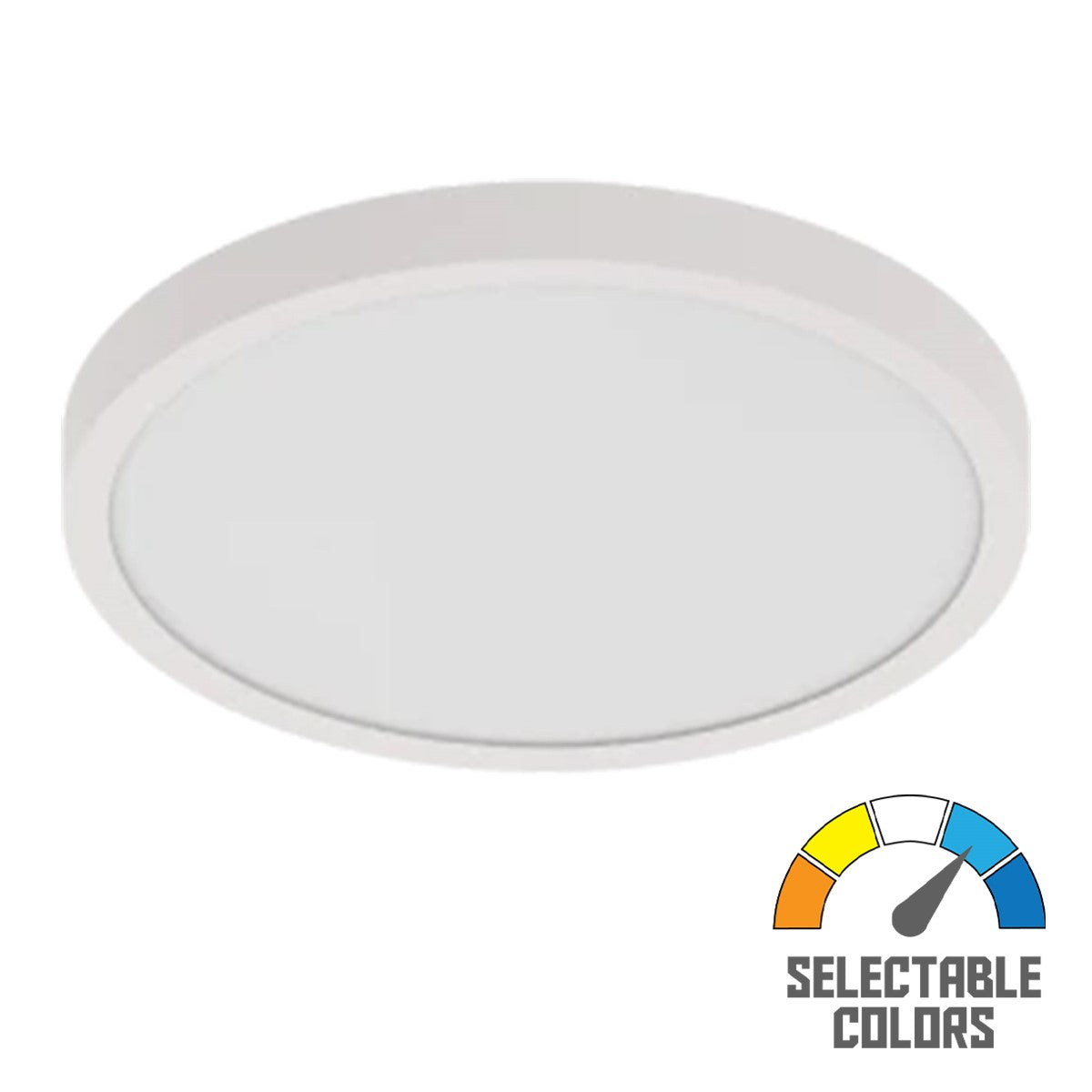

RAB SUMO-R-15 15 in Round LED Surface Mount — White, 26W, Selectable CCT, 120V

The RAB SUMO-R-15 edge-lit integrated LED surface mount delivers smooth general illumination in a 15 in round white design. Its 26W LEDs produce 1,950–2,200 lumens, depending on the selected CCT. A low-profile metal housing and frosted diffuser suit coordinated new construction or retrofit lighting.

Key Features

• Edge-Lit Design: Frosted polycarbonate lens for even, smooth illumination
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
• Output by CCT: 1,950/2,050/2,150/2,200/2,200 lumens at 2700/3000/3500/4000/5000K
• Power: 26W; manufacturer-listed 150W incandescent equivalency
• Dimming: Compatible TRIAC/ELV controls dim to 10%
• Electrical: Constant-current driver, 120V at 50/60Hz and 0.24A input
• Power Quality: Power factor at least 0.9, THD at most 20% and 2.5kV surge protection
• Color Quality: 90 CRI class, R9 at least 50 and 4-step MacAdam binning
• Dimensions: 15 in diameter, 1 7/16 in depth and 3.4 lb weight
• Construction: Smooth white metal housing and frosted polycarbonate diffuser
• Listings: UL listed, ENERGY STAR certified, FCC Part 15B and RoHS compliant; indoor/outdoor dry/damp/wet suitability; sheet states California Title 24 requirements are met
• Service Life: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operation; TAA compliant, manufactured in Cambodia

Construction & Design

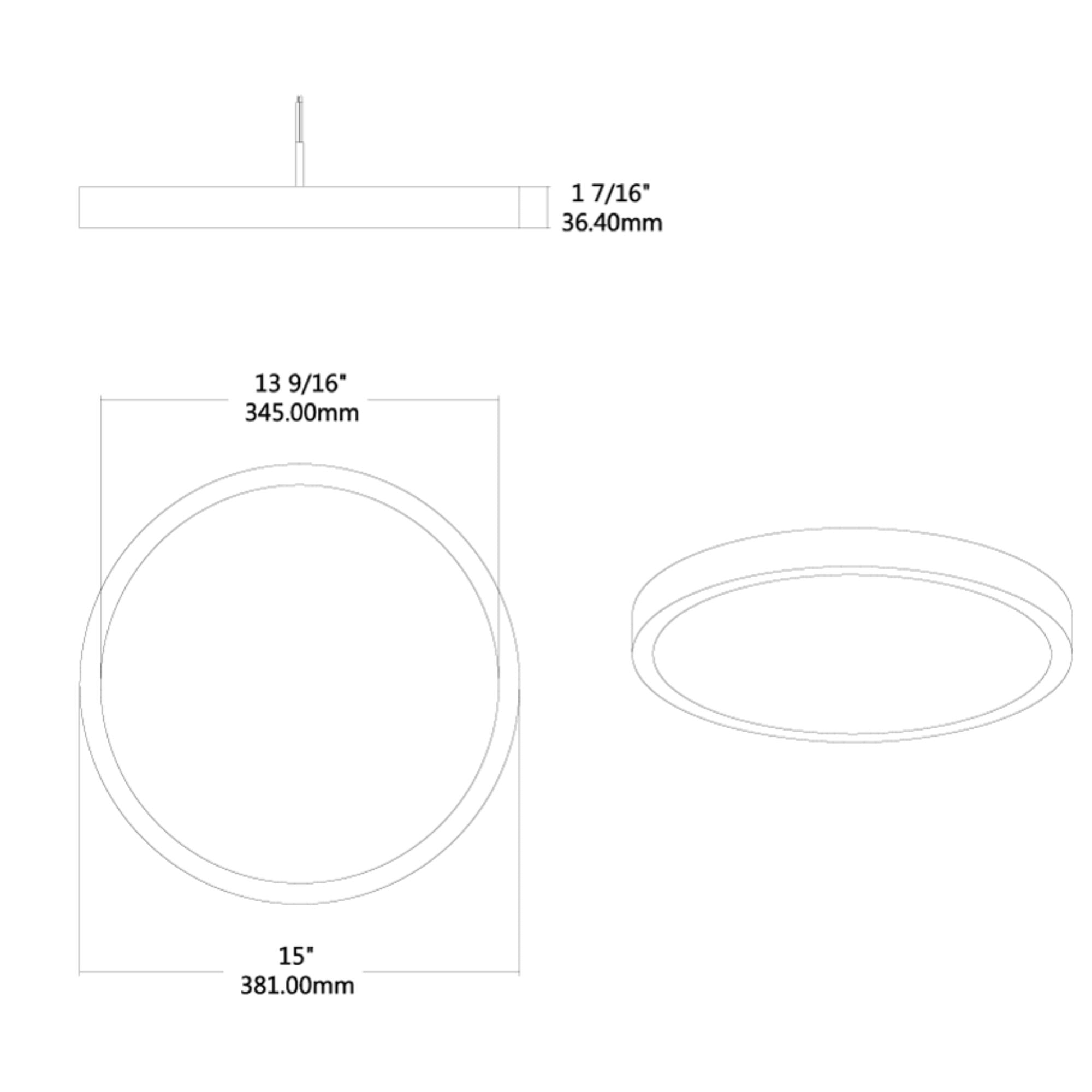

The white metal housing combines smooth trim with a frosted polycarbonate lens for even diffusion. Fade-resistant polyester powder coating supports lasting finish appearance indoors or outdoors. The drawing specifies 15 in diameter and 1 7/16 in depth; sheet-listed weight is 3.4 lb.

Light Output & Performance

At 26W, select 2700K for 1,950 lumens, 3000K for 2,050 lumens, 3500K for 2,150 lumens, or 4000K and 5000K for 2,200 lumens. Corresponding listed efficacy is 75/78/83/85/85 lm/W. The 90 CRI class and R9 at least 50 support accurate color rendering. Rated life is 50,000 hours at L70.

Electrical & Installation

Surface mount to a compatible ceiling or wall junction box for new construction or retrofit applications. The 1 7/16 in depth provides a low-profile ceiling fit without a pendant drop. This model requires 120V at 50/60Hz and supports compatible TRIAC/ELV dimming down to 10%; it is not the universal-voltage 0–10V D10 model. Suitable for indoor/outdoor dry, damp and wet environments. The sheet identifies closet suitability under NEC sections 410.16(A)(1) and 410.16(C3).

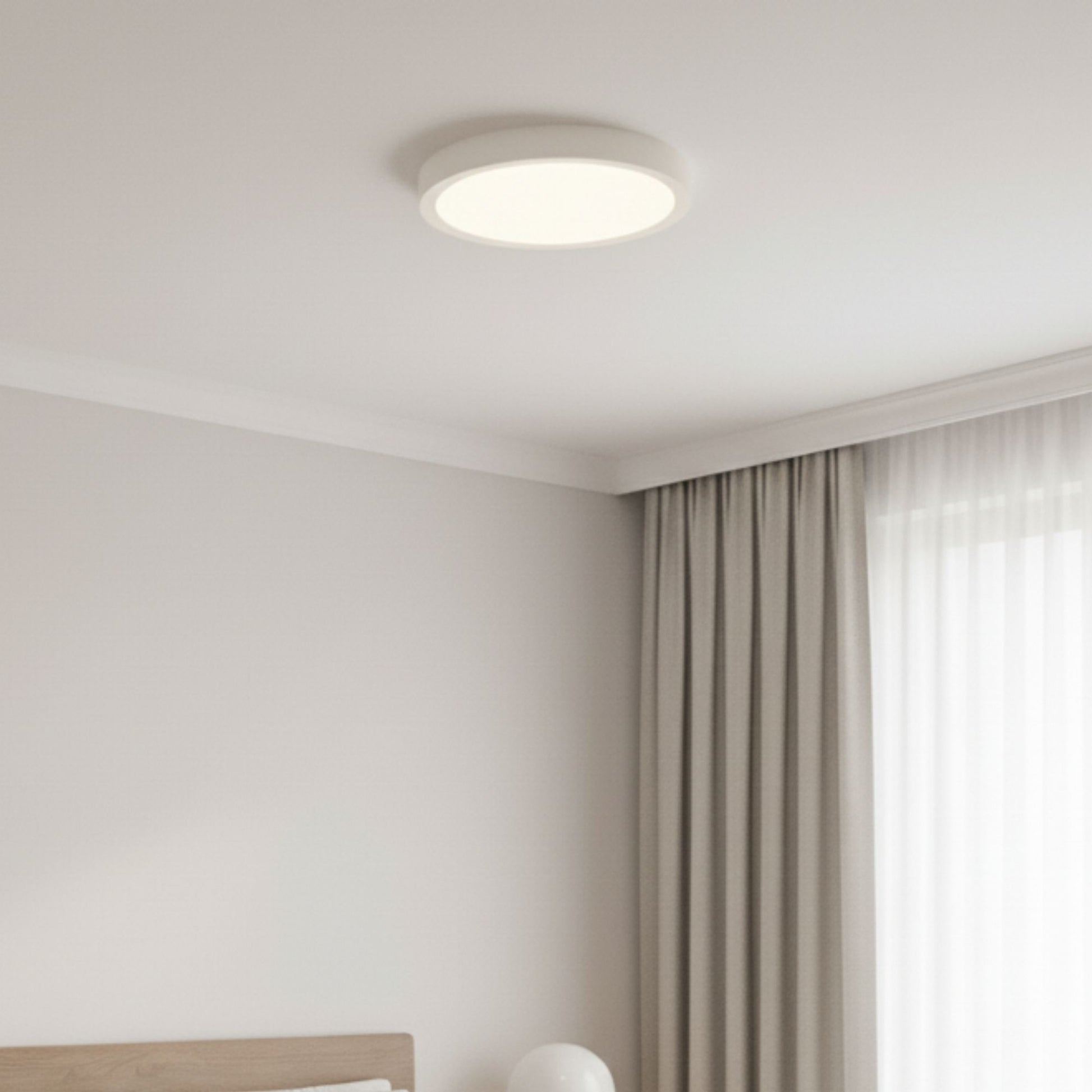

Typical Applications

• Residential hallways and utility rooms
• Commercial circulation and service spaces
• Closets with suitable installation clearances
• Indoor or outdoor surface-mounted general lighting

What's Included

• One white RAB SUMO-R-15 fixture with integrated LEDs, driver and frosted diffuser
