RAB SUMO-R-15/D10 15 in LED Surface Mount White Selectable CCT 120-277V
Available in stock (100)
About this item
About this item
- Universal-Voltage Control: 120–277V input with compatible 0–10V or TRIAC/ELV dimming to 10%
- Selectable LED Output: Five 2700–5000K CCT settings with 1,950–2,200 lumens at 26W
- Low-Profile Design: 15 in round white fixture with 1 7/16 in depth and smooth edge-lit diffusion
- Durable Construction: Metal housing and frosted polycarbonate lens; dry/damp/wet suitability; 3.4 lb
- Long-Life Color Performance: 90 CRI class, ENERGY STAR certification, 50,000-hour L70 life and five-year warranty
Description
Description

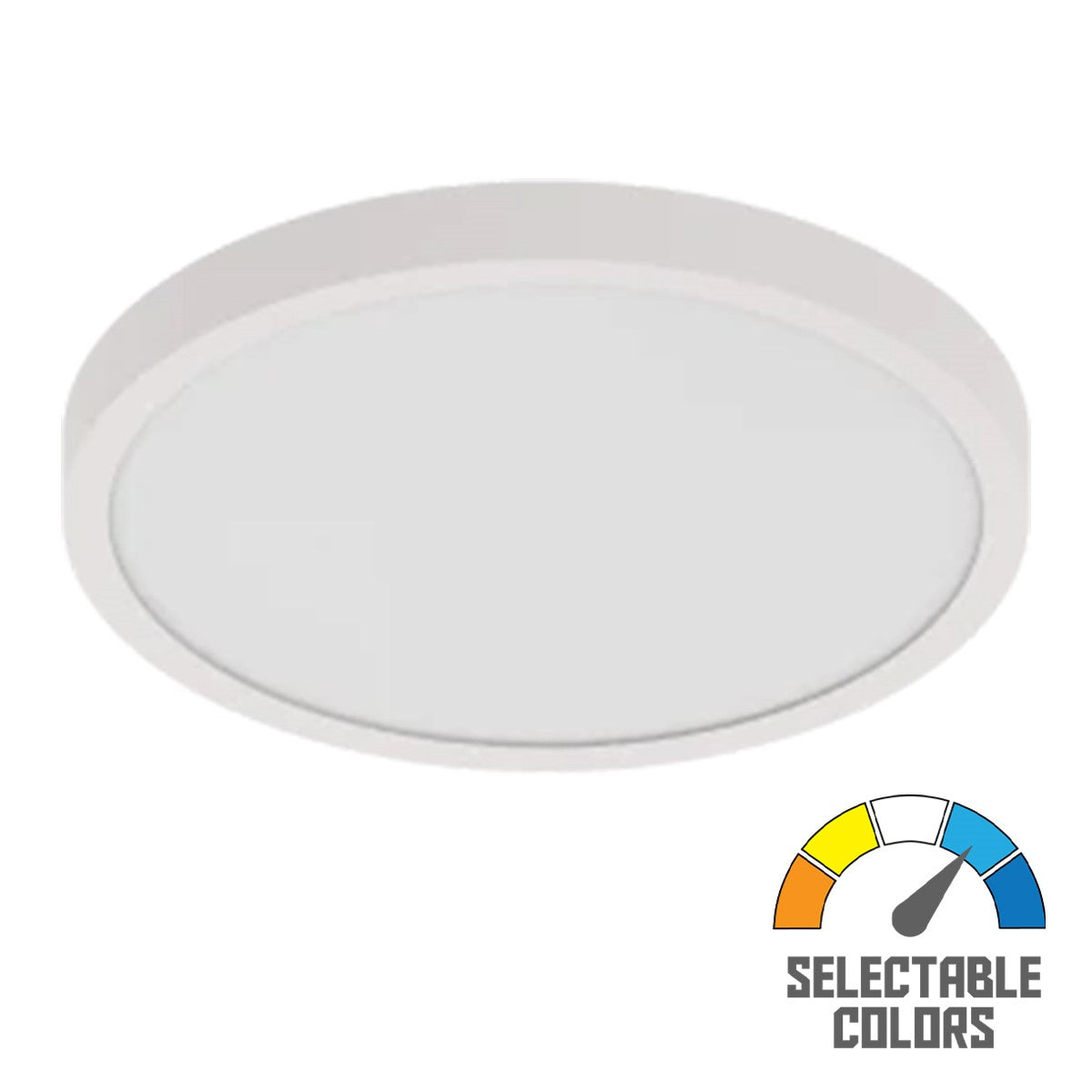

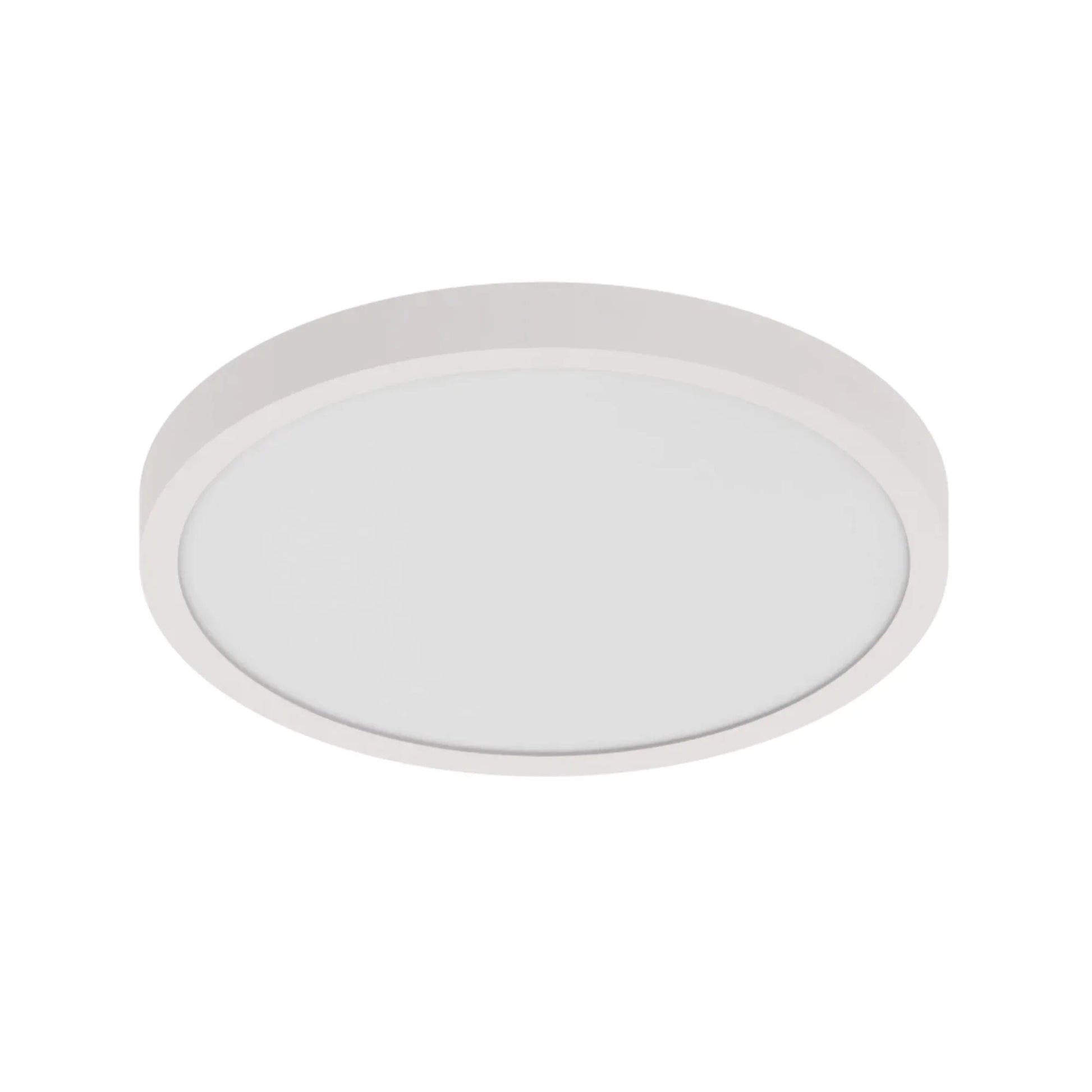

RAB SUMO-R-15/D10 15 in Round LED Surface Mount — White, 26W, Selectable CCT, 120–277V
The RAB SUMO-R-15/D10 edge-lit integrated LED surface mount pairs a 15 in white round design with 120–277V input and dual dimming options. Its 26W LEDs deliver 1,950–2,200 lumens, depending on CCT. A frosted diffuser provides soft, even illumination for new construction or retrofit spaces.
Key Features
- Universal-Voltage Control: 120–277V at 50/60Hz
- Dual Dimming: Compatible 0–10V and TRIAC/ELV controls dim to 10%
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output by CCT: 1,950/2,050/2,150/2,200/2,200 lumens at 2700/3000/3500/4000/5000K
- Power: 26W; manufacturer-listed 150W incandescent equivalency
- Driver: Constant-current Class 2; input currents 0.24A at 120V, 0.14A at 208V, 0.12A at 240V and 0.11A at 277V
- Power Quality: Power factor at least 0.9, THD at most 20% and 2.5kV surge protection
- Color Quality: 90 CRI class, R9 at least 50 and 4-step MacAdam binning
- Dimensions: 15 in diameter, 1 7/16 in depth and 3.4 lb weight
- Construction: White metal housing, smooth trim and frosted polycarbonate lens
- Listings: UL listed, ENERGY STAR certified, FCC Part 15 and RoHS compliant; indoor/outdoor dry/damp/wet suitability; sheet states California Title 24 requirements are met
- Service Life: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operation; TAA compliant, manufactured in Cambodia
Construction & Design

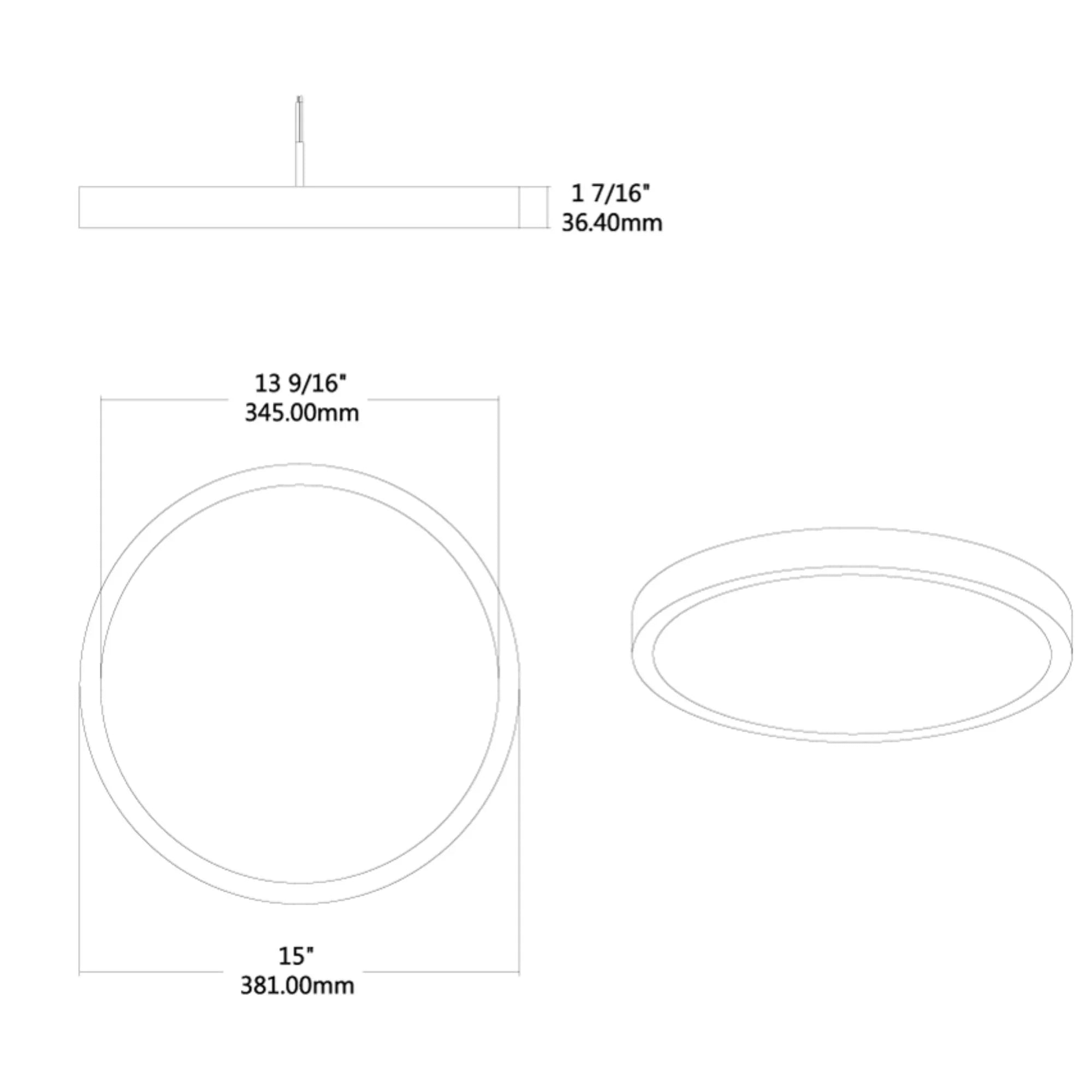

The white metal enclosure and smooth trim offer a clean ceiling appearance. A frosted polycarbonate diffuser distributes light evenly, while fade-resistant polyester powder coating supports lasting finish quality. The drawing specifies 15 in diameter and 1 7/16 in depth; sheet-listed weight is 3.4 lb.
Light Output & Performance
At 26W, select 2700K for 1,950 lumens, 3000K for 2,050 lumens, 3500K for 2,150 lumens, or 4000K and 5000K for 2,200 lumens. Corresponding sheet-listed efficacy is 75/78/83/85/85 lm/W. The 90 CRI class and R9 at least 50 support accurate color rendering. Rated life is 50,000 hours at L70.
Electrical & Installation
Surface mount to a compatible ceiling or wall junction box for new construction or retrofit applications. Its 1 7/16 in depth creates low-profile ceiling fit without a pendant drop. The constant-current Class 2 driver accepts 120–277V at 50/60Hz, with compatible 0–10V or TRIAC/ELV dimming down to 10%. This D10 model is distinct from the 120V-only version. Suitable for indoor/outdoor dry, damp and wet environments; the sheet identifies closet suitability under NEC sections 410.16(A)(1) and 410.16(C3).
Typical Applications
- Commercial hallways and circulation spaces
- Residential utility and laundry rooms
- Closets with suitable installation clearances
- Indoor or outdoor surface-mounted general lighting
What's Included
- One white RAB SUMO-R-15/D10 fixture with integrated LEDs, driver and frosted diffuser
