RAB SUMO-R-12K 12" LED Surface Mount Black Selectable CCT
Available in stock (100)
About this item
About this item
- Thin Edge-Lit Design: 12 in round panel with a 9/16 in panel thickness and smooth matte black trim
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K using the fixture DIP switch
- Clear General Lighting: 1,650 lumens from 22W with 90 CRI for accurate color rendering
- Adjustable Brightness: Compatible TRIAC/ELV dimming down to 10%, with 120V input
- Lasting Performance: Indoor/outdoor dry/damp/wet suitability, Title 24 JA8 compliance, 50,000-hour L70 life and five-year warranty
Description
Description
RAB SUMO-R-12K 12 in Round LED Surface Mount — Matte Black, 22W, Selectable CCT
The RAB SUMO-R-12K is a slim, edge-lit LED surface-mount downlight with matte black smooth trim and evenly diffused illumination. Its 12 in diameter creates a clean ceiling presence, while 1,650 lumens from 22W provide practical general lighting. Five selectable color temperatures and compatible TRIAC/ELV dimming let you tailor the light to the space.
Key Features
- Output: 1,650 lumens from 22W
- Replacement Equivalency: 100W incandescent
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via fixture DIP switch
- Color Quality: 90 CRI, R9 greater than 50 and less than 4-step MacAdam Ellipse binning
- Dimming: Compatible TRIAC/ELV dimming down to 10%
- Electrical: Constant-current driver, 120V at 60Hz and 203mA input current
- Power Factor: At least 0.9
- Construction: Steel heatsink, UV-resistant polyester trim ring and frosted acrylic lightguide

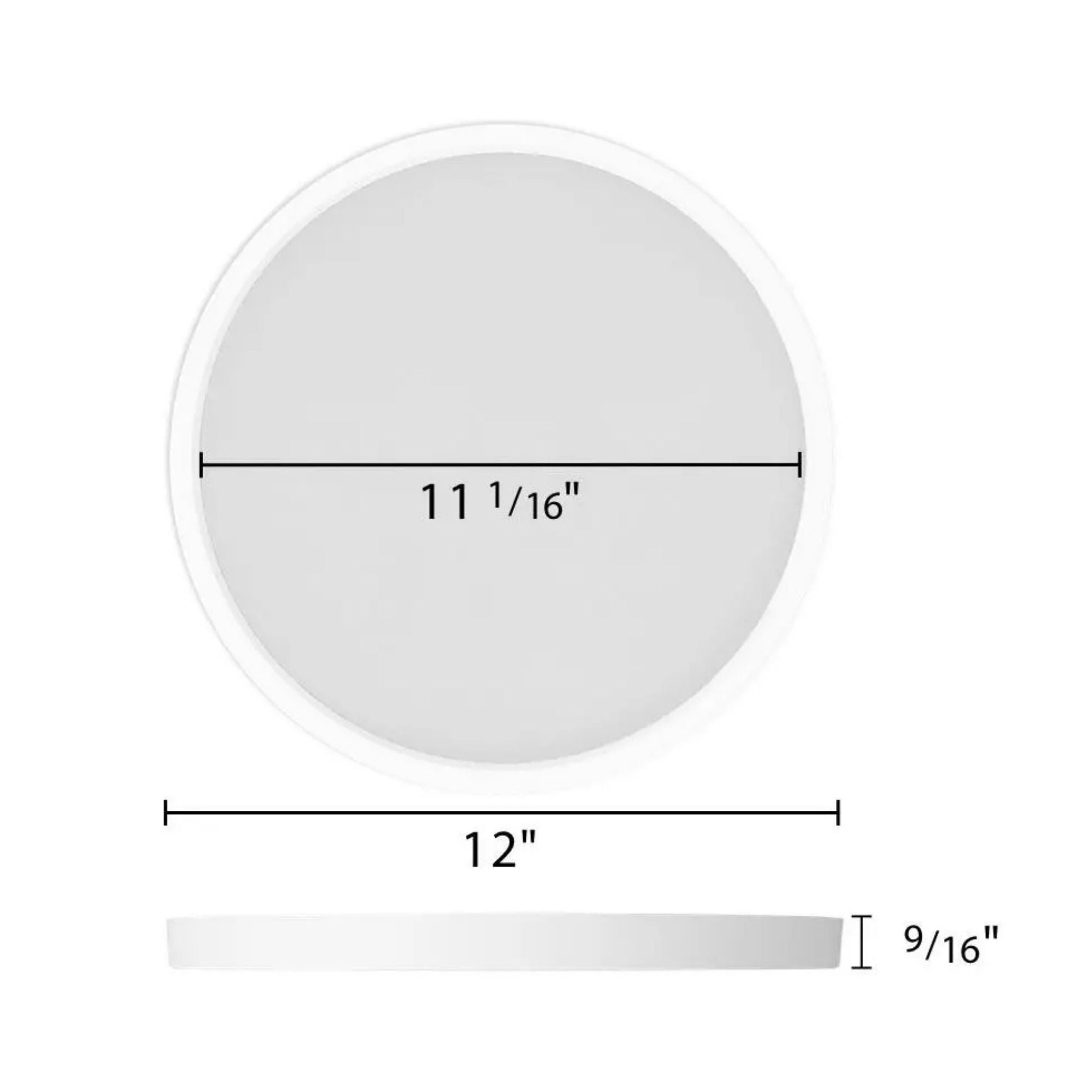

- Dimensions and Weight: 12 in diameter, 9/16 in panel thickness, 1 1/4 in overall height shown in the drawing and 1.4 lb weight
- Environment: UL listed for indoor/outdoor dry, damp and wet locations; not IC rated or airtight
- Compliance: Title 24 JA8 compliant
- Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range
Construction & Design

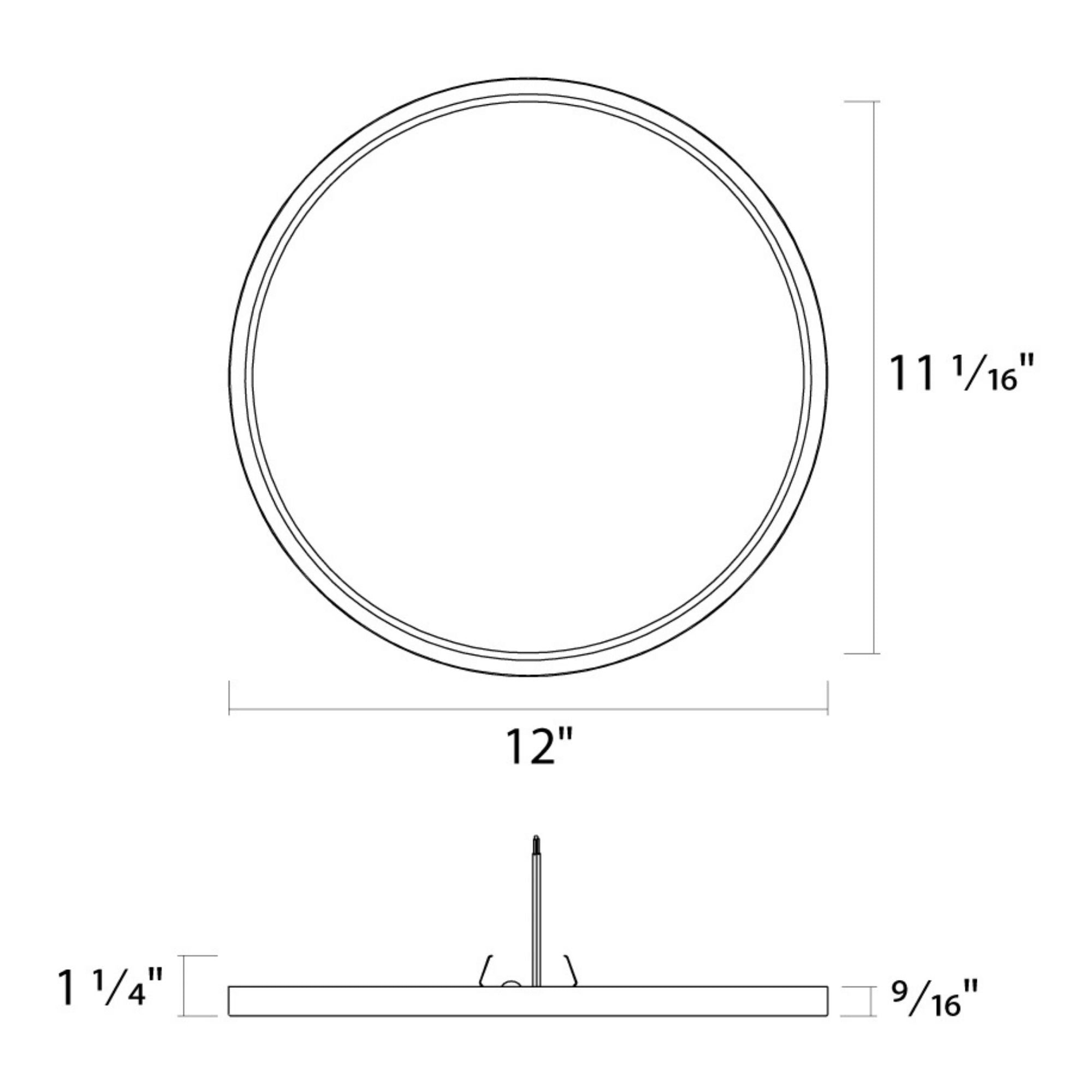

The smooth matte black trim features a fade- and scratch-resistant finish. A steel heatsink supports thermal performance, while the UV-resistant polyester trim ring frames a frosted acrylic lightguide that distributes light evenly without hotspots. The fixture weighs 1.4 lb. The dimensional drawing shows 12 in diameter, 9/16 in panel thickness and 1 1/4 in overall height.
Light Output & Performance
The integrated 22W LED delivers 1,650 lumens, with a listed 100W incandescent replacement equivalency. Select 2700K, 3000K, 3500K, 4000K or 5000K at the fixture DIP switch to choose a warmer or cooler appearance. Its 90 CRI and R9 greater than 50 support accurate color rendering. The rated 50,000-hour L70 lifespan avoids routine bulb replacement.
Electrical & Installation
The driver-on-board design avoids a separate rear driver enclosure and allows installation on most common junction boxes. Its thin panel keeps the visible fixture close to the ceiling without a pendant-style hanging drop. Connect to 120V at 60Hz; input current is 203mA. Compatible TRIAC/ELV dimmers adjust brightness down to 10%.
The fixture is UL listed for indoor or outdoor dry, damp and wet locations and is not IC rated or airtight. Select the desired color temperature at the fixture DIP switch during installation.
Typical Applications
- Residential hallways and entryways
- Bathrooms and laundry rooms
- Indoor utility and commercial general-lighting spaces
- Covered porches and outdoor circulation areas
What's Included
- One RAB SUMO-R-12K matte black round surface-mount fixture with integrated LED and driver-on-board construction
