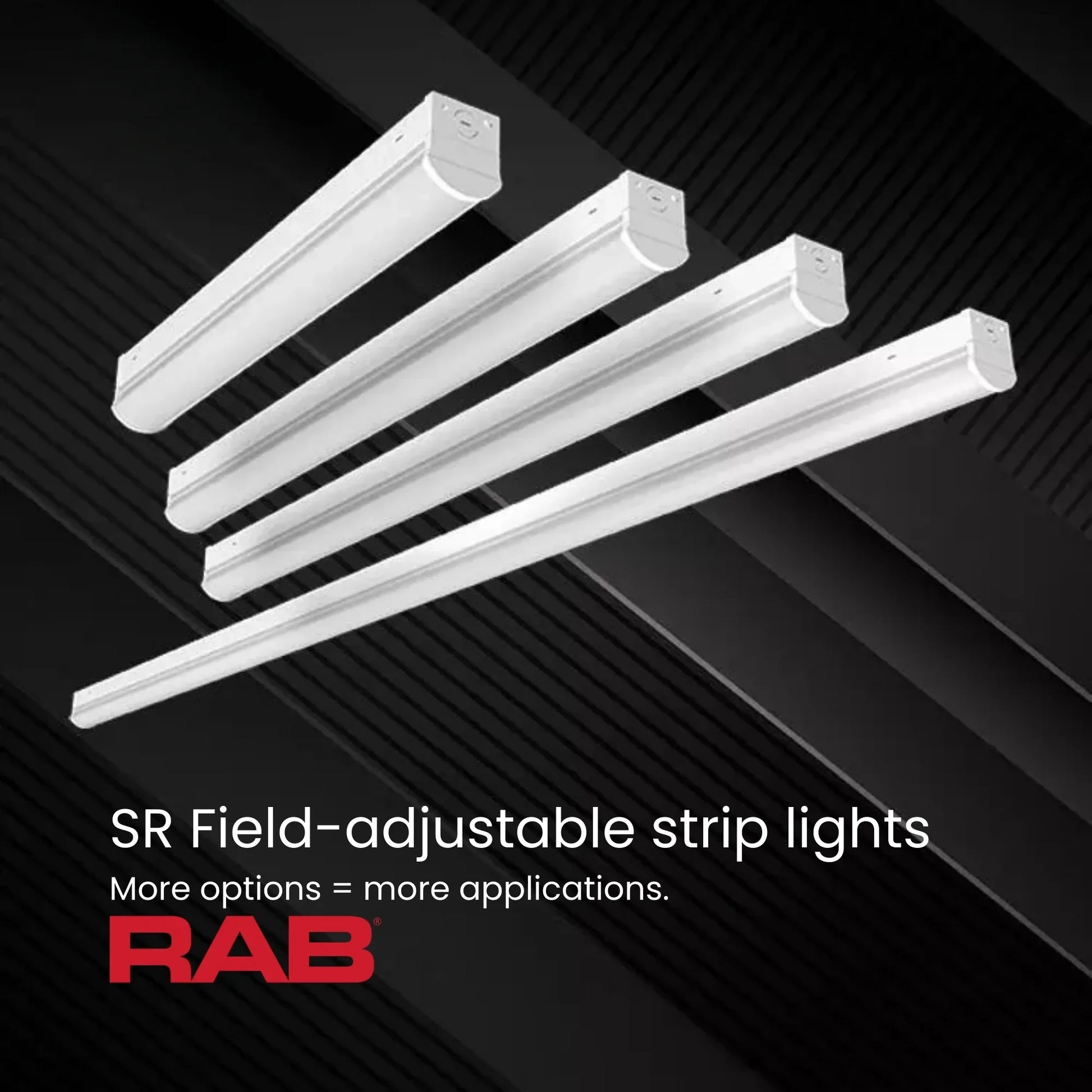

RAB SR4 Field-Adjustable 4ft Strip Light — 40W/30W/20W Selectable — 3500K/4000K/5000K — Battery Backup — White

The RAB SR4/E is a commercial 4ft Strip Light engineered to deliver up to 6,174 lumens with field-adjustable 40W/30W/20W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient replacement for legacy (3) F32T8 fluorescent fixtures. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC 5.1 Premium standards and features an integrated 90-minute emergency battery backup driver for code-compliant egress illumination and continuous-run tandem mounting capability with a low-profile sheet metal housing and impact-resistant polycarbonate lens.

Key Features

• Selectable Wattage: 40W/30W/20W — field-adjustable via onboard physical slide switch
• Wattage Equivalency: Replaces legacy (3) F32T8 fluorescent fixtures for substantial commercial energy savings
• Maximum Lumen Output: 6,174 lm at 40W (4000K setting)
• Peak Efficacy: 163.7 lm/W for high-efficiency commercial operation
• CRI: 84 color rendering across standard settings (83–85 range across CCT test points)
• Selectable CCT: 3500K/4000K/5000K — field-adjustable via onboard physical slide switch
• Lens & Optics: Smooth diffused polycarbonate lens engineered for uniform, glare-free light distribution
• Dimming: 0–10V continuous dimming standard, dims down to 10%
• Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
• Location Rating: UL Listed for damp locations
• Operating Temperature: 32°F (0°C) to 140°F (60°C) ambient range with emergency battery backup
• Certifications: DLC 5.1 Premium, UL Listed for damp locations, RoHS compliant, Mercury and UV free
• Rated Life: 50,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Emergency Backup: Factory-installed 90-minute emergency battery backup driver delivering reliable egress illumination

Performance & Light Output

At 40W: 5,976 lm (3500K / 140.2 lm/W), 6,174 lm (4000K / 151.3 lm/W), 6,155 lm (5000K / 144.5 lm/W).
At 30W: 4,579 lm (3500K / 144.5 lm/W), 4,754 lm (4000K / 155.9 lm/W), 4,702 lm (5000K / 148.8 lm/W).
At 20W: 3,234 lm (3500K / 156.2 lm/W), 3,289 lm (4000K / 163.7 lm/W), 3,155 lm (5000K / 151.7 lm/W).

CRI >80 (typical 83–85) across all configurations. Rated life 50,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Form Factor & Design Profile

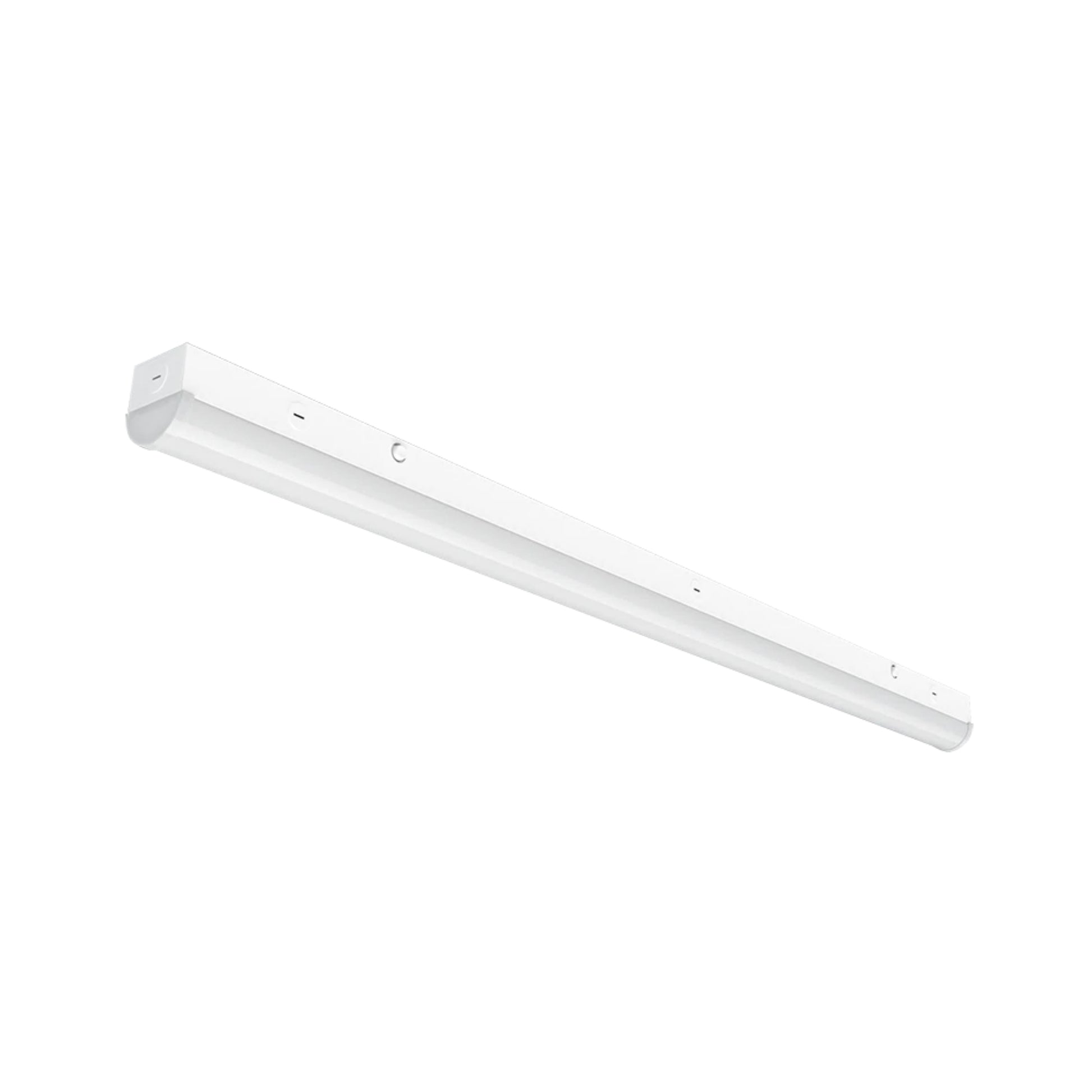

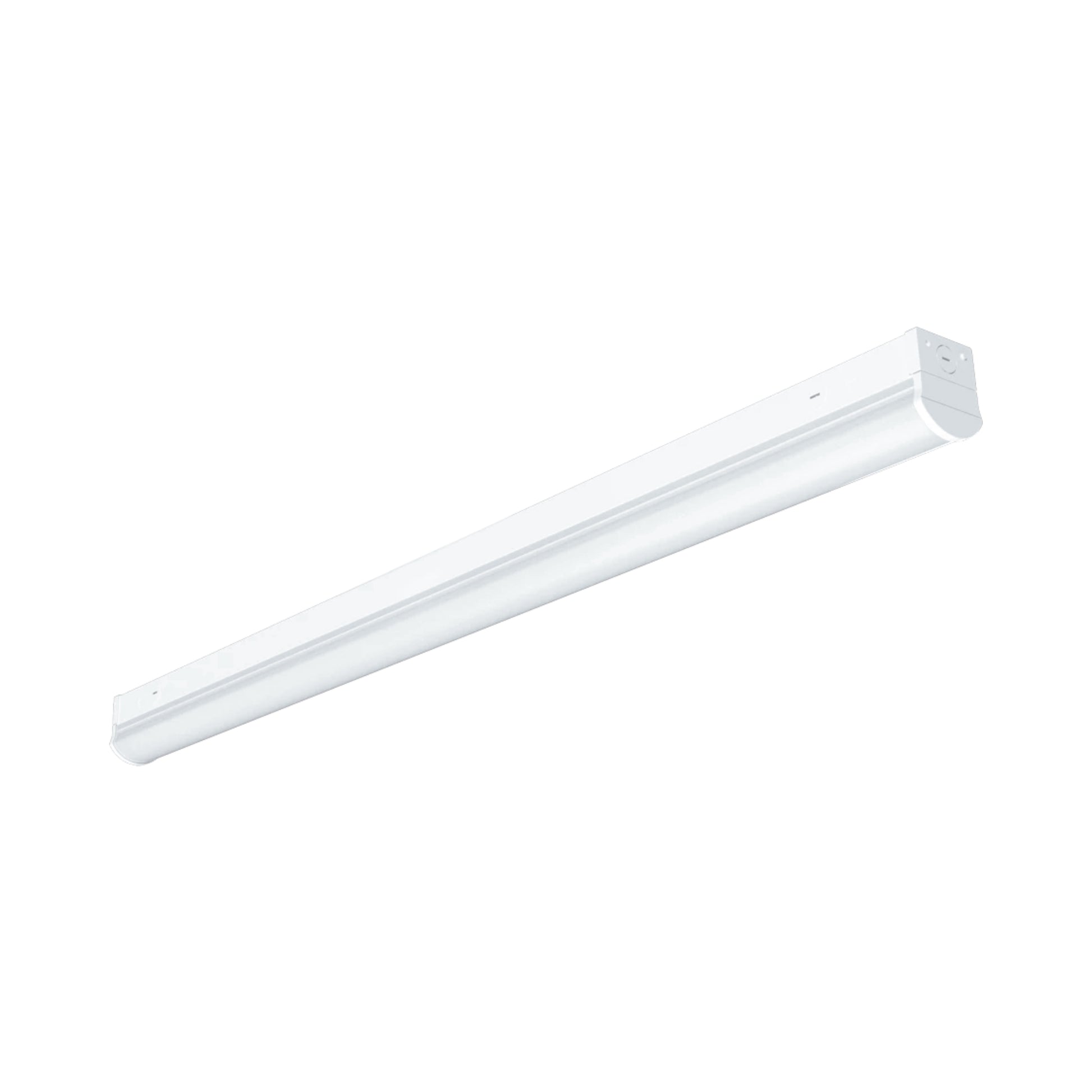

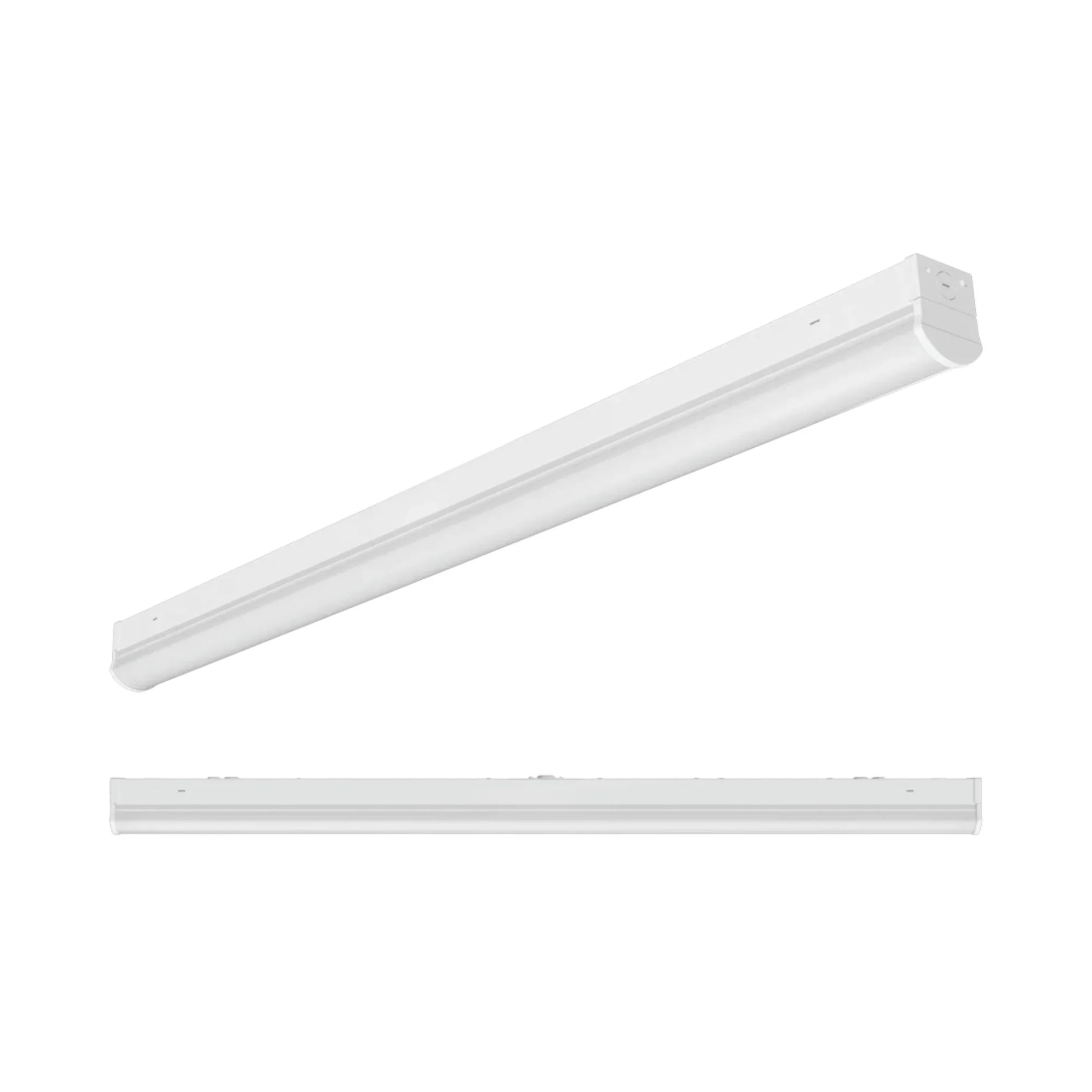

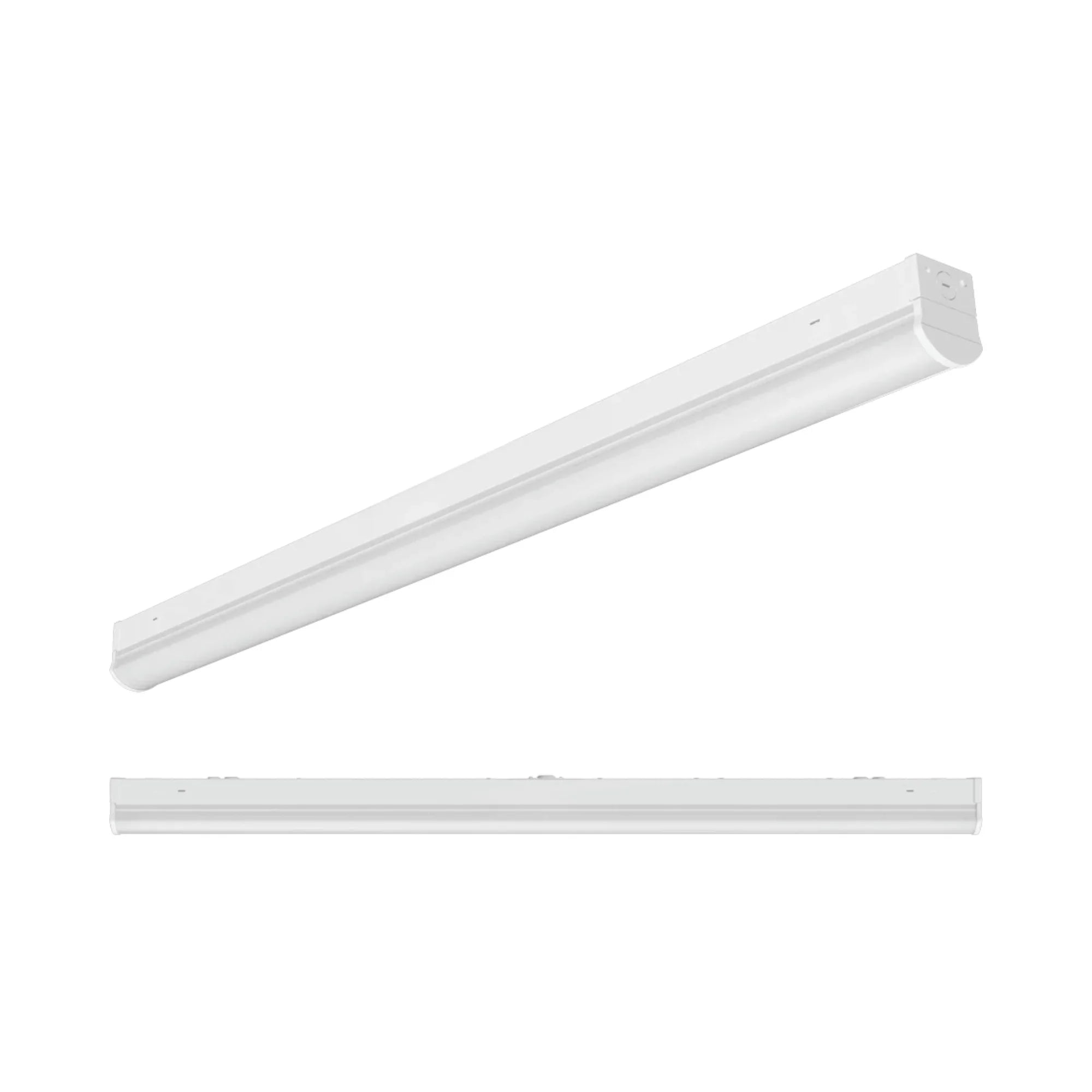

The RAB SR4 linear strip light features an architectural low-profile sheet metal chassis paired with an impact-resistant polycarbonate lens, engineered for fast commercial installation. An included J-box adapter plate mounts directly to standard electrical junction boxes for clean flush ceiling or wall placement. For continuous architectural runs, the fixture integrates with the optional end joiner kit (SRJOIN KIT) to create rigid, continuous rows of light across extended corridors, open offices, and warehouse aisles without dark spots between housings.

Smart & Control Features

The RAB SR4/E linear luminaire features flexible control integration supporting standalone dimming and scalable wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial architectural dimmers and centralized building automation systems (BAS).
• Lightcloud Blue Wireless Control (Accessory): Compatible with field-installable screw-in Lightcloud Blue sensors for Bluetooth mesh group control, automated scheduling, daylight harvesting, and motion detection without requiring an external gateway or hub.

Compatible plug-and-play occupancy sensors include PIR40 (PIR, max 40 ft mounting height), PIR40/LCB (Lightcloud Blue PIR), MVS50 (microwave, max 50 ft mounting height), and MVS50/LCB (Lightcloud Blue microwave) — sold separately. Handheld sensor adjustments can be configured using the optional remote control (catalog # MSR1, sold separately).

Electrical

Powered by a Class 2, Class P constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.98 (99.79% at 120V, 98.26% at 277V) and Total Harmonic Distortion (THD) <6.22% at 120V and 14.88% at 277V. Integrated 1kV (L-N) and 2kV (L/N-G) surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V low-voltage dimming leads.

Emergency Battery Backup: Factory-installed 90-minute emergency battery backup provides instant standby illumination during a primary AC power failure. Battery backup operates with light loss factors of 0.243 at 40W, 0.320 at 30W, and 0.454 at 20W (~1,500 emergency lumens). Ambient temperature operating range for battery backup: 32°F (0°C) to 140°F (60°C).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision formed sheet metal housing engineered for passive thermal dissipation and structural rigidity.

Lens & Optics: High-impact diffuse polycarbonate lens engineered to minimize diode glare and deliver smooth photometric distribution.

Finish: Long-lasting white powder-coated finish formulated for high durability, corrosion resistance, and color retention.

Environmental Sealing: UL Listed damp location rating for protection against ambient condensation and airborne moisture. Engineered free of mercury and UV radiation; RoHS compliant. Operating ambient temperature range: 32°F (0°C) to 140°F (60°C).

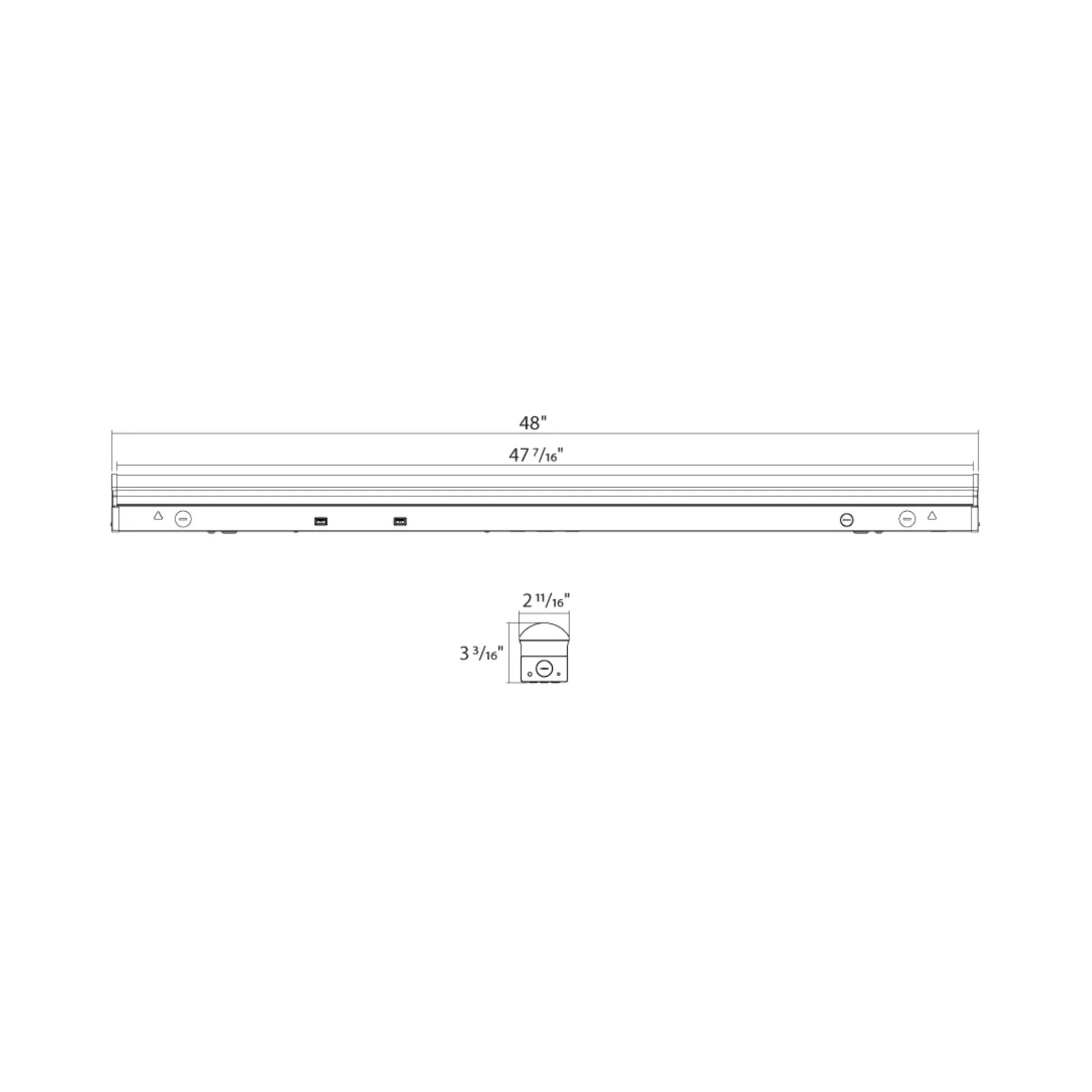

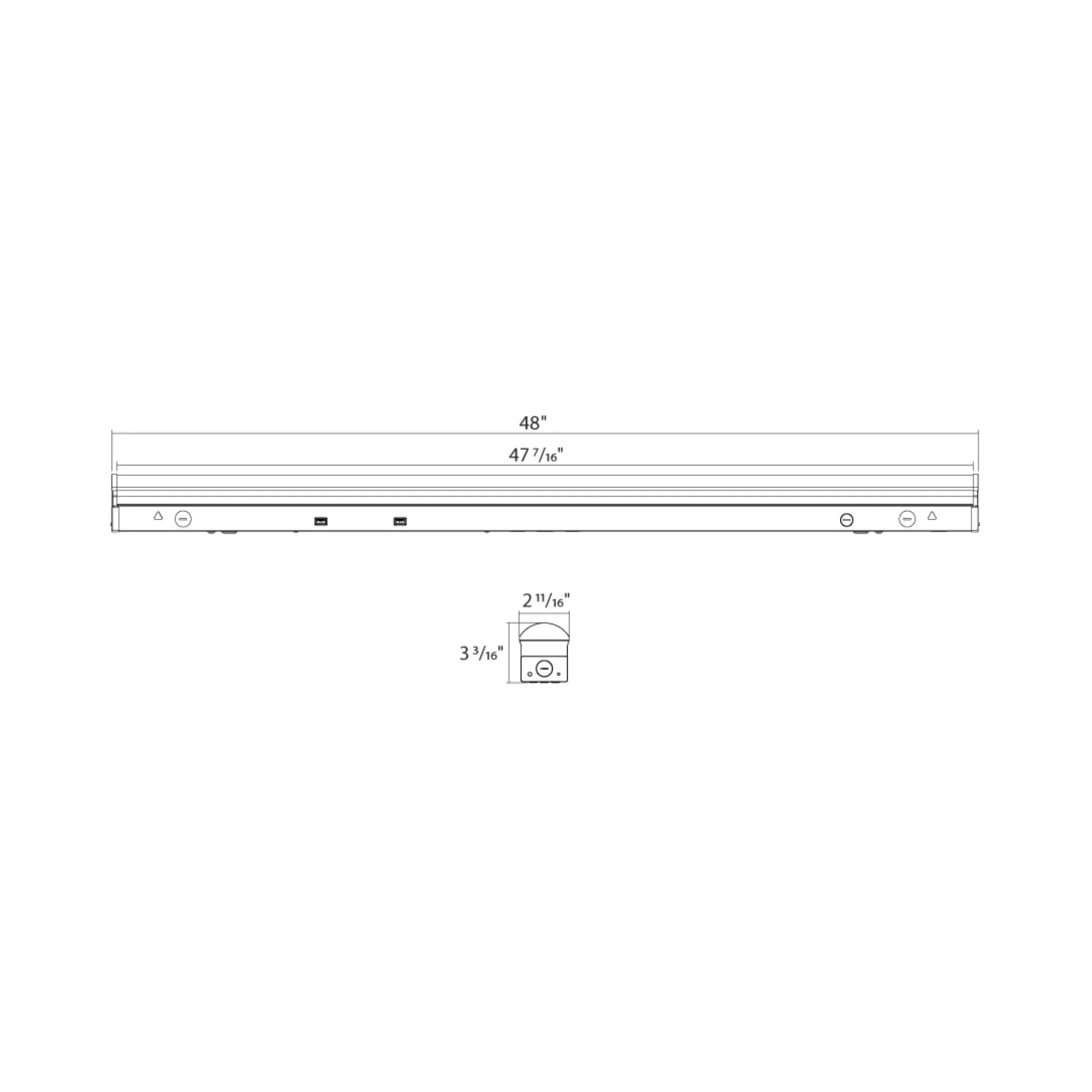

Dimensions & Weight: 47.25" L × 3.88" W × 2.38" H (50.06" L with PIR sensor). Fixture weight: 4.5 lbs.

Installation & Mounting

Standard Mounting: Designed for direct surface ceiling or wall mounting onto standard 3" and 4" junction boxes using the included J-box adapter plate.

Continuous Run Mounting: Supports continuous-row daisy-chain installations using the optional SRJOIN KIT joiner bracket and wiring pass-through.

Accessories (Sold Separately):

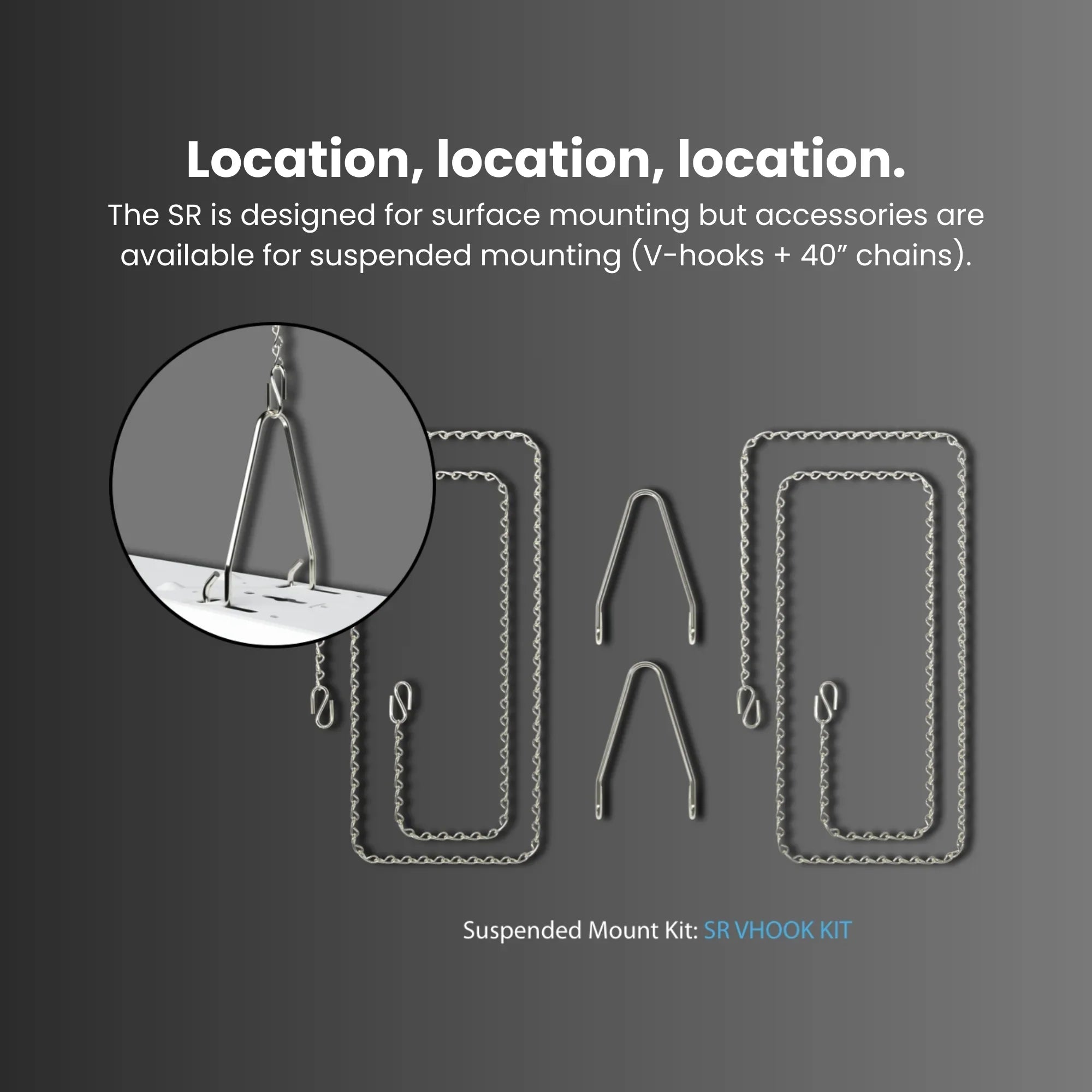

• Suspension Mount Kit: SR VHOOK KIT (UPC 192552004206) — Includes (2) V-hooks, (2) 40" chains, anchors, and mounting screws

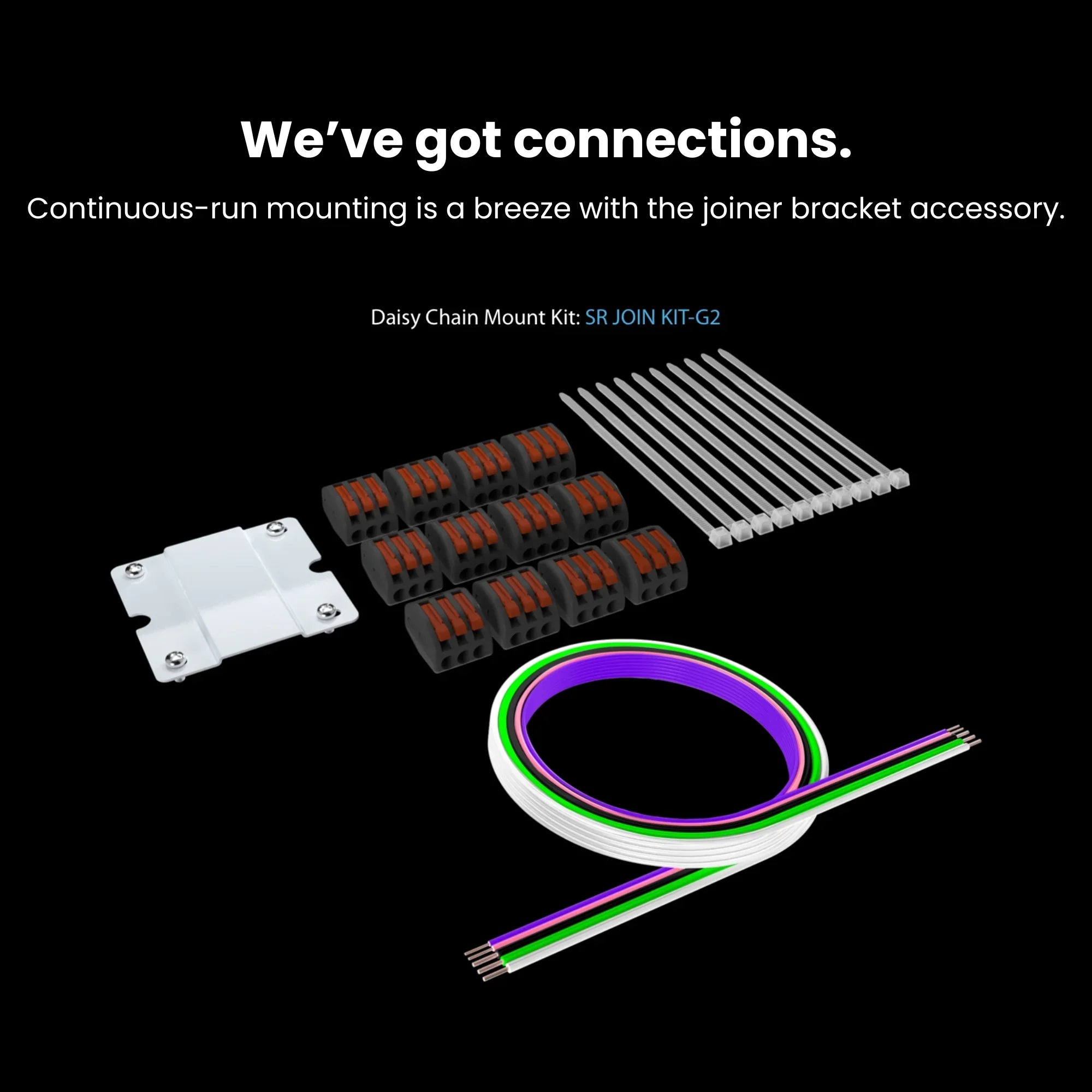

• Continuous Row Joiner: SRJOIN KIT (UPC 192552004190) — End join kit with bracket, nuts, wiring, and anchor
• Sensors & Controls: PIR40 (PIR sensor), MVS50 (microwave sensor), PIR40/LCB (Lightcloud Blue PIR), MVS50/LCB (Lightcloud Blue MVS), MSR1 (handheld remote)
• Mounting Bracket: RAAS (UPC 192552014175) — Bracket for connecting Lightcloud Blue low-voltage controller

Certifications & Rebates

• DLC Listing (Stairwell & Passageway): Listed under DLC Product ID S-LSEM36. Qualifies for commercial utility rebate incentives. Confirm local eligibility at designlights.org.
• DLC Listing (Direct Linear Ambient): Listed under DLC Product ID S-CDUVBW. Qualifies for commercial utility rebate incentives. Confirm local eligibility at designlights.org.
• DLC Listing (Low-Bay Commercial): Listed under DLC Product ID S-K82UP3. Qualifies for commercial utility rebate incentives. Confirm local eligibility at designlights.org.
• UL Listed: Tested and certified to UL 1598 standards for damp locations.
• BAA Compliant: Can be manufactured to comply with the Buy American Act (BAA) upon request.
• RoHS & Green Tech: RoHS compliant components; 100% mercury-free and UV-free solid-state construction.
• IES Testing: Photometric and lumen maintenance performance independently verified in accordance with IESNA LM-79 and LM-80.

Typical Applications

• Stairwells & Corridors: Meets strict commercial egress requirements with DLC Premium stairwell qualification and optional occupancy sensing.
• Commercial Warehouses: Delivers continuous-row, uniform illumination along storage racking and inventory aisles.
• Utility & Electrical Rooms: Durable sheet metal chassis and damp-location rating withstand mechanical room environments.
• Retail Aisle Lighting: Diffused polycarbonate optics eliminate pixelation and deliver comfortable visual clarity for retail shoppers.
• Covered Parking & Canopies: Damp-location listing and cold-weather starting ensure reliable performance in semi-enclosed exterior transit areas.

What's Included

• RAB SR4/E Field-Adjustable 4ft Strip Light — White with integrated emergency battery backup
• Standard J-box adapter mounting plate and hardware
• Installation and operation instructions
