RAB SR Field Adjustable Strip 2ft Strip Light 3000 Lumens 19W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Delivers up to 2,998 lumens for optimal illumination.
- Wattage: Field adjustable wattage options of 19W, 14W, and 10W.
- Voltage: Operates on a versatile 120-277V input range.
- Dimming: Compatible with 0-10V dimming systems for flexible light control.
- Compliance: DLC Listed and UL Listed for damp locations, ensuring quality and safety.
We process payments securely and do not store credit card information.
Description
Description

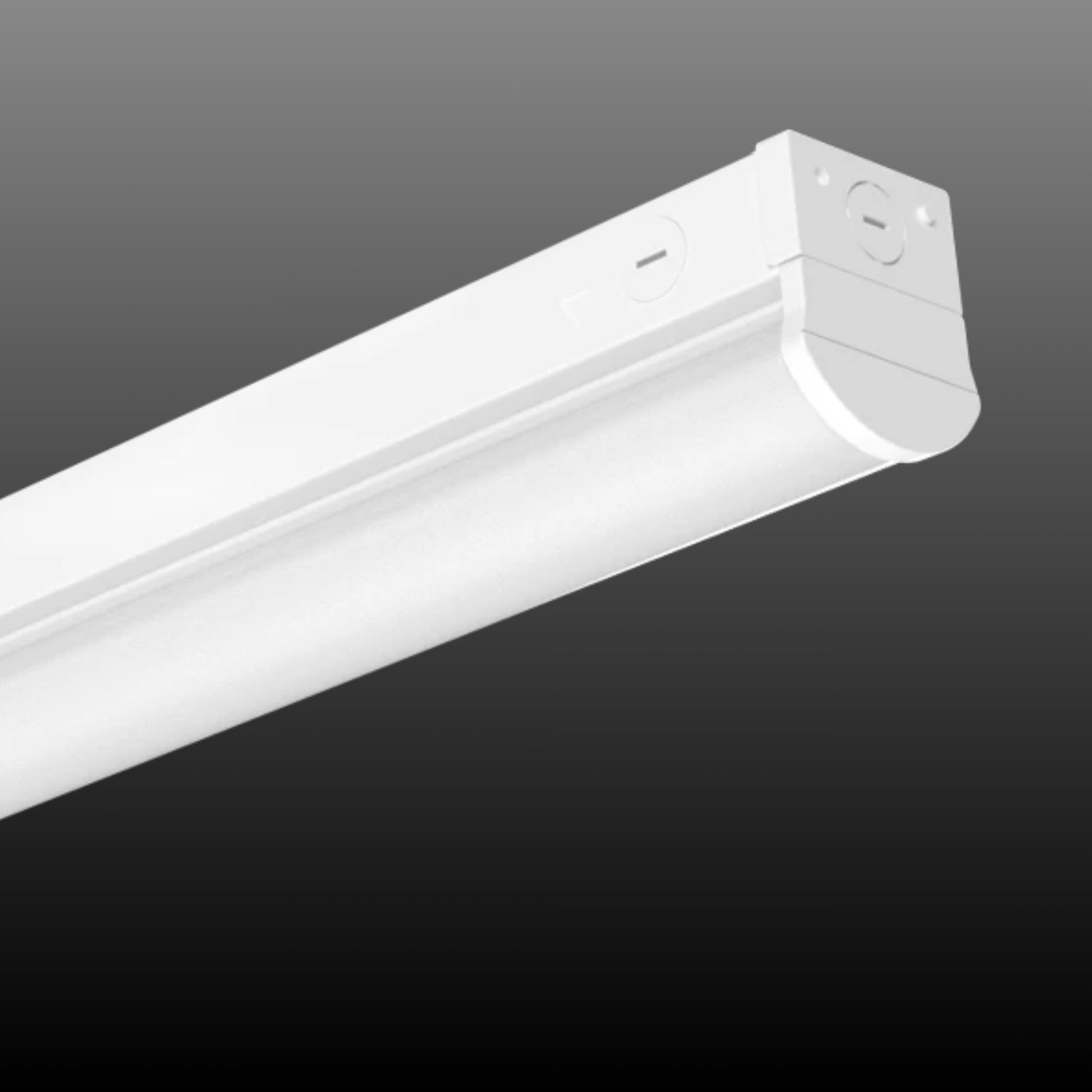

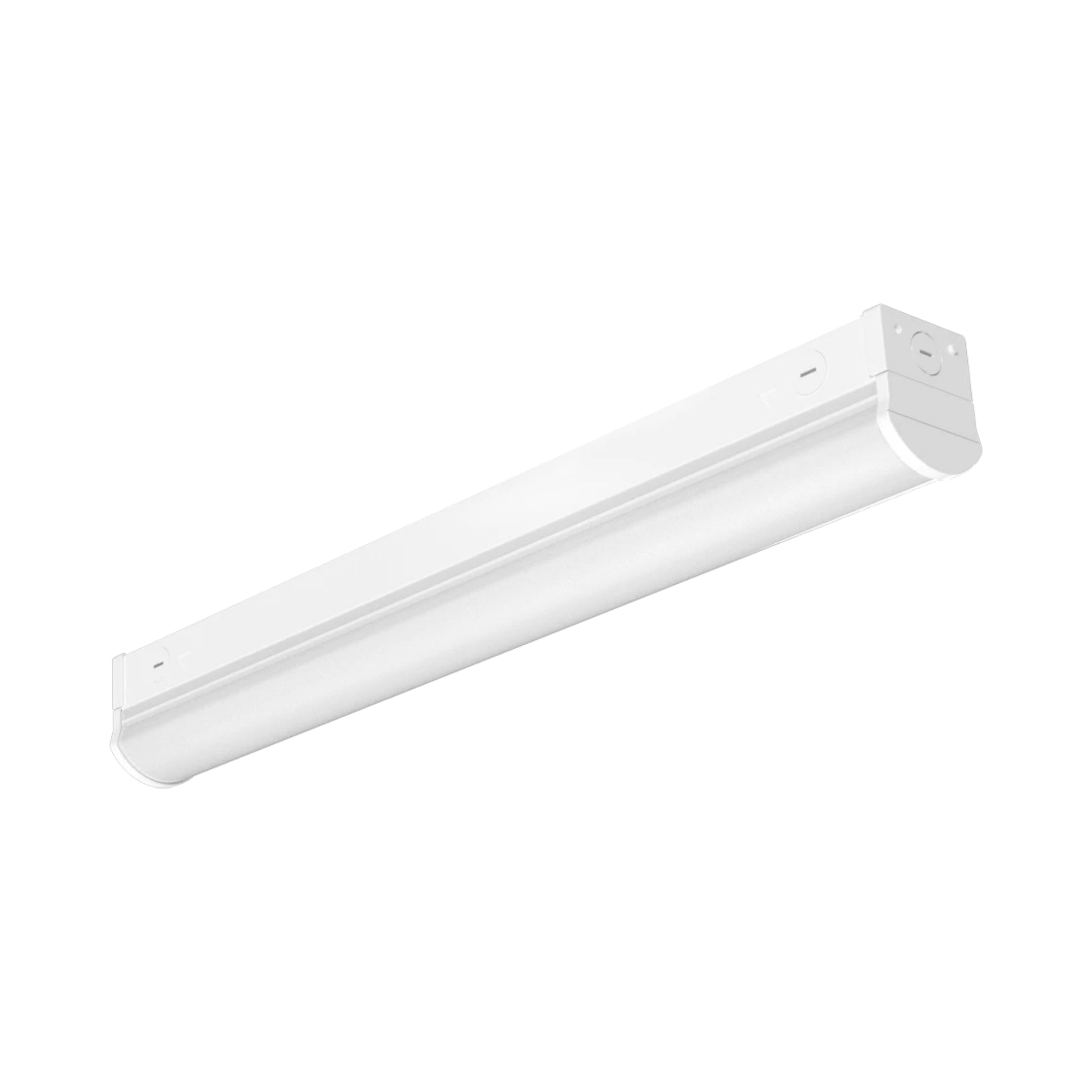

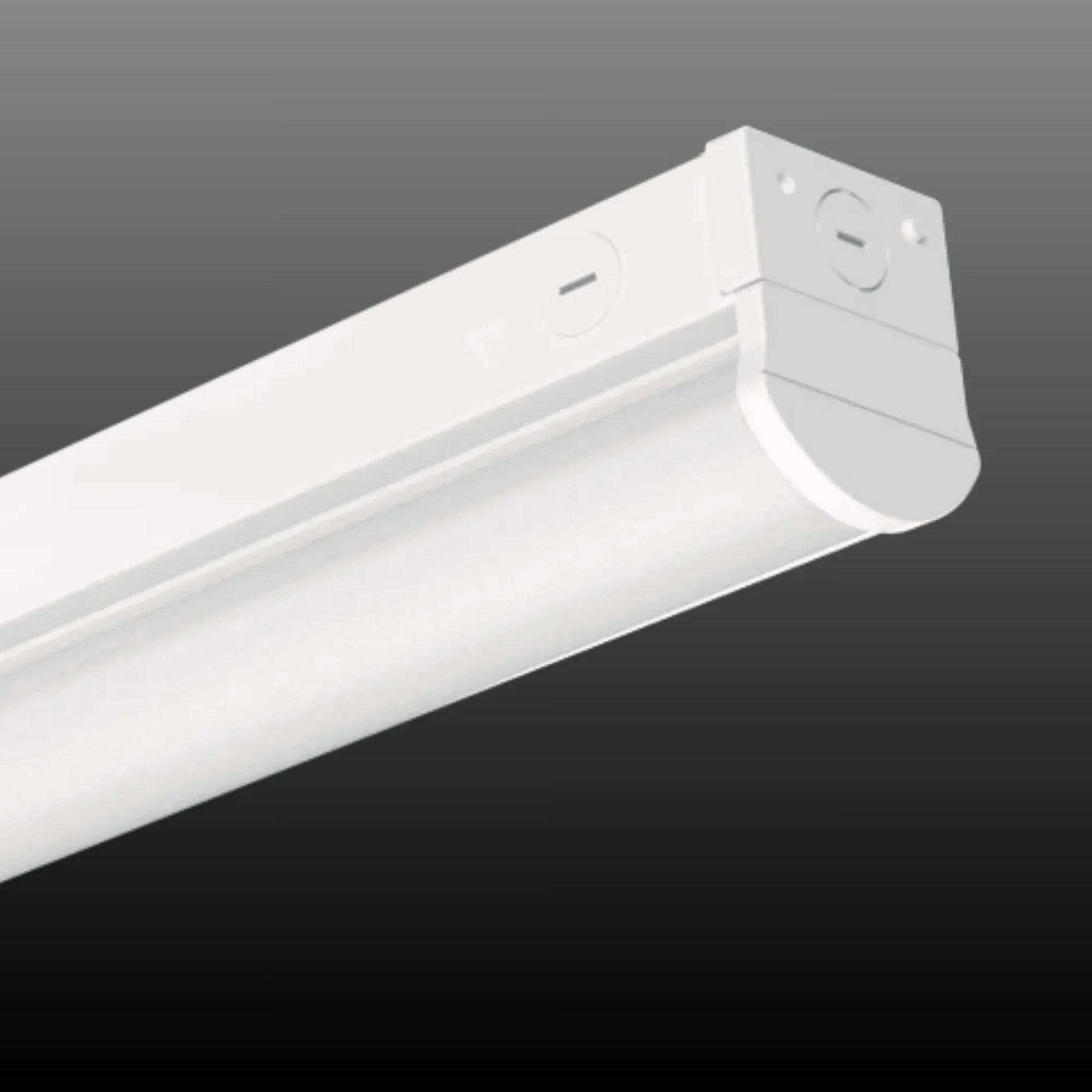

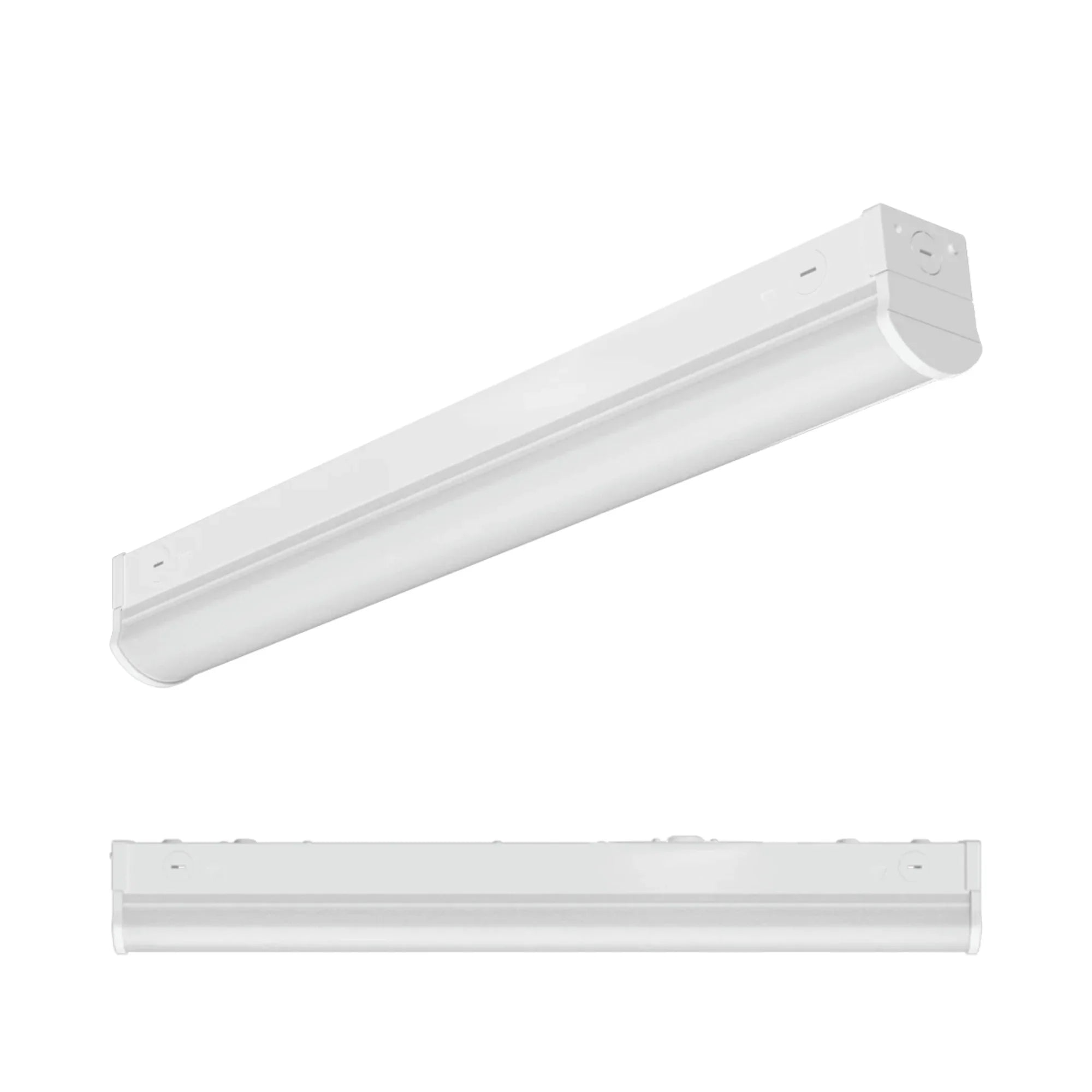

RAB SR Field Adjustable Strip Light — 19W Configuration
The RAB SR2 is a versatile strip light fixture offering 19W power consumption, delivering up to 2,998 lumens with selectable CCT options of 3500K, 4000K, and 5000K. It operates on a 120-277V input voltage, making it suitable for various applications. This fixture is DLC Listed and UL Listed for damp locations, ensuring compliance with industry standards.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 19W, 14W, and 10W, with a factory default of 19W.
- Selectable CCT: Choose from 3500K, 4000K, or 5000K color temperatures, with a default of 4000K.
- High Efficacy: Achieves an efficacy range of 140.6 to 160.6 lm/W.
- Durable Construction: Features a polycarbonate lens and sheet metal housing for longevity.
- Dimming Capability: Equipped with a 0-10V dimming driver, allowing dimming down to 10%.
- Surge Protection: Includes L-N 1KV and L/N-G 2KV surge protection.
- Long Lifespan: Designed for a 50,000-hour LED lifespan based on IES LM-80 results.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Mounting Options: Standard surface mounting with optional V-Hooks and chain mounting available.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications

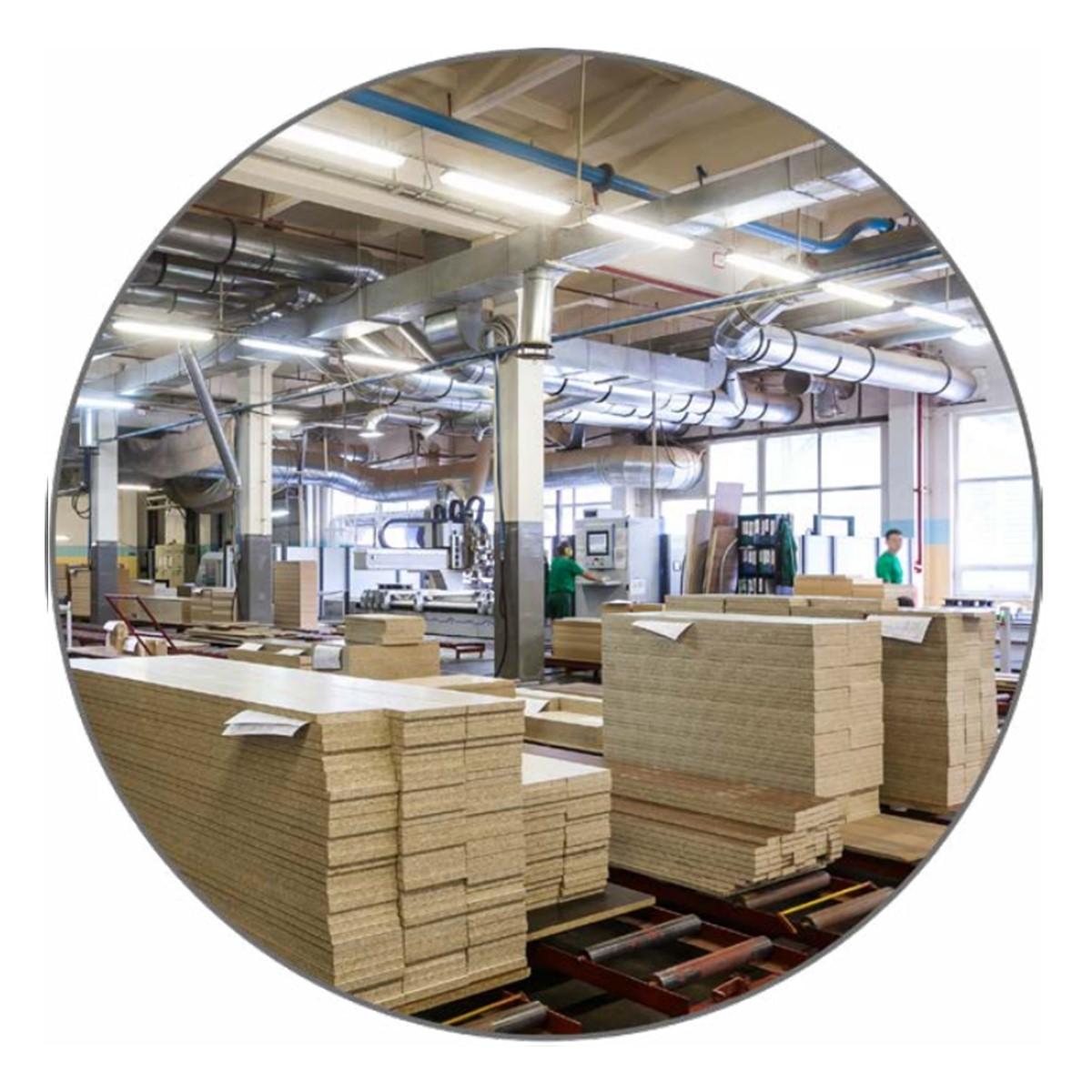

- Warehouses

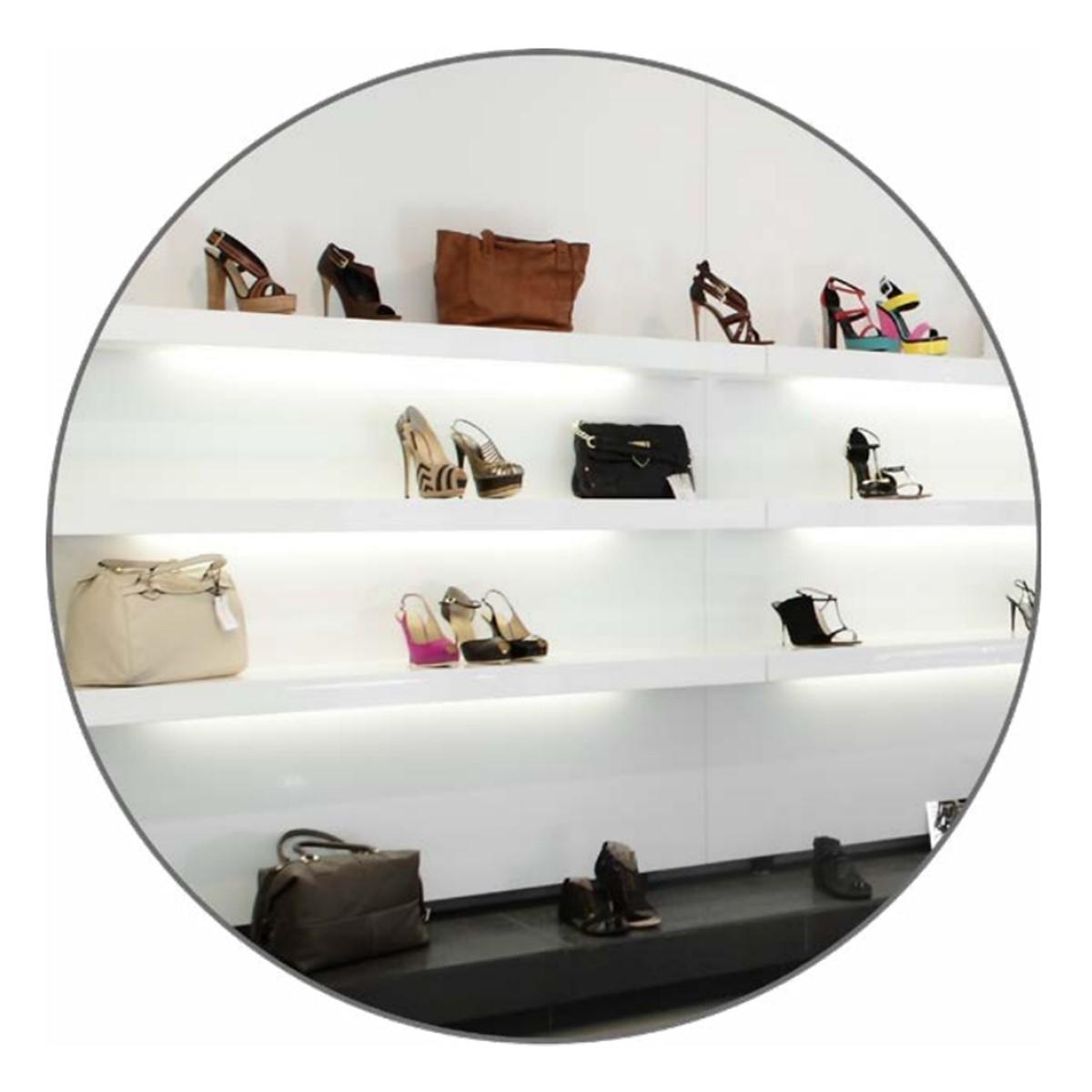

- Retail Spaces
- Offices
- Educational Facilities
- Stairwells
- Passageways
Performance & Light Output
This fixture provides a light output range of 1,552 to 2,998 lumens with a color rendering index (CRI) of 83-85, ensuring high-quality light output. It maintains color consistency within a 4-step MacAdam Ellipse.
Electrical & Controls
The SR2 operates on 120-277V and includes a constant current driver with 0-10V dimming capability. It features a power factor of 99.8% at 120V and 98.22% at 277V, with surge protection of L-N 1KV and L/N-G 2KV.
Construction & Durability
Constructed with a polycarbonate lens and sheet metal housing, this fixture is designed for durability and is suitable for damp locations. It operates within a temperature range of -20°C to 62°C.
Installation & Mounting

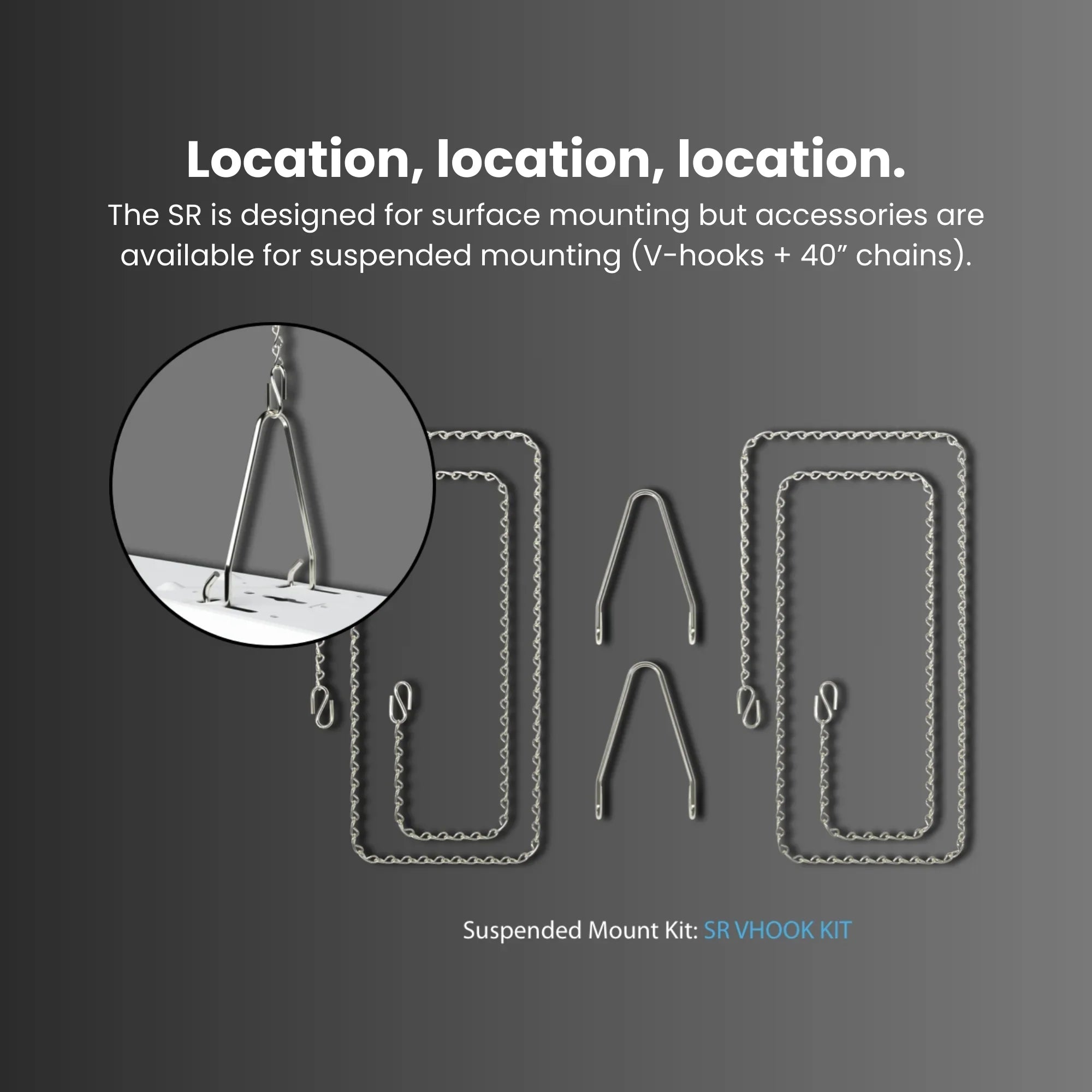

Standard surface mounting is supported, with optional V-Hooks and chain mounting available through the SR VHOOK KIT. The fixture is designed for easy installation in various settings.
What's Included
- SR2 Fixture
