RAB SMSBULLET2X20W Field Adjustable Flood Light 40W 4190 Lumens Selectable CCT 120-277V Motion Sensor White
Available in stock (100)
About this item
About this item
- Wattage: Field adjustable wattage options of 40W, 30W, and 20W for flexible lighting control.
- Lumens: Delivers up to 4190 lumens for bright and efficient illumination.
- CCT: Selectable color temperatures of 3000K, 4000K, and 5000K to suit various environments.
- IP Rating: IP65 rated for protection against dust and water ingress, suitable for wet locations.
- Mounting: Includes a heavy-duty mounting arm with 'O' ring seal and stainless steel screws for secure installation.
We process payments securely and do not store credit card information.
Description
Description

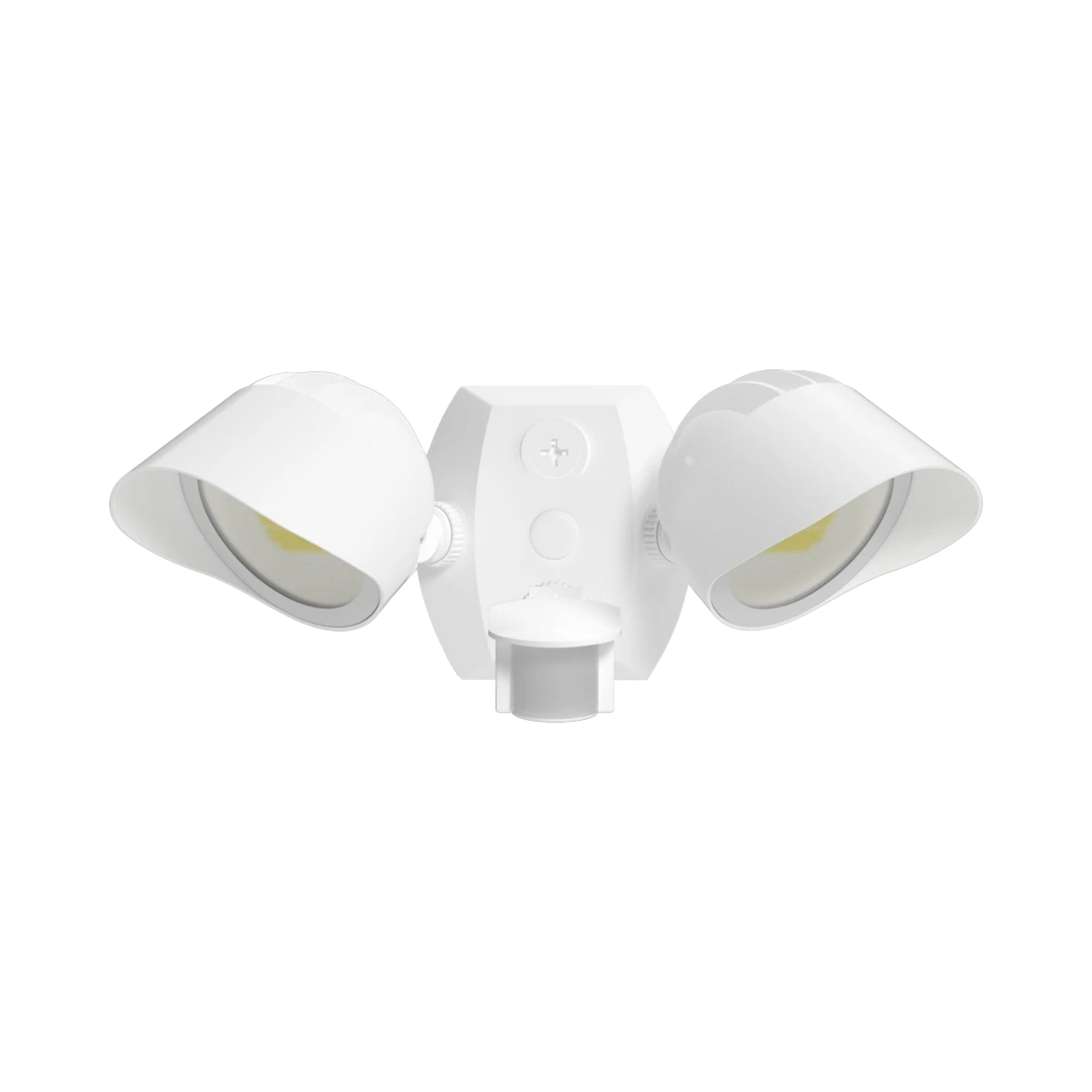

RAB Bullet Field Adjustable Flood Light — 40W Configuration
The RAB SMSBULLET2X20W is a versatile flood light offering 40W power with a maximum output of 4190 lumens. It supports 120-277V input and features selectable CCT options of 3000K, 4000K, and 5000K. This flood light is IP65 rated, making it suitable for wet locations and various outdoor applications.
Key Features

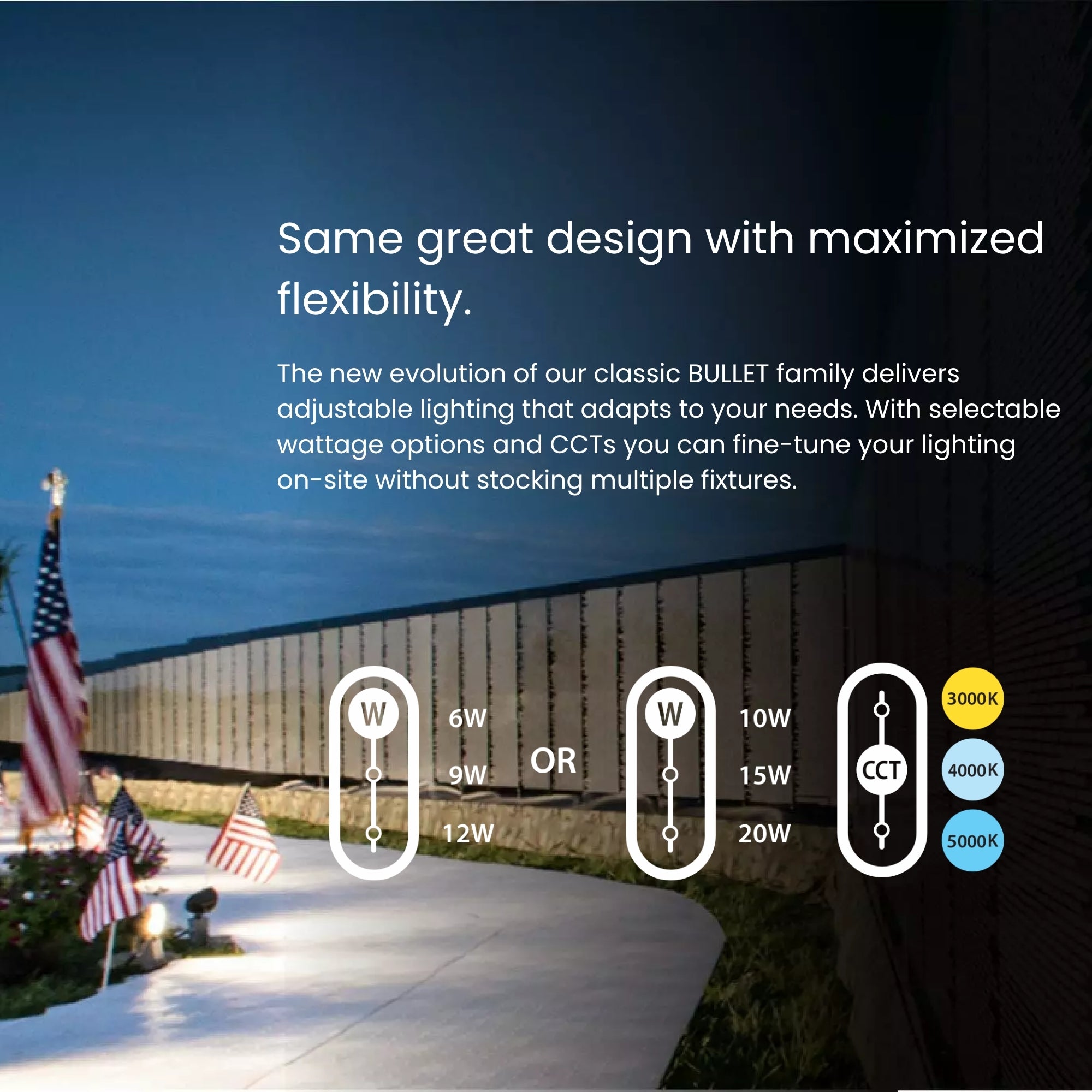

- Field Adjustability: Offers adjustable wattage settings of 40W, 30W, and 20W, with a factory default of 40W.
- Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
- Driver: Constant current driver with a power factor of 98.8% at 120V ensures efficient operation.
- Surge Protection: Equipped with 1 kV surge protection for enhanced durability.
- Construction: Features a die-cast aluminum housing and glass lens for robust performance.
- LED Lifespan: Long-lasting LEDs with a lifespan of 100,000 hours based on IES LM-80 results.
- Beam Spread: NEMA 6H x 6V beam spread for wide area coverage.

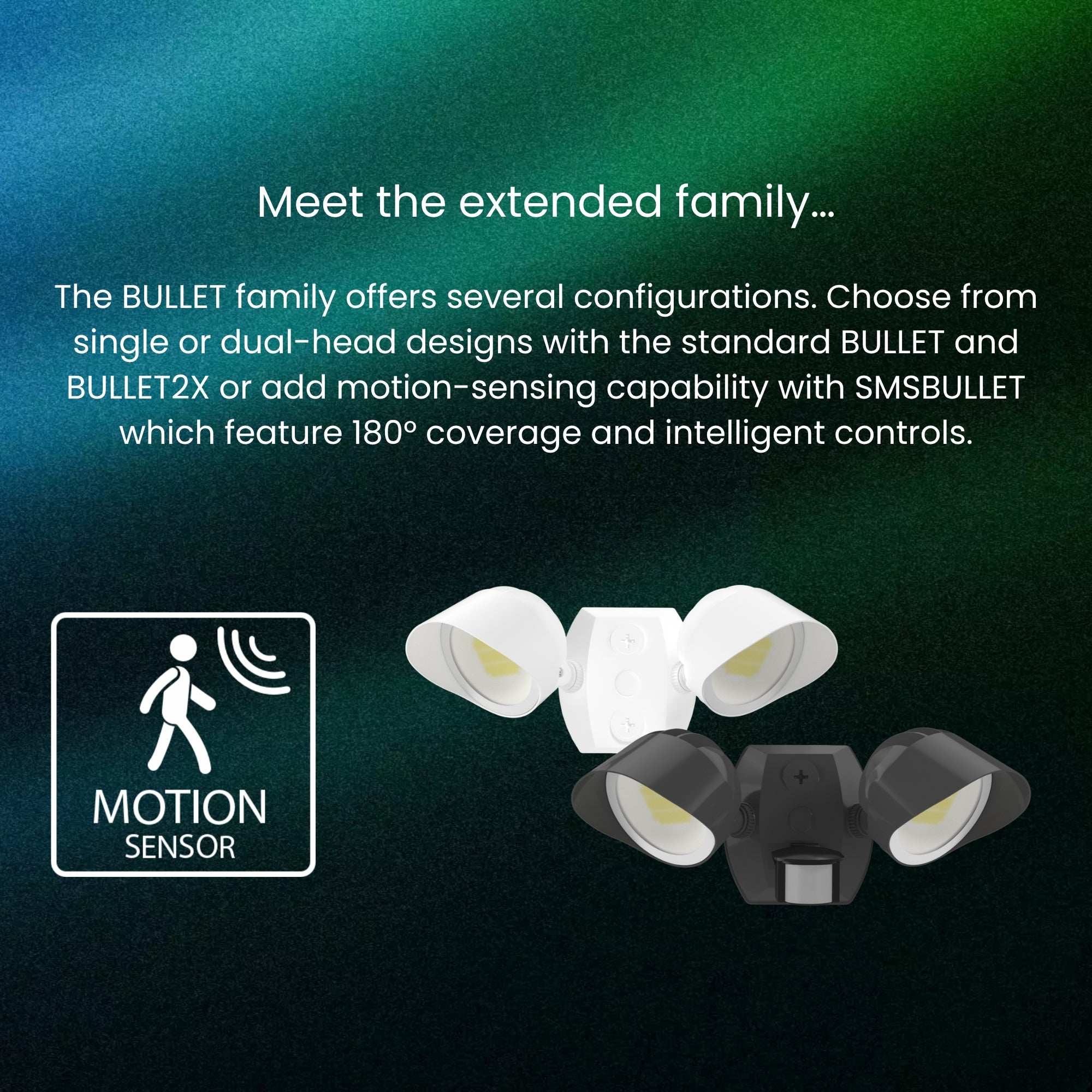

- Motion Sensing: Includes motion sensing capabilities with a 180° detection pattern.
- Environmental Compliance: RoHS-compliant and free from mercury and UV.
- Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.
Typical Applications
- Parking Lots
- Building Facades
- Security Lighting
- Landscape Lighting
- Signage Illumination
Performance & Light Output
This flood light delivers between 2319 and 4190 lumens with an efficacy range of 97.5 to 116.3 lm/W. It maintains a CRI of 82-84 and is designed for a long lifespan of 100,000 hours.
Electrical & Controls
Operates on 120-277V with a constant current driver. It supports dimming and includes surge protection. The fixture is equipped with motion sensing and ambient light sensing capabilities.
Construction & Durability

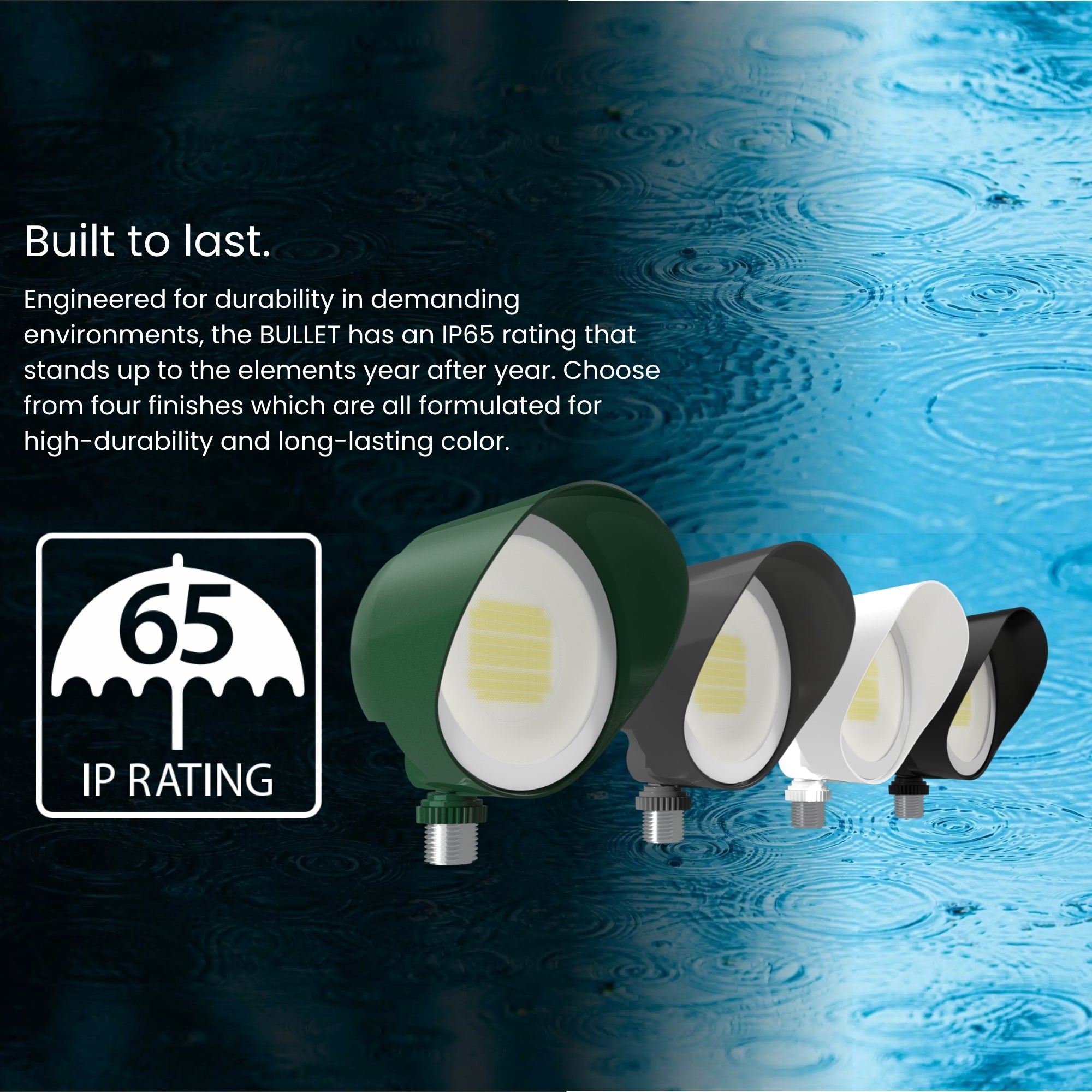

Constructed with a die-cast aluminum housing and glass lens, the fixture is IP65 rated for dust and water protection. It operates in temperatures ranging from -40°F to 104°F.
Installation & Mounting
Comes with a heavy-duty mounting arm, 'O' ring seal, and stainless steel screws for secure and reliable installation.
What's Included
- Flood Light Fixture
- Mounting Arm
- Installation Hardware
Specifications
Specifications

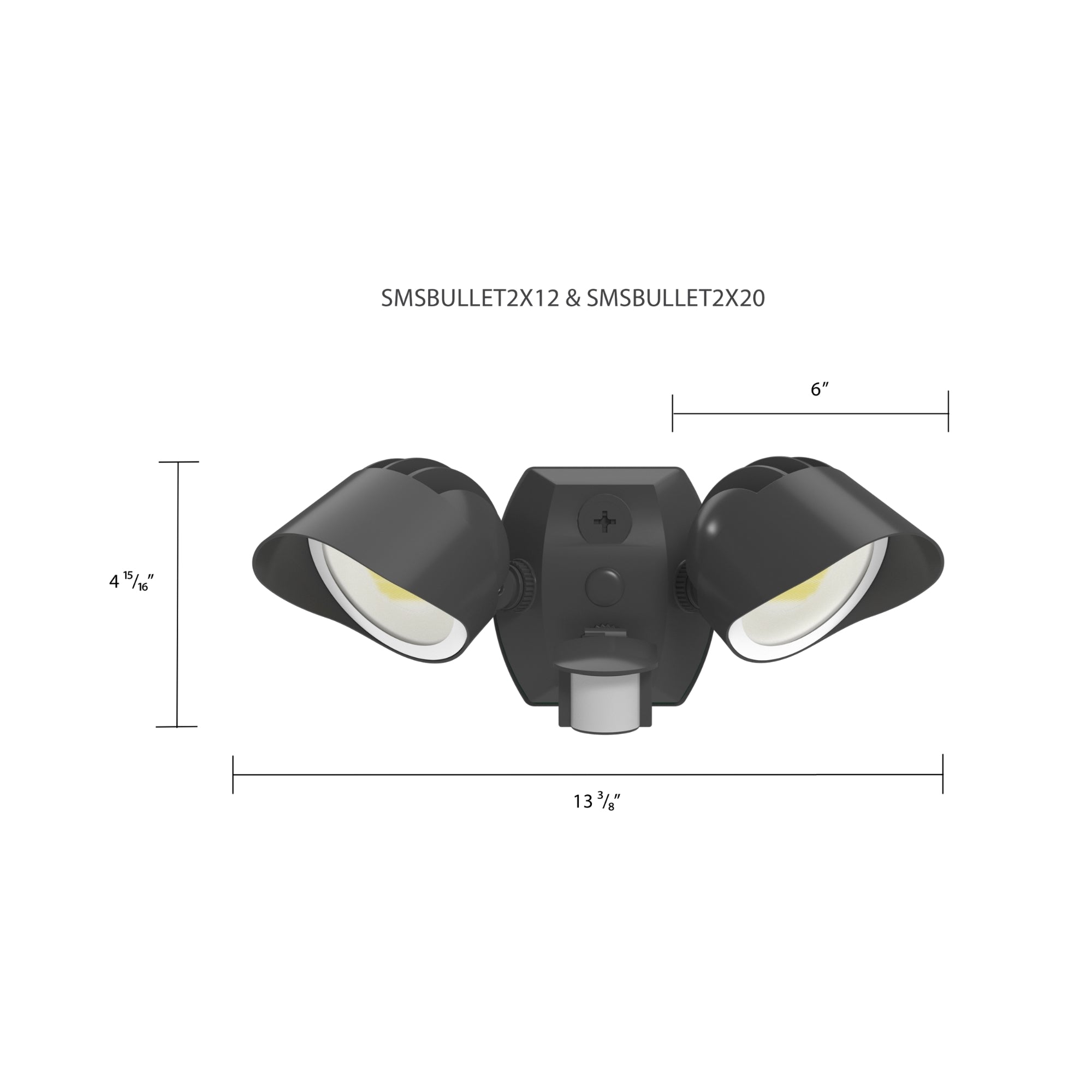

Dimensions
