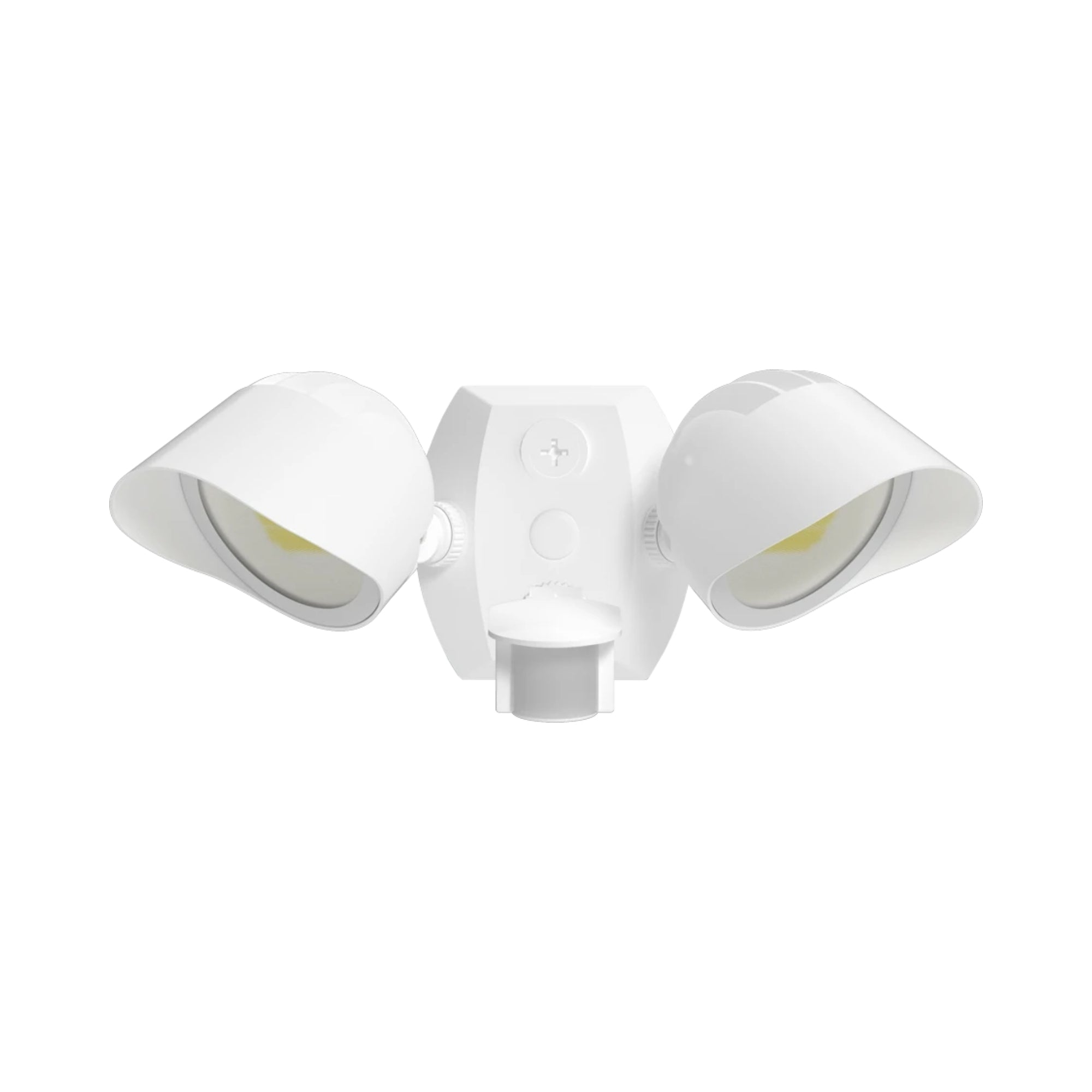

RAB Bullet Field Adjustable Flood Light — 24W Configuration

The RAB SMSBULLET2X12W is a versatile flood light offering field adjustable wattage options of 24W, 18W, and 12W, with a maximum light output of 2,645 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 4000K, and 5000K. This flood light is IP65 rated, making it suitable for wet locations.

Key Features

• Field Adjustable Wattage: Easily switch between 24W, 18W, and 12W settings to optimize energy use.
• Selectable CCT: Choose from 3000K, 4000K, or 5000K to match the desired ambiance.
• High Efficacy: Delivers up to 120.9 lm/W for efficient lighting performance.
• Long Lifespan: Designed for 100,000 hours of operation, reducing maintenance needs.
• Durable Construction: Features a die-cast aluminum housing and glass lens for robust durability.

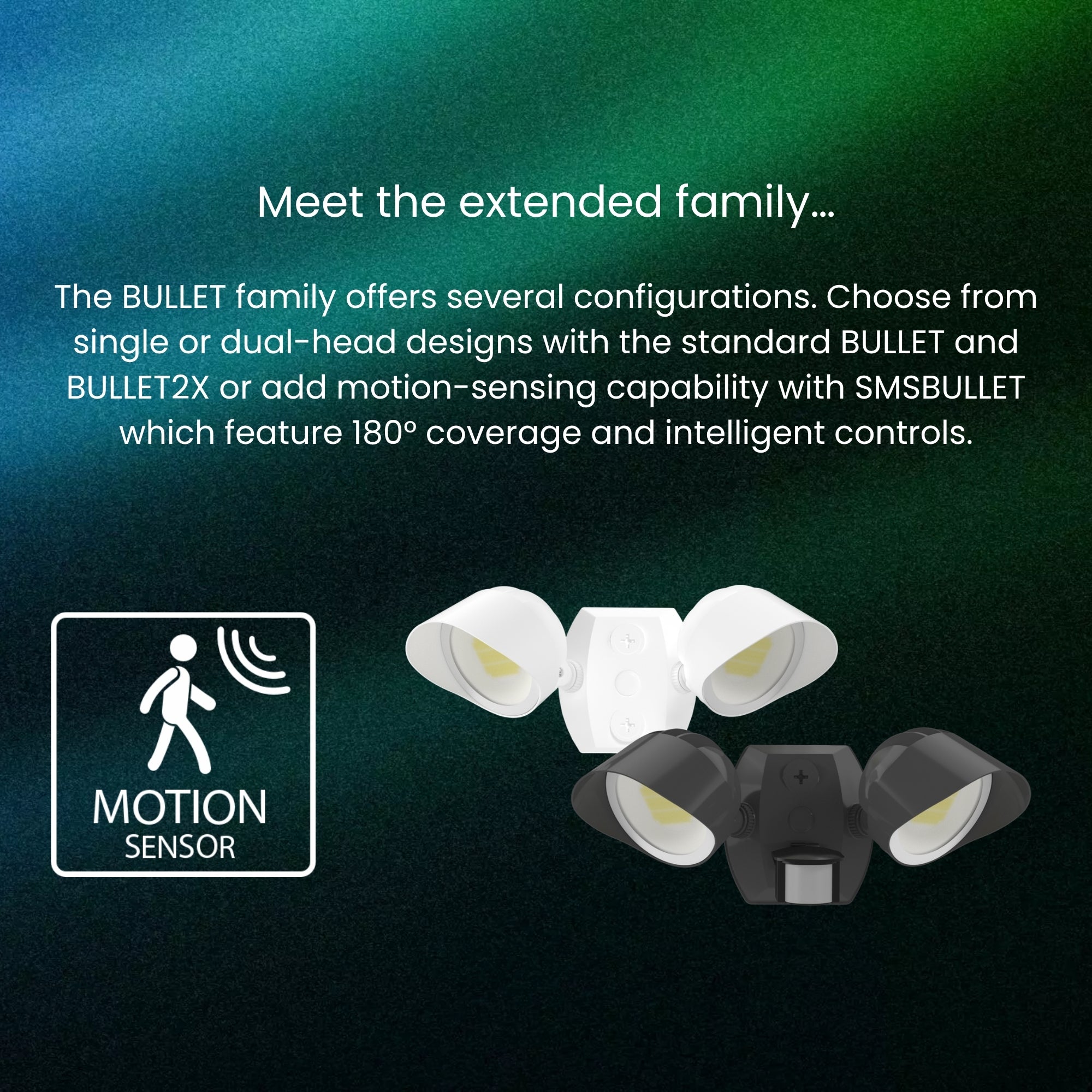

• Motion Sensing: Integrated motion sensor with 180° detection pattern for enhanced security.
• Surge Protection: Equipped with 1 kV surge protection for reliable operation.
• UL Listed: Certified for use in wet locations, ensuring compliance with safety standards.
• Green Technology: Mercury and UV free, with RoHS-compliant components.
• Photoelectric Control: Automatically deactivates lights during daylight to conserve energy.

Typical Applications

• Building Facades
• Parking Lots
• Security Lighting
• Landscape Illumination
• Signage Lighting

Performance & Light Output

This flood light offers a lumen output range from 1,279 to 2,645 lumens with an efficacy of up to 120.9 lm/W. It features a CRI of 82-85 and a NEMA beam spread of 6H x 6V, ensuring broad and effective coverage.

Electrical & Controls

The fixture operates on a 120-277V input with a constant current driver. It includes dimming capabilities and surge protection of 1 kV. The motion sensor provides a 180° detection pattern with adjustable settings for time and ambient light.

Construction & Durability

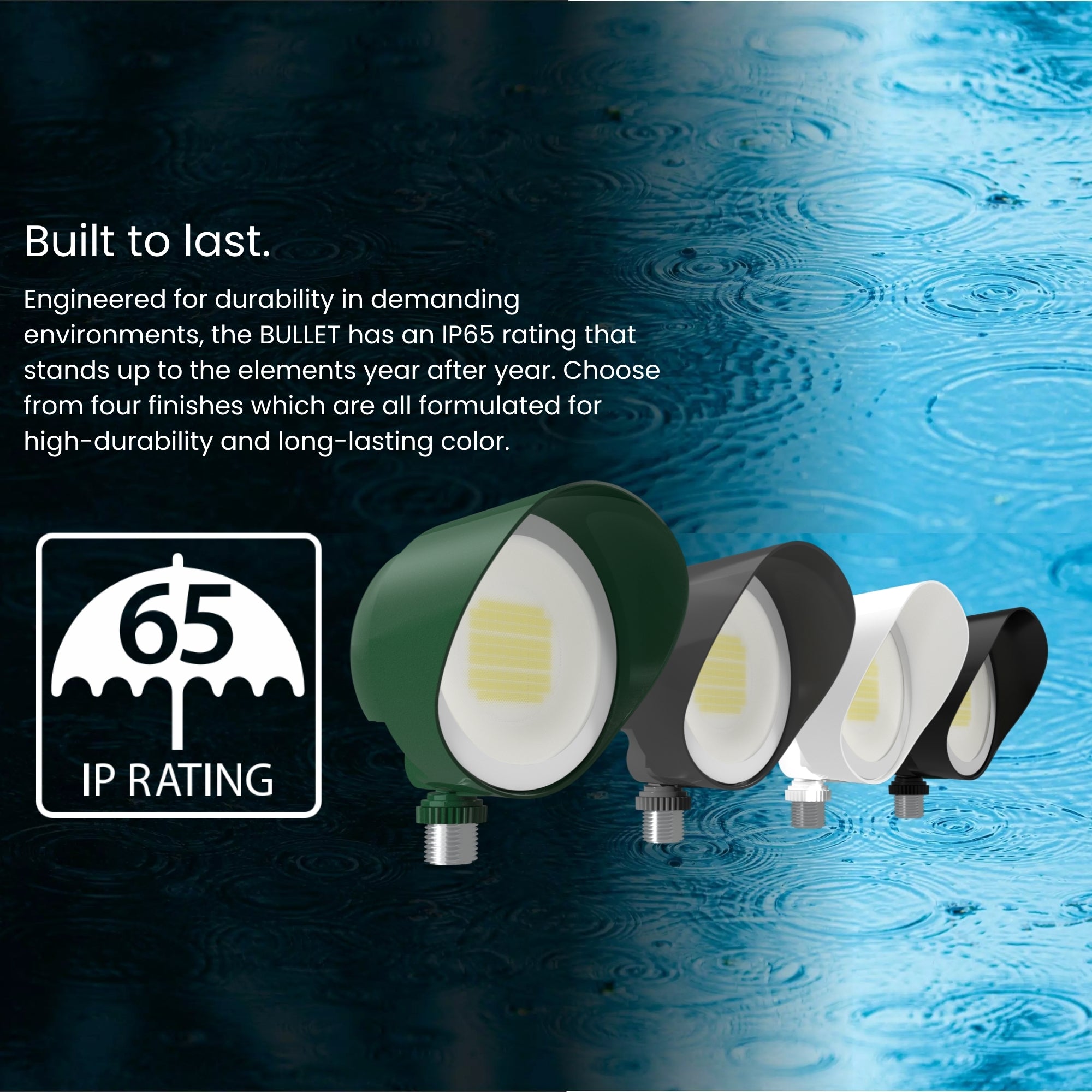

Constructed with a die-cast aluminum housing and a glass lens, this fixture is IP65 rated for protection against dust and water. It is suitable for temperatures as low as -40°F and up to 104°F.

Installation & Mounting

Comes with a heavy-duty mounting arm and stainless steel screws, ensuring secure installation. The fixture includes an 'O' ring seal for added protection.

What's Included

• Flood Light Fixture
• Mounting Arm
• Stainless Steel Screws
