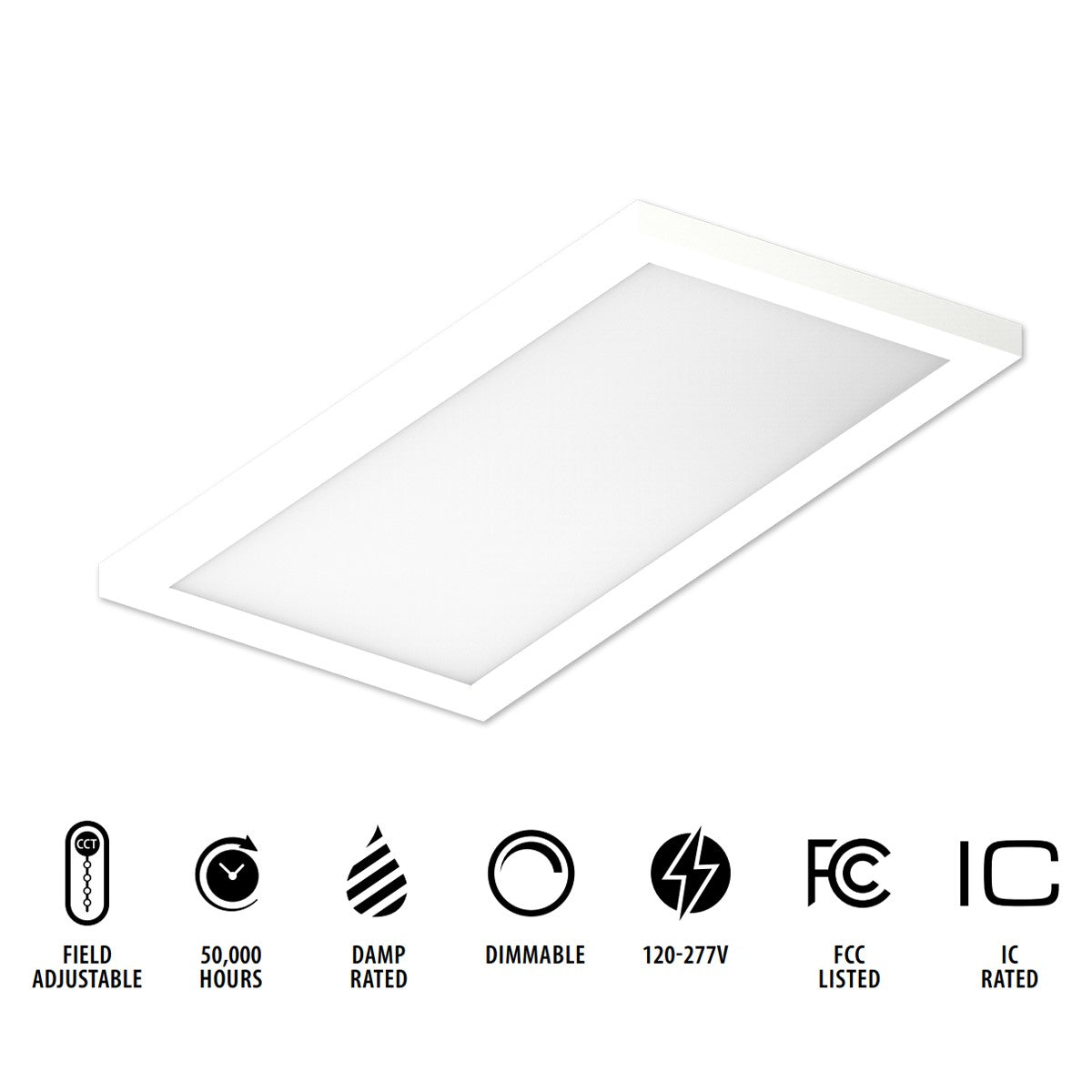

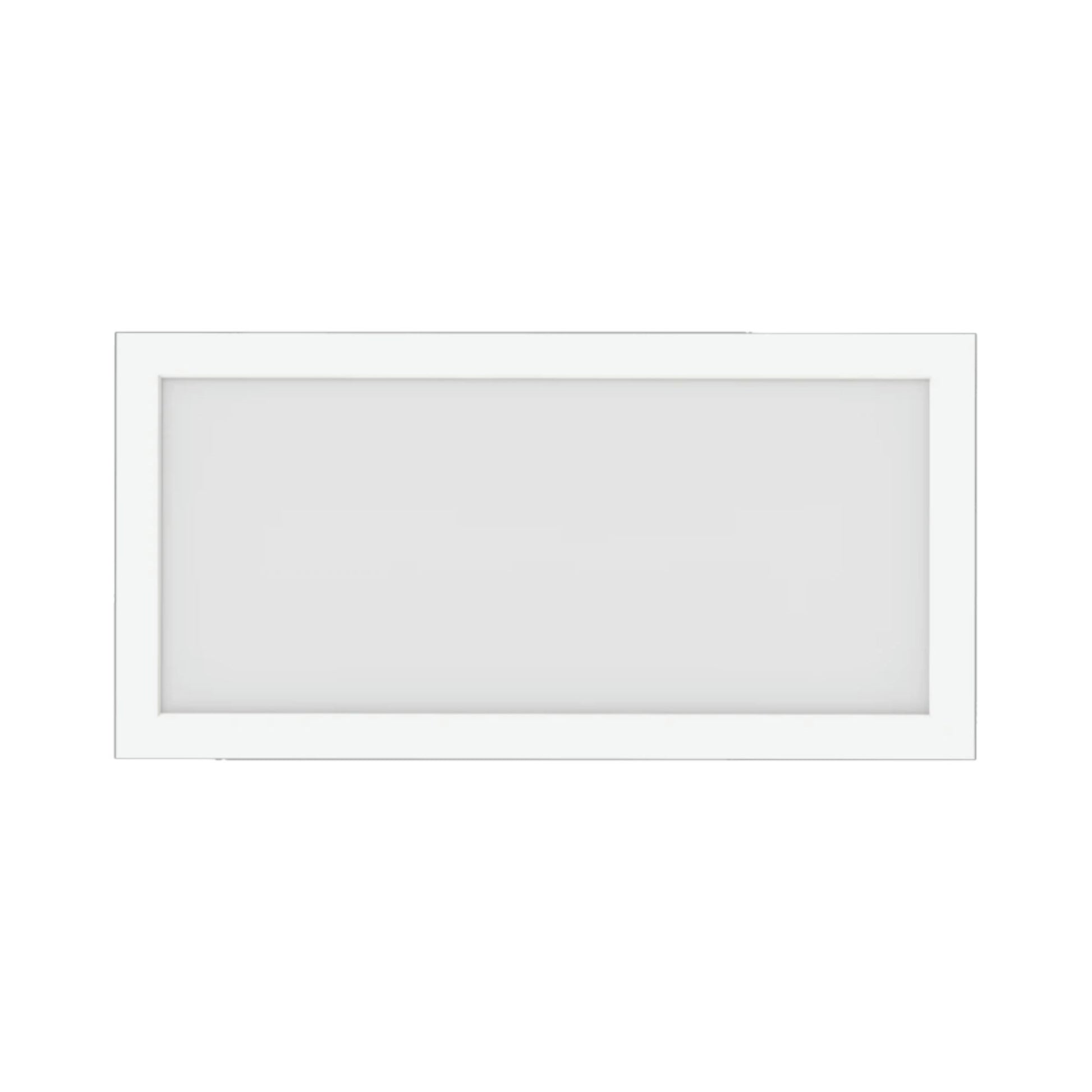

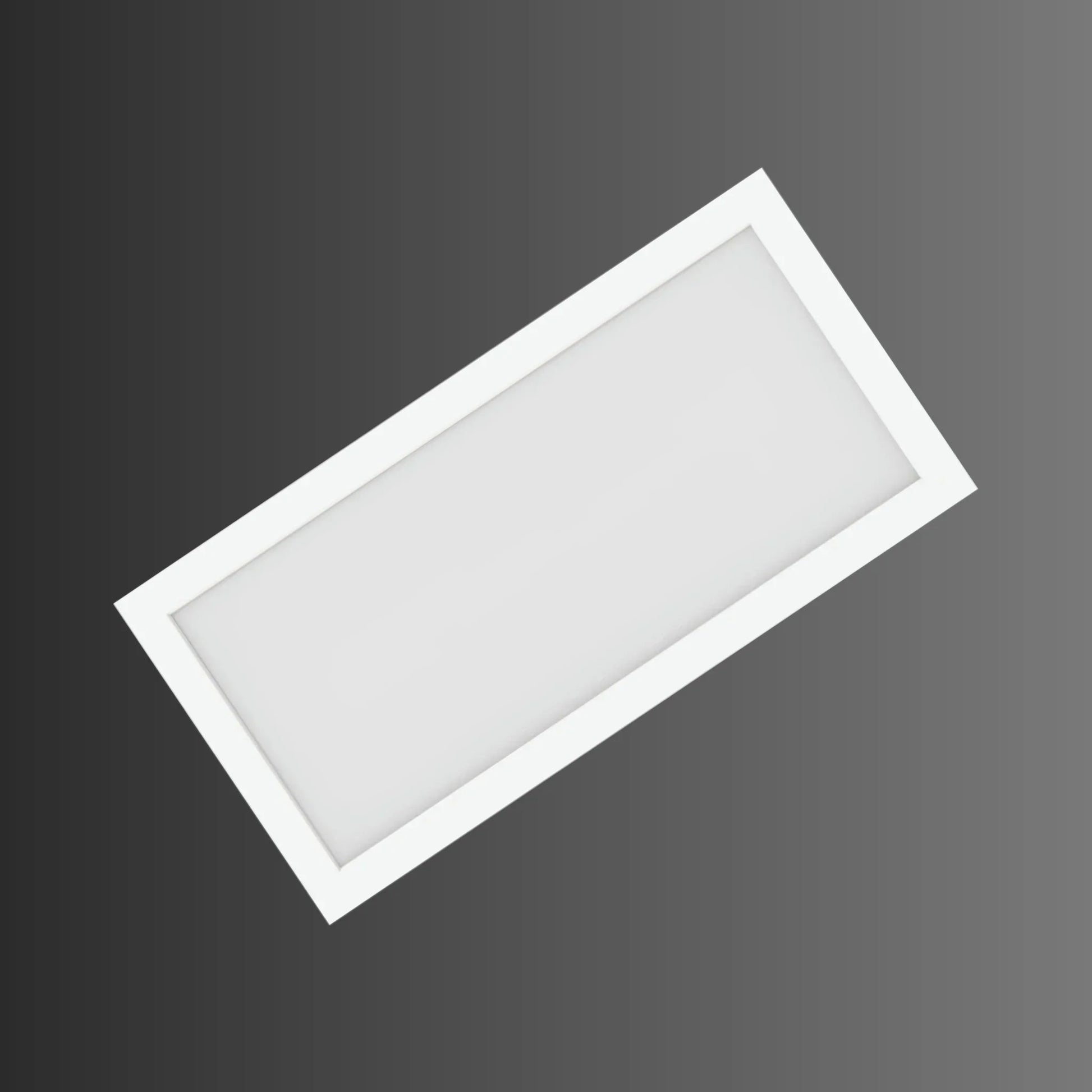

RAB SMPFA1X2RT22UNVTW 1 × 2 ft Edge-Lit LED Surface Mount Panel — White, 22W, Selectable CCT

The RAB SMPFA1X2RT22UNVTW rectangular surface-mount panel combines a slim edge-lit design with five selectable color temperatures. Its 22W integrated LED delivers 1,900 lumens with 90 CRI, while compatible TRIAC/ELV dimming to 10% provides adjustable brightness. A white metal enclosure, smooth trim and polycarbonate diffuser create evenly distributed general lighting without a hanging drop.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via fixture DIP switch
• Output: 1,900 lumens at 22W; 86 lm/W efficacy and 45W CFL equivalency
• Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse consistency
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Optics: Polycarbonate diffuser distributes light evenly and smoothly
• Construction: White rectangular metal enclosure with smooth trim

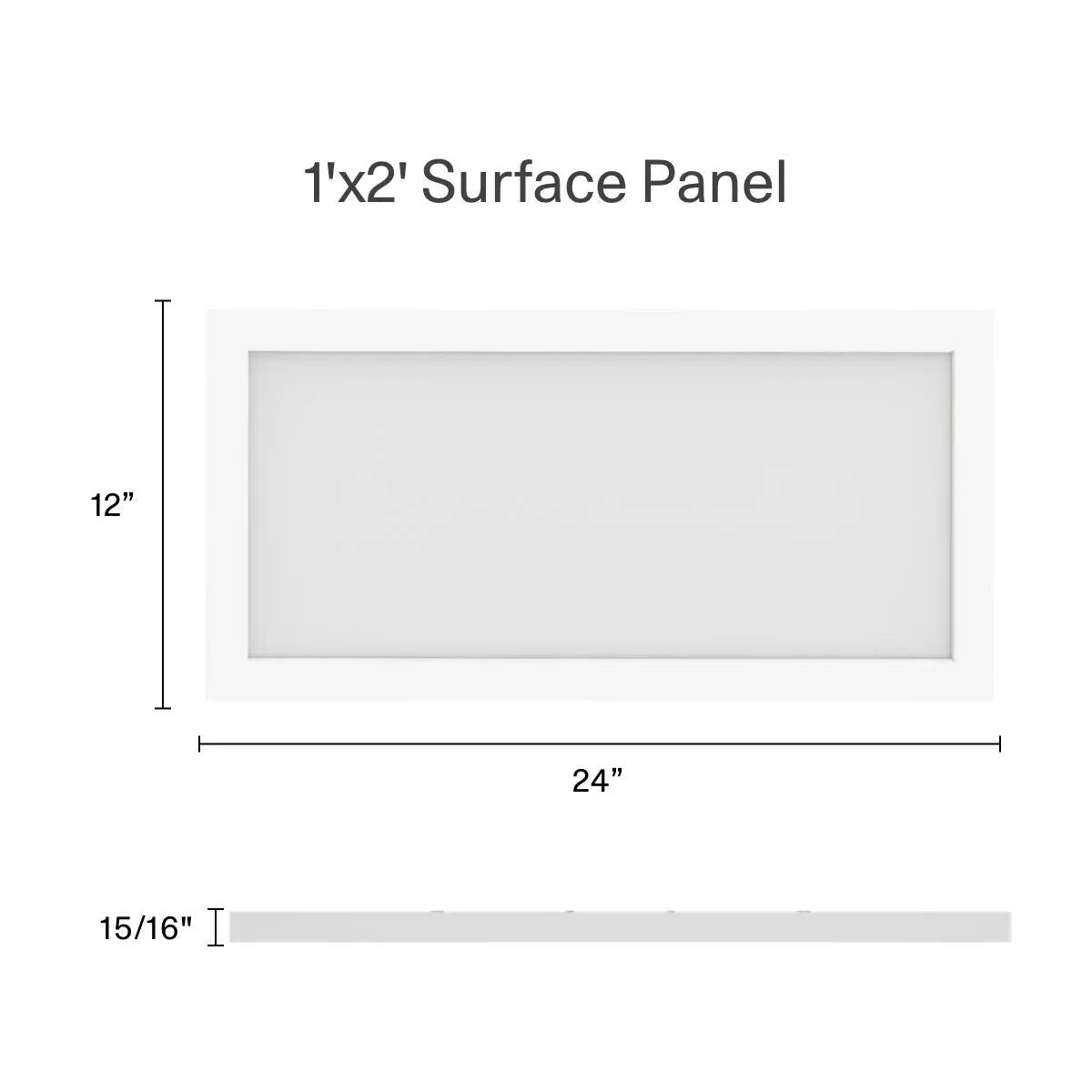

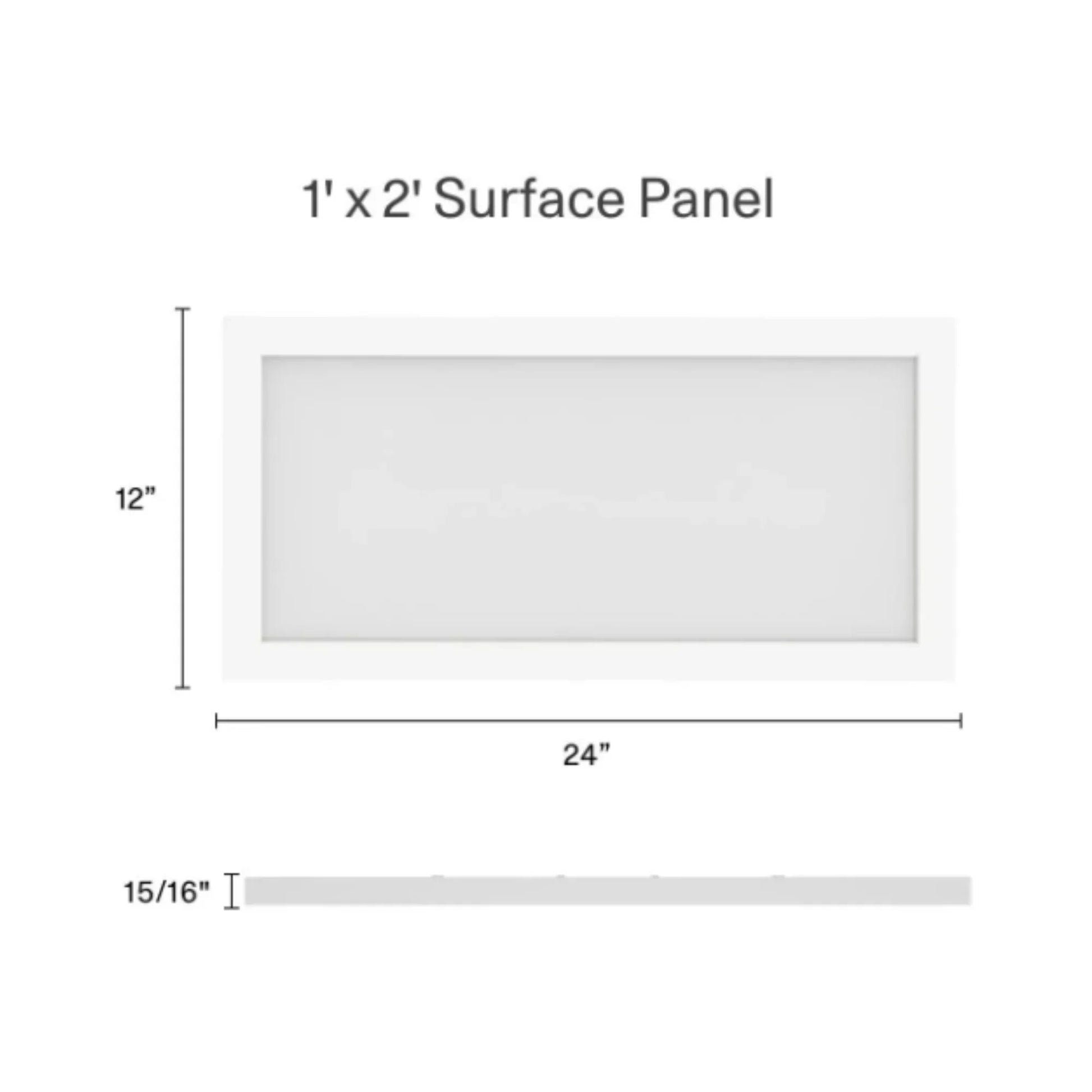

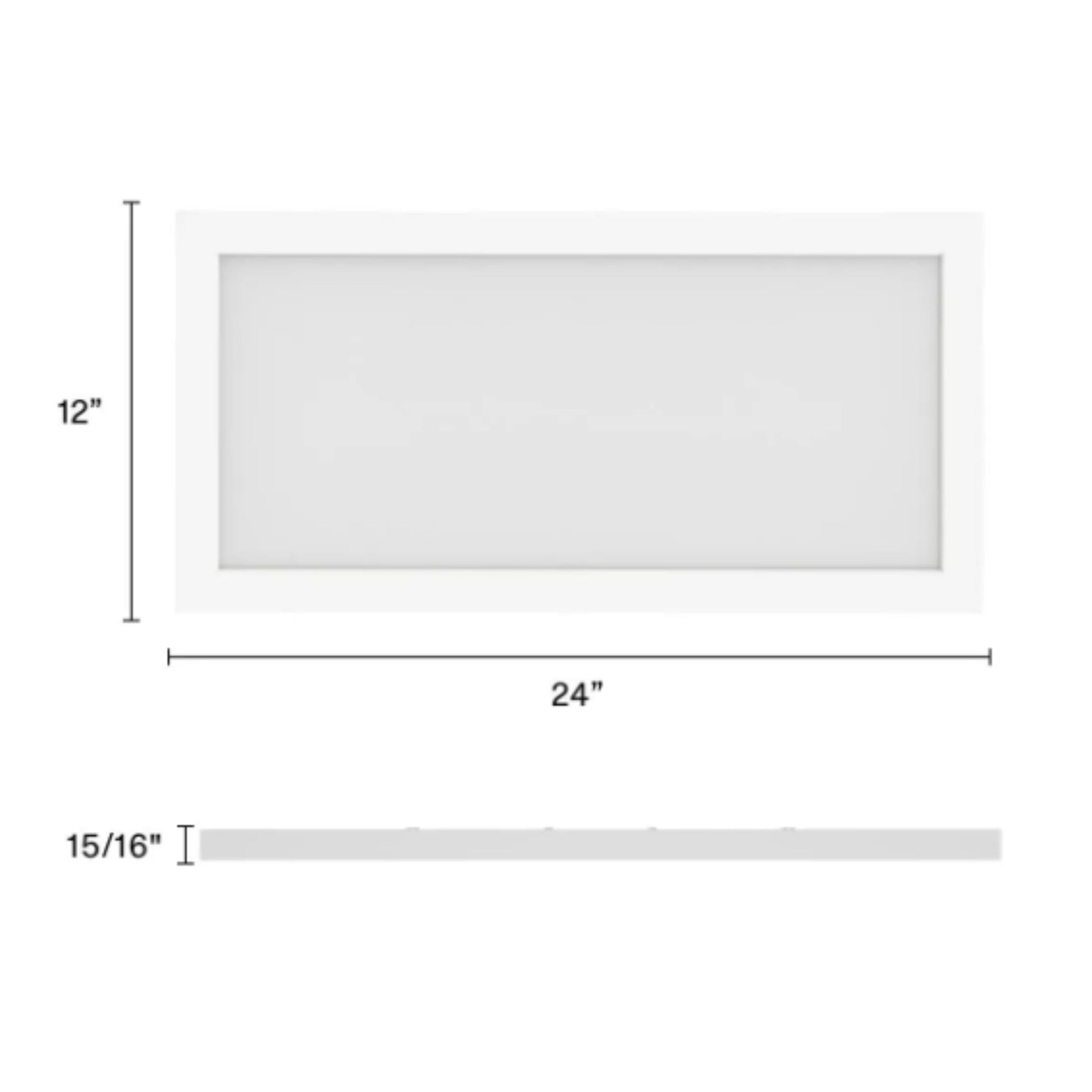

• Size and Weight: Nominal 1 × 2 ft format; 4.2 lb
• Input: Constant-current Class 2 driver; 120-277V at 50/60Hz
• Electrical Performance: Power factor at least 0.9, THD at most 30% and flicker at most 30%
• Listings: UL listed for indoor dry and damp environments; neither IC rated nor airtight
• Compliance: ENERGY STAR Version 2.2 certified; Title 20 and Title 24 JA8 compliant; FCC Part 15B compliant; RoHS-compliant components; TAA compliant, made in Cambodia
• Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range

Construction & Design

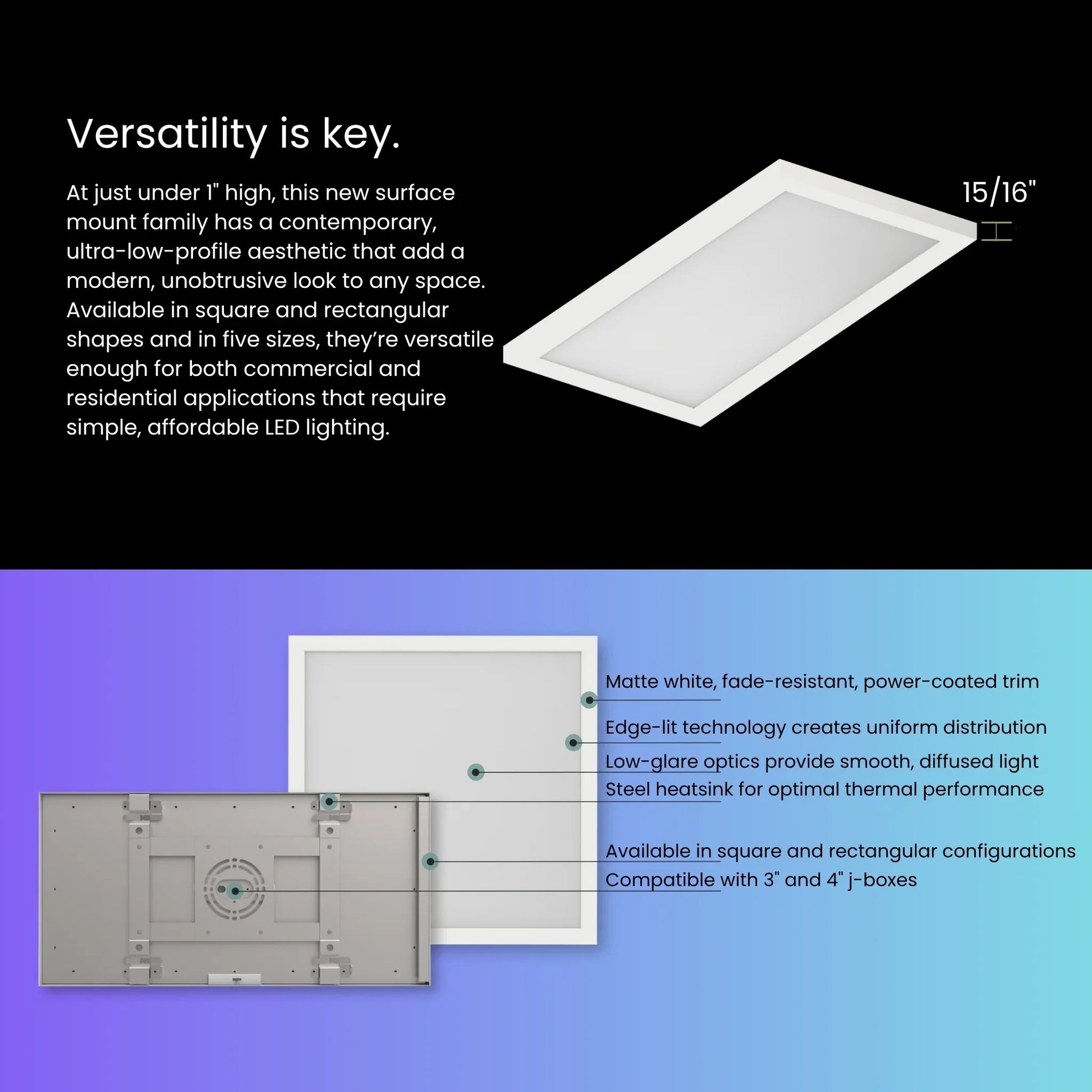

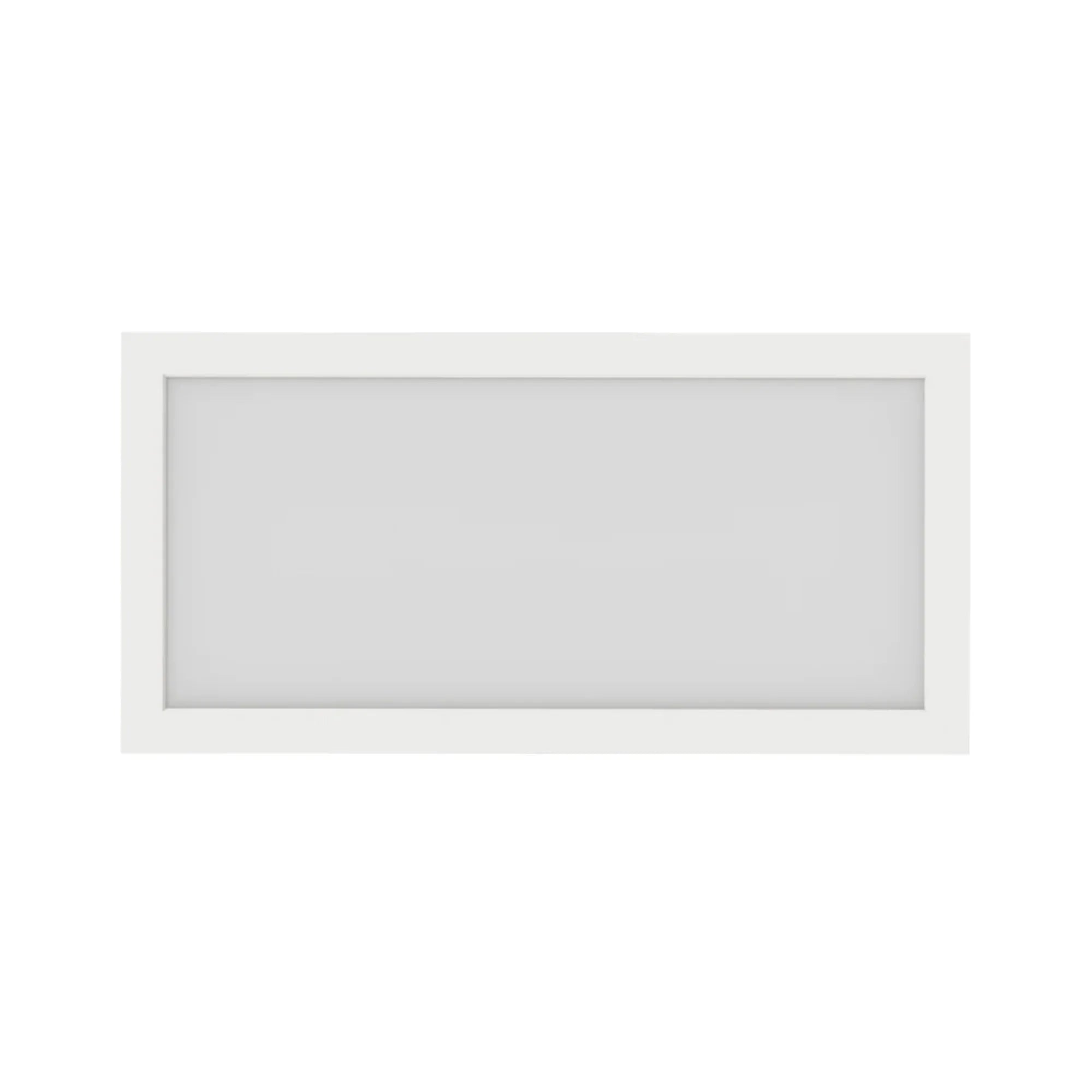

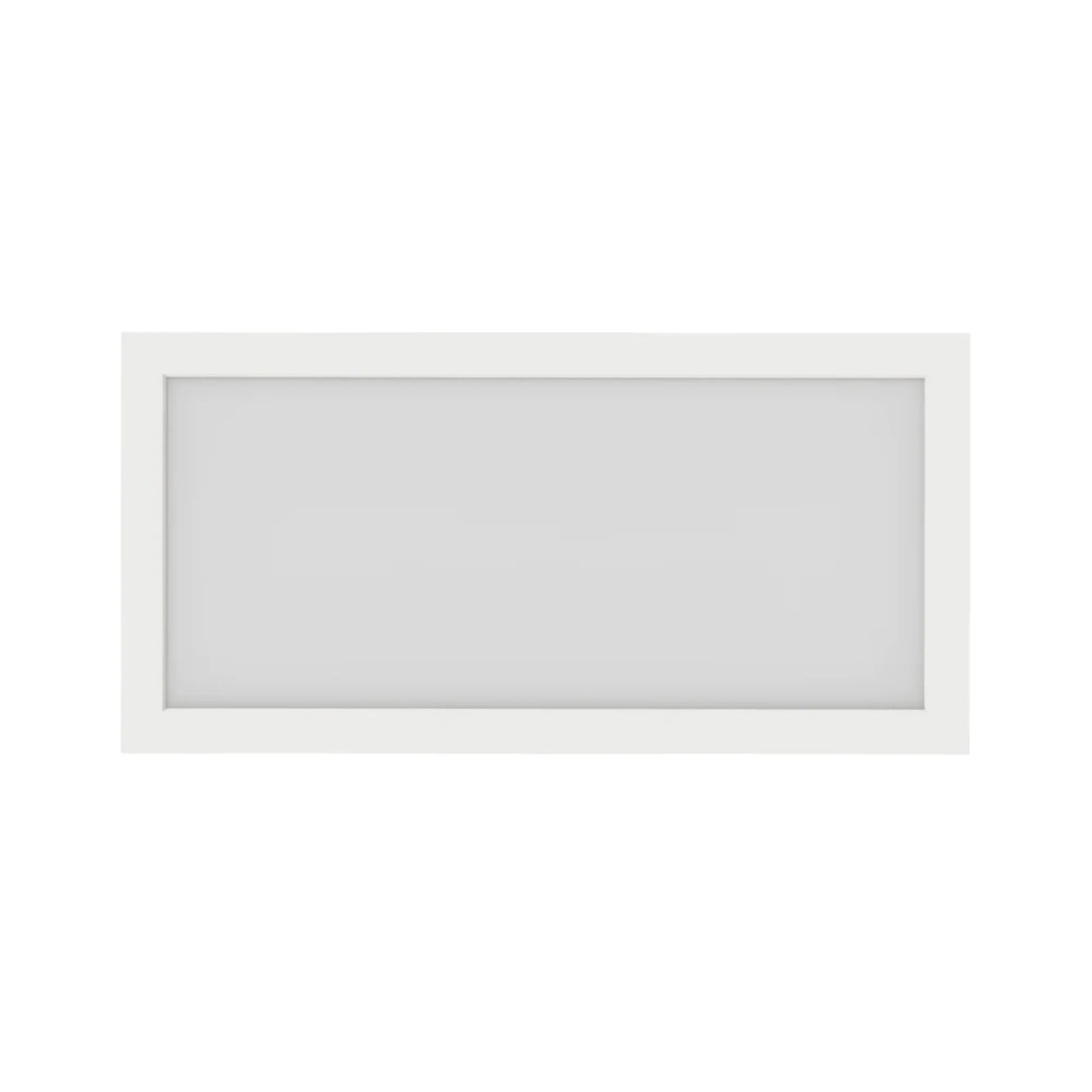

The nominal 1 × 2 ft rectangular panel features a white metal enclosure, smooth trim and a polycarbonate diffuser. Its slim surface-mount design sits close to the ceiling for a clean appearance without pendant-style hanging clearance. Fixture weight is 4.2 lb.

Light Output & Performance

The integrated LED produces 1,900 lumens at 22W with 86 lm/W efficacy. 90 CRI and R9 at least 50 support accurate color rendering, while 4-step consistency helps coordinate multiple fixtures. Choose 2700K, 3000K, 3500K, 4000K or 5000K at the fixture DIP switch. Rated life is 50,000 hours at L70, and separate bulbs are not required.

Electrical & Installation

The constant-current Class 2 driver accepts 120-277V at 50/60Hz. The panel is designed for surface mounting, with family-listed compatibility for 3 or 4 in junction boxes. Its slim form avoids hanging clearance. Use in indoor dry and damp environments; the individual sheet states that the fixture is neither IC rated nor airtight.

Use a compatible TRIAC/ELV dimming system for brightness control down to 10%. Set color temperature at the fixture DIP switch during installation. The sheet also lists suitability for closet use under NEC Sections 410.16(A)(1) and 410.16(C)(1).

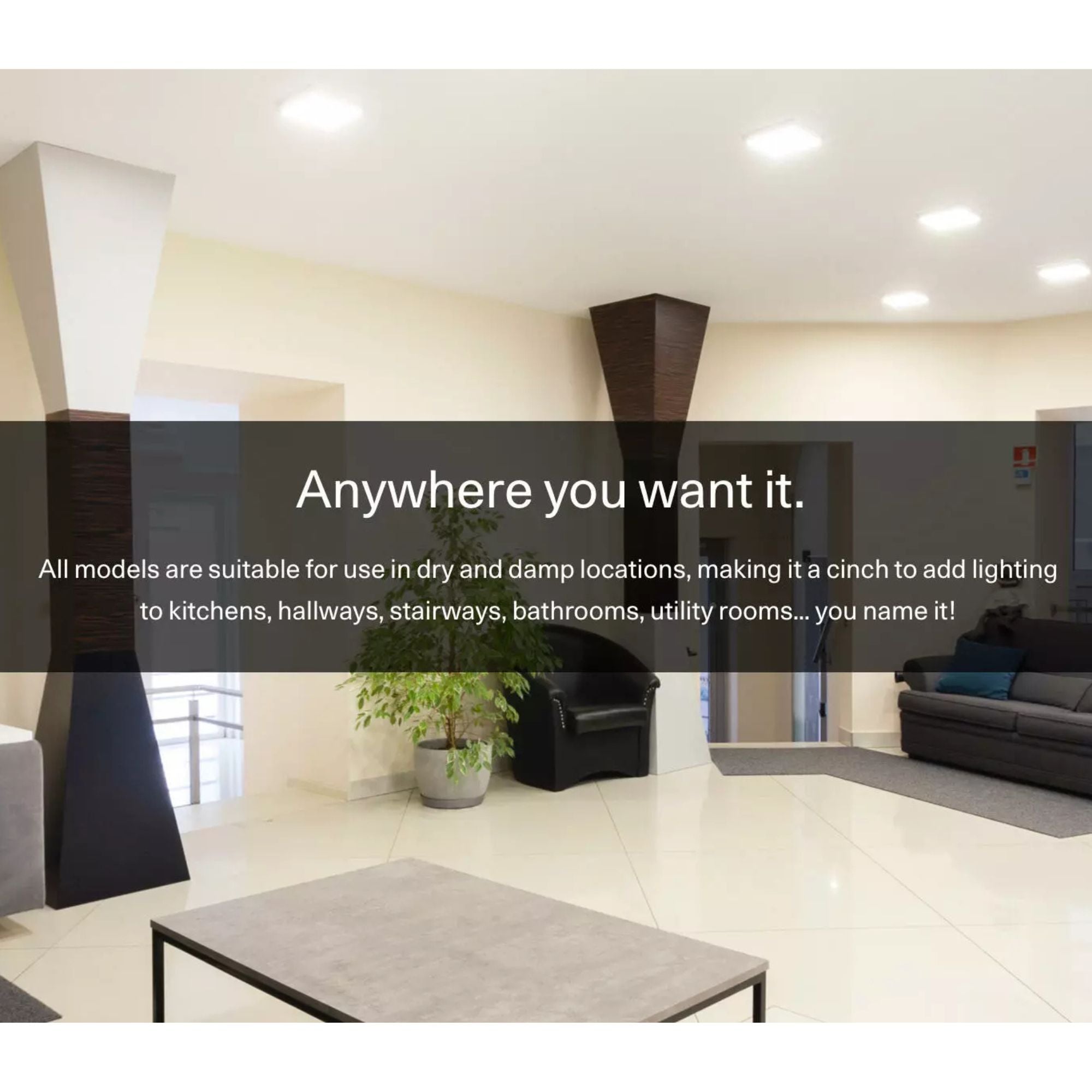

Typical Applications

• Residential hallways and entryways
• Laundry and utility rooms
• Closets and indoor storage spaces
• Commercial general-lighting areas

What's Included

• RAB SMPFA1X2RT22UNVTW white rectangular surface-mount panel with integrated LED, polycarbonate diffuser and constant-current Class 2 driver
