RAB SMPFA1X1S20UNVTW 1 × 1 ft Edge-Lit LED Surface Mount Panel — White, 20W, Selectable CCT

The RAB SMPFA1X1S20UNVTW square surface-mount panel pairs an edge-lit design with five selectable color temperatures. Its 20W integrated LED delivers 1,700 lumens with 90 CRI, while compatible TRIAC/ELV dimming to 10% helps adjust brightness for everyday use. A white metal enclosure, smooth trim and polycarbonate diffuser create clean, evenly distributed general lighting.

Key Features

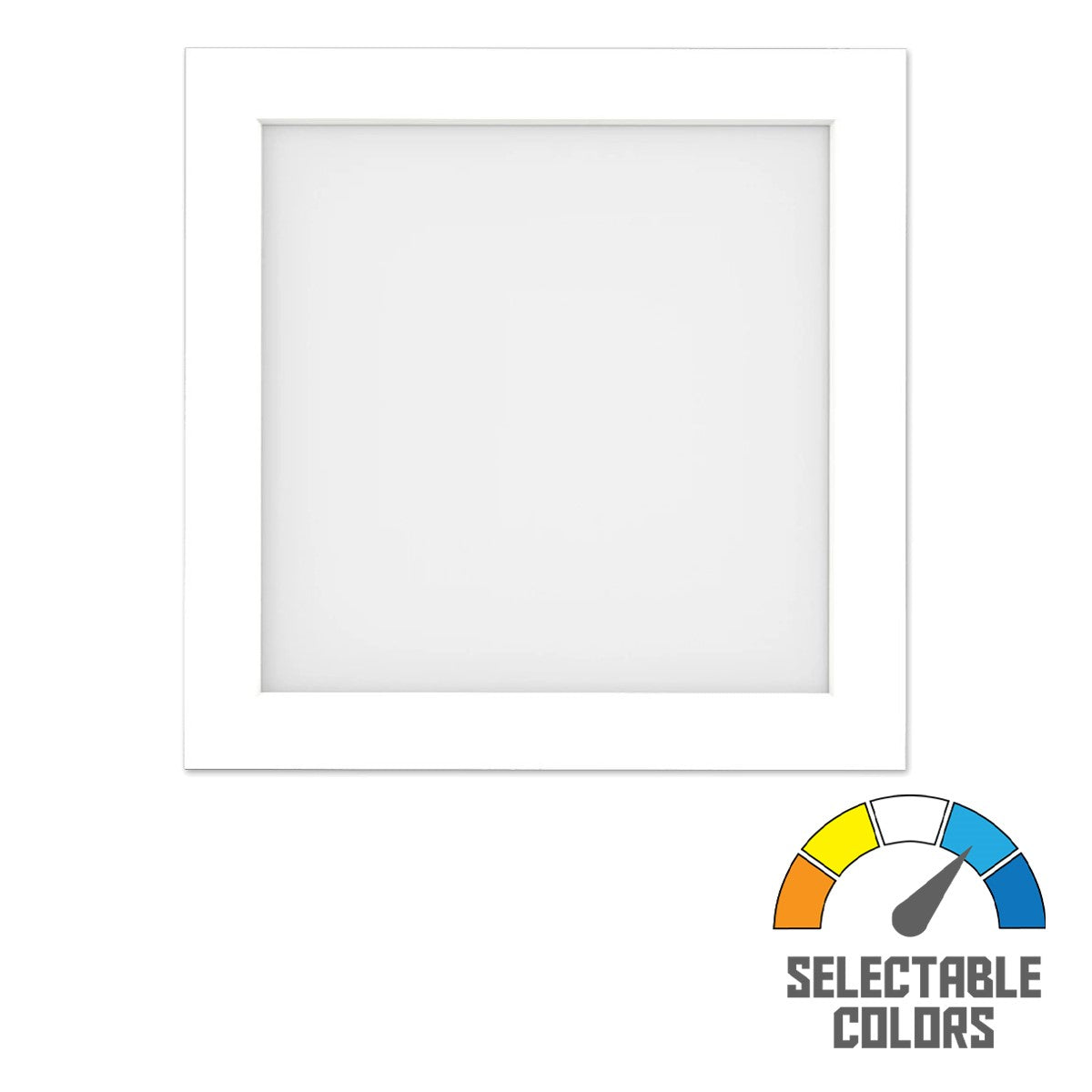

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K, field-adjustable by DIP switch
• Output: 1,700 lumens at 20W; 85 lm/W efficacy and 40W CFL equivalency
• Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse consistency
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Optics: Edge-lit polycarbonate diffuser with family-listed 110-degree beam

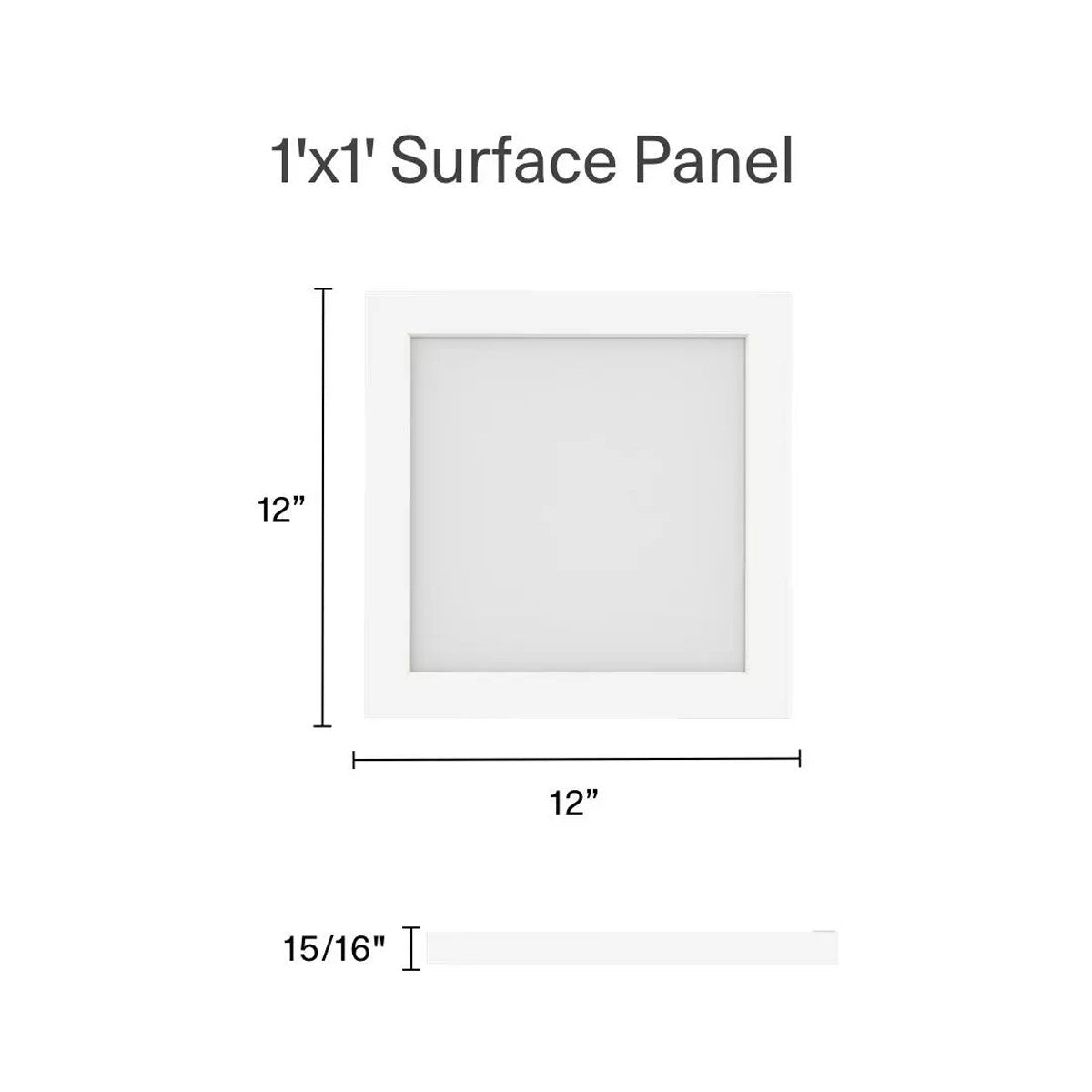

• Construction: White square metal enclosure with smooth trim; nominal 1 × 1 ft size and 2.0 lb weight
• Profile: 15/16 in high; surface mounting
• Input: Constant-current Class 2 driver; 120-277V at 50/60Hz
• Electrical Performance: Power factor at least 0.9, THD at most 30% and flicker at most 30%
• Listings: UL listed for indoor dry and damp environments; neither IC rated nor airtight
• Compliance: ENERGY STAR Version 2.2 certified; Title 20 and Title 24 JA8 compliant; FCC Part 15B compliant; RoHS-compliant components; TAA compliant, made in Cambodia
• Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range

Construction & Design

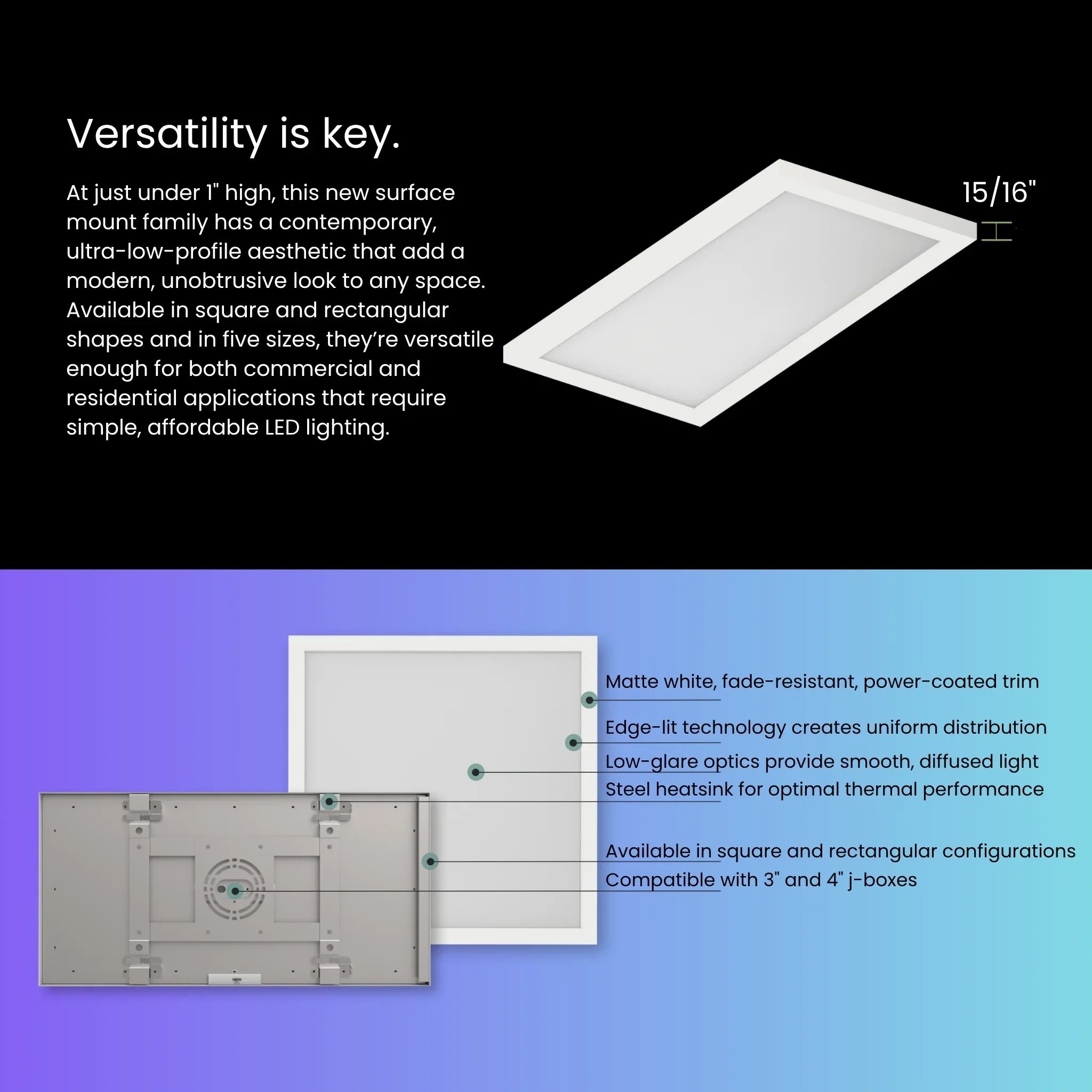

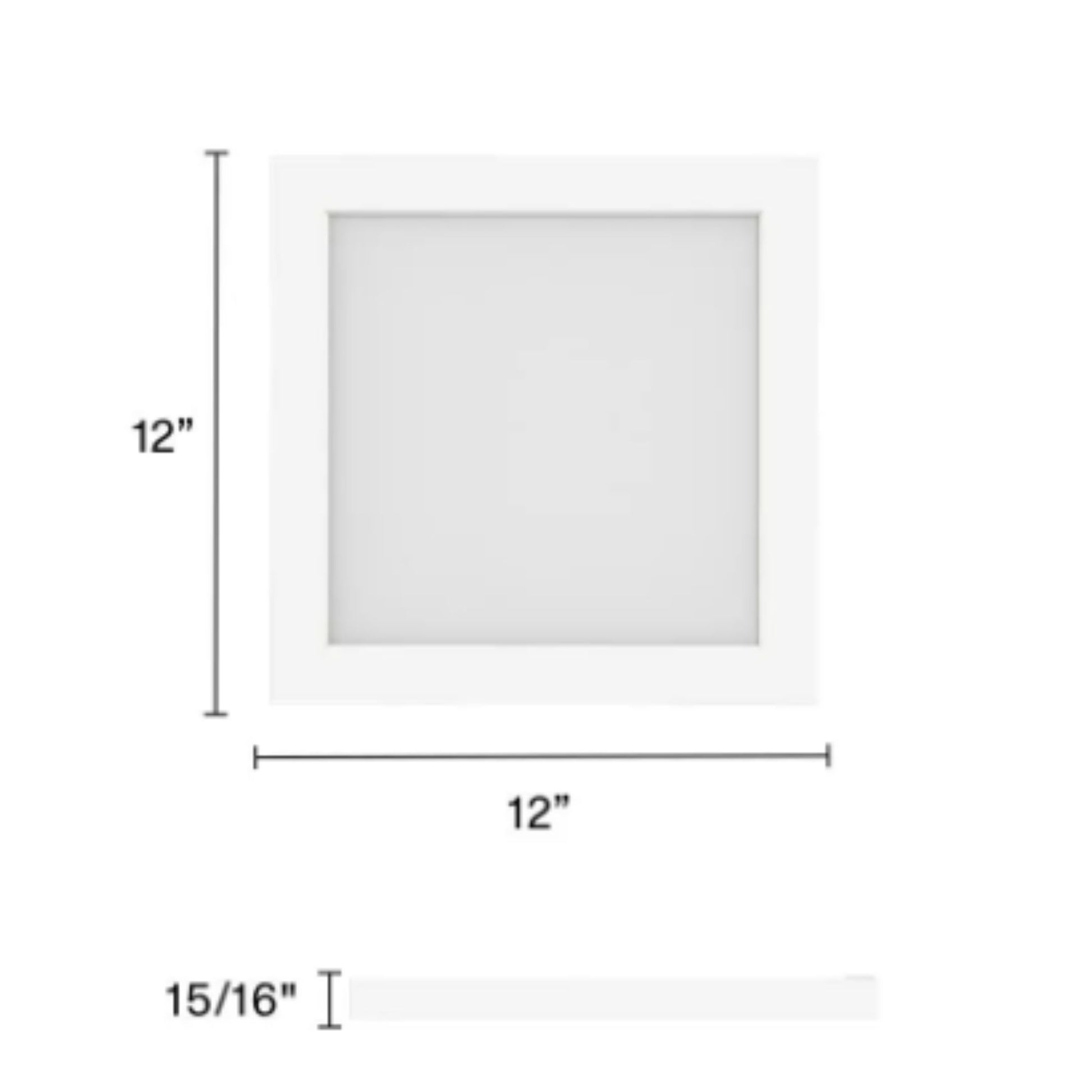

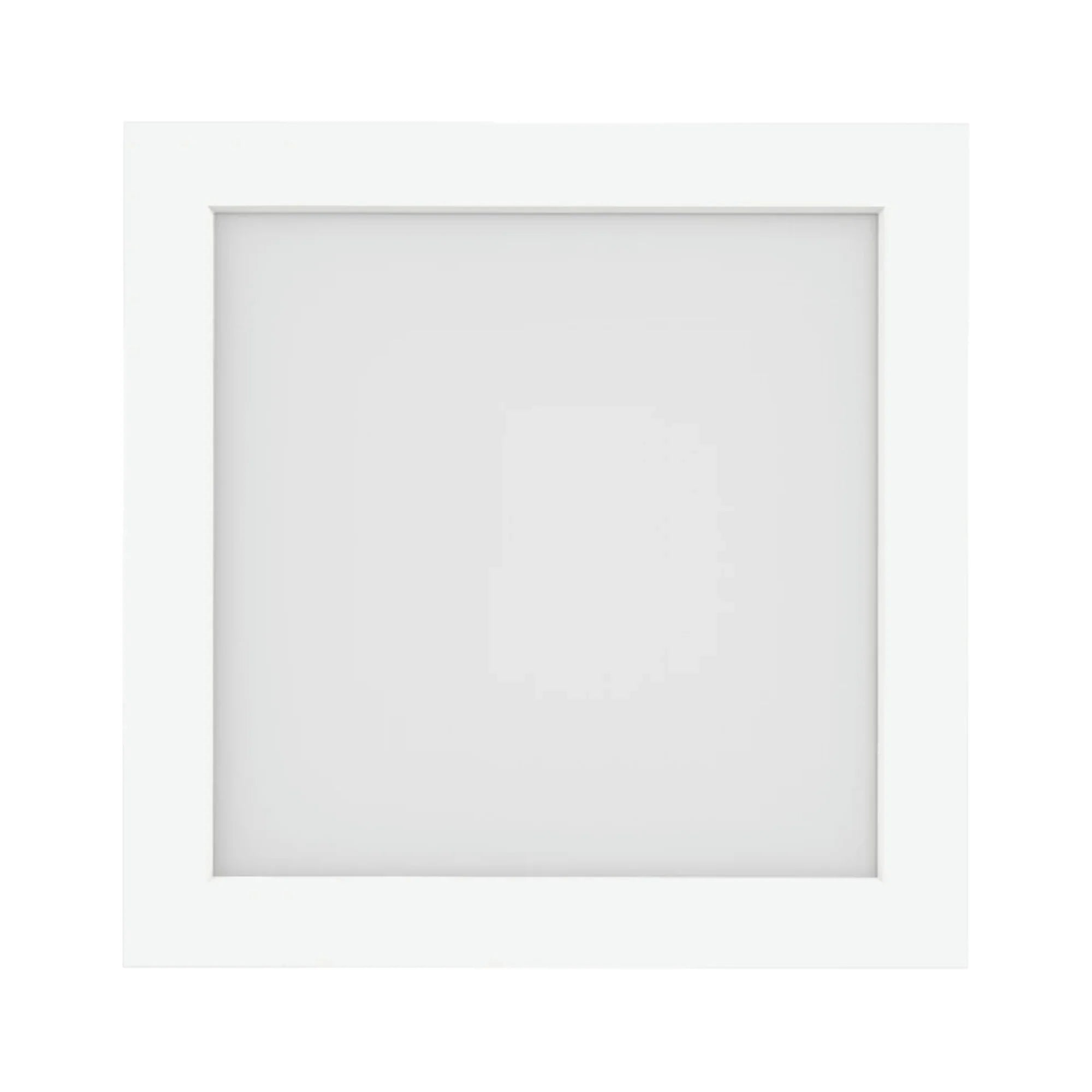

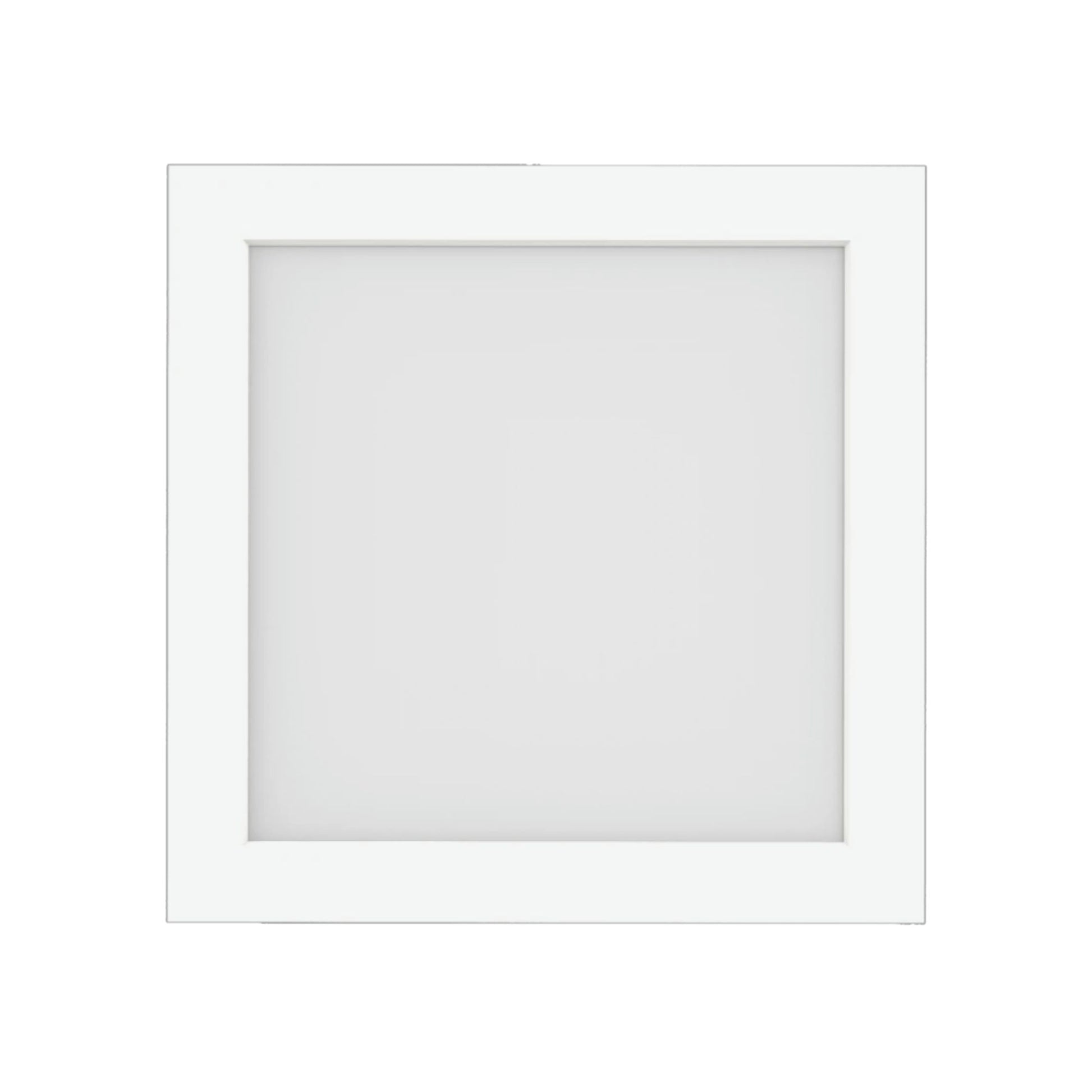

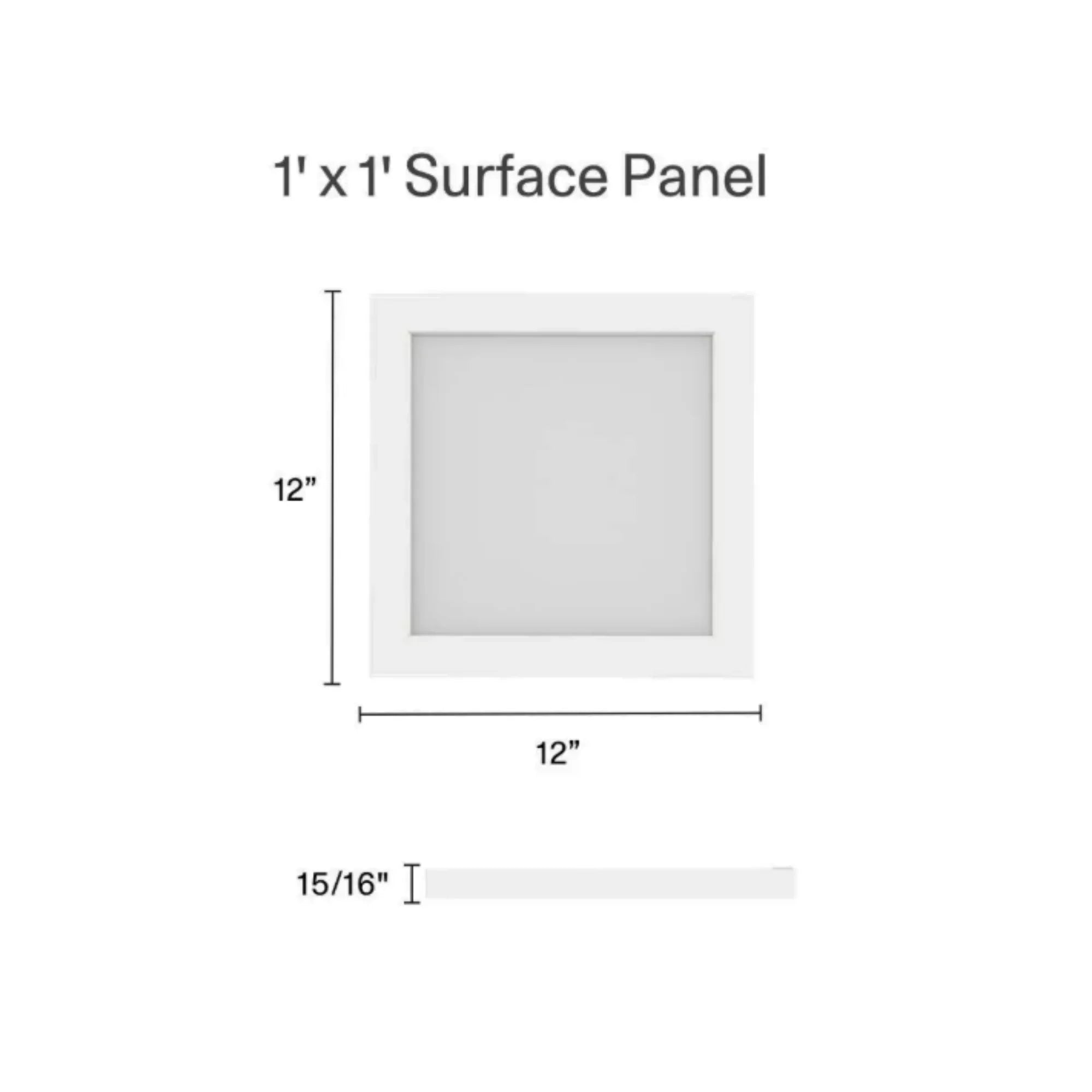

The nominal 1 × 1 ft square panel features a white metal enclosure, smooth trim and a polycarbonate diffuser that distributes light evenly for general illumination. Its 15/16 in profile keeps the surface-mounted fixture close to the ceiling without a pendant drop. Fixture weight is 2.0 lb.

Light Output & Performance

The integrated LED produces 1,700 lumens at 20W with 85 lm/W efficacy. 90 CRI and R9 at least 50 support accurate color rendering, while 4-step consistency helps coordinate multiple fixtures. Select 2700K, 3000K, 3500K, 4000K or 5000K using the DIP switch. Rated life is 50,000 hours at L70, and separate bulbs are not required.

Electrical & Installation

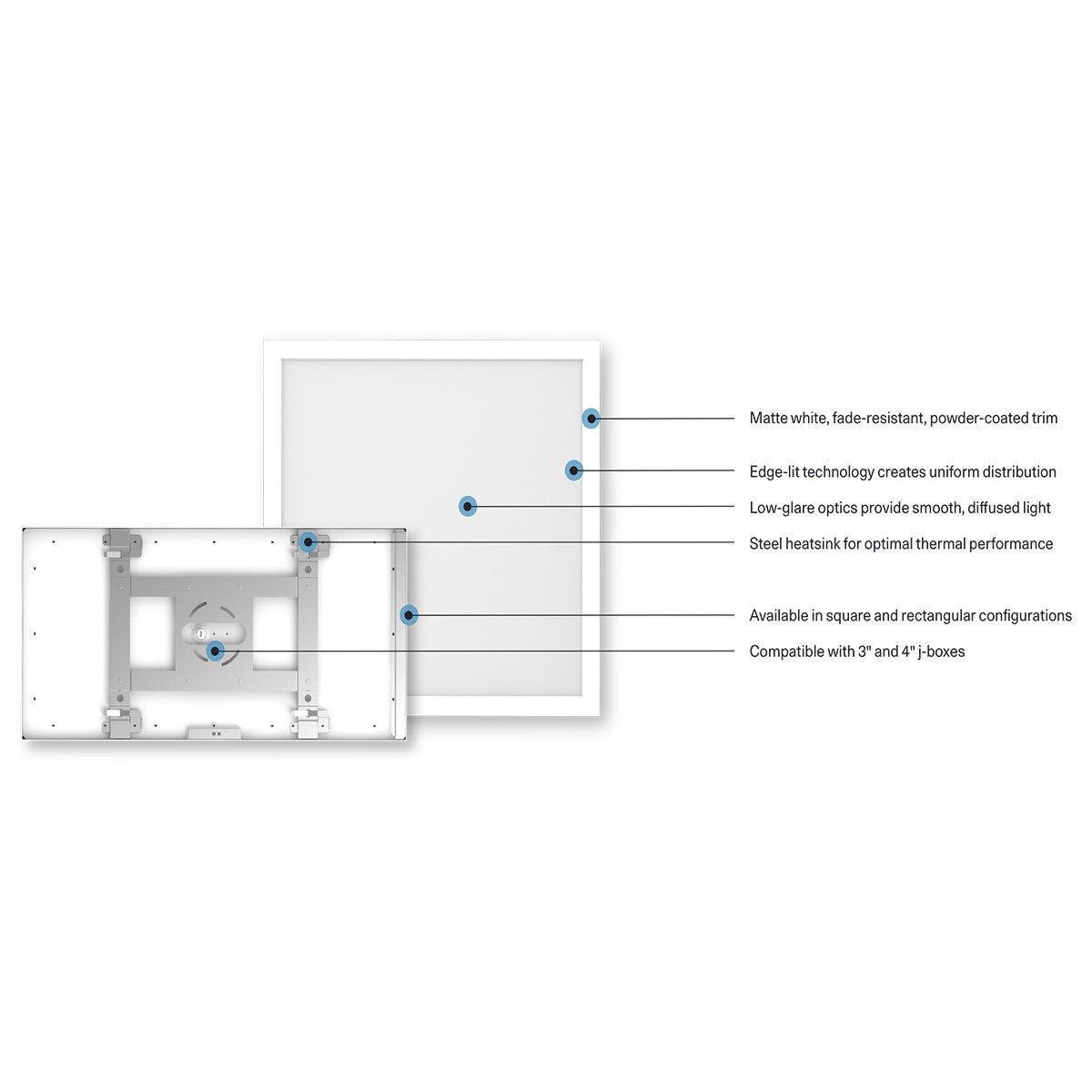

The constant-current Class 2 driver accepts 120-277V at 50/60Hz. The panel is designed for surface mounting, with family-listed compatibility for 3 or 4 in junction boxes. Its slim form avoids hanging clearance, making it a practical choice for lower ceilings. The individual sheet specifies indoor dry and damp applications and states that the fixture is neither IC rated nor airtight.

Choose a compatible TRIAC/ELV dimming system for brightness control down to 10%. Set color temperature at the fixture DIP switch during installation. The sheet also lists suitability for closet use under NEC Sections 410.16(A)(1) and 410.16(C)(1).

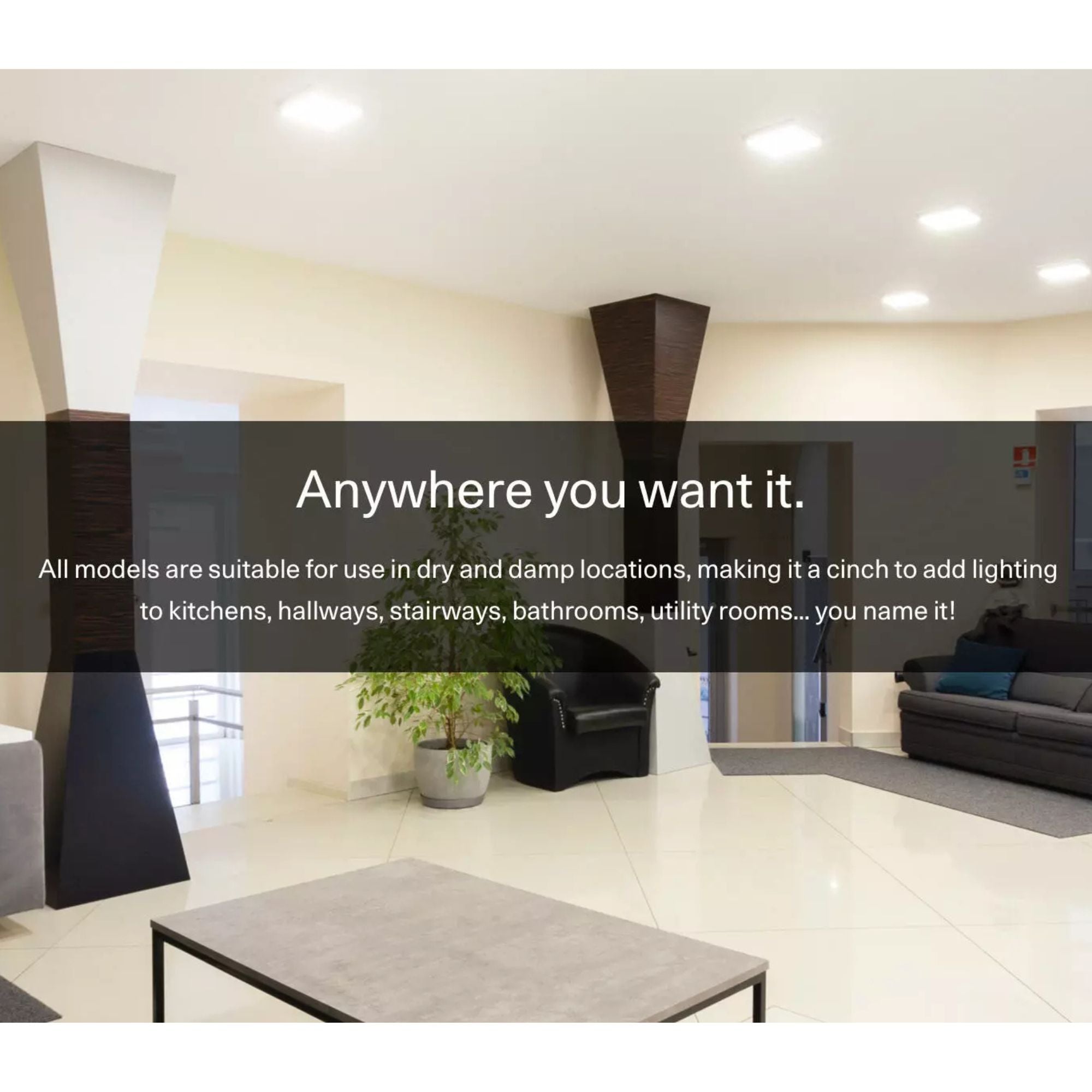

Typical Applications

• Residential hallways and entryways
• Laundry and utility rooms
• Closets and indoor storage spaces
• Commercial circulation and general-lighting areas

What's Included

• RAB SMPFA1X1S20UNVTW white square surface-mount panel with integrated LED, polycarbonate diffuser and constant-current Class 2 driver
