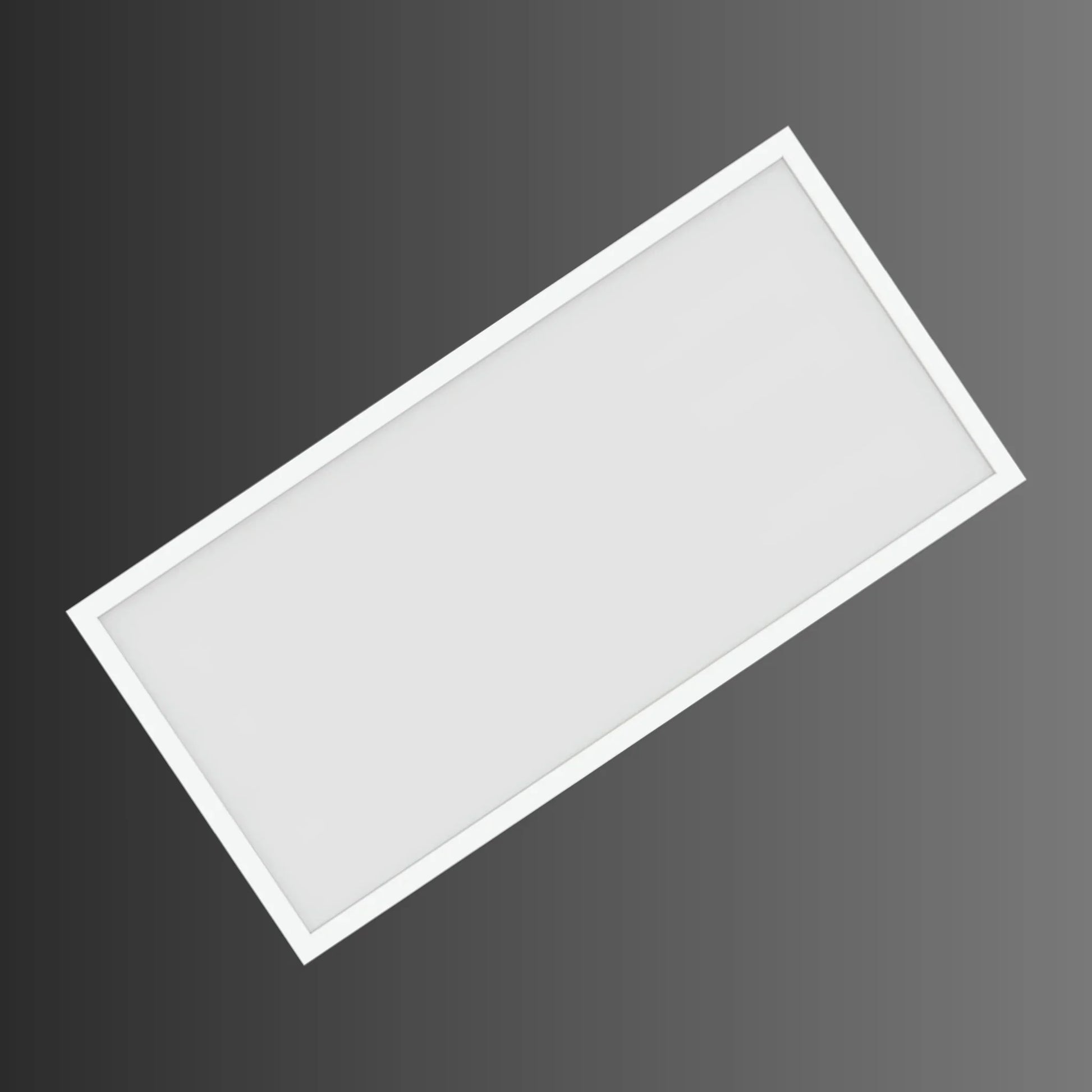

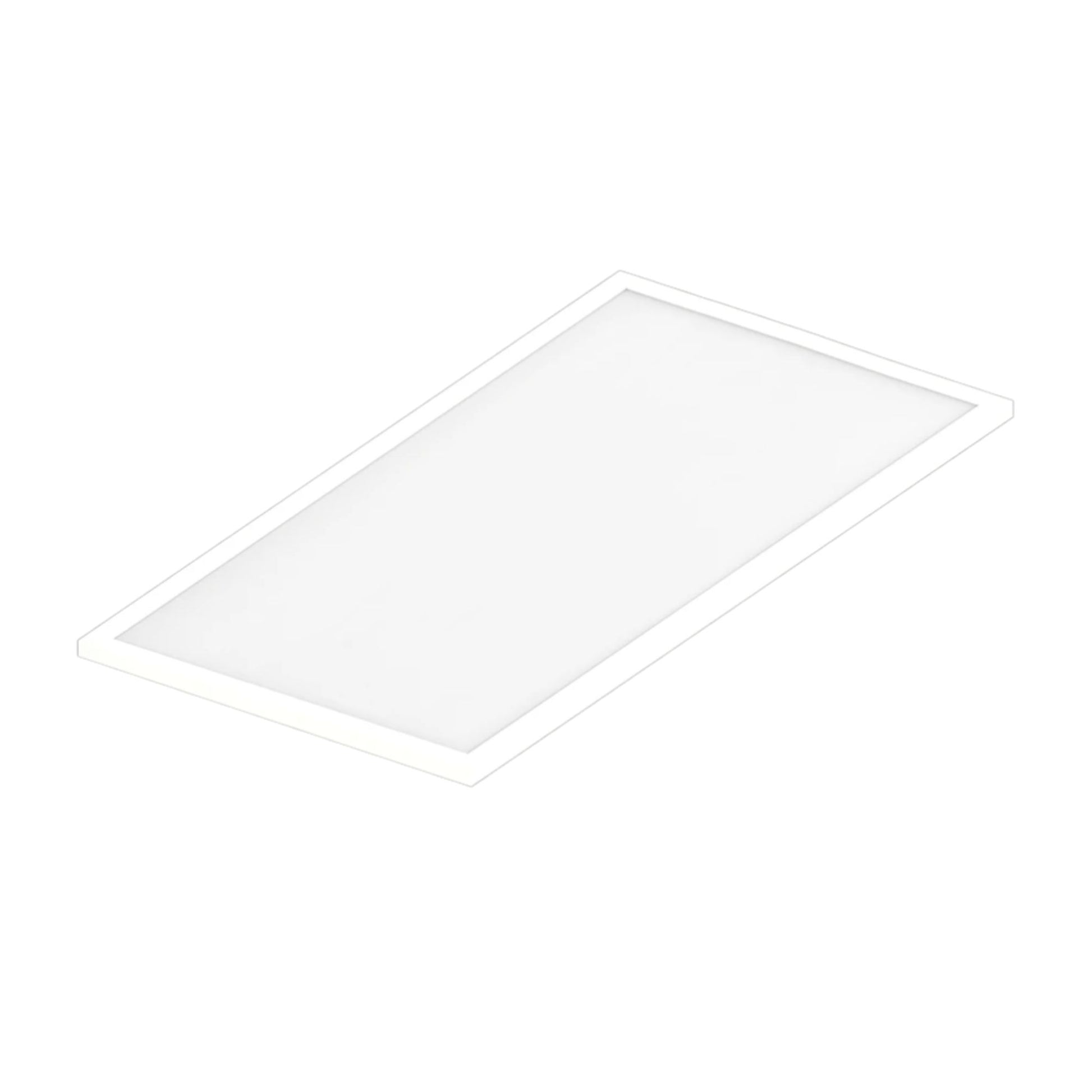

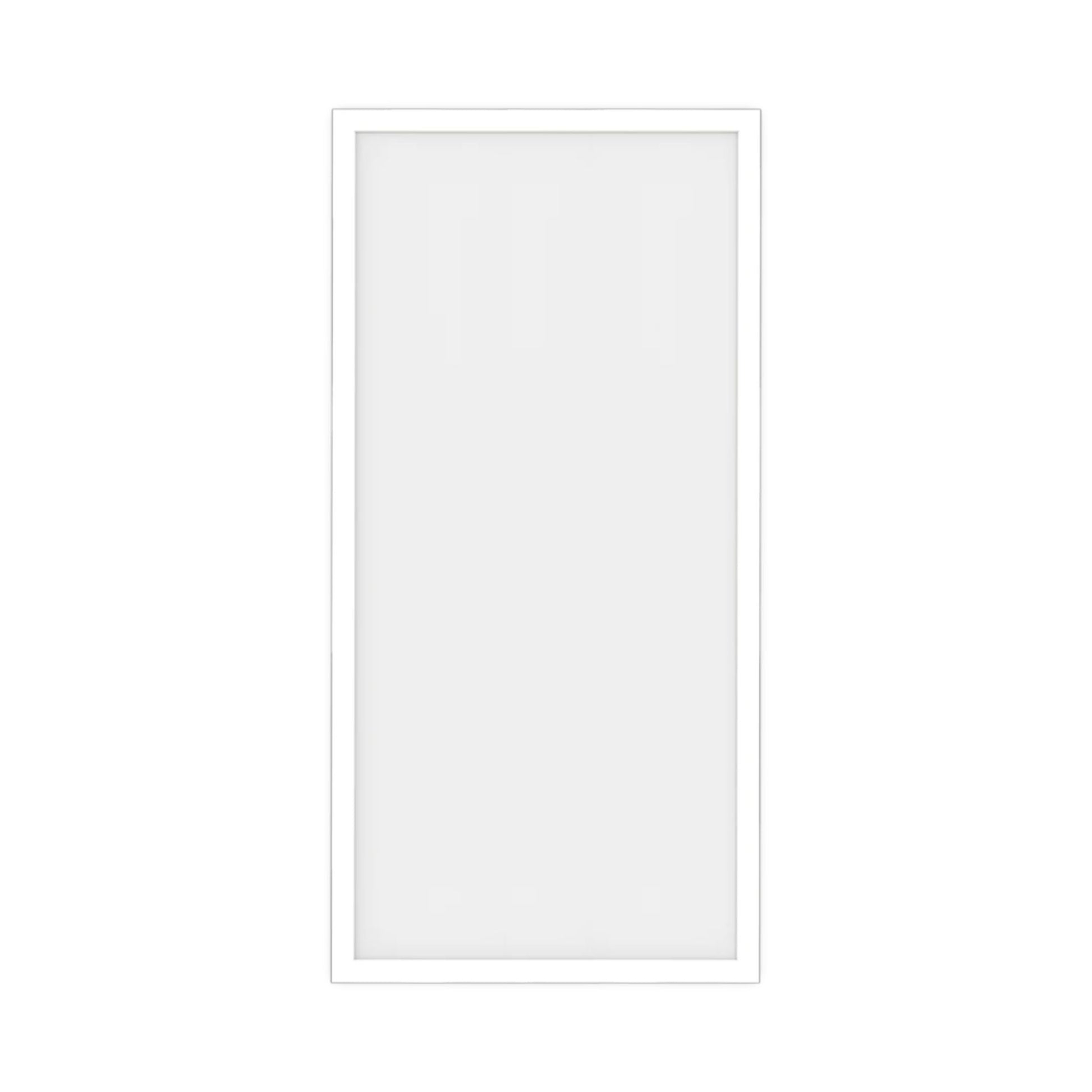

RAB SMP2X4 2 × 4 ft Edge-Lit LED Surface Mount Panel — White, 55W, Selectable CCT

The RAB SMP2X4 surface-mount panel delivers 6,050 lumens at 55W with 90 CRI for clear indoor general illumination. Select from five color temperatures and adjust brightness with compatible TRIAC/ELV dimming to 10%. Its white metal enclosure, smooth trim and polycarbonate diffuser create an evenly illuminated ceiling fixture without a hanging drop.

Key Features

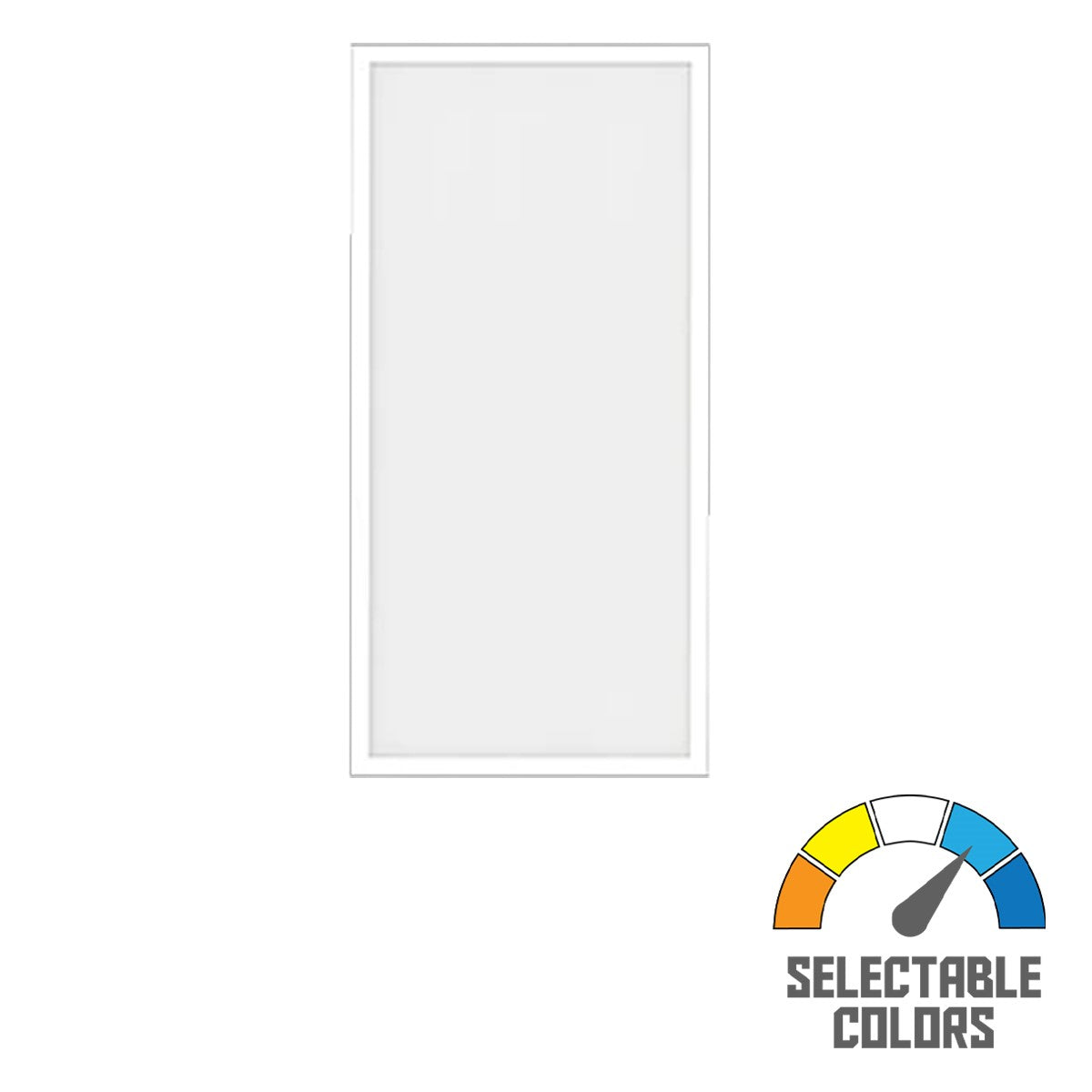

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via fixture DIP switch
• Output: 6,050 lumens at 55W; 110 lm/W efficacy and 110W CFL equivalency
• Color Quality: 90 CRI, R9 at least 50 and 4-step MacAdam Ellipse consistency
• Dimming: Compatible TRIAC/ELV systems dim to 10%
• Optics: Polycarbonate diffuser distributes light evenly and smoothly
• Construction: White metal enclosure with smooth trim

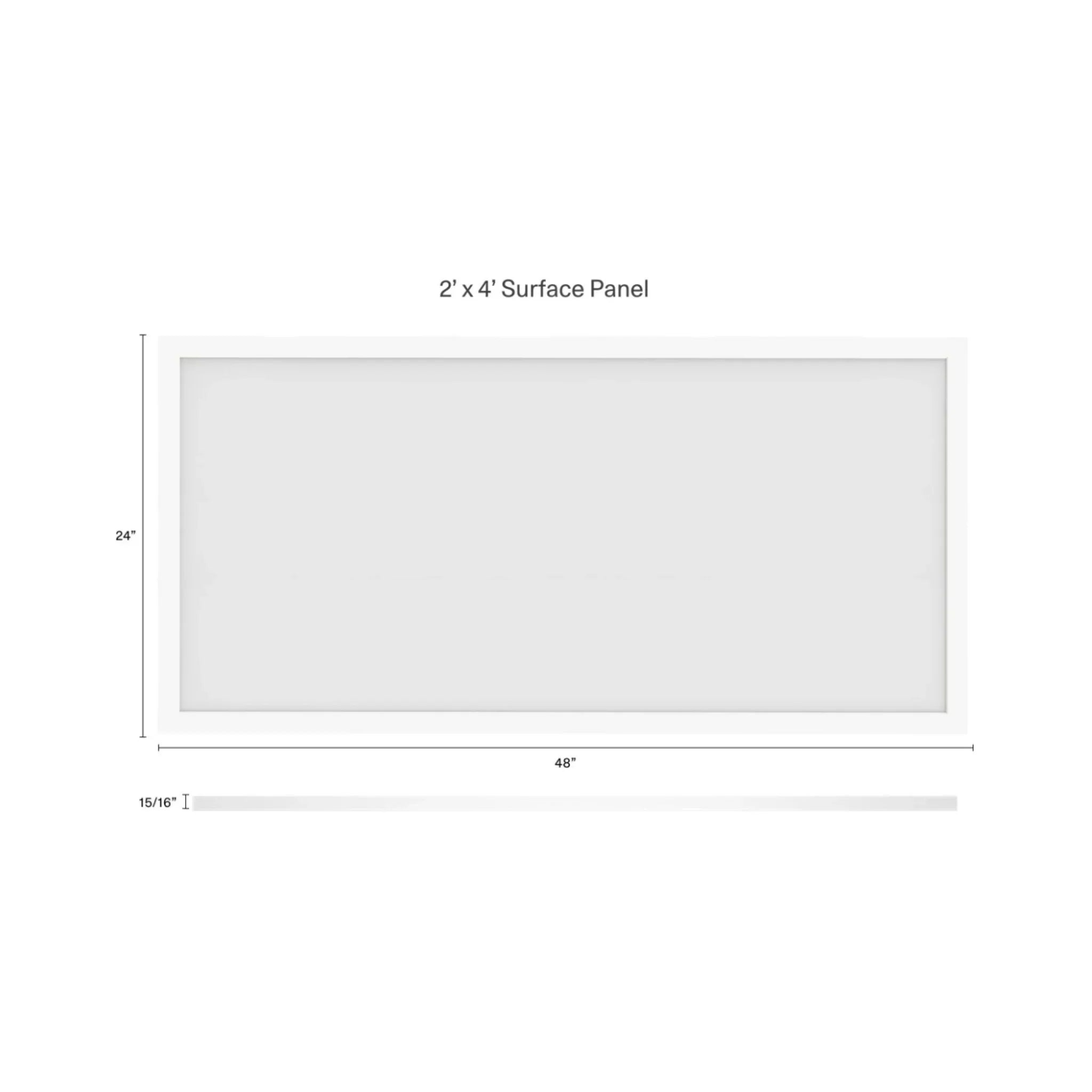

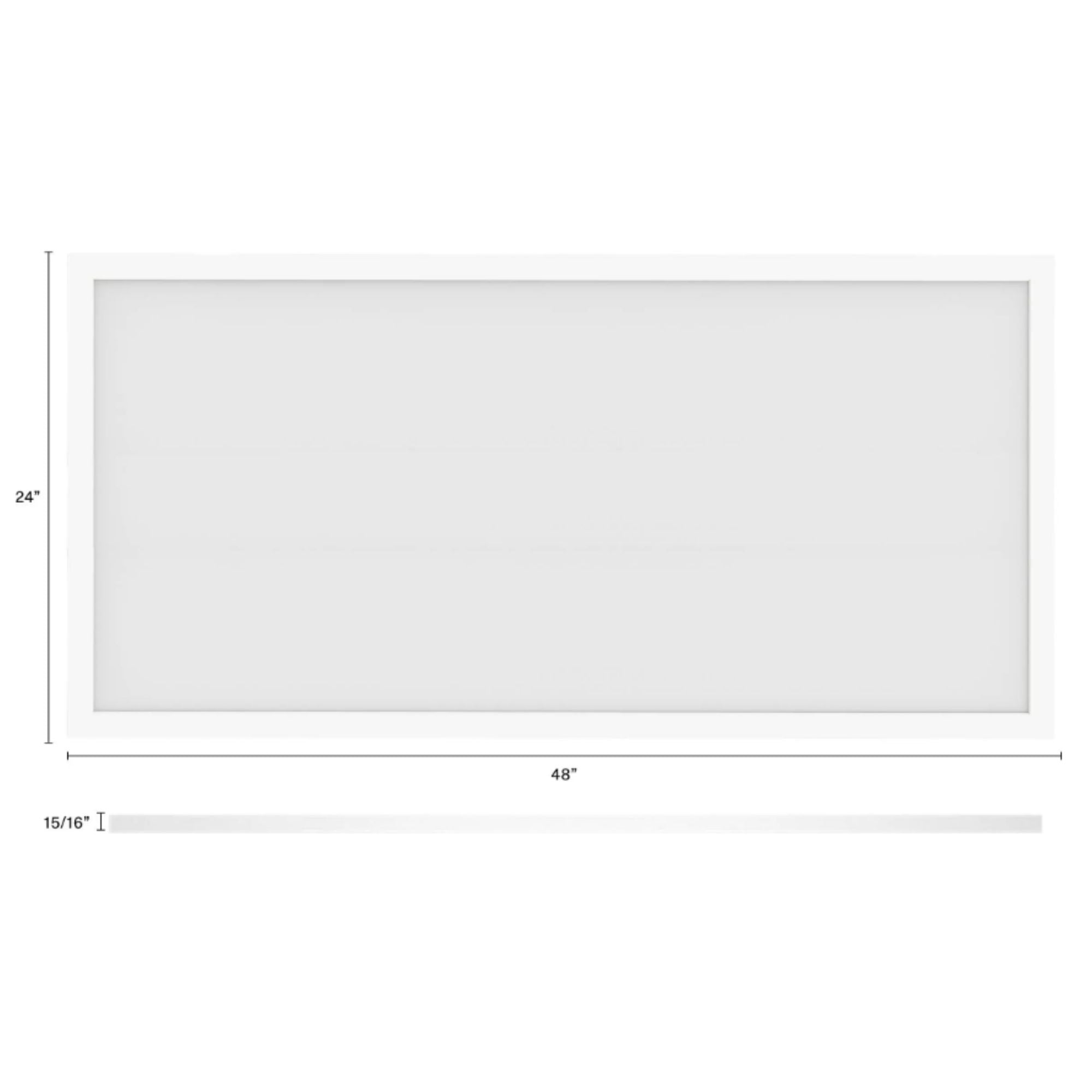

• Size and Weight: Nominal 2 × 4 ft format; 14.1 lb
• Input: Constant-current Class 2 driver; 120-277V at 50/60Hz
• Electrical Performance: Power factor at least 0.9; THD at most 30%; flicker at most 30%; current 0.49A at 120V, 0.29A at 208V, 0.26A at 240V and 0.24A at 277V
• Listings: UL listed for indoor dry and damp environments; neither IC rated nor airtight
• Compliance: Title 20 and Title 24 JA8 compliant; FCC Part 15B compliant; TAA compliant, made in Cambodia
• Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range

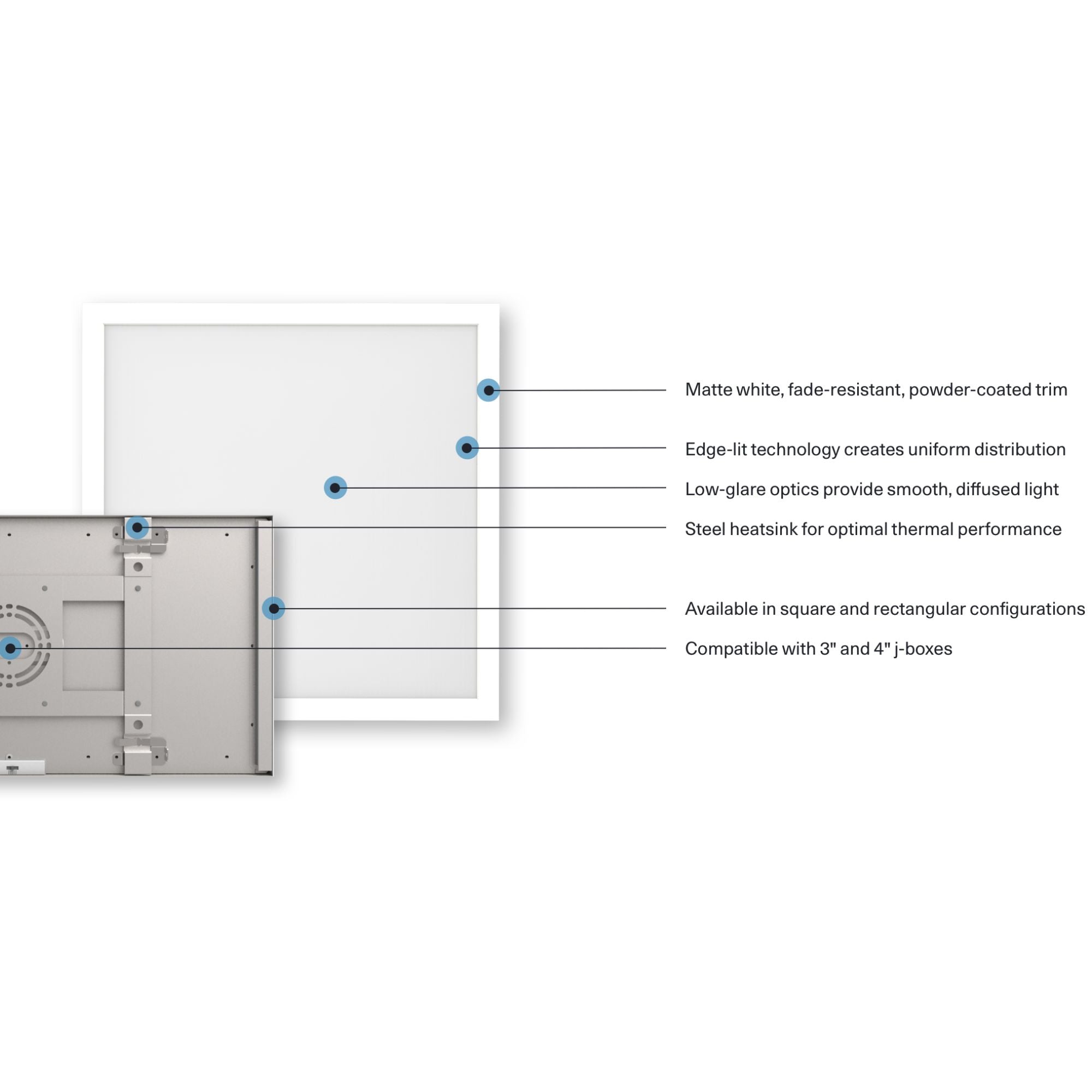

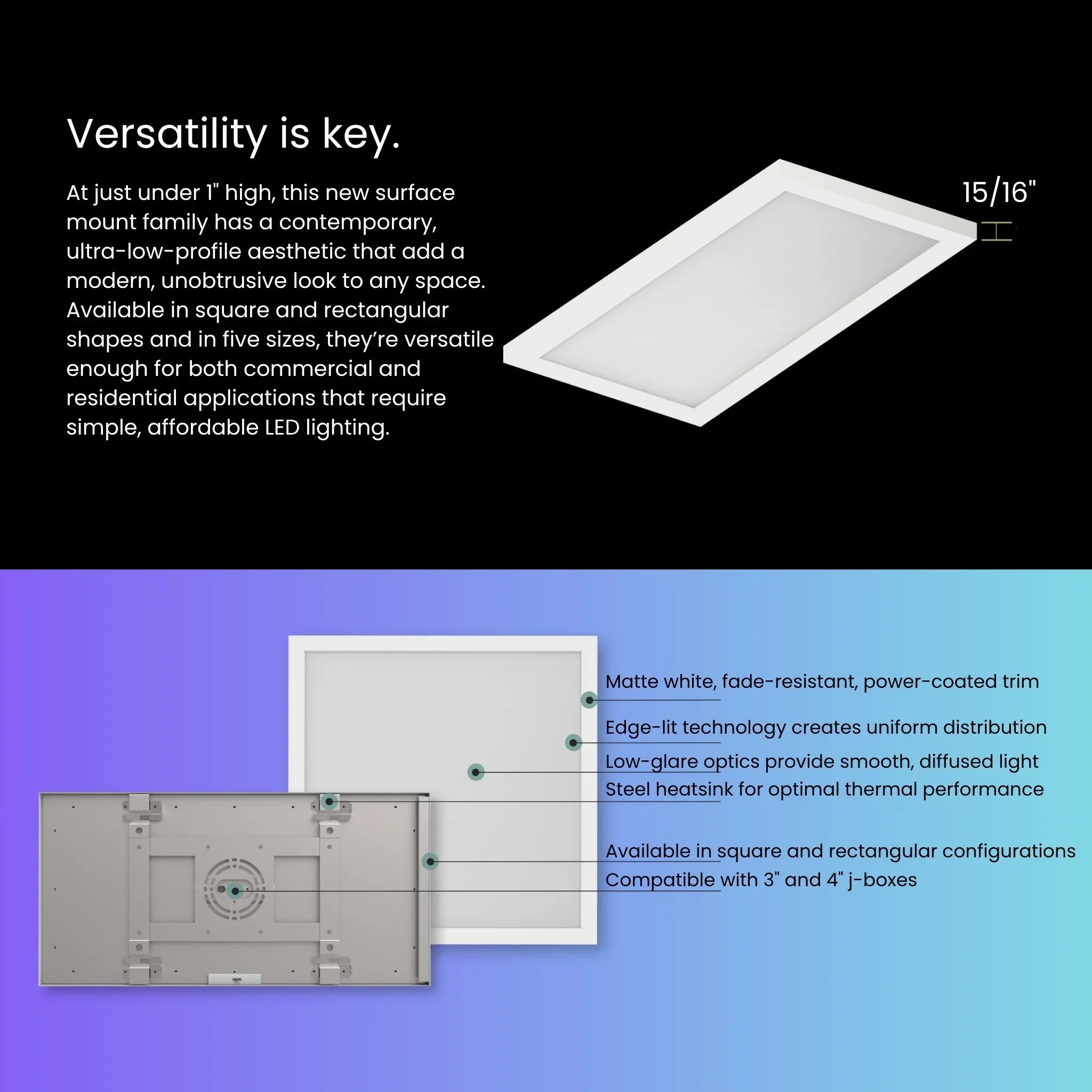

Construction & Design

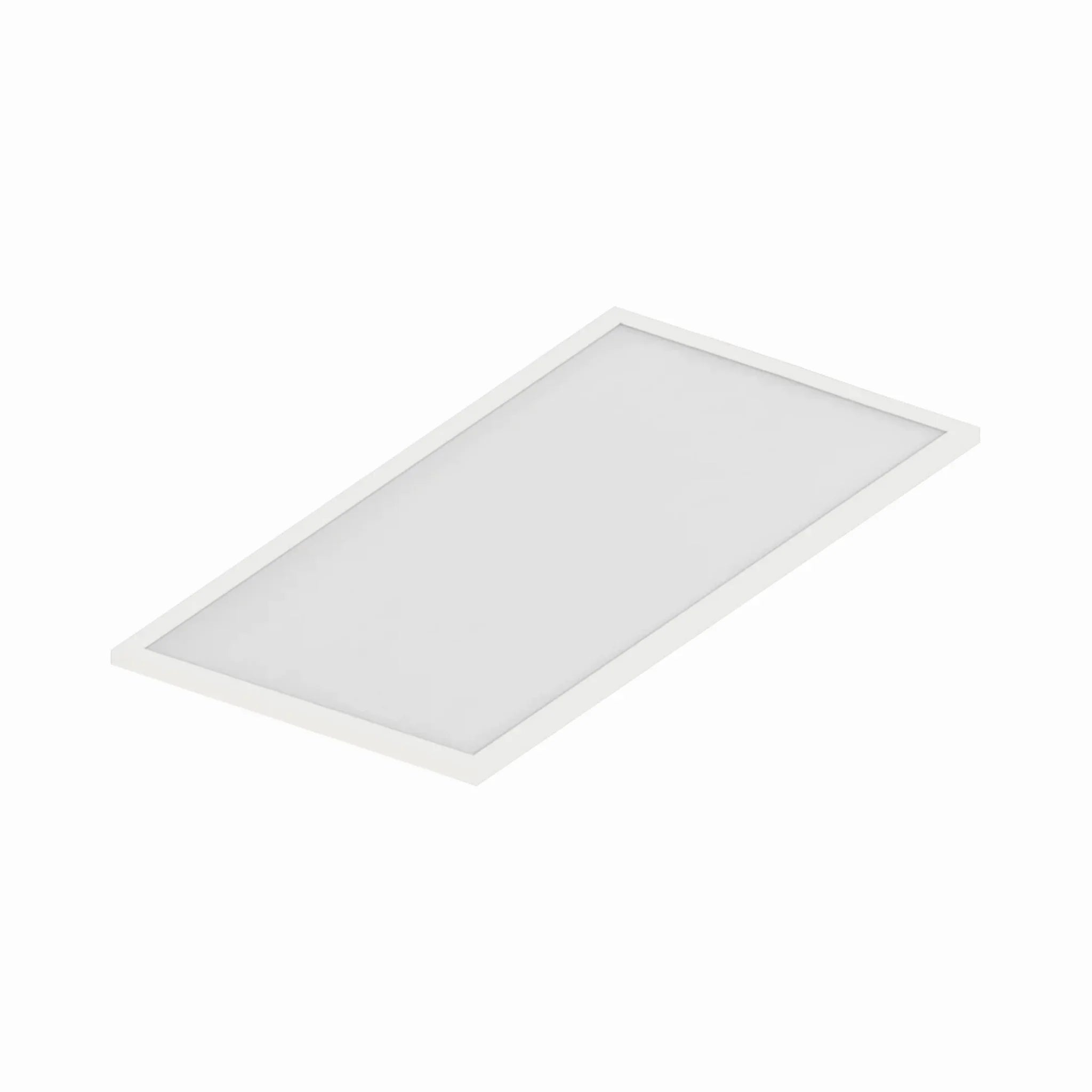

The nominal 2 × 4 ft panel features a white metal enclosure, smooth trim and polycarbonate diffuser for evenly distributed general lighting. Its surface-mount design creates a clean ceiling appearance without pendant-style hanging clearance. Fixture weight is 14.1 lb.

Light Output & Performance

The integrated LED produces 6,050 lumens at 55W with 110 lm/W efficacy. 90 CRI and R9 at least 50 support accurate color rendering, while 4-step consistency helps coordinate multiple fixtures. Choose 2700K, 3000K, 3500K, 4000K or 5000K using the fixture DIP switch. Rated life is 50,000 hours at L70, and separate bulbs are not required.

Electrical & Installation

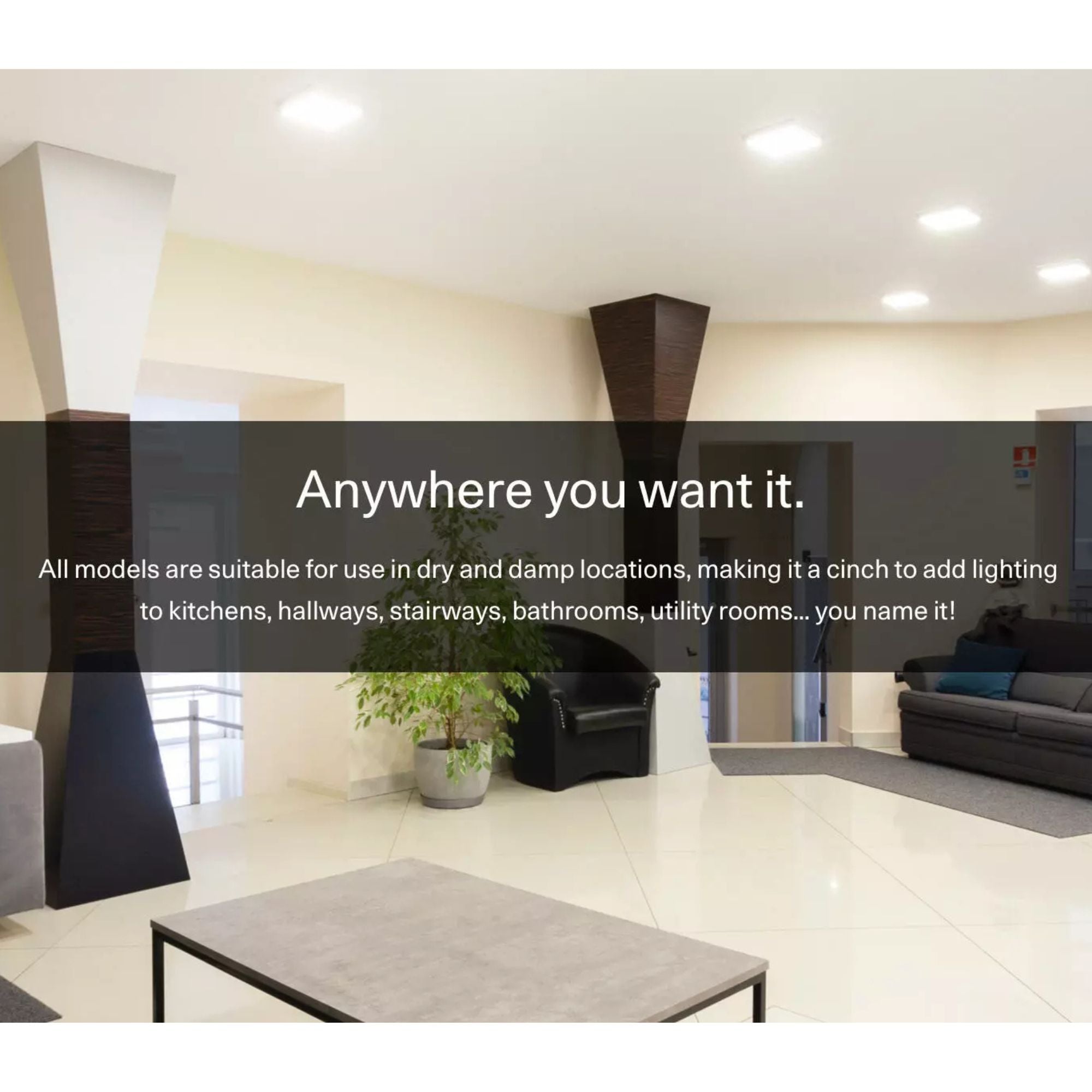

The constant-current Class 2 driver accepts 120-277V at 50/60Hz. SMP2X4 is designed for surface mounting, avoiding the hanging drop of a pendant fixture. Use in indoor dry and damp environments; the individual sheet specifies that this model is neither IC rated nor airtight.

Use a compatible TRIAC/ELV dimming system for brightness control down to 10%. Set color temperature at the fixture DIP switch during installation. The sheet also lists suitability for closet use under NEC Sections 410.16(A)(1) and 410.16(C)(1).

Typical Applications

• Indoor commercial general-lighting areas
• Utility and laundry rooms
• Indoor storage and workspaces
• Hallways and circulation areas

What's Included

• RAB SMP2X4 white surface-mount panel with integrated LED, polycarbonate diffuser and constant-current Class 2 driver
