RAB SMP2X2 2x2 LED Flat Panel Surface Mount, 45W, 5000lm, Selectable CCT, 120-277V, White
Available in stock (200)
About this item
About this item
- Ultra-Thin Profile: Features a sleek, low-profile square design that provides a clean, recessed look without the need for a housing.
- 5-CCT Selectable: Integrated switch allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Edge-Lit Technology: Advanced edge-lit optics produce a smooth, uniform glow across the 23" surface with no hot spots.
- High-Output 4950 Lm: Delivering massive brightness at 45W, this fixture is a high-performance solution for large residential or commercial spaces.
- Universal Voltage: Operates on 120-277V circuits and features TRIAC/ELV dimming for flexible control in any environment.
We process payments securely and do not store credit card information.
Description
Description

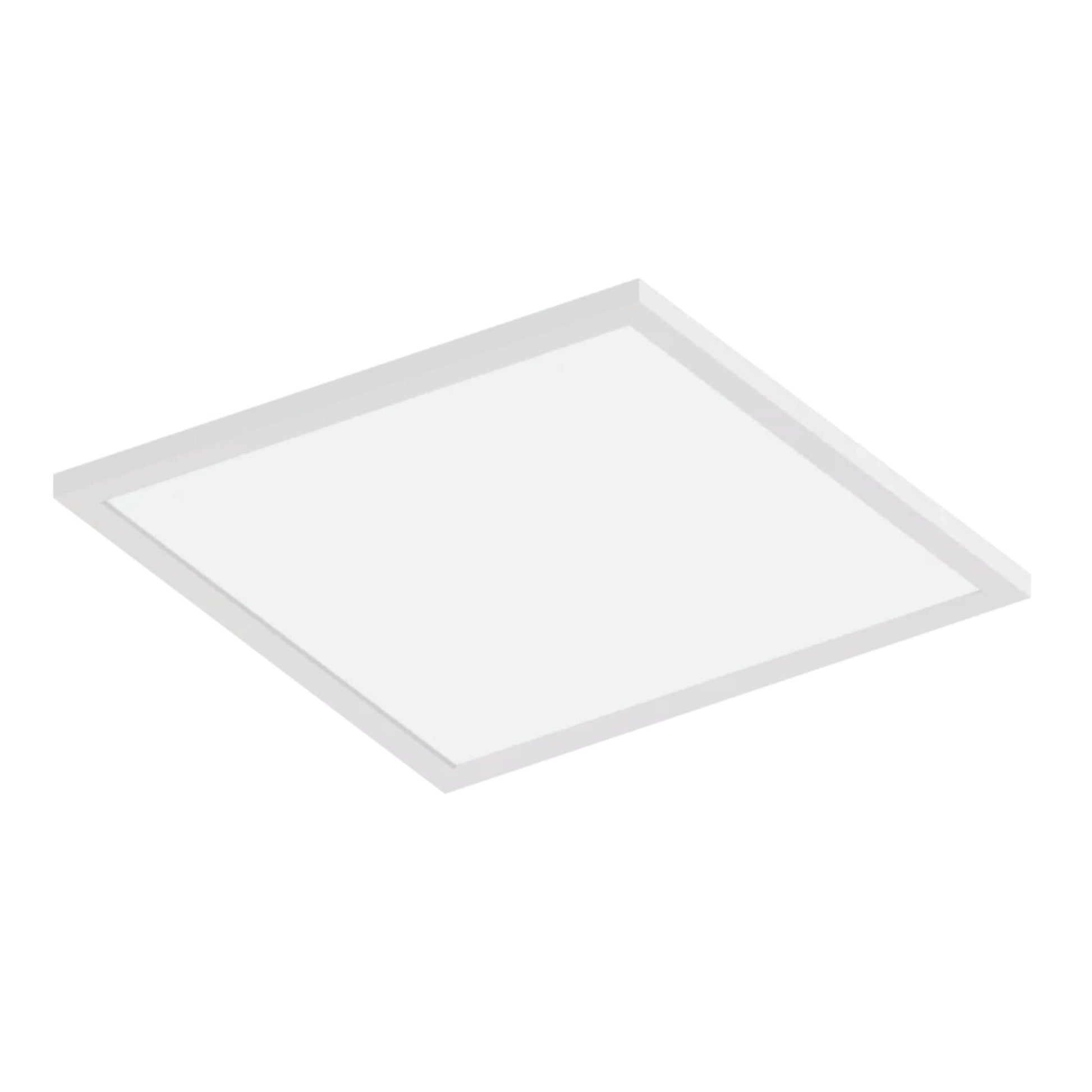

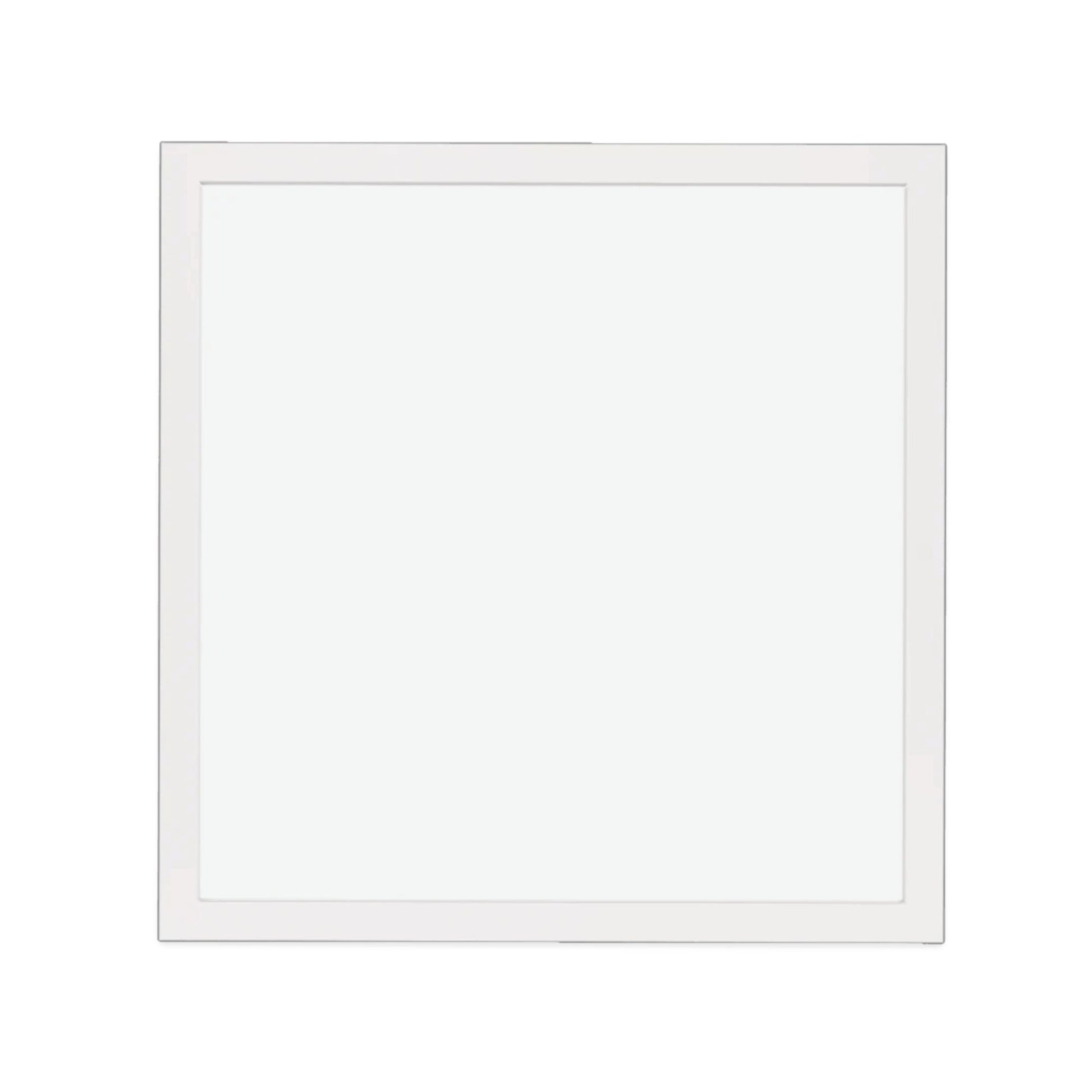

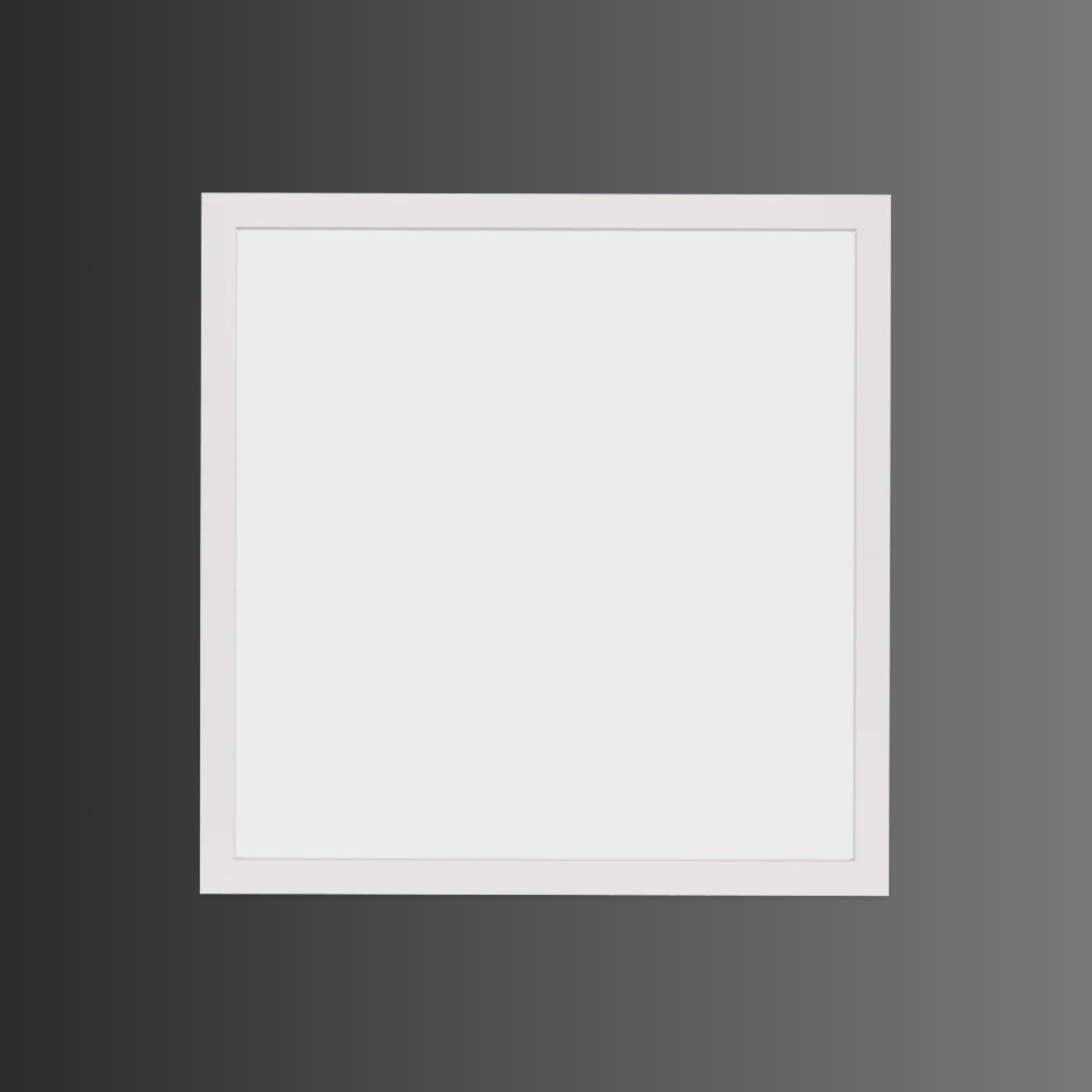

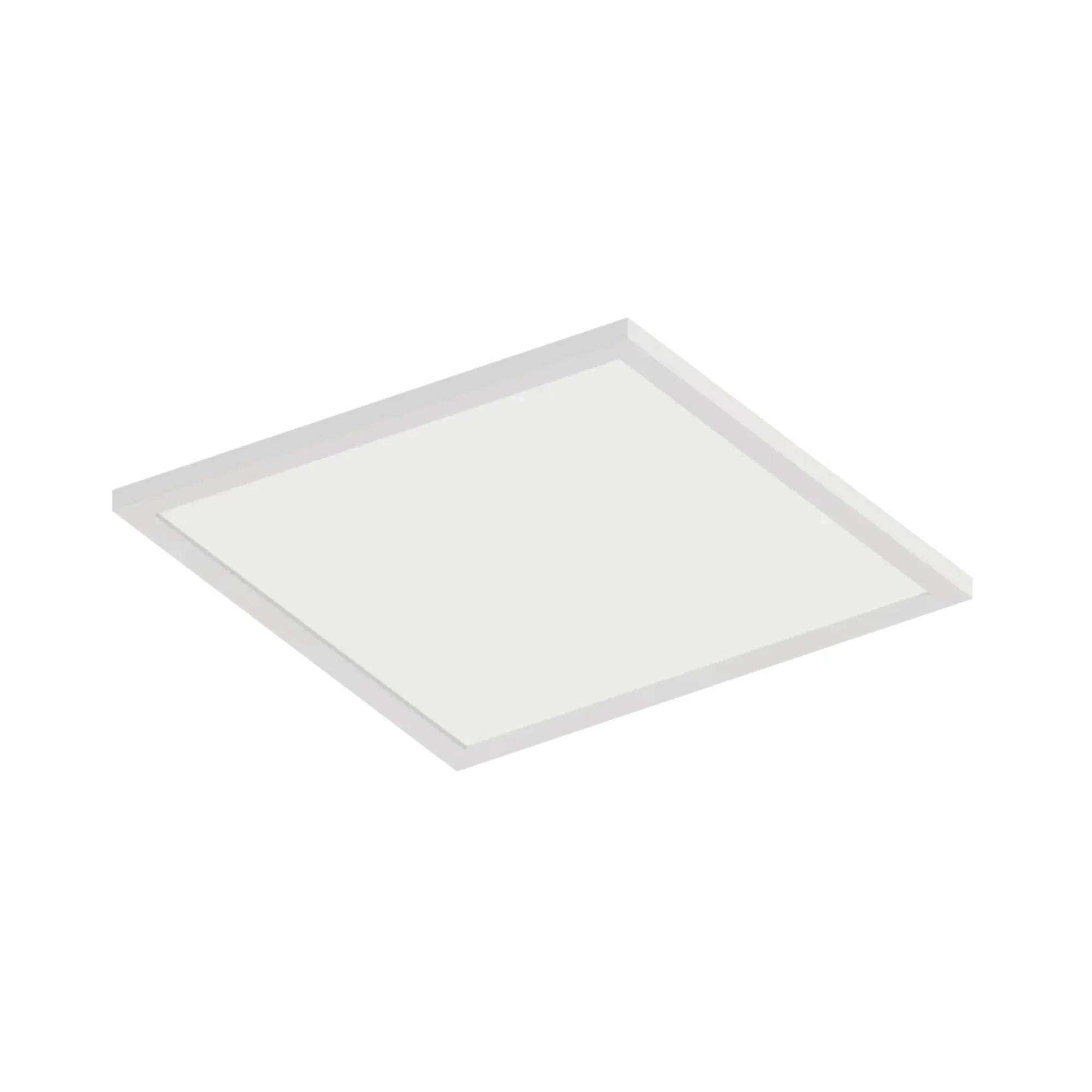

RAB Lighting SMP2X2 2x2 LED Flat Panel Surface Mount Light
The RAB SMP2X2 flush mount light is a 24" x 24" (2x2) LED flat panel surface mount fixture with field-selectable color temperature and commercial-grade construction. Its edge-lit design with polycarbonate light diffuser distributes light evenly and smoothly, providing consistent illumination without dark spots or shadows. Delivering 5000 lumens at just 45 watts with 5-CCT selectable options (2700K/3000K/3500K/4000K/5000K), 90+ CRI for excellent color rendering, and universal 120-277V input voltage, this Energy Star certified fixture provides exceptional energy efficiency and high-quality illumination. The 24-inch x 24-inch square profile and surface mount installation with included bracket make it ideal for kitchens, closets, laundry rooms, hallways, garages, offices, and other residential or commercial spaces. With a 50,000-hour L70 lifespan, TAA compliance, California Title 20 and Title 24 JA8 compliance, this fixture delivers long-term reliability and value.
RAB SMP2X2 Features
- Bright Output: 5000 lumens using only 45W for exceptional energy efficiency
- 5-CCT Selectable: Field-adjustable 2700K/3000K/3500K/4000K/5000K color temperature via dip switch

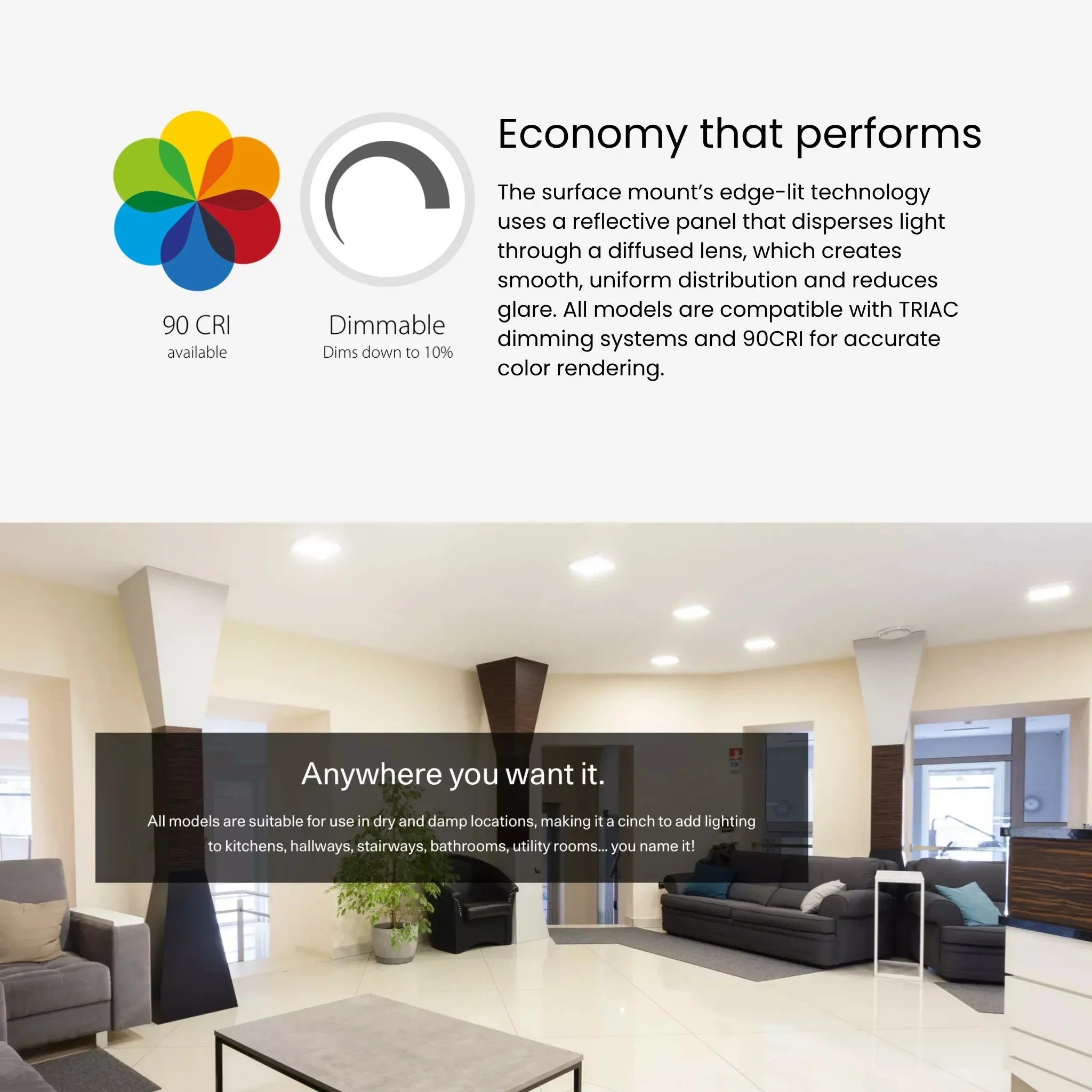

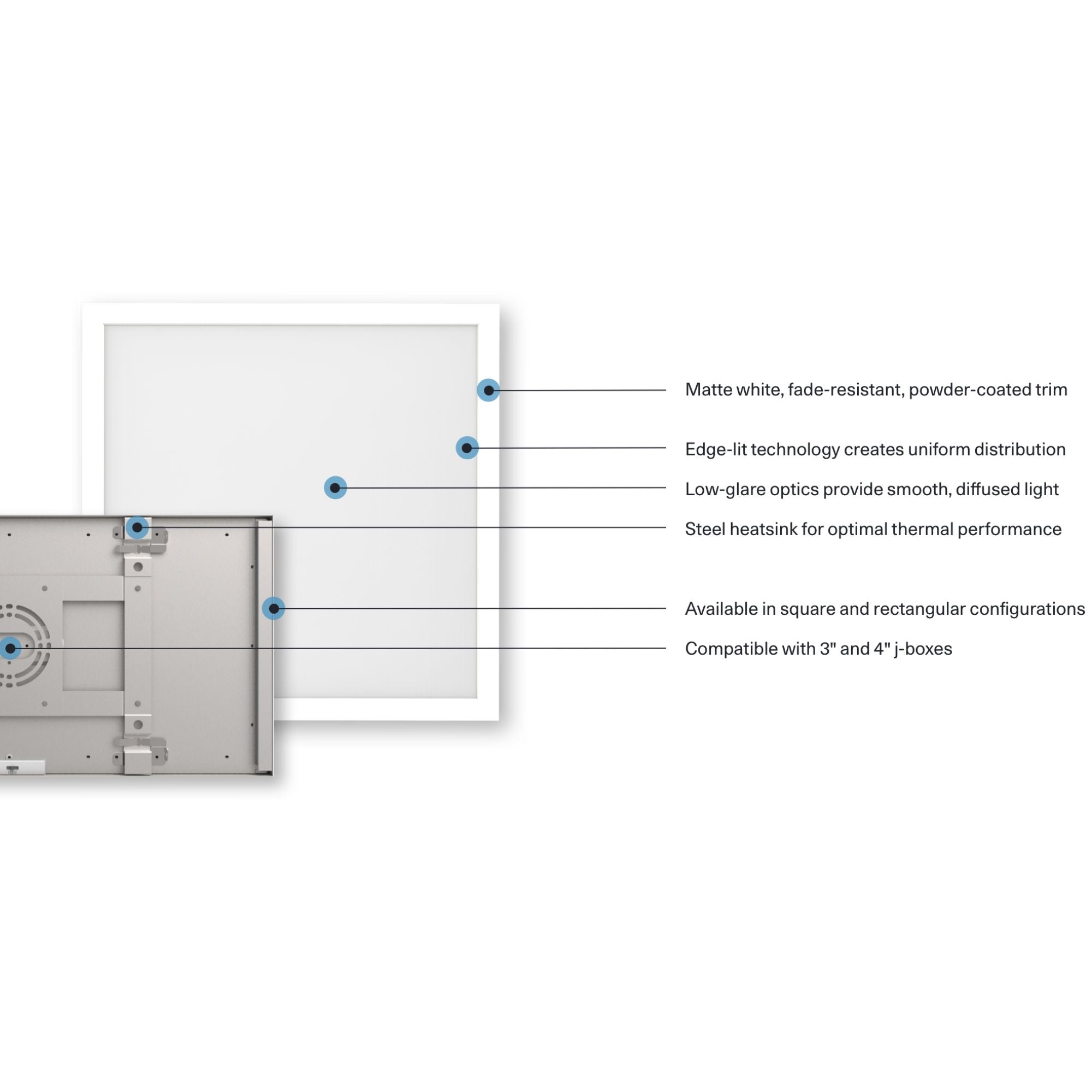

- Edge-Lit Design: Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
- High CRI 90+: Excellent color rendering for true-to-life, vibrant illumination
- Universal Voltage: 120-277V input for flexible installation in residential and commercial applications
- Dimming Capability: Dims down to 10% on compatible TRIAC/ELV systems (see dimmer compatibility list)

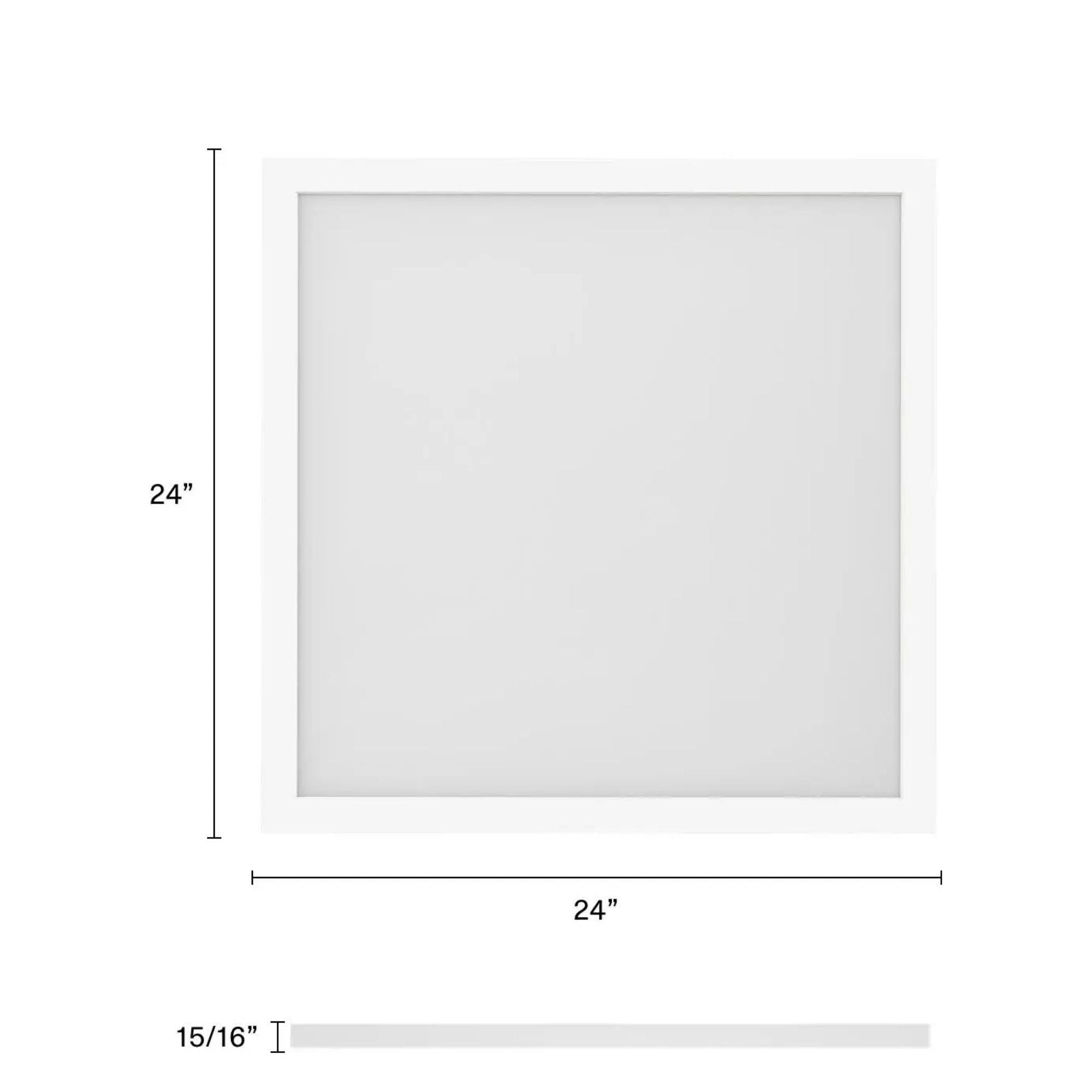

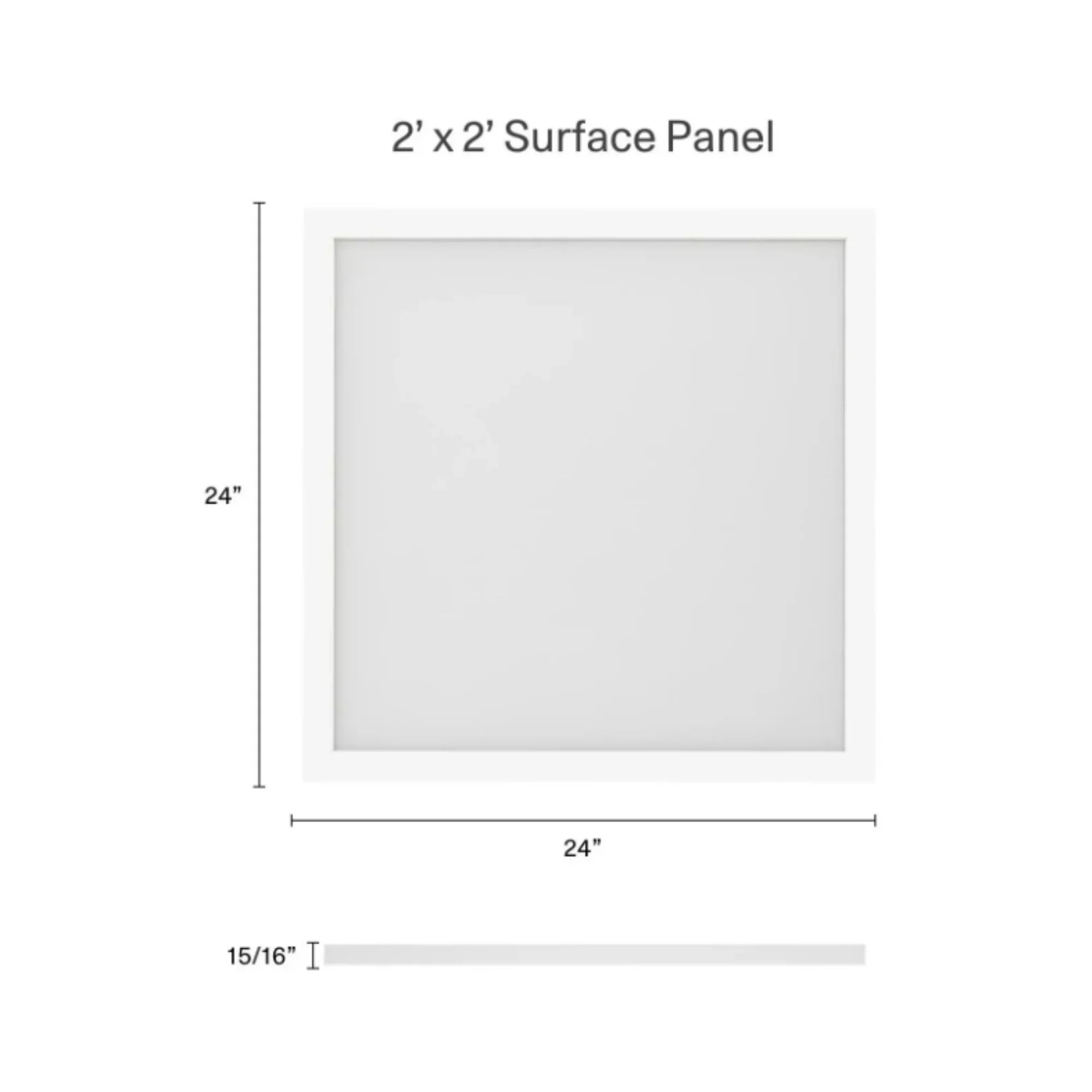

- 24" x 24" Size: Square profile perfect for kitchens, offices, and larger spaces

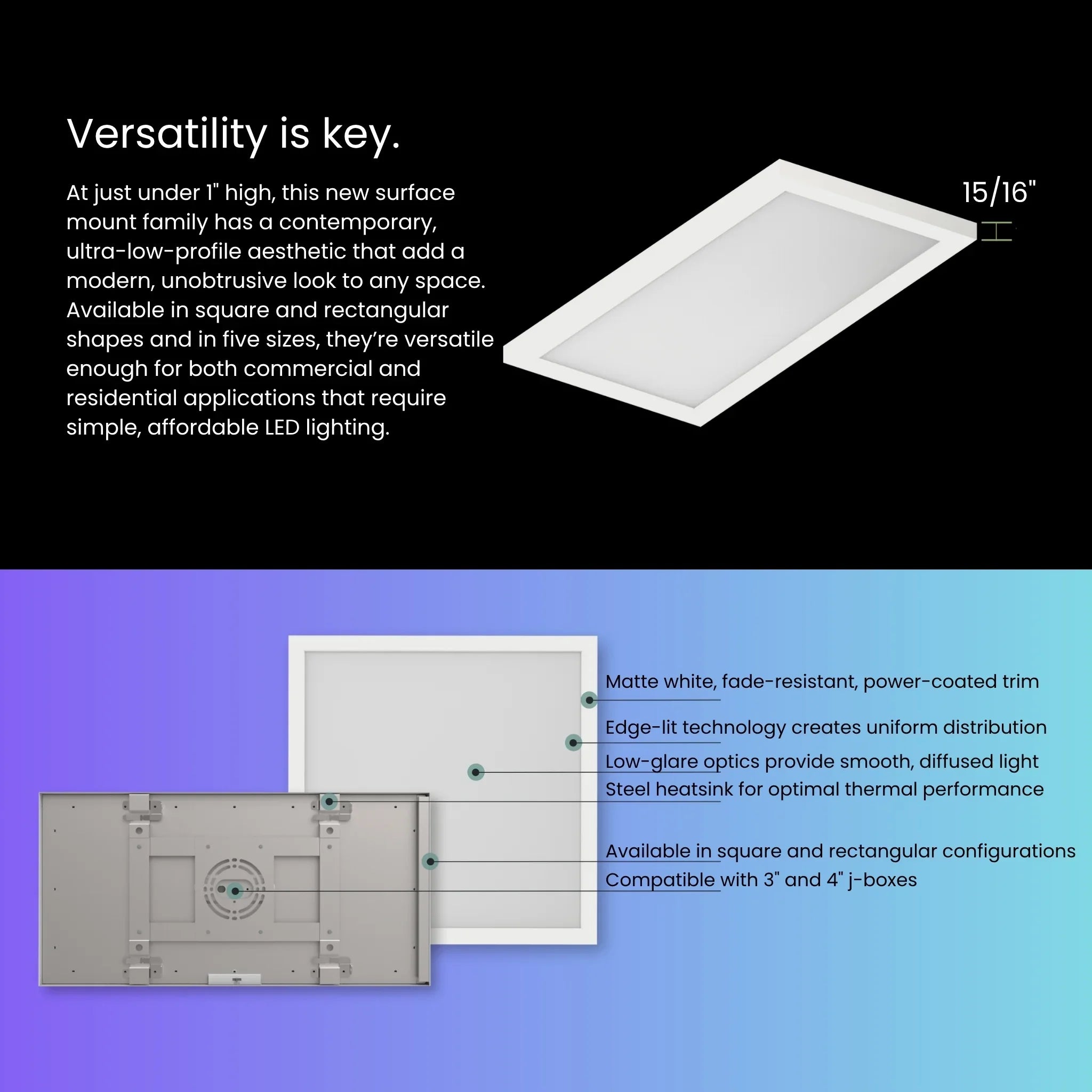

- Ultra-Thin Profile: Slim design fits in tight ceiling spaces
- Surface Mount Installation: Bracket mounting system for secure ceiling installation
- Commercial-Grade Construction: Metal enclosure with white finish and smooth trim style
- Energy Star Certified: Version 2.2 certified for maximum energy savings and rebate eligibility
- TAA Compliant: Meets Trade Agreements Act requirements for government projects
- California Compliant: Title 20 and Title 24 JA8 compliant for California installations
- Long Lifespan: 50,000-hour L70 lifespan based on IES LM-79 and LM-80 results

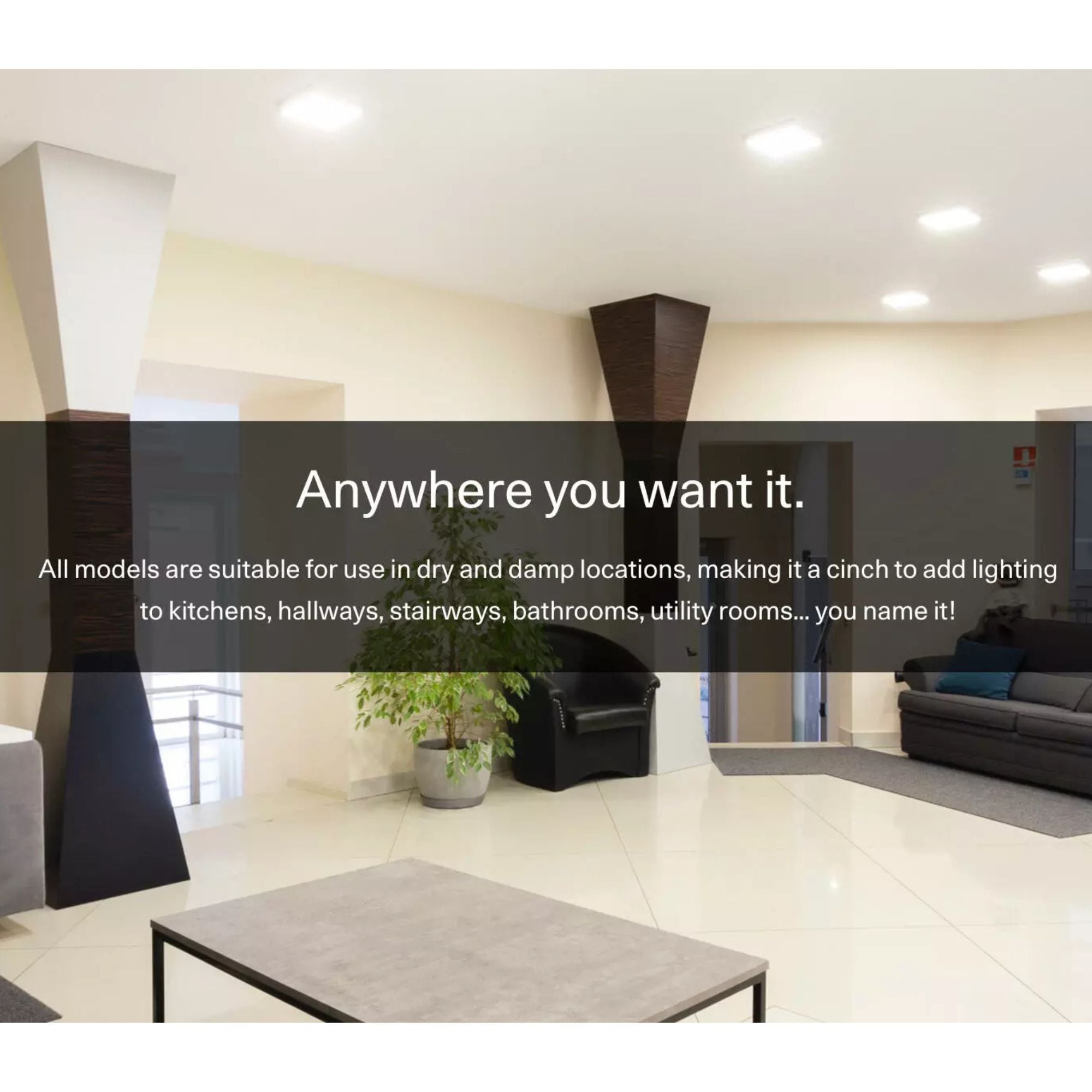

- Damp Location Rated: Suitable for use in indoor applications in dry and damp environments
- RoHS Compliant: Mercury and UV free components
RAB SMP LED Flat Panel Applications
- Kitchens and food preparation areas
- Closets and storage areas
- Laundry rooms and utility spaces
- Hallways and corridors
- Garages and workshops
- Home offices and study areas
- Commercial offices and workspaces
- Retail back-of-house areas
- Healthcare facilities and medical offices
- Educational facilities and classrooms
- Hospitality and multifamily common areas
Installation & Surface Mount Design Benefits
The RAB SMP2X2 features surface mount installation with an included bracket mounting system. Installation is straightforward: turn off power at the circuit breaker, attach the connector to the AC cable in the junction box, align and drill mounting holes in the ceiling, mount the bracket with the provided screws, select your desired CCT via the dip switch, make wire connections between fixture and junction box with wire nuts, then lift the fixture against the bracket and slide to lock in place. The slim 24" x 24" design fits standard ceiling layouts while the edge-lit polycarbonate diffuser ensures uniform, smooth illumination. Compatible with TRIAC/ELV dimmers for ambiance control.
Why Choose RAB Lighting SMP LED Flat Panel Surface Mount Lights
RAB Lighting's SMP series combines efficient lighting with commercial-grade construction and versatile installation. With 5000 lumens of bright output, 90+ CRI for excellent color rendering, selectable color temperature, universal voltage, Energy Star certification, TAA compliance, California Title 20 and JA8 compliance, and 50,000-hour lifespan, this fixture delivers long-term performance and value across residential and commercial applications. RAB warrants that their LED products will be free from defects in materials and workmanship for a period of five years from the date of shipment to the end user.
Why Buy From Us: As an authorized RAB Lighting dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the best type of light for a low ceiling?
What is the best type of light for a low ceiling?
A flush mount ceiling light is the best and most popular choice for low ceilings (typically 8 feet or less). Because they mount directly to the ceiling surface, they maximize vertical space, prevent anyone from bumping their head, and make the room feel more open.
How do I choose the right size flush mount light for my room?
How do I choose the right size flush mount light for my room?
A common guideline is the "Length + Width" rule. Add your room's length and width in feet, then treat that number as the ideal diameter in inches. For example, for a 10-foot by 12-foot bedroom, you would add 10 + 12 = 22. This means a flush mount light around 22 inches in diameter will look proportional. For long hallways, consider using multiple smaller flush mounts.
What is an integrated LED flush mount light?
What is an integrated LED flush mount light?
An integrated LED flush mount light has the LED light source built directly into the fixture. You do not use separate light bulbs. The primary benefit is a very long lifespan (often 25,000-50,000 hours) and high energy efficiency. They are a "set it and forget it" solution that won't require new bulbs for many years.
Can I put a flush mount ceiling light in a bathroom?
Can I put a flush mount ceiling light in a bathroom?
Yes, but you must choose a fixture that is rated for its specific location. A flush mount light labeled as "damp-rated" is suitable for most bathrooms with a shower or tub (as long as there is ventilation). If the light will be inside the shower, it must be "wet-rated."
How are flush mounts different from semi-flush mounts?
How are flush mounts different from semi-flush mounts?
A flush mount light sits directly against the ceiling with no gap. A semi-flush mount light hangs just below the ceiling (usually 4-8 inches), creating a small gap. This gap allows light to shine upwards and bounce off the ceiling, creating a softer, multi-directional glow.
