RAB SML2 2 ft Edge-Lit LED Surface Mount — White, 25W, Selectable CCT

The RAB SML2 rectangular surface-mount light combines a slim edge-lit design with five selectable color temperatures. Its 25W integrated LED delivers 1,800–1,960 lumens with 90 CRI, giving hallways, utility spaces and work areas a clean lighting upgrade. A white metal housing and smooth trim create a discreet ceiling appearance without a hanging drop.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K, selected by a housing-mounted DIP switch
• LED Output: 1,800–1,960 lumens at 25W; 40W CFL equivalency
• Color Accuracy: 90 CRI
• Efficacy: 72 lm/W at 2700K, 74 at 3000K, 76 at 3500K and 78 at 4000K or 5000K
• Optics: Edge-lit linear design with a 110-degree beam
• Construction: White metal housing, rectangular shape and smooth trim; 2.4 lb
• Mounting: Surface mount; family-listed compatibility with 3 or 4 in junction boxes
• Driver: Constant current; 120-277V at 50/60Hz
• Electrical Performance: Power factor at least 0.9; THD at most 30%; current 0.23A at 120V, 0.15A at 208V, 0.13A at 240V and 0.12A at 277V
• Dimming: Dimmable with manufacturer-compatible dimmers
• Compliance: UL listed for damp locations; ENERGY STAR Version 2.2 certified; Title 24 JA8 compliant; IC rated; FCC Part 15 compliant; RoHS-compliant components; TAA compliant, made in Cambodia
• Life and Warranty: 50,000-hour L70 lifespan, five-year warranty and -4°F to 104°F operating range

Construction & Design

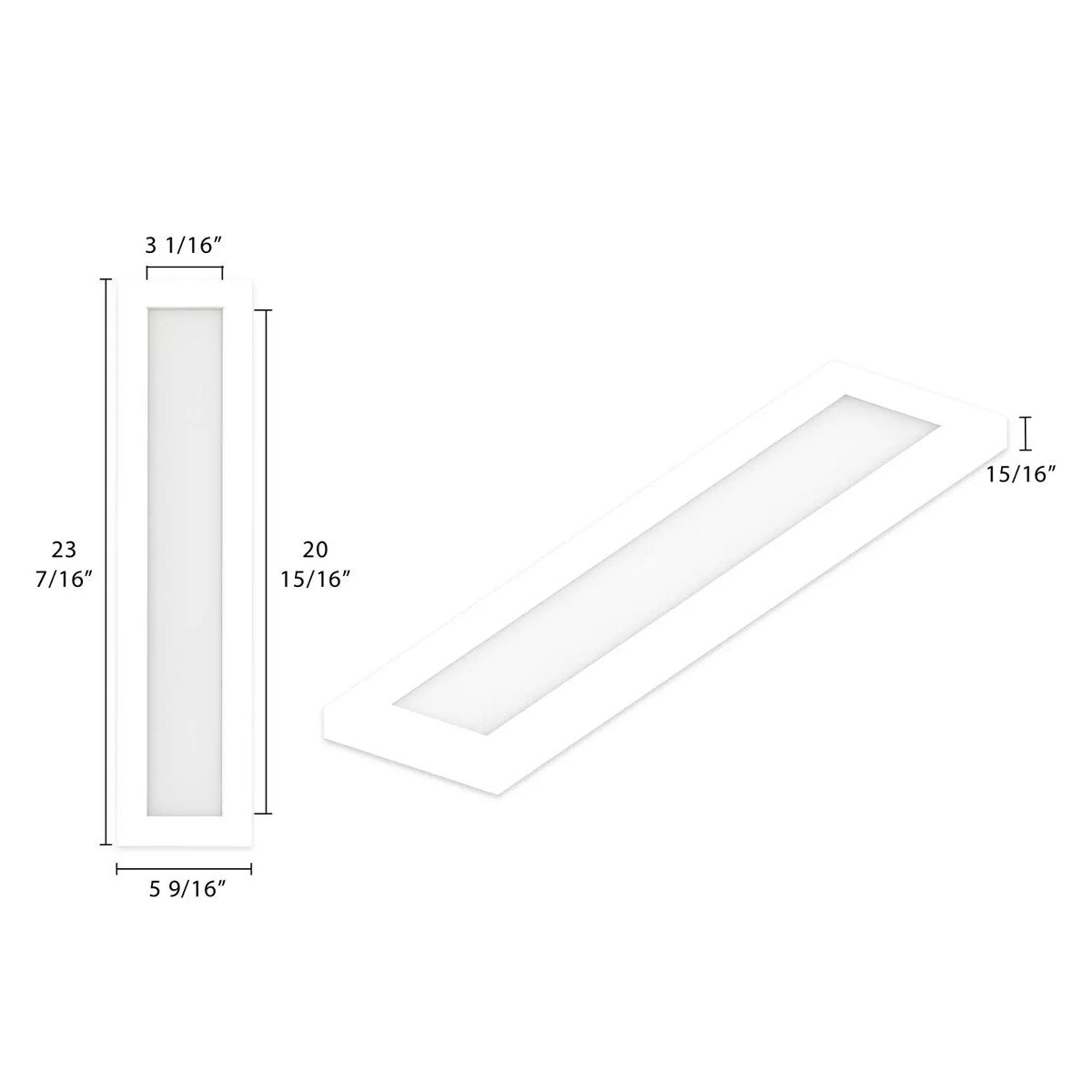

The nominal 0.5 × 2 ft rectangular fixture features a white metal housing and smooth trim. Its edge-lit surface-mount form keeps the fixture close to the ceiling for a contemporary look. Fixture weight is 2.4 lb. The individual sheet specifies indoor dry and damp applications.

Light Output & Performance

The integrated LED produces 1,800–1,960 lumens at 25W with 90 CRI and a 110-degree beam. Select 2700K, 3000K, 3500K, 4000K or 5000K at the housing DIP switch to match surrounding lighting. Efficacy varies from 72 to 78 lm/W across the settings. Rated life is 50,000 hours at L70, and separate bulbs are not required.

Electrical & Installation

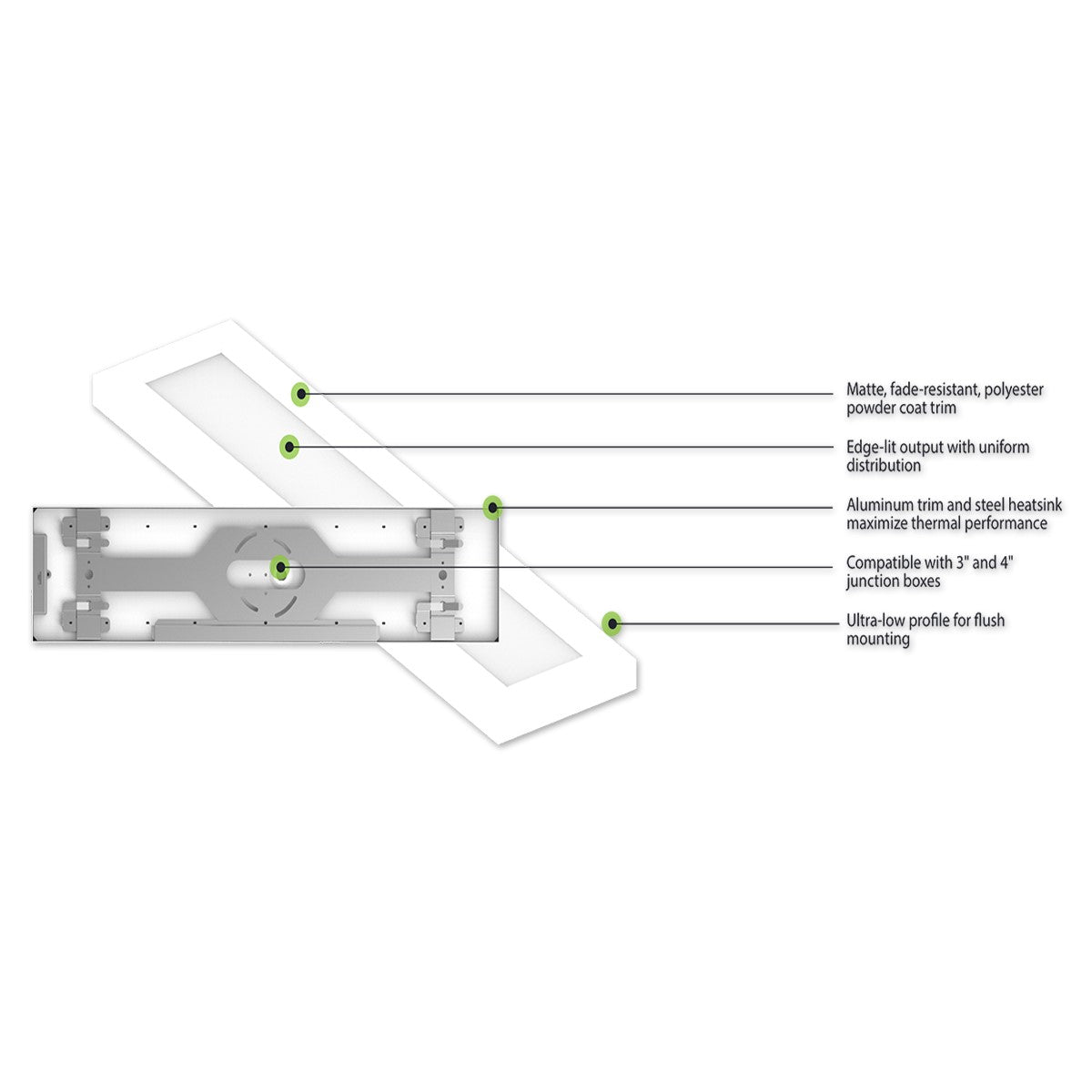

The constant-current driver accepts 120-277V at 50/60Hz. SML2 installs as a surface-mounted fixture, with family-listed compatibility for 3 or 4 in junction boxes. Its slim profile avoids the hanging clearance of a pendant or semi-flush fixture. The family sheet lists IC suitability for direct contact with insulation.

SML2 is dimmable using compatible dimmers. Choose a control verified on the manufacturer's compatibility list; the provided sheets do not identify a specific dimming protocol or minimum level. Select the desired CCT using the housing-mounted switch during installation. Use in indoor dry or damp environments as specified on the individual sheet.

Typical Applications

• Residential hallways and entryways
• Laundry and utility rooms
• Closets and storage spaces
• Indoor commercial circulation and work areas

What's Included

• RAB SML2 white edge-lit surface-mount fixture with integrated LED and constant-current driver
