RAB SLIMLW Adjustable Throw Full Cutoff Wall Pack — 60W — 3000K/4000K/5000K — White
Available in stock (100)
About this item
About this item
- Selectable Output: Field-adjustable 60W, 45W (factory default), and 29W power settings deliver up to 8,697 lumens at up to 160.3 lm/W.
- Adjustable Throw Cutoff Optics: Tempered glass lens with internal optical aim adjustable across -20°, -10°, 0° (factory default), 10°, and 20° forward throw angles inside a spring-hinged kick-stand housing.
- Selectable CCT: Onboard switch adjusts color temperature across 3000K, 4000K (factory default), and 5000K with 80-83 CRI.
- Photocell & Dimming: Integrated on/off photocell, 120-277V driver, and 0-10V dimming down to 10% and off.
- Rebates & Ingress: DLC 5.1 Premium listed, UL Wet Location rated, IP65 sealed, with 2kV/4kV surge protection.
Description
Description
RAB SLIMLW Adjustable Throw Full Cutoff LED Wall Pack - 60W/45W/29W Selectable - 3000K/4000K/5000K - White

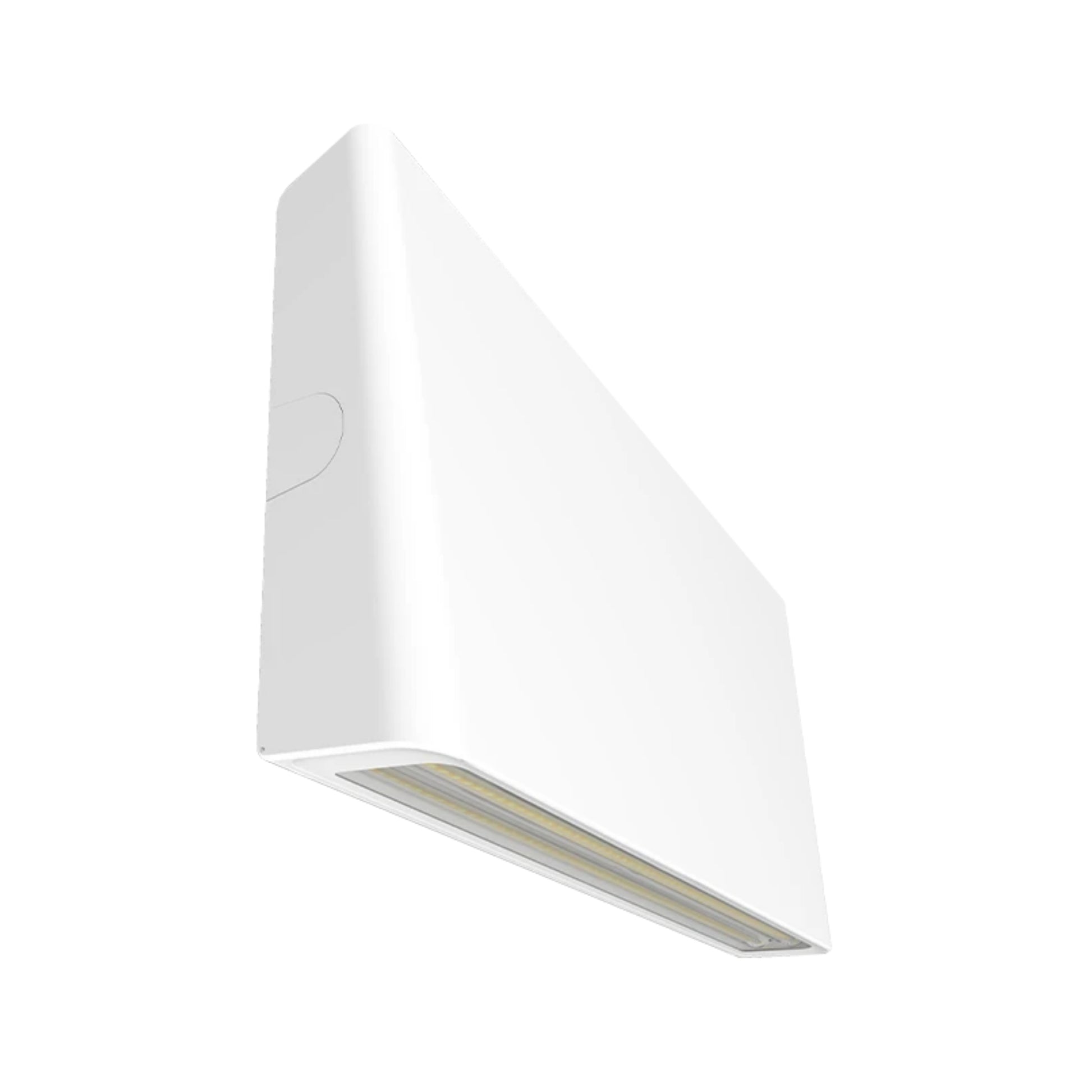

The RAB SLIMLW is a commercial full cutoff LED wall pack and field-adjustable wall pack, with adjustable forward throw engineered to deliver up to 8,697 lumens across field-adjustable 60W, 45W, and 29W power settings (factory default 45W) and switchable 3000K, 4000K, and 5000K color temperatures (factory default 4000K). Operating on 120-277V electrical systems with 0-10V dimming down to 10% and off, it qualifies for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and continuous silicone gasketing, this UL wet-location luminaire features a slim 3 3/8" wall projection depth, selectable -20°/-10°/0°/10°/20° internal adjustable forward-throw optics (factory default 0°), a heavy-duty mounting bracket with a spring-hinged housing and kick stand, and 3 conduit entry points alongside a tempered glass lens, an integrated on/off photocell, and 2kV/4kV surge protection.
Key Features
- Selectable Wattage: 60W / 45W / 29W field-adjustable (Factory default 45W)
- Maximum Lumen Output: Up to 8,697 lm
- Peak Efficacy: Up to 160.3 lm/W
- CRI & Color Consistency: 80-83 CRI; 7-step MacAdam Ellipse binning
- Selectable CCT: 3000K / 4000K / 5000K (Factory default 4000K)
- Adjustable Forward Throw Optics: Field-adjustable -20° / -10° / 0° / 10° / 20° beam throw (Factory default 0°)
- Lens & Gasket: Tempered glass lens with continuous silicone gasket
- Photocell & Controls: Integrated dusk-to-dawn photocell with on/off selector switch; optional Lightcloud (/LC) and Lightcloud Blue (/LCB) factory configurations available
- Dimming: 0-10V continuous dimming down to 10% and off
- Voltage & Surge Protection: 120-277V AC, 50/60Hz; 2kV/4kV surge protection
- Location & Body Rating: UL Wet Location; IP65 rated die-cast aluminum housing
- Operating Temperature: -40°F (-40°C) to 104°F (40°C)
- Certifications: DLC 5.1 Premium, UL Listed, IP65, BAA Capable (upon request), RoHS
- Rated Life: L70 100,000 hours
- Warranty: 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish - RAB
Performance & Light Output
| Nominal Wattage | Input Watts (3000K / 4000K / 5000K) | 3000K Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy | 4000K Default Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy | 5000K Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy |
|---|---|---|---|---|
| 60W | 59.5W / 57.2W / 59.4W | 8,025 lm (-20°), 8,087 lm (-10°), 7,929 lm (0°), 7,646 lm (10°), 7,310 lm (20°) | up to 135.9 lm/W | 8,651 lm (-20°), 8,697 lm (-10°), 8,527 lm (0°), 8,238 lm (10°), 7,864 lm (20°) | up to 152.0 lm/W | 8,500 lm (-20°), 8,557 lm (-10°), 8,376 lm (0°), 8,088 lm (10°), 7,727 lm (20°) | up to 144.1 lm/W |
| 45W (Factory Default) | 44.6W / 42.9W / 44.5W | 6,358 lm (-20°), 6,428 lm (-10°), 6,264 lm (0°), 6,093 lm (10°), 5,796 lm (20°) | up to 144.1 lm/W | 5,898 lm (-20°), 5,977 lm (-10°), 5,825 lm (0°), 5,655 lm (10°), 5,388 lm (20°) | up to 139.3 lm/W | 6,734 lm (-20°), 6,802 lm (-10°), 6,617 lm (0°), 6,445 lm (10°), 6,127 lm (20°) | up to 152.9 lm/W |
| 29W | 29.0W / 27.9W / 29.0W | 4,369 lm (-20°), 4,395 lm (-10°), 4,309 lm (0°), 4,171 lm (10°), 3,966 lm (20°) | up to 151.6 lm/W | 4,053 lm (-20°), 4,087 lm (-10°), 4,007 lm (0°), 3,873 lm (10°), 3,687 lm (20°) | up to 146.5 lm/W | 4,628 lm (-20°), 4,650 lm (-10°), 4,552 lm (0°), 4,412 lm (10°), 4,192 lm (20°) | up to 160.3 lm/W |
Engineered with long-life, high-efficacy surface-mount LEDs delivering 80-83 CRI across all wattage, CCT, and throw-angle configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.
Lens & Optics
The internal adjustable-throw optical assembly provides customizable exterior light distribution behind a non-yellowing tempered glass lens:
- 0° Neutral Cutoff Throw (Factory Default): Directs illumination straight downward from the horizontal cutoff plane for standard perimeter walkways and entry doors.
- -10° & -20° Inward / Wall-Grazing Throw: Angles the beam closer to the mounting wall to illuminate narrow breezeways, stairwells, and architectural facades without spill light.
- +10° & +20° Forward Throw: Projects illumination further outward from the building face to cover wider sidewalks, drive lanes, and loading aprons while maintaining a level outer housing.

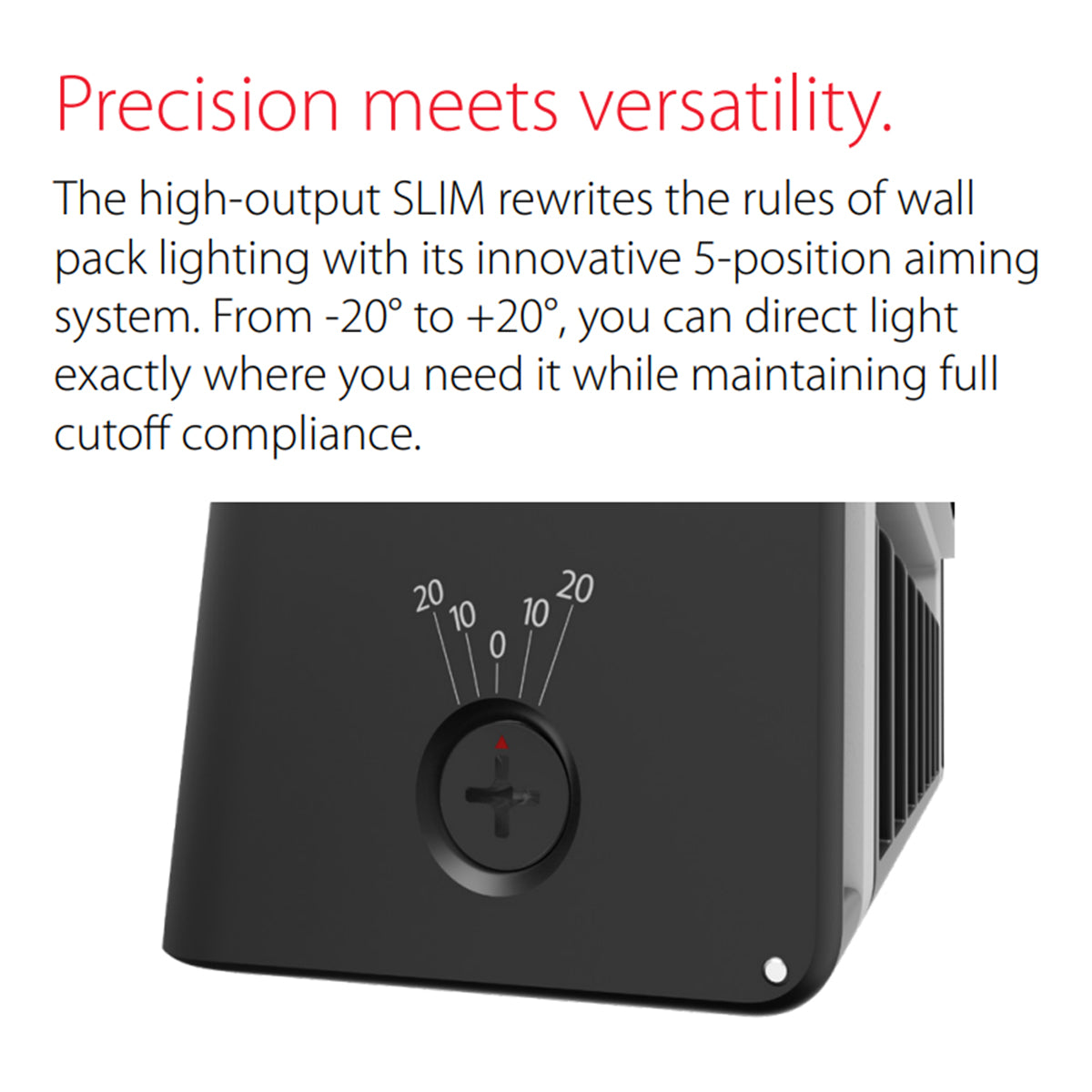

The internal optical distribution adjusts across all 5 throw positions (-20°, -10°, 0°, 10°, and 20°) without tilting the external die-cast aluminum housing.
Smart & Control Features
Engineered for automated exterior operation and commercial lighting control integration:
- Dusk-to-Dawn Photocell (Integrated): Built-in photocell with an internal on/off selector switch allows automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
- 0-10V Dimming to 10% and Off: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims down to 10% and off.
-
Networked Wireless Controls (Factory Options): Available in factory-installed Lightcloud (
/LCZigbee mesh, up to 1,000 ft line-of-sight / 100 ft obstruction range) and Lightcloud Blue (/LCBBluetooth Mesh luminaire-level lighting control, up to 200 ft clear line-of-sight / 60 ft indoor range, no gateway required, DLC systemN1XMLOEATBA) model configurations.
Electrical
Powered by a Constant Current driver operating on 120-277V AC at 50/60Hz with a Power Factor of 92.8% at 120V and 99.6% at 277V, and Total Harmonic Distortion (THD) of 7.0% at 120V and 3.3% at 277V (at default wattage). Integrated 2kV, 4kV surge protection safeguards internal electronics against line transients. Includes pre-wired 0-10V dimming leads.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 60W | 0.50A | 0.30A | 0.26A | 0.22A |
| 45W (Default) | 0.37A | 0.23A | 0.20A | 0.17A |
| 29W | 0.24A | 0.16A | 0.14A | 0.12A |
Construction
Housing & Thermal: Precision die-cast aluminum body engineered with passive convection thermal management to draw heat away from the surface-mount LED array and driver.
Finish: Architectural white finish formulated for high durability, weather resistance, and long-lasting color retention.
Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gasketing. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

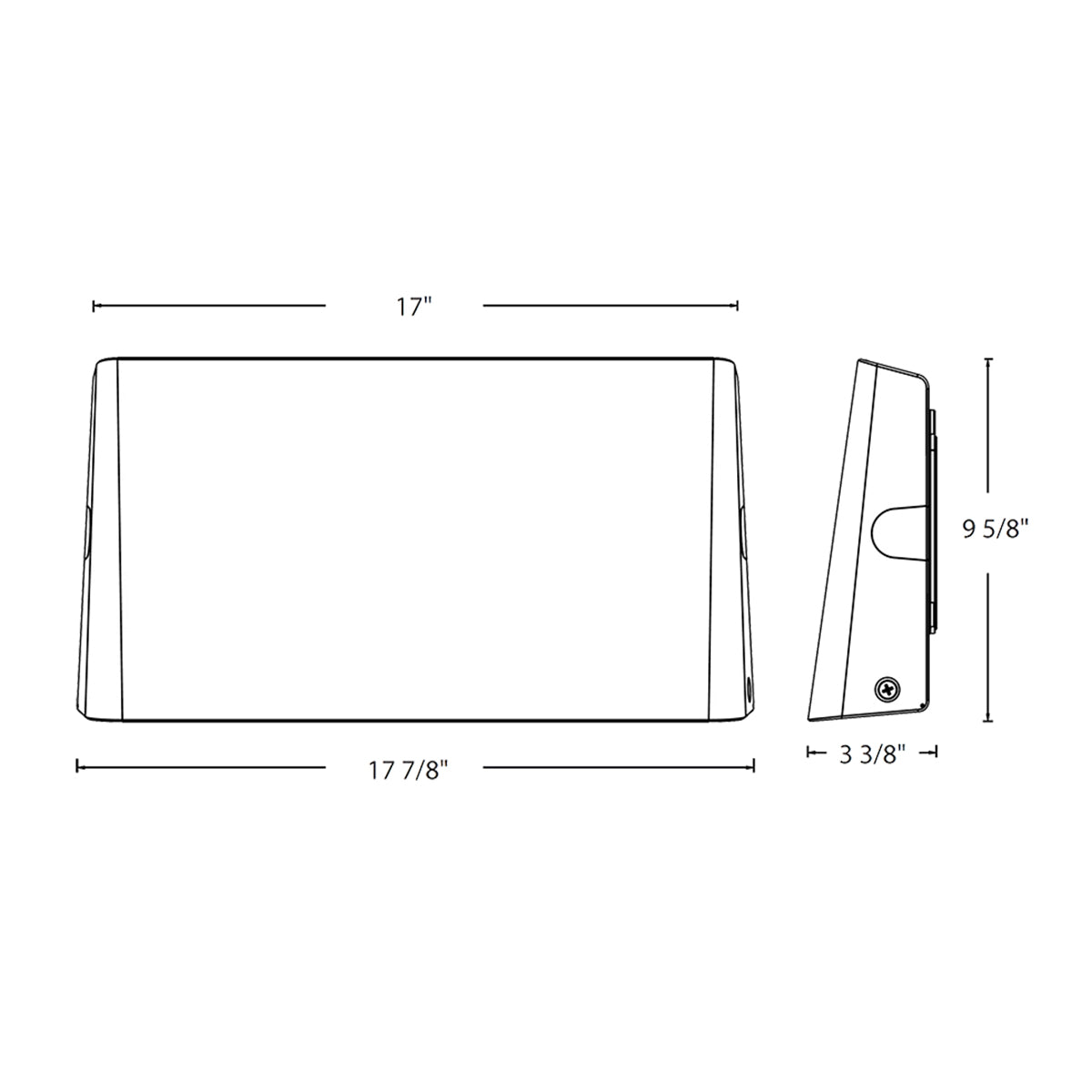

Dimensions & Weight: 17" top / 17 7/8" bottom W x 9 5/8" H x 3 3/8" D (17.00"-17.88" W x 9.63" H x 3.38" D). Fixture weight: 9.9 lbs.
Installation & Mounting

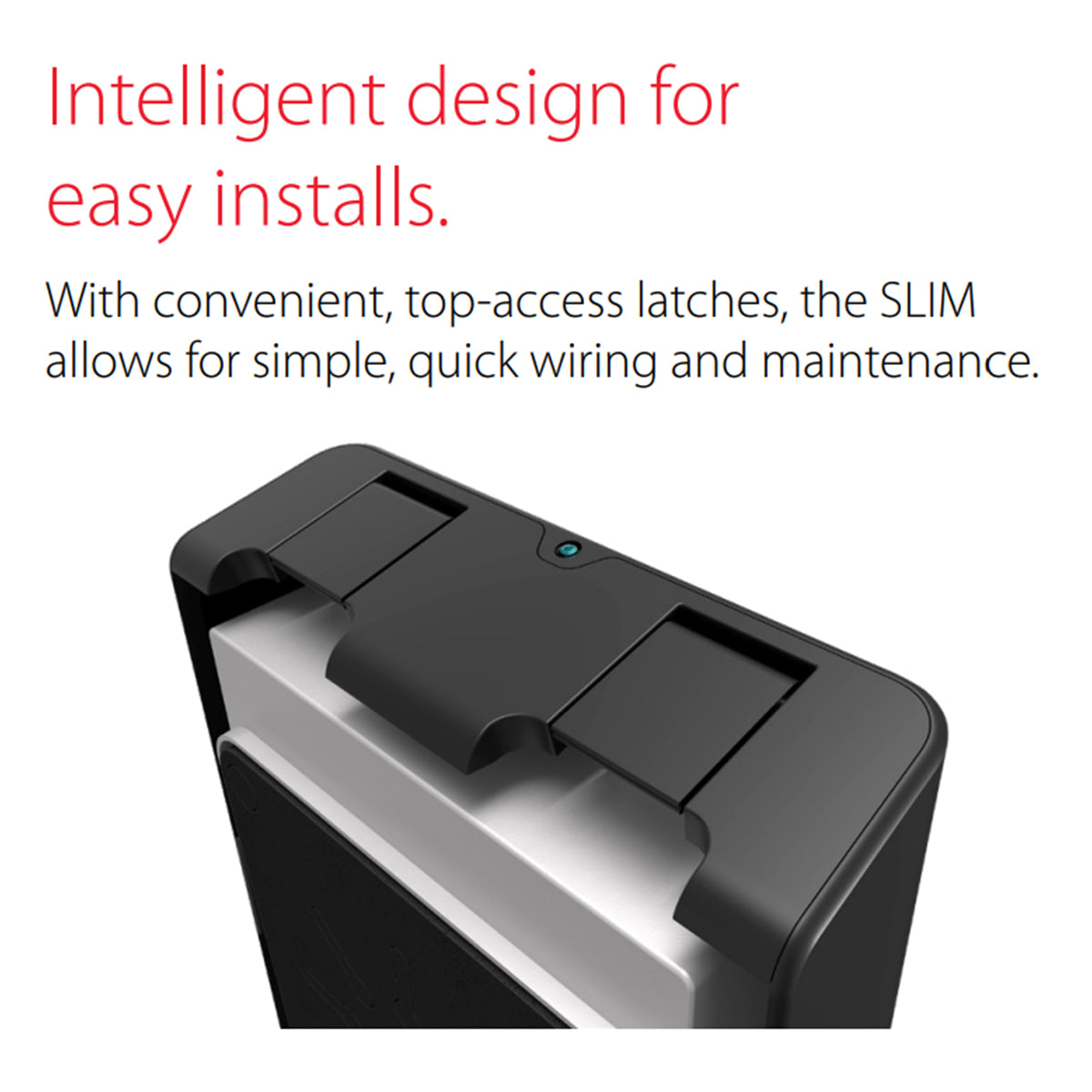

Mounting Hardware: Heavy-duty wall mounting bracket with a spring-hinged housing and integrated "kick stand" props the housing open during installation for rapid, hands-free wiring over recessed junction boxes or vertical wall surfaces while maintaining a slim 3 3/8" wall depth.
Conduit & Wiring Access: Includes 3 conduit entry points located on the back and both sides of the housing for surface conduit or concealed branch-circuit wiring.
Certifications & Rebates
- DLC 5.1 Premium Listed: Qualifies for the highest tier of commercial utility rebates (searchable on designlights.org under DLC Product ID S-Y7PFBZ)
- UL Listed: Certified for wet locations per UL outdoor luminaire standards
- IP65 Rated: Ingress protection rating of IP65 for dust and water
- Buy American Act (BAA) Option: Upon request, RAB can manufacture this product to be compliant with the Buy American Act (BAA) via custom factory quote
- RoHS Compliant: Mercury and UV free with RoHS-compliant components
Typical Applications
- Commercial Building Perimeters & Walkways - Field-selectable -20° to +20° forward throw tailors beam reach across narrow paths or wide sidewalks without tilting the cutoff housing
- Retail, Office & Multifamily Entryways - Slim 3 3/8" depth and architectural white die-cast housing provide clean, glare-controlled doorway security lighting
- Schools, Campuses & Municipal Facilities - DLC 5.1 Premium rebate eligibility, 100,000-hour L70 lifespan, and BAA quote availability support institutional specifications
- Exterior Breezeways, Stairwells & Loading Aprons - IP65 silicone-gasketed tempered glass lens and -40°F to 104°F rating withstand harsh year-round weather
- Automated Dusk-to-Dawn Perimeter Security - Integrated switchable photocell and 0-10V dimming to off streamline energy code compliance
What's Included
- RAB SLIMLW Field-Adjustable Full Cutoff Wall Pack w/ Adjustable Throw - White
- Heavy-duty mounting bracket with spring-hinged housing and kick stand
- Pre-installed integrated dusk-to-dawn photocell with on/off switch
- Installation hardware and operation manual
