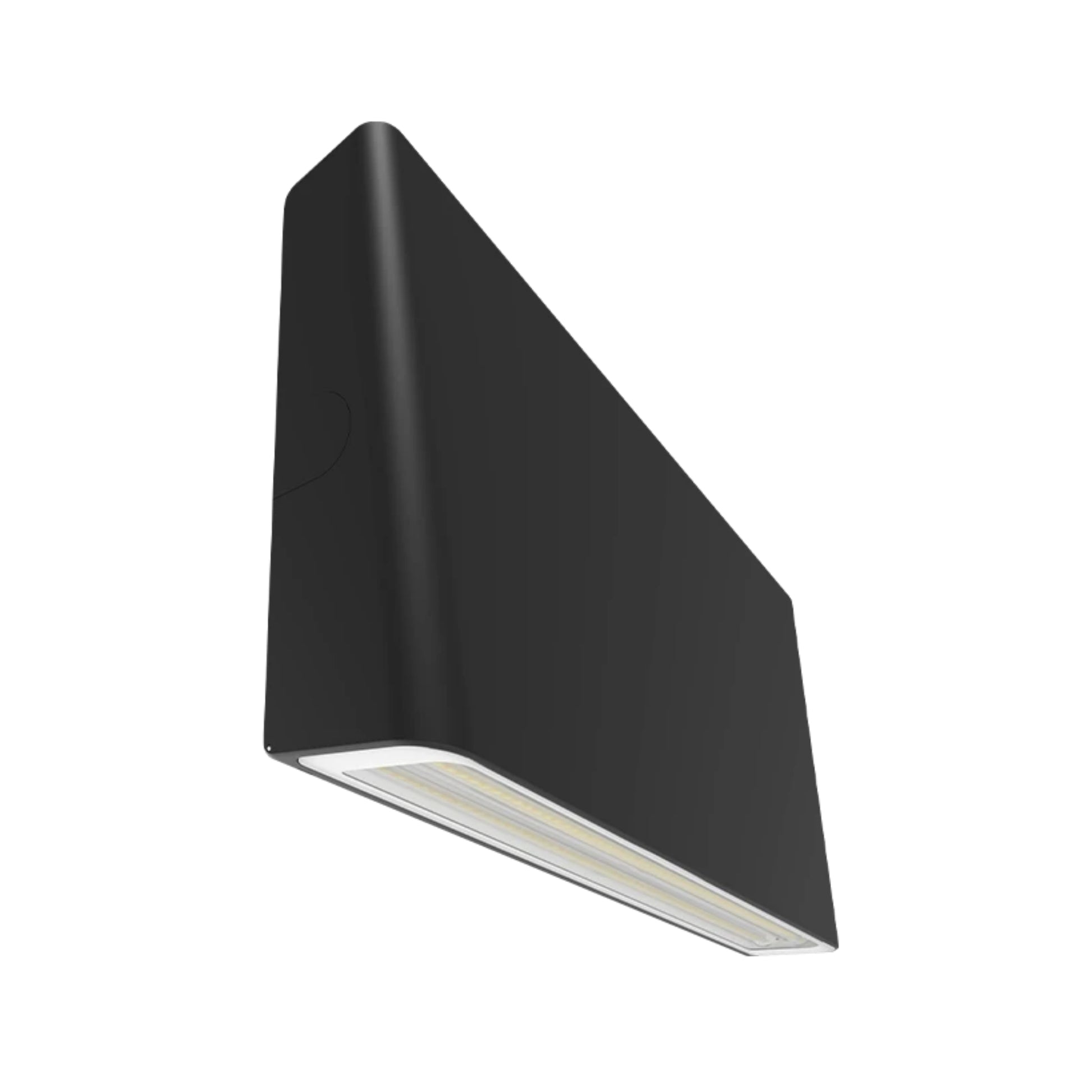

RAB SLIML Adjustable Throw Full Cutoff LED Wall Pack - 60W/45W/29W Selectable - 3000K/4000K/5000K - Bronze

The RAB SLIML is a commercial full cutoff LED wall pack and field-adjustable wall pack, with adjustable forward throw engineered to deliver up to 8,697 lumens across field-adjustable 60W, 45W, and 29W power settings (factory default 45W) and switchable 3000K, 4000K, and 5000K color temperatures (factory default 4000K). Operating on 120-277V electrical systems with 0-10V dimming down to 10% and off, it qualifies for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and continuous silicone gasketing, this UL wet-location luminaire features a slim 3 3/8" wall projection depth, selectable -20°/-10°/0°/10°/20° internal adjustable forward-throw optics (factory default 0°), a heavy-duty mounting bracket with a spring-hinged housing and kick stand, and 3 conduit entry points alongside a tempered glass lens, an integrated on/off photocell, and 2kV/4kV surge protection.

Key Features

  • Selectable Wattage: 60W / 45W / 29W field-adjustable (Factory default 45W)
  • Maximum Lumen Output: Up to 8,697 lm
  • Peak Efficacy: Up to 160.3 lm/W
  • CRI & Color Consistency: 80-83 CRI; 7-step MacAdam Ellipse binning
  • Selectable CCT: 3000K / 4000K / 5000K (Factory default 4000K)
  • Adjustable Forward Throw Optics: Field-adjustable -20° / -10° / 0° / 10° / 20° beam throw (Factory default 0°)
  • Lens & Gasket: Tempered glass lens with continuous silicone gasket
  • Photocell & Controls: Integrated dusk-to-dawn photocell with on/off selector switch; optional Lightcloud (/LC) and Lightcloud Blue (/LCB) factory configurations available
  • Dimming: 0-10V continuous dimming down to 10% and off
  • Voltage & Surge Protection: 120-277V AC, 50/60Hz; 2kV/4kV surge protection
  • Location & Body Rating: UL Wet Location; IP65 rated die-cast aluminum housing
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C)
  • Certifications: DLC 5.1 Premium, UL Listed, IP65, BAA Capable (upon request), RoHS
  • Rated Life: L70 100,000 hours
  • Warranty: 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish - RAB

Performance & Light Output

Nominal Wattage Input Watts (3000K / 4000K / 5000K) 3000K Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy 4000K Default Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy 5000K Lumens (-20° / -10° / 0° / 10° / 20°) & Peak Efficacy
60W 59.5W / 57.2W / 59.4W 8,025 lm (-20°), 8,087 lm (-10°), 7,929 lm (0°), 7,646 lm (10°), 7,310 lm (20°) | up to 135.9 lm/W 8,651 lm (-20°), 8,697 lm (-10°), 8,527 lm (0°), 8,238 lm (10°), 7,864 lm (20°) | up to 152.0 lm/W 8,500 lm (-20°), 8,557 lm (-10°), 8,376 lm (0°), 8,088 lm (10°), 7,727 lm (20°) | up to 144.1 lm/W
45W (Factory Default) 44.6W / 42.9W / 44.5W 6,358 lm (-20°), 6,428 lm (-10°), 6,264 lm (0°), 6,093 lm (10°), 5,796 lm (20°) | up to 144.1 lm/W 5,898 lm (-20°), 5,977 lm (-10°), 5,825 lm (0°), 5,655 lm (10°), 5,388 lm (20°) | up to 139.3 lm/W 6,734 lm (-20°), 6,802 lm (-10°), 6,617 lm (0°), 6,445 lm (10°), 6,127 lm (20°) | up to 152.9 lm/W
29W 29.0W / 27.9W / 29.0W 4,369 lm (-20°), 4,395 lm (-10°), 4,309 lm (0°), 4,171 lm (10°), 3,966 lm (20°) | up to 151.6 lm/W 4,053 lm (-20°), 4,087 lm (-10°), 4,007 lm (0°), 3,873 lm (10°), 3,687 lm (20°) | up to 146.5 lm/W 4,628 lm (-20°), 4,650 lm (-10°), 4,552 lm (0°), 4,412 lm (10°), 4,192 lm (20°) | up to 160.3 lm/W

Engineered with long-life, high-efficacy surface-mount LEDs delivering 80-83 CRI across all wattage, CCT, and throw-angle configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

The internal adjustable-throw optical assembly provides customizable exterior light distribution behind a non-yellowing tempered glass lens:

  • 0° Neutral Cutoff Throw (Factory Default): Directs illumination straight downward from the horizontal cutoff plane for standard perimeter walkways and entry doors.
  • -10° & -20° Inward / Wall-Grazing Throw: Angles the beam closer to the mounting wall to illuminate narrow breezeways, stairwells, and architectural facades without spill light.
  • +10° & +20° Forward Throw: Projects illumination further outward from the building face to cover wider sidewalks, drive lanes, and loading aprons while maintaining a level outer housing.

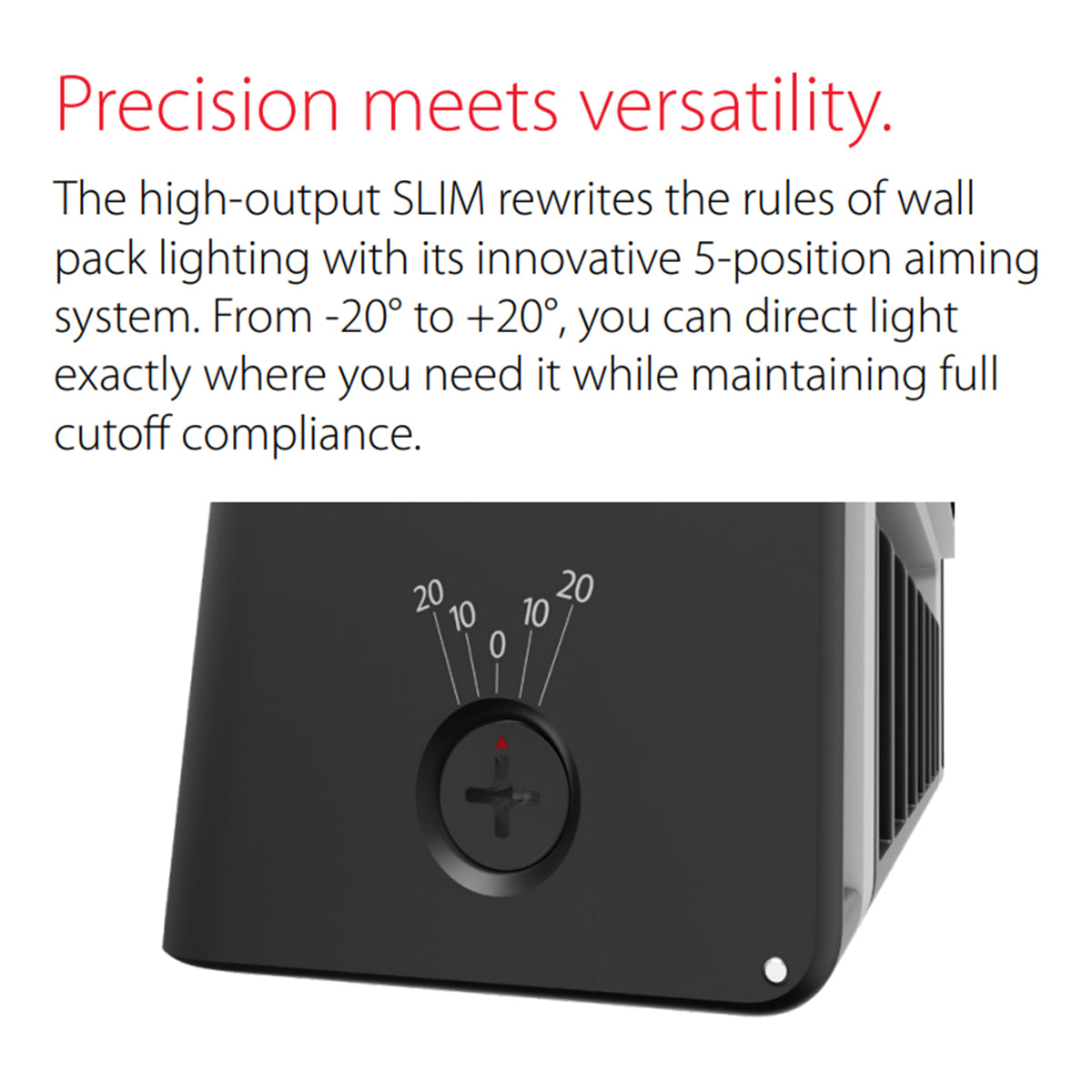

The internal optical distribution adjusts across all 5 throw positions (-20°, -10°, 0°, 10°, and 20°) without tilting the external die-cast aluminum housing.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

  • Dusk-to-Dawn Photocell (Integrated): Built-in photocell with an internal on/off selector switch allows automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
  • 0-10V Dimming to 10% and Off: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims down to 10% and off.
  • Networked Wireless Controls (Factory Options): Available in factory-installed Lightcloud (/LC Zigbee mesh, up to 1,000 ft line-of-sight / 100 ft obstruction range) and Lightcloud Blue (/LCB Bluetooth Mesh luminaire-level lighting control, up to 200 ft clear line-of-sight / 60 ft indoor range, no gateway required, DLC system N1XMLOEATBA) model configurations.

Electrical

Powered by a Constant Current driver operating on 120-277V AC at 50/60Hz with a Power Factor of 92.8% at 120V and 99.6% at 277V, and Total Harmonic Distortion (THD) of 7.0% at 120V and 3.3% at 277V (at default wattage). Integrated 2kV, 4kV surge protection safeguards internal electronics against line transients. Includes pre-wired 0-10V dimming leads.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
60W 0.50A 0.30A 0.26A 0.22A
45W (Default) 0.37A 0.23A 0.20A 0.17A
29W 0.24A 0.16A 0.14A 0.12A

Construction

Housing & Thermal: Precision die-cast aluminum body engineered with passive convection thermal management to draw heat away from the surface-mount LED array and driver.

Finish: Architectural bronze finish formulated for high durability, weather resistance, and long-lasting color retention.

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gasketing. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

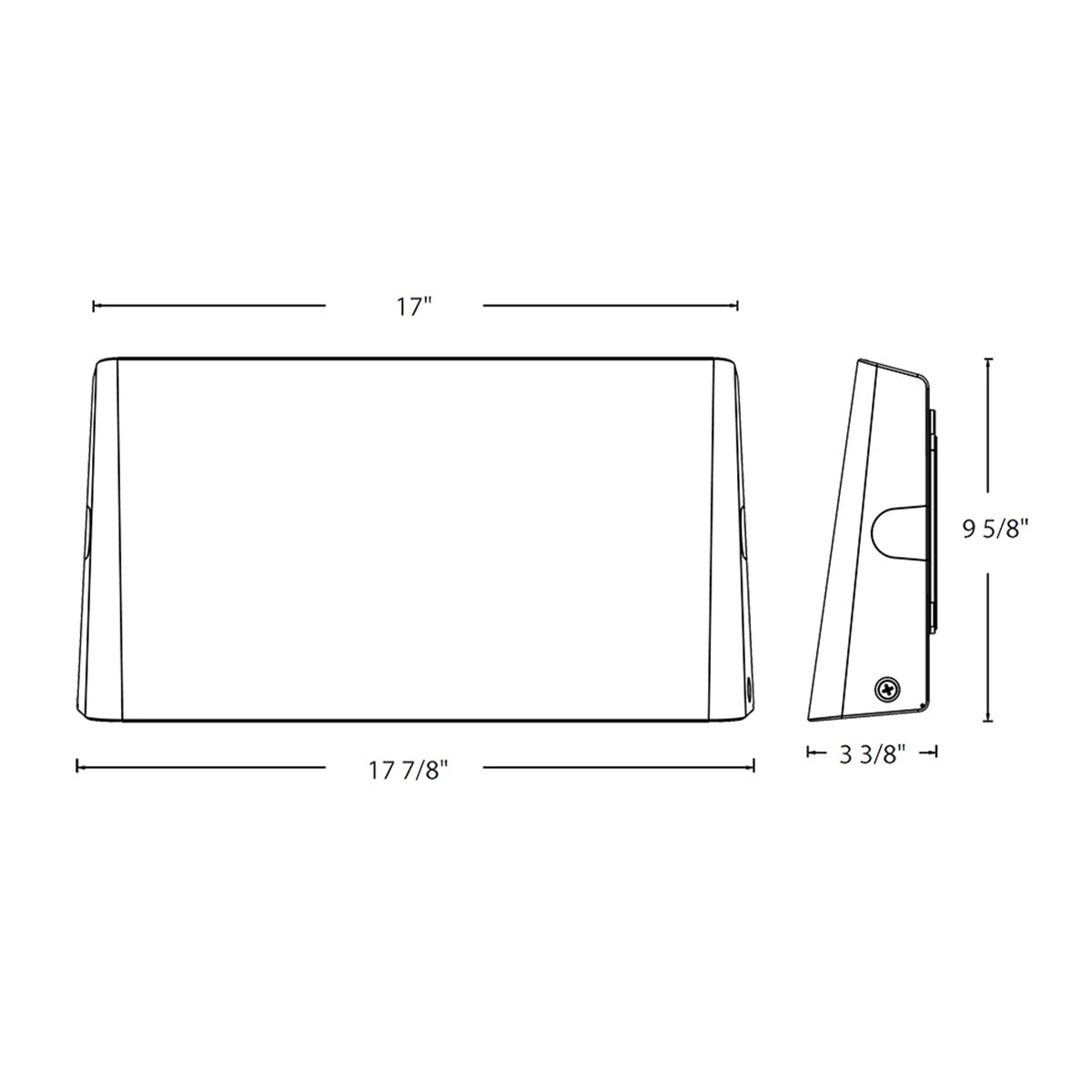

Dimensions & Weight: 17" top / 17 7/8" bottom W x 9 5/8" H x 3 3/8" D (17.00"-17.88" W x 9.63" H x 3.38" D). Fixture weight: 9.9 lbs.

Installation & Mounting

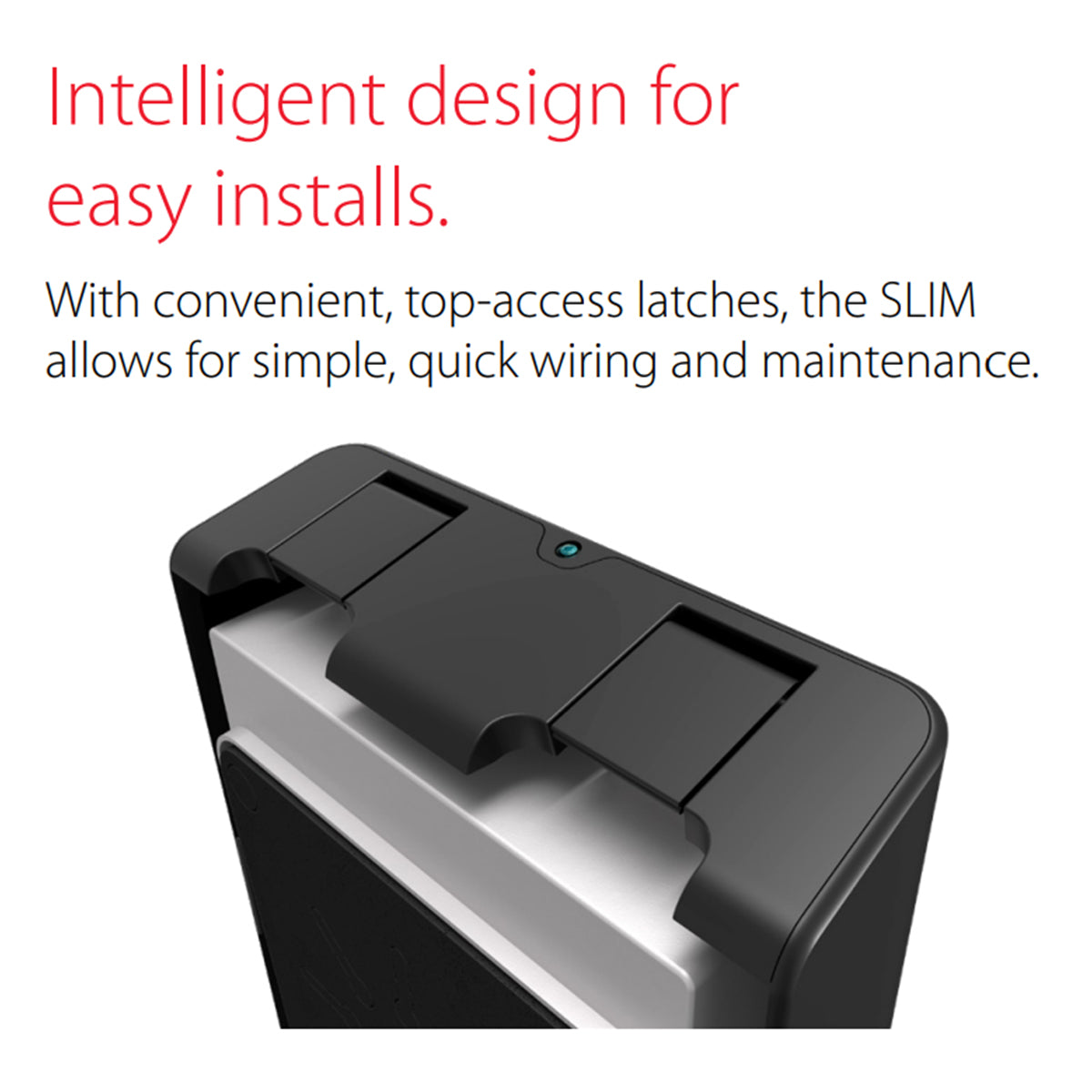

Mounting Hardware: Heavy-duty wall mounting bracket with a spring-hinged housing and integrated "kick stand" props the housing open during installation for rapid, hands-free wiring over recessed junction boxes or vertical wall surfaces while maintaining a slim 3 3/8" wall depth.

Conduit & Wiring Access: Includes 3 conduit entry points located on the back and both sides of the housing for surface conduit or concealed branch-circuit wiring.

Certifications & Rebates

  • DLC 5.1 Premium Listed: Qualifies for the highest tier of commercial utility rebates (searchable on designlights.org under DLC Product ID S-Y7PFBZ)
  • UL Listed: Certified for wet locations per UL outdoor luminaire standards
  • IP65 Rated: Ingress protection rating of IP65 for dust and water
  • Buy American Act (BAA) Option: Upon request, RAB can manufacture this product to be compliant with the Buy American Act (BAA) via custom factory quote
  • RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

  • Commercial Building Perimeters & Walkways - Field-selectable -20° to +20° forward throw tailors beam reach across narrow paths or wide sidewalks without tilting the cutoff housing
  • Retail, Office & Multifamily Entryways - Slim 3 3/8" depth and architectural bronze die-cast housing provide clean, glare-controlled doorway security lighting
  • Schools, Campuses & Municipal Facilities - DLC 5.1 Premium rebate eligibility, 100,000-hour L70 lifespan, and BAA quote availability support institutional specifications
  • Exterior Breezeways, Stairwells & Loading Aprons - IP65 silicone-gasketed tempered glass lens and -40°F to 104°F rating withstand harsh year-round weather
  • Automated Dusk-to-Dawn Perimeter Security - Integrated switchable photocell and 0-10V dimming to off streamline energy code compliance

What's Included

  • RAB SLIML Field-Adjustable Full Cutoff Wall Pack w/ Adjustable Throw - Bronze
  • Heavy-duty mounting bracket with spring-hinged housing and kick stand
  • Pre-installed integrated dusk-to-dawn photocell with on/off switch
  • Installation hardware and operation manual

Specifications

Dimensions

Length/Depth
17.88 in
Width/Diameter
3.38 in
Height
9.63 in
Weight
9.9 lb

Style & Materials

Material
Aluminum
Shape
Slim

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
8700
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
60W

Item Details

MPN
SLIML
Brand
RAB Lighting
Family
SLIM Field Adjustable Wall Pack with Adjustable Throw
UPC
192552038331

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How does the adjustable forward throw work on the RAB SLIML, and how does it mount?

The RAB SLIML features internal optics that adjust across -20°, -10°, 0° (factory default), 10°, and 20° forward throw angles without tilting the outer cutoff housing. Its 17 7/8" W x 9 5/8" H x 3 3/8" D (9.9 lbs) body mounts via a heavy-duty bracket with a spring-hinged kick-stand housing and 3 conduit entries.

What wattages, lumen outputs, and color temperatures can be selected on the RAB SLIML?

Onboard switches select 60W (up to 8,697 lumens), 45W (up to 6,802 lumens, factory default), or 29W (up to 4,650 lumens) at up to 160.3 lm/W. You can also adjust the color temperature between 3000K, 4000K (factory default), and 5000K with 80-83 CRI.

Can the built-in photocell on the RAB SLIML be switched off, and how does dimming work?

Yes, the integrated dusk-to-dawn photocell includes an internal on/off selector switch so you can bypass it for manual wall-switch or timer operation. Its Constant Current driver operates on 120-277V and includes 0-10V dimming leads that dim down to 10% and off.

How is the RAB SLIML protected against weather, moisture, and electrical surges?

The RAB SLIML combines a corrosion-resistant bronze die-cast aluminum housing with a non-yellowing tempered glass lens and continuous silicone gasket. It is IP65 sealed against dust and water, UL Listed for wet locations, protected by 2kV/4kV surge protection, and rated for -40°F (-40°C) to 104°F (40°C).

What are the rated lifespan, utility rebate status, and warranty coverage for the RAB SLIML?

This wall pack delivers a 100,000-hour L70 LED lifespan based on IES LM-80 and TM-21 testing and qualifies for DLC 5.1 Premium utility rebates. It is backed by RAB's 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish.
